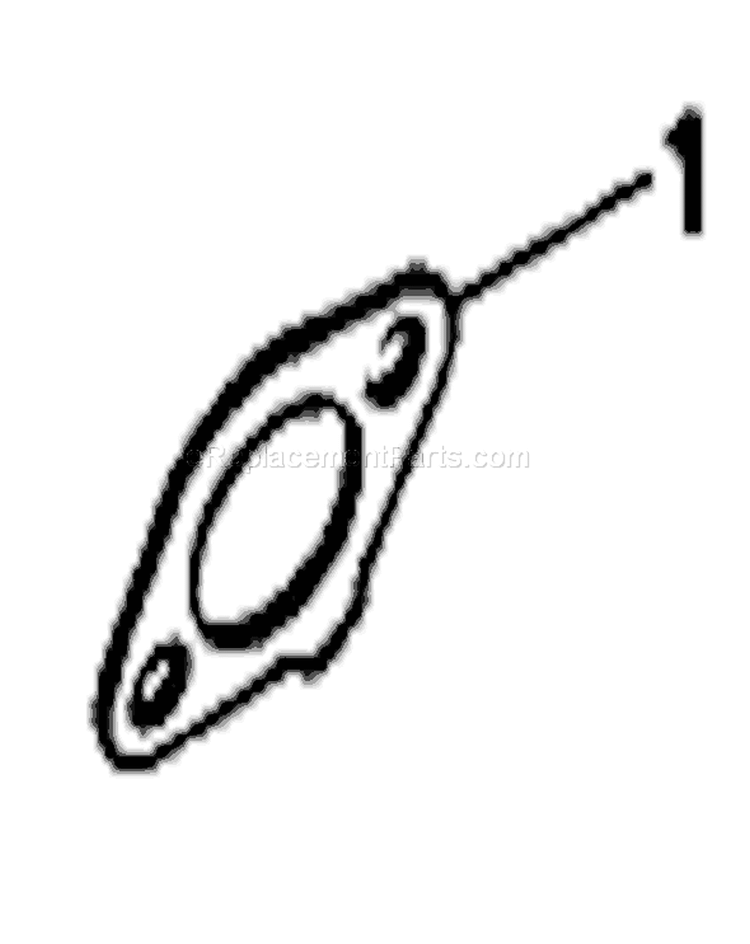

(1990)_WW_15.gif "Exhaust-Engine Kohler Diagram and Parts List for 0000001-0999999 - 1990 Toro Lawn Mower")
Our customer service team are at the ready daily to answer your part and product questions. We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.
Toro Lawn Mower Replacement Parts For Model 30117 (0000001-0999999 - 1990)
We Sell Only Genuine Toro Parts
Popular Parts for 30117
In Stock
$6.16
In Stock
$6.16
In Stock
$8.20
In Stock
Minimum Quantity of 2 required
$6.16
In Stock
Minimum Quantity of 2 required
$6.16
In Stock
Minimum Quantity of 2 required
$6.16
In Stock
$6.16
In Stock
$6.16
Search Within Model
Browse all Parts
Search by Area
(1990)_WW_1.gif "Air Intake-Engine Kohler Diagram and Parts List for 0000001-0999999 - 1990 Toro Lawn Mower")
(1990)_WW_2.gif "Axle Assembly Diagram and Parts List for 0000001-0999999 - 1990 Toro Lawn Mower")

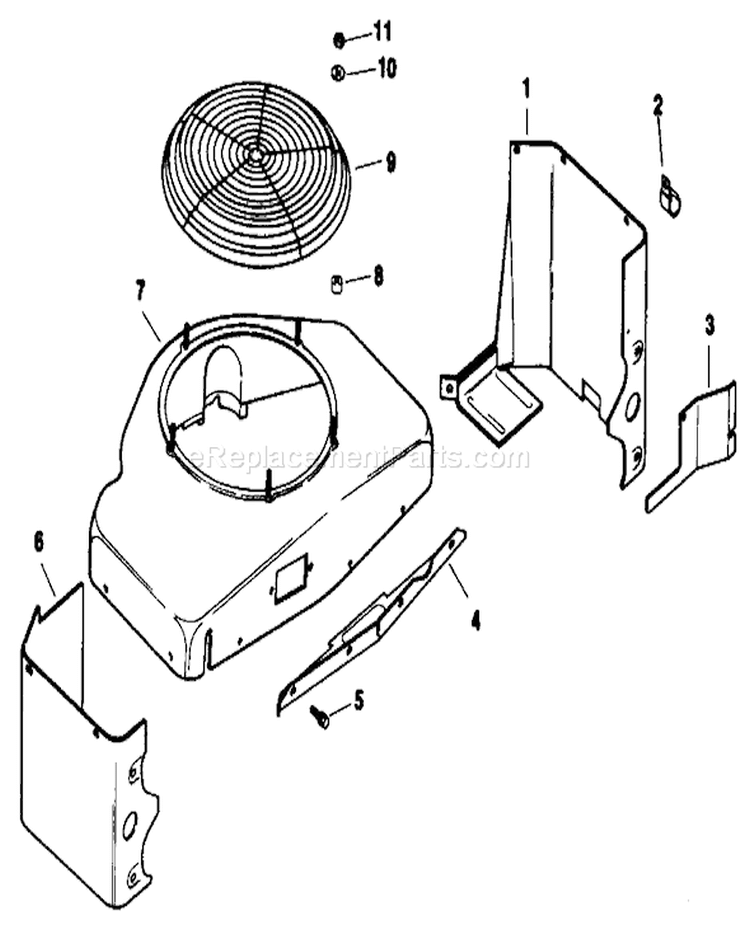

(1990)_WW_3.gif "Baffles and Shroud-Engine Kohler Diagram and Parts List for 0000001-0999999 - 1990 Toro Lawn Mower")
(1990)_WW_4.gif "Battery Assembly Diagram and Parts List for 0000001-0999999 - 1990 Toro Lawn Mower")

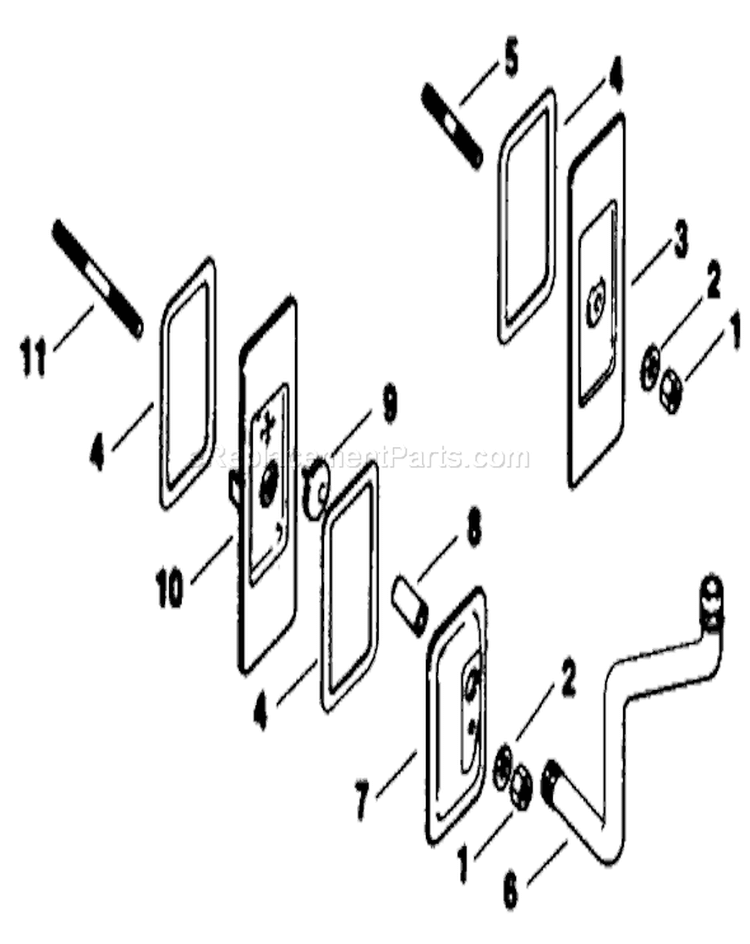

(1990)_WW_5.gif "Breather and Vent-Engine Kohler Diagram and Parts List for 0000001-0999999 - 1990 Toro Lawn Mower")
(1990)_WW_6.gif "Camshaft and Valves-Engine Kohler Diagram and Parts List for 0000001-0999999 - 1990 Toro Lawn Mower")
(1990)_WW_7.gif "Carburetor-Engine Kohler Diagram and Parts List for 0000001-0999999 - 1990 Toro Lawn Mower")
(1990)_WW_8.gif "Clutch Assembly Diagram and Parts List for 0000001-0999999 - 1990 Toro Lawn Mower")
(1990)_WW_9.gif "Crankcase-Engine Kohler Diagram and Parts List for 0000001-0999999 - 1990 Toro Lawn Mower")
(1990)_WW_11.gif "CylinderHead-Engine Kohler Diagram and Parts List for 0000001-0999999 - 1990 Toro Lawn Mower")

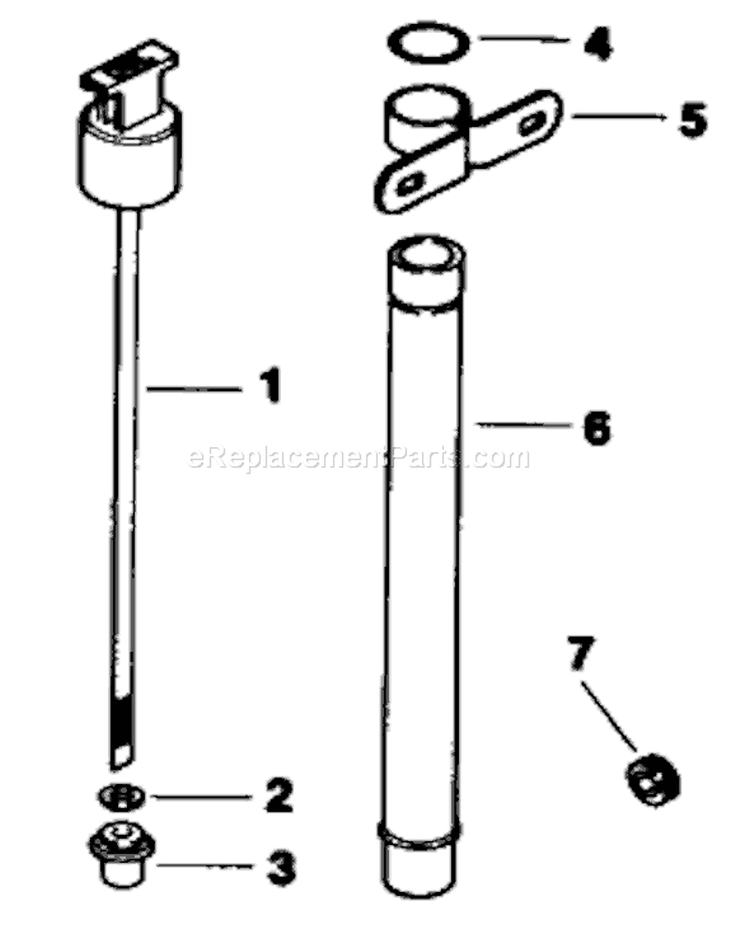

(1990)_WW_12.gif "Dipstick-Engine Kohler Diagram and Parts List for 0000001-0999999 - 1990 Toro Lawn Mower")
(1990)_WW_13.gif "Electric Start-Engine Kohler Diagram and Parts List for 0000001-0999999 - 1990 Toro Lawn Mower")
(1990)_WW_14.gif "Engine Assembly Diagram and Parts List for 0000001-0999999 - 1990 Toro Lawn Mower")
(1990)_WW_15.gif "Exhaust-Engine Kohler Diagram and Parts List for 0000001-0999999 - 1990 Toro Lawn Mower")
(1990)_WW_16.gif "Flywheel-Engine Kohler Diagram and Parts List for 0000001-0999999 - 1990 Toro Lawn Mower")
(1990)_WW_17.gif "Frame Assembly Diagram and Parts List for 0000001-0999999 - 1990 Toro Lawn Mower")
(1990)_WW_18.gif "Fuel Pump-Engine Kohler Diagram and Parts List for 0000001-0999999 - 1990 Toro Lawn Mower")
(1990)_WW_19.gif "Governor-Engine Kohler Diagram and Parts List for 0000001-0999999 - 1990 Toro Lawn Mower")
(1990)_WW_20.gif "Handle Assembly Diagram and Parts List for 0000001-0999999 - 1990 Toro Lawn Mower")
(1990)_WW_21.gif "Ignition-Engine Kohler Diagram and Parts List for 0000001-0999999 - 1990 Toro Lawn Mower")

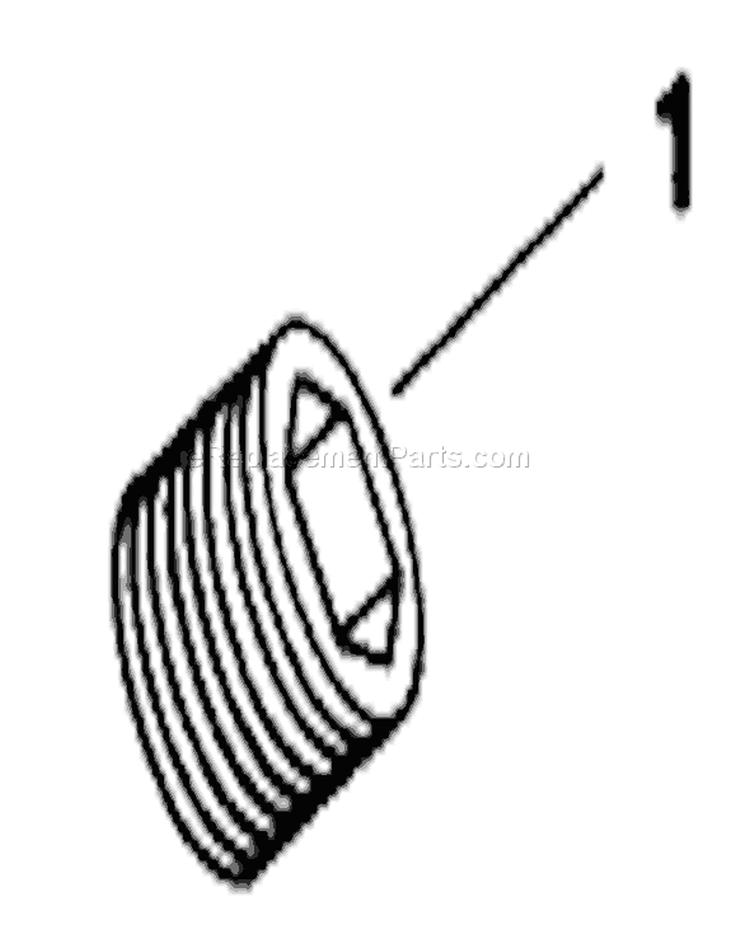

(1990)_WW_22.gif "Low Oil Pressure Switch-Engine Kohler Diagram and Parts List for 0000001-0999999 - 1990 Toro Lawn Mower")
(1990)_WW_23.gif "Oil Filter-Engine Kohler Diagram and Parts List for 0000001-0999999 - 1990 Toro Lawn Mower")
(1990)_WW_24.gif "Oil Pan-Engine Kohler Diagram and Parts List for 0000001-0999999 - 1990 Toro Lawn Mower")

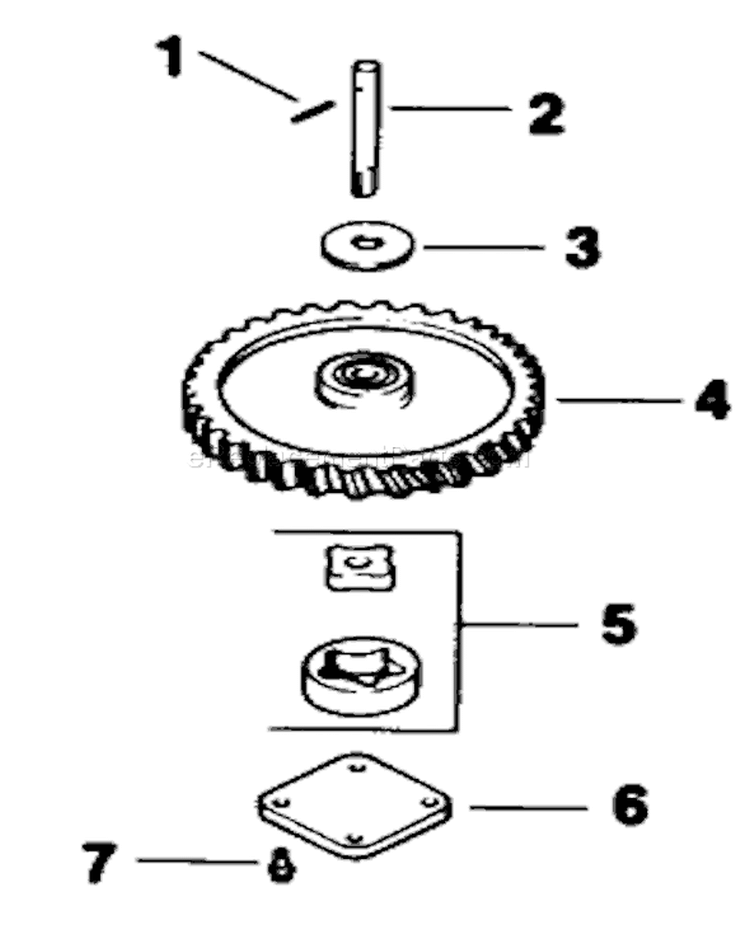

(1990)_WW_25.gif "Oil Pump-Engine Kohler Diagram and Parts List for 0000001-0999999 - 1990 Toro Lawn Mower")
(1990)_WW_10.gif "Page J Diagram and Parts List for 0000001-0999999 - 1990 Toro Lawn Mower")
(1990)_WW_26.gif "Peerless Transmission Diagram and Parts List for 0000001-0999999 - 1990 Toro Lawn Mower")
(1990)_WW_27.gif "Piston and Rod-Engine Kohler Diagram and Parts List for 0000001-0999999 - 1990 Toro Lawn Mower")
(1990)_WW_28.gif "Sulky Kit Diagram and Parts List for 0000001-0999999 - 1990 Toro Lawn Mower")
Previous
Showing All Parts
Next

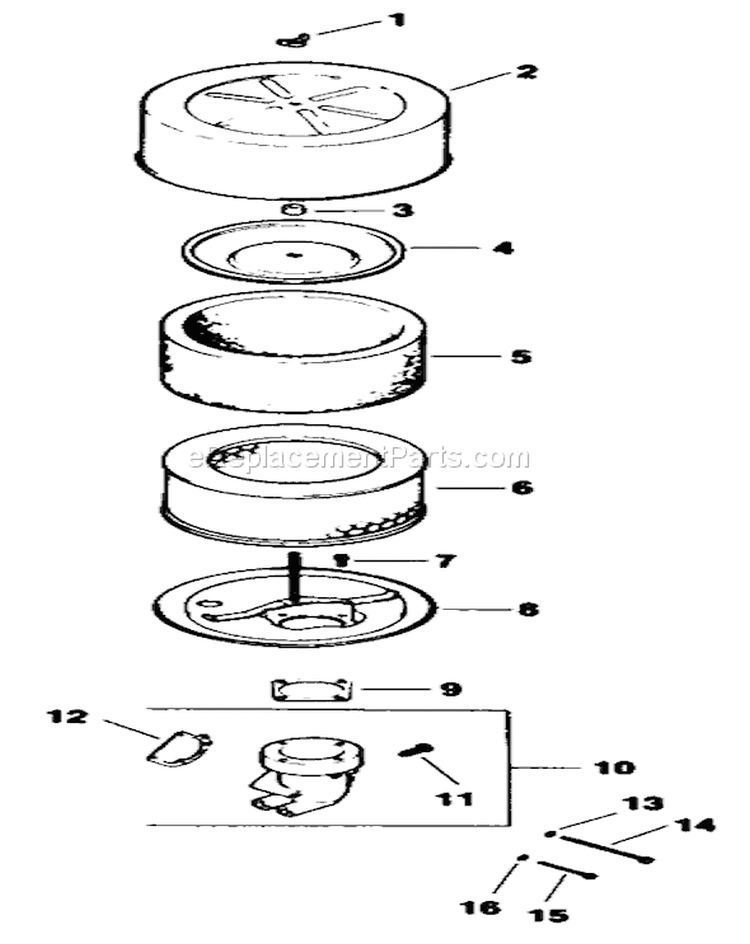

Air Intake-Engine Kohler
(1990)_WW_1.gif "Air Intake-Engine Kohler Diagram and Parts List for 0000001-0999999 - 1990 Toro Lawn Mower")
-
A-1
-
A-2
-
A-3
-
A-4
-
A-5
-
A-6
-
A-8
-
A-9
-
A-9
-
A-10
-
A-11
-
A-12
-
A-16
-
A-800

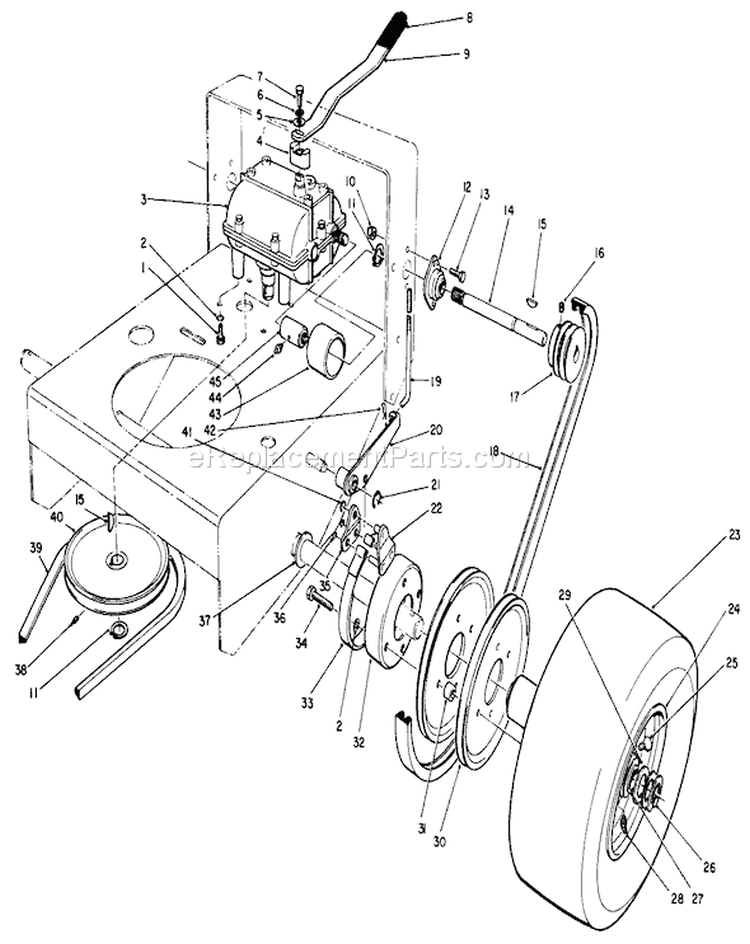

Axle Assembly
(1990)_WW_2.gif "Axle Assembly Diagram and Parts List for 0000001-0999999 - 1990 Toro Lawn Mower")
-
B-1
$6.16
-
B-2
$6.16
-
B-3
-
B-4
$40.59
-
B-5
$6.16
-
B-6
$6.16
-
B-7
$9.30
-
B-8
$21.73
-
B-9
-
B-10
$6.16
-
B-11
$6.16
-
B-12
$72.38
-
B-13
$6.16
-
B-14
$90.63
-
B-15
$7.98
-
B-16
$6.16
-
B-17
$67.29
-
B-18
$108.66
-
B-19
-
B-20
$157.44
-
B-21
$10.69
-
B-22
$25.30
-
B-23
$126.88
-
B-24
-
B-25
$12.22
-
B-26
$6.16
-
B-27
$39.05
-
B-28
$6.16
-
B-29
$6.16
-
B-30
$80.91
-
B-31
-
B-32
$93.86
-
B-33
$101.81
-
B-34
$6.16
-
B-35
$49.43
-
B-36
$6.16
-
B-37
-
B-38
$6.16
-
B-39
$58.26
-
B-40
$109.64
-
B-41
$8.68
-
B-42
$6.16
-
B-43
$26.40
-
B-44
$6.16
-
B-45
$90.63
-
B-800
$157.44
-
B-800
$80.91
Baffles and Shroud-Engine Kohler
(1990)_WW_3.gif "Baffles and Shroud-Engine Kohler Diagram and Parts List for 0000001-0999999 - 1990 Toro Lawn Mower")
-
C-1
-
C-2
-
C-3
-
C-4
-
C-5
-
C-6
-
C-7
-
C-8
-
C-9
-
C-10
-
C-11

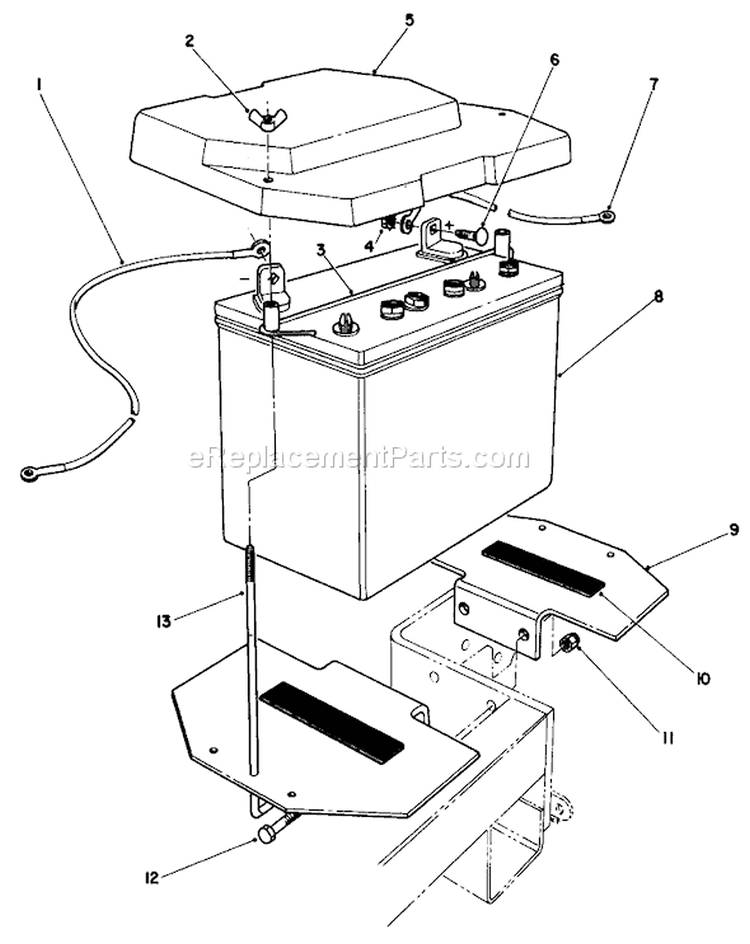

Battery Assembly
(1990)_WW_4.gif "Battery Assembly Diagram and Parts List for 0000001-0999999 - 1990 Toro Lawn Mower")
-
D-1
-
D-2
$6.16
-
D-3
-
D-4
$8.68
-
D-5
$220.59
-
D-6
$6.16
-
D-7
-
D-8
-
D-9
-
D-10
-
D-11
$6.16
-
D-12
$6.16
-
D-13
-
D-14
Breather and Vent-Engine Kohler
(1990)_WW_5.gif "Breather and Vent-Engine Kohler Diagram and Parts List for 0000001-0999999 - 1990 Toro Lawn Mower")
-
E-3
-
E-4
-
E-5
-
E-6
-
E-7
-
E-8
-
E-10
-
E-11

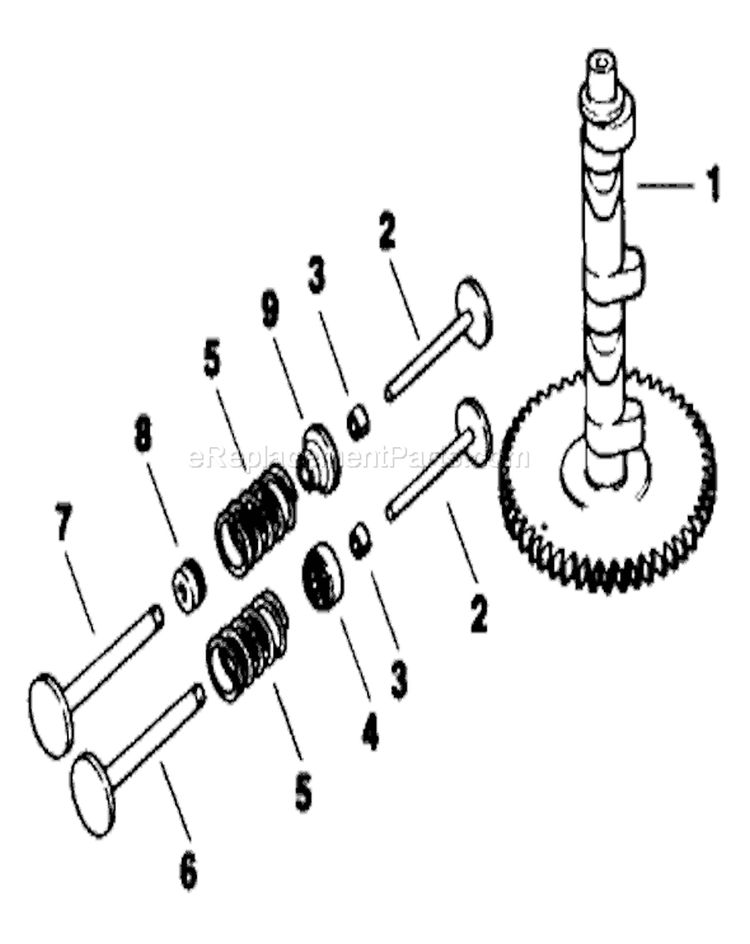

Camshaft and Valves-Engine Kohler
(1990)_WW_6.gif "Camshaft and Valves-Engine Kohler Diagram and Parts List for 0000001-0999999 - 1990 Toro Lawn Mower")
-
F-1
-
F-2
-
F-3
-
F-4
-
F-5
-
F-6
-
F-7
-
F-9
Carburetor-Engine Kohler
(1990)_WW_7.gif "Carburetor-Engine Kohler Diagram and Parts List for 0000001-0999999 - 1990 Toro Lawn Mower")
-
G-2
-
G-3
-
G-4
-
G-5
-
G-6
-
G-7
-
G-8
-
G-9
-
G-11
-
G-12
-
G-13
-
G-14
-
G-15
-
G-16
-
G-17
-
G-18
-
G-19
-
G-20
-
G-21
-
G-22
-
G-23
-
G-24
-
G-25
-
G-26
-
G-27
-
G-28
-
G-29
-
G-30
-
G-800
-
G-800
-
G-800
-
G-800

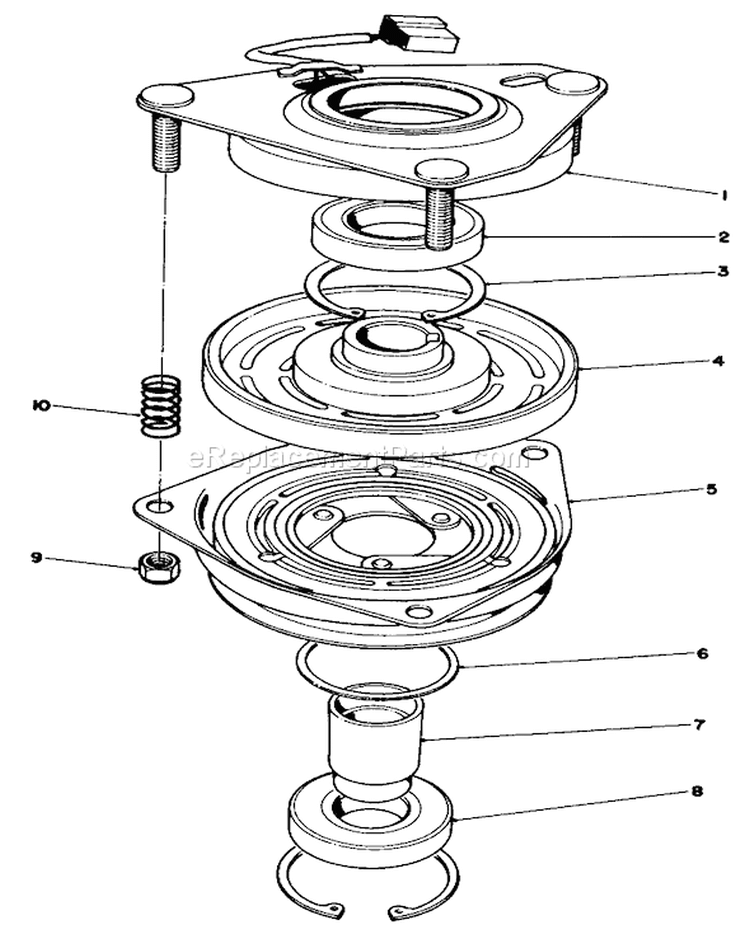

Clutch Assembly
(1990)_WW_8.gif "Clutch Assembly Diagram and Parts List for 0000001-0999999 - 1990 Toro Lawn Mower")
-
H-1
$471.72
-
H-2
$167.74
-
H-3
-
H-4
$767.26
-
H-5
$625.14
-
H-6
-
H-7
-
H-8
$38.62
-
H-9
$6.16
-
H-10
Crankcase-Engine Kohler
(1990)_WW_9.gif "Crankcase-Engine Kohler Diagram and Parts List for 0000001-0999999 - 1990 Toro Lawn Mower")
-
I-1
-
I-2
-
I-3
-
I-4
-
I-5
-
I-6
-
I-7
-
I-8
-
I-9
-
I-10
-
I-11
-
I-12
-
I-12
-
I-12
-
I-13
-
I-14
-
I-16
-
I-17
-
I-18
-
I-19
-
I-20
-
I-21

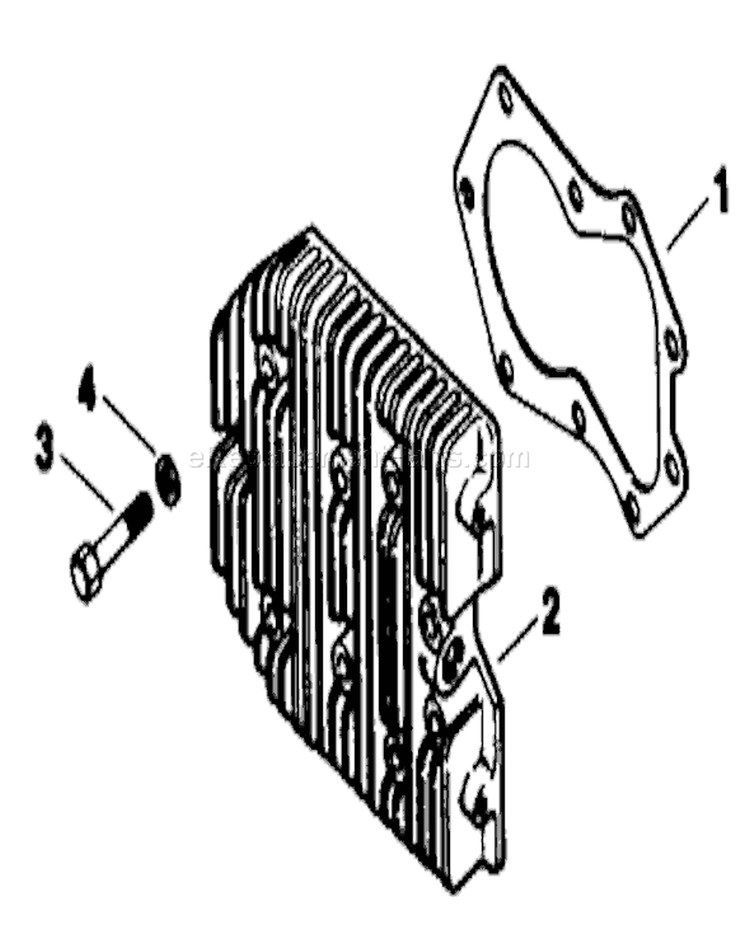

CylinderHead-Engine Kohler
(1990)_WW_11.gif "CylinderHead-Engine Kohler Diagram and Parts List for 0000001-0999999 - 1990 Toro Lawn Mower")
-
K-1
-
K-2
-
K-3
-
K-4
Dipstick-Engine Kohler
(1990)_WW_12.gif "Dipstick-Engine Kohler Diagram and Parts List for 0000001-0999999 - 1990 Toro Lawn Mower")
-
L-1
-
L-3
-
L-4
-
L-5
-
L-6
-
L-7
Electric Start-Engine Kohler
(1990)_WW_13.gif "Electric Start-Engine Kohler Diagram and Parts List for 0000001-0999999 - 1990 Toro Lawn Mower")
-
M-1
-
M-2
-
M-4
-
M-5
-
M-6
-
M-7
-
M-8
-
M-9
-
M-10
-
M-800
Engine Assembly
(1990)_WW_14.gif "Engine Assembly Diagram and Parts List for 0000001-0999999 - 1990 Toro Lawn Mower")
-
N-1
$6.16
-
N-4
$6.16
-
N-5
$8.68
-
N-6
$6.16
-
N-7
$6.16
-
N-8
$6.16
-
N-9
-
N-10
-
N-11
-
N-12
$6.16
-
N-13
$6.16
-
N-14
$6.16
-
N-15
$36.88
-
N-16
$6.16
-
N-17
-
N-18
$625.14
-
N-19
$61.07
-
N-20
$33.01
-
N-21
$13.86
-
N-22
$33.01
-
N-23
$33.01
-
N-24
$6.16
-
N-25
-
N-26
-
N-28
-
N-29
-
N-800
$85.78

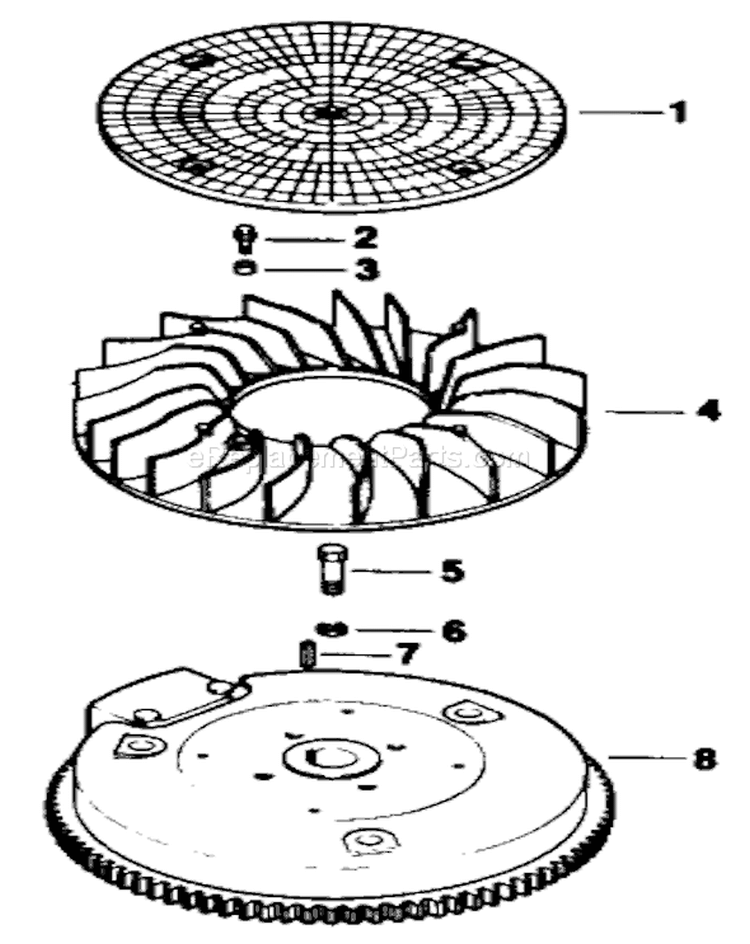

Flywheel-Engine Kohler
(1990)_WW_16.gif "Flywheel-Engine Kohler Diagram and Parts List for 0000001-0999999 - 1990 Toro Lawn Mower")
-
P-1
-
P-2
-
P-3
-
P-4
-
P-5
-
P-6
-
P-7
-
P-8

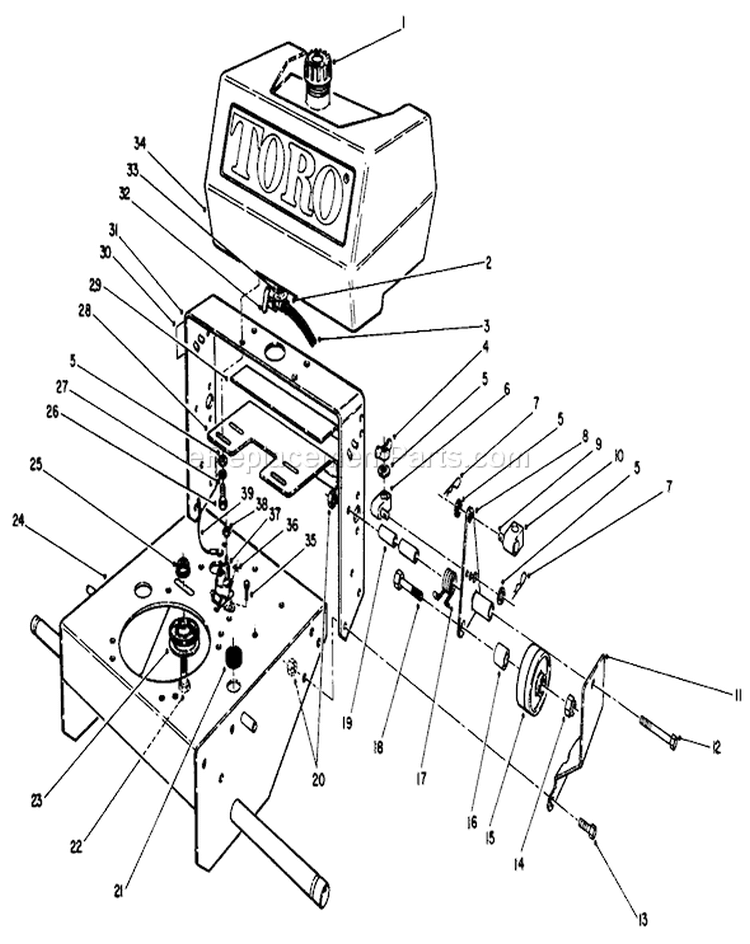

Frame Assembly
(1990)_WW_17.gif "Frame Assembly Diagram and Parts List for 0000001-0999999 - 1990 Toro Lawn Mower")
-
Q-1
$27.16
-
Q-2
$6.16
-
Q-3
$15.73
-
Q-4
$7.44
-
Q-5
$6.16
-
Q-6
-
Q-7
$6.16
-
Q-8
-
Q-9
$6.16
-
Q-10
$21.73
-
Q-11
$148.70
-
Q-12
$6.16
-
Q-13
$6.16
-
Q-14
$6.16
-
Q-15
$84.15
-
Q-16
-
Q-17
$24.84
-
Q-18
$18.63
-
Q-19
$7.27
-
Q-20
$6.16
-
Q-21
$6.16
-
Q-22
$6.16
-
Q-23
$63.56
-
Q-24
$1239.00
-
Q-25
$6.16
-
Q-26
$6.16
-
Q-27
$6.16
-
Q-28
-
Q-29
-
Q-30
-
Q-31
-
Q-32
$56.49
-
Q-33
$13.70
-
Q-34
$566.07
-
Q-35
$6.16
-
Q-36
$6.16
-
Q-37
$120.61
-
Q-38
$6.16
-
Q-39
$35.30
-
Q-800
$148.70
-
Q-800
-
Q-800
$24.84
Fuel Pump-Engine Kohler
(1990)_WW_18.gif "Fuel Pump-Engine Kohler Diagram and Parts List for 0000001-0999999 - 1990 Toro Lawn Mower")
-
R-1
-
R-2
-
R-3
-
R-4
-
R-5
-
R-6
-
R-7
-
R-8
-
R-9
-
R-10
Governor-Engine Kohler
(1990)_WW_19.gif "Governor-Engine Kohler Diagram and Parts List for 0000001-0999999 - 1990 Toro Lawn Mower")
-
S-1
-
S-3
-
S-4
-
S-6
-
S-7
-
S-8
-
S-9
-
S-10
-
S-11
-
S-12
-
S-14
-
S-15
-
S-17
-
S-18
-
S-19
-
S-20
-
S-21
-
S-22
-
S-23
-
S-24
-
S-25
-
S-26
-
S-27
-
S-28

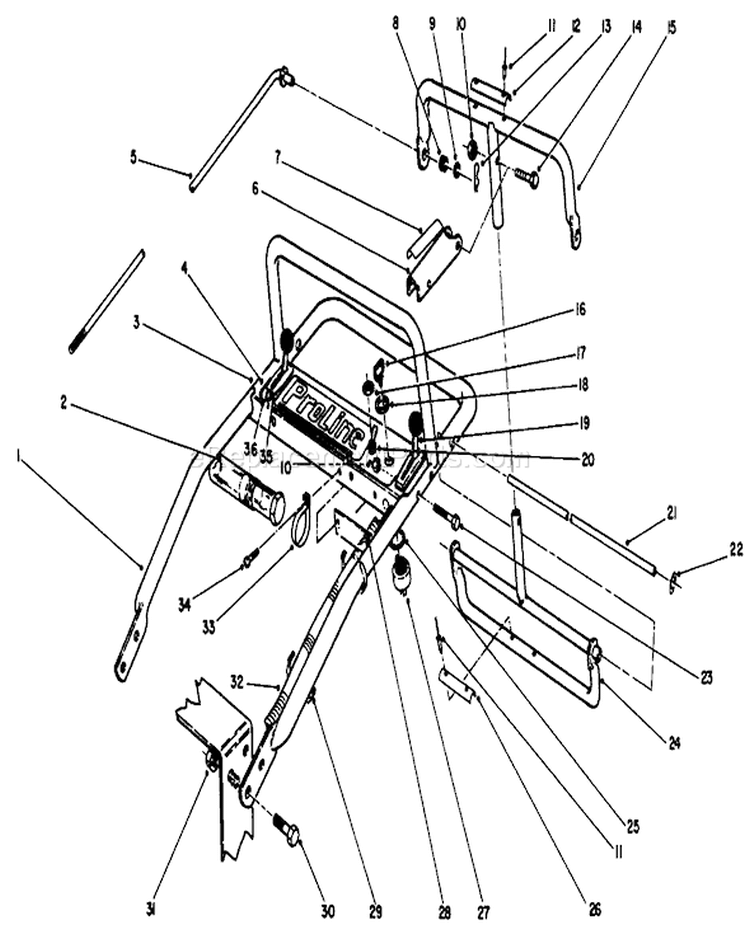

Handle Assembly
(1990)_WW_20.gif "Handle Assembly Diagram and Parts List for 0000001-0999999 - 1990 Toro Lawn Mower")
-
T-1
-
T-2
$32.48
-
T-3
-
T-4
$342.69
-
T-5
-
T-6
$48.02
-
T-7
$7.75
-
T-8
$6.16
-
T-9
$6.16
-
T-10
$6.16
-
T-11
$6.16
-
T-12
-
T-13
$6.16
-
T-14
$6.20
-
T-15
-
T-16
$8.20
-
T-17
$6.16
-
T-18
$6.16
-
T-19
-
T-20
-
T-21
$72.38
-
T-22
$6.16
-
T-23
$6.20
-
T-24
-
T-25
$6.16
-
T-26
-
T-27
$31.06
-
T-28
-
T-29
$6.16
-
T-30
$6.16
-
T-31
$6.16
-
T-32
-
T-33
$10.07
-
T-34
$6.16
-
T-35
$164.80
-
T-36
$37.07

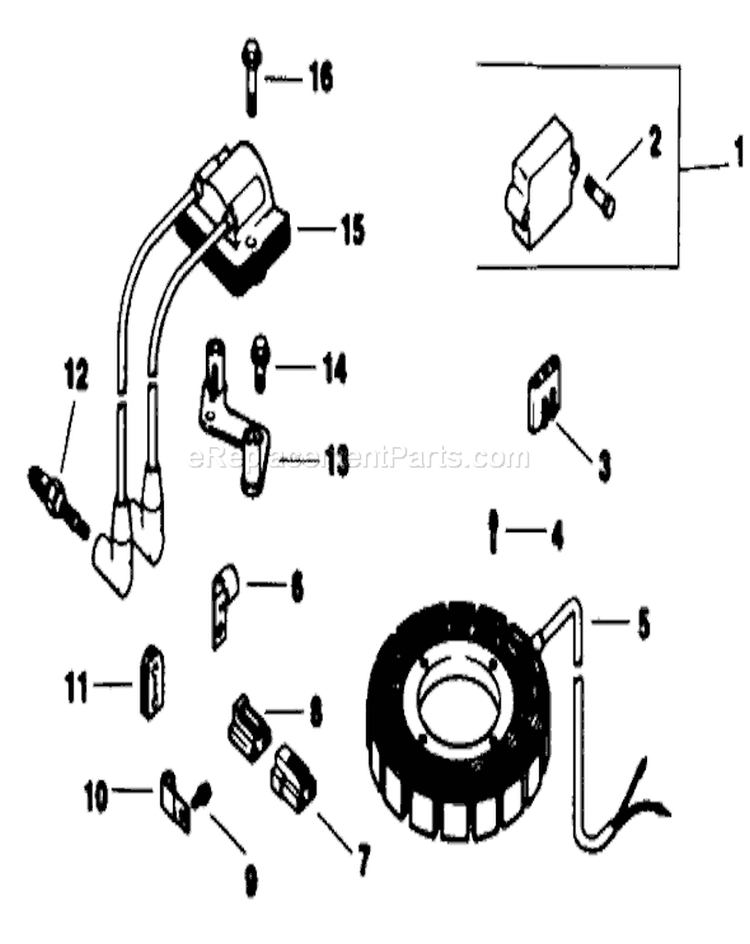

Ignition-Engine Kohler
(1990)_WW_21.gif "Ignition-Engine Kohler Diagram and Parts List for 0000001-0999999 - 1990 Toro Lawn Mower")
-
U-1
-
U-2
-
U-3
-
U-4
-
U-5
-
U-6
-
U-7
-
U-8
-
U-9
-
U-10
-
U-11
-
U-12
-
U-13
-
U-14
-
U-15
-
U-16
-
U-800
-
U-800
Low Oil Pressure Switch-Engine Kohler
(1990)_WW_22.gif "Low Oil Pressure Switch-Engine Kohler Diagram and Parts List for 0000001-0999999 - 1990 Toro Lawn Mower")
-
V-800
-
V-800
Oil Filter-Engine Kohler
(1990)_WW_23.gif "Oil Filter-Engine Kohler Diagram and Parts List for 0000001-0999999 - 1990 Toro Lawn Mower")
-
W-1
-
W-2
-
W-3
Oil Pan-Engine Kohler
(1990)_WW_24.gif "Oil Pan-Engine Kohler Diagram and Parts List for 0000001-0999999 - 1990 Toro Lawn Mower")
-
X-2
-
X-3
-
X-4
-
X-5
-
X-6
-
X-7
Oil Pump-Engine Kohler
(1990)_WW_25.gif "Oil Pump-Engine Kohler Diagram and Parts List for 0000001-0999999 - 1990 Toro Lawn Mower")
-
Y-1
-
Y-2
-
Y-3
-
Y-4
-
Y-5
-
Y-6

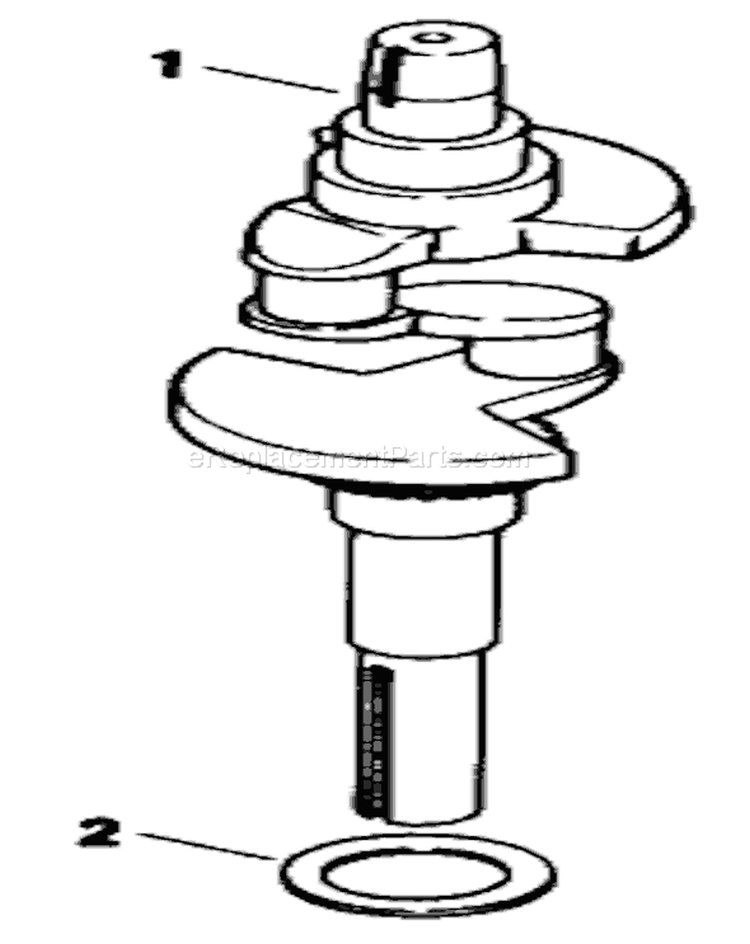

Page J
(1990)_WW_10.gif "Page J Diagram and Parts List for 0000001-0999999 - 1990 Toro Lawn Mower")
-
J-1
-
J-2
-
J-2
-
J-2

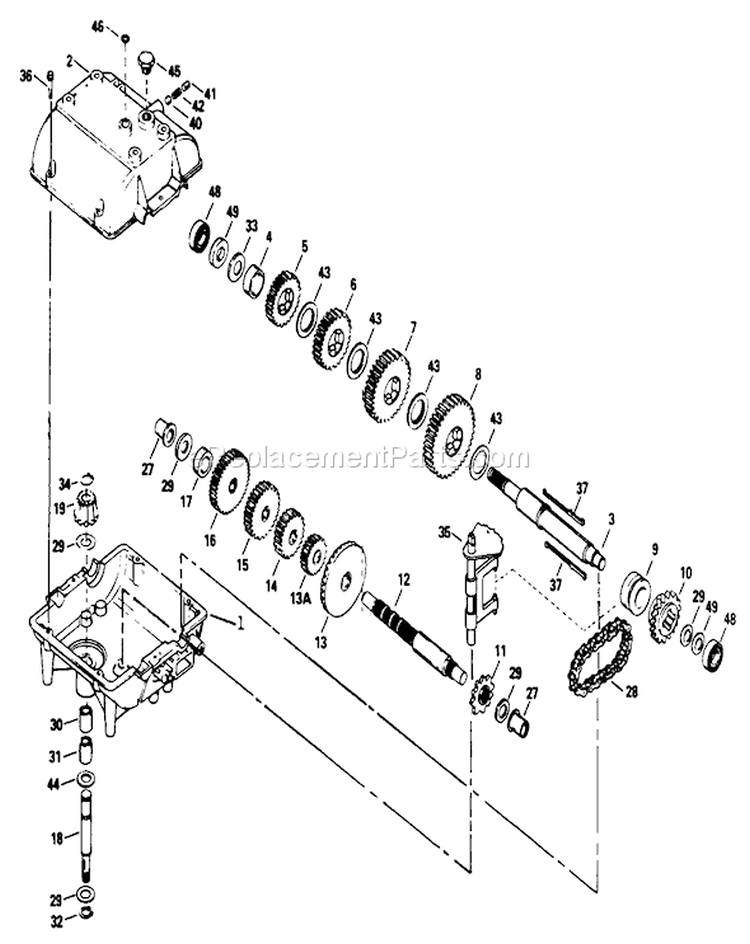

Peerless Transmission
(1990)_WW_26.gif "Peerless Transmission Diagram and Parts List for 0000001-0999999 - 1990 Toro Lawn Mower")
-
Z-1
$50.44
-
Z-2
$39.11
-
Z-3
$157.59
-
Z-4
$6.16
-
Z-5
$63.55
-
Z-6
$52.79
-
Z-7
-
Z-8
$45.58
-
Z-9
$14.15
-
Z-10
$25.17
-
Z-11
-
Z-12
$95.60
-
Z-13
$117.63
-
Z-13a
$29.17
-
Z-14
$64.32
-
Z-15
$68.57
-
Z-16
$58.66
-
Z-17
$6.16
-
Z-18
$43.63
-
Z-19
$41.51
-
Z-27
$15.94
-
Z-28
-
Z-29
-
Z-30
$19.97
-
Z-31
-
Z-32
-
Z-33
$6.16
-
Z-34
-
Z-35
$83.66
-
Z-36
$84.11
-
Z-37
$18.67
-
Z-40
$6.16
-
Z-41
$6.16
-
Z-42
-
Z-43
-
Z-44
-
Z-45
$29.38
-
Z-46
$6.16
-
Z-48
$58.98
-
Z-49
$6.16

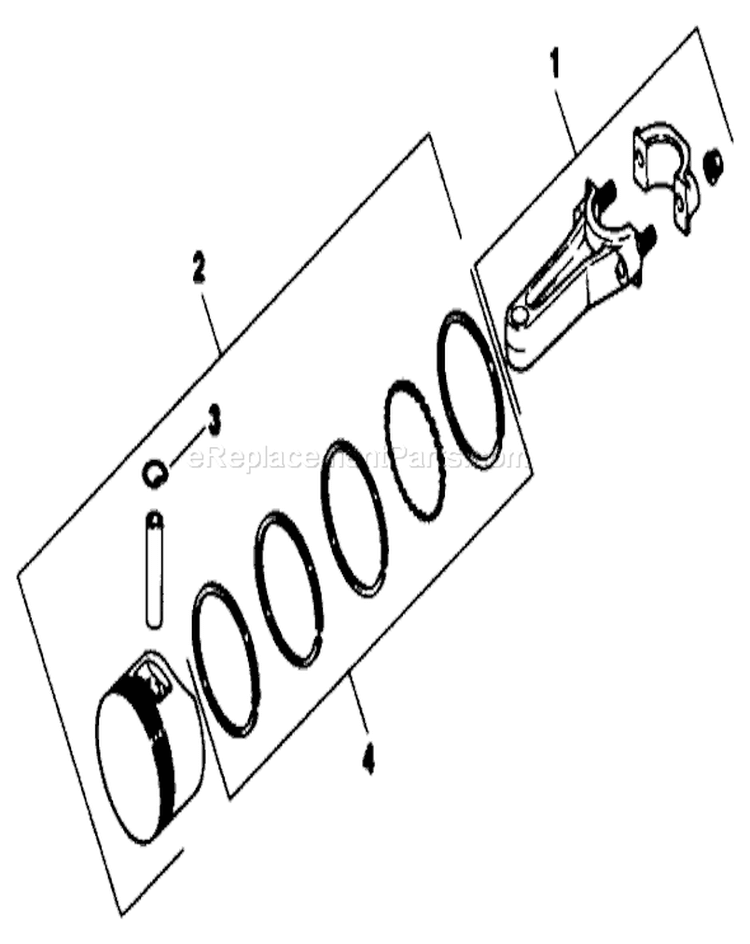

Piston and Rod-Engine Kohler
(1990)_WW_27.gif "Piston and Rod-Engine Kohler Diagram and Parts List for 0000001-0999999 - 1990 Toro Lawn Mower")
-
AA-1
-
AA-2
-
AA-3
-
AA-4
-
AA-800
-
AA-800
-
AA-800
-
AA-800
-
AA-800
-
AA-800
-
AA-800
-
AA-800

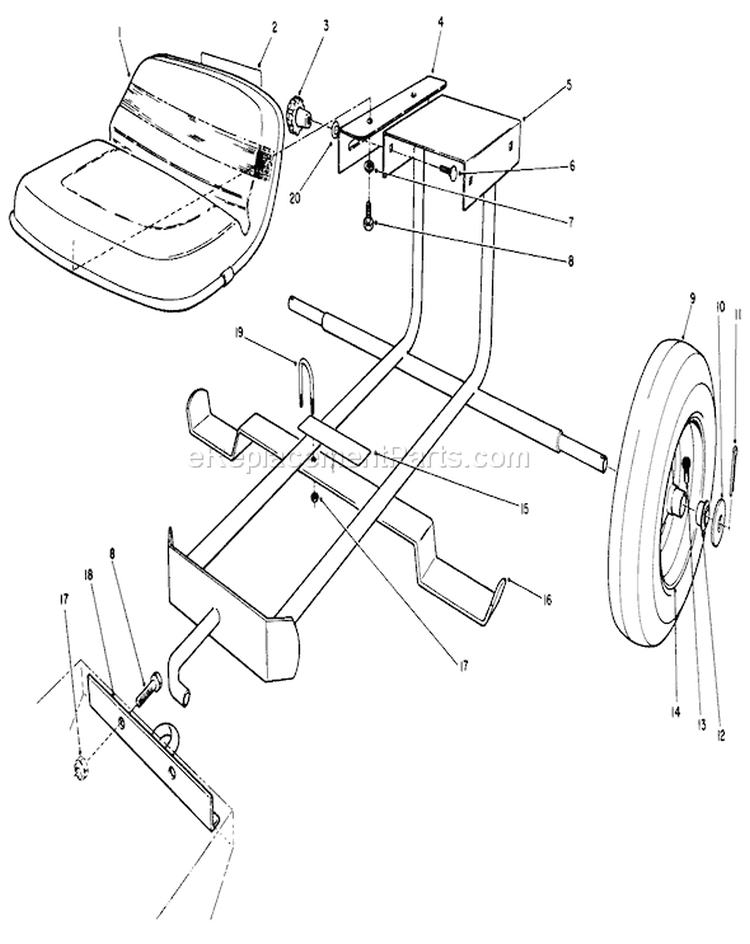

Sulky Kit
(1990)_WW_28.gif "Sulky Kit Diagram and Parts List for 0000001-0999999 - 1990 Toro Lawn Mower")
-
AB-1
-
AB-2
$34.65
-
AB-3
$24.84
-
AB-4
-
AB-5
-
AB-6
$6.16
-
AB-7
$6.16
-
AB-8
$6.16
-
AB-9
$183.94
-
AB-10
$6.16
-
AB-11
$6.16
-
AB-12
-
AB-13
$17.47
-
AB-14
-
AB-15
-
AB-16
-
AB-17
$6.16
-
AB-18
$249.73
-
AB-19
$23.72
-
AB-20
$6.16
✖
