60 Inch Deck Assembly Diagram and Parts List for 415000000 - 999999999 Toro Lawn Mower
60 Inch Deck Assembly
Control Handle Assembly No. 132-5157 Diagram and Parts List for 415000000 - 999999999 Toro Lawn Mower
Control Handle Assembly No. 132-5157
Control Handle Assembly No. 132-5158 Diagram and Parts List for 415000000 - 999999999 Toro Lawn Mower
Control Handle Assembly No. 132-5158
Deck Decal Assembly No. 139-8101 Diagram and Parts List for 415000000 - 999999999 Toro Lawn Mower
Deck Decal Assembly No. 139-8101
Deck Lift Assembly Diagram and Parts List for 415000000 - 999999999 Toro Lawn Mower
Deck Lift Assembly
Deflector Assembly No. 120-2451 Diagram and Parts List for 415000000 - 999999999 Toro Lawn Mower
Deflector Assembly No. 120-2451

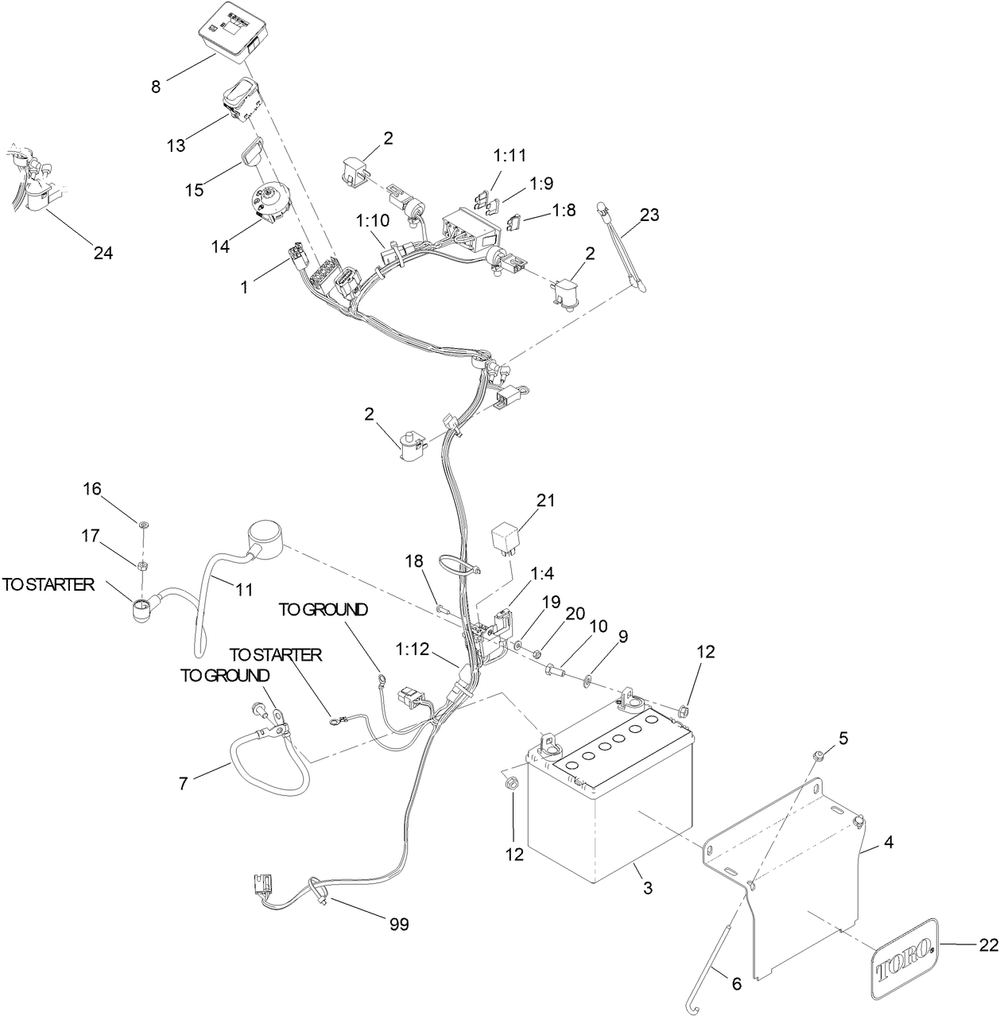

Electrical Assembly Diagram and Parts List for 415000000 - 999999999 Toro Lawn Mower
Electrical Assembly
Engine Assembly Diagram and Parts List for 415000000 - 999999999 Toro Lawn Mower
Engine Assembly

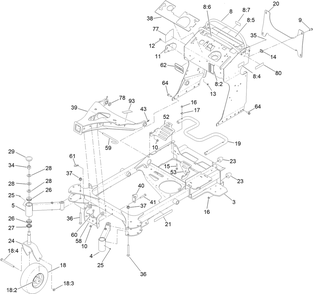

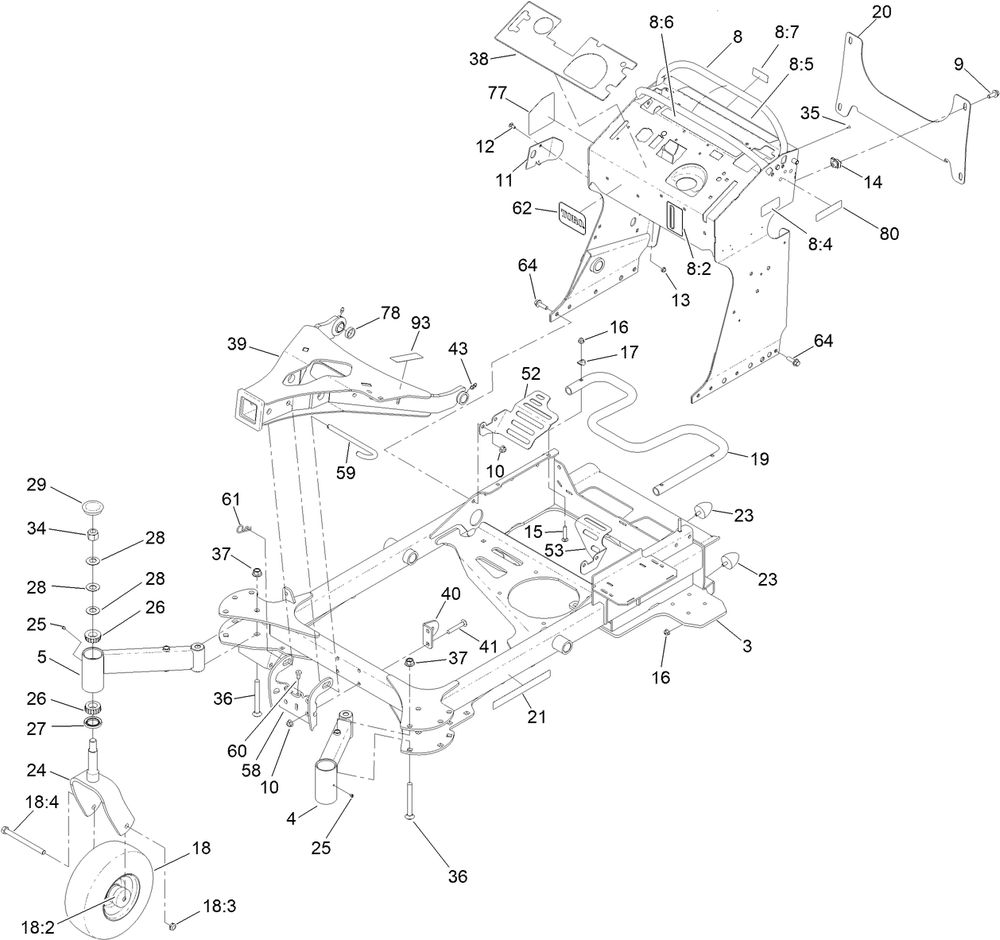

Frame Assembly Diagram and Parts List for 415000000 - 999999999 Toro Lawn Mower
Frame Assembly
Fuel Tank Assembly Diagram and Parts List for 415000000 - 999999999 Toro Lawn Mower
Fuel Tank Assembly

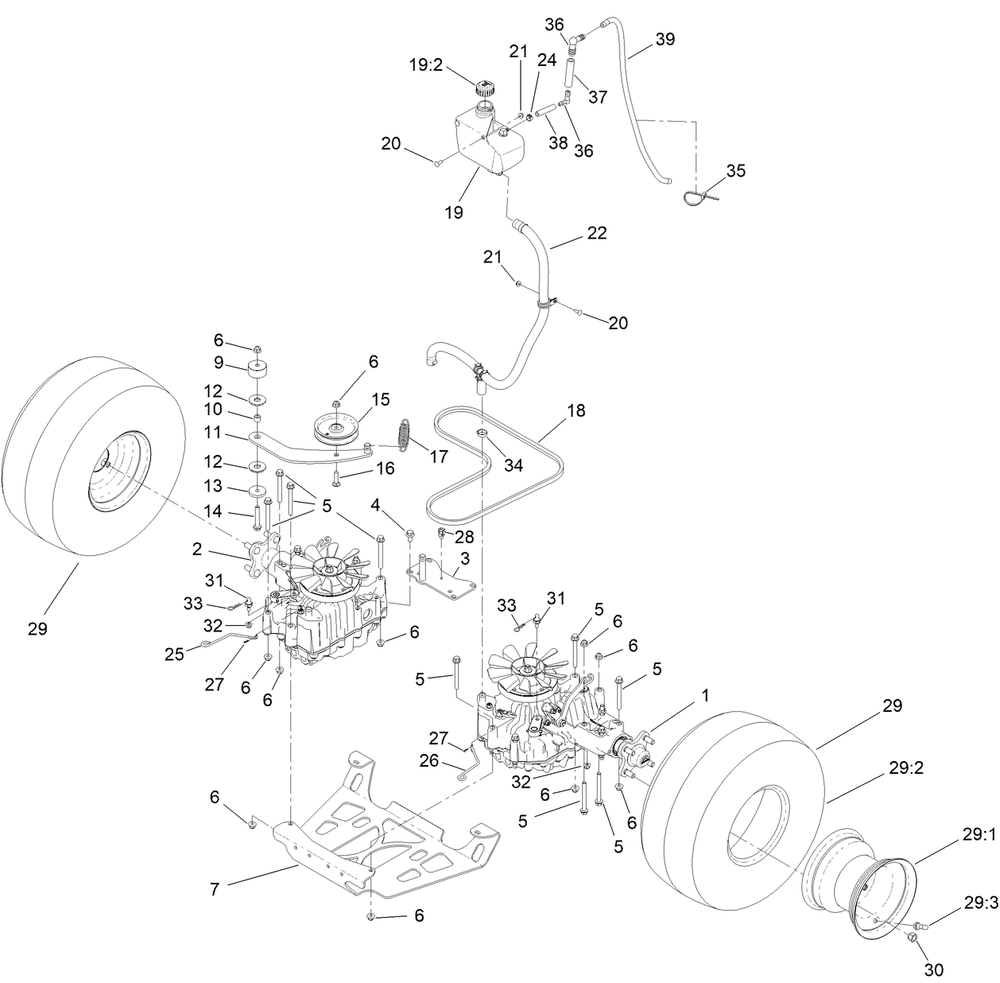

Ground Drive Assembly Diagram and Parts List for 415000000 - 999999999 Toro Lawn Mower
Ground Drive Assembly
Hoc Level Assembly No. 130-1755 Diagram and Parts List for 415000000 - 999999999 Toro Lawn Mower
Hoc Level Assembly No. 130-1755
Hoc Link Assembly No. 130-6615 Diagram and Parts List for 415000000 - 999999999 Toro Lawn Mower
Hoc Link Assembly No. 130-6615

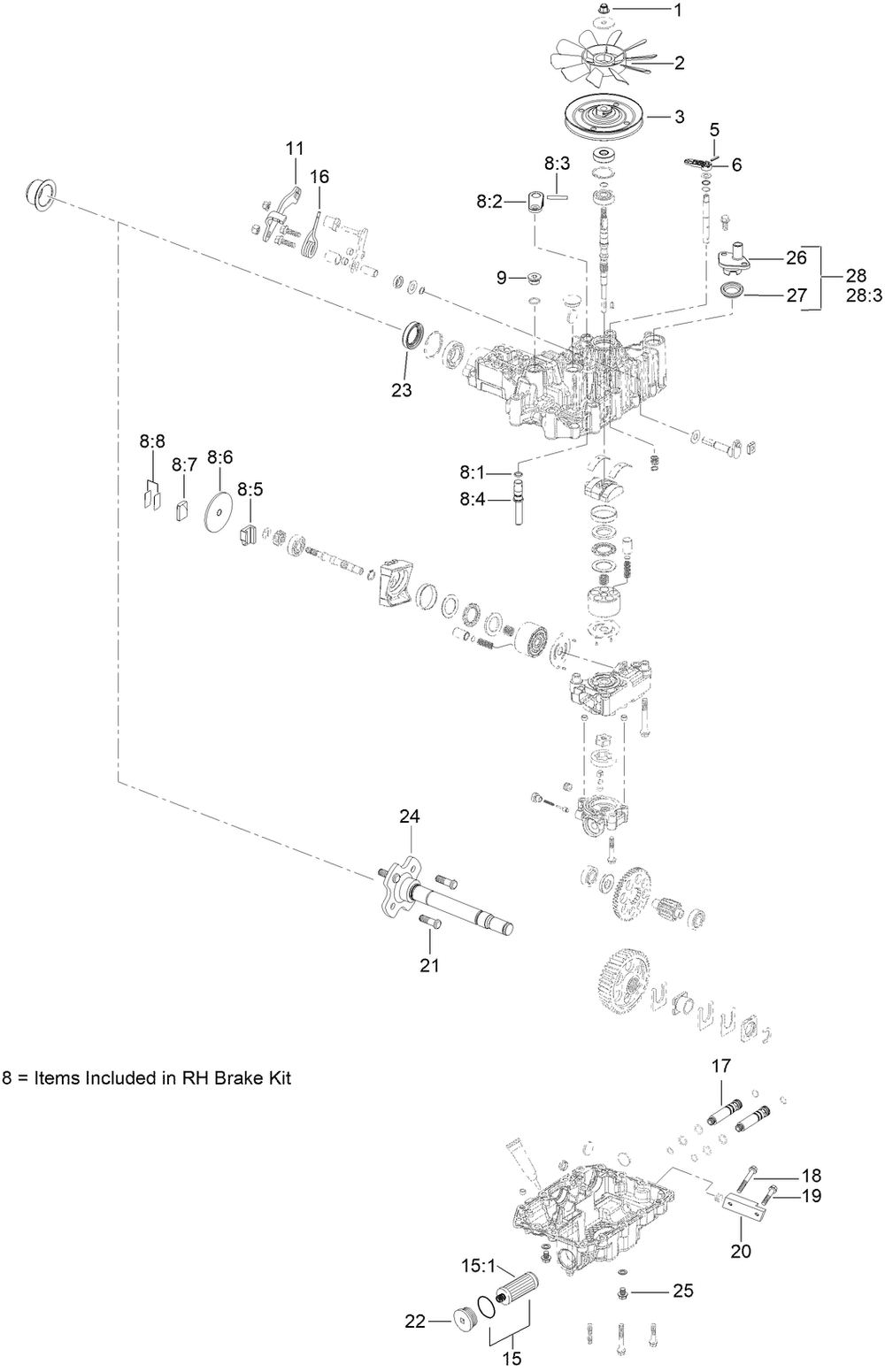

Lh Transmission Assembly No. 138-5840 Diagram and Parts List for 415000000 - 999999999 Toro Lawn Mower
Lh Transmission Assembly No. 138-5840

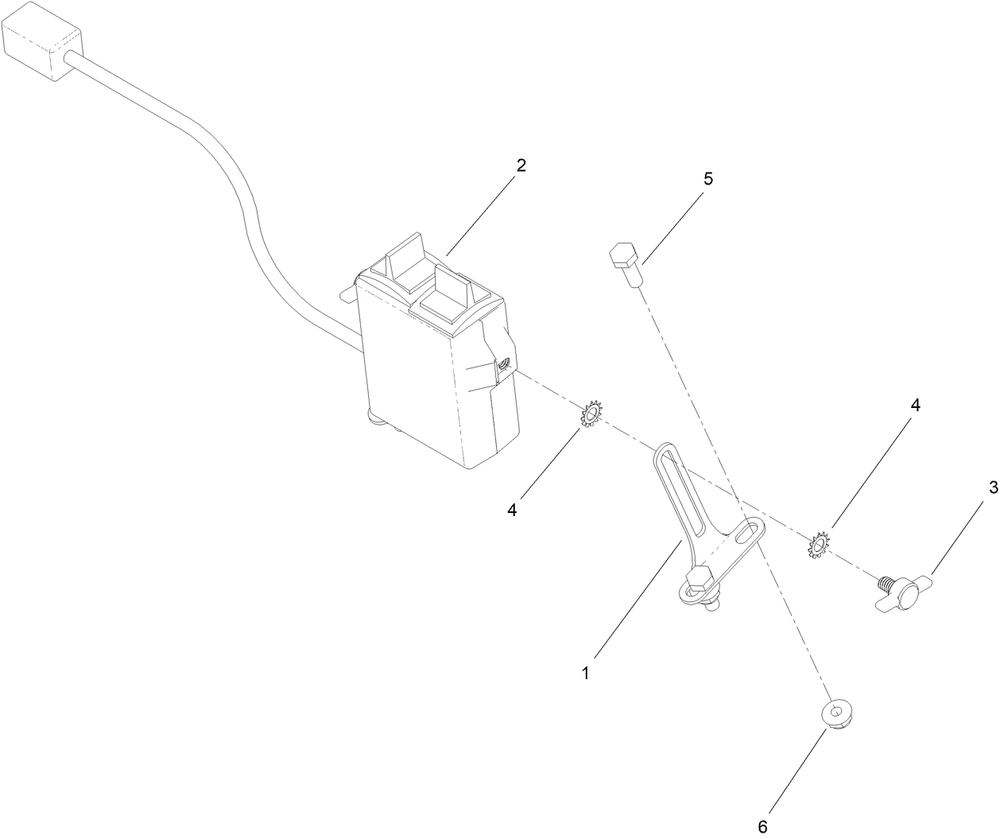

Low Flow Controller Kit Assembly Diagram and Parts List for 415000000 - 999999999 Toro Lawn Mower
Low Flow Controller Kit Assembly
Low Flow Hydraulics Assembly Diagram and Parts List for 415000000 - 999999999 Toro Lawn Mower
Low Flow Hydraulics Assembly
Low Flow Manifold Assembly Diagram and Parts List for 415000000 - 999999999 Toro Lawn Mower
Low Flow Manifold Assembly
Parking Brake Assembly Diagram and Parts List for 415000000 - 999999999 Toro Lawn Mower
Parking Brake Assembly
Platform Assembly Diagram and Parts List for 415000000 - 999999999 Toro Lawn Mower
Platform Assembly

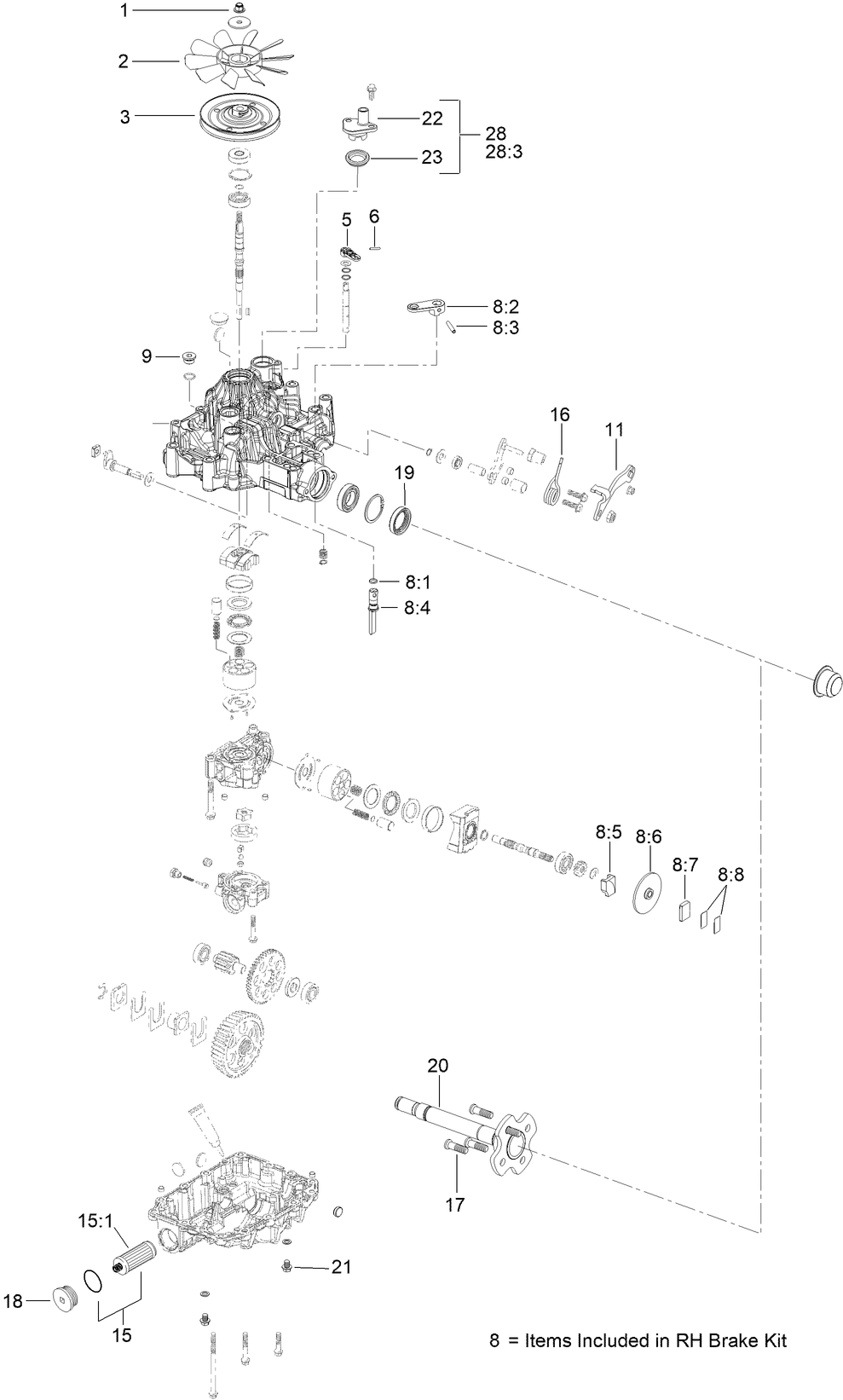

Rh Transmission Assembly No. 138-5839 Diagram and Parts List for 415000000 - 999999999 Toro Lawn Mower
Rh Transmission Assembly No. 138-5839
Spindle Assembly No. 137-9780 Diagram and Parts List for 415000000 - 999999999 Toro Lawn Mower
Spindle Assembly No. 137-9780
Wheel And Bearing Assembly Diagram and Parts List for 415000000 - 999999999 Toro Lawn Mower
Wheel And Bearing Assembly
Previous Showing All Parts Next
60 Inch Deck Assembly
60 Inch Deck Assembly Diagram and Parts List for 415000000 - 999999999 Toro Lawn Mower
Control Handle Assembly No. 132-5157
Control Handle Assembly No. 132-5157 Diagram and Parts List for 415000000 - 999999999 Toro Lawn Mower
Control Handle Assembly No. 132-5158
Control Handle Assembly No. 132-5158 Diagram and Parts List for 415000000 - 999999999 Toro Lawn Mower
Deck Decal Assembly No. 139-8101
Deck Decal Assembly No. 139-8101 Diagram and Parts List for 415000000 - 999999999 Toro Lawn Mower
Deck Lift Assembly

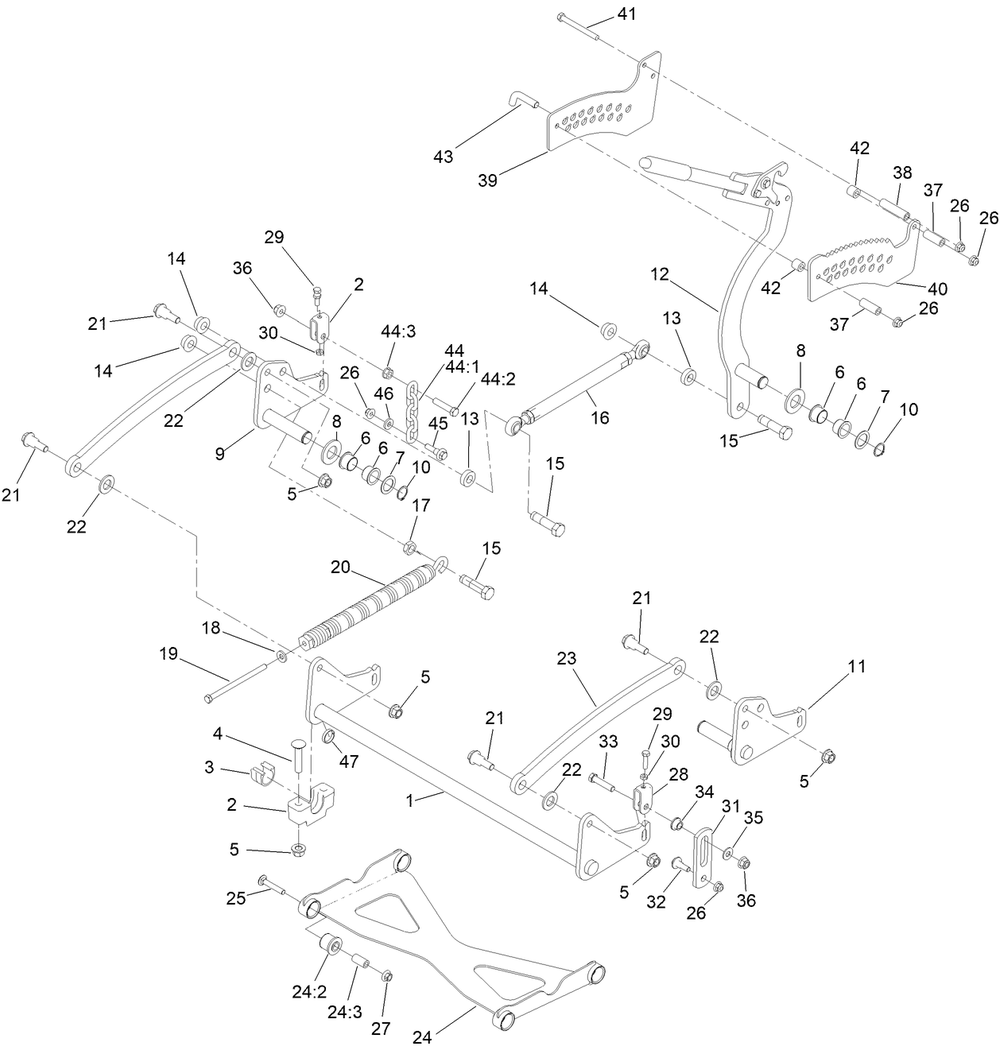

Deck Lift Assembly Diagram and Parts List for 415000000 - 999999999 Toro Lawn Mower
  • 1
    Shaft-Cross, Front – Part Number: 120-8405-01
    Shaft-Cross, Front
    Part Number: 120-8405-01
      Special Order
    $204.22
  • 2
    Support-cross Shaft, Bear – Part Number: 109-9409
    Support-cross Shaft, Bear
    Part Number: 109-9409
      Special Order
    $21.73
  • 3
    Bearing-shaft Front, Cros – Part Number: 109-9410
    Bearing-shaft Front, Cros
    Part Number: 109-9410
      In Stock
    $6.16
  • 4
    SCREW-CARR,SPL – Part Number: 116-1700
    SCREW-CARR,SPL
    Part Number: 116-1700
      Special Order
    $6.16
  • 5
    NUT-LOCK – Part Number: 99-5107
    NUT-LOCK
    Part Number: 99-5107
      In Stock
    $6.16
  • 6
    Bushing – Part Number: 127-0369
    Bushing
    Part Number: 127-0369
      Special Order
    $12.70
  • 7
    Washer-Thrust – Part Number: 10-8110
    Washer-Thrust
    Part Number: 10-8110
      Special Order
    $6.16
  • 8
    Washer-Flat – Part Number: 3256-62
    Washer-Flat
    Part Number: 3256-62
      Special Order
    $6.16
  • 9
    Arm-Lift, Rear (Rh) – Part Number: 127-0616-01
    Arm-Lift, Rear (Rh)
    Part Number: 127-0616-01
      Special Order
    $71.20
  • 10
    Ring-Retaining – Part Number: 32151-29
    Ring-Retaining
    Part Number: 32151-29
      Special Order
    $6.16
  • 11
    Arm-Lift, Rear (Lh) – Part Number: 127-0615-01
    Arm-Lift, Rear (Lh)
    Part Number: 127-0615-01
      Special Order
    $71.20
  • 12
    Hoc Lever Asm – Part Number: 130-1755
    Hoc Lever Asm
    Part Number: 130-1755
      No Longer Available
  • 13
    Washer – Part Number: 119-6223
    Washer
    Part Number: 119-6223
      Special Order
    $9.39
  • 14
    Nut-Hex Flg – Part Number: 138-4932
    Nut-Hex Flg
    Part Number: 138-4932
      Special Order
    $6.16
  • 15
    Screw-Lock – Part Number: 138-4931
    Screw-Lock
    Part Number: 138-4931
      Special Order
    $6.16
  • 16
    Hoc Link Asm – Part Number: 130-6615
    Hoc Link Asm
    Part Number: 130-6615
      Special Order
    $164.80
  • 17
    Nut-Jam – Part Number: 3218-6
    Nut-Jam
    Part Number: 3218-6
      In Stock
    $6.16
  • 18
    Washer-belleville – Part Number: 98-5975
    Washer-belleville
    Part Number: 98-5975
      In Stock
    Minimum Quantity of 2 required
    $6.16
  • 19
    BOLT-TAP, HH – Part Number: 323-58
    BOLT-TAP, HH
    Part Number: 323-58
      Special Order
    $7.27
  • 20
    EXTENSION SPRING Assembly – Part Number: 116-0886
    EXTENSION SPRING Assembly
    Part Number: 116-0886
      Special Order
    $147.64
  • 21
    SCREW-HHF, SHOULDER – Part Number: 116-0780
    SCREW-HHF, SHOULDER
    Part Number: 116-0780
      Special Order
    $12.41
  • 22
    Washer-flat – Part Number: 3256-28
    Washer-flat
    Part Number: 3256-28
    ★★★★★
    ★★★★★
    (3)
      In Stock
    Minimum Quantity of 2 required
    $6.16
  • 23
    Link-Lift – Part Number: 127-1948-03
    Link-Lift
    Part Number: 127-1948-03
      Special Order
    $84.15
  • 24
    Plate-Strut – Part Number: 137-4129
    Plate-Strut
    Part Number: 137-4129
      Special Order
    $169.21
  • 24:2
    Bushing-Rubber – Part Number: 137-4108
    Bushing-Rubber
    Part Number: 137-4108
      Special Order
    $6.96
  • 24:3
    Spacer – Part Number: 108-6544
    Spacer
    Part Number: 108-6544
      In Stock
    $20.80
  • 25
    Screw-Carr – Part Number: 3231-7
    Screw-Carr
    Part Number: 3231-7
      In Stock
    $6.16
  • 26
    Nut-flange, Ni – Part Number: 104-8301
    Nut-flange, Ni
    Part Number: 104-8301
      In Stock
    $6.16
  • 27
    Nut-hf Lock,large Flg – Part Number: 32128-19
    Nut-hf Lock,large Flg
    Part Number: 32128-19
      Special Order
    $6.16
  • 28
    YOKE-ADJUST, DECK – Part Number: 109-9066
    YOKE-ADJUST, DECK
    Part Number: 109-9066
      Special Order
    $10.38
  • 29
    Screw-Hh – Part Number: 322-47
    Screw-Hh
    Part Number: 322-47
      Special Order
    $6.16
  • 30
    Nut-Jam – Part Number: 3218-2
    Nut-Jam
    Part Number: 3218-2
      Special Order
    $6.16
  • 31
    Link-Lift – Part Number: 130-6589
    Link-Lift
    Part Number: 130-6589
      Special Order
    $33.89
  • 32
    SCREW-SHOULDER, HHF – Part Number: 109-9840
    SCREW-SHOULDER, HHF
    Part Number: 109-9840
      In Stock
    $6.51
  • 33
    SCREW-HH – Part Number: 109-9065
    SCREW-HH
    Part Number: 109-9065
      Special Order
    $6.16
  • 34
    Bushing-Flanged – Part Number: 116-2428
    Bushing-Flanged
    Part Number: 116-2428
      Special Order
    $17.07
  • 35
    Washer-Flat – Part Number: 3256-4
    Washer-Flat
    Part Number: 3256-4
      In Stock
    Minimum Quantity of 2 required
    $6.16
  • 36
    Nut-hex – Part Number: 3296-48
    Nut-hex
    Part Number: 3296-48
      In Stock
    $6.16
  • 37
    Spacer – Part Number: 95-6448
    Spacer
    Part Number: 95-6448
      Special Order
    $8.37
  • 38
    Spacer – Part Number: 138-1111
    Spacer
    Part Number: 138-1111
      Special Order
    $21.73
  • 39
    Hoc Plate and Decal Asm – Part Number: 132-7581
    Hoc Plate and Decal Asm
    Part Number: 132-7581
      Special Order
    $92.72
  • 40
    Plate-Hoc, Inner – Part Number: 138-4887
    Plate-Hoc, Inner
    Part Number: 138-4887
      Special Order
    $113.79
  • 41
    Screw-Hhf – Part Number: 116-4701
    Screw-Hhf
    Part Number: 116-4701
      Special Order
    $6.16
  • 42
    Spacer – Part Number: 121-1760
    Spacer
    Part Number: 121-1760
      Special Order
    $6.16
  • 43
    Pin-Hoc – Part Number: 116-5584
    Pin-Hoc
    Part Number: 116-5584
      In Stock
    Minimum Quantity of 2 required
    $7.27
  • 44
    Deck Lift Chain Asm – Part Number: 116-0756
    Deck Lift Chain Asm
    Part Number: 116-0756
      Special Order
    $20.18
  • 44:1
    Chain-Lift, Deck – Part Number: 1-633447
    Chain-Lift, Deck
    Part Number: 1-633447
      Special Order
    $15.52
  • 44:2
    SCREW-HH – Part Number: 109-9065
    SCREW-HH
    Part Number: 109-9065
      Special Order
    $6.16
  • 44:3
    Nut-Hf – Part Number: 32128-37
    Nut-Hf
    Part Number: 32128-37
      Special Order
    $6.65
  • 45
    Bolt-Shoulder – Part Number: 130-0742
    Bolt-Shoulder
    Part Number: 130-0742
      Special Order
    $6.16
  • 46
    Spacer – Part Number: 43-0940
    Spacer
    Part Number: 43-0940
      In Stock
    $6.16
  • 47
    Spacer-Split – Part Number: 133-1431
    Spacer-Split
    Part Number: 133-1431
      Special Order
    $7.89
Deflector Assembly No. 120-2451
Deflector Assembly No. 120-2451 Diagram and Parts List for 415000000 - 999999999 Toro Lawn Mower
  • 1
    Screw-Carr – Part Number: 3231-4
    Screw-Carr
    Part Number: 3231-4
      In Stock
    Minimum Quantity of 2 required
    $6.16
  • 2
    Deflector – Part Number: 106-3246-01
    Deflector
    Part Number: 106-3246-01
      Special Order
    $77.68
  • 3
    Strap-Discharge – Part Number: 106-3248-03
    Strap-Discharge
    Part Number: 106-3248-03
      Special Order
    $38.12
  • 4
    DEFLECTOR-RUBBER – Part Number: 110-0759
    DEFLECTOR-RUBBER
    Part Number: 110-0759
      Special Order
    $77.68
  • 5
    Plate-Hinge, Rear – Part Number: 108-4059-01
    Plate-Hinge, Rear
    Part Number: 108-4059-01
      Special Order
    $36.72
  • 6
    Plate-Hinge, Front – Part Number: 106-3253-01
    Plate-Hinge, Front
    Part Number: 106-3253-01
      Special Order
    $60.84
  • 7
    Nut-flange, Ni – Part Number: 104-8301
    Nut-flange, Ni
    Part Number: 104-8301
      In Stock
    $6.16
Electrical Assembly
Electrical Assembly Diagram and Parts List for 415000000 - 999999999 Toro Lawn Mower

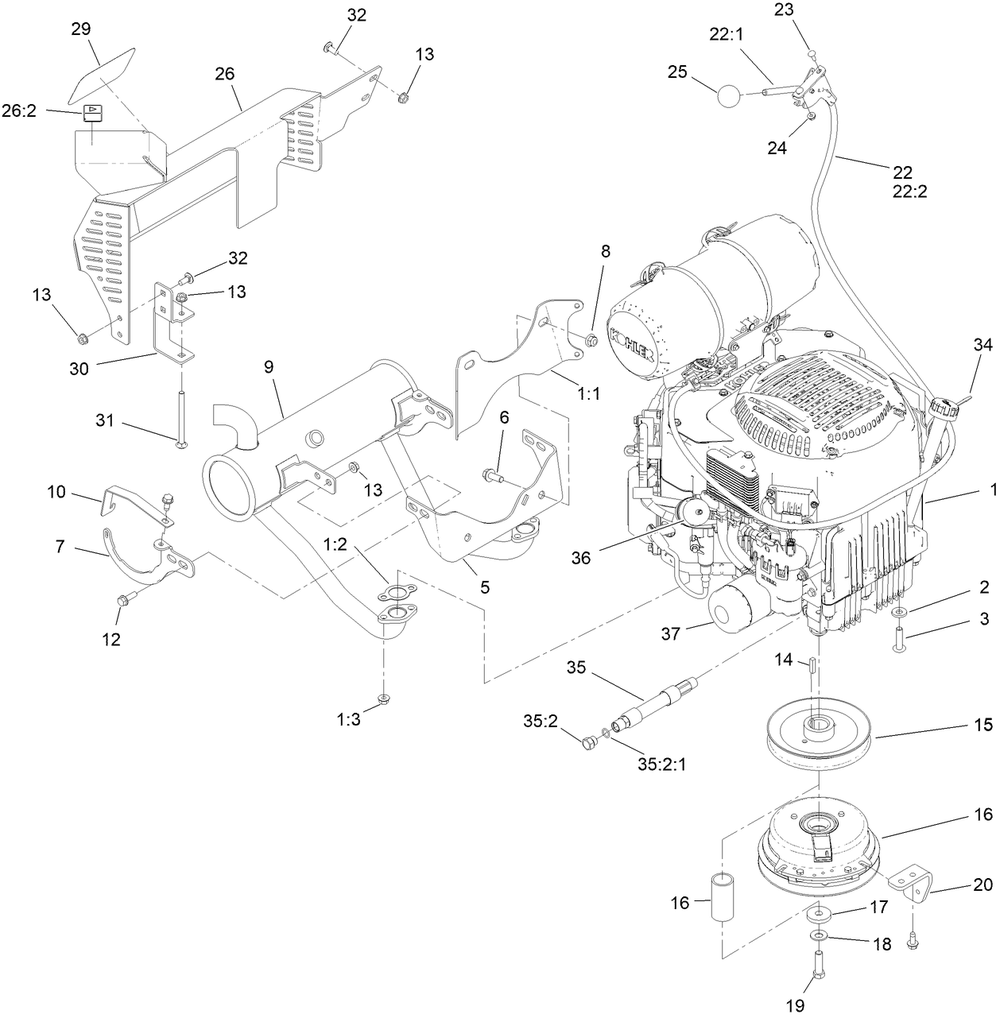

Engine Assembly
Engine Assembly Diagram and Parts List for 415000000 - 999999999 Toro Lawn Mower
  • 1:1
    Bracket-Muffler – Part Number: 131-7400
    Bracket-Muffler
    Part Number: 131-7400
      Special Order
    $154.51
  • 1:2
    Gasket-exhaust – Part Number: 110-6697
    Gasket-exhaust
    Part Number: 110-6697
      In Stock
    $9.14
  • 1:3
    Nut-Flange – Part Number: 68-9400
    Nut-Flange
    Part Number: 68-9400
      Special Order
    $6.16
  • 2
    Washer-belleville – Part Number: 98-5975
    Washer-belleville
    Part Number: 98-5975
      In Stock
    Minimum Quantity of 2 required
    $6.16
  • 3
    Screw-Bhtf – Part Number: 126-0983
    Screw-Bhtf
    Part Number: 126-0983
      Special Order
    $6.16
  • 5
    Bracket-Muffler – Part Number: 132-1168
    Bracket-Muffler
    Part Number: 132-1168
      Special Order
    $50.84
  • 6
    Screw-hhf – Part Number: 3234-42
    Screw-hhf
    Part Number: 3234-42
      In Stock
    Minimum Quantity of 2 required
    $6.16
  • 7
    Support-Muffler – Part Number: 133-4613
    Support-Muffler
    Part Number: 133-4613
      Special Order
    $21.73
  • 8
    Nut-flange, Ni – Part Number: 104-8301
    Nut-flange, Ni
    Part Number: 104-8301
      In Stock
    $6.16
  • 9
    Muffler-Kohler – Part Number: 133-4634
    Muffler-Kohler
    Part Number: 133-4634
      Special Order
    $241.40
  • 10
    Bracket-Muffler, Koh – Part Number: 133-4639
    Bracket-Muffler, Koh
    Part Number: 133-4639
      Special Order
    $14.73
  • 12
    Screw-Hhf – Part Number: 3234-17
    Screw-Hhf
    Part Number: 3234-17
      Special Order
    $6.16
  • 13
    Nut-hf – Part Number: 32128-25
    Nut-hf
    Part Number: 32128-25
      In Stock
    $6.16
  • 14
    Key – Part Number: 1-807259
    Key
    Part Number: 1-807259
      Special Order
    $6.16
  • 15
    Pulley – Part Number: 120-8498
    Pulley
    Part Number: 120-8498
      Special Order
    $103.54
  • 16
    Clutch-200cms – Part Number: 139-7910
    Clutch-200cms
    Part Number: 139-7910
      Special Order
    $648.51
  • 17
    Washer – Part Number: 107-4136
    Washer
    Part Number: 107-4136
      No Longer Available
  • 18
    Washer-Spring – Part Number: 1-603610
    Washer-Spring
    Part Number: 1-603610
      In Stock
    Minimum Quantity of 2 required
    $6.16
  • 19
    Screw-hh – Part Number: 3212-6
    Screw-hh
    Part Number: 3212-6
      Special Order
    Minimum Quantity of 2 required
    $6.16
  • 20
    Stop-Clutch – Part Number: 131-3586-03
    Stop-Clutch
    Part Number: 131-3586-03
      Special Order
    $27.95
  • 22
    Throttle Assembly – Part Number: 147-1664
    Throttle Assembly
    Part Number: 147-1664
      Special Order
    $77.65
  • 22:1
    Lever-Control – Part Number: 145-6187
    Lever-Control
    Part Number: 145-6187
      No Longer Available
  • 22:2
    Cable-Throttle – Part Number: 147-1674
    Cable-Throttle
    Part Number: 147-1674
      Special Order
    $46.57
  • 23
    Bolt-CARR – Part Number: 1-807533
    Bolt-CARR
    Part Number: 1-807533
      Special Order
    $6.16
  • 24
    Nut-Lock, Flange – Part Number: 32128-17
    Nut-Lock, Flange
    Part Number: 32128-17
      In Stock
    $6.16
  • 25
    KNOB-BALL – Part Number: 1-603175
    KNOB-BALL
    Part Number: 1-603175
      In Stock
    $17.07
  • 26
    Muffler Guard Asm – Part Number: 131-3550
    Muffler Guard Asm
    Part Number: 131-3550
      Special Order
    $296.90
  • 26:2
    Decal-Warning, Hot Surface – Part Number: 106-5517
    Decal-Warning, Hot Surface
    Part Number: 106-5517
      Special Order
    $6.16
  • 29
    Decal-Toro – Part Number: 94-2579
    Decal-Toro
    Part Number: 94-2579
      Special Order
    $20.64
  • 30
    Bracket-Mounting, Guard – Part Number: 131-3530-03
    Bracket-Mounting, Guard
    Part Number: 131-3530-03
      Special Order
    $27.95
  • 31
    Screw-Carr – Part Number: 106-9758
    Screw-Carr
    Part Number: 106-9758
      Special Order
    $6.16
  • 32
    Screw-carr – Part Number: 3230-23
    Screw-carr
    Part Number: 3230-23
      In Stock
    Minimum Quantity of 2 required
    $6.16
  • 34
    Tie-cable – Part Number: 3290-378
    Tie-cable
    Part Number: 3290-378
      Special Order
    $6.16
  • 35
    Hose Asm – Part Number: 133-4657
    Hose Asm
    Part Number: 133-4657
      Special Order
    $48.02
  • 35:2
    Plug-hh – Part Number: 353-508
    Plug-hh
    Part Number: 353-508
      Special Order
    $12.39
  • 35:2:1
    O-Ring – Part Number: 237-42
    O-Ring
    Part Number: 237-42
      In Stock
    Minimum Quantity of 2 required
    $6.16
  • 36
    Filter-Fuel – Part Number: 94-9695
    Filter-Fuel
    Part Number: 94-9695
      Special Order
    $29.11
  • 37
    Filter-oil – Part Number: 98020
    Filter-oil
    Part Number: 98020
      In Stock
    $24.81
Frame Assembly
Frame Assembly Diagram and Parts List for 415000000 - 999999999 Toro Lawn Mower
  • 3
    Frame – Part Number: 131-1510-01
    Frame
    Part Number: 131-1510-01
      Special Order
    $1781.51
  • 4
    Tube-Castor, Short – Part Number: 131-1521-01
    Tube-Castor, Short
    Part Number: 131-1521-01
      Special Order
    $495.31
  • 5
    Tube-Castor, Long – Part Number: 131-1522-01
    Tube-Castor, Long
    Part Number: 131-1522-01
      Special Order
    $502.24
  • 8
    Tower Decal Assembly – Part Number: 140-4283
    Tower Decal Assembly
    Part Number: 140-4283
      Special Order
    $953.18
  • 8:2
    Decal-Oil Level – Part Number: 147-7921
    Decal-Oil Level
    Part Number: 147-7921
      Special Order
    $7.27
  • 8:4
    Decal-Fill, Fuel – Part Number: 116-8775
    Decal-Fill, Fuel
    Part Number: 116-8775
      Special Order
    $14.57
  • 8:5
    Decal-Warning – Part Number: 139-2878
    Decal-Warning
    Part Number: 139-2878
      Special Order
    $11.62
  • 8:6
    Decal-Controls – Part Number: 131-3526
    Decal-Controls
    Part Number: 131-3526
      Special Order
    $15.52
  • 8:7
    Decal - Fuse – Part Number: 147-0212
    Decal - Fuse
    Part Number: 147-0212
      Special Order
    $6.16
  • 9
    Screw-hhf – Part Number: 3234-42
    Screw-hhf
    Part Number: 3234-42
      In Stock
    Minimum Quantity of 2 required
    $6.16
  • 10
    Nut-flange, Ni – Part Number: 104-8301
    Nut-flange, Ni
    Part Number: 104-8301
      In Stock
    $6.16
  • 11
    Plate-Striker – Part Number: 131-7455
    Plate-Striker
    Part Number: 131-7455
      Special Order
    $20.18
  • 12
    Screw-carr – Part Number: 3229-11
    Screw-carr
    Part Number: 3229-11
      In Stock
    Minimum Quantity of 2 required
    $6.16
  • 13
    Nut-Hf – Part Number: 104-7201
    Nut-Hf
    Part Number: 104-7201
      In Stock
    $6.16
  • 14
    Nut-Tinnerman – Part Number: 105-4886
    Nut-Tinnerman
    Part Number: 105-4886
      Special Order
    $6.16
  • 15
    Bolt-carr – Part Number: 3230-5
    Bolt-carr
    Part Number: 3230-5
      Special Order
    Minimum Quantity of 2 required
    $6.16
  • 16
    Nut-flange, Ni – Part Number: 104-8300
    Nut-flange, Ni
    Part Number: 104-8300
    ★★★★★
    ★★★★★
    (1)
      In Stock
    $6.16
  • 17
    Washer – Part Number: 107-3844
    Washer
    Part Number: 107-3844
    ★★★★★
    ★★★★★
    (5)
      In Stock
    Minimum Quantity of 2 required
    $6.16
  • 18
    Mf Wheel Tire Bearing Assembly – Part Number: 140-5485
    Mf Wheel Tire Bearing Assembly
    Part Number: 140-5485
      Special Order
    $224.76
  • 18:2
    Guard-Seal – Part Number: 103-2768
    Guard-Seal
    Part Number: 103-2768
      In Stock
    $6.16
  • 18:3
    Nut-lock, Ni – Part Number: 3296-45
    Nut-lock, Ni
    Part Number: 3296-45
      In Stock
    $6.16
  • 18:4
    Screw-Hh – Part Number: 325-20
    Screw-Hh
    Part Number: 325-20
      In Stock
    $9.30
  • 19
    Tube-Mount, Fuel Tank – Part Number: 132-5161-01
    Tube-Mount, Fuel Tank
    Part Number: 132-5161-01
      Special Order
    $85.78
  • 20
    Bracket-Cross – Part Number: 132-1145-03
    Bracket-Cross
    Part Number: 132-1145-03
      Special Order
    $56.96
  • 21
    DECAL-COMMERCIAL – Part Number: 117-3591
    DECAL-COMMERCIAL
    Part Number: 117-3591
      Special Order
    $21.73
  • 23
    BUMPER-RUBBER – Part Number: 114-1926
    BUMPER-RUBBER
    Part Number: 114-1926
      In Stock
    $38.12
  • 24
    Caster Fork Assembly [red] – Part Number: 147-6343-01
    Caster Fork Assembly [red]
    Part Number: 147-6343-01
      Special Order
    $205.33
  • 25
    PLUG – Part Number: 1-811010
    PLUG
    Part Number: 1-811010
      Special Order
    $7.59
  • 26
    Bearing-roller, Tapered – Part Number: 1-543509
    Bearing-roller, Tapered
    Part Number: 1-543509
      On Order
    $21.73
  • 27
    Seal-Grease – Part Number: 116-5647
    Seal-Grease
    Part Number: 116-5647
      On Order
    Minimum Quantity of 2 required
    $6.96
  • 28
    Washer-bellville – Part Number: 1-633508
    Washer-bellville
    Part Number: 1-633508
      In Stock
    Minimum Quantity of 2 required
    $6.18
  • 29
    Cap-Grease – Part Number: 103-4882
    Cap-Grease
    Part Number: 103-4882
      In Stock
    $10.38
  • 34
    Nut-lock, Ni – Part Number: 3296-51
    Nut-lock, Ni
    Part Number: 3296-51
      Special Order
    $6.28
  • 35
    Rivet-Pop – Part Number: 3290-271
    Rivet-Pop
    Part Number: 3290-271
      No Longer Available
  • 36
    SCREW-CARR – Part Number: 3233-7
    SCREW-CARR
    Part Number: 3233-7
      Special Order
    $6.59
  • 37
    NUT-LOCK – Part Number: 99-5107
    NUT-LOCK
    Part Number: 99-5107
      In Stock
    $6.16
  • 38
    Decal, Multi-Force – Part Number: 140-4260
    Decal, Multi-Force
    Part Number: 140-4260
      Special Order
    $52.95
  • 39
    A-Frame – Part Number: 133-4662-03
    A-Frame
    Part Number: 133-4662-03
      Special Order
    $1465.16
  • 40
    Bracket-Cylinder – Part Number: 127-0649-01
    Bracket-Cylinder
    Part Number: 127-0649-01
      Special Order
    $23.29
  • 41
    SCREW-CARR – Part Number: 3231-44
    SCREW-CARR
    Part Number: 3231-44
      In Stock
    Minimum Quantity of 2 required
    $6.16
  • 43
    Fitting-Grease – Part Number: 302-40
    Fitting-Grease
    Part Number: 302-40
      In Stock
    $6.16
  • 52
    Guard-Fan, Rh – Part Number: 132-7578-01
    Guard-Fan, Rh
    Part Number: 132-7578-01
      Special Order
    $45.19
  • 53
    Guard-Fan, Lh – Part Number: 132-7598-01
    Guard-Fan, Lh
    Part Number: 132-7598-01
      Special Order
    $31.06
  • 58
    Bracket-Lock – Part Number: 133-5320-01
    Bracket-Lock
    Part Number: 133-5320-01
      Special Order
    $112.77
  • 59
    Pin-Hitch – Part Number: 133-2021
    Pin-Hitch
    Part Number: 133-2021
      Special Order
    $58.25
  • 60
    BUMPER-RUBBER – Part Number: 87-8460
    BUMPER-RUBBER
    Part Number: 87-8460
      Special Order
    $6.16
  • 61
    Pin-Hair – Part Number: 92-2762
    Pin-Hair
    Part Number: 92-2762
      Special Order
    $6.16
  • 62
    Decal-Logo, Toro – Part Number: 126-5060
    Decal-Logo, Toro
    Part Number: 126-5060
      Special Order
    $11.31
  • 64
    SCREW-HHF – Part Number: 119-4061
    SCREW-HHF
    Part Number: 119-4061
      Special Order
    $6.16
  • 77
    Decal Service-Multiforce – Part Number: 133-4648
    Decal Service-Multiforce
    Part Number: 133-4648
      Special Order
    $34.94
  • 78
    Spacer – Part Number: 116-6758
    Spacer
    Part Number: 116-6758
      Special Order
    $25.24
  • 80
    Decal-Arrestor, Spark – Part Number: 133-8062
    Decal-Arrestor, Spark
    Part Number: 133-8062
      In Stock
    $6.16
  • 93
    DECAL-CAUTION – Part Number: 115-4855
    DECAL-CAUTION
    Part Number: 115-4855
      No Longer Available
Fuel Tank Assembly
Fuel Tank Assembly Diagram and Parts List for 415000000 - 999999999 Toro Lawn Mower
Ground Drive Assembly
Ground Drive Assembly Diagram and Parts List for 415000000 - 999999999 Toro Lawn Mower
  • Strainer-Neck, Removable – Part Number: 140-9463
    Strainer-Neck, Removable
    Part Number: 140-9463
      Special Order
    $54.72
  • 1
    Lh Accy Transmission – Part Number: 138-5840
    Lh Accy Transmission
    Part Number: 138-5840
      Special Order
    $2946.99
  • 2
    Rh Transmission Assembly – Part Number: 138-5839
    Rh Transmission Assembly
    Part Number: 138-5839
      Special Order
    $2946.99
  • 3
    Support-Transaxle – Part Number: 131-1131-03
    Support-Transaxle
    Part Number: 131-1131-03
      Special Order
    $58.26
  • 4
    Screw-Hhf – Part Number: 93-2569
    Screw-Hhf
    Part Number: 93-2569
      Special Order
    $6.16
  • 5
    Screw-Hhf – Part Number: 116-4701
    Screw-Hhf
    Part Number: 116-4701
      Special Order
    $6.16
  • 6
    Nut-flange, Ni – Part Number: 104-8301
    Nut-flange, Ni
    Part Number: 104-8301
      In Stock
    $6.16
  • 7
    Plate-Skid – Part Number: 138-1108-03
    Plate-Skid
    Part Number: 138-1108-03
      Special Order
    $179.94
  • 9
    Spacer – Part Number: 117-5351
    Spacer
    Part Number: 117-5351
      Special Order
    $31.06
  • 10
    Bushing-Lever, Lift – Part Number: 1-413088
    Bushing-Lever, Lift
    Part Number: 1-413088
      In Stock
    $13.97
  • 11
    Arm-Idler – Part Number: 131-1175
    Arm-Idler
    Part Number: 131-1175
      Special Order
    $69.91
  • 12
    Washer-friction, Composit – Part Number: 114-0463
    Washer-friction, Composit
    Part Number: 114-0463
    ★★★★★
    ★★★★★
    (1)
      In Stock
    Minimum Quantity of 2 required
    $9.29
  • 13
    Washer-Plain – Part Number: 110-9981
    Washer-Plain
    Part Number: 110-9981
      In Stock
    $27.16
  • 14
    Screw-Hhf – Part Number: 3234-39
    Screw-Hhf
    Part Number: 3234-39
      Special Order
    $6.16
  • 15
    Pulley-idler – Part Number: 93-1622
    Pulley-idler
    Part Number: 93-1622
      On Order
    $59.00
  • 16
    Screw-Carr – Part Number: 3231-4
    Screw-Carr
    Part Number: 3231-4
      In Stock
    Minimum Quantity of 2 required
    $6.16
  • 17
    Spring-Extension – Part Number: 138-1104
    Spring-Extension
    Part Number: 138-1104
      Special Order
    $12.41
  • 18
    Belt-V – Part Number: 131-1124
    Belt-V
    Part Number: 131-1124
      In Stock
    $39.32
  • 19
    Tank-Hyd – Part Number: 132-1135
    Tank-Hyd
    Part Number: 132-1135
      Special Order
    $157.81
  • 19:2
    Cap-Vented – Part Number: 133-8677
    Cap-Vented
    Part Number: 133-8677
      Special Order
    $23.29
  • 20
    Screw-carr – Part Number: 3229-1
    Screw-carr
    Part Number: 3229-1
      In Stock
    Minimum Quantity of 2 required
    $6.16
  • 21
    Nut-Hf – Part Number: 104-7201
    Nut-Hf
    Part Number: 104-7201
      In Stock
    $6.16
  • 24
    Clamp-Hose – Part Number: 92-2379
    Clamp-Hose
    Part Number: 92-2379
      Special Order
    $6.16
  • 25
    Rod-Bypass, Rh – Part Number: 131-7469
    Rod-Bypass, Rh
    Part Number: 131-7469
      Special Order
    $27.16
  • 26
    Rod-Bypass, Lh – Part Number: 131-7470
    Rod-Bypass, Lh
    Part Number: 131-7470
      Special Order
    $27.16
  • 27
    Pin-Hair – Part Number: 108-2992
    Pin-Hair
    Part Number: 108-2992
      Special Order
    Minimum Quantity of 2 required
    $6.16
  • 28
    Clip-Tie – Part Number: 32180-030
    Clip-Tie
    Part Number: 32180-030
      Special Order
    $8.14
  • 29
    Wheel And Tire Assembly – Part Number: 140-1886
    Wheel And Tire Assembly
    Part Number: 140-1886
      Special Order
    $310.78
  • 29:1
    Rim-8 Inch Black – Part Number: 140-1887
    Rim-8 Inch Black
    Part Number: 140-1887
      Special Order
    $97.10
  • 29:2
    Tire – Part Number: 120-6466
    Tire
    Part Number: 120-6466
      Special Order
    $150.71
  • 29:3
    Valve – Part Number: 5108
    Valve
    Part Number: 5108
      In Stock
    $12.22
  • 30
    Nut-Lug – Part Number: 139-2564
    Nut-Lug
    Part Number: 139-2564
      In Stock
    $6.16
  • 31
    Spacer-Hex – Part Number: 132-7584
    Spacer-Hex
    Part Number: 132-7584
      Special Order
    $38.12
  • 32
    Nut-flange, Ni – Part Number: 104-8300
    Nut-flange, Ni
    Part Number: 104-8300
    ★★★★★
    ★★★★★
    (1)
      In Stock
    $6.16
  • 33
    Pin-cotter – Part Number: 3290-250
    Pin-cotter
    Part Number: 3290-250
      Special Order
    $8.68
  • 34
    Clamp-Hose – Part Number: 2412-129
    Clamp-Hose
    Part Number: 2412-129
      Special Order
    $6.16
  • 35
    Tie-cable – Part Number: 3290-378
    Tie-cable
    Part Number: 3290-378
      Special Order
    $6.16
  • 36
    Fitting-Elbow 90 – Part Number: 136-1290
    Fitting-Elbow 90
    Part Number: 136-1290
      Special Order
    $13.97
  • 37
    Hose-Valve, Tank – Part Number: 83-2080
    Hose-Valve, Tank
    Part Number: 83-2080
      No Longer Available
  • 38
    Hose-Fuel – Part Number: 133-0223
    Hose-Fuel
    Part Number: 133-0223
      No Longer Available
  • 39
    Hose - Fuel – Part Number: 110-3257
    Hose - Fuel
    Part Number: 110-3257
      Special Order
    $26.83
Hoc Level Assembly No. 130-1755
Hoc Level Assembly No. 130-1755 Diagram and Parts List for 415000000 - 999999999 Toro Lawn Mower
  • 1
    Lever-Lift – Part Number: 130-1775-01
    Lever-Lift
    Part Number: 130-1775-01
      Special Order
    $185.66
  • 2
    Rod-Latch, Release – Part Number: 136-0530
    Rod-Latch, Release
    Part Number: 136-0530
      Special Order
    $32.48
  • 3
    SPRING-COMPRESSION – Part Number: 114-8187
    SPRING-COMPRESSION
    Part Number: 114-8187
      Special Order
    $6.96
  • 4
    WASHER-SPECIAL – Part Number: 114-1207
    WASHER-SPECIAL
    Part Number: 114-1207
      Special Order
    $6.16
  • 5
    KNOB – Part Number: 115-2750
    KNOB
    Part Number: 115-2750
      Special Order
    $17.07
  • 6
    GRIP – Part Number: 115-3592
    GRIP
    Part Number: 115-3592
      Special Order
    $15.52
  • 7
    BOLT-SHOULDER – Part Number: 119-2309
    BOLT-SHOULDER
    Part Number: 119-2309
      Special Order
    $42.36
  • 8
    Rivet – Part Number: 103-1363
    Rivet
    Part Number: 103-1363
      Special Order
    $6.16
  • 9
    Screw-shoulder, Hwh – Part Number: 614672
    Screw-shoulder, Hwh
    Part Number: 614672
      In Stock
    Minimum Quantity of 2 required
    $6.16
  • 10
    Washer-Spring – Part Number: 110-8982
    Washer-Spring
    Part Number: 110-8982
      No Longer Available
  • 11
    Nut-Hf – Part Number: 104-7201
    Nut-Hf
    Part Number: 104-7201
      In Stock
    $6.16
  • 12
    Nut-flange, Ni – Part Number: 104-8301
    Nut-flange, Ni
    Part Number: 104-8301
      In Stock
    $6.16
  • 13
    Latch-Hoc – Part Number: 138-4888
    Latch-Hoc
    Part Number: 138-4888
      Special Order
    $52.25
  • 14
    Plug-Wear – Part Number: 138-4863
    Plug-Wear
    Part Number: 138-4863
      Special Order
    $45.89
Hoc Link Assembly No. 130-6615
Hoc Link Assembly No. 130-6615 Diagram and Parts List for 415000000 - 999999999 Toro Lawn Mower
Lh Transmission Assembly No. 138-5840
Lh Transmission Assembly No. 138-5840 Diagram and Parts List for 415000000 - 999999999 Toro Lawn Mower
  • 1
    Nut-Lock – Part Number: 132-4737
    Nut-Lock
    Part Number: 132-4737
      Special Order
    $6.16
  • 2
    Fan – Part Number: 132-4738
    Fan
    Part Number: 132-4738
      Special Order
    $44.13
  • 3
    Pulley – Part Number: 132-4739
    Pulley
    Part Number: 132-4739
      Special Order
    $139.43
  • 5
    Pin – Part Number: 104-3265
    Pin
    Part Number: 104-3265
      Special Order
    $6.16
  • 6
    Lever-Bypass – Part Number: 132-4700
    Lever-Bypass
    Part Number: 132-4700
      Special Order
    $13.78
  • 8
    Brake Kit,left – Part Number: 133-1468
    Brake Kit,left
    Part Number: 133-1468
      Special Order
    $133.53
  • 9
    Cap-Oil – Part Number: 132-4735
    Cap-Oil
    Part Number: 132-4735
      Special Order
    $21.34
  • 11
    Lever-Control, Rh – Part Number: 136-5401
    Lever-Control, Rh
    Part Number: 136-5401
      Special Order
    $79.30
  • 16
    Spring-Torsion – Part Number: 137-4109
    Spring-Torsion
    Part Number: 137-4109
      In Stock
    $17.46
  • 17
    CONNECTOR – Part Number: 147-0371
    CONNECTOR
    Part Number: 147-0371
      Special Order
    $178.04
  • 18
    Bolt – Part Number: 125-7222
    Bolt
    Part Number: 125-7222
      Special Order
    $9.70
  • 19
    Screw-Hhf – Part Number: 33104-045
    Screw-Hhf
    Part Number: 33104-045
      Special Order
    $6.16
  • 20
    Plug – Part Number: 93-0474
    Plug
    Part Number: 93-0474
      Special Order
    $18.63
  • 20
    Manifold – Part Number: 136-5408
    Manifold
    Part Number: 136-5408
      No Longer Available
  • 21
    Stud-Wheel – Part Number: 137-9509
    Stud-Wheel
    Part Number: 137-9509
      Special Order
    $38.83
  • 22
    Cap-Oil Filter – Part Number: 138-4613
    Cap-Oil Filter
    Part Number: 138-4613
      Special Order
    $15.52
  • 23
    Seal-Axle, Ua – Part Number: 139-5587
    Seal-Axle, Ua
    Part Number: 139-5587
      Special Order
    $51.20
  • 24
    Axle – Part Number: 139-5588
    Axle
    Part Number: 139-5588
      Special Order
    $403.73
  • 25
    Drain Bolt – Part Number: 139-5589
    Drain Bolt
    Part Number: 139-5589
      Special Order
    $8.20
  • 26
    Expansion Fitting – Part Number: 139-5590
    Expansion Fitting
    Part Number: 139-5590
      Special Order
    $19.39
  • 27
    Grommet Seal, Expansion Fittin – Part Number: 139-5591
    Grommet Seal, Expansion Fittin
    Part Number: 139-5591
      Special Order
    $7.36
  • 28
    Expansion Fitting Kit – Part Number: 139-7871
    Expansion Fitting Kit
    Part Number: 139-7871
      In Stock
    $38.83
Low Flow Controller Kit Assembly
Low Flow Controller Kit Assembly Diagram and Parts List for 415000000 - 999999999 Toro Lawn Mower

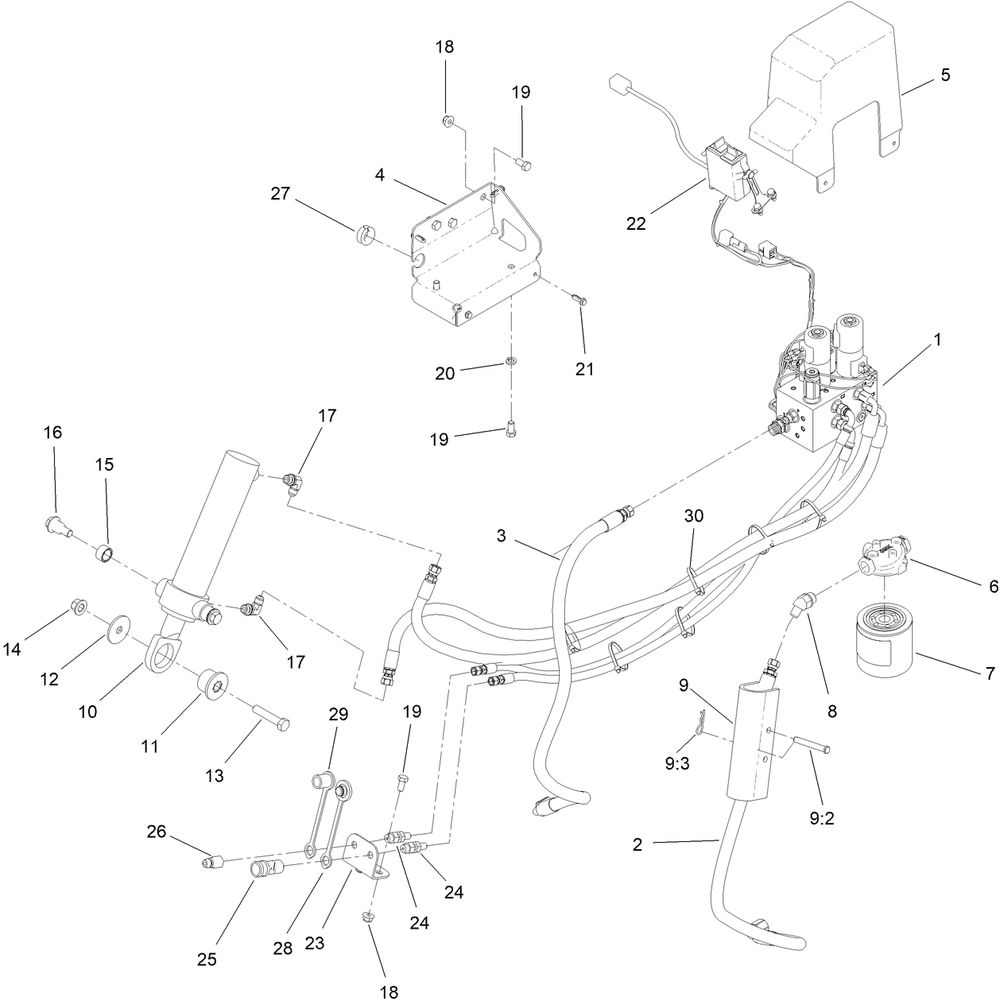

Low Flow Hydraulics Assembly
Low Flow Hydraulics Assembly Diagram and Parts List for 415000000 - 999999999 Toro Lawn Mower

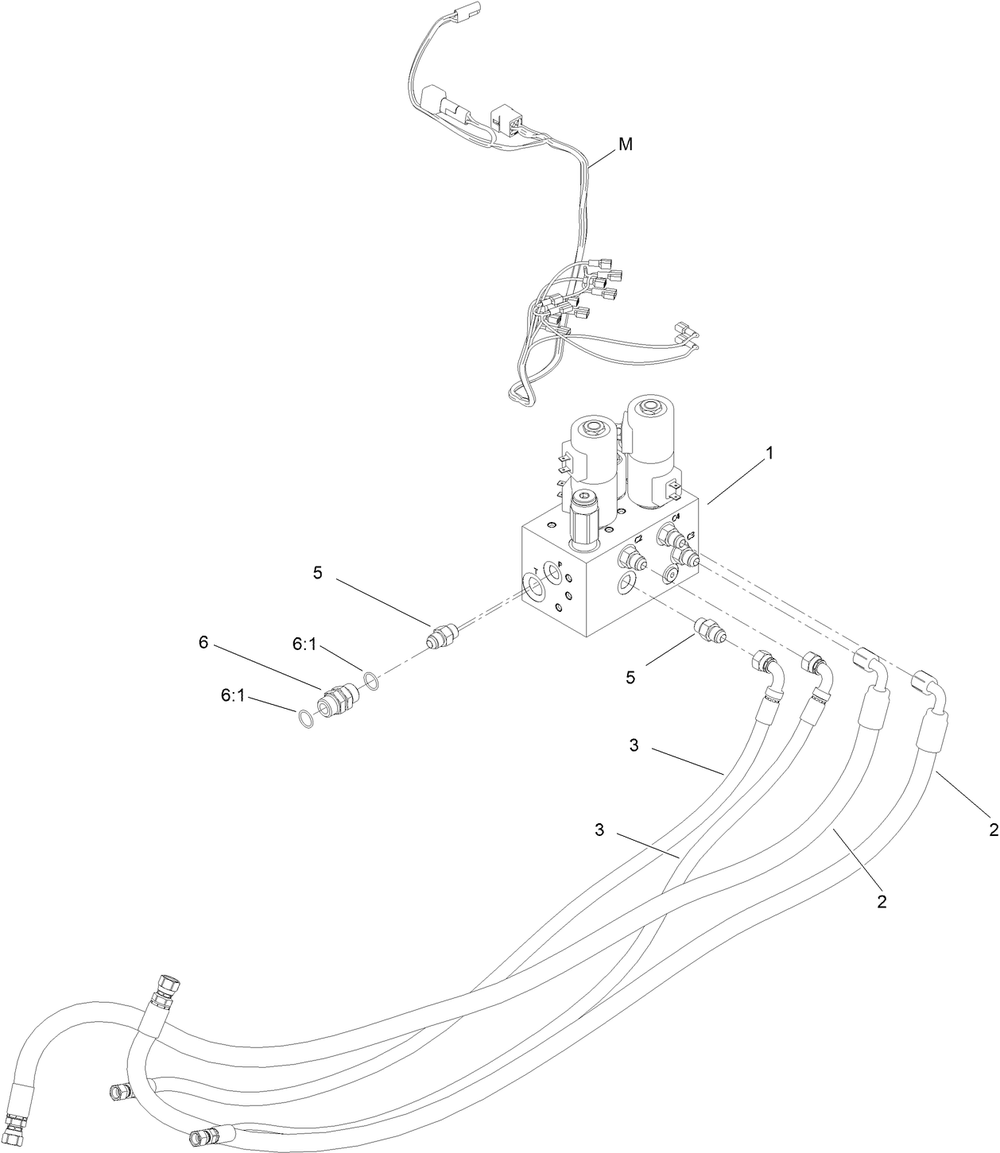

Low Flow Manifold Assembly
Low Flow Manifold Assembly Diagram and Parts List for 415000000 - 999999999 Toro Lawn Mower
Parking Brake Assembly
Parking Brake Assembly Diagram and Parts List for 415000000 - 999999999 Toro Lawn Mower
Platform Assembly
Platform Assembly Diagram and Parts List for 415000000 - 999999999 Toro Lawn Mower
Rh Transmission Assembly No. 138-5839
Rh Transmission Assembly No. 138-5839 Diagram and Parts List for 415000000 - 999999999 Toro Lawn Mower
  • 1
    Nut-Lock – Part Number: 132-4737
    Nut-Lock
    Part Number: 132-4737
      Special Order
    $6.16
  • 2
    Fan – Part Number: 132-4738
    Fan
    Part Number: 132-4738
      Special Order
    $44.13
  • 3
    Pulley – Part Number: 132-4739
    Pulley
    Part Number: 132-4739
      Special Order
    $139.43
  • 5
    Pin – Part Number: 104-3265
    Pin
    Part Number: 104-3265
      Special Order
    $6.16
  • 6
    Lever-Bypass – Part Number: 132-4700
    Lever-Bypass
    Part Number: 132-4700
      Special Order
    $13.78
  • 8
    Rh Brake Kit – Part Number: 133-1462
    Rh Brake Kit
    Part Number: 133-1462
      Special Order
    $133.53
  • 9
    Cap-Oil – Part Number: 132-4735
    Cap-Oil
    Part Number: 132-4735
      Special Order
    $21.34
  • 11
    Lever-Control, Rh – Part Number: 136-5401
    Lever-Control, Rh
    Part Number: 136-5401
      Special Order
    $79.30
  • 16
    Spring-Torsion – Part Number: 137-4109
    Spring-Torsion
    Part Number: 137-4109
      In Stock
    $17.46
  • 17
    Stud-Wheel – Part Number: 137-9509
    Stud-Wheel
    Part Number: 137-9509
      Special Order
    $38.83
  • 18
    Cap-Oil Filter – Part Number: 138-4613
    Cap-Oil Filter
    Part Number: 138-4613
      Special Order
    $15.52
  • 19
    Seal-Axle, Ua – Part Number: 139-5587
    Seal-Axle, Ua
    Part Number: 139-5587
      Special Order
    $51.20
  • 20
    Axle – Part Number: 139-5588
    Axle
    Part Number: 139-5588
      Special Order
    $403.73
  • 21
    Drain Bolt – Part Number: 139-5589
    Drain Bolt
    Part Number: 139-5589
      Special Order
    $8.20
  • 22
    Expansion Fitting – Part Number: 139-5590
    Expansion Fitting
    Part Number: 139-5590
      Special Order
    $19.39
  • 23
    Grommet Seal, Expansion Fittin – Part Number: 139-5591
    Grommet Seal, Expansion Fittin
    Part Number: 139-5591
      Special Order
    $7.36
  • 28
    Expansion Fitting Kit – Part Number: 139-7871
    Expansion Fitting Kit
    Part Number: 139-7871
      In Stock
    $38.83
Spindle Assembly No. 137-9780
Spindle Assembly No. 137-9780 Diagram and Parts List for 415000000 - 999999999 Toro Lawn Mower
  • 2
    BEARING-BALL – Part Number: 116-0720
    BEARING-BALL
    Part Number: 116-0720
      In Stock
    $31.05
  • 3
    Spacer-Bearing – Part Number: 138-6042
    Spacer-Bearing
    Part Number: 138-6042
      Special Order
    $16.29
Wheel And Bearing Assembly
Wheel And Bearing Assembly Diagram and Parts List for 415000000 - 999999999 Toro Lawn Mower

Questions & Answers

?

Our customer Service team is at the ready daily to answer your part and product questions.

Be the first to ask our experts a question about this part!

Ask our Team

We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.

✖

Our customer service team are at the ready daily to answer your part and product questions. We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.
