Toro 52-Inch Side Discharge Mower Lawn Mower Replacement Parts For Model 30152 (900001 - 999999)

We Sell Only Genuine Toro Parts

Popular Parts for 30152

Washer-flat – Part Number: 3256-24 Washer-flat
In Stock
Minimum Quantity of 2 required
$6.16
Screw-hhftf – Part Number: 46-8560 Screw-hhftf
In Stock
Minimum Quantity of 2 required
$6.16
Washer-flat – Part Number: 3256-22 Washer-flat
In Stock
Minimum Quantity of 2 required
$6.16
Nut-hex – Part Number: 3296-5 Nut-hex
In Stock
$6.16
Washer-lock – Part Number: 3253-4 Washer-lock
In Stock
Minimum Quantity of 2 required
$6.16
Fitting-grease – Part Number: 302-5 Fitting-grease
In Stock
$6.16
Screw-carr – Part Number: 3230-18 Screw-carr
In Stock
Minimum Quantity of 2 required
$6.35
Lawn Mower Blade (18 In) – Part Number: 27-0990-03 Lawn Mower Blade (18 In)
In Stock
$25.75

Search Within Model

Questions & Answers for Toro 30152
Browse all Parts Search by Area
Carrier Frame Assembly Diagram and Parts List for 900001 - 999999 Toro Lawn Mower
Carrier Frame Assembly
Castor Wheel Assembly No. 27-1050 (Optional) Diagram and Parts List for 900001 - 999999 Toro Lawn Mower
Castor Wheel Assembly No. 27-1050 (Optional)
Cutting Unit Assembly Diagram and Parts List for 900001 - 999999 Toro Lawn Mower
Cutting Unit Assembly
Drive Spindle No. 27-0870 Diagram and Parts List for 900001 - 999999 Toro Lawn Mower
Drive Spindle No. 27-0870
Previous Showing All Parts Next

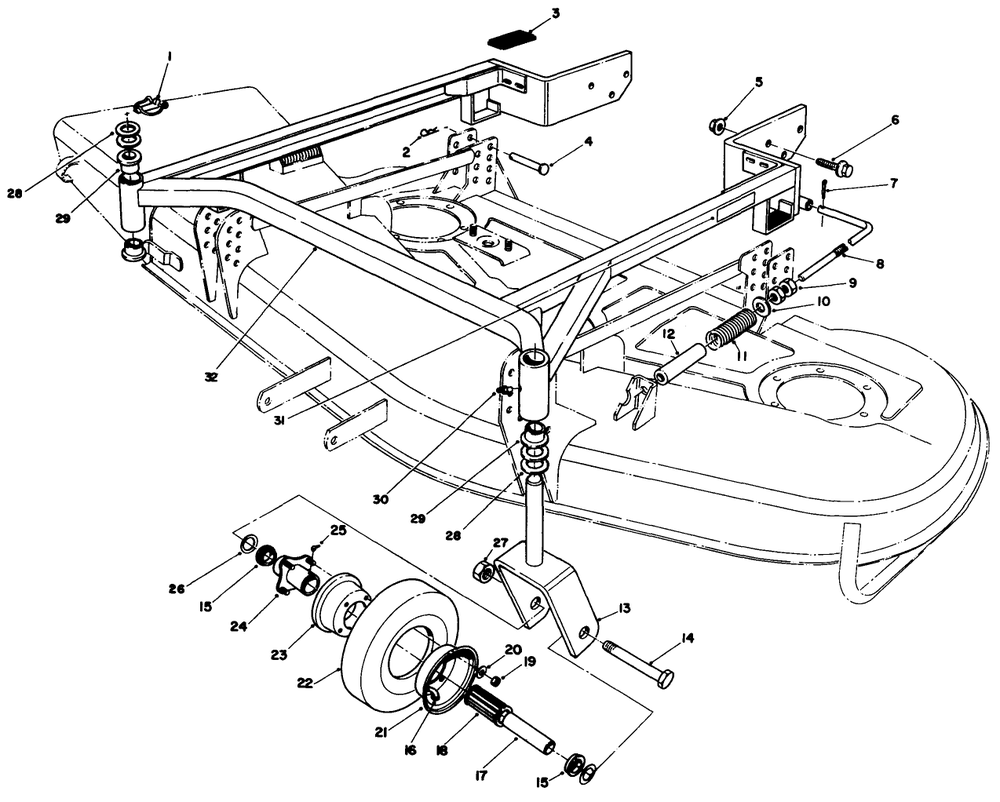

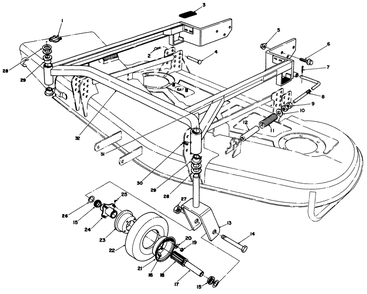

Carrier Frame Assembly
Carrier Frame Assembly Diagram and Parts List for 900001 - 999999 Toro Lawn Mower
  • Set of 2 Castor Wheel (Incl. Ref. #13, 15, 17-22 & 24-25) – Part Number: 68-8970
    Set of 2 Castor Wheel (Incl. Ref. #13, 15, 17-22 & 24-25)
    Part Number: 68-8970
      Special Order
    $146.61
  • 1
    Pin-Lynch – Part Number: 3290-384
    Pin-Lynch
    Part Number: 3290-384
      Special Order
    $35.80
  • 2
    Pin-Hair – Part Number: 3290-355
    Pin-Hair
    Part Number: 3290-355
      Special Order
    Minimum Quantity of 2 required
    $6.16
  • 3
    Cushion-Rubber – Part Number: 74-0350
    Cushion-Rubber
    Part Number: 74-0350
      Special Order
    $72.38
  • 4
    Pin-Clevis – Part Number: 283-55
    Pin-Clevis
    Part Number: 283-55
      Special Order
    $17.16
  • 5
    Nut-hf – Part Number: 32128-23
    Nut-hf
    Part Number: 32128-23
      In Stock
    $6.16
  • 6
    SCREW-HHF – Part Number: 3234-6
    SCREW-HHF
    Part Number: 3234-6
      Special Order
    $6.16
  • 7
    Pin-Cotter – Part Number: 3272-7
    Pin-Cotter
    Part Number: 3272-7
      Special Order
    $6.16
  • 8
    Shaft-Adjusting – Part Number: 51-3490
    Shaft-Adjusting
    Part Number: 51-3490
      No Longer Available
  • 9
    Nut-Jam – Part Number: 3218-5
    Nut-Jam
    Part Number: 3218-5
      Special Order
    $6.16
  • 10
    Washer – Part Number: 51-3500
    Washer
    Part Number: 51-3500
      Special Order
    $6.16
  • 11
    Comp. Spring – Part Number: 66-7140
    Comp. Spring
    Part Number: 66-7140
      No Longer Available
  • 12
    36" Tube Sleeve – Part Number: 51-3480
    36" Tube Sleeve
    Part Number: 51-3480
      No Longer Available
  • 13
    Fork - Caster, Front – Part Number: 68-8900-01
    Fork - Caster, Front
    Part Number: 68-8900-01
      Special Order
    $158.99
  • 14
    Screw-Hh – Part Number: 325-19
    Screw-Hh
    Part Number: 325-19
      Special Order
    $6.16
  • 15
    Bearing-Outside – Part Number: 62-5580
    Bearing-Outside
    Part Number: 62-5580
      Special Order
    $10.24
  • 16
    Tube – Part Number: 68-8950
    Tube
    Part Number: 68-8950
      Special Order
    $47.66
  • 17
    Spanner-Tire – Part Number: 68-8980
    Spanner-Tire
    Part Number: 68-8980
      Special Order
    $16.95
  • 18
    Bearing-Roller – Part Number: 62-5570
    Bearing-Roller
    Part Number: 62-5570
      Special Order
    $36.18
  • 19
    Nut-Hex – Part Number: 3217-6
    Nut-Hex
    Part Number: 3217-6
      Special Order
    $6.16
  • 20
    Washer-lock – Part Number: 3253-4
    Washer-lock
    Part Number: 3253-4
      In Stock
    Minimum Quantity of 2 required
    $6.16
  • 21
    Wheel Half - Male – Part Number: 68-8930
    Wheel Half - Male
    Part Number: 68-8930
      Special Order
    $29.11
  • 22
    Tire – Part Number: 68-8960
    Tire
    Part Number: 68-8960
      Special Order
    $100.24
  • 23
    Wheel Half - Female – Part Number: 68-8920
    Wheel Half - Female
    Part Number: 68-8920
      Special Order
    $29.11
  • 24
    Hub-Centered – Part Number: 68-8940
    Hub-Centered
    Part Number: 68-8940
      Special Order
    $42.36
  • 25
    Fitting-grease – Part Number: 302-61
    Fitting-grease
    Part Number: 302-61
      Special Order
    $17.07
  • 26
    Washer-Flat – Part Number: 3256-6
    Washer-Flat
    Part Number: 3256-6
      Special Order
    $6.16
  • 27
    Nut-Hex – Part Number: 32153-5
    Nut-Hex
    Part Number: 32153-5
      Special Order
    $6.16
  • 28
    Washer-Thrust – Part Number: 3-6781
    Washer-Thrust
    Part Number: 3-6781
      In Stock
    $6.16
  • 29
    Bushing – Part Number: 94-1291
    Bushing
    Part Number: 94-1291
      In Stock
    $17.07
  • 30
    Fitting-grease – Part Number: 302-5
    Fitting-grease
    Part Number: 302-5
      In Stock
    $6.16
  • 31
    DISCONTINUED – Part Number: 51-3970
    DISCONTINUED
    Part Number: 51-3970
      No Longer Available
  • 32
    Decal-Hoc, Left Hand – Part Number: 68-8360
    Decal-Hoc, Left Hand
    Part Number: 68-8360
      No Longer Available

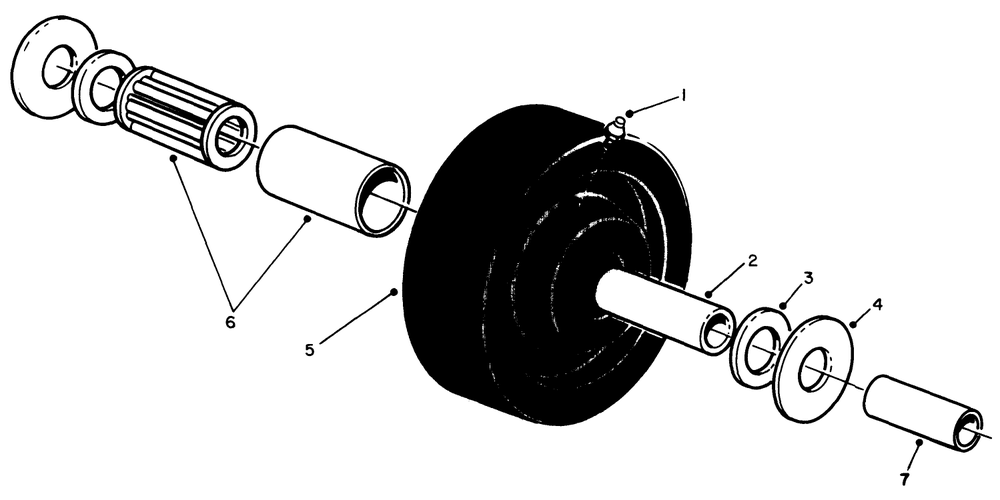

Castor Wheel Assembly No. 27-1050 (Optional)
Castor Wheel Assembly No. 27-1050 (Optional) Diagram and Parts List for 900001 - 999999 Toro Lawn Mower

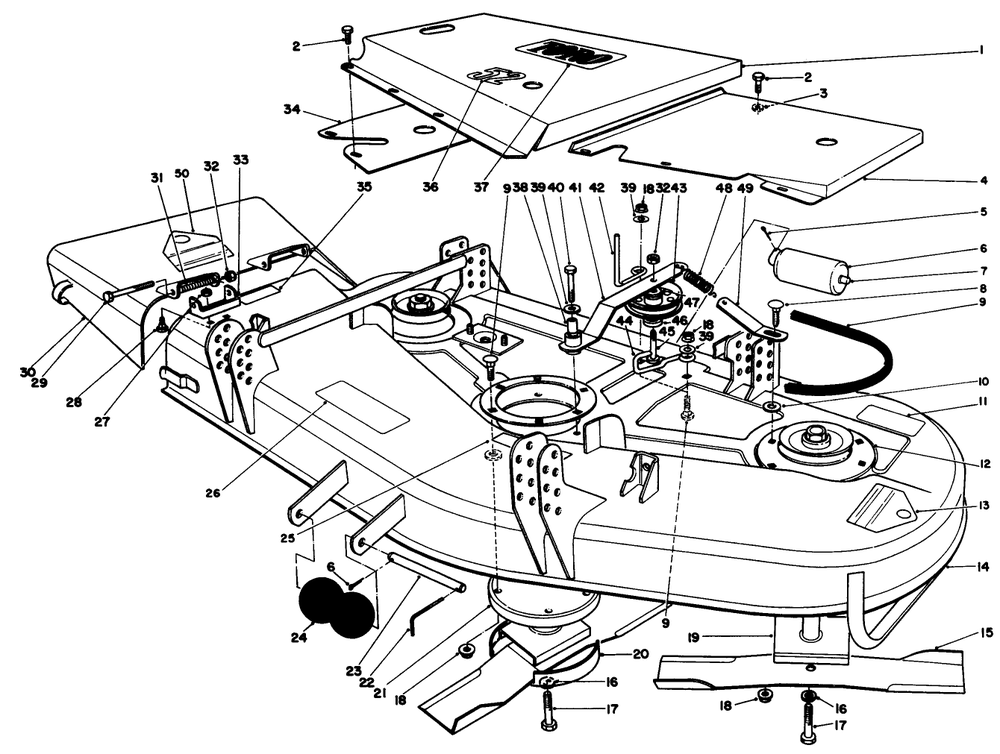

Cutting Unit Assembly
Cutting Unit Assembly Diagram and Parts List for 900001 - 999999 Toro Lawn Mower

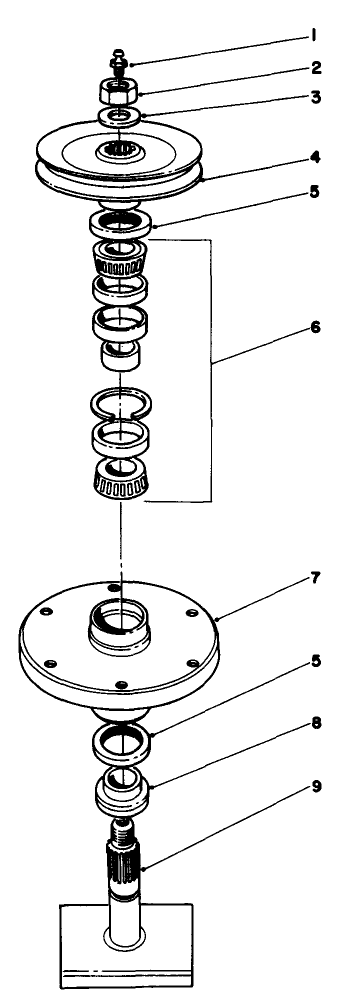

Drive Spindle No. 27-0870
Drive Spindle No. 27-0870 Diagram and Parts List for 900001 - 999999 Toro Lawn Mower
  • 1
    Fitting-Grease – Part Number: 302-2
    Fitting-Grease
    Part Number: 302-2
      Special Order
    $6.16
  • 2
    Nut-Jam – Part Number: 32146-20
    Nut-Jam
    Part Number: 32146-20
      Special Order
    $6.28
  • 3
    Washer – Part Number: 7-4150
    Washer
    Part Number: 7-4150
      Special Order
    $6.16
  • 4
    Pulley And Hub Asm – Part Number: 27-0970-03
    Pulley And Hub Asm
    Part Number: 27-0970-03
      Special Order
    $65.22
  • 5
    Seal-Oil – Part Number: 253-139
    Seal-Oil
    Part Number: 253-139
      In Stock
    $19.35
  • 6
    Bearing Asm – Part Number: 46-8530
    Bearing Asm
    Part Number: 46-8530
      In Stock
    $142.63
  • 7
    Housing-Spindle – Part Number: 61-4160
    Housing-Spindle
    Part Number: 61-4160
      In Stock
    $159.34
  • 8
    Spacer – Part Number: 27-0950
    Spacer
    Part Number: 27-0950
      Special Order
    $42.36
  • 9
    Shaft – Part Number: 27-0920
    Shaft
    Part Number: 27-0920
      Special Order
    $186.94
