Cushion And Platform Assembly
Cushion And Platform Assembly Diagram and Parts List for 404330000-404599999 Toro Lawn Mower
  • 1
    Cushion Asm – Part Number: 130-1767
    Cushion Asm
    Part Number: 130-1767
      Special Order
    $689.71
  • 2
    Platform Asm – Part Number: 132-9402
    Platform Asm
    Part Number: 132-9402
      Special Order
    $1052.66
Cushion Assembly
Cushion Assembly Diagram and Parts List for 404330000-404599999 Toro Lawn Mower
Deck Assembly
Deck Assembly Diagram and Parts List for 404330000-404599999 Toro Lawn Mower
Deck Decal Assembly
Deck Decal Assembly Diagram and Parts List for 404330000-404599999 Toro Lawn Mower
Deck Lift Assembly
Deck Lift Assembly Diagram and Parts List for 404330000-404599999 Toro Lawn Mower
  • 1
    Washer-spacer – Part Number: 1-523157
    Washer-spacer
    Part Number: 1-523157
      Special Order
    $5.95
  • 2
    Washer – Part Number: 86-1990
    Washer
    Part Number: 86-1990
      Special Order
    $5.95
  • 3
    Panhard Rod Asm – Part Number: 109-5013
    Panhard Rod Asm
    Part Number: 109-5013
      Special Order
    $159.69
  • 3:2
    Bushing-suspension, Rubbe – Part Number: 109-5009
    Bushing-suspension, Rubbe
    Part Number: 109-5009
      In Stock
    $6.13
  • 3:3
    SPACER – Part Number: 109-5010
    SPACER
    Part Number: 109-5010
      Special Order
    $22.48
  • 4
    Nut-hf – Part Number: 32128-23
    Nut-hf
    Part Number: 32128-23
      In Stock
    $5.95
  • 5
    DECK LIFT SPRING Assembly – Part Number: 119-2338
    DECK LIFT SPRING Assembly
    Part Number: 119-2338
      Special Order
    $163.61
  • 6
    Nut-Hf – Part Number: 104-7201
    Nut-Hf
    Part Number: 104-7201
      In Stock
    $5.95
  • 7
    Washer – Part Number: 98-1629
    Washer
    Part Number: 98-1629
      Special Order
    $5.95
  • 8
    BOLT-SHOULDER – Part Number: 119-2309
    BOLT-SHOULDER
    Part Number: 119-2309
      Special Order
    $40.89
  • 10
    WASHER-SPECIAL – Part Number: 114-1207
    WASHER-SPECIAL
    Part Number: 114-1207
      Special Order
    $5.95
  • 11
    SPRING-COMPRESSION – Part Number: 114-8187
    SPRING-COMPRESSION
    Part Number: 114-8187
      Special Order
    $6.72
  • 12
    KNOB – Part Number: 115-2750
    KNOB
    Part Number: 115-2750
      Special Order
    $16.48
  • 13
    Rod-Latch, Release – Part Number: 136-0530
    Rod-Latch, Release
    Part Number: 136-0530
      Special Order
    $31.35
  • 14
    GRIP – Part Number: 115-3592
    GRIP
    Part Number: 115-3592
      Special Order
    $14.98
  • 15
    Deck Lift Chain Asm – Part Number: 116-0756
    Deck Lift Chain Asm
    Part Number: 116-0756
      Special Order
    $19.48
  • 15:1
    Chain-Lift, Deck – Part Number: 1-633447
    Chain-Lift, Deck
    Part Number: 1-633447
      Special Order
    $14.98
  • 15:2
    SCREW-HH – Part Number: 109-9065
    SCREW-HH
    Part Number: 109-9065
      Special Order
    $5.95
  • 15:3
    Nut-Hf – Part Number: 32128-37
    Nut-Hf
    Part Number: 32128-37
      Special Order
    $6.42
  • 16
    BRACKET-FORK – Part Number: 119-2302-01
    BRACKET-FORK
    Part Number: 119-2302-01
      Special Order
    $40.89
  • 17
    Arm-Lift, Rh – Part Number: 121-6014-01
    Arm-Lift, Rh
    Part Number: 121-6014-01
      Special Order
    $104.32
  • 18
    Arm-Lift, Lh – Part Number: 121-6013-01
    Arm-Lift, Lh
    Part Number: 121-6013-01
      Special Order
    $104.32
  • 19
    HOC LIFT ARM Assembly – Part Number: 117-5290-01
    HOC LIFT ARM Assembly
    Part Number: 117-5290-01
      Special Order
    $172.85
  • 20
    LATCH-HOC – Part Number: 117-5292
    LATCH-HOC
    Part Number: 117-5292
      Special Order
    $26.98
  • 21
    DECK LIFT LINK Assembly – Part Number: 119-0383
    DECK LIFT LINK Assembly
    Part Number: 119-0383
      Special Order
    $189.83
  • 21:1
    Balljoint-spherical – Part Number: 1-633029
    Balljoint-spherical
    Part Number: 1-633029
      Special Order
    $76.23
  • 21:2
    BALLJOINT-SPHERICAL – Part Number: 117-5291
    BALLJOINT-SPHERICAL
    Part Number: 117-5291
      Special Order
    $49.07
  • 21:3
    LINK-LIFT, DECK – Part Number: 119-0382
    LINK-LIFT, DECK
    Part Number: 119-0382
      Special Order
    $63.73
  • 21:4
    Nut-Jam – Part Number: 3220-6
    Nut-Jam
    Part Number: 3220-6
      In Stock
    $5.95
  • 21:5
    NUT-JAM – Part Number: 117-5293
    NUT-JAM
    Part Number: 117-5293
      Special Order
    $6.13
  • 23
    Screw-Hh – Part Number: 324-7
    Screw-Hh
    Part Number: 324-7
      Special Order
    $5.95
  • 24
    Screw-Hh – Part Number: 327-22
    Screw-Hh
    Part Number: 327-22
      Special Order
    $8.28
  • 25
    Bolt-Shoulder – Part Number: 62-1330
    Bolt-Shoulder
    Part Number: 62-1330
      Special Order
    $16.48
  • 26
    Nut-Jam – Part Number: 3218-2
    Nut-Jam
    Part Number: 3218-2
      Special Order
    $5.95
  • 27
    Screw – Part Number: 325-10
    Screw
    Part Number: 325-10
      Special Order
    $5.95
  • 28
    WASHER-FLAT – Part Number: 119-2332
    WASHER-FLAT
    Part Number: 119-2332
      Special Order
    $5.95
  • 29
    SCREW-HH – Part Number: 119-3626
    SCREW-HH
    Part Number: 119-3626
      Special Order
    $5.95
  • 30
    Nut-Lock, Ni – Part Number: 3296-53
    Nut-Lock, Ni
    Part Number: 3296-53
      Special Order
    $5.95
  • 31
    Nut-Hf – Part Number: 32128-37
    Nut-Hf
    Part Number: 32128-37
      Special Order
    $6.42
  • 32
    Ring-retaining, Ext – Part Number: 32151-103
    Ring-retaining, Ext
    Part Number: 32151-103
      In Stock
    $5.95
  • 33
    Ring-Retaining – Part Number: 32151-29
    Ring-Retaining
    Part Number: 32151-29
      Special Order
    $5.95
  • 34
    Screw-shoulder, Hwh – Part Number: 614672
    Screw-shoulder, Hwh
    Part Number: 614672
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • 35
    Nut-flange, Ni – Part Number: 104-8301
    Nut-flange, Ni
    Part Number: 104-8301
      In Stock
    $5.95
  • 36
    YOKE-ADJUST, DECK – Part Number: 109-9066
    YOKE-ADJUST, DECK
    Part Number: 109-9066
      Special Order
    $10.02
  • 37
    Nut-Hf – Part Number: 32128-42
    Nut-Hf
    Part Number: 32128-42
      Special Order
    $5.95
  • 38
    Screw-Hh – Part Number: 324-9
    Screw-Hh
    Part Number: 324-9
      Special Order
    $5.95
  • 39
    Washer-Flat – Part Number: 3256-4
    Washer-Flat
    Part Number: 3256-4
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • 40
    Bushing-Flanged – Part Number: 116-2428
    Bushing-Flanged
    Part Number: 116-2428
      Special Order
    $16.48
Deck Lift Spring Assembly
Deck Lift Spring Assembly Diagram and Parts List for 404330000-404599999 Toro Lawn Mower
Deflector Assembly
Deflector Assembly Diagram and Parts List for 404330000-404599999 Toro Lawn Mower
Electrical Assembly
Electrical Assembly Diagram and Parts List for 404330000-404599999 Toro Lawn Mower

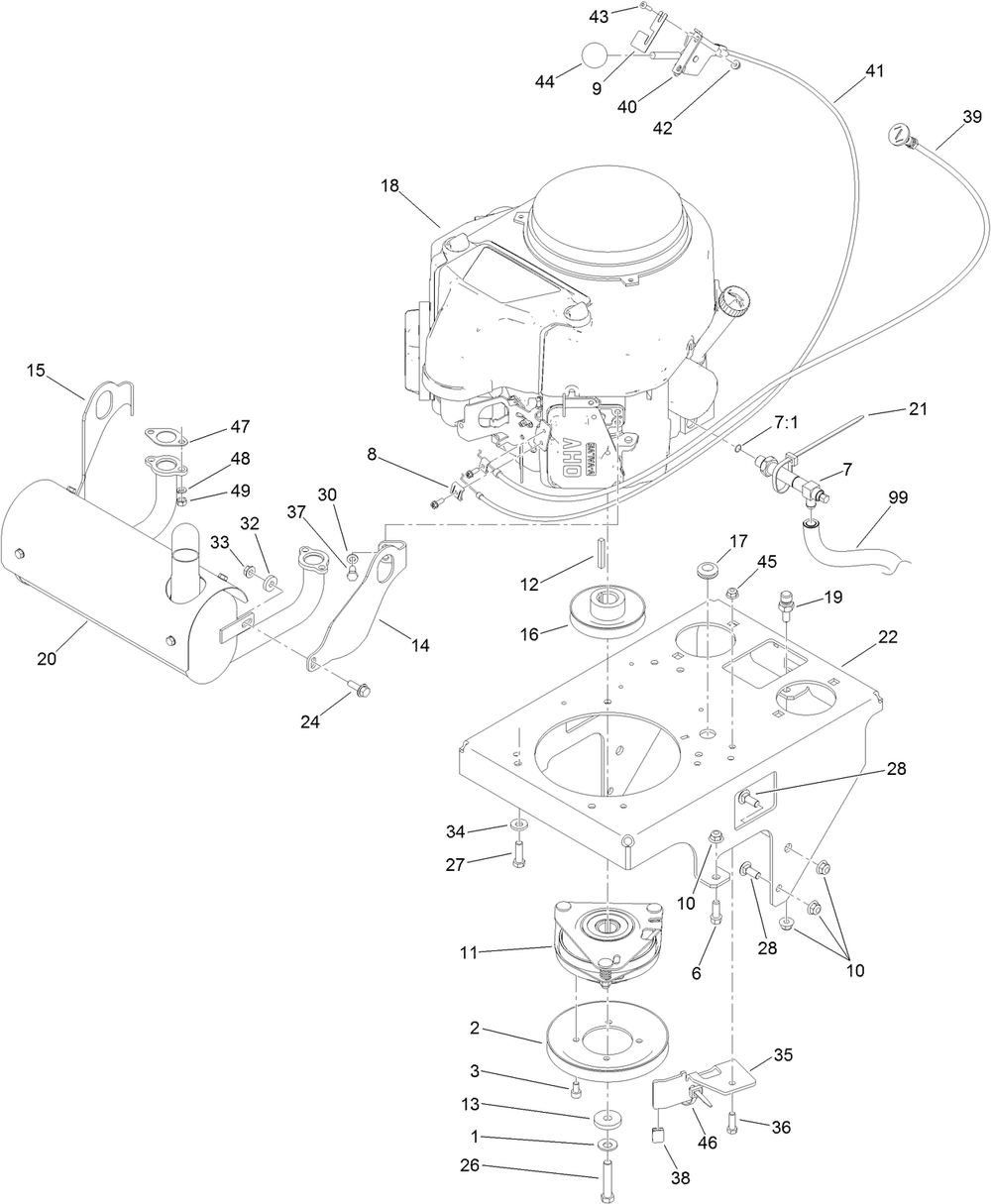

Engine Assembly
Engine Assembly Diagram and Parts List for 404330000-404599999 Toro Lawn Mower
  • 1
    Washer-Spring – Part Number: 1-603610
    Washer-Spring
    Part Number: 1-603610
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • 2
    PULLEY – Part Number: 119-0215
    PULLEY
    Part Number: 119-0215
      Special Order
    $80.95
  • 3
    SCREW-HSH – Part Number: 119-0221
    SCREW-HSH
    Part Number: 119-0221
      Special Order
    $5.95
  • 6
    Screw-Hwh – Part Number: 92-1624
    Screw-Hwh
    Part Number: 92-1624
      No Longer Available
  • 7
    Valve-Drain Oil – Part Number: 116-6126
    Valve-Drain Oil
    Part Number: 116-6126
      Special Order
    $73.73
  • 7:1
    O-Ring – Part Number: 138-4636
    O-Ring
    Part Number: 138-4636
      Special Order
    $5.95
  • 8
    Clamp-Cable – Part Number: 81-1690
    Clamp-Cable
    Part Number: 81-1690
      Special Order
    $5.95
  • 9
    Plate-Set, Throttle – Part Number: 119-1883
    Plate-Set, Throttle
    Part Number: 119-1883
      Special Order
    $49.07
  • 10
    Nut-flange, Ni – Part Number: 104-8301
    Nut-flange, Ni
    Part Number: 104-8301
      In Stock
    $5.95
  • 11
    CLUTCH/BRAKE Assembly – Part Number: 119-0220
    CLUTCH/BRAKE Assembly
    Part Number: 119-0220
      Special Order
    $791.50
  • 12
    Key-Square – Part Number: 608006
    Key-Square
    Part Number: 608006
      Special Order
    $6.42
  • 13
    Washer – Part Number: 107-4136
    Washer
    Part Number: 107-4136
      No Longer Available
  • 14
    BRACKET-MUFFLER MOUNT, Left Hand – Part Number: 116-2353
    BRACKET-MUFFLER MOUNT, Left Hand
    Part Number: 116-2353
      Special Order
    $77.48
  • 15
    BRACKET-MUFFLER MOUNT, Right Hand – Part Number: 116-2354
    BRACKET-MUFFLER MOUNT, Right Hand
    Part Number: 116-2354
      Special Order
    $77.48
  • 16
    PULLEY – Part Number: 112-7067
    PULLEY
    Part Number: 112-7067
      Special Order
    $265.03
  • 17
    Grommet – Part Number: 112-7069
    Grommet
    Part Number: 112-7069
      Special Order
    $5.95
  • 18:1
    Plug-spark – Part Number: 92-2153
    Plug-spark
    Part Number: 92-2153
      Special Order
    $8.28
  • 18:2
    FILTER-OIL – Part Number: 119-5852
    FILTER-OIL
    Part Number: 119-5852
      Special Order
    $43.69
  • 18:3
    Filter-fuel – Part Number: 120-2235
    Filter-fuel
    Part Number: 120-2235
      In Stock
    $9.95
  • 18:4
    Filter-air, Foam – Part Number: 120-7447
    Filter-air, Foam
    Part Number: 120-7447
      In Stock
    $16.70
  • 19
    Anchor-Spring, Short – Part Number: 132-4729
    Anchor-Spring, Short
    Part Number: 132-4729
      Special Order
    $8.68
  • 20
    MUFFLER – Part Number: 116-2351
    MUFFLER
    Part Number: 116-2351
      Special Order
    $488.83
  • 21
    Tie-cable – Part Number: 3290-378
    Tie-cable
    Part Number: 3290-378
      Special Order
    $5.95
  • 22
    BASE-ENGINE – Part Number: 119-0170-01
    BASE-ENGINE
    Part Number: 119-0170-01
      Special Order
    $337.49
  • 24
    Screw-Hhf – Part Number: 3234-29
    Screw-Hhf
    Part Number: 3234-29
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • 26
    Screw-Hh – Part Number: 3212-9
    Screw-Hh
    Part Number: 3212-9
      Special Order
    $17.98
  • 27
    Screw-hh – Part Number: 323-7
    Screw-hh
    Part Number: 323-7
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • 28
    Retainer, Primer Bulb – Part Number: 3231-2
    Retainer, Primer Bulb
    Part Number: 3231-2
      In Stock
    $5.95
  • 30
    Washer-lock – Part Number: 3253-4
    Washer-lock
    Part Number: 3253-4
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • 32
    SPACER – Part Number: 104-7658
    SPACER
    Part Number: 104-7658
      No Longer Available
  • 33
    Nut-hf – Part Number: 32128-25
    Nut-hf
    Part Number: 32128-25
      In Stock
    $5.95
  • 34
    Washer-belleville – Part Number: 98-5975
    Washer-belleville
    Part Number: 98-5975
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • 35
    Bracket-Clutch Stop – Part Number: 121-5984-03
    Bracket-Clutch Stop
    Part Number: 121-5984-03
      Special Order
    $31.35
  • 36
    Screw-hh – Part Number: 322-5
    Screw-hh
    Part Number: 322-5
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • 37
    Screw-Hh – Part Number: 33114-016
    Screw-Hh
    Part Number: 33114-016
      Special Order
    $5.95
  • 38
    BUMPER – Part Number: 109-3765
    BUMPER
    Part Number: 109-3765
      Special Order
    $8.82
  • 39
    Control-Choke, Push / Pull – Part Number: 106-9962
    Control-Choke, Push / Pull
    Part Number: 106-9962
      In Stock
    $93.95
  • 40
    Lever-control – Part Number: 110-5547
    Lever-control
    Part Number: 110-5547
      In Stock
    $56.55
  • 41
    CABLE-CONTROL – Part Number: 119-1882
    CABLE-CONTROL
    Part Number: 119-1882
      Special Order
    $39.95
  • 42
    Nut-Lock, Flange – Part Number: 32128-17
    Nut-Lock, Flange
    Part Number: 32128-17
      In Stock
    $5.95
  • 43
    Screw-Torx – Part Number: 110-0863
    Screw-Torx
    Part Number: 110-0863
      Special Order
    $14.98
  • 44
    KNOB-BALL – Part Number: 1-603175
    KNOB-BALL
    Part Number: 1-603175
      In Stock
    $16.48
  • 45
    Nut-flange, Ni – Part Number: 104-8300
    Nut-flange, Ni
    Part Number: 104-8300
    ★★★★★
    ★★★★★
    (1)
      In Stock
    $5.95
  • 46
    Tie-cable – Part Number: 3290-378
    Tie-cable
    Part Number: 3290-378
      Special Order
    $5.95
  • 47
    Gasket-Exhaust – Part Number: 1-653313
    Gasket-Exhaust
    Part Number: 1-653313
      In Stock
    $8.06
  • 48
    Washer-lock – Part Number: 114-3550
    Washer-lock
    Part Number: 114-3550
      Special Order
    Minimum Quantity of 2 required
    $5.95
  • 49
    Nut – Part Number: 114-3549
    Nut
    Part Number: 114-3549
      In Stock
    $5.95
  • 99
    Hose-Drain, Oil – Part Number: 103-1964
    Hose-Drain, Oil
    Part Number: 103-1964
      Special Order
    $14.98
Fuel Tank Assembly
Fuel Tank Assembly Diagram and Parts List for 404330000-404599999 Toro Lawn Mower
Height-Of-Cut Plate Assembly
Height-Of-Cut Plate Assembly Diagram and Parts List for 404330000-404599999 Toro Lawn Mower
Hydraulic Motor Assembly
Hydraulic Motor Assembly Diagram and Parts List for 404330000-404599999 Toro Lawn Mower
  • 1
    Seal Kit – Part Number: 1-000119
    Seal Kit
    Part Number: 1-000119
      Special Order
    $199.23
  • 2
    Key-Woodruff – Part Number: 3257-8
    Key-Woodruff
    Part Number: 3257-8
      Special Order
    $6.86
  • 3
    NUT-MOTOR, WHEEL – Part Number: 85-7310
    NUT-MOTOR, WHEEL
    Part Number: 85-7310
      Special Order
    $42.60
  • 4
    BOLT-SPECIAL – Part Number: 106-5549
    BOLT-SPECIAL
    Part Number: 106-5549
      Special Order
    $17.98
  • 5
    SHAFT-COUPLING – Part Number: 106-8764
    SHAFT-COUPLING
    Part Number: 106-8764
      Special Order
    $1090.16
Hydraulic Pump Assembly 1
Hydraulic Pump Assembly 1 Diagram and Parts List for 404330000-404599999 Toro Lawn Mower
Hydraulic Pump Assembly 2
Hydraulic Pump Assembly 2 Diagram and Parts List for 404330000-404599999 Toro Lawn Mower

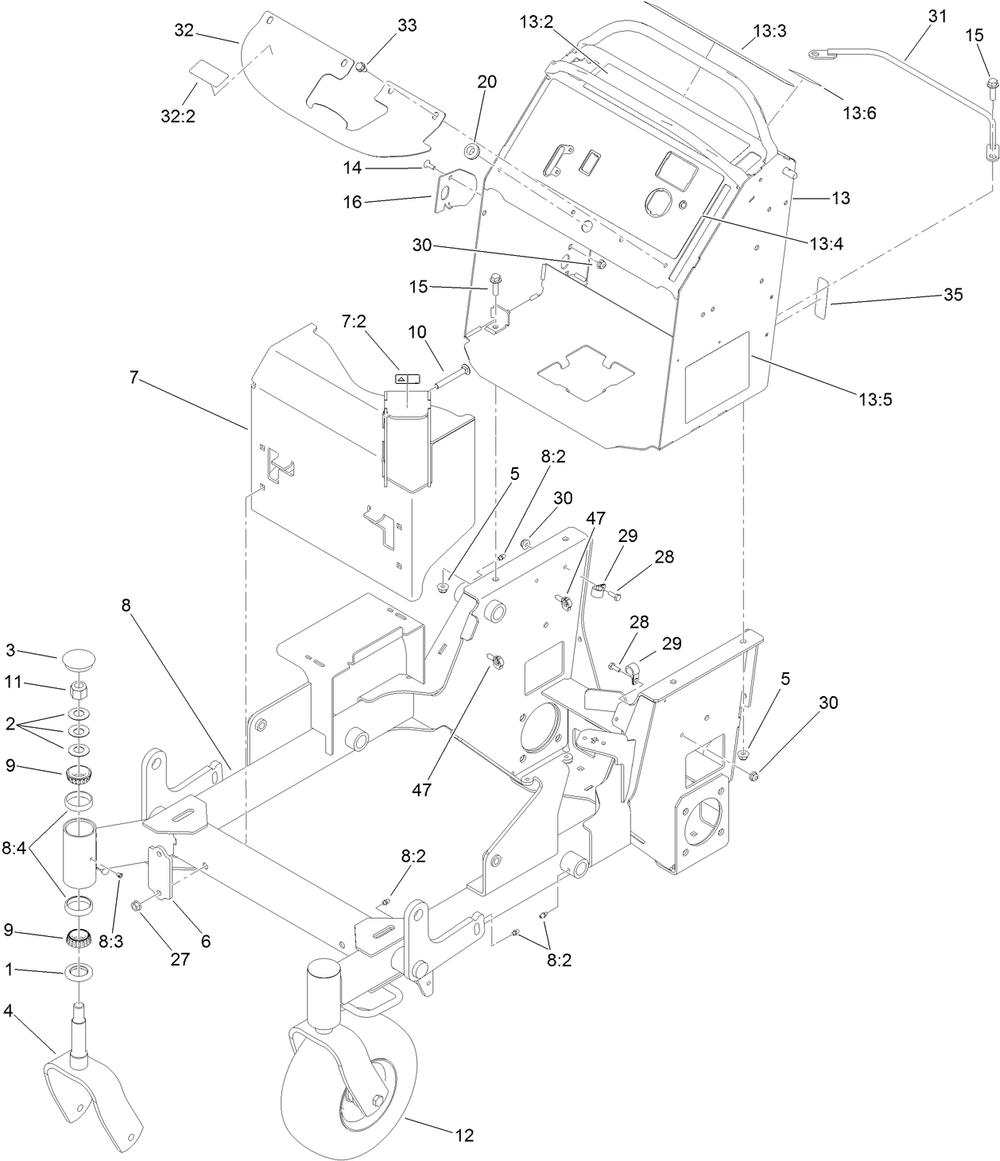

Main Frame Assembly
Main Frame Assembly Diagram and Parts List for 404330000-404599999 Toro Lawn Mower
Motion Control Assembly
Motion Control Assembly Diagram and Parts List for 404330000-404599999 Toro Lawn Mower
Parking Brake Assembly
Parking Brake Assembly Diagram and Parts List for 404330000-404599999 Toro Lawn Mower
Platform Assembly
Platform Assembly Diagram and Parts List for 404330000-404599999 Toro Lawn Mower
  • 1
    KNOB-BALL – Part Number: 1-603175
    KNOB-BALL
    Part Number: 1-603175
      In Stock
    $16.48
  • 2
    Decal – Part Number: 68-3640
    Decal
    Part Number: 68-3640
      Special Order
    $27.16
  • 3
    CLAMP-SHIELD – Part Number: 114-1920-03
    CLAMP-SHIELD
    Part Number: 114-1920-03
      Special Order
    $51.80
  • 4
    BUMPER-RUBBER – Part Number: 114-1925
    BUMPER-RUBBER
    Part Number: 114-1925
      In Stock
    $34.07
  • 5
    BUMPER-RUBBER – Part Number: 114-1926
    BUMPER-RUBBER
    Part Number: 114-1926
      In Stock
    $36.80
  • 6
    PIN-LATCH – Part Number: 119-8650
    PIN-LATCH
    Part Number: 119-8650
      Special Order
    $28.48
  • 7
    SPRING – Part Number: 114-5348
    SPRING
    Part Number: 114-5348
      Special Order
    $5.95
  • 8
    Mat-Platform – Part Number: 126-7157
    Mat-Platform
    Part Number: 126-7157
      Special Order
    $115.78
  • 9
    Platform Asm – Part Number: 132-9403-01
    Platform Asm
    Part Number: 132-9403-01
      Special Order
    $735.26
  • 10
    Screw-hh – Part Number: 323-7
    Screw-hh
    Part Number: 323-7
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • 12
    Nut-flange, Ni – Part Number: 104-8300
    Nut-flange, Ni
    Part Number: 104-8300
    ★★★★★
    ★★★★★
    (1)
      In Stock
    $5.95
  • 13
    Nut-flange, Ni – Part Number: 104-8301
    Nut-flange, Ni
    Part Number: 104-8301
      In Stock
    $5.95
  • 14
    Screw-hwh – Part Number: 32144-11
    Screw-hwh
    Part Number: 32144-11
      In Stock
    $10.48
  • 16
    Washer-Flat – Part Number: 83-1040
    Washer-Flat
    Part Number: 83-1040
      Special Order
    Minimum Quantity of 2 required
    $5.95
  • 17
    Bushing-Flanged – Part Number: 109-8788
    Bushing-Flanged
    Part Number: 109-8788
      Special Order
    $8.68
Pump Idler Assembly
Pump Idler Assembly Diagram and Parts List for 404330000-404599999 Toro Lawn Mower
Spindle Assembly 1
Spindle Assembly 1 Diagram and Parts List for 404330000-404599999 Toro Lawn Mower
  • 1
    Nut-Hex – Part Number: 3219-7
    Nut-Hex
    Part Number: 3219-7
      In Stock
    $5.95
  • 2
    Washer – Part Number: 7-4150
    Washer
    Part Number: 7-4150
      Special Order
    $5.95
  • 3
    PULLEY Assembly – Part Number: 117-7616
    PULLEY Assembly
    Part Number: 117-7616
      Special Order
    $96.95
  • 4
    Shield-Bearing – Part Number: 106-0873
    Shield-Bearing
    Part Number: 106-0873
      In Stock
    $23.98
  • 5
    BEARING-BALL – Part Number: 116-0720
    BEARING-BALL
    Part Number: 116-0720
      In Stock
    $29.97
  • 6
    Housing-Spindle – Part Number: 108-6696
    Housing-Spindle
    Part Number: 108-6696
      Special Order
    $226.49
  • 7
    Spacer-Bearing – Part Number: 110-0727
    Spacer-Bearing
    Part Number: 110-0727
      In Stock
    $29.98
  • 8
    SHAFT-SPINDLE – Part Number: 117-7626
    SHAFT-SPINDLE
    Part Number: 117-7626
      Special Order
    $71.23
Spindle Assembly 2
Spindle Assembly 2 Diagram and Parts List for 404330000-404599999 Toro Lawn Mower
  • 1
    Nut-Hex – Part Number: 3219-7
    Nut-Hex
    Part Number: 3219-7
      In Stock
    $5.95
  • 2
    Washer – Part Number: 7-4150
    Washer
    Part Number: 7-4150
      Special Order
    $5.95
  • 3
    PULLEY Assembly – Part Number: 117-7617
    PULLEY Assembly
    Part Number: 117-7617
      Special Order
    $56.95
  • 4
    Shield-Bearing – Part Number: 106-0873
    Shield-Bearing
    Part Number: 106-0873
      In Stock
    $23.98
  • 5
    BEARING-BALL – Part Number: 116-0720
    BEARING-BALL
    Part Number: 116-0720
      In Stock
    $29.97
  • 6
    Housing-Spindle – Part Number: 108-6696
    Housing-Spindle
    Part Number: 108-6696
      Special Order
    $226.49
  • 7
    Spacer-Bearing – Part Number: 110-0727
    Spacer-Bearing
    Part Number: 110-0727
      In Stock
    $29.98
  • 8
    SHAFT-SPINDLE – Part Number: 117-7626
    SHAFT-SPINDLE
    Part Number: 117-7626
      Special Order
    $71.23

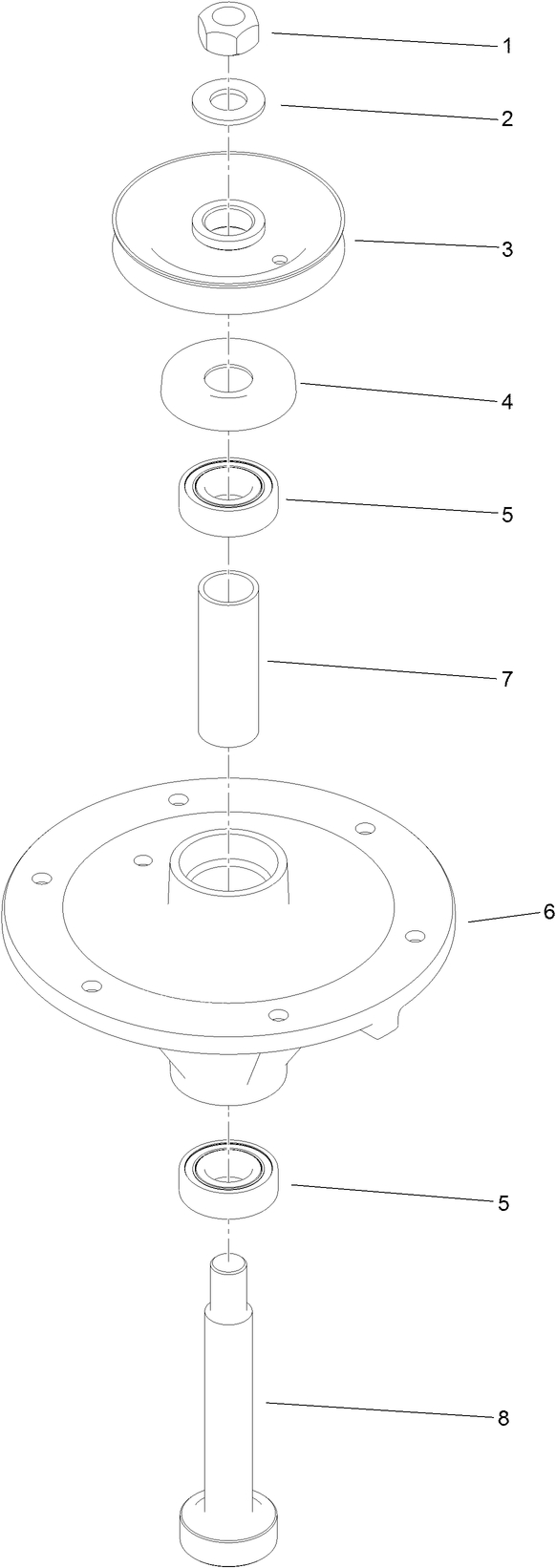

Spindle Assembly 3
Spindle Assembly 3 Diagram and Parts List for 404330000-404599999 Toro Lawn Mower
  • 1
    Nut-Hex – Part Number: 3219-7
    Nut-Hex
    Part Number: 3219-7
      In Stock
    $5.95
  • 2
    Washer – Part Number: 7-4150
    Washer
    Part Number: 7-4150
      Special Order
    $5.95
  • 3
    PULLEY Assembly – Part Number: 117-7615
    PULLEY Assembly
    Part Number: 117-7615
      Special Order
    $56.95
  • 4
    Shield-Bearing – Part Number: 106-0873
    Shield-Bearing
    Part Number: 106-0873
      In Stock
    $23.98
  • 5
    BEARING-BALL – Part Number: 116-0720
    BEARING-BALL
    Part Number: 116-0720
      In Stock
    $29.97
  • 6
    Housing-Spindle – Part Number: 108-6696
    Housing-Spindle
    Part Number: 108-6696
      Special Order
    $226.49
  • 7
    Spacer-Bearing – Part Number: 110-0727
    Spacer-Bearing
    Part Number: 110-0727
      In Stock
    $29.98
  • 8
    Shaft-Spindle – Part Number: 110-0726
    Shaft-Spindle
    Part Number: 110-0726
      In Stock
    $99.94
Traction Drive Assembly
Traction Drive Assembly Diagram and Parts List for 404330000-404599999 Toro Lawn Mower
  • 1
    ELEMENT-FILTER, 25 MICRON – Part Number: 114-3494
    ELEMENT-FILTER, 25 MICRON
    Part Number: 114-3494
      In Stock
    $19.95
  • 2
    Key – Part Number: 1-807272
    Key
    Part Number: 1-807272
      Special Order
    $5.95
  • 3
    FITTING-BARBED, 90 DEG – Part Number: 100-4887
    FITTING-BARBED, 90 DEG
    Part Number: 100-4887
      Special Order
    $33.75
  • 3:1
    O-Ring – Part Number: 237-42
    O-Ring
    Part Number: 237-42
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • 4
    FITTING-BARBED, 45 DEG – Part Number: 103-1807
    FITTING-BARBED, 45 DEG
    Part Number: 103-1807
      Special Order
    $34.07
  • 4:1
    O-Ring – Part Number: 237-42
    O-Ring
    Part Number: 237-42
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • 5
    FITTING-HYD, 45 DEG – Part Number: 353-212
    FITTING-HYD, 45 DEG
    Part Number: 353-212
      Special Order
    $31.62
  • 5:1
    O-Ring – Part Number: 237-42
    O-Ring
    Part Number: 237-42
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • 6
    Clamp-Hose – Part Number: 103-1988
    Clamp-Hose
    Part Number: 103-1988
      Special Order
    $5.95
  • 7
    Hyd Motor Asm – Part Number: 104-1171
    Hyd Motor Asm
    Part Number: 104-1171
      Special Order
    $1400.87
  • 8
    Head-Filter – Part Number: 104-7836
    Head-Filter
    Part Number: 104-7836
      Special Order
    $23.98
  • 9
    WHEEL HUB/STUD Assembly – Part Number: 105-0800
    WHEEL HUB/STUD Assembly
    Part Number: 105-0800
      Special Order
    $245.29
  • 9:2
    Stud-Type, Drive – Part Number: 10-6830
    Stud-Type, Drive
    Part Number: 10-6830
      Special Order
    $5.95
  • 10
    PULLEY-PUMP – Part Number: 105-5648
    PULLEY-PUMP
    Part Number: 105-5648
      Special Order
    $139.54
  • 11
    HYD RESERVOIR Assembly – Part Number: 107-8433
    HYD RESERVOIR Assembly
    Part Number: 107-8433
      Special Order
    $379.71
  • 11:1:1
    Cap-Reservoir, Hyd – Part Number: 103-1948
    Cap-Reservoir, Hyd
    Part Number: 103-1948
      Special Order
    $25.48
  • 11:1:2
    Gasket-Cap – Part Number: 103-1949
    Gasket-Cap
    Part Number: 103-1949
      No Longer Available
  • 11:2
    DECAL-WARNING – Part Number: 115-4212
    DECAL-WARNING
    Part Number: 115-4212
      Special Order
    $16.48
  • 12
    Spring-extension – Part Number: 108-4056
    Spring-extension
    Part Number: 108-4056
    ★★★★★
    ★★★★★
    (1)
      In Stock
    $10.92
  • 13
    HYDRAULIC PUMP Assembly – Part Number: 119-0176
    HYDRAULIC PUMP Assembly
    Part Number: 119-0176
      Special Order
    $1112.91
  • 14
    HYDRAULIC PUMP Assembly – Part Number: 119-0177
    HYDRAULIC PUMP Assembly
    Part Number: 119-0177
      Special Order
    $1112.91
  • 15
    PUMP IDLER Assembly – Part Number: 117-7685
    PUMP IDLER Assembly
    Part Number: 117-7685
      Special Order
    $220.85
  • 16
    BELT-V – Part Number: 119-0174
    BELT-V
    Part Number: 119-0174
      Special Order
    $49.95
  • 17
    FITTING-ELBOW, 90 – Part Number: 119-8680
    FITTING-ELBOW, 90
    Part Number: 119-8680
      Special Order
    $40.89
  • 17:1
    O-Ring – Part Number: 237-30
    O-Ring
    Part Number: 237-30
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • 17:2
    O-Ring – Part Number: 237-80
    O-Ring
    Part Number: 237-80
      In Stock
    $9.16
  • 18
    Screw-hh – Part Number: 321-3
    Screw-hh
    Part Number: 321-3
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • 19
    Screw – Part Number: 325-10
    Screw
    Part Number: 325-10
      Special Order
    $5.95
  • 20
    Bolt-Carr – Part Number: 3232-3
    Bolt-Carr
    Part Number: 3232-3
      Special Order
    $5.95
  • 21
    Screw-Set – Part Number: 3241-5
    Screw-Set
    Part Number: 3241-5
      Special Order
    Minimum Quantity of 2 required
    $5.95
  • 22
    Washer-flat – Part Number: 3256-22
    Washer-flat
    Part Number: 3256-22
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • 24
    Nut-Hf, Ni – Part Number: 114-8417
    Nut-Hf, Ni
    Part Number: 114-8417
      Special Order
    $5.95
  • 25
    Nut-hf – Part Number: 32128-23
    Nut-hf
    Part Number: 32128-23
      In Stock
    $5.95
  • 26
    Wheel/Tire Asm – Part Number: 120-6450
    Wheel/Tire Asm
    Part Number: 120-6450
      No Longer Available
  • 26:1
    Rim-8 Inch – Part Number: 116-4605
    Rim-8 Inch
    Part Number: 116-4605
      Special Order
    $112.81
  • 26:2
    Tire – Part Number: 120-6451
    Tire
    Part Number: 120-6451
      Special Order
    $179.21
  • 26:3
    Stem-Valve Left Hand – Part Number: 232-27
    Stem-Valve Left Hand
    Part Number: 232-27
      No Longer Available
  • 27
    Nut-Lug – Part Number: 139-2564
    Nut-Lug
    Part Number: 139-2564
      In Stock
    $5.95
  • 28
    HYD Hose Assembly – Part Number: 119-0173
    HYD Hose Assembly
    Part Number: 119-0173
      Special Order
    $117.76
  • 29
    HYD HOSE Assembly – Part Number: 119-8745
    HYD HOSE Assembly
    Part Number: 119-8745
      Special Order
    $71.23
  • 30
    HYD HOSE Assembly – Part Number: 119-0206
    HYD HOSE Assembly
    Part Number: 119-0206
      Special Order
    $77.40
  • 31
    HYD HOSE Assembly – Part Number: 119-0203
    HYD HOSE Assembly
    Part Number: 119-0203
      Special Order
    $34.07
  • 32
    Nut-Hf – Part Number: 104-7201
    Nut-Hf
    Part Number: 104-7201
      In Stock
    $5.95
  • 33
    Screw-Hh – Part Number: 321-6
    Screw-Hh
    Part Number: 321-6
      Special Order
    $5.95
  • 34
    Tie-cable – Part Number: 3290-378
    Tie-cable
    Part Number: 3290-378
      Special Order
    $5.95
  • 35
    Fitting-hyd, 90 Deg – Part Number: 103-1802
    Fitting-hyd, 90 Deg
    Part Number: 103-1802
      Special Order
    $28.62
  • 35:1
    O-Ring – Part Number: 237-42
    O-Ring
    Part Number: 237-42
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • 36
    Key-Woodruff – Part Number: 3257-8
    Key-Woodruff
    Part Number: 3257-8
      Special Order
    $6.86
  • 37
    NUT-MOTOR, WHEEL – Part Number: 85-7310
    NUT-MOTOR, WHEEL
    Part Number: 85-7310
      Special Order
    $42.60
Vent Hose Assembly
Vent Hose Assembly Diagram and Parts List for 404330000-404599999 Toro Lawn Mower
Wheel And Bearing Assembly
Wheel And Bearing Assembly Diagram and Parts List for 404330000-404599999 Toro Lawn Mower

Questions & Answers

?

Our customer Service team is at the ready daily to answer your part and product questions.

Be the first to ask our experts a question about this part!

Ask our Team

We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.

✖

Our customer service team are at the ready daily to answer your part and product questions. We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.
