Bagger Diagram and Parts List for Husqvarna Lawn Mower
Bagger
Bagger 2 Diagram and Parts List for Husqvarna Lawn Mower
Bagger 2
Engine Diagram and Parts List for Husqvarna Lawn Mower
Engine
Engine 2 Diagram and Parts List for Husqvarna Lawn Mower
Engine 2
Engine 3 Diagram and Parts List for Husqvarna Lawn Mower
Engine 3
Engine 4 Diagram and Parts List for Husqvarna Lawn Mower
Engine 4
Handle Diagram and Parts List for Husqvarna Lawn Mower
Handle
Handle 2 Diagram and Parts List for Husqvarna Lawn Mower
Handle 2
Mower Deck / Cutting Deck Diagram and Parts List for Husqvarna Lawn Mower
Mower Deck / Cutting Deck

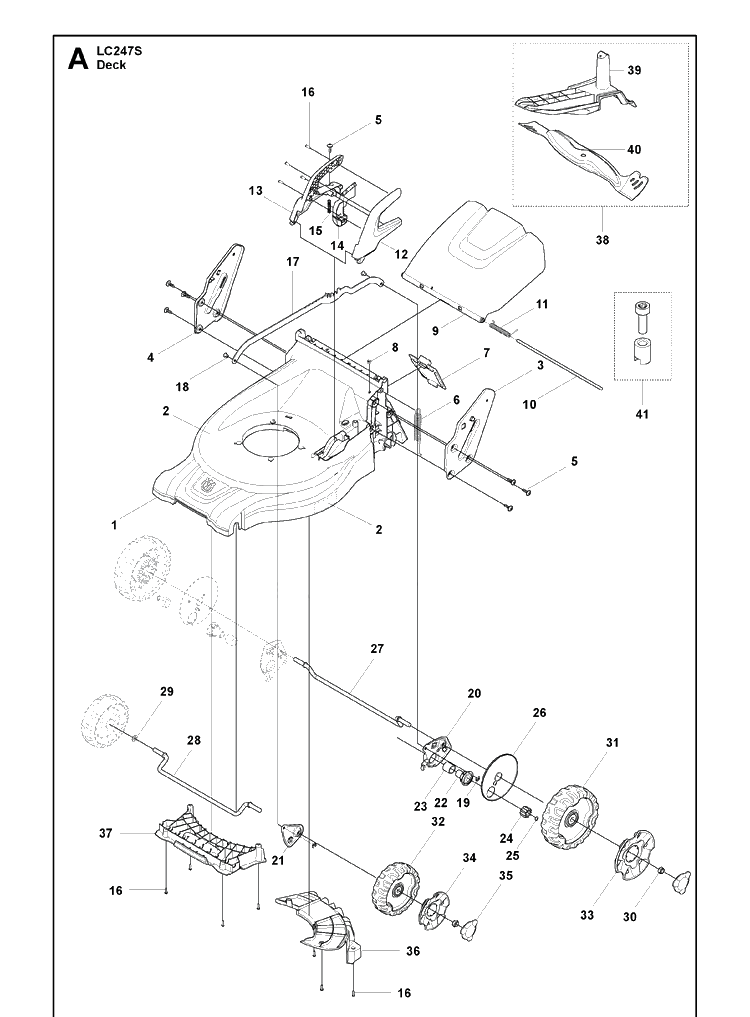

Mower Deck / Cutting Deck 2 Diagram and Parts List for Husqvarna Lawn Mower
Mower Deck / Cutting Deck 2
Previous Showing All Parts Next
Bagger
Bagger Diagram and Parts List for Husqvarna Lawn Mower
  • 1
    Grassbag – Part Number: 587292301
    Grassbag
    Part Number: 587292301
      No Longer Available
  • 2
    Frame – Part Number: 587182001
    Frame
    Part Number: 587182001
      No Longer Available
  • 3
    Handle – Part Number: 588188502
    Handle
    Part Number: 588188502
      Special Order
    $9.63
  • 4
    Handle – Part Number: 588188402
    Handle
    Part Number: 588188402
      Special Order
    $8.26
  • 5
    Screw Itxpant – Part Number: 502435301
    Screw Itxpant
    Part Number: 502435301
      No Longer Available

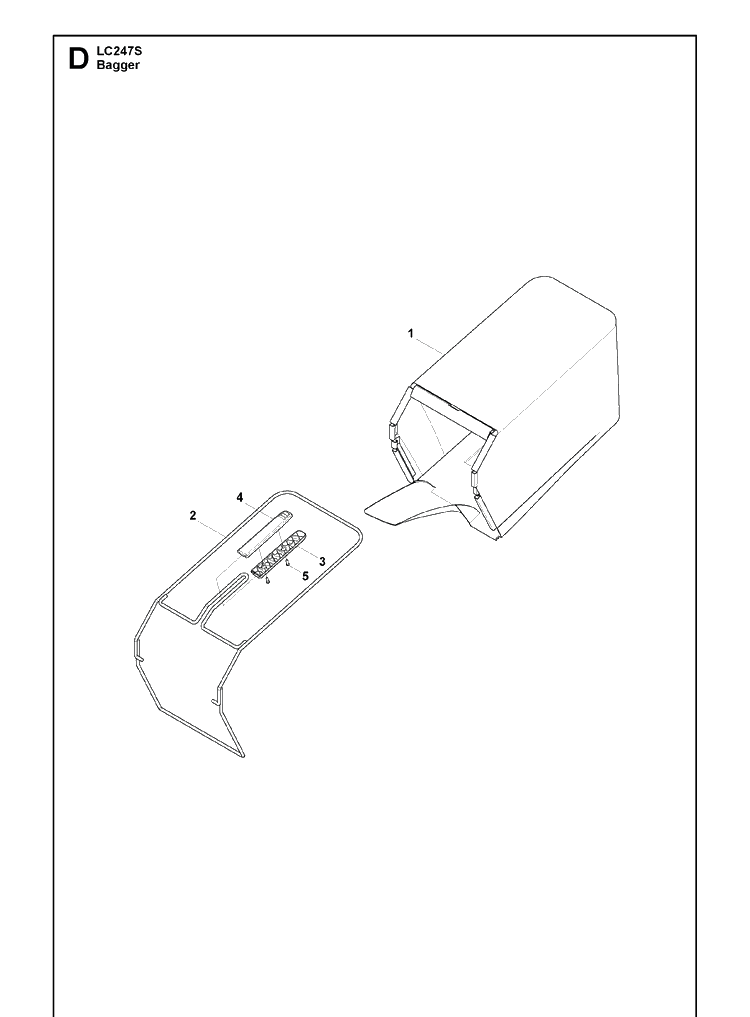

Bagger 2
Bagger 2 Diagram and Parts List for Husqvarna Lawn Mower
  • 1
    Grassbag – Part Number: 587292301
    Grassbag
    Part Number: 587292301
      No Longer Available
  • 2
    Frame – Part Number: 587182001
    Frame
    Part Number: 587182001
      No Longer Available
  • 3
    Handle – Part Number: 588188502
    Handle
    Part Number: 588188502
      Special Order
    $9.63
  • 4
    Handle – Part Number: 588188402
    Handle
    Part Number: 588188402
      Special Order
    $8.26
  • 5
    Screw Itxpant – Part Number: 502435301
    Screw Itxpant
    Part Number: 502435301
      No Longer Available
Engine
Engine Diagram and Parts List for Husqvarna Lawn Mower
  • 1
    Engine – Part Number: 588638801
    Engine
    Part Number: 588638801
      No Longer Available
  • 2
    Shroud – Part Number: 588878701
    Shroud
    Part Number: 588878701
      No Longer Available
  • 3
    Decal – Part Number: 588888502
    Decal
    Part Number: 588888502
      No Longer Available
  • 4
    Sleeve – Part Number: 578295101
    Sleeve
    Part Number: 578295101
      No Longer Available
  • 5
    Screw Ehhft – Part Number: 578294801
    Screw Ehhft
    Part Number: 578294801
      No Longer Available
  • 6
    Blade Support – Part Number: 588645701
    Blade Support
    Part Number: 588645701
      No Longer Available
  • 7
    Washer – Part Number: 503259401
    Washer
    Part Number: 503259401
      Special Order
    $4.99
  • 8
    Blade – Part Number: 588275510
    Blade
    Part Number: 588275510
      No Longer Available
  • 9
    Spring – Part Number: 503332501
    Spring
    Part Number: 503332501
      Special Order
    $6.95
  • 10
    Screw Ehhi – Part Number: 504456403
    Screw Ehhi
    Part Number: 504456403
      No Longer Available
  • 11
    Gearbox – Part Number: 587182101
    Gearbox
    Part Number: 587182101
      No Longer Available
  • 12
    Pinion – Part Number: 544342301
    Pinion
    Part Number: 544342301
      Special Order
    $11.03
  • 13
    Circlip – Part Number: 735311401
    Circlip
    Part Number: 735311401
      No Longer Available
  • 14
    Belt Guide – Part Number: 587938601
    Belt Guide
    Part Number: 587938601
      No Longer Available
  • 15
    Belt Guide – Part Number: 587938501
    Belt Guide
    Part Number: 587938501
      No Longer Available
  • 16
    Belt – Part Number: 589563301
    Belt
    Part Number: 589563301
      No Longer Available
Engine 2
Engine 2 Diagram and Parts List for Husqvarna Lawn Mower
  • 1
    Engine – Part Number: 588638801
    Engine
    Part Number: 588638801
      No Longer Available
  • 2
    Shroud – Part Number: 588878701
    Shroud
    Part Number: 588878701
      No Longer Available
  • 3
    Decal – Part Number: 588888502
    Decal
    Part Number: 588888502
      No Longer Available
  • 4
    Sleeve – Part Number: 578295101
    Sleeve
    Part Number: 578295101
      No Longer Available
  • 5
    Screw Ehhft – Part Number: 578294801
    Screw Ehhft
    Part Number: 578294801
      No Longer Available
  • 6
    Blade Support – Part Number: 588645701
    Blade Support
    Part Number: 588645701
      No Longer Available
  • 7
    Washer – Part Number: 503259401
    Washer
    Part Number: 503259401
      Special Order
    $4.99
  • 8
    Blade – Part Number: 588275510
    Blade
    Part Number: 588275510
      No Longer Available
  • 9
    Spring – Part Number: 503332501
    Spring
    Part Number: 503332501
      Special Order
    $6.95
  • 10
    Screw Ehhi – Part Number: 504456403
    Screw Ehhi
    Part Number: 504456403
      No Longer Available
  • 11
    Transmission – Part Number: 582370301
    Transmission
    Part Number: 582370301
      No Longer Available
  • 12
    Circlip – Part Number: 735311401
    Circlip
    Part Number: 735311401
      No Longer Available
  • 13
    Pinion – Part Number: 501869702
    Pinion
    Part Number: 501869702
      No Longer Available
  • 14
    Pinion – Part Number: 501869701
    Pinion
    Part Number: 501869701
      No Longer Available
  • 15
    Belt – Part Number: 589324604
    Belt
    Part Number: 589324604
      No Longer Available
  • 16
    Pin – Part Number: 582041101
    Pin
    Part Number: 582041101
      No Longer Available
  • 17
    Washer – Part Number: 504460801
    Washer
    Part Number: 504460801
      No Longer Available
  • 18
    Spring – Part Number: 582362001
    Spring
    Part Number: 582362001
      No Longer Available

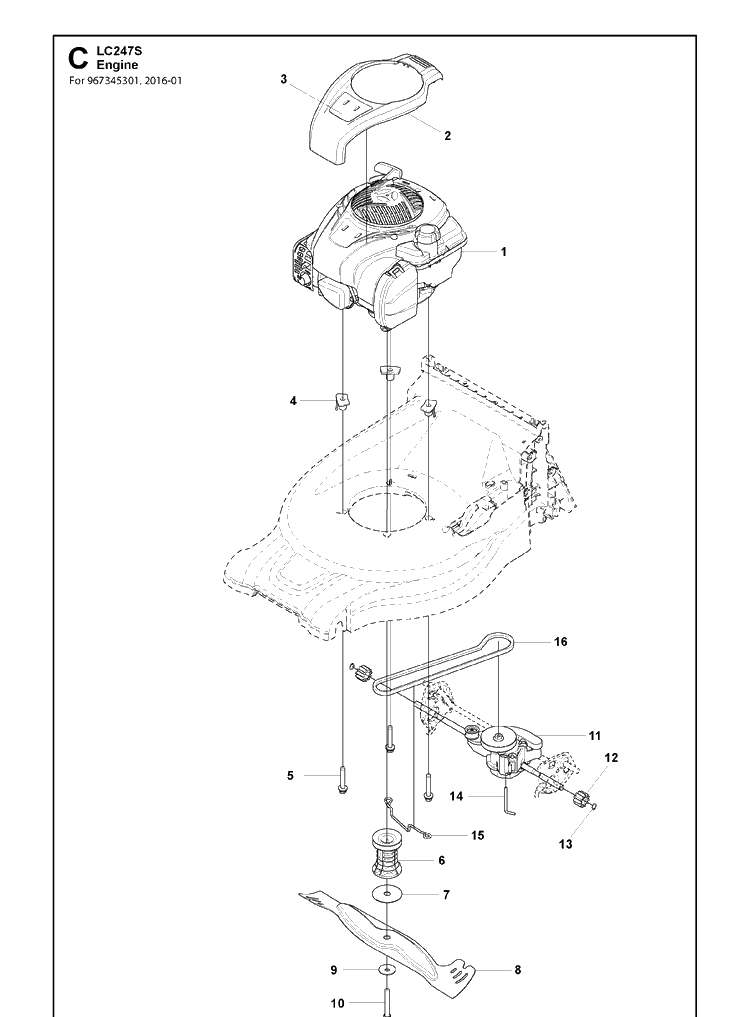

Engine 3
Engine 3 Diagram and Parts List for Husqvarna Lawn Mower
  • 1
    Engine – Part Number: 588638801
    Engine
    Part Number: 588638801
      No Longer Available
  • 2
    Shroud – Part Number: 588878701
    Shroud
    Part Number: 588878701
      No Longer Available
  • 3
    Decal – Part Number: 588888502
    Decal
    Part Number: 588888502
      No Longer Available
  • 4
    Sleeve – Part Number: 578295101
    Sleeve
    Part Number: 578295101
      No Longer Available
  • 5
    Screw Ehhft – Part Number: 578294801
    Screw Ehhft
    Part Number: 578294801
      No Longer Available
  • 6
    Blade Support – Part Number: 588645701
    Blade Support
    Part Number: 588645701
      No Longer Available
  • 7
    Washer – Part Number: 503259401
    Washer
    Part Number: 503259401
      Special Order
    $4.99
  • 8
    Blade – Part Number: 588275510
    Blade
    Part Number: 588275510
      No Longer Available
  • 9
    Spring – Part Number: 503332501
    Spring
    Part Number: 503332501
      Special Order
    $6.95
  • 10
    Screw Ehhi – Part Number: 504456403
    Screw Ehhi
    Part Number: 504456403
      No Longer Available
  • 11
    Gearbox – Part Number: 587182101
    Gearbox
    Part Number: 587182101
      No Longer Available
  • 12
    Pinion – Part Number: 544342301
    Pinion
    Part Number: 544342301
      Special Order
    $11.03
  • 13
    Circlip – Part Number: 735311401
    Circlip
    Part Number: 735311401
      No Longer Available
  • 14
    Belt Guide – Part Number: 587938601
    Belt Guide
    Part Number: 587938601
      No Longer Available
  • 15
    Belt Guide – Part Number: 587938501
    Belt Guide
    Part Number: 587938501
      No Longer Available
  • 16
    Belt – Part Number: 589563301
    Belt
    Part Number: 589563301
      No Longer Available

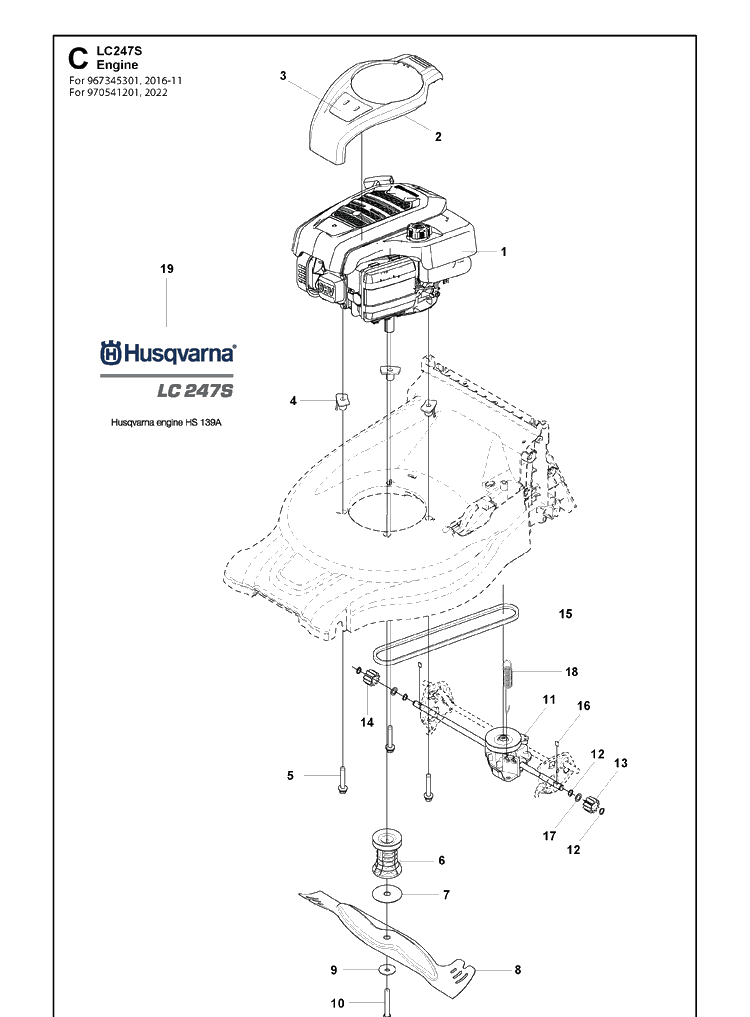

Engine 4
Engine 4 Diagram and Parts List for Husqvarna Lawn Mower
  • 1
    Engine – Part Number: 588638801
    Engine
    Part Number: 588638801
      No Longer Available
  • 1
    Motor – Part Number: 531450701
    Motor
    Part Number: 531450701
      No Longer Available
  • 2
    Shroud – Part Number: 588878701
    Shroud
    Part Number: 588878701
      No Longer Available
  • 3
    Decal – Part Number: 588888502
    Decal
    Part Number: 588888502
      No Longer Available
  • 4
    Sleeve – Part Number: 578295101
    Sleeve
    Part Number: 578295101
      No Longer Available
  • 5
    Screw Ehhft – Part Number: 578294801
    Screw Ehhft
    Part Number: 578294801
      No Longer Available
  • 6
    Blade Support – Part Number: 588645701
    Blade Support
    Part Number: 588645701
      No Longer Available
  • 7
    Washer – Part Number: 503259401
    Washer
    Part Number: 503259401
      Special Order
    $4.99
  • 8
    Blade – Part Number: 588275510
    Blade
    Part Number: 588275510
      No Longer Available
  • 9
    Spring – Part Number: 503332501
    Spring
    Part Number: 503332501
      Special Order
    $6.95
  • 10
    Screw Ehhi – Part Number: 504456403
    Screw Ehhi
    Part Number: 504456403
      No Longer Available
  • 11
    Transmission – Part Number: 582370301
    Transmission
    Part Number: 582370301
      No Longer Available
  • 12
    Circlip – Part Number: 735311401
    Circlip
    Part Number: 735311401
      No Longer Available
  • 13
    Pinion – Part Number: 501869702
    Pinion
    Part Number: 501869702
      No Longer Available
  • 14
    Pinion – Part Number: 501869701
    Pinion
    Part Number: 501869701
      No Longer Available
  • 15
    Belt – Part Number: 589324604
    Belt
    Part Number: 589324604
      No Longer Available
  • 15
    Belt x10-profile ld=785 – Part Number: 579819304
    Belt x10-profile ld=785
    Part Number: 579819304
      No Longer Available
  • 16
    Pin – Part Number: 582041101
    Pin
    Part Number: 582041101
      No Longer Available
  • 17
    Washer – Part Number: 504460801
    Washer
    Part Number: 504460801
      No Longer Available
  • 18
    Spring – Part Number: 582362001
    Spring
    Part Number: 582362001
      No Longer Available
  • 19
    Decal model lc 247s – Part Number: 531240804
    Decal model lc 247s
    Part Number: 531240804
      No Longer Available

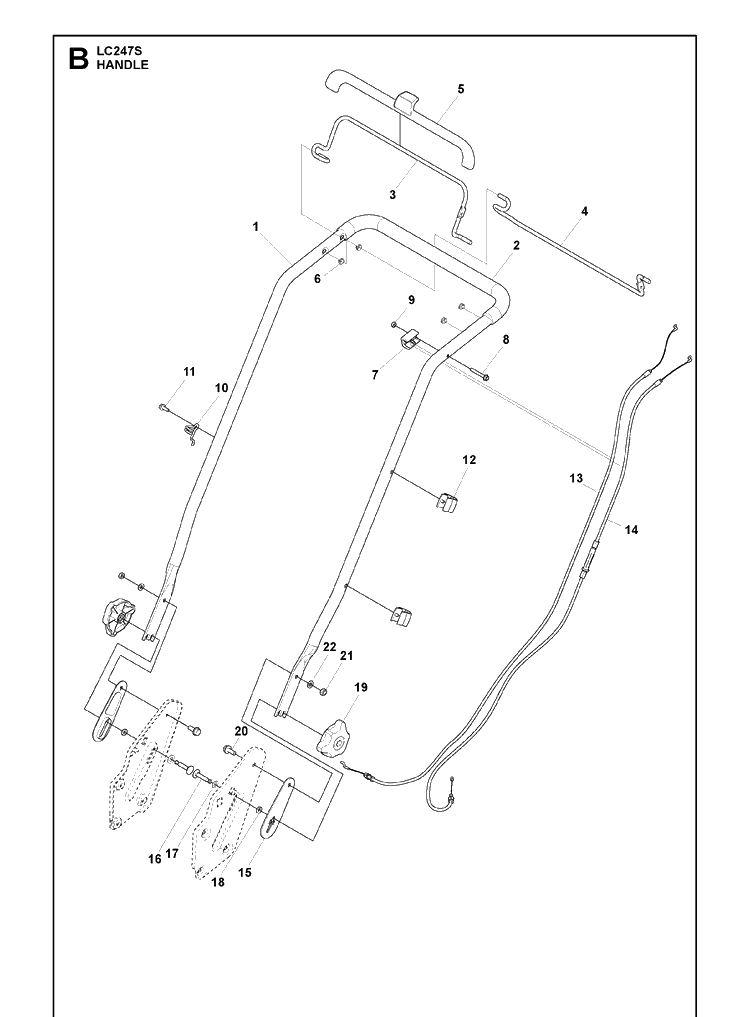

Handle
Handle Diagram and Parts List for Husqvarna Lawn Mower
  • 1
    Handle – Part Number: 582818102
    Handle
    Part Number: 582818102
      No Longer Available
  • 2
    Tube – Part Number: 501110101
    Tube
    Part Number: 501110101
      Special Order
    $24.82
  • 3
    Bail – Part Number: 587101702
    Bail
    Part Number: 587101702
      No Longer Available
  • 4
    Bail – Part Number: 587101802
    Bail
    Part Number: 587101802
      Special Order
    $28.84
  • 5
    Grip – Part Number: 587102502
    Grip
    Part Number: 587102502
      No Longer Available
  • 6
    Bushing – Part Number: 503320901
    Bushing
    Part Number: 503320901
      No Longer Available
  • 7
    Bracket – Part Number: 531208043
    Bracket
    Part Number: 531208043
      No Longer Available
  • 8
    Screw Ehhfm – Part Number: 535475245
    Screw Ehhfm
    Part Number: 535475245
      Special Order
    $5.95
  • 9
    Nut Flange - M6 – Part Number: 732251601
    Nut Flange - M6
    Part Number: 732251601
      Special Order
    $5.95
  • 10
    Eyelet – Part Number: 587102701
    Eyelet
    Part Number: 587102701
      Special Order
    $6.88
  • 11
    Screw Ehhfm – Part Number: 535475212
    Screw Ehhfm
    Part Number: 535475212
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • 12
    Cable Holder – Part Number: 579134601
    Cable Holder
    Part Number: 579134601
      Special Order
    $6.95
  • 13
    Wire – Part Number: 582105301
    Wire
    Part Number: 582105301
      No Longer Available
  • 14
    Wire – Part Number: 582105201
    Wire
    Part Number: 582105201
      No Longer Available
  • 15
    Washer – Part Number: 587780401
    Washer
    Part Number: 587780401
      Special Order
    $6.88
  • 16
    Bolt – Part Number: 588157302
    Bolt
    Part Number: 588157302
      Special Order
    $5.95
  • 17
    Washer – Part Number: 588157401
    Washer
    Part Number: 588157401
      Special Order
    $5.95
  • 18
    Nut Ml6M M8 – Part Number: 731431801
    Nut Ml6M M8
    Part Number: 731431801
      Special Order
    $5.95
  • 19
    Knob – Part Number: 587237201
    Knob
    Part Number: 587237201
      Special Order
    $13.78
  • 20
    Bolt – Part Number: 506570104
    Bolt
    Part Number: 506570104
      Special Order
    $7.46
  • 21
    Locknut M8 – Part Number: 732211801
    Locknut M8
    Part Number: 732211801
      In Stock
    $5.95
  • 22
    Washer – Part Number: 734182051
    Washer
    Part Number: 734182051
      Special Order
    $5.95
Handle 2
Handle 2 Diagram and Parts List for Husqvarna Lawn Mower
  • 1
    Handle – Part Number: 582818102
    Handle
    Part Number: 582818102
      No Longer Available
  • 2
    Tube – Part Number: 501110101
    Tube
    Part Number: 501110101
      Special Order
    $24.82
  • 3
    Bail – Part Number: 587101702
    Bail
    Part Number: 587101702
      No Longer Available
  • 4
    Bail – Part Number: 587101802
    Bail
    Part Number: 587101802
      Special Order
    $28.84
  • 5
    Grip – Part Number: 587102502
    Grip
    Part Number: 587102502
      No Longer Available
  • 6
    Bushing – Part Number: 503320901
    Bushing
    Part Number: 503320901
      No Longer Available
  • 7
    Bracket – Part Number: 531208043
    Bracket
    Part Number: 531208043
      No Longer Available
  • 8
    Screw Ehhfm – Part Number: 535475245
    Screw Ehhfm
    Part Number: 535475245
      Special Order
    $5.95
  • 9
    Nut Flange - M6 – Part Number: 732251601
    Nut Flange - M6
    Part Number: 732251601
      Special Order
    $5.95
  • 10
    Eyelet – Part Number: 587102701
    Eyelet
    Part Number: 587102701
      Special Order
    $6.88
  • 11
    Screw Ehhfm – Part Number: 535475212
    Screw Ehhfm
    Part Number: 535475212
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • 12
    Cable Holder – Part Number: 579134601
    Cable Holder
    Part Number: 579134601
      Special Order
    $6.95
  • 13
    Cable opc, loncin – Part Number: 588204808
    Cable opc, loncin
    Part Number: 588204808
      No Longer Available
  • 13
    Wire – Part Number: 582105301
    Wire
    Part Number: 582105301
      No Longer Available
  • 14
    Wire – Part Number: 582105201
    Wire
    Part Number: 582105201
      No Longer Available
  • 15
    Washer – Part Number: 587780401
    Washer
    Part Number: 587780401
      Special Order
    $6.88
  • 16
    Bolt – Part Number: 588157302
    Bolt
    Part Number: 588157302
      Special Order
    $5.95
  • 17
    Washer – Part Number: 588157401
    Washer
    Part Number: 588157401
      Special Order
    $5.95
  • 18
    Nut Ml6M M8 – Part Number: 731431801
    Nut Ml6M M8
    Part Number: 731431801
      Special Order
    $5.95
  • 19
    Knob – Part Number: 587237201
    Knob
    Part Number: 587237201
      Special Order
    $13.78
  • 20
    Bolt – Part Number: 506570104
    Bolt
    Part Number: 506570104
      Special Order
    $7.46
  • 21
    Locknut M8 – Part Number: 732211801
    Locknut M8
    Part Number: 732211801
      In Stock
    $5.95
  • 22
    Washer – Part Number: 734182051
    Washer
    Part Number: 734182051
      Special Order
    $5.95
Mower Deck / Cutting Deck
Mower Deck / Cutting Deck Diagram and Parts List for Husqvarna Lawn Mower
  • 1
    Chassis – Part Number: 587151003
    Chassis
    Part Number: 587151003
      No Longer Available
  • 2
    Label – Part Number: 584805301
    Label
    Part Number: 584805301
      No Longer Available
  • 3
    Handle Support – Part Number: 587212102
    Handle Support
    Part Number: 587212102
      No Longer Available
  • 4
    Handle Support – Part Number: 587212302
    Handle Support
    Part Number: 587212302
      No Longer Available
  • 5
    Screw Itxpant – Part Number: 578175802
    Screw Itxpant
    Part Number: 578175802
      No Longer Available
  • 6
    Spring – Part Number: 587674401
    Spring
    Part Number: 587674401
      No Longer Available
  • 7
    Cover – Part Number: 587095402
    Cover
    Part Number: 587095402
      No Longer Available
  • 8
    Strap – Part Number: 579317401
    Strap
    Part Number: 579317401
      No Longer Available
  • 9
    Hatch – Part Number: 587101403
    Hatch
    Part Number: 587101403
      No Longer Available
  • 10
    Axle – Part Number: 586984601
    Axle
    Part Number: 586984601
      No Longer Available
  • 11
    Spring – Part Number: 587101501
    Spring
    Part Number: 587101501
      No Longer Available
  • 12
    Cover Half – Part Number: 587203701
    Cover Half
    Part Number: 587203701
      No Longer Available
  • 13
    Cover Half – Part Number: 587203801
    Cover Half
    Part Number: 587203801
      No Longer Available
  • 14
    Button – Part Number: 587697401
    Button
    Part Number: 587697401
      No Longer Available
  • 15
    Spring – Part Number: 589597601
    Spring
    Part Number: 589597601
      No Longer Available
  • 16
    Screw Itxpant – Part Number: 502435301
    Screw Itxpant
    Part Number: 502435301
      No Longer Available
  • 17
    Rod – Part Number: 587160801
    Rod
    Part Number: 587160801
      No Longer Available
  • 18
    Shaft – Part Number: 587687001
    Shaft
    Part Number: 587687001
      No Longer Available
  • 19
    Retaining Ring – Part Number: 735311220
    Retaining Ring
    Part Number: 735311220
      No Longer Available
  • 20
    Link Arm – Part Number: 587072501
    Link Arm
    Part Number: 587072501
      No Longer Available
  • 21
    Link Arm – Part Number: 587072401
    Link Arm
    Part Number: 587072401
      No Longer Available
  • 22
    – Part Number: 501861001
    Part Number: 501861001
      No Longer Available
  • 23
    Tube – Part Number: 579682802
    Tube
    Part Number: 579682802
      No Longer Available
  • 24
    Pinion – Part Number: 544342301
    Pinion
    Part Number: 544342301
      Special Order
    $11.03
  • 25
    Circlip – Part Number: 735311401
    Circlip
    Part Number: 735311401
      No Longer Available
  • 26
    Dust Cover – Part Number: 587204002
    Dust Cover
    Part Number: 587204002
      No Longer Available
  • 27
    Wheel Axle – Part Number: 587072601
    Wheel Axle
    Part Number: 587072601
      No Longer Available
  • 28
    Wheel Axle – Part Number: 587072602
    Wheel Axle
    Part Number: 587072602
      No Longer Available
  • 29
    Washer – Part Number: 577092801
    Washer
    Part Number: 577092801
      Special Order
    $5.95
  • 30
    Nut – Part Number: 587990901
    Nut
    Part Number: 587990901
      No Longer Available
  • 31
    Wheel Assy – Part Number: 582305701
    Wheel Assy
    Part Number: 582305701
      No Longer Available
  • 31
    Wheel Assy – Part Number: 584142203
    Wheel Assy
    Part Number: 584142203
      No Longer Available
  • 32
    Wheel Assy – Part Number: 587631501
    Wheel Assy
    Part Number: 587631501
      No Longer Available
  • 33
    Hub Cap – Part Number: 584159301
    Hub Cap
    Part Number: 584159301
      Special Order
    $8.26
  • 34
    Hub Cap – Part Number: 587632701
    Hub Cap
    Part Number: 587632701
      No Longer Available
  • 35
    Nut Cap – Part Number: 584159401
    Nut Cap
    Part Number: 584159401
      Special Order
    $8.26
  • 36
    Belt Cover – Part Number: 587199902
    Belt Cover
    Part Number: 587199902
      No Longer Available
  • 37
    Skid Plate – Part Number: 588202701
    Skid Plate
    Part Number: 588202701
      No Longer Available
  • 38
    Mulch Kit – Part Number: 589214801
    Mulch Kit
    Part Number: 589214801
      No Longer Available
  • 39
    Mulch Plug – Part Number: 587702701
    Mulch Plug
    Part Number: 587702701
      No Longer Available
  • 40
    Mower Blade – Part Number: 588275701
    Mower Blade
    Part Number: 588275701
      No Longer Available
  • 41
    Thread Insert – Part Number: 589018701
    Thread Insert
    Part Number: 589018701
      No Longer Available
Mower Deck / Cutting Deck 2
Mower Deck / Cutting Deck 2 Diagram and Parts List for Husqvarna Lawn Mower
  • 1
    Chassis – Part Number: 587151003
    Chassis
    Part Number: 587151003
      No Longer Available
  • 2
    Label – Part Number: 584805301
    Label
    Part Number: 584805301
      No Longer Available
  • 3
    Handle Support – Part Number: 587212102
    Handle Support
    Part Number: 587212102
      No Longer Available
  • 4
    Handle Support – Part Number: 587212302
    Handle Support
    Part Number: 587212302
      No Longer Available
  • 5
    Screw Itxpant – Part Number: 578175802
    Screw Itxpant
    Part Number: 578175802
      No Longer Available
  • 6
    Spring – Part Number: 587674401
    Spring
    Part Number: 587674401
      No Longer Available
  • 7
    Cover – Part Number: 587095402
    Cover
    Part Number: 587095402
      No Longer Available
  • 8
    Strap – Part Number: 579317401
    Strap
    Part Number: 579317401
      No Longer Available
  • 9
    Hatch – Part Number: 587101403
    Hatch
    Part Number: 587101403
      No Longer Available
  • 10
    Axle – Part Number: 586984601
    Axle
    Part Number: 586984601
      No Longer Available
  • 11
    Spring – Part Number: 587101501
    Spring
    Part Number: 587101501
      No Longer Available
  • 12
    Cover Half – Part Number: 587203701
    Cover Half
    Part Number: 587203701
      No Longer Available
  • 13
    Cover Half – Part Number: 587203801
    Cover Half
    Part Number: 587203801
      No Longer Available
  • 14
    Button – Part Number: 587697401
    Button
    Part Number: 587697401
      No Longer Available
  • 15
    Spring – Part Number: 589597601
    Spring
    Part Number: 589597601
      No Longer Available
  • 16
    Screw Itxpant – Part Number: 502435301
    Screw Itxpant
    Part Number: 502435301
      No Longer Available
  • 17
    Rod – Part Number: 587160801
    Rod
    Part Number: 587160801
      No Longer Available
  • 18
    Shaft – Part Number: 587687001
    Shaft
    Part Number: 587687001
      No Longer Available
  • 19
    Retaining Ring – Part Number: 735311220
    Retaining Ring
    Part Number: 735311220
      No Longer Available
  • 20
    Link Arm – Part Number: 587072501
    Link Arm
    Part Number: 587072501
      No Longer Available
  • 21
    Link Arm – Part Number: 587072401
    Link Arm
    Part Number: 587072401
      No Longer Available
  • 22
    – Part Number: 501861001
    Part Number: 501861001
      No Longer Available
  • 23
    Tube – Part Number: 579682802
    Tube
    Part Number: 579682802
      No Longer Available
  • 24
    Pinion – Part Number: 544342301
    Pinion
    Part Number: 544342301
      Special Order
    $11.03
  • 25
    Circlip – Part Number: 735311401
    Circlip
    Part Number: 735311401
      No Longer Available
  • 26
    Dust Cover – Part Number: 587204002
    Dust Cover
    Part Number: 587204002
      No Longer Available
  • 27
    Wheel Axle – Part Number: 587072601
    Wheel Axle
    Part Number: 587072601
      No Longer Available
  • 28
    Wheel Axle – Part Number: 587072602
    Wheel Axle
    Part Number: 587072602
      No Longer Available
  • 29
    Washer – Part Number: 577092801
    Washer
    Part Number: 577092801
      Special Order
    $5.95
  • 30
    Nut – Part Number: 587990901
    Nut
    Part Number: 587990901
      No Longer Available
  • 31
    Wheel Assy – Part Number: 582305701
    Wheel Assy
    Part Number: 582305701
      No Longer Available
  • 31
    Wheel Assy – Part Number: 584142203
    Wheel Assy
    Part Number: 584142203
      No Longer Available
  • 32
    Wheel Assy – Part Number: 587631501
    Wheel Assy
    Part Number: 587631501
      No Longer Available
  • 33
    Hub Cap – Part Number: 584159301
    Hub Cap
    Part Number: 584159301
      Special Order
    $8.26
  • 34
    Hub Cap – Part Number: 587632701
    Hub Cap
    Part Number: 587632701
      No Longer Available
  • 35
    Nut Cap – Part Number: 584159401
    Nut Cap
    Part Number: 584159401
      Special Order
    $8.26
  • 36
    Belt Cover – Part Number: 587199902
    Belt Cover
    Part Number: 587199902
      No Longer Available
  • 36
    Belt Cover – Part Number: 587199901
    Belt Cover
    Part Number: 587199901
      No Longer Available
  • 37
    Skid Plate – Part Number: 588202701
    Skid Plate
    Part Number: 588202701
      No Longer Available
  • 38
    Mulch Kit – Part Number: 589214801
    Mulch Kit
    Part Number: 589214801
      No Longer Available
  • 39
    Mulch Plug – Part Number: 587702701
    Mulch Plug
    Part Number: 587702701
      No Longer Available
  • 40
    Mower Blade – Part Number: 588275701
    Mower Blade
    Part Number: 588275701
      No Longer Available
  • 41
    Thread Insert – Part Number: 589018701
    Thread Insert
    Part Number: 589018701
      No Longer Available

Questions & Answers

?

Our customer Service team is at the ready daily to answer your part and product questions.

Be the first to ask our experts a question about this part!

Ask our Team

We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.

✖

Our customer service team are at the ready daily to answer your part and product questions. We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.
