Gear Reducer
Gear Reducer Diagram and Parts List for UT-30523-A Homelite Lawn Mower
Handles And Controls Push
Handles And Controls Push Diagram and Parts List for UT-30523-A Homelite Lawn Mower
Mower
Mower Diagram and Parts List for UT-30523-A Homelite Lawn Mower
Page A

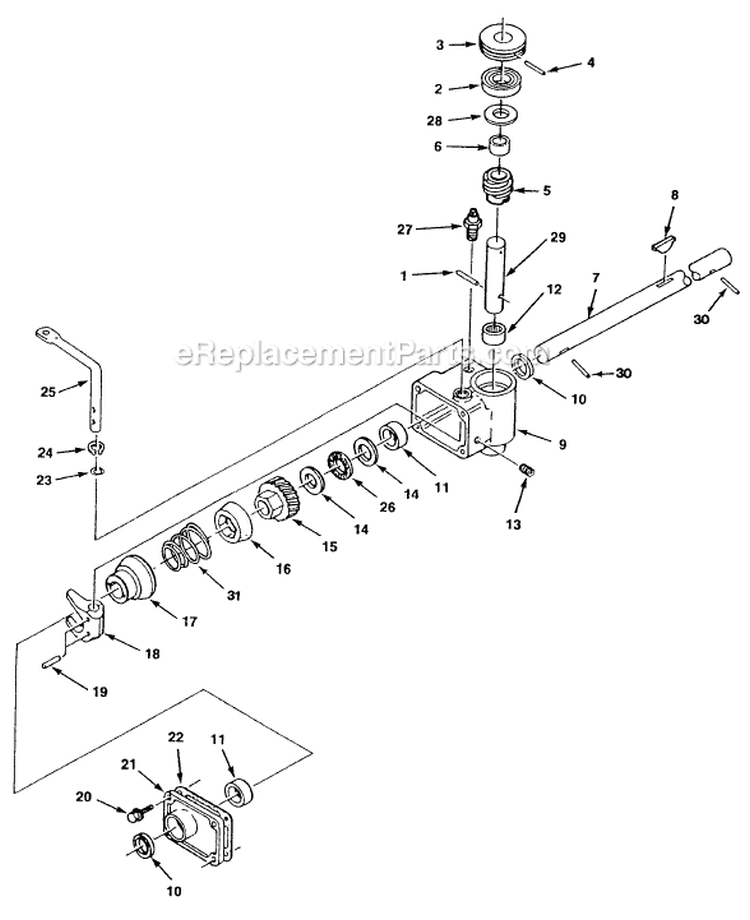

Page A Diagram and Parts List for UT-30523 Homelite Lawn Mower
  • A1
    Pin – Part Number: JA461415
    Pin
    Part Number: JA461415
      No Longer Available
  • A2
    Bearing – Part Number: JA990499
    Bearing
    Part Number: JA990499
      No Longer Available
  • A4
    Pin – Part Number: JA461414
    Pin
    Part Number: JA461414
      No Longer Available
  • A5
    Worm & Spacer – Part Number: JA990642
    Worm & Spacer
    Part Number: JA990642
      No Longer Available
  • A6
    Spacer – Part Number: JA990478
    Spacer
    Part Number: JA990478
      No Longer Available
  • A7
    Shaft- Drive – Part Number: JA994761
    Shaft- Drive
    Part Number: JA994761
      No Longer Available
  • A8
    Key – Part Number: JA463101
    Key
    Part Number: JA463101
      No Longer Available
  • A9
    Gear Reducer Housing Assembly. – Part Number: JA990529
    Gear Reducer Housing Assembly.
    Part Number: JA990529
      No Longer Available
  • A10
    Seal – Part Number: JA376110
    Seal
    Part Number: JA376110
      Special Order
    $10.54
  • A11
    Bushing- Sleeve – Part Number: JA992820
    Bushing- Sleeve
    Part Number: JA992820
      No Longer Available
  • A12
    Bearing- Needle – Part Number: 58956
    Bearing- Needle
    Part Number: 58956
      No Longer Available
  • A13
    Plug – Part Number: JA472007
    Plug
    Part Number: JA472007
      No Longer Available
  • A14
    Race- Bearing – Part Number: JA990446
    Race- Bearing
    Part Number: JA990446
      No Longer Available
  • A15
    Gear- Helical – Part Number: JA992770
    Gear- Helical
    Part Number: JA992770
      No Longer Available
  • A15
    Clutch Drum & Cone – Part Number: A03385
    Clutch Drum & Cone
    Part Number: A03385
      No Longer Available
  • A16
    Cone- Friction – Part Number: JA992780
    Cone- Friction
    Part Number: JA992780
      No Longer Available
  • A17
    Drum Clutch – Part Number: JA990217
    Drum Clutch
    Part Number: JA990217
      No Longer Available
  • A18
    Fork-Shift – Part Number: JA990153
    Fork-Shift
    Part Number: JA990153
      No Longer Available
  • A19
    Pin – Part Number: JA461330
    Pin
    Part Number: JA461330
      No Longer Available
  • A20
    Screw – Part Number: JA408862
    Screw
    Part Number: JA408862
      No Longer Available
  • A21
    Cover- Gearbox (Includes Index #9 & 21) – Part Number: JA990168
    Cover- Gearbox (Includes Index #9 & 21)
    Part Number: JA990168
      No Longer Available
  • A21
    Bushing- Sleeve – Part Number: JA992820
    Bushing- Sleeve
    Part Number: JA992820
      No Longer Available
  • A21
    Seal – Part Number: JA376110
    Seal
    Part Number: JA376110
      Special Order
    $10.54
  • A22
    Gasket – Part Number: GP582047
    Gasket
    Part Number: GP582047
      Special Order
    $6.16
  • A23
    O-Ring – Part Number: JA459037
    O-Ring
    Part Number: JA459037
      No Longer Available
  • A24
    Ring – Part Number: JA458094
    Ring
    Part Number: JA458094
      No Longer Available
  • A25
    Ring – Part Number: JA458094
    Ring
    Part Number: JA458094
      No Longer Available
  • A26
    Bearing- Thrust – Part Number: JA990447
    Bearing- Thrust
    Part Number: JA990447
      No Longer Available
  • A27
    Vent – Part Number: JA990415
    Vent
    Part Number: JA990415
      No Longer Available
  • A28
    Washer – Part Number: JA990463
    Washer
    Part Number: JA990463
      No Longer Available
  • A29
    Shaft- Worm – Part Number: JA990525
    Shaft- Worm
    Part Number: JA990525
      No Longer Available
  • A30
    Pin- Roll – Part Number: JA461361
    Pin- Roll
    Part Number: JA461361
      No Longer Available
  • A31
    Spring - Clutch – Part Number: GP095171
    Spring - Clutch
    Part Number: GP095171
      No Longer Available
  • A74
    Transmission – Part Number: GP300013
    Transmission
    Part Number: GP300013
      No Longer Available
Page B

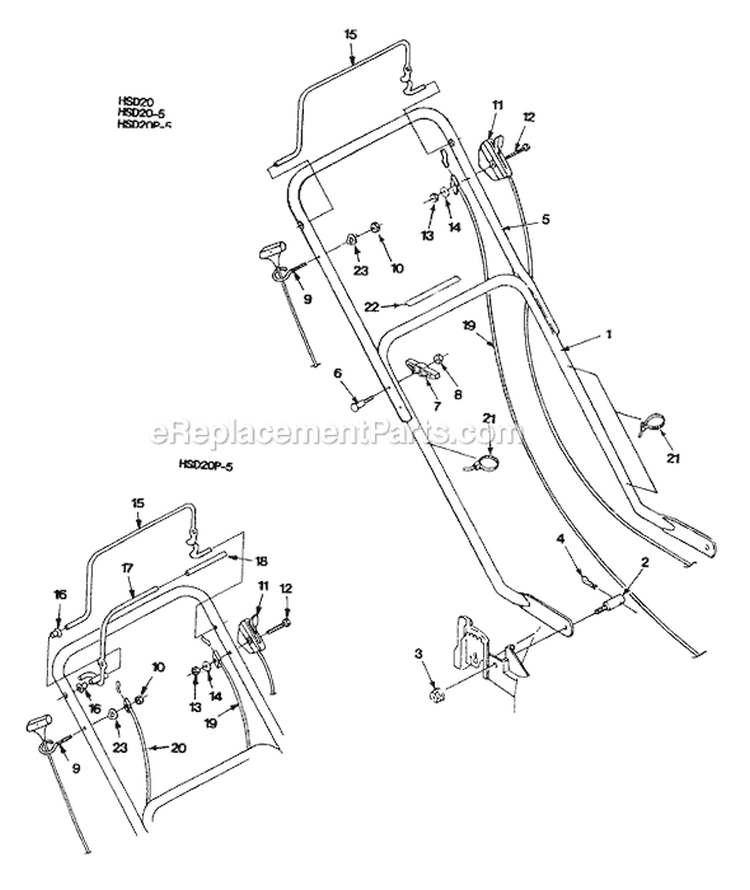

Page B Diagram and Parts List for UT-30523 Homelite Lawn Mower
Page C

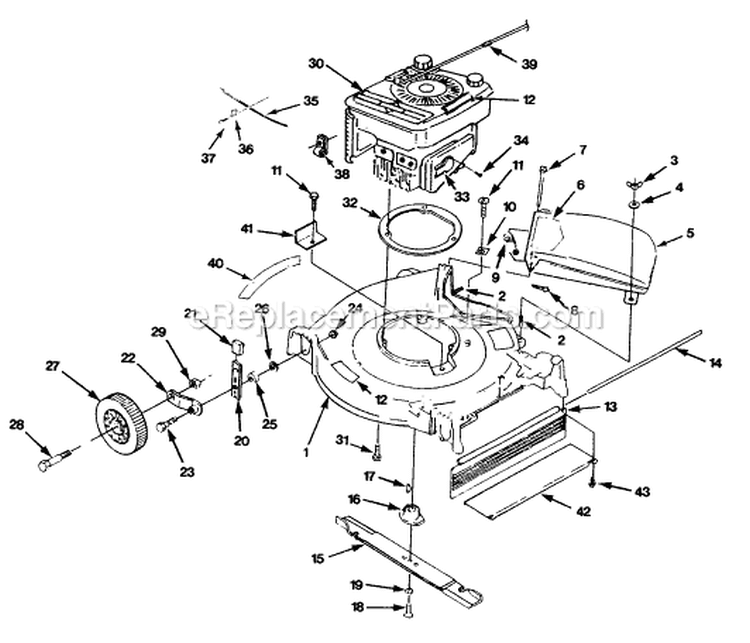

Page C Diagram and Parts List for UT-30523 Homelite Lawn Mower
Page D

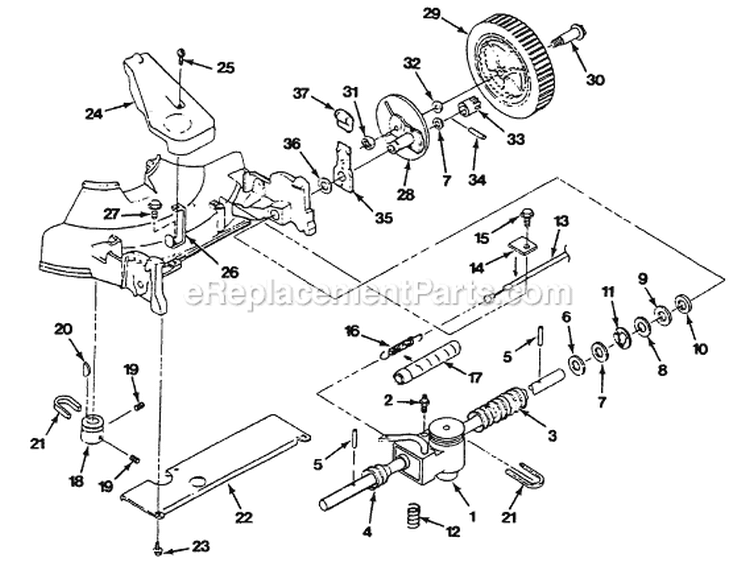

Page D Diagram and Parts List for UT-30523 Homelite Lawn Mower
