Cub Cadet H1748 (55ae3d4s750) (Wam) 55ae3d4s750 Lawn Mower Replacement Parts For Model H1748 (55AE3D4S750-WAM)

We Sell Only Genuine Cub Cadet Parts

Popular Parts for H1748

Lawn Mower Flanged Lock Nut – Part Number: 712-04065 Lawn Mower Flanged Lock Nut
In Stock
$6.16
Lawn Mower Ignition Switch: 5 Pin – Part Number: 925-0267B Lawn Mower Ignition Switch: 5 Pin
In Stock
$47.06
Hex Bolt 5/16-18 X .75 – Part Number: 710-3008 Hex Bolt 5/16-18 X .75
On Order
Minimum Quantity of 2 required
$6.16
Interlock Switch – Part Number: 925-04039 Interlock Switch
In Stock
$32.12
Pin-Cotter – Part Number: 714-04023 Pin-Cotter
In Stock
Minimum Quantity of 2 required
$6.16
Nut, Hex Lock, 1/4-20, Gr8, Nylon – Part Number: 712-0324 Nut, Hex Lock, 1/4-20, Gr8, Nylon
In Stock
$6.16
Lawn Mower Fuel Cap – Part Number: 951-3124E Lawn Mower Fuel Cap
In Stock
$52.39
Fuel Tank Grommet – Part Number: 02002253 Fuel Tank Grommet
In Stock
$7.72

Search Within Model

Questions & Answers for Cub Cadet H1748
Browse all Parts Search by Area

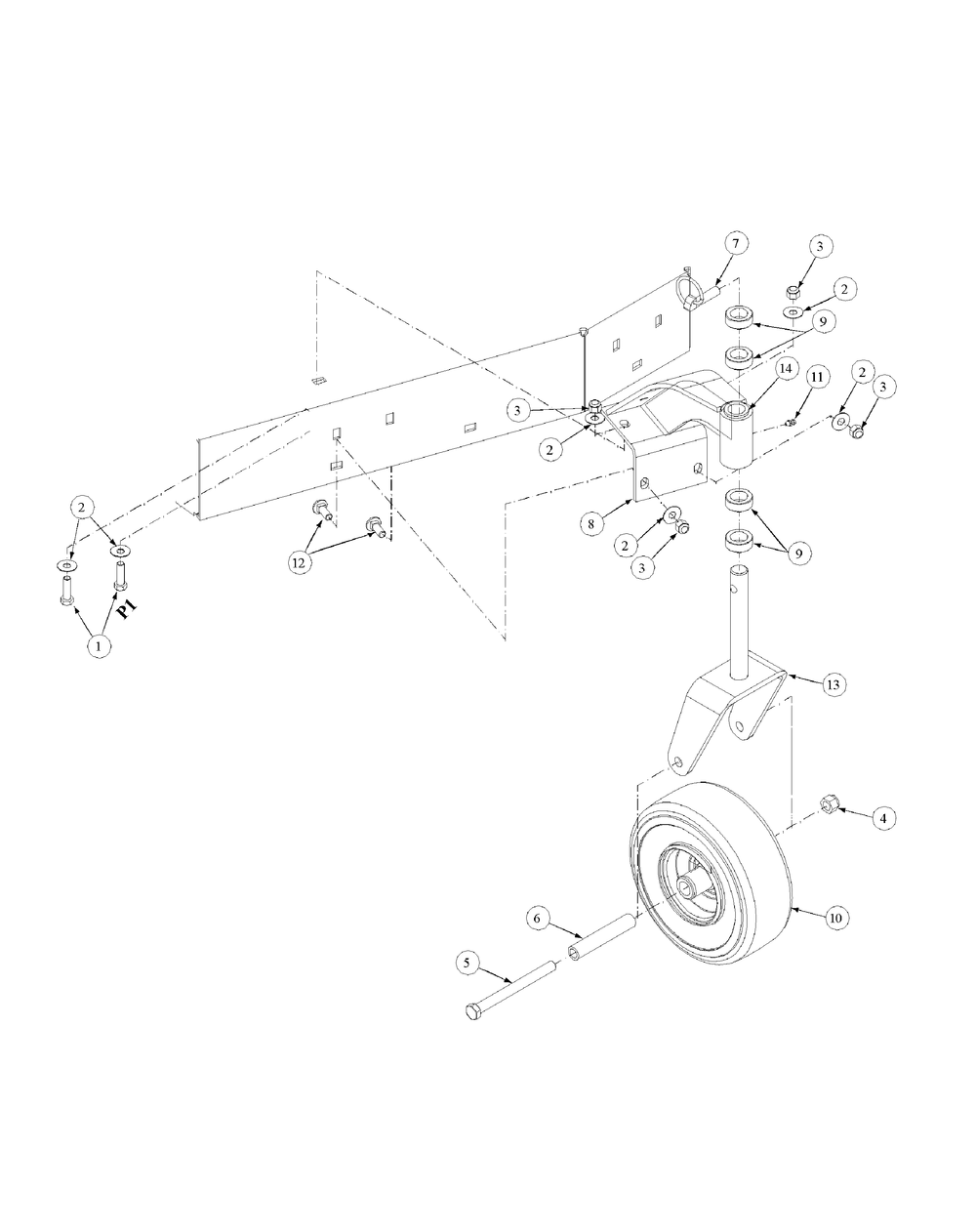

Caster Wheel Fabricated Deck Diagram and Parts List for 55AE3D4S750-WAM Cub Cadet Lawn Mower
Caster Wheel Fabricated Deck

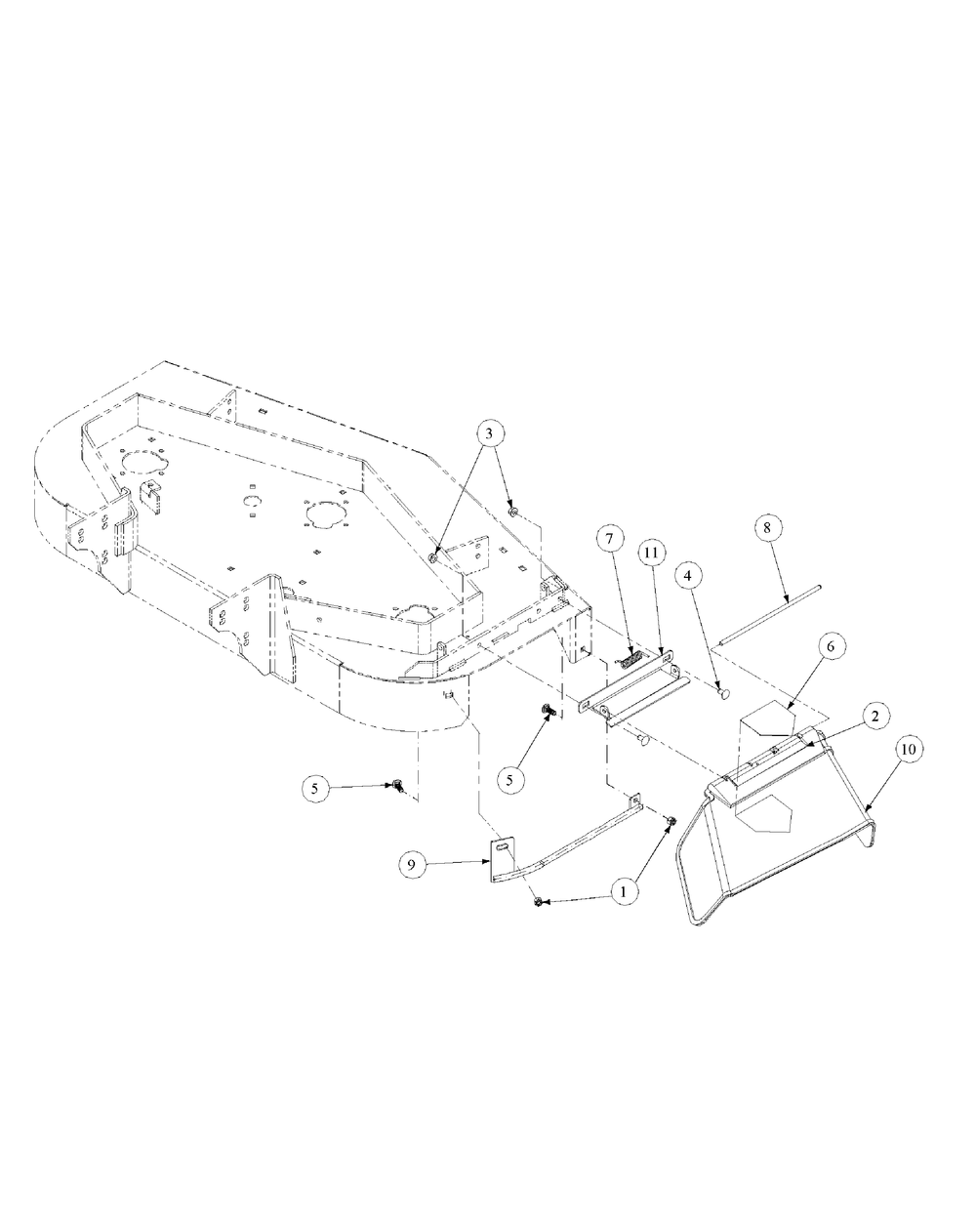

Chute Assembly Diagram and Parts List for 55AE3D4S750-WAM Cub Cadet Lawn Mower
Chute Assembly
Cover Assembly Diagram and Parts List for 55AE3D4S750-WAM Cub Cadet Lawn Mower
Cover Assembly
Deck Assembly Diagram and Parts List for 55AE3D4S750-WAM Cub Cadet Lawn Mower
Deck Assembly
Fh500v-Cs14 Air Filter And Exhaust Diagram and Parts List for 55AE3D4S750-WAM Cub Cadet Lawn Mower
Fh500v-Cs14 Air Filter And Exhaust
Fh500v-Cs14 Carburetor Diagram and Parts List for 55AE3D4S750-WAM Cub Cadet Lawn Mower
Fh500v-Cs14 Carburetor
Fh500v-Cs14 Control Equipment Diagram and Parts List for 55AE3D4S750-WAM Cub Cadet Lawn Mower
Fh500v-Cs14 Control Equipment
Fh500v-Cs14 Cooling Equipment Diagram and Parts List for 55AE3D4S750-WAM Cub Cadet Lawn Mower
Fh500v-Cs14 Cooling Equipment

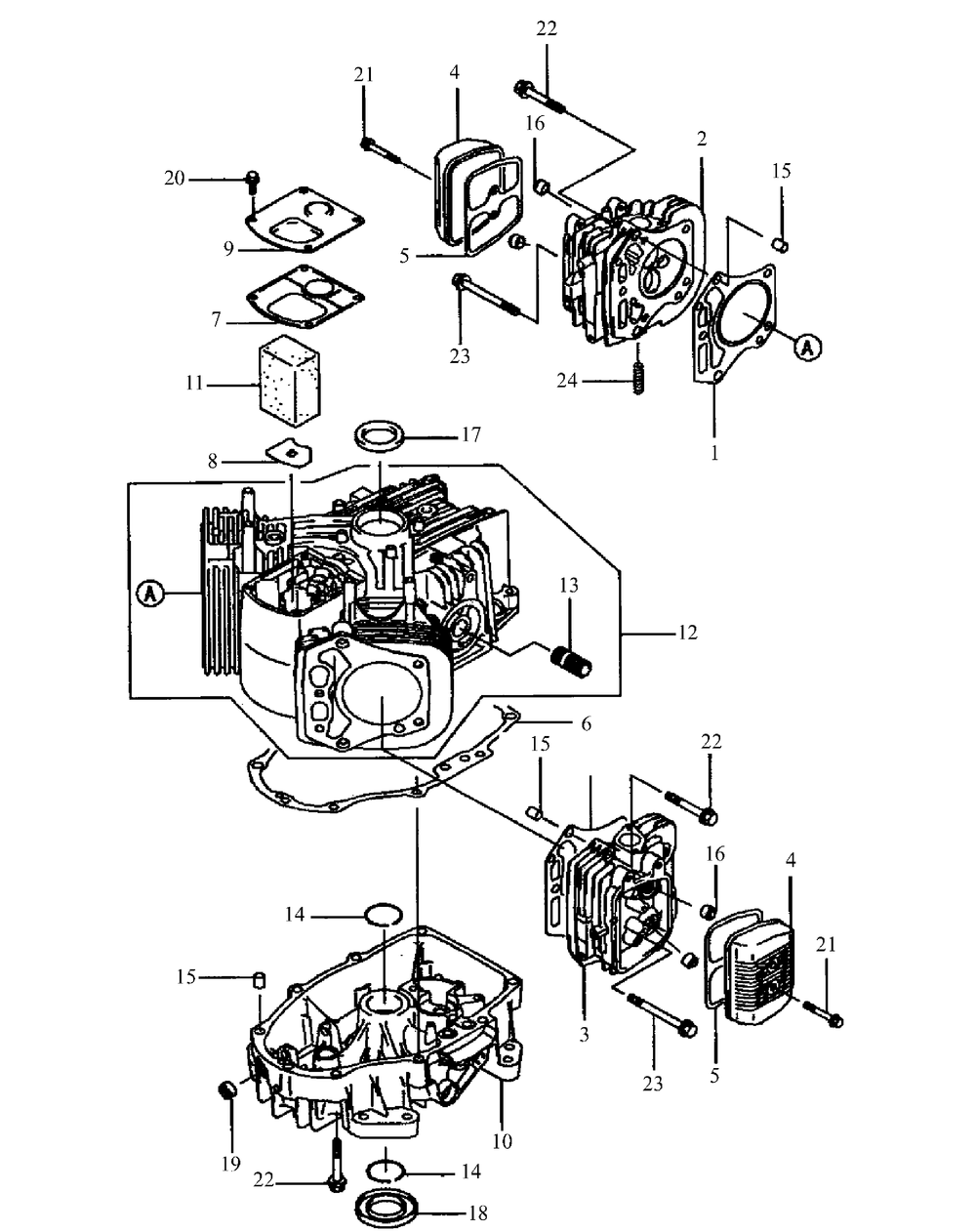

Fh500v-Cs14 Cylinder And Crankcase Diagram and Parts List for 55AE3D4S750-WAM Cub Cadet Lawn Mower
Fh500v-Cs14 Cylinder And Crankcase
Fh500v-Cs14 Electric Equipment Diagram and Parts List for 55AE3D4S750-WAM Cub Cadet Lawn Mower
Fh500v-Cs14 Electric Equipment

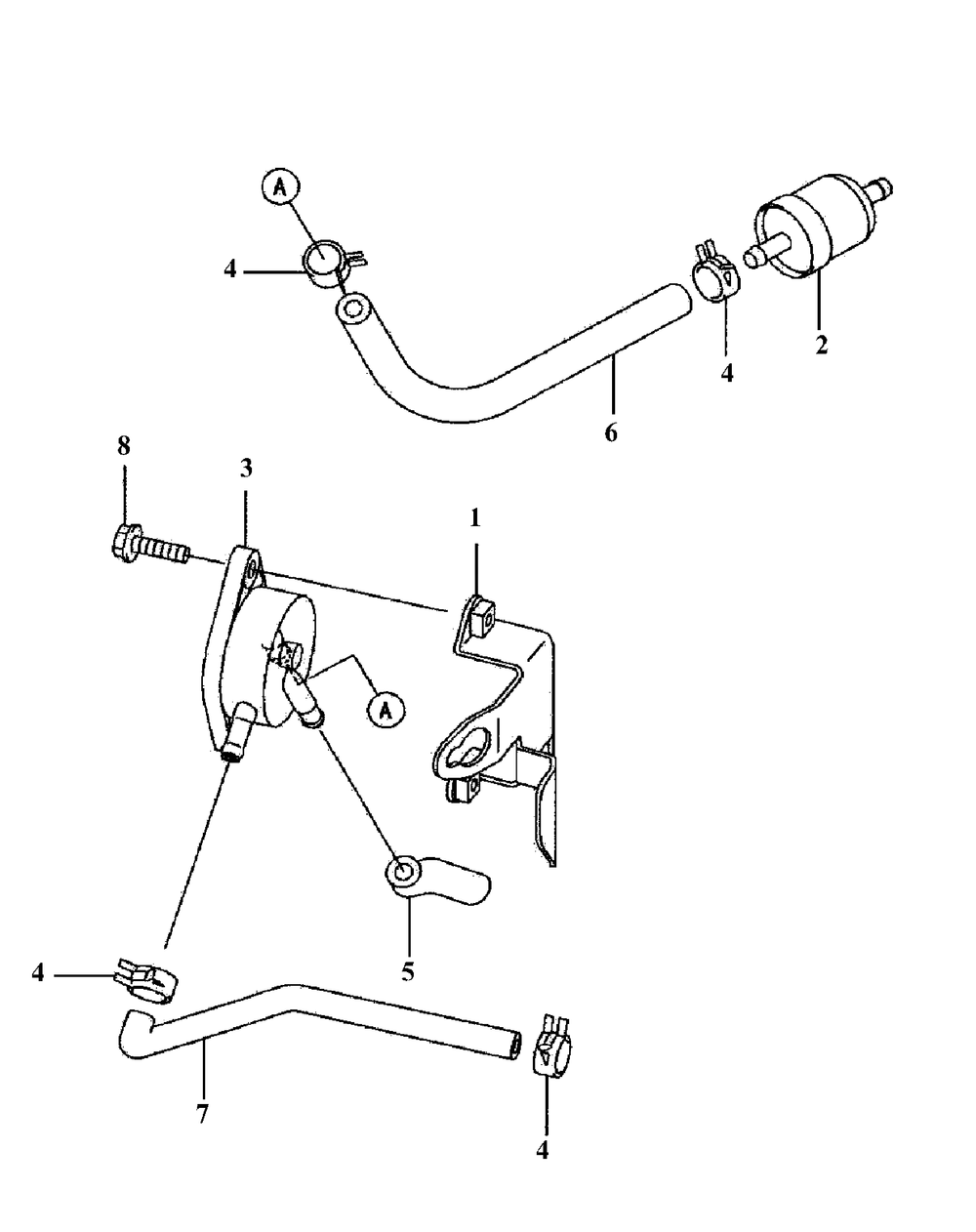

Fh500v-Cs14 Fuel System Diagram and Parts List for 55AE3D4S750-WAM Cub Cadet Lawn Mower
Fh500v-Cs14 Fuel System

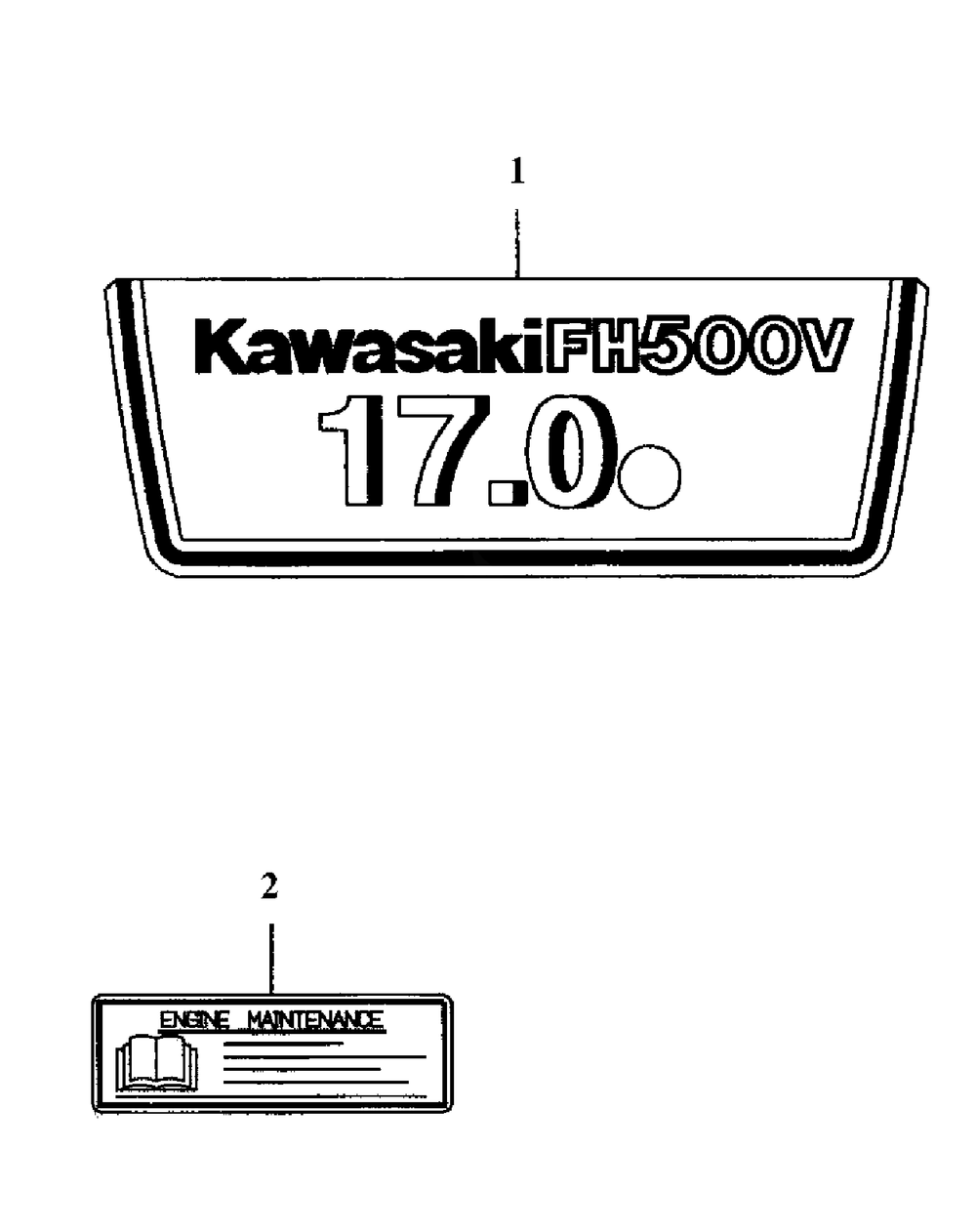

Fh500v-Cs14 Label Diagram and Parts List for 55AE3D4S750-WAM Cub Cadet Lawn Mower
Fh500v-Cs14 Label
Fh500v-Cs14 Lubrication Equipment Diagram and Parts List for 55AE3D4S750-WAM Cub Cadet Lawn Mower
Fh500v-Cs14 Lubrication Equipment
Fh500v-Cs14 Piston And Crankshaft Diagram and Parts List for 55AE3D4S750-WAM Cub Cadet Lawn Mower
Fh500v-Cs14 Piston And Crankshaft

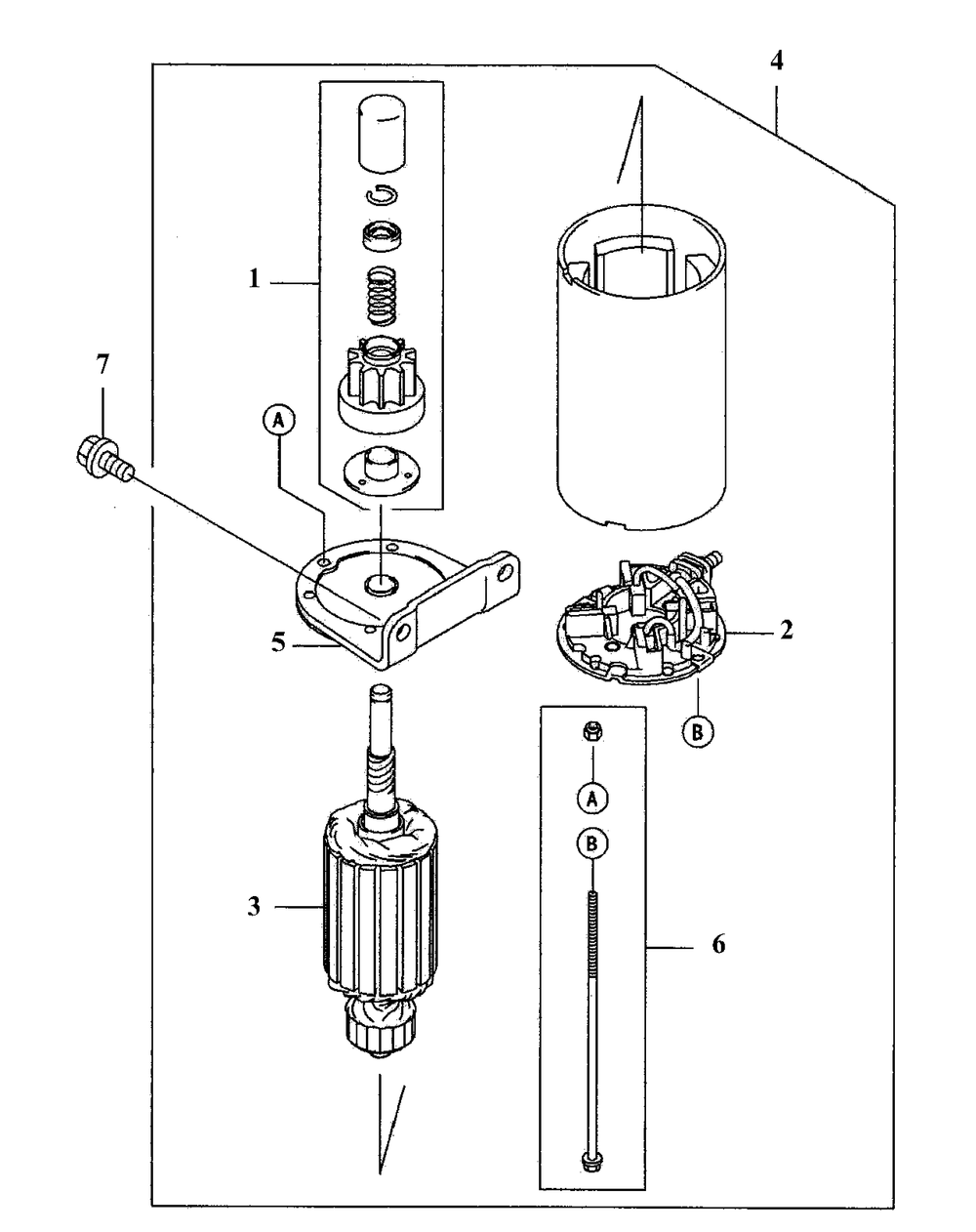

Fh500v-Cs14 Starter Diagram and Parts List for 55AE3D4S750-WAM Cub Cadet Lawn Mower
Fh500v-Cs14 Starter

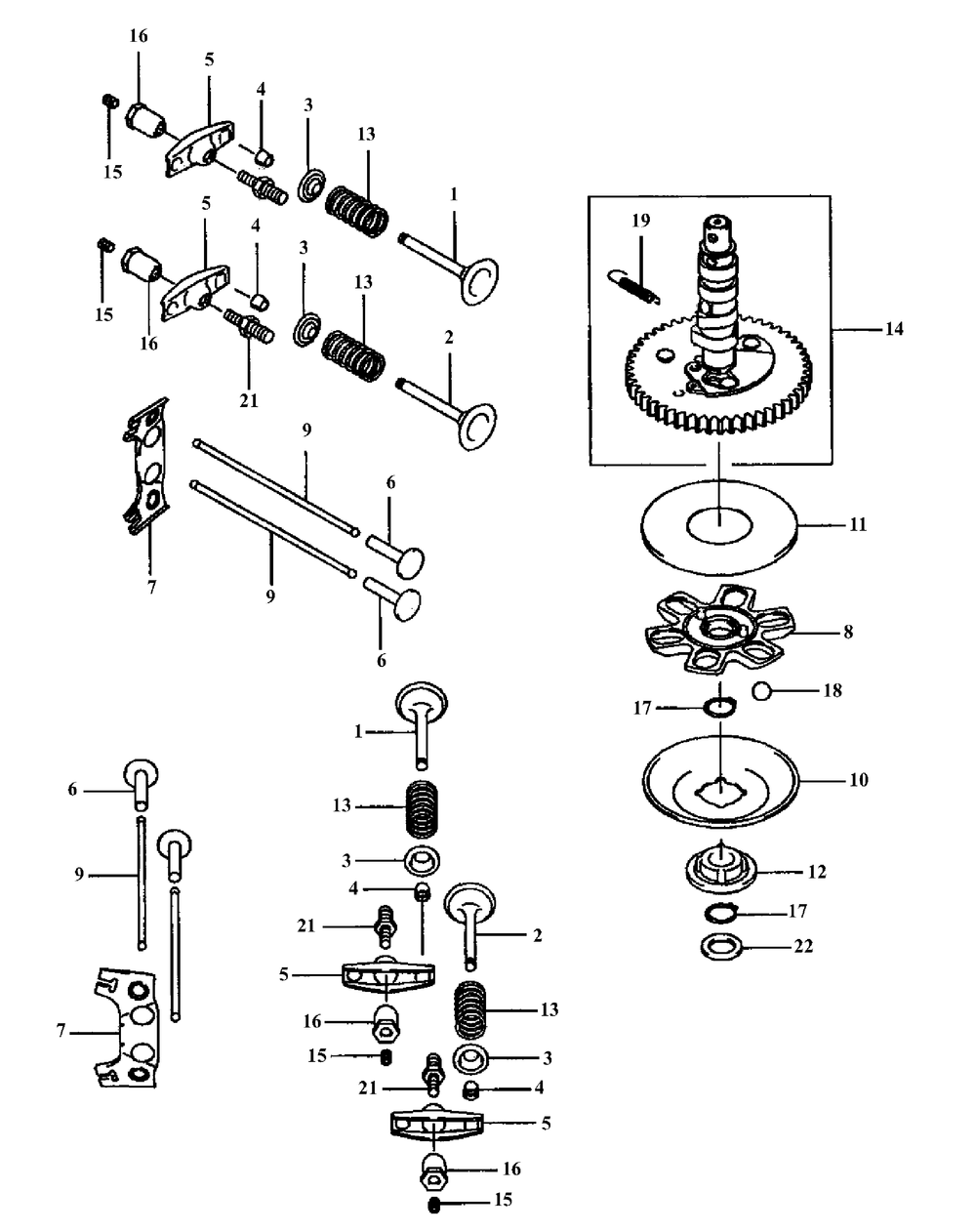

Fh500v-Cs14 Valve And Camshaft Diagram and Parts List for 55AE3D4S750-WAM Cub Cadet Lawn Mower
Fh500v-Cs14 Valve And Camshaft

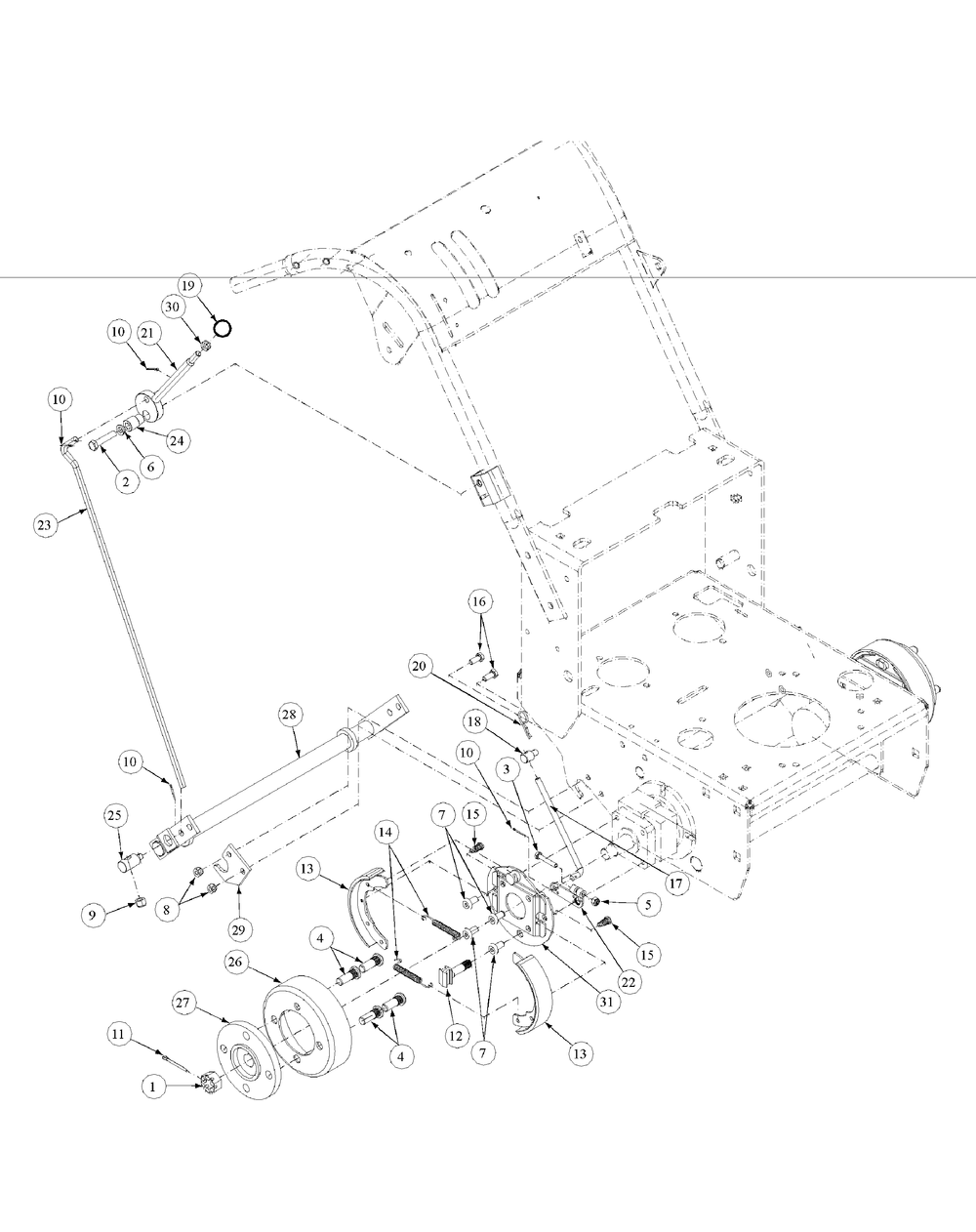

Hydro Brake Assembly Diagram and Parts List for 55AE3D4S750-WAM Cub Cadet Lawn Mower
Hydro Brake Assembly

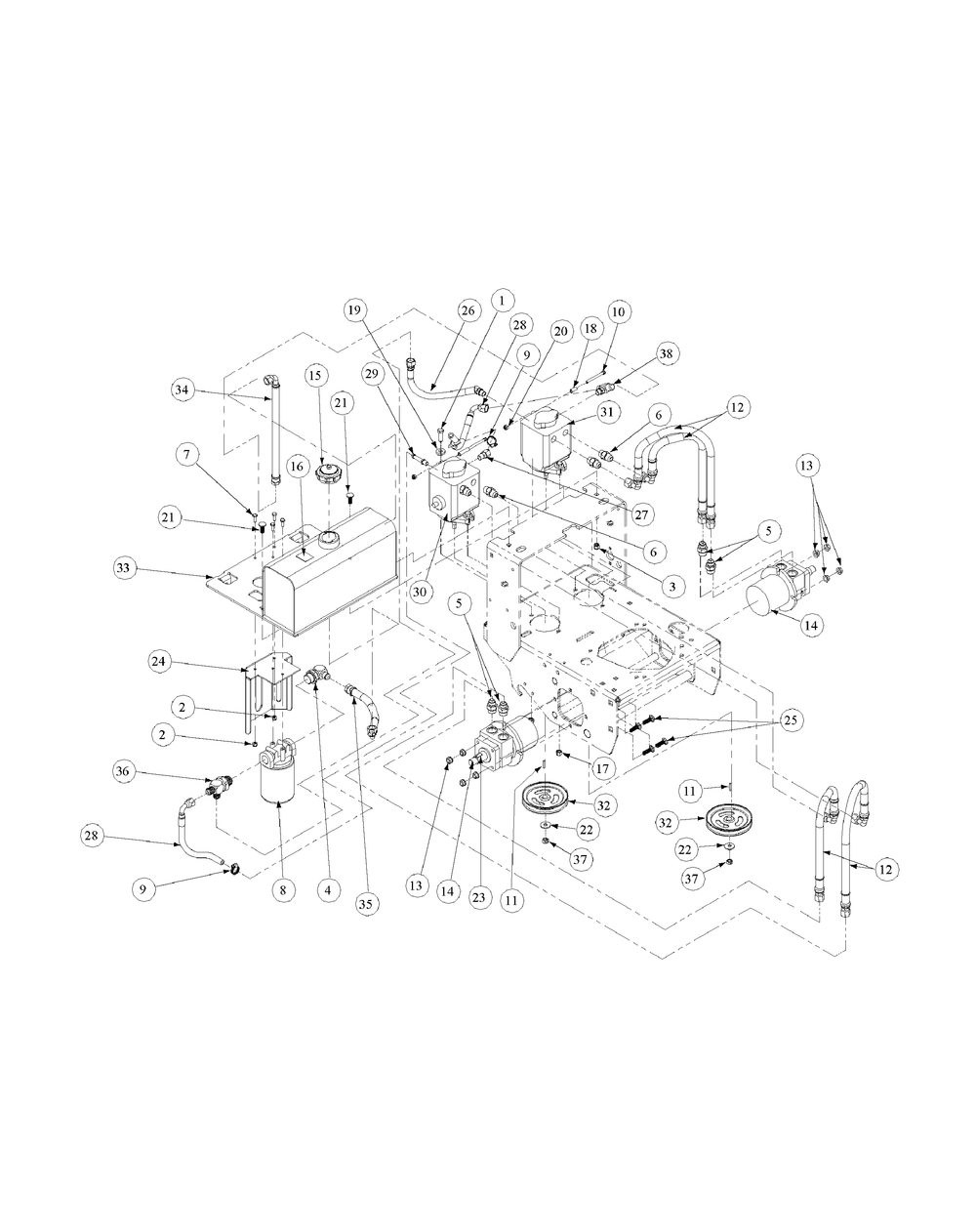

Hydro Pump Assembly Diagram and Parts List for 55AE3D4S750-WAM Cub Cadet Lawn Mower
Hydro Pump Assembly

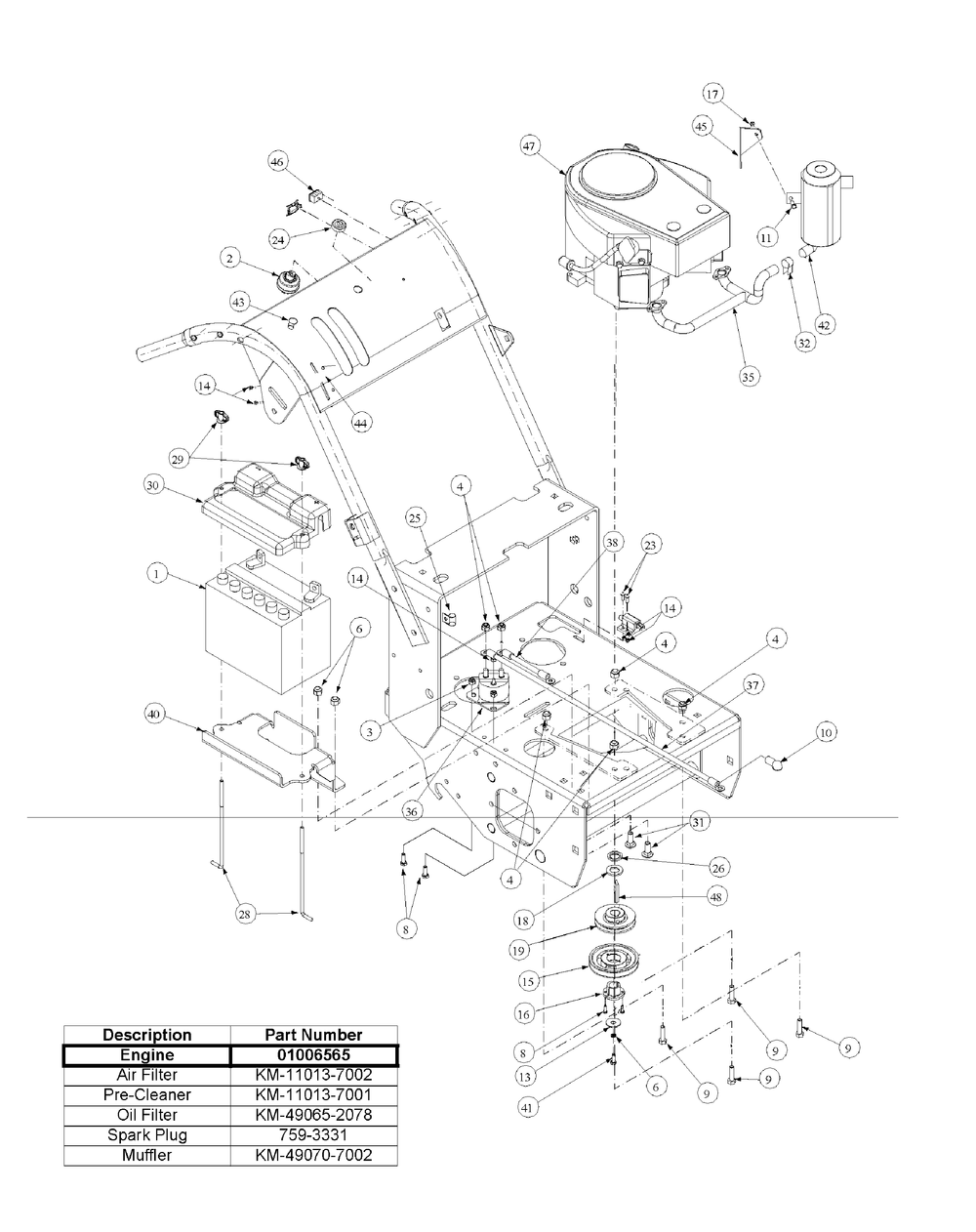

Kawasaki Engine Assembly Wt Diagram and Parts List for 55AE3D4S750-WAM Cub Cadet Lawn Mower
Kawasaki Engine Assembly Wt

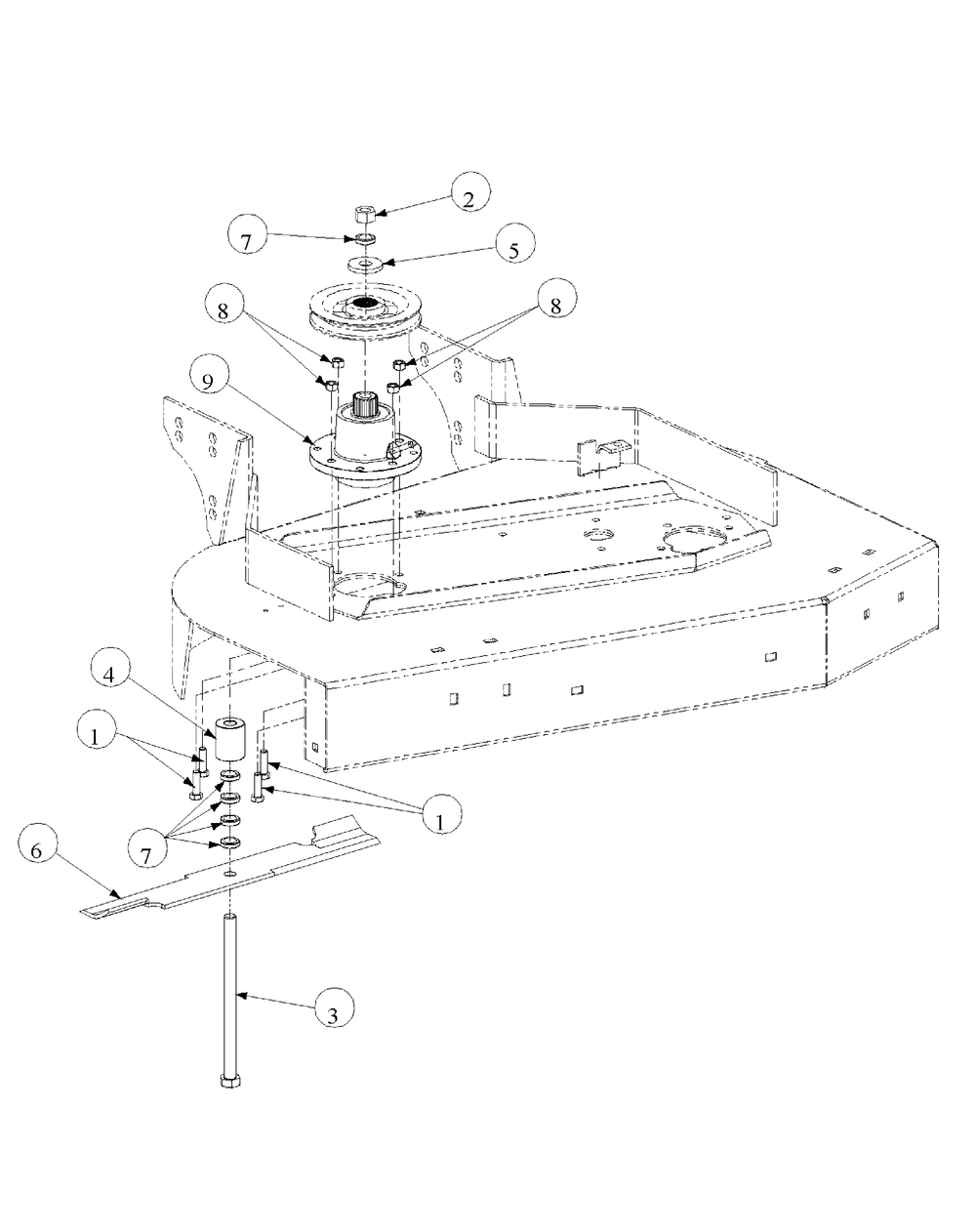

Spindle Assembly Diagram and Parts List for 55AE3D4S750-WAM Cub Cadet Lawn Mower
Spindle Assembly

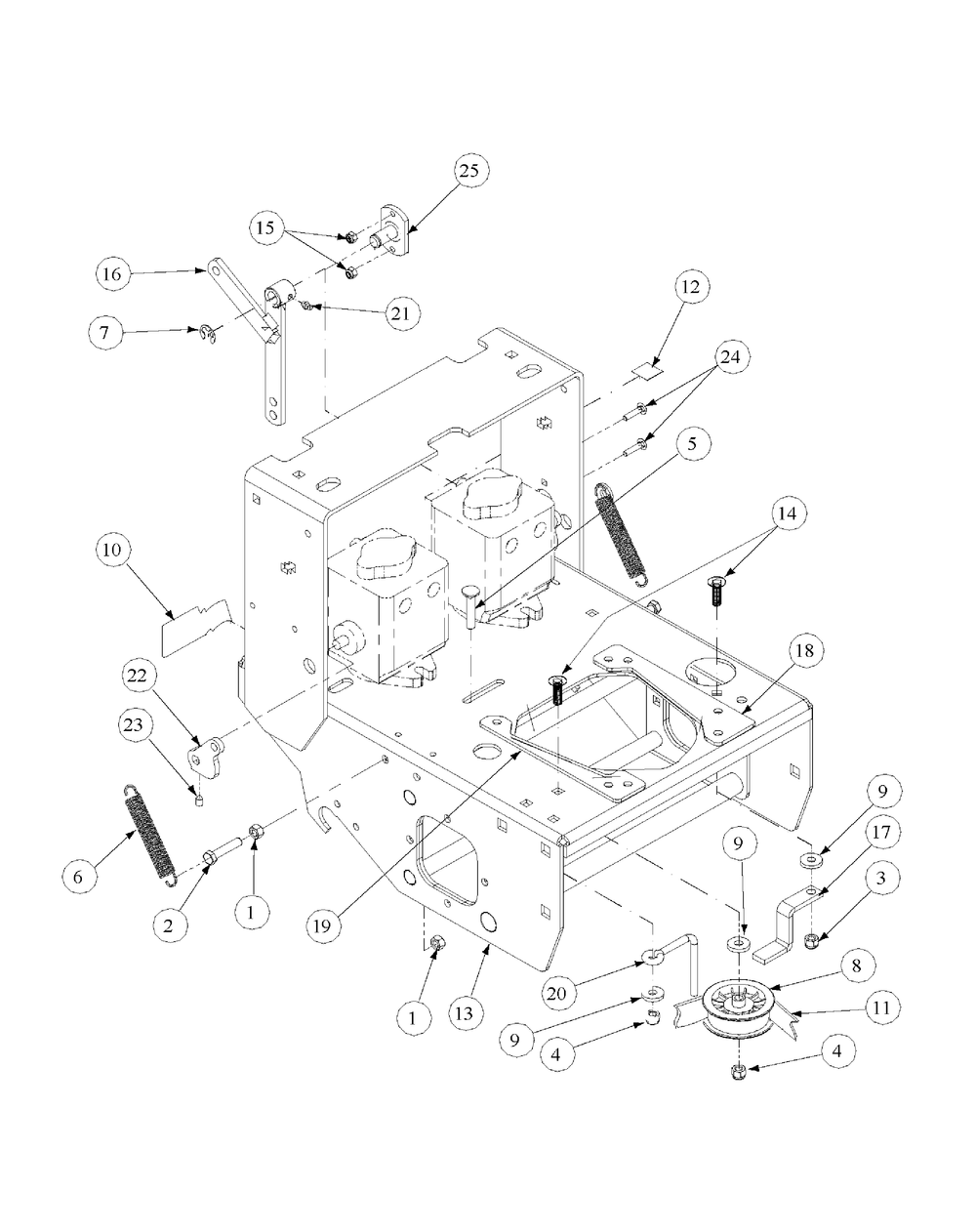

Standard Engine Deck Assembly Hydro Diagram and Parts List for 55AE3D4S750-WAM Cub Cadet Lawn Mower
Standard Engine Deck Assembly Hydro

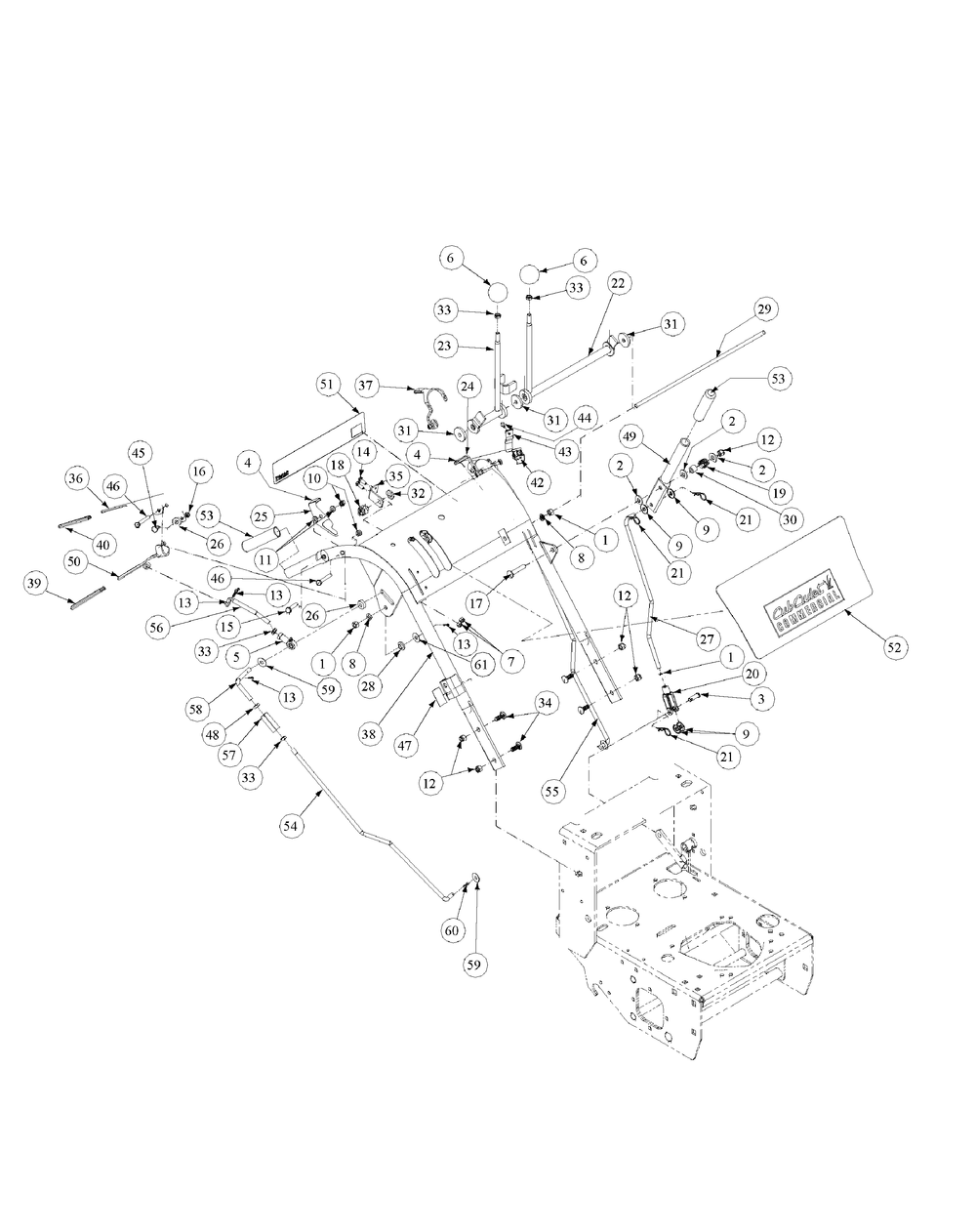

Standard Handle Assembly Diagram and Parts List for 55AE3D4S750-WAM Cub Cadet Lawn Mower
Standard Handle Assembly

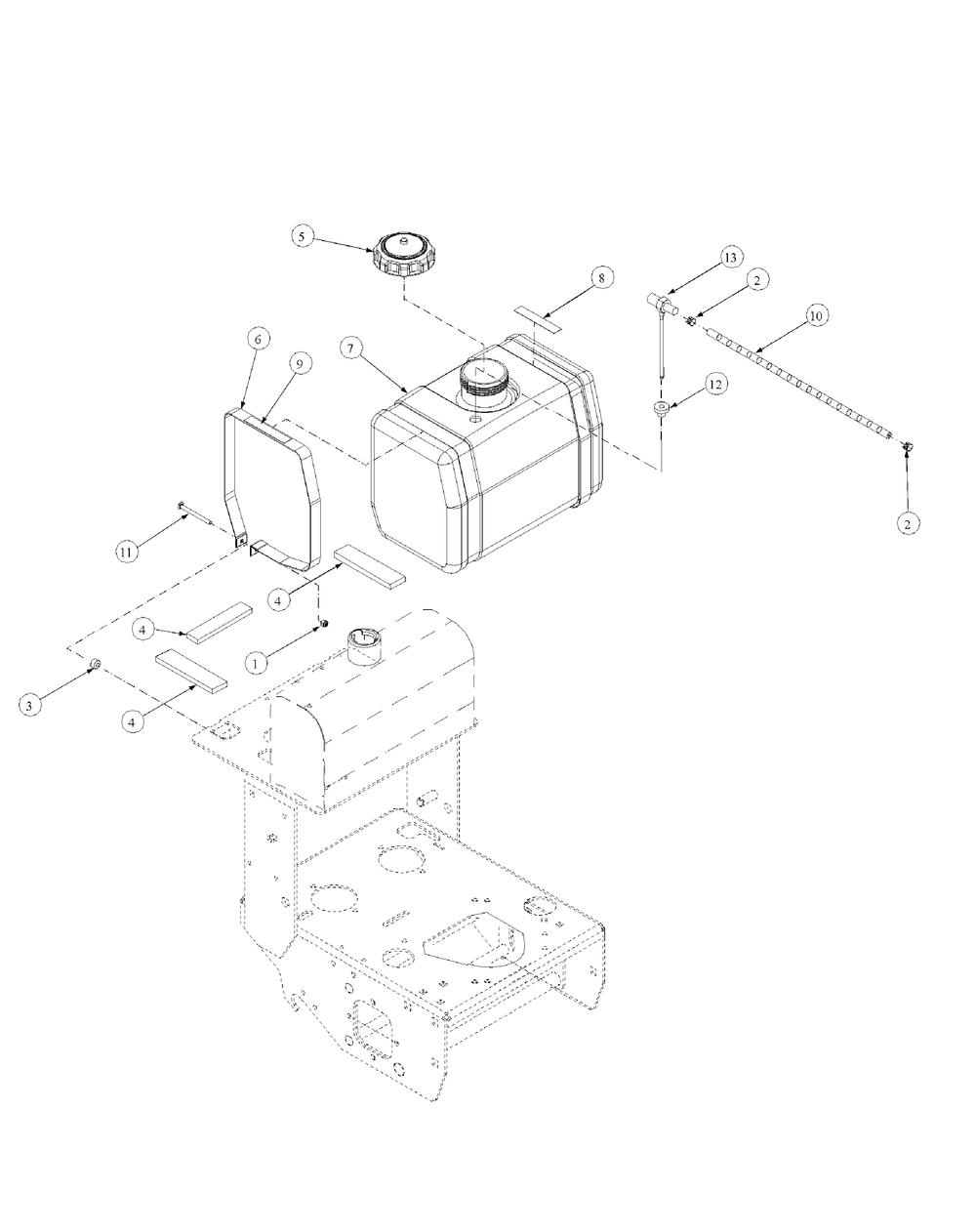

Standard Tank Assembly Diagram and Parts List for 55AE3D4S750-WAM Cub Cadet Lawn Mower
Standard Tank Assembly
Wheel Assembly Diagram and Parts List for 55AE3D4S750-WAM Cub Cadet Lawn Mower
Wheel Assembly
Previous Showing All Parts Next
Caster Wheel Fabricated Deck
Caster Wheel Fabricated Deck Diagram and Parts List for 55AE3D4S750-WAM Cub Cadet Lawn Mower
Chute Assembly
Chute Assembly Diagram and Parts List for 55AE3D4S750-WAM Cub Cadet Lawn Mower

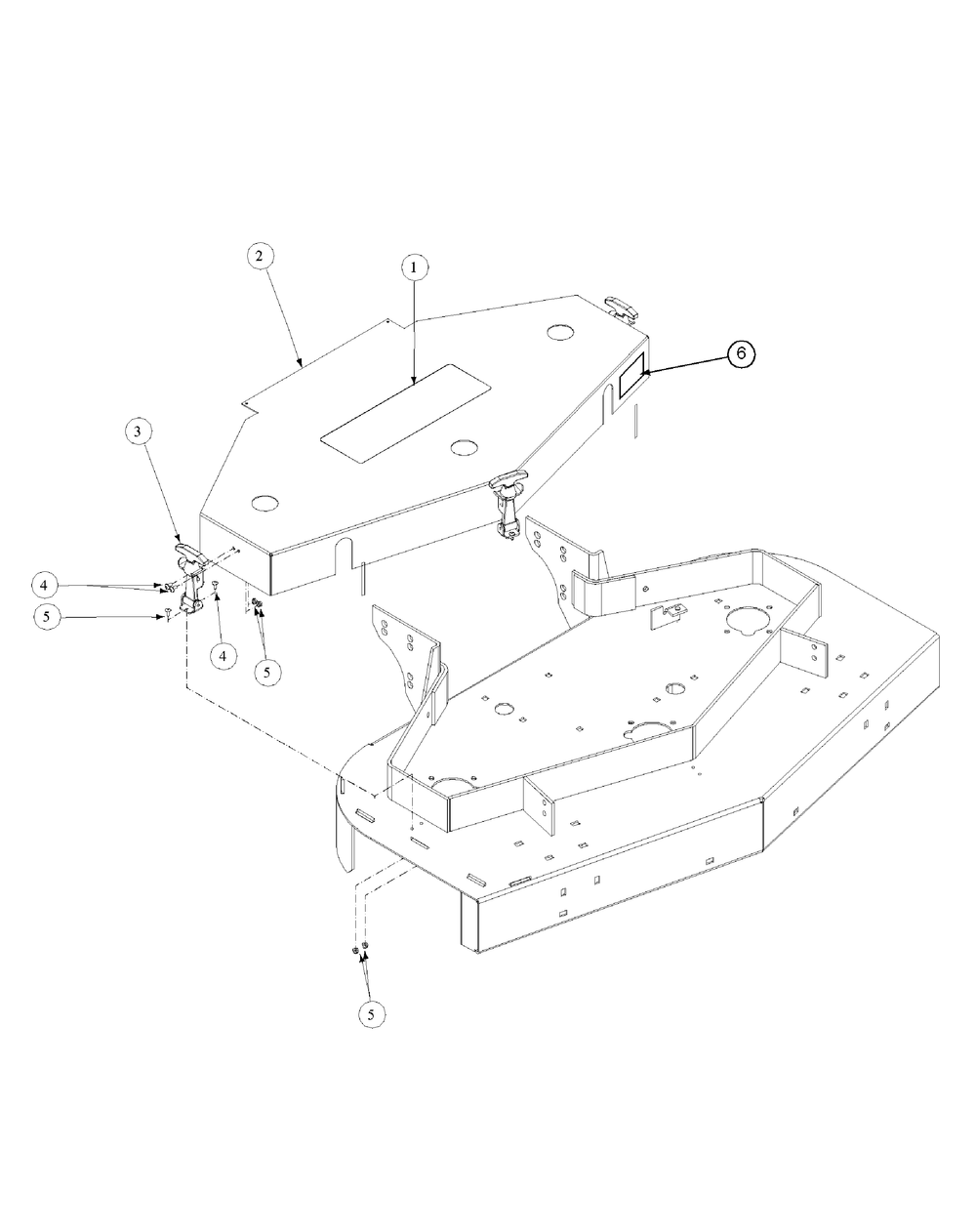

Cover Assembly
Cover Assembly Diagram and Parts List for 55AE3D4S750-WAM Cub Cadet Lawn Mower

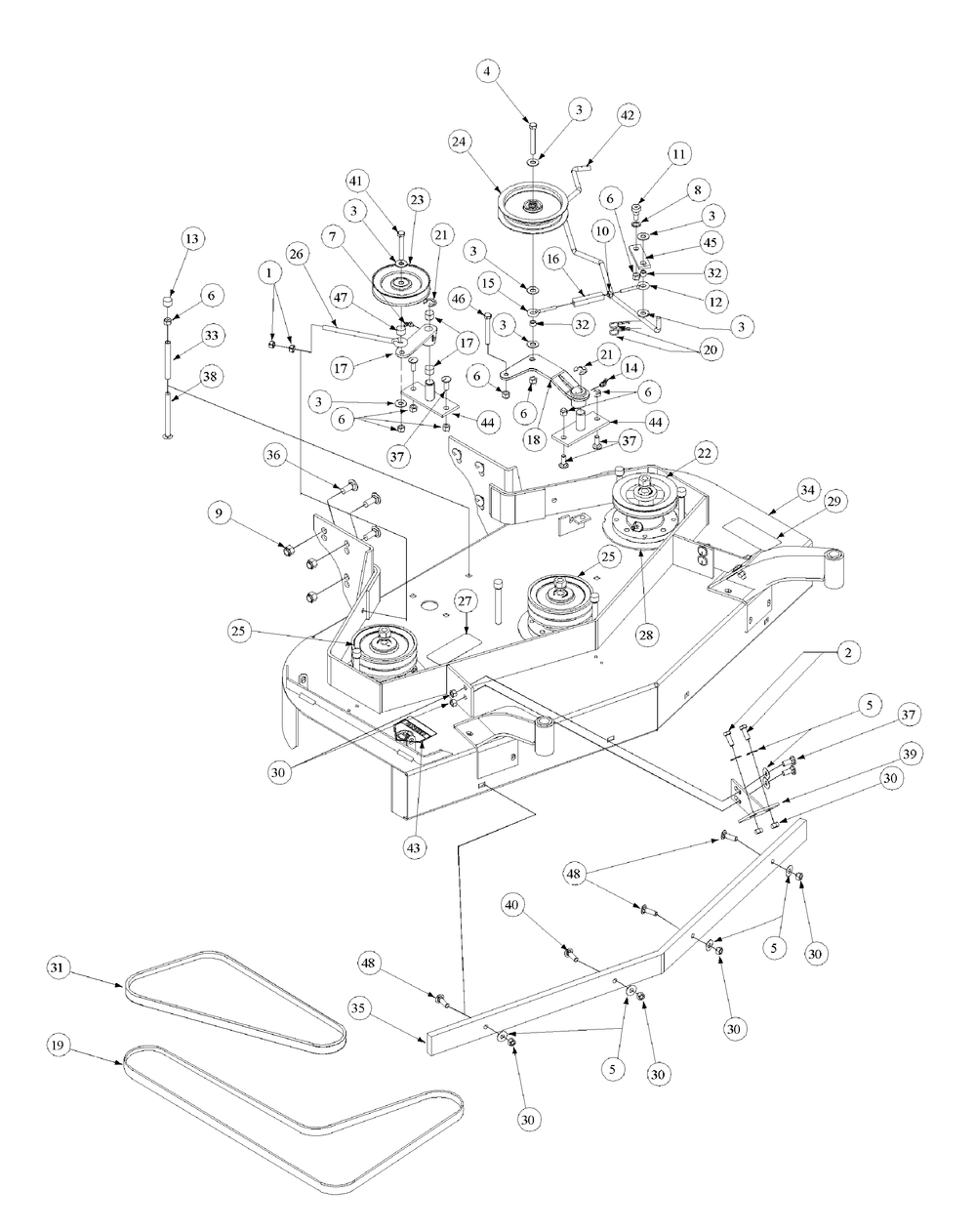

Deck Assembly
Deck Assembly Diagram and Parts List for 55AE3D4S750-WAM Cub Cadet Lawn Mower

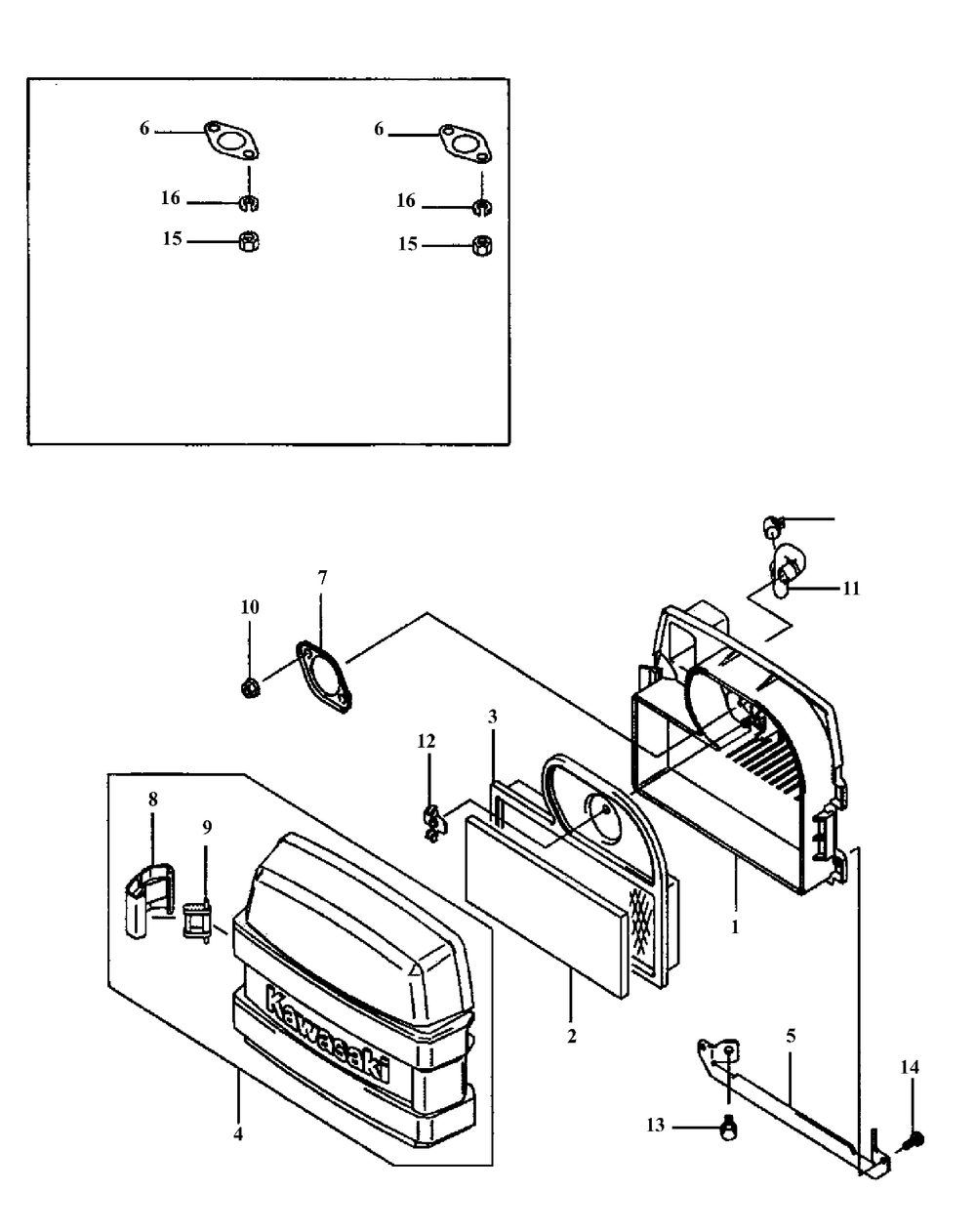

Fh500v-Cs14 Air Filter And Exhaust
Fh500v-Cs14 Air Filter And Exhaust Diagram and Parts List for 55AE3D4S750-WAM Cub Cadet Lawn Mower
  • 1
    Case-Air Filter – Part Number: KM-11038-7006
    Case-Air Filter
    Part Number: KM-11038-7006
      No Longer Available
  • 2
    Precleaner-air Filter – Part Number: KM-11013-7033
    Precleaner-air Filter
    Part Number: KM-11013-7033
      Special Order
    $8.89
  • 3
    Air Filter Element – Part Number: KM-11013-7002
    Air Filter Element
    Part Number: KM-11013-7002
      Special Order
    $25.46
  • 4
    Case, Air Filter – Part Number: KM-11038-7013
    Case, Air Filter
    Part Number: KM-11038-7013
      No Longer Available
  • 5
    Bracket – Part Number: KM-11050-7006
    Bracket
    Part Number: KM-11050-7006
      No Longer Available
  • 6
    Gasket-exhaust Man – Part Number: KM-11060-7021
    Gasket-exhaust Man
    Part Number: KM-11060-7021
      Special Order
    $6.16
  • 7
    Plate – Part Number: KM-13270-7001
    Plate
    Part Number: KM-13270-7001
      No Longer Available
  • 8
    Hook, Air Filter – Part Number: KM-27012-6003
    Hook, Air Filter
    Part Number: KM-27012-6003
      No Longer Available
  • 9
    Hook, Air Filter – Part Number: KM-27012-6003
    Hook, Air Filter
    Part Number: KM-27012-6003
      No Longer Available
  • 10
    Nut-flanged 6mm – Part Number: KM-92015-1367
    Nut-flanged 6mm
    Part Number: KM-92015-1367
      Special Order
    $10.55
  • 11
    Tube – Part Number: KM-92191-7001
    Tube
    Part Number: KM-92191-7001
      No Longer Available
  • 12
    Nut – Part Number: KM-92210-7004
    Nut
    Part Number: KM-92210-7004
      No Longer Available
  • 13
    Bolt-flanged 6x12 – Part Number: KM-130BA0612
    Bolt-flanged 6x12
    Part Number: KM-130BA0612
      Special Order
    $6.16
  • 14
    Screw – Part Number: KM-232AA0514
    Screw
    Part Number: KM-232AA0514
      No Longer Available
  • 15
    Nut 8 – Part Number: KM-317R0800
    Nut 8
    Part Number: KM-317R0800
      Special Order
    $6.16
  • 16
    Washer-Spring – Part Number: KM-461DA0800
    Washer-Spring
    Part Number: KM-461DA0800
      Special Order
    $6.16
Fh500v-Cs14 Carburetor
Fh500v-Cs14 Carburetor Diagram and Parts List for 55AE3D4S750-WAM Cub Cadet Lawn Mower
  • 1
    Seat-Valve – Part Number: KM-11003-2105
    Seat-Valve
    Part Number: KM-11003-2105
      No Longer Available
  • 2
    Gasket – Part Number: KM-11060-2406
    Gasket
    Part Number: KM-11060-2406
      No Longer Available
  • 3
    Gasket-carb Mounting – Part Number: KM-11061-7004
    Gasket-carb Mounting
    Part Number: KM-11061-7004
      No Longer Available
  • 4
    Gasket-Air Filter – Part Number: KM-11061-7018
    Gasket-Air Filter
    Part Number: KM-11061-7018
      No Longer Available
  • 5
    Gasket-manifold – Part Number: KM-11061-7019
    Gasket-manifold
    Part Number: KM-11061-7019
      No Longer Available
  • 6
    Cap – Part Number: KM-11065-2061
    Cap
    Part Number: KM-11065-2061
      No Longer Available
  • 7
    CARBURETOR ASSY. – Part Number: KM-15003-7037
    CARBURETOR ASSY.
    Part Number: KM-15003-7037
      Special Order
    $350.58
  • 8
    Screw-Pilot-Air – Part Number: KM-16014-2080
    Screw-Pilot-Air
    Part Number: KM-16014-2080
      No Longer Available
  • 9
    Chamber-Float – Part Number: KM-16020-2141
    Chamber-Float
    Part Number: KM-16020-2141
      No Longer Available
  • 10
    Screw, Throttle Stop | NLA – Part Number: KM-16021-2195
    Screw, Throttle Stop | NLA
    Part Number: KM-16021-2195
      No Longer Available
  • 11
    Valve, Throttle #135 – Part Number: KM-16025-2195
    Valve, Throttle #135
    Part Number: KM-16025-2195
      No Longer Available
  • 12
    Valve-Float – Part Number: KM-16030-2067
    Valve-Float
    Part Number: KM-16030-2067
      No Longer Available
  • 13
    Float – Part Number: KM-16031-2066
    Float
    Part Number: KM-16031-2066
      No Longer Available
  • 14
    Jet, Air #0.8 – Part Number: KM-16035-2077
    Jet, Air #0.8
    Part Number: KM-16035-2077
      No Longer Available
  • 15
    Jet, Air #2.0 – Part Number: KM-16035-2081
    Jet, Air #2.0
    Part Number: KM-16035-2081
      No Longer Available
  • 16
    Shart-Throttle – Part Number: KM-16041-2253
    Shart-Throttle
    Part Number: KM-16041-2253
      No Longer Available
  • 17
    Shaft, Choke – Part Number: KM-16041-7006
    Shaft, Choke
    Part Number: KM-16041-7006
      No Longer Available
  • 18
    INSULATOR – Part Number: KM-16073-0876
    INSULATOR
    Part Number: KM-16073-0876
      Special Order
    $8.29
  • 19
    Valve – Part Number: KM-16126-7008
    Valve
    Part Number: KM-16126-7008
      No Longer Available
  • 20
    Solenoid-fuel – Part Number: KM-21188-2011
    Solenoid-fuel
    Part Number: KM-21188-2011
      Special Order
    $300.46
  • 21
    Wire-Lead – Part Number: KM-26011-2281
    Wire-Lead
    Part Number: KM-26011-2281
      No Longer Available
  • 22
    Limiter – Part Number: KM-39076-2053
    Limiter
    Part Number: KM-39076-2053
      No Longer Available
  • 23
    Ring | NLA – Part Number: KM-46058-3716
    Ring | NLA
    Part Number: KM-46058-3716
      No Longer Available
  • 24
    NOZZLE, MAIN – Part Number: KM-49121-2231
    NOZZLE, MAIN
    Part Number: KM-49121-2231
      Special Order
    $54.51
  • 25
    Manifold, Intake | NLA – Part Number: KM-59079-7001
    Manifold, Intake | NLA
    Part Number: KM-59079-7001
      No Longer Available
  • 26
    Screw – Part Number: KM-92009-2015
    Screw
    Part Number: KM-92009-2015
      No Longer Available
  • 27
    Screw – Part Number: KM-92009-2015
    Screw
    Part Number: KM-92009-2015
      No Longer Available
  • 28
    Screw – Part Number: KM-92009-2081
    Screw
    Part Number: KM-92009-2081
      No Longer Available
  • 29
    Screw – Part Number: KM-92009-2400
    Screw
    Part Number: KM-92009-2400
      No Longer Available
  • 30
    Washer – Part Number: KM-92022-2231
    Washer
    Part Number: KM-92022-2231
      Special Order
    $6.16
  • 31
    Washer – Part Number: KM-92022-2239
    Washer
    Part Number: KM-92022-2239
      No Longer Available
  • 32
    Collar – Part Number: KM-92027-2025
    Collar
    Part Number: KM-92027-2025
      No Longer Available
  • 33
    Ring-Snap – Part Number: KM-92033-2067
    Ring-Snap
    Part Number: KM-92033-2067
      No Longer Available
  • 34
    Pin – Part Number: KM-92043-2226
    Pin
    Part Number: KM-92043-2226
      No Longer Available
  • 35
    Jet, Main #106.3 – Part Number: KM-92063-2380
    Jet, Main #106.3
    Part Number: KM-92063-2380
      No Longer Available
  • 36
    Jet, Pilot #42.5 – Part Number: KM-92064-2127
    Jet, Pilot #42.5
    Part Number: KM-92064-2127
      No Longer Available
  • 37
    Spring – Part Number: KM-92081-2009
    Spring
    Part Number: KM-92081-2009
      No Longer Available
  • 38
    Spring – Part Number: KM-92081-2256
    Spring
    Part Number: KM-92081-2256
      No Longer Available
  • 39
    Seal – Part Number: KM-92093-2002
    Seal
    Part Number: KM-92093-2002
      No Longer Available
  • 40
    Spring – Part Number: KM-92145-2061
    Spring
    Part Number: KM-92145-2061
      No Longer Available
  • 41
    Tube – Part Number: KM-92191-7016
    Tube
    Part Number: KM-92191-7016
      No Longer Available
  • 42
    Bolt-Flange – Part Number: KM-130BA0635
    Bolt-Flange
    Part Number: KM-130BA0635
      Special Order
    $6.16
  • 43
    Bolt-Stud – Part Number: KM-172G0685
    Bolt-Stud
    Part Number: KM-172G0685
      No Longer Available
  • 44
    Screw-Pan – Part Number: KM-214B0510
    Screw-Pan
    Part Number: KM-214B0510
      No Longer Available
  • 45
    I Circlip-Type E – Part Number: KM-482L4000
    I Circlip-Type E
    Part Number: KM-482L4000
      No Longer Available

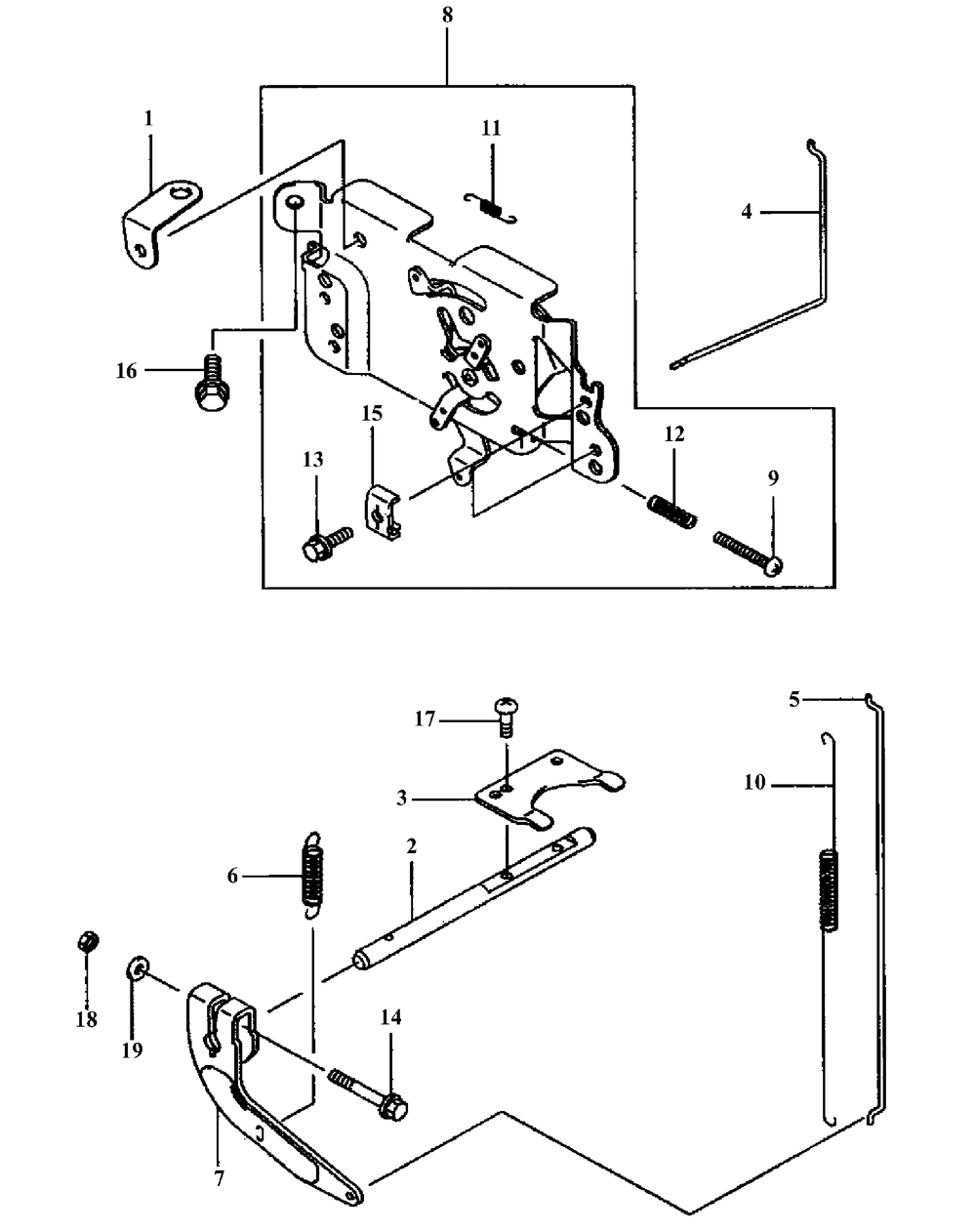

Fh500v-Cs14 Control Equipment
Fh500v-Cs14 Control Equipment Diagram and Parts List for 55AE3D4S750-WAM Cub Cadet Lawn Mower
  • 1
    Bracket – Part Number: KM-11051-7008
    Bracket
    Part Number: KM-11051-7008
      No Longer Available
  • 2
    Shaft – Part Number: KM-13107-7010
    Shaft
    Part Number: KM-13107-7010
      No Longer Available
  • 3
    Plate – Part Number: KM-13271-7032
    Plate
    Part Number: KM-13271-7032
      No Longer Available
  • 4
    Link-Choke – Part Number: KM-16169-7010
    Link-Choke
    Part Number: KM-16169-7010
      No Longer Available
  • 5
    Link – Part Number: KM-16171-7001
    Link
    Part Number: KM-16171-7001
      No Longer Available
  • 6
    Spring-Governor – Part Number: KM-39129-7003
    Spring-Governor
    Part Number: KM-39129-7003
      No Longer Available
  • 7
    Arm-Governor – Part Number: KM-49103-7004
    Arm-Governor
    Part Number: KM-49103-7004
      No Longer Available
  • 8
    Panel, Control – Part Number: KM-49113-7052
    Panel, Control
    Part Number: KM-49113-7052
      No Longer Available
  • 9
    Screw 400 – Part Number: KM-92009-7002
    Screw 400
    Part Number: KM-92009-7002
      No Longer Available
  • 10
    Spring – Part Number: KM-92145-7003
    Spring
    Part Number: KM-92145-7003
      No Longer Available
  • 11
    Spring – Part Number: KM-92145-2180
    Spring
    Part Number: KM-92145-2180
      Special Order
    $6.16
  • 12
    Spring – Part Number: KM-92145-7005
    Spring
    Part Number: KM-92145-7005
      No Longer Available
  • 13
    Bolt 5X 18 – Part Number: KM-92150-2182
    Bolt 5X 18
    Part Number: KM-92150-2182
      Special Order
    $6.16
  • 14
    Bolt 6X30 – Part Number: KM-92151-7006
    Bolt 6X30
    Part Number: KM-92151-7006
      No Longer Available
  • 15
    Clamp – Part Number: KM-92170-7001
    Clamp
    Part Number: KM-92170-7001
      Special Order
    $6.16
  • 16
    Bolt-flanged 6x12 – Part Number: KM-130BA0612
    Bolt-flanged 6x12
    Part Number: KM-130BA0612
      Special Order
    $6.16
  • 17
    Screw-Pan – Part Number: KM-214AA0408
    Screw-Pan
    Part Number: KM-214AA0408
      Special Order
    $6.16
  • 18
    Nut-hex 6mm – Part Number: KM-311AA0600
    Nut-hex 6mm
    Part Number: KM-311AA0600
      Special Order
    $6.16
  • 19
    Washer-Plain – Part Number: KM-411AA0600
    Washer-Plain
    Part Number: KM-411AA0600
      Special Order
    $7.89

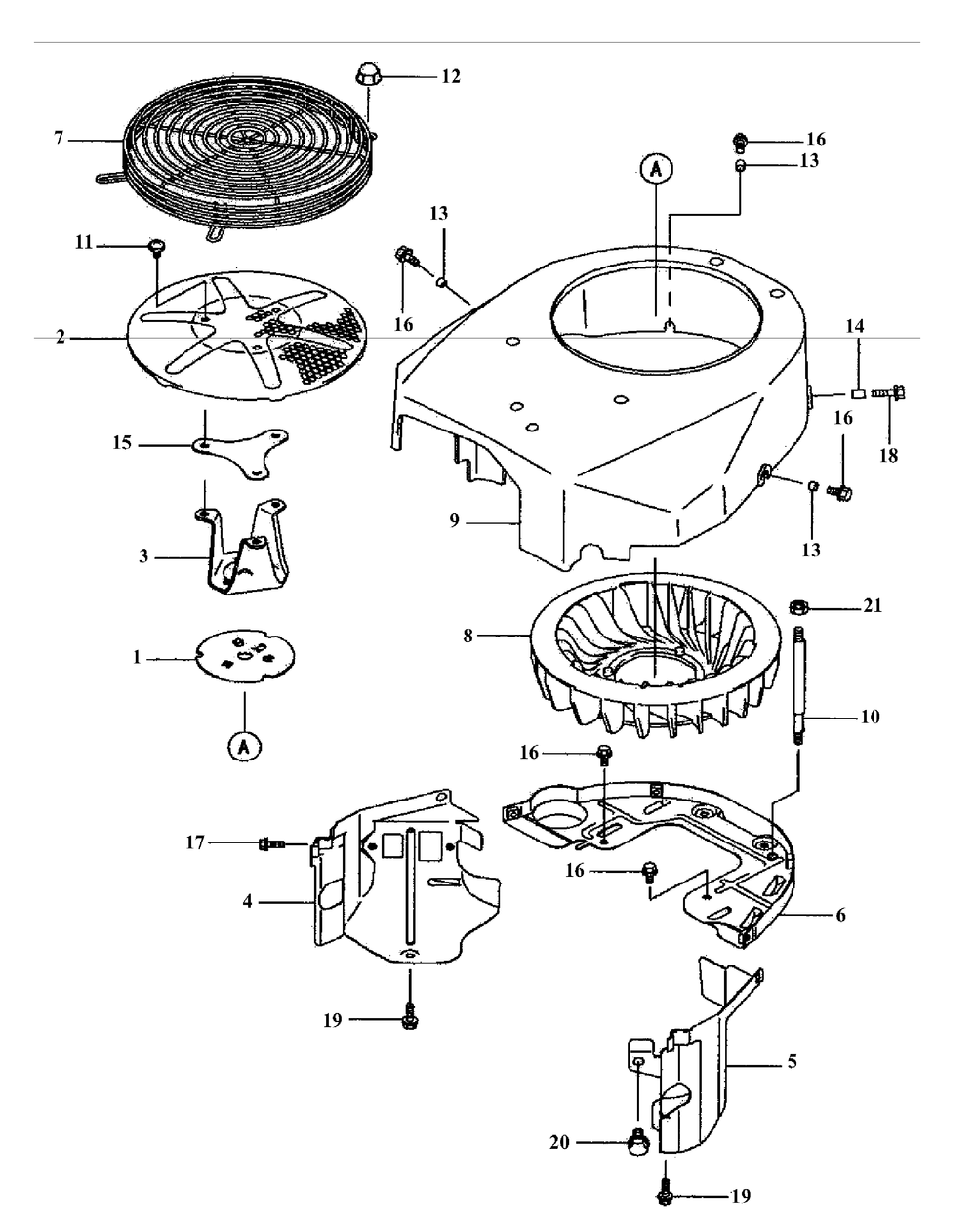

Fh500v-Cs14 Cooling Equipment
Fh500v-Cs14 Cooling Equipment Diagram and Parts List for 55AE3D4S750-WAM Cub Cadet Lawn Mower
  • 1
    Plate – Part Number: KM-13270-7007
    Plate
    Part Number: KM-13270-7007
      Special Order
    $9.63
  • 2
    Screen – Part Number: KM-14037-70209H
    Screen
    Part Number: KM-14037-70209H
      No Longer Available
  • 3
    Bracket-Comp – Part Number: KM-23062-7010
    Bracket-Comp
    Part Number: KM-23062-7010
      No Longer Available
  • 4
    Shroud, Engine – Part Number: KM-49089-7001
    Shroud, Engine
    Part Number: KM-49089-7001
      No Longer Available
  • 5
    Shroud, Engine (Side) – Part Number: KM-49089-7002
    Shroud, Engine (Side)
    Part Number: KM-49089-7002
      No Longer Available
  • 6
    Shroud, Engine – Part Number: KM-49089-7003
    Shroud, Engine
    Part Number: KM-49089-7003
      No Longer Available
  • 7
    Guard – Part Number: KM-55020-7004
    Guard
    Part Number: KM-55020-7004
      No Longer Available
  • 8
    Fan – Part Number: KM-59041-0020
    Fan
    Part Number: KM-59041-0020
      Special Order
    $27.56
  • 9
    Fan Housing – Part Number: KM-59066-7002
    Fan Housing
    Part Number: KM-59066-7002
      No Longer Available
  • 10
    Stud – Part Number: KM-92004-7025
    Stud
    Part Number: KM-92004-7025
      Special Order
    $10.65
  • 11
    Bolt-flanged 6x12 – Part Number: KM-130BA0612
    Bolt-flanged 6x12
    Part Number: KM-130BA0612
      Special Order
    $6.16
  • 12
    Nut – Part Number: KM-92210-0003
    Nut
    Part Number: KM-92210-0003
      No Longer Available
  • 13
    Spacer, 6.2 X 7.9 X 5 – Part Number: KM-92026-7001
    Spacer, 6.2 X 7.9 X 5
    Part Number: KM-92026-7001
      No Longer Available
  • 14
    Spacer – Part Number: KM-92026-7003
    Spacer
    Part Number: KM-92026-7003
      No Longer Available
  • 15
    Spacer – Part Number: KM-92026-7007
    Spacer
    Part Number: KM-92026-7007
      Special Order
    $10.07
  • 16
    Bolt-flanged 6x12 – Part Number: KM-130BA0612
    Bolt-flanged 6x12
    Part Number: KM-130BA0612
      Special Order
    $6.16
  • 17
    Bolt-Flanged – Part Number: KM-130BA0616
    Bolt-Flanged
    Part Number: KM-130BA0616
      Special Order
    $6.16
  • 18
    Bolt, Flange – Part Number: KM-130CA0620
    Bolt, Flange
    Part Number: KM-130CA0620
      No Longer Available
  • 19
    Bolt-Flanged – Part Number: KM-130BA0625
    Bolt-Flanged
    Part Number: KM-130BA0625
      Special Order
    $6.16
  • 20
    Bolt-Flange – Part Number: KM-130BA0816
    Bolt-Flange
    Part Number: KM-130BA0816
      Special Order
    $6.16
  • 21
    Nut-hex 6mm – Part Number: KM-311AA0600
    Nut-hex 6mm
    Part Number: KM-311AA0600
      Special Order
    $6.16
Fh500v-Cs14 Cylinder And Crankcase
Fh500v-Cs14 Cylinder And Crankcase Diagram and Parts List for 55AE3D4S750-WAM Cub Cadet Lawn Mower
  • Replacement Engine – Part Number: 01006565P
    Replacement Engine
    Part Number: 01006565P
      No Longer Available
  • 1
    Head Gasket – Part Number: KM-11004-7015
    Head Gasket
    Part Number: KM-11004-7015
      No Longer Available
  • 2
    Head, Cylinder #1 – Part Number: KM-11008-6043
    Head, Cylinder #1
    Part Number: KM-11008-6043
      Special Order
    $286.92
  • 3
    Head, Cylinder #2 – Part Number: KM-11008-7020
    Head, Cylinder #2
    Part Number: KM-11008-7020
      Special Order
    $286.92
  • 4
    Case, Rocker – Part Number: KM-11022-7003
    Case, Rocker
    Part Number: KM-11022-7003
      No Longer Available
  • 5
    Gasket-Rocker Case – Part Number: KM-11060-7001
    Gasket-Rocker Case
    Part Number: KM-11060-7001
      Special Order
    $14.28
  • 6
    Gasket-Crankcase – Part Number: KM-11060-7008
    Gasket-Crankcase
    Part Number: KM-11060-7008
      Special Order
    $11.19
  • 7
    Gasket-Breather – Part Number: KM-11061-7097
    Gasket-Breather
    Part Number: KM-11061-7097
      Special Order
    $15.93
  • 8
    Plate – Part Number: KM-13271-7016
    Plate
    Part Number: KM-13271-7016
      No Longer Available
  • 9
    Cover Kit-breather – Part Number: KM-99996-6104
    Cover Kit-breather
    Part Number: KM-99996-6104
      Special Order
    $36.34
  • 10
    Cover-Crankcase – Part Number: KM-49015-6253
    Cover-Crankcase
    Part Number: KM-49015-6253
      No Longer Available
  • 11
    Cover Kit-breather – Part Number: KM-99996-6104
    Cover Kit-breather
    Part Number: KM-99996-6104
      Special Order
    $36.34
  • 12
    Crankcase-Complete – Part Number: KM-49120-6132
    Crankcase-Complete
    Part Number: KM-49120-6132
      No Longer Available
  • 13
    Joint – Part Number: KM-59071-2079
    Joint
    Part Number: KM-59071-2079
      Special Order
    $14.71
  • 14
    Ring-Snap – Part Number: KM-92033-7003
    Ring-Snap
    Part Number: KM-92033-7003
      No Longer Available
  • 15
    Pin – Part Number: KM-92043-7001
    Pin
    Part Number: KM-92043-7001
      No Longer Available
  • 16
    SEAL-OIL VALVE ST – Part Number: KM-92049-0862
    SEAL-OIL VALVE ST
    Part Number: KM-92049-0862
      Special Order
    $15.71
  • 17
    Seal-Oil – Part Number: KM-92049-7010
    Seal-Oil
    Part Number: KM-92049-7010
      Special Order
    $6.16
  • 18
    Seal-Oil – Part Number: KM-92049-7011
    Seal-Oil
    Part Number: KM-92049-7011
      Special Order
    $9.82
  • 19
    Seal-Oil – Part Number: KM-92049-7019
    Seal-Oil
    Part Number: KM-92049-7019
      Special Order
    $6.16
  • 20
    Bolt-flanged 6x12 – Part Number: KM-130BA0612
    Bolt-flanged 6x12
    Part Number: KM-130BA0612
      Special Order
    $6.16
  • 21
    Bolt, Flange – Part Number: KM-130BA0640
    Bolt, Flange
    Part Number: KM-130BA0640
      Special Order
    $6.16
  • 22
    Bolt-flanged 8x50 – Part Number: KM-130CA0850
    Bolt-flanged 8x50
    Part Number: KM-130CA0850
      No Longer Available
  • 23
    Bolt-flanged – Part Number: KM-130CA0875
    Bolt-flanged
    Part Number: KM-130CA0875
      No Longer Available
  • 24
    Bolt-Stuc – Part Number: KM-172BA0818
    Bolt-Stuc
    Part Number: KM-172BA0818
      Special Order
    $6.16

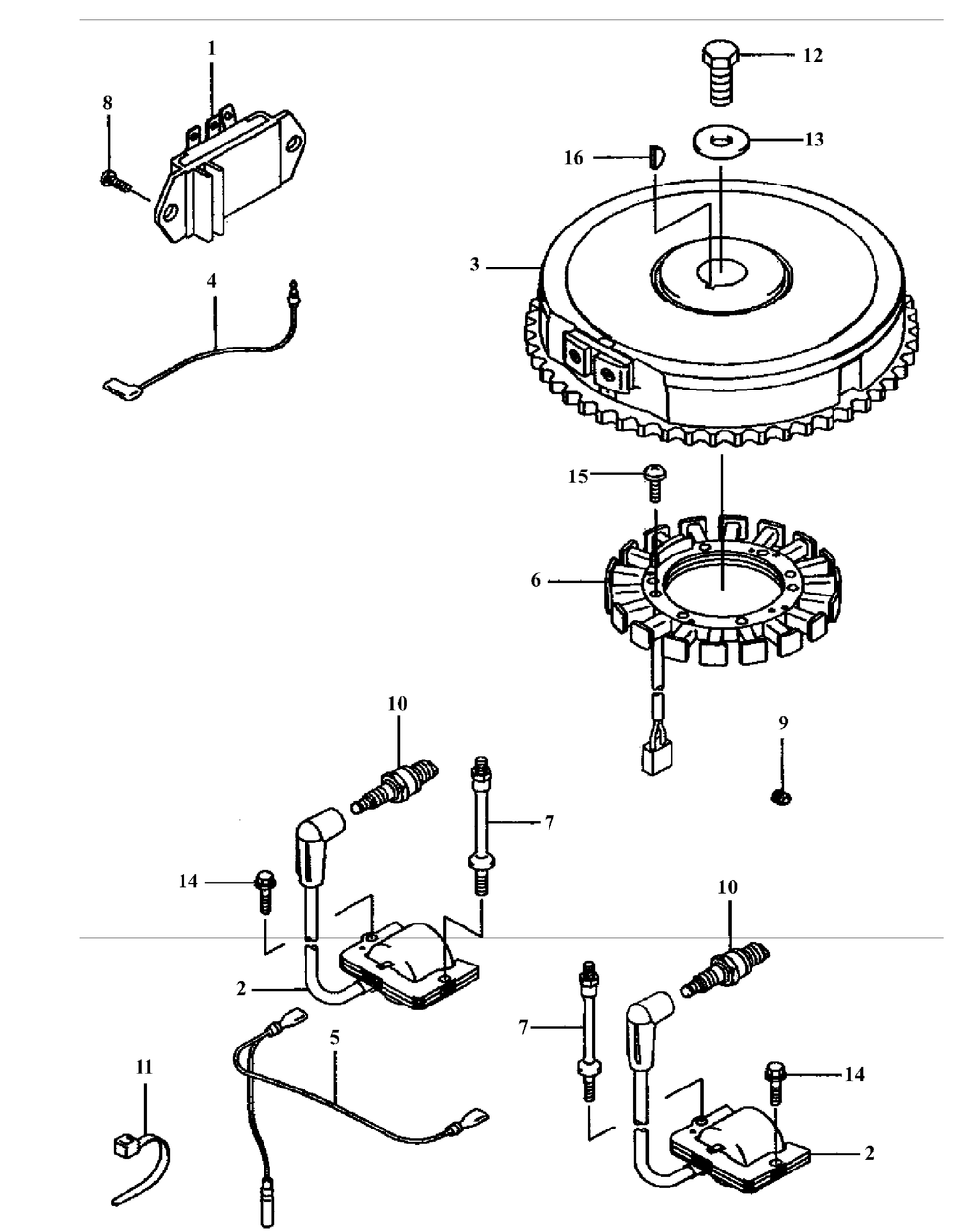

Fh500v-Cs14 Electric Equipment
Fh500v-Cs14 Electric Equipment Diagram and Parts List for 55AE3D4S750-WAM Cub Cadet Lawn Mower
  • 1
    Regulator, Voltage – Part Number: KM-21066-7011
    Regulator, Voltage
    Part Number: KM-21066-7011
      Special Order
    $128.49
  • 2
    Ignition Coil Assembly – Part Number: KM-21171-7034
    Ignition Coil Assembly
    Part Number: KM-21171-7034
      Special Order
    $128.79
  • 3
    Flywheel – Part Number: KM-21193-7007
    Flywheel
    Part Number: KM-21193-7007
      No Longer Available
  • 4
    Wire-Lead – Part Number: KM-26011-7001
    Wire-Lead
    Part Number: KM-26011-7001
      No Longer Available
  • 5
    Harness – Part Number: KM-26030-7001
    Harness
    Part Number: KM-26030-7001
      No Longer Available
  • 6
    Coil-Charging – Part Number: KM-59031-7009
    Coil-Charging
    Part Number: KM-59031-7009
      Special Order
    $163.45
  • 7
    Stud – Part Number: KM-92004-7026
    Stud
    Part Number: KM-92004-7026
      Special Order
    $8.87
  • 8
    Screw – Part Number: KM-92009-2308
    Screw
    Part Number: KM-92009-2308
      Special Order
    $6.16
  • 9
    Plug – Part Number: KM-92066-7002
    Plug
    Part Number: KM-92066-7002
      No Longer Available
  • 10
    Plug, Spark – Part Number: KM-BPMR6A
    Plug, Spark
    Part Number: KM-BPMR6A
      No Longer Available
  • 11
    Band – Part Number: KM-92072-7003
    Band
    Part Number: KM-92072-7003
      Special Order
    $6.16
  • 12
    Bolt-flywheel 12x – Part Number: KM-92154-7003
    Bolt-flywheel 12x
    Part Number: KM-92154-7003
      Special Order
    $8.25
  • 13
    Washer – Part Number: KM-92200-7002
    Washer
    Part Number: KM-92200-7002
      Special Order
    $6.16
  • 14
    Bolt, Flange – Part Number: KM-130CA0620
    Bolt, Flange
    Part Number: KM-130CA0620
      No Longer Available
  • 15
    Screw Pan Hd. – Part Number: KM-224AA0520
    Screw Pan Hd.
    Part Number: KM-224AA0520
      No Longer Available
  • 16
    Key-Woodruff – Part Number: KM-510A5100
    Key-Woodruff
    Part Number: KM-510A5100
      Special Order
    $6.86
Fh500v-Cs14 Fuel System
Fh500v-Cs14 Fuel System Diagram and Parts List for 55AE3D4S750-WAM Cub Cadet Lawn Mower
  • 1
    Bracket-fuel Pump – Part Number: KM-23062-70199H
    Bracket-fuel Pump
    Part Number: KM-23062-70199H
      No Longer Available
  • 2
    Filter-Fuel – Part Number: KM-49019-0027
    Filter-Fuel
    Part Number: KM-49019-0027
      Special Order
    $23.79
  • 3
    PUMP-FUEL – Part Number: KM-49040-0801
    PUMP-FUEL
    Part Number: KM-49040-0801
      Special Order
    $64.99
  • 4
    CLAMP-11.8 MM – Part Number: KM-92173-1582
    CLAMP-11.8 MM
    Part Number: KM-92173-1582
      Special Order
    $6.16
  • 5
    Tube – Part Number: KM-92191-7002
    Tube
    Part Number: KM-92191-7002
      No Longer Available
  • 6
    Tube – Part Number: KM-92191-7003
    Tube
    Part Number: KM-92191-7003
      No Longer Available
  • 7
    Tube – Part Number: KM-92191-7004
    Tube
    Part Number: KM-92191-7004
      No Longer Available
  • 8
    Bolt, Flange – Part Number: KM-130CA0620
    Bolt, Flange
    Part Number: KM-130CA0620
      No Longer Available
Fh500v-Cs14 Label
Fh500v-Cs14 Label Diagram and Parts List for 55AE3D4S750-WAM Cub Cadet Lawn Mower
  • 1
    Label-brand Fh500v – Part Number: KM-56080-0016
    Label-brand Fh500v
    Part Number: KM-56080-0016
      No Longer Available
  • 2
    Label – Part Number: KM-56033-7001
    Label
    Part Number: KM-56033-7001
      Special Order
    $6.16

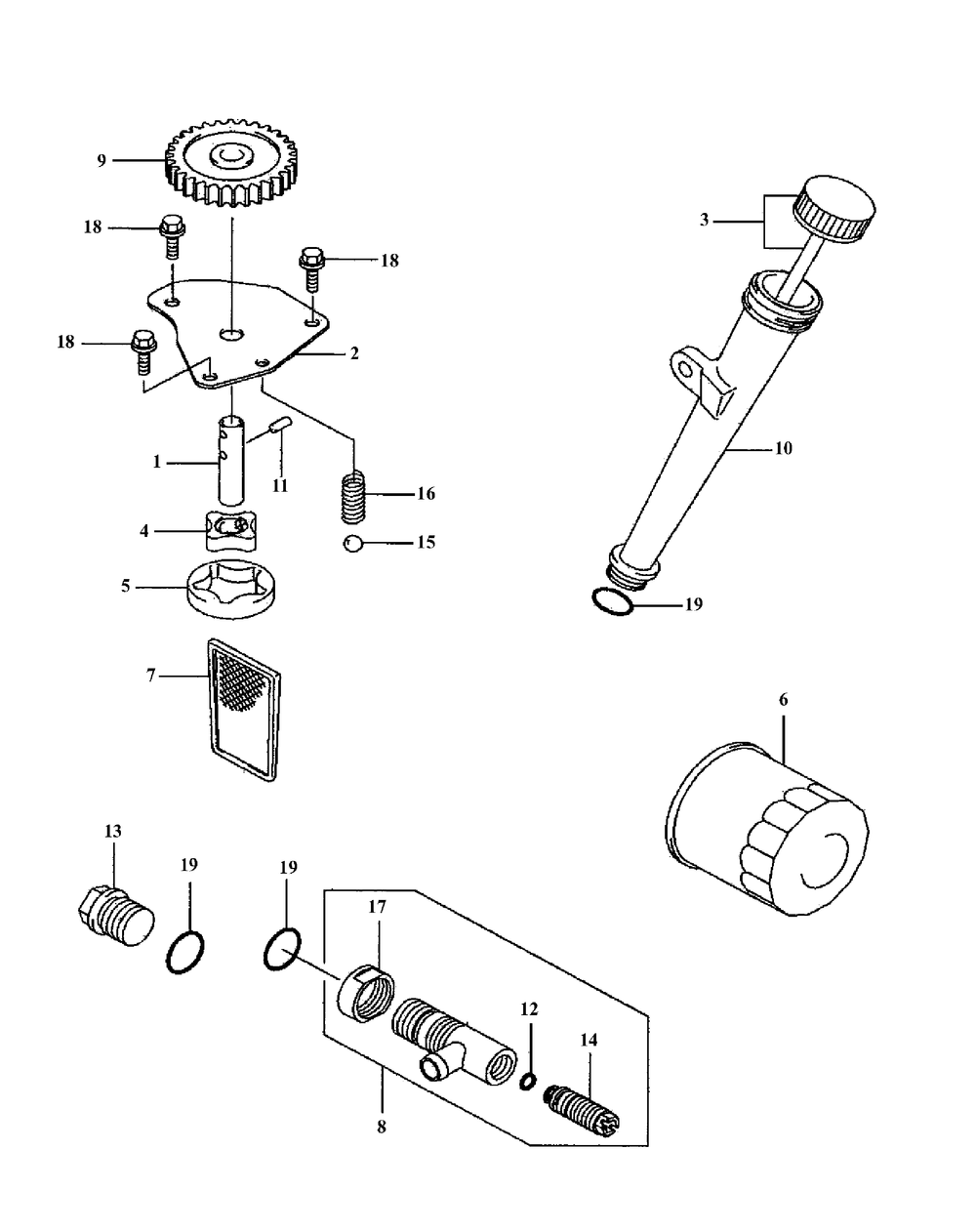

Fh500v-Cs14 Lubrication Equipment
Fh500v-Cs14 Lubrication Equipment Diagram and Parts List for 55AE3D4S750-WAM Cub Cadet Lawn Mower
  • 1
    SHAFT-OIL PUMP – Part Number: KM-13107-0858
    SHAFT-OIL PUMP
    Part Number: KM-13107-0858
      Special Order
    $6.16
  • 2
    Plate – Part Number: KM-13271-7017
    Plate
    Part Number: KM-13271-7017
      No Longer Available
  • 3
    OIL DIPSTICK – Part Number: KM-14075-0708
    OIL DIPSTICK
    Part Number: KM-14075-0708
      No Longer Available
  • 4
    Rotor-Pump In – Part Number: KM-16154-2053
    Rotor-Pump In
    Part Number: KM-16154-2053
      No Longer Available
  • 5
    Rotor-Pump Out – Part Number: KM-16154-2054
    Rotor-Pump Out
    Part Number: KM-16154-2054
      No Longer Available
  • 6
    FILTER-OIL – Part Number: KM-49065-0724
    FILTER-OIL
    Part Number: KM-49065-0724
      Special Order
    $36.53
  • 7
    FILTER-OIL SCREEN – Part Number: KM-49065-0718
    FILTER-OIL SCREEN
    Part Number: KM-49065-0718
      Special Order
    $8.37
  • 8
    VALVE ASM-OIL DRAI – Part Number: KM-49116-0714
    VALVE ASM-OIL DRAI
    Part Number: KM-49116-0714
      Special Order
    $15.19
  • 9
    Gear-Spur – Part Number: KM-59051-6001
    Gear-Spur
    Part Number: KM-59051-6001
      No Longer Available
  • 10
    Tube-oil Filler – Part Number: KM-59231-7005
    Tube-oil Filler
    Part Number: KM-59231-7005
      No Longer Available
  • 11
    Pin – Part Number: KM-92042-014
    Pin
    Part Number: KM-92042-014
      Special Order
    $6.16
  • 12
    O-Ring, 6mm – Part Number: KM-92055-7002
    O-Ring, 6mm
    Part Number: KM-92055-7002
      No Longer Available
  • 13
    Plug-oil Drain – Part Number: KM-92066-0774
    Plug-oil Drain
    Part Number: KM-92066-0774
      Special Order
    $12.33
  • 14
    PLUG-OIL DRAIN – Part Number: KM-92066-0966
    PLUG-OIL DRAIN
    Part Number: KM-92066-0966
      Special Order
    $7.96
  • 15
    Ball – Part Number: KM-92140-7003
    Ball
    Part Number: KM-92140-7003
      Special Order
    $6.16
  • 16
    Spring – Part Number: KM-92145-7002
    Spring
    Part Number: KM-92145-7002
      Special Order
    $6.16
  • 17
    Nut – Part Number: KM-92210-7012
    Nut
    Part Number: KM-92210-7012
      Special Order
    $6.16
  • 18
    Bolt-flanged 6x12 – Part Number: KM-130BA0612
    Bolt-flanged 6x12
    Part Number: KM-130BA0612
      Special Order
    $6.16
  • 19
    Ring-o – Part Number: KM-670D2016
    Ring-o
    Part Number: KM-670D2016
      Special Order
    Minimum Quantity of 2 required
    $6.16

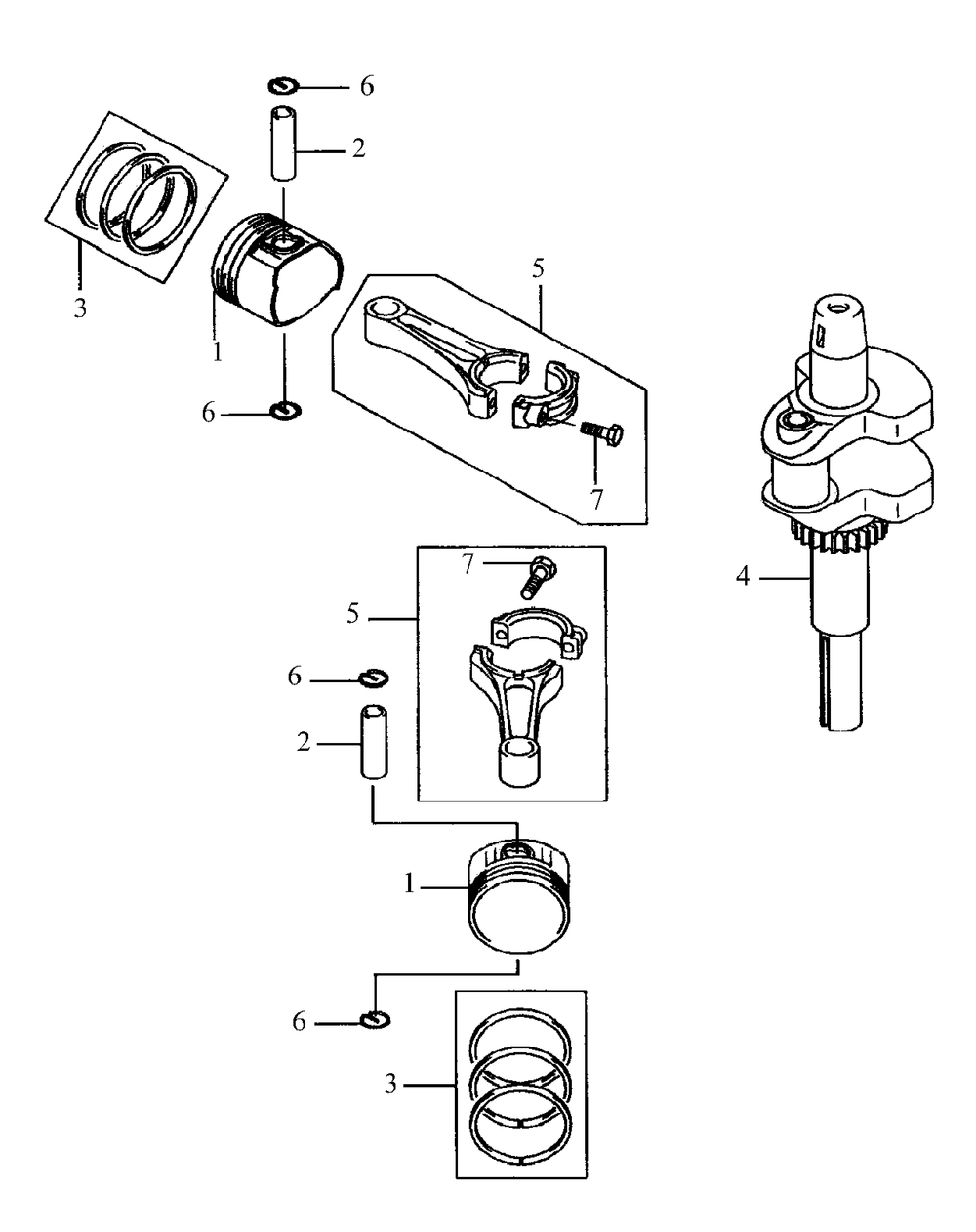

Fh500v-Cs14 Piston And Crankshaft
Fh500v-Cs14 Piston And Crankshaft Diagram and Parts List for 55AE3D4S750-WAM Cub Cadet Lawn Mower
Fh500v-Cs14 Starter
Fh500v-Cs14 Starter Diagram and Parts List for 55AE3D4S750-WAM Cub Cadet Lawn Mower
  • 1
    Gear Assembly – Part Number: KM-13101-7010
    Gear Assembly
    Part Number: KM-13101-7010
      Special Order
    $156.80
  • 2
    Starter, Complete – Part Number: KM-99999-7080
    Starter, Complete
    Part Number: KM-99999-7080
      Special Order
    $419.65
  • 3
    Armature – Part Number: KM-21080-7001
    Armature
    Part Number: KM-21080-7001
      No Longer Available
  • 4
    Starter, Complete – Part Number: KM-99999-7080
    Starter, Complete
    Part Number: KM-99999-7080
      Special Order
    $419.65
  • 5
    Starter, Complete – Part Number: KM-99999-7080
    Starter, Complete
    Part Number: KM-99999-7080
      Special Order
    $419.65
  • 6
    Bolt – Part Number: KM-92151-7013
    Bolt
    Part Number: KM-92151-7013
      No Longer Available
  • 7
    Bolt-Flange – Part Number: KM-130BA0816
    Bolt-Flange
    Part Number: KM-130BA0816
      Special Order
    $6.16
Fh500v-Cs14 Valve And Camshaft
Fh500v-Cs14 Valve And Camshaft Diagram and Parts List for 55AE3D4S750-WAM Cub Cadet Lawn Mower
  • 1
    Valve-Intake – Part Number: KM-12004-7001
    Valve-Intake
    Part Number: KM-12004-7001
      Special Order
    $36.39
  • 2
    Exhaust Valve – Part Number: KM-12005-7001
    Exhaust Valve
    Part Number: KM-12005-7001
      Special Order
    $60.34
  • 3
    Retainer-Valve Sprg – Part Number: KM-12009-7001
    Retainer-Valve Sprg
    Part Number: KM-12009-7001
      Special Order
    $8.06
  • 4
    Collet – Part Number: KM-12011-2056
    Collet
    Part Number: KM-12011-2056
      Special Order
    $6.16
  • 5
    Arm-Rocker – Part Number: KM-12016-7008
    Arm-Rocker
    Part Number: KM-12016-7008
      Special Order
    $13.97
  • 6
    Tappet-valve – Part Number: KM-12032-7001
    Tappet-valve
    Part Number: KM-12032-7001
      In Stock
    $23.29
  • 7
    Guide – Part Number: KM-13070-7001
    Guide
    Part Number: KM-13070-7001
      No Longer Available
  • 8
    Guide – Part Number: KM-13070-7004
    Guide
    Part Number: KM-13070-7004
      Special Order
    $10.38
  • 9
    ROD-Push – Part Number: KM-13116-2057
    ROD-Push
    Part Number: KM-13116-2057
      Special Order
    $10.90
  • 10
    Plate – Part Number: KM-13271-7021
    Plate
    Part Number: KM-13271-7021
      Special Order
    $8.60
  • 11
    Plate – Part Number: KM-13271-7007
    Plate
    Part Number: KM-13271-7007
      Special Order
    $8.60
  • 12
    Sleeve – Part Number: KM-42036-7010
    Sleeve
    Part Number: KM-42036-7010
      Special Order
    $9.59
  • 13
    Spring-Valve – Part Number: KM-49078-7001
    Spring-Valve
    Part Number: KM-49078-7001
      No Longer Available
  • 14
    Camshaft, Complete | NLA – Part Number: KM-49118-7008
    Camshaft, Complete | NLA
    Part Number: KM-49118-7008
      No Longer Available
  • 15
    Screw – Part Number: KM-92009-2341
    Screw
    Part Number: KM-92009-2341
      Special Order
    $4.80
  • 16
    Nut – Part Number: KM-92015-2253
    Nut
    Part Number: KM-92015-2253
      No Longer Available
  • 17
    BOLT,6X35 – Part Number: KM-92154-2697
    BOLT,6X35
    Part Number: KM-92154-2697
      Special Order
    $6.16
  • 18
    BALL – Part Number: KM-92140-0026
    BALL
    Part Number: KM-92140-0026
      Special Order
    $6.16
  • 19
    SPRING – Part Number: KM-92145-1653
    SPRING
    Part Number: KM-92145-1653
      Special Order
    $6.16
  • 21
    Bolt – Part Number: KM-92153-7019
    Bolt
    Part Number: KM-92153-7019
      Special Order
    $4.80
  • 22
    Washer – Part Number: KM-92200-7001
    Washer
    Part Number: KM-92200-7001
      No Longer Available
Hydro Brake Assembly
Hydro Brake Assembly Diagram and Parts List for 55AE3D4S750-WAM Cub Cadet Lawn Mower
Hydro Pump Assembly
Hydro Pump Assembly Diagram and Parts List for 55AE3D4S750-WAM Cub Cadet Lawn Mower
Kawasaki Engine Assembly Wt
Kawasaki Engine Assembly Wt Diagram and Parts List for 55AE3D4S750-WAM Cub Cadet Lawn Mower
Spindle Assembly
Spindle Assembly Diagram and Parts List for 55AE3D4S750-WAM Cub Cadet Lawn Mower
Standard Engine Deck Assembly Hydro
Standard Engine Deck Assembly Hydro Diagram and Parts List for 55AE3D4S750-WAM Cub Cadet Lawn Mower
Standard Handle Assembly
Standard Handle Assembly Diagram and Parts List for 55AE3D4S750-WAM Cub Cadet Lawn Mower
Standard Tank Assembly
Standard Tank Assembly Diagram and Parts List for 55AE3D4S750-WAM Cub Cadet Lawn Mower

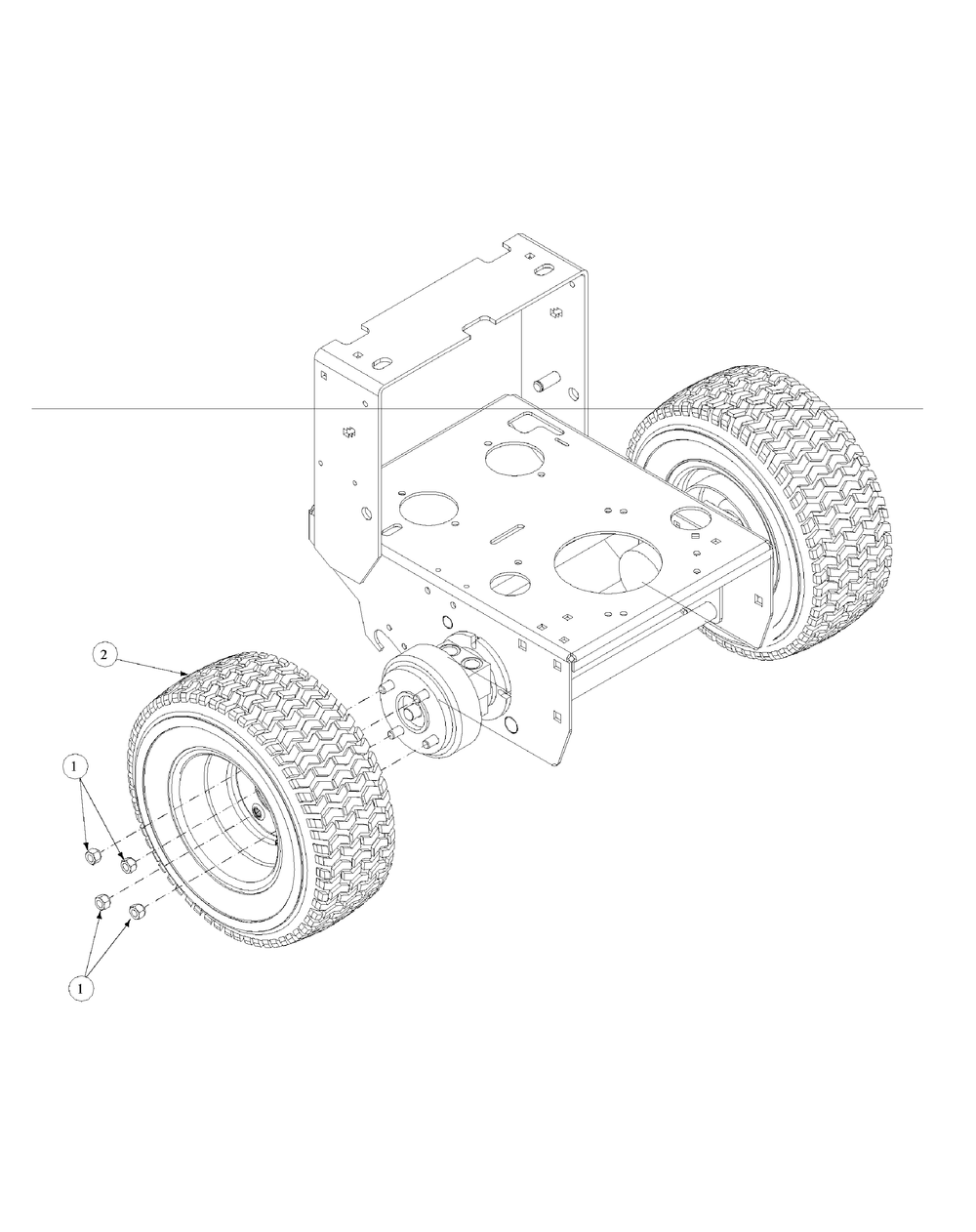

Wheel Assembly
Wheel Assembly Diagram and Parts List for 55AE3D4S750-WAM Cub Cadet Lawn Mower

Questions & Answers

?

Our customer Service team is at the ready daily to answer your part and product questions.

Be the first to ask our experts a question about this part!

Ask our Team

We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.

✖

Our customer service team are at the ready daily to answer your part and product questions. We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.
