Diagram 1 Diagram and Parts List for Bosch Lawn Mower
Diagram 1
Diagram 2 Diagram and Parts List for Bosch Lawn Mower
Diagram 2
Previous Showing All Parts Next
Diagram 1

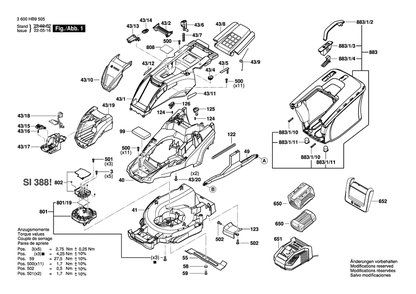

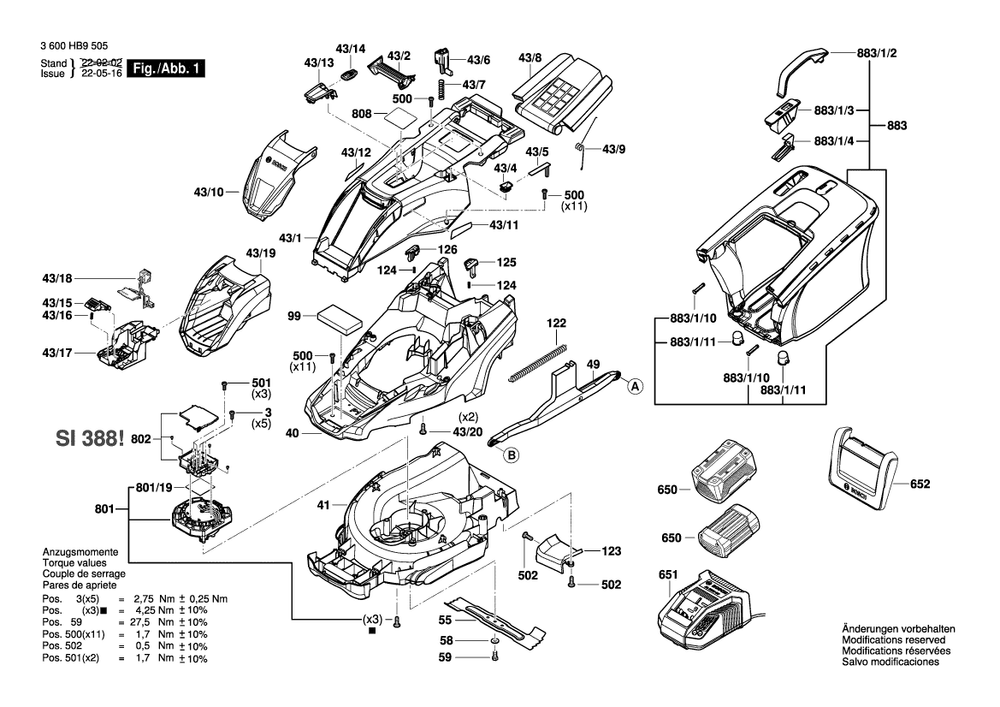

Diagram 1 Diagram and Parts List for Bosch Lawn Mower
  • 3
    SCREW – Part Number: 160343003T
    SCREW
    Part Number: 160343003T
      Special Order
    $6.16
  • 40
    Mower deck – Part Number: F016L90981
    Mower deck
    Part Number: F016L90981
      No Longer Available
  • 41
    Housing – Part Number: F016L69357
    Housing
    Part Number: F016L69357
      No Longer Available
  • 43/1
    Motor Hood – Part Number: F016L90017
    Motor Hood
    Part Number: F016L90017
      No Longer Available
  • 43/2
    Carrying Handle – Part Number: F016L90018
    Carrying Handle
    Part Number: F016L90018
      No Longer Available
  • 43/4
    Transparent Cover – Part Number: F016L90432
    Transparent Cover
    Part Number: F016L90432
      No Longer Available
  • 43/5
    Indicator – Part Number: F016L90434
    Indicator
    Part Number: F016L90434
      No Longer Available
  • 43/6
    Button – Part Number: 1600A022AC
    Button
    Part Number: 1600A022AC
      No Longer Available
  • 43/7
    Button Spring – Part Number: F016L91168
    Button Spring
    Part Number: F016L91168
      No Longer Available
  • 43/8
    Guard Flap – Part Number: F016L90022
    Guard Flap
    Part Number: F016L90022
      No Longer Available
  • 43/9
    Spring – Part Number: F016L90868
    Spring
    Part Number: F016L90868
      No Longer Available
  • 43/10
    grille – Part Number: F016L91059
    grille
    Part Number: F016L91059
      No Longer Available
  • 43/11
    Sticker – Part Number: 160111C3G3
    Sticker
    Part Number: 160111C3G3
      No Longer Available
  • 43/11
    Sticker – Part Number: F016L90076
    Sticker
    Part Number: F016L90076
      No Longer Available
  • 43/12
    Sticker – Part Number: 160111C3G4
    Sticker
    Part Number: 160111C3G4
      No Longer Available
  • 43/12
    Sticker – Part Number: F016L90077
    Sticker
    Part Number: F016L90077
      No Longer Available
  • 43/13
    Cover Panel – Part Number: F016L90021
    Cover Panel
    Part Number: F016L90021
      No Longer Available
  • 43/14
    Key – Part Number: F016L90054
    Key
    Part Number: F016L90054
      No Longer Available
  • 43/15
    Release Lever – Part Number: F016L90773
    Release Lever
    Part Number: F016L90773
      No Longer Available
  • 43/16
    Button Spring – Part Number: F016L90701
    Button Spring
    Part Number: F016L90701
      No Longer Available
  • 43/17
    Switch support – Part Number: F016L90777
    Switch support
    Part Number: F016L90777
      No Longer Available
  • 43/18
    Wiring Harness – Part Number: F016L90833
    Wiring Harness
    Part Number: F016L90833
      No Longer Available
  • 43/19
    Battery Housing – Part Number: F016L90057
    Battery Housing
    Part Number: F016L90057
      No Longer Available
  • 43/20
    Torx Head Screw – Part Number: F016L68124
    Torx Head Screw
    Part Number: F016L68124
      No Longer Available
  • 49
    Linkage part – Part Number: F016L90027
    Linkage part
    Part Number: F016L90027
      No Longer Available
  • 55
    Cutter Blade – Part Number: F016L90158
    Cutter Blade
    Part Number: F016L90158
      No Longer Available
  • 58
    Spring Washer – Part Number: F016L66173
    Spring Washer
    Part Number: F016L66173
      No Longer Available
  • 59
    Bolt M10x30 – Part Number: F016L66141
    Bolt M10x30
    Part Number: F016L66141
      No Longer Available
  • 99
    Balance Weights – Part Number: F016L69400
    Balance Weights
    Part Number: F016L69400
      No Longer Available
  • 122
    Spring – Part Number: F016L59327
    Spring
    Part Number: F016L59327
      No Longer Available
  • 123
    Plastic Insert – Part Number: F016L90553
    Plastic Insert
    Part Number: F016L90553
      No Longer Available
  • 124
    Button Spring – Part Number: F016L90701
    Button Spring
    Part Number: F016L90701
      No Longer Available
  • 125
    Button – Part Number: F016L90197
    Button
    Part Number: F016L90197
      No Longer Available
  • 126
    Button – Part Number: F016L90198
    Button
    Part Number: F016L90198
      No Longer Available
  • 500
    Torx Head Screw – Part Number: F016L68124
    Torx Head Screw
    Part Number: F016L68124
      No Longer Available
  • 501
    THREADED-FURROW SCREW – Part Number: 2603410048
    THREADED-FURROW SCREW
    Part Number: 2603410048
      In Stock
    Minimum Quantity of 2 required
    $6.16
  • 502
    Self-Cutting Screw – Part Number: F016L37433
    Self-Cutting Screw
    Part Number: F016L37433
      No Longer Available
  • 650
    Battery Pack – Part Number: 1607A3504P
    Battery Pack
    Part Number: 1607A3504P
      No Longer Available
  • 650
    Battery Pack – Part Number: 2607336913
    Battery Pack
    Part Number: 2607336913
      No Longer Available
  • 651
    Fast Charger – Part Number: 2607226273
    Fast Charger
    Part Number: 2607226273
      No Longer Available
  • 652
    Deflector Plate – Part Number: F016L90829
    Deflector Plate
    Part Number: F016L90829
      No Longer Available
  • 801
    DC motor – Part Number: F016105449
    DC motor
    Part Number: F016105449
      No Longer Available
  • 801/19
    Thermal conduction foil – Part Number: 1600A01Z1R
    Thermal conduction foil
    Part Number: 1600A01Z1R
      No Longer Available
  • 802
    Electronics Module – Part Number: F016105439
    Electronics Module
    Part Number: F016105439
      No Longer Available
  • 808
    Nameplate – Part Number: 160111A7BJ
    Nameplate
    Part Number: 160111A7BJ
      No Longer Available
  • 883
    Collection box – Part Number: F016105377
    Collection box
    Part Number: F016105377
      No Longer Available
  • 883/1/2
    Handle – Part Number: F016L90040
    Handle
    Part Number: F016L90040
      No Longer Available
  • 883/1/3
    Cover – Part Number: F016L90557
    Cover
    Part Number: F016L90557
      No Longer Available
  • 883/1/4
    Pivot Plate – Part Number: F016L91038
    Pivot Plate
    Part Number: F016L91038
      No Longer Available
  • 883/1/10
    Pin – Part Number: F016L91107
    Pin
    Part Number: F016L91107
      No Longer Available
  • 883/1/11
    Socket insert – Part Number: F016L91108
    Socket insert
    Part Number: F016L91108
      No Longer Available
Diagram 2

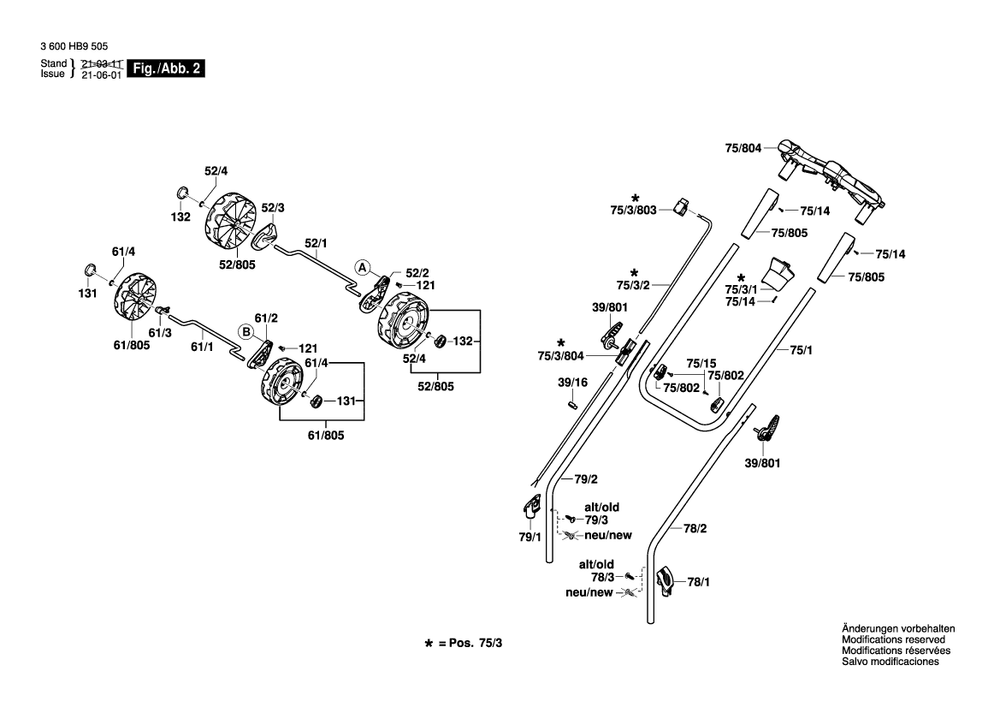

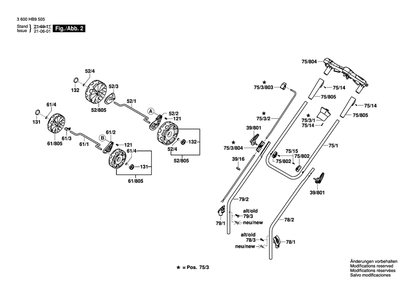

Diagram 2 Diagram and Parts List for Bosch Lawn Mower
  • 39/16
    Cable Clip – Part Number: F016L66895
    Cable Clip
    Part Number: F016L66895
      No Longer Available
  • 39/801
    Clamping Lever – Part Number: F016105363
    Clamping Lever
    Part Number: F016105363
      No Longer Available
  • 52/1
    Axle – Part Number: F016L90005
    Axle
    Part Number: F016L90005
      No Longer Available
  • 52/2
    Link Piece – Part Number: F016L90033
    Link Piece
    Part Number: F016L90033
      No Longer Available
  • 52/3
    Link Piece – Part Number: F016L90037
    Link Piece
    Part Number: F016L90037
      No Longer Available
  • 52/4
    Ratchet Cap – Part Number: F016L68095
    Ratchet Cap
    Part Number: F016L68095
      No Longer Available
  • 52/805
    Wheel – Part Number: F016104422
    Wheel
    Part Number: F016104422
      No Longer Available
  • 61/1
    Axle – Part Number: F016L90004
    Axle
    Part Number: F016L90004
      No Longer Available
  • 61/2
    Link Piece – Part Number: F016L90032
    Link Piece
    Part Number: F016L90032
      No Longer Available
  • 61/3
    Spacer – Part Number: F016L90036
    Spacer
    Part Number: F016L90036
      No Longer Available
  • 61/4
    Ratchet Cap – Part Number: F016L68095
    Ratchet Cap
    Part Number: F016L68095
      No Longer Available
  • 61/805
    Wheel – Part Number: F016104421
    Wheel
    Part Number: F016104421
      No Longer Available
  • 75/1
    Handle – Part Number: F016L90608
    Handle
    Part Number: F016L90608
      No Longer Available
  • 75/3
    wiring unit – Part Number: F016L90849
    wiring unit
    Part Number: F016L90849
      No Longer Available
  • 75/3/1
    Connector Housing – Part Number: F016L67218
    Connector Housing
    Part Number: F016L67218
      No Longer Available
  • 75/3/2
    Connection Cable – Part Number: F016L90847
    Connection Cable
    Part Number: F016L90847
      No Longer Available
  • 75/3/803
    Switch Kit – Part Number: F016104163
    Switch Kit
    Part Number: F016104163
      No Longer Available
  • 75/3/804
    Cable Guide – Part Number: F016104213
    Cable Guide
    Part Number: F016104213
      No Longer Available
  • 75/14
    Screw M5x8 Csk Hd. – Part Number: F016L36542
    Screw M5x8 Csk Hd.
    Part Number: F016L36542
      No Longer Available
  • 75/15
    Torx Head Screw – Part Number: F016L68124
    Torx Head Screw
    Part Number: F016L68124
      No Longer Available
  • 75/802
    Nut Holder – Part Number: F016105314
    Nut Holder
    Part Number: F016105314
      No Longer Available
  • 75/804
    Switch assembly – Part Number: F016105448
    Switch assembly
    Part Number: F016105448
      No Longer Available
  • 75/805
    Sleeve – Part Number: F016104361
    Sleeve
    Part Number: F016104361
      No Longer Available
  • 78/1
    Bracket – Part Number: F016L91163
    Bracket
    Part Number: F016L91163
      No Longer Available
  • 78/2
    Handle – Part Number: F016L90890
    Handle
    Part Number: F016L90890
      No Longer Available
  • 78/3
    Screw M5x8 Csk Hd. – Part Number: F016L36542
    Screw M5x8 Csk Hd.
    Part Number: F016L36542
      No Longer Available
  • 79/1
    Bracket – Part Number: F016L91164
    Bracket
    Part Number: F016L91164
      No Longer Available
  • 79/2
    Handle – Part Number: F016L90891
    Handle
    Part Number: F016L90891
      No Longer Available
  • 79/3
    Screw M5x8 Csk Hd. – Part Number: F016L36542
    Screw M5x8 Csk Hd.
    Part Number: F016L36542
      No Longer Available
  • 121
    Clip – Part Number: F016L91066
    Clip
    Part Number: F016L91066
      No Longer Available
  • 131
    Cover – Part Number: F016L68116
    Cover
    Part Number: F016L68116
      No Longer Available
  • 132
    Cover – Part Number: F016L68116
    Cover
    Part Number: F016L68116
      No Longer Available
  • 802
    Electronics Module – Part Number: F016105439
    Electronics Module
    Part Number: F016105439
      No Longer Available
