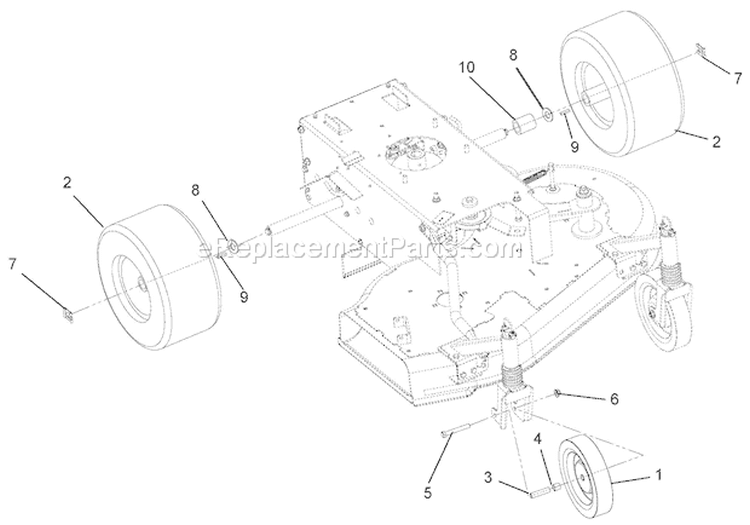

Ariens WAW1034 CE Lawn Mower Replacement Parts For Model 911370 (002000)

Blt- Rhsn .38-16x1.25 G5 Zcc

Nut-Locking-Flange .375-16

Handle Grip

Paddle, Pillow Brake

Weldment, Paddle Left Hand

Bshg- Flg .266x.42x.150 Pm

Spacer- Handlebar

Spring- Torsion

Bolt, Hex .25-20 x 2.25

Nut-jam-nyl .250-20 W/insertyz

Cable- Waw Throttle

Screw, Tapping 10-24 x .50 Hex Washer Head

Sg-tors

Bracket - Lever, Interlock

Grip, Thumb Latch

Push Nut- .25

Tube, Spacer .33 x .50

Control-lever W/cable Forward

Control-lever W/cable Reverse

Washer .268 I.D. x 9/16 O.D. x 3/64

Bolt, Hex .25-20 x 2.00 Grade 5

Cable Adjuster- Steel

Assembly- Spindle

Blt- Rhsn .38-16x1.25 G5 Zcc

Nut-nyl-flg .38-16 Gf Zcc

Wshr-blvl .669x1.535x.138 Minimum Quantity of 2 required

Dust Cap

Key- Sq .25 X .38 X .25

Pulley- Spindle

Washer-Cupped Serrated .38

Blt- Hex .38-16x1.00 G8zccep30

Washer, Flat .531 x 3.00 x .25

Wshr-lk-reg .500x.125 Zcc

BLT- HEX .50-13X3.50 G5 ZCC

Washer 1.441 OD x .511 ID x 1/8

Arm, WAW Deck Idler

Bshg- 1.00 X 1.12 X .75

Bshg- Spcr .502x.997x2.03 Pm

Nut-lk-top-flg .500-13 Gf Zcc

Idler- 4-inch Flanged

Blt-hex .38-16x2.25 G5 Zcc

Nut, Locking Flange .38-16 Gr. A

Spring - Engine - Trans.

Washer, Flat

Snow Blower Nut

Blt-Hex .31-18 X 3.50 Pl Gr 2

Blt-hex .31-18x.75 G5 Zcc

★★★★★

★★★★★

(1)

Minimum Quantity of 2 required

Pulley, Deck Input

Cover, Belt

Nut-nyl-flg .31-18 Gf Zcc

Capscrew - 5/16-18 UNC x 1 H.H., Plated

Nut, Locking Center Jam .31-18

Bracket, Idler Brace

Finger, Jackshaft Belt

Discharge Plate, 34" CE WAW (370)

Washer, 5/16

Nut-nyl-flg .31-18 Gf Zcc

Spacer, .660 x 1.50 x .813 (370)

Blade-17.38 Lg Mulch

Bolt, Hex .62-18 x 2-.50 G8

Battery, SLI U1B-165

Cover- Battery

★★★★★

★★★★★

(1)

Bolt-Round Head Square Neck .25-20 X 7.00

Nut-push .25x.50 O.d.

Washer .268 I.D. x 9/16 O.D. x 3/64

Nut, Locking Top Flange .25-20

Cap Screw H. H. 1/4-20x3/4

Nut-Keps .250-20

Kit- Sealed Solenoid Adapter

Screw Minimum Quantity of 2 required

Wshr-lock Int .31 Ywzc Minimum Quantity of 2 required

Nut- Jam .31-24

Switch, Rocker

Keyswitch-ignition 3 Pos

Harness - Waw Wiring

Starter Cable 6.75-inch

Cable, Ground

Key- Ignition

Weldment Arm, PTO Idler

Washer, Flat .531 x 3.00 x .25

Bshg- 1.00 X 1.12 X .75

Bshg- Spcr .502x.997x2.03 Pm

Washer 1.441 OD x .511 ID x 1/8

Bolt, .50-13 x 5.50 Hex G5

Nut-lk-top-flg .500-13 Gf Zcc

Assembly, Brake Pad

Bushing, Flange

Bolt, Round Head Square Neck .31-18 x 1.00 Grade 5

Nut, Locking Nylon .312-18

Idler- 4-inch Flanged

Blt- Hex .38-16x2.75 G5 Zcc Minimum Quantity of 2 required

Nut-lk-top-flg .38-16 Zc120

Washer-Cupped Serrated .38

Washer-Flat-Steel .43 x 1.00 x .16

Idler, 4.00 x .38

Blt- Hex .38-16x3.00 G5 Zcc Minimum Quantity of 2 required

Nut-Locking-Flange .375-16

Bracket, Idler Brace

Washer, Flat

Flanged Whizlock Nut

Blt-Hex .31-18 X 3.50 Pl Gr 2

Screw-Tapping .38-16 x 1.00 Hex Washer Head Thread Rolling

Washer, 5/16

Capscrew - 5/16-18 UNC x 1-3/4 H.H., Plated

Snow Blower Nut

Pulley- Pro-ground Drive

Washer, Locking .44 x .109

Blt-hex .44-20x2.50 G5 Yz Ep80

Key-sq .25 X 1.25 X .25 Sae

Screw, 8-16 x .87 Pan Head 3-Lobe

Engine, CE WAW, Electric Start (370)

Guard - Rear - Swivel

Rod, Trailing Shield

Nut-push .312 Dia. Pal

Cover, Rear Chassis

Screw, Tap #10-24x.375 Zcc P80

Wmt-arm- Caster

Blt-hex .31-18x.75 G5 Zcc

★★★★★

★★★★★

(1)

Minimum Quantity of 2 required

Nut, Locking Top Flange .31-18

Bushing-1-inchx.75-inchx1-inch

Clip-hoc Fixed

★★★★★

★★★★★

(1)

Fork, WAW Caster

Pin, Lynch .25x1.562 Zcc

Strap, Frame Reinforcing

Blt-hex .38-16x.75 G5 Zcc

Nut-lk-top-flg .38-16 Zc120

Front Guard, 34" CE WAW

Weldment, CE WAW Chassis, 34"

Handlebar- Lower

Blt- Serhfwh .375-16x.75 Zcc Minimum Quantity of 2 required

Nut-lk-top-flg .38-16 Zc120

Wmt-handlebar- Upper Lh

Handlebar, Upper Right Hand

Bracket, Handlebar Brace

Bolt, Round Head Square Neck .31-18 x 2.25

Nut-nyl-flg .31-18 Gf Zcc

Spacer- Handlebar

Console

Mount, Brake Cable Pillow

Mount- Waw Pto Cable (wldmnt)

Blt- Rhsn .38-16x1.75 G5 Zcc Minimum Quantity of 2 required

Bolt, Round Head Square Neck .38-16 x 2.50 Grade 5

Wshr-fl-stl .390x.88x.18 Ywzc

Idler- 3l Front Side .38x1.875

J-Clamp

Cable-brake Control

Cable-pto Control

Bolt, Round Head Square Neck .31-18 x 1.75 Grade 5

Idler- 3l Front Side .38x1.875

Spacer, Reverse Idler

Plate, Transmission Mount

Sump, Gearbox

Gasket- Transmission

Spacer- V-idler Pulley

Spacer- Idler Arm

Bracket, Transmission Idler Arm

Capscrew - 1/4-20 UNC x 1-1/2 H.H., Plated

Cap Screw 5/16-18 x 2 H.H.

Blt-Hex .31-18 X 3.50 Pl Gr 2

Cap Screw

Blt- Hex .25-20x3.25 G5 Zcc

Bolt, Hex .25-20 x 2.00 Grade 5

Washer 1/4 Std.

Washer 1/4

Flanged Whizlock Nut

Nut, Locking Top Flange .25-20

Pulley- Cable

Pulley- Ilder .25x1.875x.97

Screw, Tap #10-24x.375 Zcc P80

Sprg- Tension .063x.625x2.50

Gear- Bevel (cu Infl- Keyway)

Nut-lk-top-flg .38-16 Zc120

Casting, Wblm Gear Box

Pulley- Waw Reverse Input

Pinion- Gearbox Input

Bushing, Transmission Output Shaft

Pulley, Transmission Input

Transmission Output Shaft

Kit- Waw Transmission Shaft

Key- 1/8 X 1/8 X 1.0

Rg-rtng-ext .500x.042 (e) Minimum Quantity of 2 required

Washer- .500x.750x.020 Thrust Minimum Quantity of 2 required

Arm, Forward Idler

Nut-push .312

Kit- Waw Transmission Assy

Carriage Bolt 5/16-18 x 3/4

Nut, Locking Top Flange .31-18

Brg-ball .50x1.38x.438 Sealed

Bushing- Rake Shaft 1-inch

Lawn Mower Screw

★★★★★

★★★★★

(1)

Minimum Quantity of 2 required

Bshg-flg Split Nyliner 1.0-inc

Kit, Differential

Wshr-fl-ny 1.42x2.03x.35

Shaft-axle Long

Shaft, Axle Short

Spacer- 1.0x1.5x1.57

Bshg-slv .706x.764x.75 Brz

Washer 1.505 OD x 1.005 ID x 1/16

Clip- Snap .625 Dia

Key-rect .25x.188x1.00

★★★★★

★★★★★

(2)

Minimum Quantity of 2 required

Pinion- Transmission Drive

Rg-rtng-ext .500x.042 (e) Minimum Quantity of 2 required

Washer- .500x.750x.020 Thrust Minimum Quantity of 2 required

Retainer, Bearing

Belt Finger

Wheel- 8.0x1.75x.50 - Ball Brg

Assembly, Tire/Wheel 6 x 13

Spcr- Wheel .385x.500x2.00

Spacer-wheel

Blt- Hex .38-16x2.75 G5 Zcc Minimum Quantity of 2 required

Nut-nyl-flg .38-16 Gf Zcc

Clip- Snap .625 Dia

Washer, Flat Steel .656 x 1.31 x .095

Key-rect .25x.188x1.00

★★★★★

★★★★★

(2)

Minimum Quantity of 2 required

Spacer- 1.0x1.5x1.57
