Bosch Jig Saw Replacement Parts For Model 4560 ((TYPE 1)(F012456099))

We Sell Only Genuine Bosch Parts

Popular Parts for 4560

SCREW – Part Number: 2610315299 SCREW
In Stock
$5.95
BRUSH HOLDER – Part Number: 2610320548 BRUSH HOLDER
Special Order
$5.95
STRAIN RELIEF – Part Number: 2610360176 STRAIN RELIEF
Special Order
$5.95
SCREW – Part Number: 1619X00504 SCREW
Special Order
$5.95
BEARING – Part Number: 2610067674 BEARING
Special Order
$18.22

Search Within Model

Questions & Answers for Bosch 4560
Browse all Parts Search by Area
Bosch 4560type1 (F012456099) Diagram and Parts List for (TYPE 1)(F012456099) Bosch Jig Saw
Bosch 4560type1 (F012456099)
Previous Showing All Parts Next
Bosch 4560type1 (F012456099)

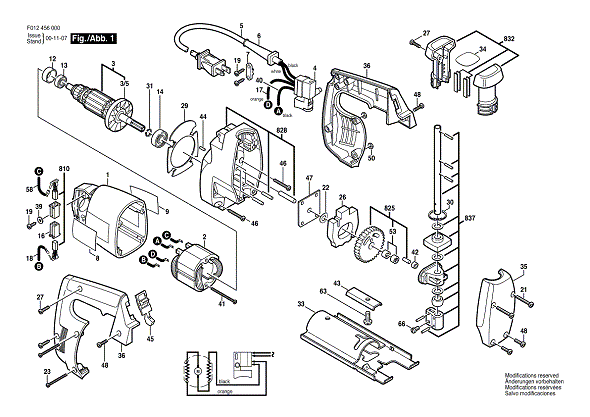

Bosch 4560type1 (F012456099) Diagram and Parts List for (TYPE 1)(F012456099) Bosch Jig Saw
  • 1
    Housing – Part Number: 2610905349
    Housing
    Part Number: 2610905349
      No Longer Available
  • 2
    Pole shoe 120v – Part Number: 2610326565
    Pole shoe 120v
    Part Number: 2610326565
      No Longer Available
  • 3
    Armature 120v – Part Number: 2610326561
    Armature 120v
    Part Number: 2610326561
      No Longer Available
  • 3/5
    Fan – Part Number: 2610326560
    Fan
    Part Number: 2610326560
      No Longer Available
  • 4
    Toggle switch – Part Number: 2610304120
    Toggle switch
    Part Number: 2610304120
      No Longer Available
  • 5
    Power supply cord – Part Number: 2610302809
    Power supply cord
    Part Number: 2610302809
      No Longer Available
  • 6
    STRAIN RELIEF – Part Number: 2610360176
    STRAIN RELIEF
    Part Number: 2610360176
      Special Order
    $5.95
  • 7
    Cable grip – Part Number: 2610064973
    Cable grip
    Part Number: 2610064973
      No Longer Available
  • 8
    Nameplate – Part Number: 2610317477
    Nameplate
    Part Number: 2610317477
      No Longer Available
  • 9
    Label – Part Number: 2610904551
    Label
    Part Number: 2610904551
      No Longer Available
  • 12
    Sleeve – Part Number: 2610320523
    Sleeve
    Part Number: 2610320523
      No Longer Available
  • 13
    BEARING – Part Number: 2610067674
    BEARING
    Part Number: 2610067674
      Special Order
    $18.22
  • 14
    Ball bearing – Part Number: 2610020373
    Ball bearing
    Part Number: 2610020373
      No Longer Available
  • 16
    BRUSH HOLDER – Part Number: 2610320548
    BRUSH HOLDER
    Part Number: 2610320548
      Special Order
    $5.95
  • 17
    Connecting wire 260 mm – Part Number: 2610038628
    Connecting wire 260 mm
    Part Number: 2610038628
      No Longer Available
  • 18
    Connecting cable 45 mm – Part Number: 2610038850
    Connecting cable 45 mm
    Part Number: 2610038850
      No Longer Available
  • 19
    SCREW – Part Number: 2610315299
    SCREW
    Part Number: 2610315299
      In Stock
    $5.95
  • 21
    Screw – Part Number: 2610326580
    Screw
    Part Number: 2610326580
      No Longer Available
  • 22
    Washer – Part Number: 2610326586
    Washer
    Part Number: 2610326586
      No Longer Available
  • 23
    Screw – Part Number: 2610328468
    Screw
    Part Number: 2610328468
      No Longer Available
  • 26
    Counterweight – Part Number: 2610326553
    Counterweight
    Part Number: 2610326553
      No Longer Available
  • 27
    SCREW – Part Number: 1619X00504
    SCREW
    Part Number: 1619X00504
      Special Order
    $5.95
  • 29
    Baffle – Part Number: 2610326518
    Baffle
    Part Number: 2610326518
      No Longer Available
  • 30
    Retaining snap ring – Part Number: 2610021427
    Retaining snap ring
    Part Number: 2610021427
      No Longer Available
  • 31
    Retaining snap ring – Part Number: 2610024924
    Retaining snap ring
    Part Number: 2610024924
      No Longer Available
  • 33
    Guide piece – Part Number: 2610353261
    Guide piece
    Part Number: 2610353261
      No Longer Available
  • 34
    Label – Part Number: 2610326658
    Label
    Part Number: 2610326658
      No Longer Available
  • 35
    Cover – Part Number: 2610326514
    Cover
    Part Number: 2610326514
      No Longer Available
  • 36
    Handle – Part Number: 2610905348
    Handle
    Part Number: 2610905348
      No Longer Available
  • 39
    Washer – Part Number: 2610303953
    Washer
    Part Number: 2610303953
      No Longer Available
  • 40
    Lead Wire 185 MM – Part Number: 2610038673
    Lead Wire 185 MM
    Part Number: 2610038673
      No Longer Available
  • 41
    Screw – Part Number: 2610326577
    Screw
    Part Number: 2610326577
      No Longer Available
  • 42
    Sleeve – Part Number: 2610326529
    Sleeve
    Part Number: 2610326529
      No Longer Available
  • 43
    Thrust plate – Part Number: 2610328497
    Thrust plate
    Part Number: 2610328497
      No Longer Available
  • 44
    End stop – Part Number: 2610317545
    End stop
    Part Number: 2610317545
      No Longer Available
  • 45
    Locking Piece – Part Number: 2610326502
    Locking Piece
    Part Number: 2610326502
      No Longer Available
  • 46
    Screw – Part Number: 2610317286
    Screw
    Part Number: 2610317286
      No Longer Available
  • 47
    Plate – Part Number: 2610326521
    Plate
    Part Number: 2610326521
      No Longer Available
  • 48
    Screw – Part Number: 2610326579
    Screw
    Part Number: 2610326579
      No Longer Available
  • 50
    Nut – Part Number: 2610304995
    Nut
    Part Number: 2610304995
      No Longer Available
  • 53
    Needle-roller bearing – Part Number: 2610322293
    Needle-roller bearing
    Part Number: 2610322293
      No Longer Available
  • 58
    Connecting wire 85 mm – Part Number: 2610038851
    Connecting wire 85 mm
    Part Number: 2610038851
      No Longer Available
  • 63
    Screw – Part Number: 2610304524
    Screw
    Part Number: 2610304524
      No Longer Available
  • 66
    Screw-So – Part Number: 2610347161
    Screw-So
    Part Number: 2610347161
      No Longer Available
  • 810
    Carbon-brush set – Part Number: 2610321617
    Carbon-brush set
    Part Number: 2610321617
      No Longer Available
  • 825
    Gear – Part Number: 2610326556
    Gear
    Part Number: 2610326556
      No Longer Available
  • 828
    Gear housing – Part Number: 2610326511
    Gear housing
    Part Number: 2610326511
      No Longer Available
  • 832
    Knob – Part Number: 2610327513
    Knob
    Part Number: 2610327513
      No Longer Available
  • 837
    Plunger bar – Part Number: 2610347190
    Plunger bar
    Part Number: 2610347190
      No Longer Available
