DeWALT Drill Hammer Replacement Parts For Model DW005K2 (Type 1)

We Sell Only Genuine DeWALT Parts

Popular Parts for DW005K2

Brush Spring – Part Number: 445860-00 Brush Spring
In Stock
Minimum Quantity of 2 required
$5.95
Washer – Part Number: 578387-00 Washer
In Stock
$7.50
Cap – Part Number: 323489-00 Cap
In Stock
$5.95
Detent – Part Number: 326467-00 Detent
In Stock
$5.95
Screw – Part Number: 330065-06 Screw
In Stock
Minimum Quantity of 2 required
$5.95
Grease – Part Number: 487130-04 Grease
In Stock
$15.30
Grease – Part Number: 870889-02 Grease
In Stock
$29.95
Depth Stop – Part Number: 580787-00 Depth Stop
In Stock
$5.95

Search Within Model

Questions & Answers for DeWALT DW005K2
Browse all Parts Search by Area

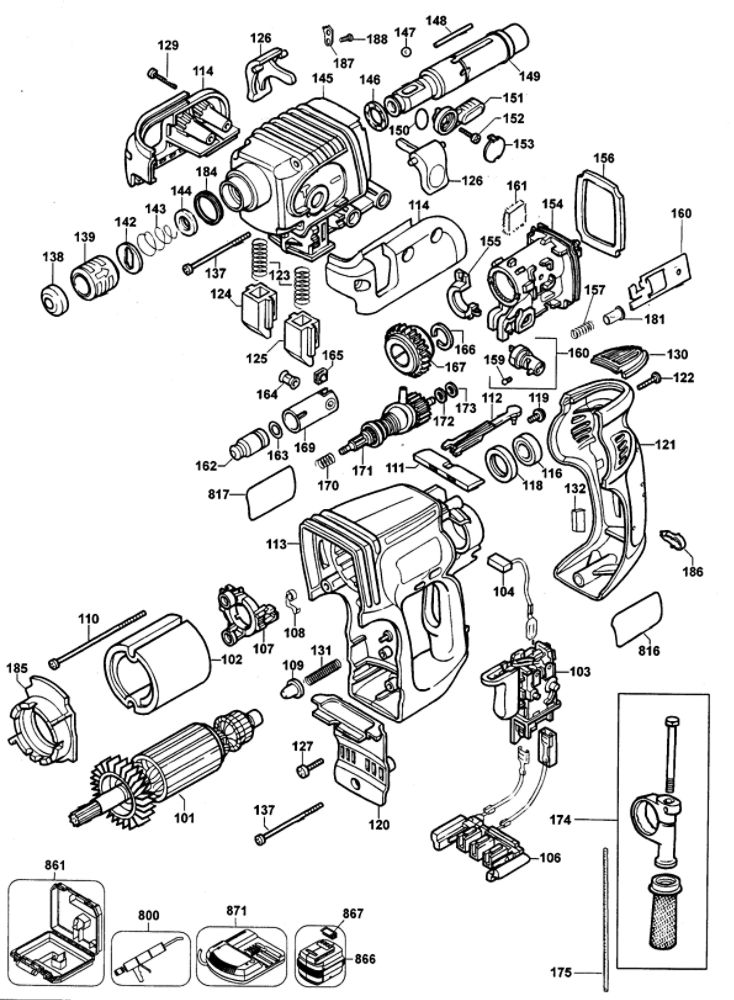

Drill Assembly Diagram and Parts List for Type 1 DeWALT Hammer
Drill Assembly
Previous Showing All Parts Next
Drill Assembly
Drill Assembly Diagram and Parts List for Type 1 DeWALT Hammer
  • 101
    Armature – Part Number: 487132-00
    Armature
    Part Number: 487132-00
      No Longer Available
  • 102
    Magnet – Part Number: 487133-00
    Magnet
    Part Number: 487133-00
      No Longer Available
  • 103
    VSR Switch – Part Number: 487136-00
    VSR Switch
    Part Number: 487136-00
      No Longer Available
  • 104
    Brush and Lead – Part Number: 487114-00
    Brush and Lead
    Part Number: 487114-00
      No Longer Available
  • 106
    Terminal Block – Part Number: 387530-02
    Terminal Block
    Part Number: 387530-02
      No Longer Available
  • 107
    Brush Frame – Part Number: 487154-00
    Brush Frame
    Part Number: 487154-00
      No Longer Available
  • 108
    Brush Spring – Part Number: 445860-00
    Brush Spring
    Part Number: 445860-00
    ★★★★★
    ★★★★★
    (5)
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • 109
    Knob – Part Number: 487086-00
    Knob
    Part Number: 487086-00
      Special Order
    $5.95
  • 110
    Screw – Part Number: 330065-03
    Screw
    Part Number: 330065-03
      Special Order
    $5.95
  • 111
    Slider – Part Number: 329956-01
    Slider
    Part Number: 329956-01
      No Longer Available
  • 112
    Lever – Part Number: 329957-01
    Lever
    Part Number: 329957-01
      No Longer Available
  • 113
    Motor Housing – Part Number: 329861-01
    Motor Housing
    Part Number: 329861-01
      No Longer Available
  • 114
    Cover – Part Number: 487100-00
    Cover
    Part Number: 487100-00
      Special Order
    $10.95
  • 116
    330003-60 – Part Number: 330003-60
    330003-60
    Part Number: 330003-60
      In Stock
    $5.95
  • 118
    Sleeve – Part Number: 935030-00
    Sleeve
    Part Number: 935030-00
      Special Order
    $5.95
  • 119
    Screw – Part Number: 329794-00
    Screw
    Part Number: 329794-00
      No Longer Available
  • 120
    Cover – Part Number: 329955-00
    Cover
    Part Number: 329955-00
      No Longer Available
  • 121
    Handle Cover – Part Number: 329860-01
    Handle Cover
    Part Number: 329860-01
      Special Order
    $20.00
  • 122
    Screw – Part Number: 330065-08
    Screw
    Part Number: 330065-08
      No Longer Available
  • 123
    Spring – Part Number: 329876-00
    Spring
    Part Number: 329876-00
      Special Order
    $5.95
  • 124
    Rh Block – Part Number: 329948-01
    Rh Block
    Part Number: 329948-01
      No Longer Available
  • 125
    Lh Block – Part Number: 329948-00
    Lh Block
    Part Number: 329948-00
      Special Order
    $5.95
  • 126
    Rel.Button – Part Number: 329950-00
    Rel.Button
    Part Number: 329950-00
      Special Order
    $5.95
  • 127
    Screw – Part Number: 330065-06
    Screw
    Part Number: 330065-06
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • 129
    Screw – Part Number: 580095-00
    Screw
    Part Number: 580095-00
      Special Order
    $5.95
  • 130
    Insert – Part Number: 487088-00
    Insert
    Part Number: 487088-00
      No Longer Available
  • 131
    Spring – Part Number: 323395-32
    Spring
    Part Number: 323395-32
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • 132
    Bumper – Part Number: 930026-01
    Bumper
    Part Number: 930026-01
      Special Order
    $5.95
  • 137
    Screw – Part Number: 324044-02
    Screw
    Part Number: 324044-02
      No Longer Available
  • 138
    Cap – Part Number: 323489-00
    Cap
    Part Number: 323489-00
    ★★★★★
    ★★★★★
    (1)
      In Stock
    $5.95
  • 139
    Collar – Part Number: 576756-00
    Collar
    Part Number: 576756-00
      No Longer Available
  • 142
    Washer – Part Number: 578387-00
    Washer
    Part Number: 578387-00
    ★★★★★
    ★★★★★
    (3)
      In Stock
    $7.50
  • 143
    Spring – Part Number: 871690-00
    Spring
    Part Number: 871690-00
      No Longer Available
  • 144
    Washer – Part Number: 324432-00
    Washer
    Part Number: 324432-00
      No Longer Available
  • 145
    Gear case – Part Number: 329941-00
    Gear case
    Part Number: 329941-00
      No Longer Available
  • 146
    Washer – Part Number: 329907-00
    Washer
    Part Number: 329907-00
      No Longer Available
  • 147
    Ball – Part Number: 487033-00
    Ball
    Part Number: 487033-00
      No Longer Available
  • 148
    Pin – Part Number: 325880-05
    Pin
    Part Number: 325880-05
      No Longer Available
  • 149
    Intershaft – Part Number: 578473-01
    Intershaft
    Part Number: 578473-01
      No Longer Available
  • 150
    Seal – Part Number: 916323-00
    Seal
    Part Number: 916323-00
      No Longer Available
  • 151
    Lever – Part Number: 327119-00
    Lever
    Part Number: 327119-00
      No Longer Available
  • 152
    Screw,M3.5 X 12 – Part Number: 323924-08
    Screw,M3.5 X 12
    Part Number: 323924-08
      In Stock
    $4.13
  • 153
    Cover – Part Number: 328809-00
    Cover
    Part Number: 328809-00
      No Longer Available
  • 154
    BRG. Housing – Part Number: 329935-00
    BRG. Housing
    Part Number: 329935-00
      No Longer Available
  • 155
    Shield – Part Number: 328507-00
    Shield
    Part Number: 328507-00
      No Longer Available
  • 156
    Seal – Part Number: 323572-00
    Seal
    Part Number: 323572-00
      No Longer Available
  • 157
    Spring – Part Number: 323395-17
    Spring
    Part Number: 323395-17
      Special Order
    $5.95
  • 159
    Detent – Part Number: 326467-00
    Detent
    Part Number: 326467-00
      In Stock
    $5.95
  • 160
    Cam and Plate – Part Number: 487047-49
    Cam and Plate
    Part Number: 487047-49
      Special Order
    $18.95
  • 161
    Filter – Part Number: 327093-00
    Filter
    Part Number: 327093-00
      Special Order
    $5.95
  • 162
    Ram – Part Number: 578951-00
    Ram
    Part Number: 578951-00
      No Longer Available
  • 163
    O Ring – Part Number: 577168-00
    O Ring
    Part Number: 577168-00
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • 164
    Axle – Part Number: 487143-00
    Axle
    Part Number: 487143-00
      Special Order
    $5.95
  • 165
    Shim – Part Number: 327072-00
    Shim
    Part Number: 327072-00
      Special Order
    $5.95
  • 166
    Circlip – Part Number: 323762-02
    Circlip
    Part Number: 323762-02
      Special Order
    $5.95
  • 167
    Clutch Assembly – Part Number: 487401-01
    Clutch Assembly
    Part Number: 487401-01
      Special Order
    $14.10
  • 169
    Piston – Part Number: 487067-00
    Piston
    Part Number: 487067-00
      No Longer Available
  • 170
    Spring – Part Number: 323395-33
    Spring
    Part Number: 323395-33
      Special Order
    $5.95
  • 171
    Inter. Shaft – Part Number: 586535-00
    Inter. Shaft
    Part Number: 586535-00
      No Longer Available
  • 172
    Bearing – Part Number: 324430-03
    Bearing
    Part Number: 324430-03
      No Longer Available
  • 173
    Washer – Part Number: 324431-03
    Washer
    Part Number: 324431-03
      Special Order
    $5.95
  • 174
    Handle Assembly – Part Number: 939794-00
    Handle Assembly
    Part Number: 939794-00
      No Longer Available
  • 175
    Depth Stop – Part Number: 580787-00
    Depth Stop
    Part Number: 580787-00
      In Stock
    $5.95
  • 181
    Sleeve – Part Number: 329211-00
    Sleeve
    Part Number: 329211-00
      Special Order
    $5.95
  • 184
    Seal – Part Number: 581092-00
    Seal
    Part Number: 581092-00
      Special Order
    $5.95
  • 185
    Fan Baffle – Part Number: 329862-00
    Fan Baffle
    Part Number: 329862-00
      No Longer Available
  • 186
    Cord Clip – Part Number: 575394-01
    Cord Clip
    Part Number: 575394-01
      No Longer Available
  • 187
    Locking Plate – Part Number: 577058-00
    Locking Plate
    Part Number: 577058-00
      Special Order
    $5.95
  • 188
    Screw – Part Number: 930553-00
    Screw
    Part Number: 930553-00
      No Longer Available
  • 800
    Grease – Part Number: 487130-04
    Grease
    Part Number: 487130-04
      In Stock
    $15.30
  • 800A
    Bit grease – Part Number: 328771-03
    Bit grease
    Part Number: 328771-03
      No Longer Available
  • 800B
    Grease – Part Number: 870889-02
    Grease
    Part Number: 870889-02
      In Stock
    $29.95
  • 816
    Ident. Label – Part Number: 578759-00
    Ident. Label
    Part Number: 578759-00
      No Longer Available
  • 817
    Nameplate – Part Number: 579446-05
    Nameplate
    Part Number: 579446-05
      No Longer Available
  • 861
    Kit Box – Part Number: 578668-00
    Kit Box
    Part Number: 578668-00
      No Longer Available
  • 866
    Dewalt Battery 24V – Part Number: DW0242
    Dewalt Battery 24V
    Part Number: DW0242
      No Longer Available
  • 867
    Battery Cap – Part Number: 608262-00
    Battery Cap
    Part Number: 608262-00
      No Longer Available
  • 871
    24V Ni-Cd, Ni-Mh, Lithium-Ion Dewalt Battery Charger – Part Number: DW0246
    24V Ni-Cd, Ni-Mh, Lithium-Ion Dewalt Battery Charger
    Part Number: DW0246
      No Longer Available
