Milwaukee 0756-22(A74c) Hammer Drill Replacement Parts For Model 0756-22 (A74C)

We Sell Only Genuine Milwaukee Parts

Popular Parts for 0756-22

7mm Ball – Part Number: 02-02-0275 7mm Ball
In Stock
$5.95
Support Plate – Part Number: 42-36-5262 Support Plate
In Stock
$5.95
Switch Handle – Part Number: 44-10-0670 Switch Handle
Special Order
$12.30
Screw – Part Number: 05-78-0715 Screw
Special Order
Minimum Quantity of 2 required
$5.95
Handle Assy. Svc/only/5363-21 – Part Number: 14-46-0015 Handle Assy. Svc/only/5363-21
In Stock
$23.76
Switch Board – Part Number: 23-66-0400 Switch Board
Special Order
$111.82
Snap Ring - External – Part Number: 44-90-0350 Snap Ring - External
In Stock
$5.95
Rubber Sleeve – Part Number: 42-52-0420 Rubber Sleeve
In Stock
$5.95

Search Within Model

Questions & Answers for Milwaukee 0756-22
Browse all Parts Search by Area
Fig-0 Diagram and Parts List for A74C Milwaukee Hammer Drill
Fig-0
Fig-1 Diagram and Parts List for A74C Milwaukee Hammer Drill
Fig-1
Previous Showing All Parts Next

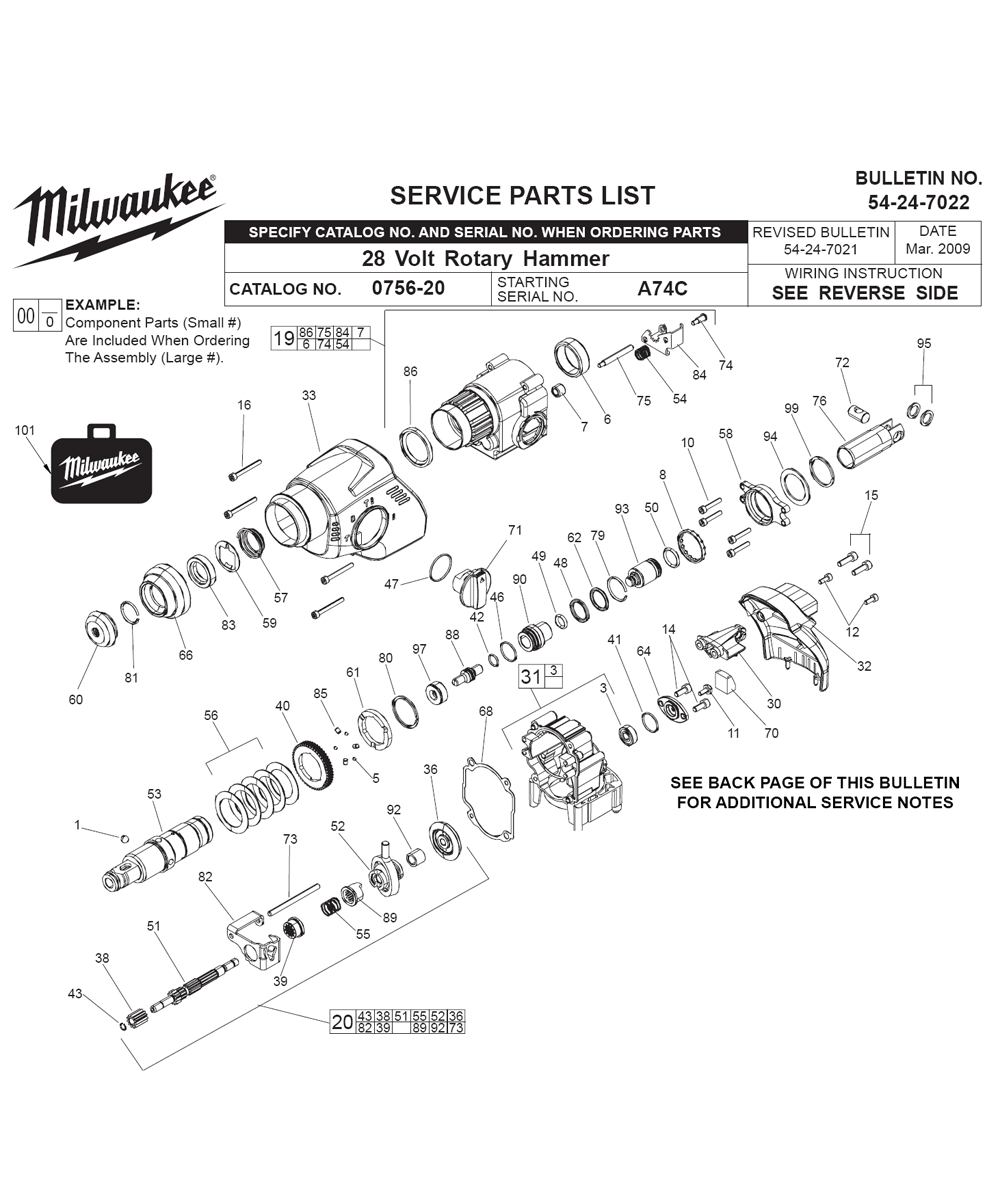

Fig-0
Fig-0 Diagram and Parts List for A74C Milwaukee Hammer Drill
  • 00
    Depth gage – Part Number: 43-46-0172
    Depth gage
    Part Number: 43-46-0172
      No Longer Available
  • 00
    Handle Assy. Svc/only/5363-21 – Part Number: 14-46-0015
    Handle Assy. Svc/only/5363-21
    Part Number: 14-46-0015
      In Stock
    $23.76
  • 00
    0756 Service Kit – Part Number: 14-46-0756
    0756 Service Kit
    Part Number: 14-46-0756
      Special Order
    $153.81
  • 00
    Service Nameplate 0756 – Part Number: 12-20-6756
    Service Nameplate 0756
    Part Number: 12-20-6756
      Special Order
    $10.16
  • 1
    7mm Ball – Part Number: 02-02-0275
    7mm Ball
    Part Number: 02-02-0275
    ★★★★★
    ★★★★★
    (3)
      In Stock
    $5.95
  • 3
    Ball Bearing – Part Number: 02-04-0056
    Ball Bearing
    Part Number: 02-04-0056
      In Stock
    $9.05
  • 5
    Ball – Part Number: 02-04-0683
    Ball
    Part Number: 02-04-0683
      No Longer Available
  • 6
    Needle Bearing – Part Number: 02-50-0050
    Needle Bearing
    Part Number: 02-50-0050
      Special Order
    $8.88
  • 7
    Needle Bearing – Part Number: 02-50-2183
    Needle Bearing
    Part Number: 02-50-2183
      Special Order
    $5.95
  • 8
    Spindle Bearing – Part Number: 02-80-0210
    Spindle Bearing
    Part Number: 02-80-0210
      Special Order
    $5.95
  • 10
    Screw – Part Number: 05-74-0215
    Screw
    Part Number: 05-74-0215
      Special Order
    $5.95
  • 11
    Screw – Part Number: 05-74-0220
    Screw
    Part Number: 05-74-0220
      Special Order
    $5.95
  • 12
    M4 X 12 Thread Form Screw – Part Number: 05-78-0051
    M4 X 12 Thread Form Screw
    Part Number: 05-78-0051
      Special Order
    $5.95
  • 14
    Cap Screw – Part Number: 05-74-0460
    Cap Screw
    Part Number: 05-74-0460
      Special Order
    $5.95
  • 15
    Cap Screw – Part Number: 05-74-0470
    Cap Screw
    Part Number: 05-74-0470
      No Longer Available
  • 16
    M4 X 38 Thread Form Screw – Part Number: 05-78-0031
    M4 X 38 Thread Form Screw
    Part Number: 05-78-0031
      Special Order
    $5.95
  • 19
    Gear Box – Part Number: 14-50-0100
    Gear Box
    Part Number: 14-50-0100
      Special Order
    $96.71
  • 20
    Wobble Shaft Assembly – Part Number: 14-73-0306
    Wobble Shaft Assembly
    Part Number: 14-73-0306
      Special Order
    $99.94
  • 30
    Handle Mount – Part Number: 31-10-0150
    Handle Mount
    Part Number: 31-10-0150
      In Stock
    $5.95
  • 31
    Crankcase – Part Number: 31-15-0757
    Crankcase
    Part Number: 31-15-0757
      Special Order
    $57.35
  • 32
    Gearbox Cover – Part Number: 31-15-0760
    Gearbox Cover
    Part Number: 31-15-0760
      Special Order
    $26.63
  • 33
    Gear Box Housing – Part Number: 31-40-0185
    Gear Box Housing
    Part Number: 31-40-0185
      Special Order
    $18.32
  • 36
    Bevel Gear – Part Number: 32-05-0501
    Bevel Gear
    Part Number: 32-05-0501
      Special Order
    $23.93
  • 38
    Gear – Part Number: 32-60-0140
    Gear
    Part Number: 32-60-0140
      Special Order
    $16.86
  • 39
    Intern. Gear – Part Number: 32-60-0145
    Intern. Gear
    Part Number: 32-60-0145
      In Stock
    $8.68
  • 40
    Spindle Gear – Part Number: 32-75-0060
    Spindle Gear
    Part Number: 32-75-0060
      Special Order
    $10.16
  • 41
    O-Ring – Part Number: 34-40-0083
    O-Ring
    Part Number: 34-40-0083
      Special Order
    $5.95
  • 42
    O-Ring – Part Number: 34-40-0130
    O-Ring
    Part Number: 34-40-0130
      Special Order
    $5.95
  • 43
    Spring Ring – Part Number: 34-40-0430
    Spring Ring
    Part Number: 34-40-0430
      Special Order
    $5.95
  • 46
    O-Ring – Part Number: 34-40-0445
    O-Ring
    Part Number: 34-40-0445
      Special Order
    $5.95
  • 47
    O-Ring – Part Number: 34-40-1025
    O-Ring
    Part Number: 34-40-1025
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • 48
    O-Ring – Part Number: 34-40-1305
    O-Ring
    Part Number: 34-40-1305
      Special Order
    $5.95
  • 49
    O-Ring – Part Number: 34-40-4451
    O-Ring
    Part Number: 34-40-4451
      Special Order
    $5.95
  • 50
    O-Ring SVC ONLY/5363-21 – Part Number: 34-40-4466
    O-Ring SVC ONLY/5363-21
    Part Number: 34-40-4466
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • 51
    Reduction Gear Shaft – Part Number: 36-66-0185
    Reduction Gear Shaft
    Part Number: 36-66-0185
      Special Order
    $40.36
  • 52
    Wobble Plate – Part Number: 36-92-0583
    Wobble Plate
    Part Number: 36-92-0583
      Special Order
    $35.42
  • 53
    Spindle Gear Sleeve – Part Number: 38-50-0250
    Spindle Gear Sleeve
    Part Number: 38-50-0250
      Special Order
    $269.73
  • 54
    Pressure Spring – Part Number: 40-50-0800
    Pressure Spring
    Part Number: 40-50-0800
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • 55
    Spring – Part Number: 40-50-0883
    Spring
    Part Number: 40-50-0883
      Special Order
    $5.95
  • 56
    Bellevile Spring – Part Number: 40-50-0983
    Bellevile Spring
    Part Number: 40-50-0983
      In Stock
    $5.95
  • 57
    Spring – Part Number: 40-50-8045
    Spring
    Part Number: 40-50-8045
      No Longer Available
  • 58
    Mount Bracket – Part Number: 42-36-0185
    Mount Bracket
    Part Number: 42-36-0185
      Special Order
    $31.15
  • 59
    Support Plate – Part Number: 42-36-5262
    Support Plate
    Part Number: 42-36-5262
    ★★★★★
    ★★★★★
    (1)
      In Stock
    $5.95
  • 60
    Rubber Sleeve – Part Number: 42-52-0420
    Rubber Sleeve
    Part Number: 42-52-0420
    ★★★★★
    ★★★★★
    (1)
      In Stock
    $5.95
  • 61
    Clutch Disc – Part Number: 42-70-0040
    Clutch Disc
    Part Number: 42-70-0040
      Special Order
    $6.16
  • 62
    Thrust Collar – Part Number: 42-76-0830
    Thrust Collar
    Part Number: 42-76-0830
      Special Order
    $18.82
  • 64
    Bearing Cover – Part Number: 42-92-1520
    Bearing Cover
    Part Number: 42-92-1520
      Special Order
    $11.58
  • 66
    Sleeve – Part Number: 42-96-0210
    Sleeve
    Part Number: 42-96-0210
      In Stock
    $5.95
  • 68
    Seal – Part Number: 43-44-0875
    Seal
    Part Number: 43-44-0875
      Special Order
    $5.95
  • 70
    Felt – Part Number: 43-84-0443
    Felt
    Part Number: 43-84-0443
      Special Order
    $5.95
  • 71
    Switch Handle – Part Number: 44-10-0670
    Switch Handle
    Part Number: 44-10-0670
    ★★★★★
    ★★★★★
    (1)
      Special Order
    $12.30
  • 72
    Wrist Pin – Part Number: 44-60-0483
    Wrist Pin
    Part Number: 44-60-0483
      Special Order
    $5.95
  • 73
    Cylinder Pin – Part Number: 44-60-0756
    Cylinder Pin
    Part Number: 44-60-0756
      Special Order
    $5.95
  • 74
    Spring Guide Pin – Part Number: 44-60-1105
    Spring Guide Pin
    Part Number: 44-60-1105
      Special Order
    $5.95
  • 75
    Guide Pin – Part Number: 44-60-1110
    Guide Pin
    Part Number: 44-60-1110
      Special Order
    $9.60
  • 76
    Cylinder – Part Number: 44-62-0186
    Cylinder
    Part Number: 44-62-0186
      Special Order
    $24.48
  • 79
    Retaining Ring - Internal – Part Number: 44-90-0183
    Retaining Ring - Internal
    Part Number: 44-90-0183
      Special Order
    $5.95
  • 80
    Snap Ring - External – Part Number: 44-90-0350
    Snap Ring - External
    Part Number: 44-90-0350
      In Stock
    $5.95
  • 81
    Snap ring - external – Part Number: 44-90-0375
    Snap ring - external
    Part Number: 44-90-0375
      No Longer Available
  • 82
    Shift Ring – Part Number: 44-90-0500
    Shift Ring
    Part Number: 44-90-0500
      Special Order
    $9.78
  • 83
    Holding Ring – Part Number: 44-90-0830
    Holding Ring
    Part Number: 44-90-0830
      In Stock
    $9.25
  • 84
    Locking Plate – Part Number: 44-90-0832
    Locking Plate
    Part Number: 44-90-0832
      Special Order
    $6.70
  • 85
    Clutch Roller – Part Number: 44-96-0183
    Clutch Roller
    Part Number: 44-96-0183
      Special Order
    $5.95
  • 86
    Seal Ring – Part Number: 45-06-0090
    Seal Ring
    Part Number: 45-06-0090
      Special Order
    $10.32
  • 88
    Striker – Part Number: 45-08-0480
    Striker
    Part Number: 45-08-0480
      Special Order
    $12.12
  • 89
    Coupling Sleeve – Part Number: 45-22-0610
    Coupling Sleeve
    Part Number: 45-22-0610
      Special Order
    $10.32
  • 90
    Sleeve – Part Number: 45-22-0705
    Sleeve
    Part Number: 45-22-0705
      Special Order
    $23.76
  • 92
    Spacer – Part Number: 45-36-1700
    Spacer
    Part Number: 45-36-1700
      Special Order
    $5.95
  • 93
    Ram – Part Number: 45-56-0076
    Ram
    Part Number: 45-56-0076
      Special Order
    $21.92
  • 94
    Washer – Part Number: 45-88-0176
    Washer
    Part Number: 45-88-0176
      Special Order
    $5.95
  • 95
    Washer – Part Number: 45-88-0283
    Washer
    Part Number: 45-88-0283
      Special Order
    $5.95
  • 97
    Stop Washer – Part Number: 45-88-1770
    Stop Washer
    Part Number: 45-88-1770
      Special Order
    $14.50
  • 99
    Spring Ring – Part Number: 45-88-1780
    Spring Ring
    Part Number: 45-88-1780
      Special Order
    $5.95
  • 101
    Molded Carrying Case – Part Number: 48-55-0756
    Molded Carrying Case
    Part Number: 48-55-0756
      No Longer Available

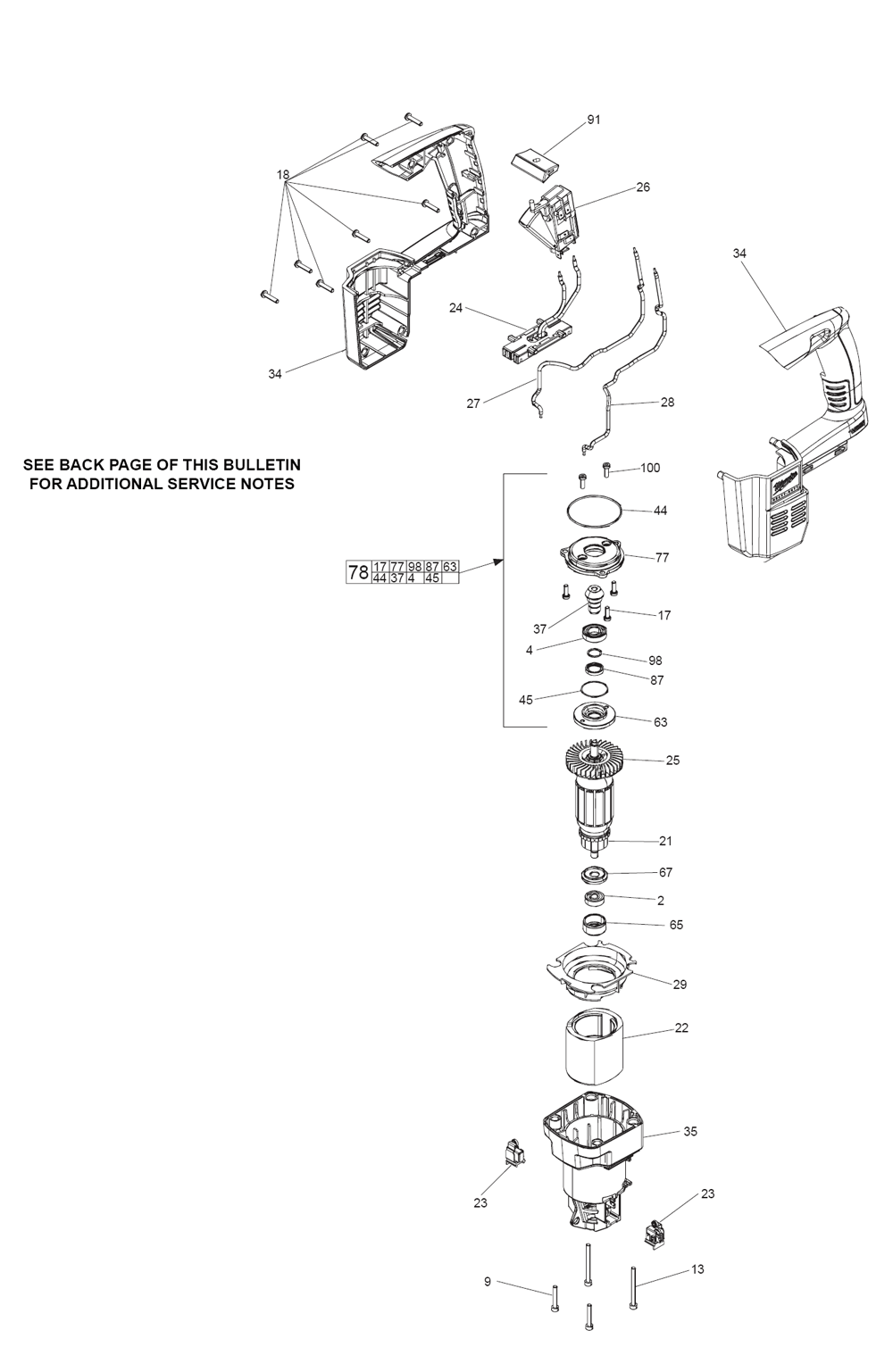

Fig-1
Fig-1 Diagram and Parts List for A74C Milwaukee Hammer Drill
  • 2
    Ball Bearing – Part Number: 02-04-0056
    Ball Bearing
    Part Number: 02-04-0056
      In Stock
    $9.05
  • 4
    Ball Bearing – Part Number: 02-04-0090
    Ball Bearing
    Part Number: 02-04-0090
      Special Order
    $21.20
  • 9
    M4 X 24 Thread Form Screw – Part Number: 05-78-0041
    M4 X 24 Thread Form Screw
    Part Number: 05-78-0041
      Special Order
    $5.95
  • 13
    M4 X 45 Thread Form Screw – Part Number: 05-78-0021
    M4 X 45 Thread Form Screw
    Part Number: 05-78-0021
      Special Order
    $5.95
  • 17
    M4 X 12 Thread Form Screw – Part Number: 05-78-0051
    M4 X 12 Thread Form Screw
    Part Number: 05-78-0051
      Special Order
    $5.95
  • 18
    Screw – Part Number: 05-78-0715
    Screw
    Part Number: 05-78-0715
      Special Order
    Minimum Quantity of 2 required
    $5.95
  • 21
    Armature – Part Number: 16-07-0210
    Armature
    Part Number: 16-07-0210
      Special Order
    $177.60
  • 22
    Field – Part Number: 18-01-0756
    Field
    Part Number: 18-01-0756
      Special Order
    $93.05
  • 23
    Carbon Brush Set – Part Number: 22-18-0690
    Carbon Brush Set
    Part Number: 22-18-0690
      Special Order
    $39.02
  • 24
    Connector Block Assy – Part Number: 22-56-0756
    Connector Block Assy
    Part Number: 22-56-0756
      Special Order
    $19.56
  • 25
    Fan – Part Number: 22-84-0940
    Fan
    Part Number: 22-84-0940
      Special Order
    $5.95
  • 26
    Switch Board – Part Number: 23-66-0400
    Switch Board
    Part Number: 23-66-0400
      Special Order
    $111.82
  • 27
    Wire – Part Number: 23-94-0410
    Wire
    Part Number: 23-94-0410
      Special Order
    $5.95
  • 28
    Wire – Part Number: 23-94-0415
    Wire
    Part Number: 23-94-0415
      Special Order
    $5.95
  • 29
    Air Deflector Ring – Part Number: 31-05-0130
    Air Deflector Ring
    Part Number: 31-05-0130
      Special Order
    $5.95
  • 34
    Handle Assembly – Part Number: 31-44-0195
    Handle Assembly
    Part Number: 31-44-0195
      Special Order
    $51.64
  • 35
    Motor Housing – Part Number: 31-50-0756
    Motor Housing
    Part Number: 31-50-0756
      Special Order
    $172.85
  • 37
    Pinion – Part Number: 32-60-0106
    Pinion
    Part Number: 32-60-0106
      Special Order
    $15.20
  • 44
    O-Ring – Part Number: 34-40-0435
    O-Ring
    Part Number: 34-40-0435
      Special Order
    $5.95
  • 45
    O-Ring – Part Number: 34-40-0440
    O-Ring
    Part Number: 34-40-0440
      Special Order
    $5.95
  • 63
    Bearing Cover – Part Number: 42-92-0165
    Bearing Cover
    Part Number: 42-92-0165
      Special Order
    $13.60
  • 65
    Rubber Sleeve – Part Number: 42-96-0205
    Rubber Sleeve
    Part Number: 42-96-0205
      In Stock
    $5.95
  • 67
    Insulating Disc – Part Number: 43-06-0170
    Insulating Disc
    Part Number: 43-06-0170
      In Stock
    $8.50
  • 77
    Bearing End Plate – Part Number: 44-66-0540
    Bearing End Plate
    Part Number: 44-66-0540
      Special Order
    $33.11
  • 78
    Bearing End Plate Assy – Part Number: 44-66-1141
    Bearing End Plate Assy
    Part Number: 44-66-1141
      Special Order
    $68.23
  • 87
    Seal Ring – Part Number: 45-06-0095
    Seal Ring
    Part Number: 45-06-0095
      Special Order
    $13.96
  • 91
    For/Rev Lever – Part Number: 45-24-0225
    For/Rev Lever
    Part Number: 45-24-0225
      Special Order
    $5.95
  • 98
    Spring Ring – Part Number: 45-88-1775
    Spring Ring
    Part Number: 45-88-1775
      Special Order
    $5.95
  • 100
    Socket Head Screw-Plast. – Part Number: 05-74-0715
    Socket Head Screw-Plast.
    Part Number: 05-74-0715
      Special Order
    $5.95

Questions & Answers

?

Our customer Service team is at the ready daily to answer your part and product questions.

Be the first to ask our experts a question about this part!

Ask our Team

We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.

✖

Our customer service team are at the ready daily to answer your part and product questions. We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.
