DeWALT Hammer Drill Replacement Parts For Model DW511-46 (Type 1)

We Sell Only Genuine DeWALT Parts

Popular Parts for DW511-46

Cord Protector – Part Number: N918736 Cord Protector
In Stock
$5.95
Torx Screw – Part Number: 330019-13 Torx Screw
In Stock
Minimum Quantity of 2 required
$5.95
Chuck Key – Part Number: 330034-03 Chuck Key
In Stock
$14.40
Bearing, Ball – Part Number: 605040-06 Bearing, Ball
In Stock
$5.95
Holder – Part Number: 065288-02 Holder
In Stock
$5.95
Screw,plastite – Part Number: 330019-02 Screw, plastite
On Order
Minimum Quantity of 2 required
$5.95
O Ring – Part Number: 049787-00 O Ring
In Stock
Minimum Quantity of 2 required
$5.98
SCREW – Part Number: 330019-16 SCREW
On Order
Minimum Quantity of 2 required
$5.95

Search Within Model

Questions & Answers for DeWALT DW511-46
Browse all Parts Search by Area

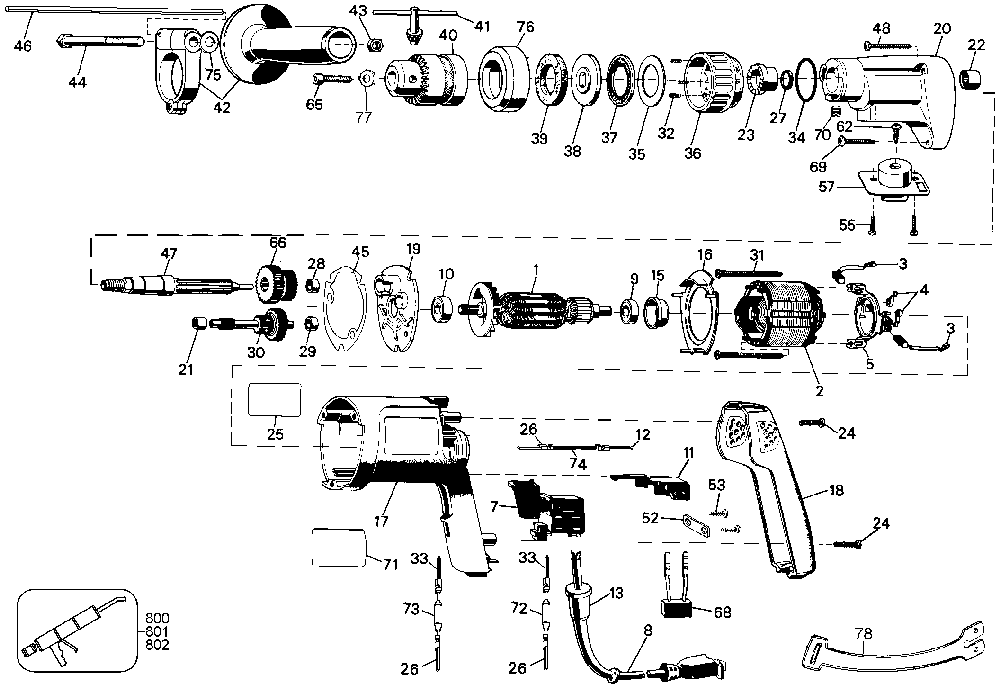

Exploded Diagram A Diagram and Parts List for Type 1 DeWALT Hammer Drill
Exploded Diagram A
Previous Showing All Parts Next
Exploded Diagram A
Exploded Diagram A Diagram and Parts List for Type 1 DeWALT Hammer Drill
  • 1
    Armature – Part Number: 464247-02
    Armature
    Part Number: 464247-02
      No Longer Available
  • 2
    Field – Part Number: 147422-02
    Field
    Part Number: 147422-02
      No Longer Available
  • 3
    Brush – Part Number: 143803-05
    Brush
    Part Number: 143803-05
      No Longer Available
  • 4
    Brush Spring – Part Number: 149425-00
    Brush Spring
    Part Number: 149425-00
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • 5
    Ring, Br.hldr. – Part Number: 148325-01
    Ring, Br.hldr.
    Part Number: 148325-01
      In Stock
    Minimum Quantity of 2 required
    $6.50
  • 7
    Switch,Vs,Ac – Part Number: 286244-00
    Switch,Vs,Ac
    Part Number: 286244-00
      No Longer Available
  • 8
    Cord/10 inch /18-2 – Part Number: 444469-83
    Cord/10 inch /18-2
    Part Number: 444469-83
      No Longer Available
  • 9
    Bearing, Ball – Part Number: 605040-06
    Bearing, Ball
    Part Number: 605040-06
    ★★★★★
    ★★★★★
    (2)
      In Stock
    $5.95
  • 10
    Bearing, Ball – Part Number: 605040-06
    Bearing, Ball
    Part Number: 605040-06
    ★★★★★
    ★★★★★
    (2)
      In Stock
    $5.95
  • 11
    Reverse Switch – Part Number: 150196-00
    Reverse Switch
    Part Number: 150196-00
      No Longer Available
  • 12
    Terminal – Part Number: 464230-00
    Terminal
    Part Number: 464230-00
      No Longer Available
  • 13
    Cord Protector – Part Number: N918736
    Cord Protector
    Part Number: N918736
    ★★★★★
    ★★★★★
    (8)
      In Stock
    $5.95
  • 15
    Sleeve – Part Number: 445217-02
    Sleeve
    Part Number: 445217-02
      In Stock
    $5.95
  • 16
    Baffle,fan – Part Number: 447866-00
    Baffle,fan
    Part Number: 447866-00
      No Longer Available
  • 17
    Case,Field – Part Number: 464231-04
    Case,Field
    Part Number: 464231-04
      No Longer Available
  • 18
    Cover,Handle – Part Number: 450594-03
    Cover,Handle
    Part Number: 450594-03
      In Stock
    $22.56
  • 19
    Cover – Part Number: 132335-07
    Cover
    Part Number: 132335-07
      No Longer Available
  • 20
    Gear case – Part Number: 450261-02
    Gear case
    Part Number: 450261-02
      No Longer Available
  • 21
    Needle Bearing – Part Number: 330004-00
    Needle Bearing
    Part Number: 330004-00
      On Order
    $5.95
  • 22
    Bearing,Needle – Part Number: 464261-00
    Bearing,Needle
    Part Number: 464261-00
      No Longer Available
  • 23
    Clutch – Part Number: 450744-00
    Clutch
    Part Number: 450744-00
      No Longer Available
  • 24
    Torx Screw – Part Number: 330019-13
    Torx Screw
    Part Number: 330019-13
    ★★★★★
    ★★★★★
    (4)
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • 25
    Name Plate – Part Number: 156061-01
    Name Plate
    Part Number: 156061-01
      No Longer Available
  • 26
    Terminal – Part Number: 449192-00
    Terminal
    Part Number: 449192-00
      Special Order
    $5.95
  • 27
    Seal – Part Number: 66683-00
    Seal
    Part Number: 66683-00
      No Longer Available
  • 28
    Sleeve Bearing – Part Number: 131557-00
    Sleeve Bearing
    Part Number: 131557-00
      In Stock
    $5.95
  • 29
    NEEDLE BEARING – Part Number: 093128-00
    NEEDLE BEARING
    Part Number: 093128-00
      In Stock
    $5.95
  • 30
    Gear and Pinion – Part Number: 450241-02
    Gear and Pinion
    Part Number: 450241-02
      No Longer Available
  • 31
    SCREW – Part Number: 448269-00
    SCREW
    Part Number: 448269-00
      On Order
    Minimum Quantity of 2 required
    $5.95
  • 32
    Spring – Part Number: 51658-00
    Spring
    Part Number: 51658-00
      No Longer Available
  • 33
    Terminal – Part Number: 448387-00
    Terminal
    Part Number: 448387-00
      Special Order
    $5.95
  • 34
    O Ring – Part Number: 049787-00
    O Ring
    Part Number: 049787-00
      In Stock
    Minimum Quantity of 2 required
    $5.98
  • 35
    Washer Thrust – Part Number: 450253-00
    Washer Thrust
    Part Number: 450253-00
      No Longer Available
  • 36
    Collar – Part Number: 450255-00
    Collar
    Part Number: 450255-00
      No Longer Available
  • 37
    Bearing – Part Number: 450252-00
    Bearing
    Part Number: 450252-00
      No Longer Available
  • 38
    Clutch – Part Number: 464221-00
    Clutch
    Part Number: 464221-00
      No Longer Available
  • 39
    Washer – Part Number: 450232-00
    Washer
    Part Number: 450232-00
      No Longer Available
  • 40
    Chuck and Key – Part Number: 679783-00
    Chuck and Key
    Part Number: 679783-00
      No Longer Available
  • 41
    Chuck Key – Part Number: 330034-03
    Chuck Key
    Part Number: 330034-03
    ★★★★★
    ★★★★★
    (4)
      In Stock
    $14.40
  • 42
    Handle assembly – Part Number: 448671-02
    Handle assembly
    Part Number: 448671-02
      No Longer Available
  • 43
    Nut – Part Number: 2281-00
    Nut
    Part Number: 2281-00
      Special Order
    $5.95
  • 44
    Screw – Part Number: 448674-00
    Screw
    Part Number: 448674-00
      No Longer Available
  • 45
    Gasket – Part Number: 386422-00
    Gasket
    Part Number: 386422-00
      Special Order
    Minimum Quantity of 2 required
    $4.13
  • 46
    Rod,Depth – Part Number: 450230-00
    Rod,Depth
    Part Number: 450230-00
      No Longer Available
  • 47
    Spindle – Part Number: 450248-00
    Spindle
    Part Number: 450248-00
      No Longer Available
  • 48
    SCREW – Part Number: 330019-16
    SCREW
    Part Number: 330019-16
      On Order
    Minimum Quantity of 2 required
    $5.95
  • 52
    Clamp,Cord,Flat – Part Number: 142519-00
    Clamp,Cord,Flat
    Part Number: 142519-00
      Special Order
    $5.95
  • 53
    Screw,plastite – Part Number: 330019-02
    Screw,plastite
    Part Number: 330019-02
    ★★★★★
    ★★★★★
    (2)
      On Order
    Minimum Quantity of 2 required
    $5.95
  • 55
    Screw – Part Number: 330019-10
    Screw
    Part Number: 330019-10
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • 57
    Shifter – Part Number: 450231-09
    Shifter
    Part Number: 450231-09
      No Longer Available
  • 62
    Screw – Part Number: 141617-00
    Screw
    Part Number: 141617-00
      No Longer Available
  • 65
    L.h. Screw – Part Number: 448847-01
    L.h. Screw
    Part Number: 448847-01
      No Longer Available
  • 66
    Gear – Part Number: 149082-00
    Gear
    Part Number: 149082-00
      No Longer Available
  • 68
    Capacitor – Part Number: 382836-00
    Capacitor
    Part Number: 382836-00
      No Longer Available
  • 69
    Screw – Part Number: 330019-15
    Screw
    Part Number: 330019-15
    ★★★★★
    ★★★★★
    (1)
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • 70
    Screw – Part Number: 451095-00
    Screw
    Part Number: 451095-00
      No Longer Available
  • 71
    Id Label – Part Number: 395047-00
    Id Label
    Part Number: 395047-00
      Special Order
    $5.95
  • 72
    Choke – Part Number: 145077-01
    Choke
    Part Number: 145077-01
      No Longer Available
  • 73
    Choke – Part Number: 145077-03
    Choke
    Part Number: 145077-03
      No Longer Available
  • 74
    Lead – Part Number: 148834-00
    Lead
    Part Number: 148834-00
      No Longer Available
  • 75
    Washer – Part Number: 144580-00
    Washer
    Part Number: 144580-00
      No Longer Available
  • 76
    Shield, Dust – Part Number: 450168-01
    Shield, Dust
    Part Number: 450168-01
      No Longer Available
  • 77
    Washer – Part Number: 45874-00
    Washer
    Part Number: 45874-00
      No Longer Available
  • 78
    Holder – Part Number: 065288-02
    Holder
    Part Number: 065288-02
      In Stock
    $5.95
  • 800
    Grease, 6 Oz (Oem) – Part Number: 761995-01
    Grease, 6 Oz (Oem)
    Part Number: 761995-01
      No Longer Available
  • 801
    Grease,32 Oz. – Part Number: 283484-01
    Grease,32 Oz.
    Part Number: 283484-01
      Special Order
    $163.37
  • 802
    Grease,molykote – Part Number: N017298
    Grease,molykote
    Part Number: N017298
      In Stock
    $59.57
