Craftsman Hammer Drill Replacement Parts For Model 315271270

We Sell Only Genuine Craftsman Parts

Search Within Model

Browse all Parts Search by Area
Charger Pack Diagram and Parts List for 315271270 Craftsman Hammer Drill
Charger Pack
Housing Assembly Diagram and Parts List for 315271270 Craftsman Hammer Drill
Housing Assembly
Page C Diagram and Parts List for 315271270 Craftsman Hammer Drill
Page C
Previous Showing All Parts Next
Charger Pack

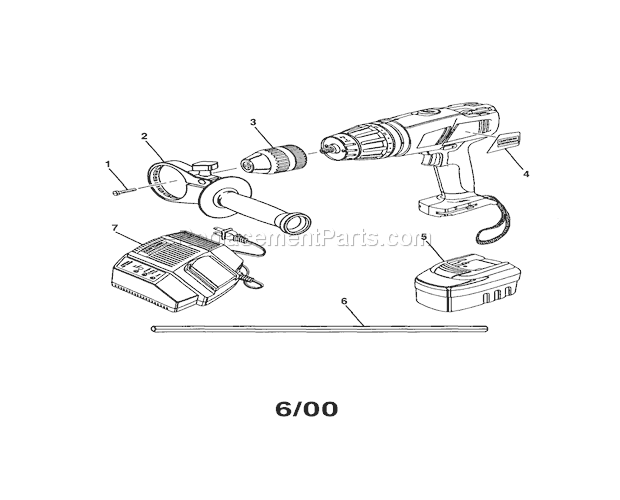

Charger Pack Diagram and Parts List for 315271270 Craftsman Hammer Drill
  • A-1
    Chuck Screw L.h.t.d38vsr – Part Number: 616478003
    Chuck Screw L.h.t.d38vsr
    Part Number: 616478003
      No Longer Available
  • A-2
    Aux Handle – Part Number: 982391001
    Aux Handle
    Part Number: 982391001
      No Longer Available
  • A-3
    1/2"Chuck – Part Number: 975111-001
    1/2"Chuck
    Part Number: 975111-001
      No Longer Available
  • A-4
    Logo Plate – Part Number: 981501-001
    Logo Plate
    Part Number: 981501-001
      No Longer Available
  • A-5
    Battery – Part Number: 9-11034
    Battery
    Part Number: 9-11034
      No Longer Available
  • A-6
    Depth Gage Rod – Part Number: 980199-000
    Depth Gage Rod
    Part Number: 980199-000
      No Longer Available
  • A-7
    Charger – Part Number: 9-11040
    Charger
    Part Number: 9-11040
      No Longer Available
  • A-8
    Carry Case – Part Number: 981500-001
    Carry Case
    Part Number: 981500-001
      No Longer Available
Housing Assembly

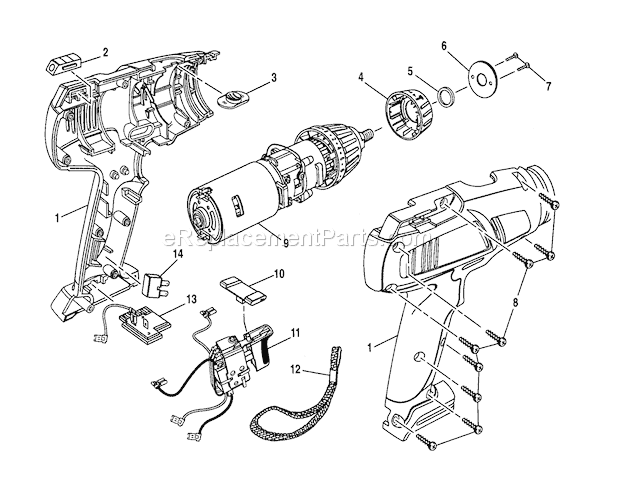

Housing Assembly Diagram and Parts List for 315271270 Craftsman Hammer Drill
  • B-3
    Button – Part Number: 981746-001
    Button
    Part Number: 981746-001
      No Longer Available
  • B-4
    Impact Cap – Part Number: 981966-001
    Impact Cap
    Part Number: 981966-001
      No Longer Available
  • B-8
    Screw – Part Number: 981901-001
    Screw
    Part Number: 981901-001
      No Longer Available
  • B-10
    Actuator – Part Number: 981941-001
    Actuator
    Part Number: 981941-001
      No Longer Available
  • B-11
    Switch – Part Number: 981971-001
    Switch
    Part Number: 981971-001
      No Longer Available
  • B-12
    Strap – Part Number: 981495-001
    Strap
    Part Number: 981495-001
      No Longer Available
  • B-14
    Breaker – Part Number: 981940-001
    Breaker
    Part Number: 981940-001
      No Longer Available
Page C

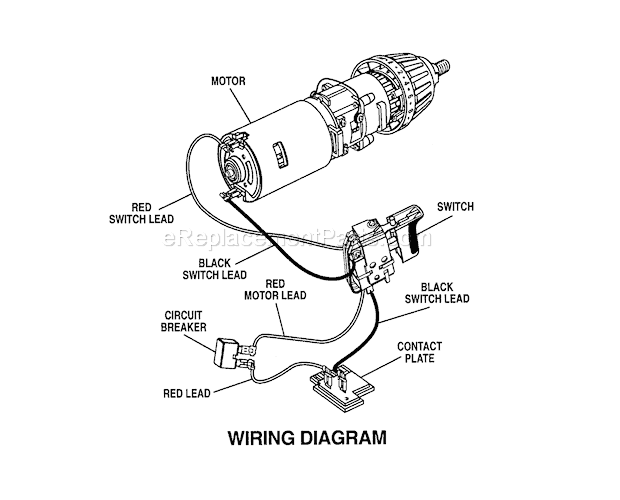

Page C Diagram and Parts List for 315271270 Craftsman Hammer Drill
✖
