Bosch Cordless Rotary Hammer Hammer Drill Replacement Parts For Model 3611J23010 (GBH 18V-24 C)

We Sell Only Genuine Bosch Parts

Popular Parts for 3611J23010

T-HEAD BOLT – Part Number: 1613490002 T-HEAD BOLT
In Stock
Minimum Quantity of 2 required
$6.16
BALL – Part Number: 1903230013 BALL
In Stock
$6.16
TORX OVAL-HEAD SCREW – Part Number: 2603490023 TORX OVAL-HEAD SCREW
In Stock
Minimum Quantity of 2 required
$6.16
PURPLE GREASE – Part Number: 1615430001 PURPLE GREASE
In Stock
$29.71
OIL RESERVOIR – Part Number: 1615430019 OIL RESERVOIR
On Order
$94.08
O-RING – Part Number: 1610210046 O-RING
In Stock
Minimum Quantity of 2 required
$6.16
THREADED-FURROW SCREW – Part Number: 1613435022 THREADED-FURROW SCREW
In Stock
$6.16
O-RING – Part Number: 1610210068 O-RING
In Stock
Minimum Quantity of 2 required
$6.16

Search Within Model

Questions & Answers for Bosch 3611J23010
Browse all Parts Search by Area
Figure 1 Diagram and Parts List for GBH 18V-24 C Bosch Hammer Drill
Figure 1
Figure 10 Diagram and Parts List for GBH 18V-24 C Bosch Hammer Drill
Figure 10
Figure 2 Diagram and Parts List for GBH 18V-24 C Bosch Hammer Drill
Figure 2
Figure 3 Diagram and Parts List for GBH 18V-24 C Bosch Hammer Drill
Figure 3
Figure 4 Diagram and Parts List for GBH 18V-24 C Bosch Hammer Drill
Figure 4
Figure 5 Diagram and Parts List for GBH 18V-24 C Bosch Hammer Drill
Figure 5
Figure 6 Diagram and Parts List for GBH 18V-24 C Bosch Hammer Drill
Figure 6
Figure 7 Diagram and Parts List for GBH 18V-24 C Bosch Hammer Drill
Figure 7
Figure 8 Diagram and Parts List for GBH 18V-24 C Bosch Hammer Drill
Figure 8
Figure 9 Diagram and Parts List for GBH 18V-24 C Bosch Hammer Drill
Figure 9
Previous Showing All Parts Next
Figure 1

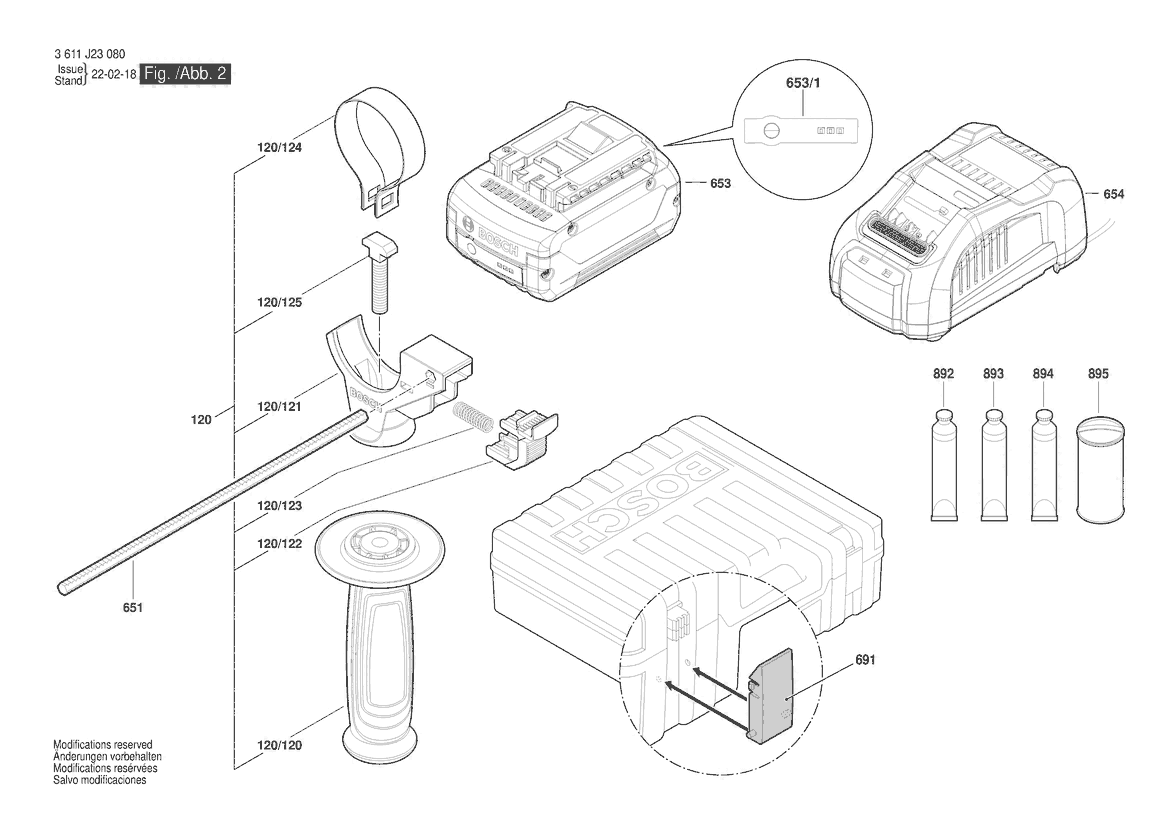

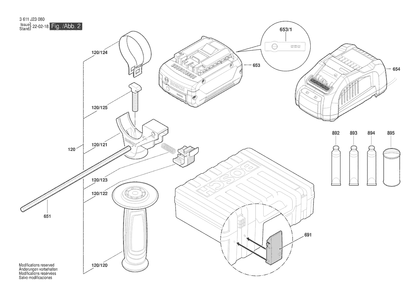

Figure 1 Diagram and Parts List for GBH 18V-24 C Bosch Hammer Drill
Figure 10

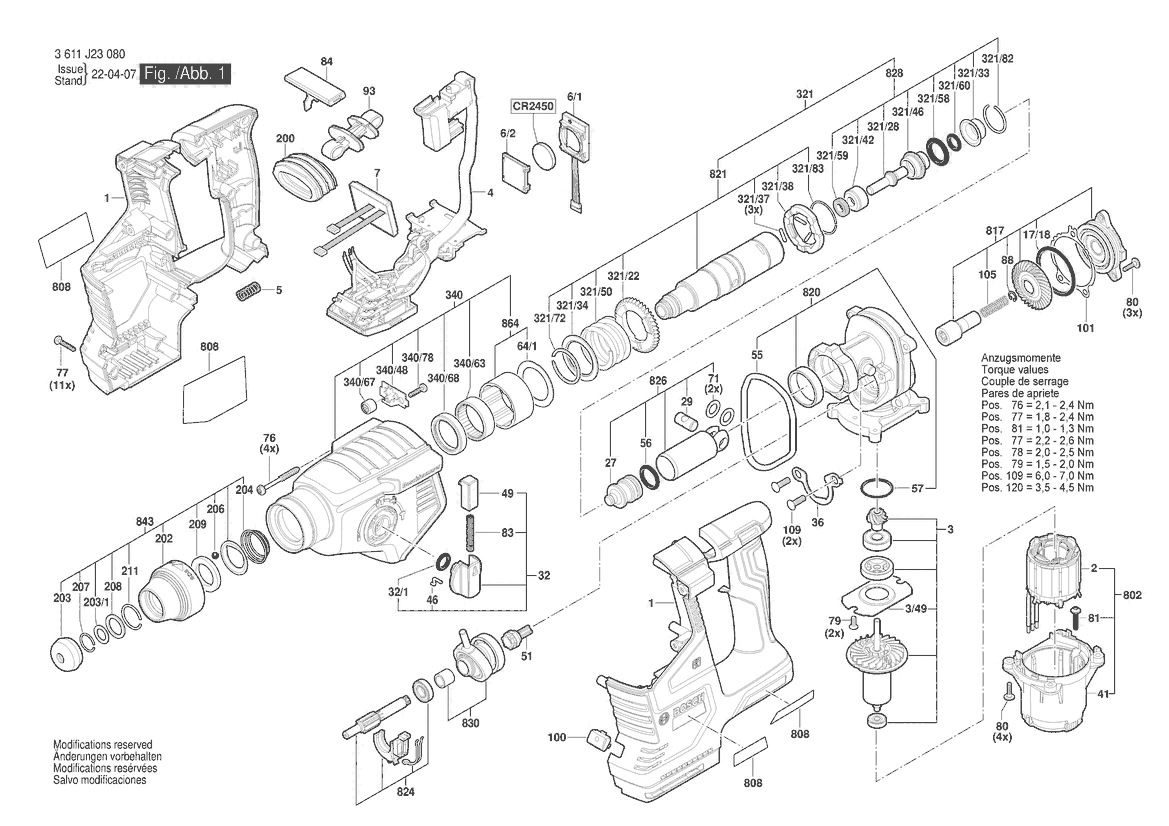

Figure 10 Diagram and Parts List for GBH 18V-24 C Bosch Hammer Drill
  • 32/1
    O-RING – Part Number: 1610210046
    O-RING
    Part Number: 1610210046
      In Stock
    Minimum Quantity of 2 required
    $6.16
Figure 2
Figure 2 Diagram and Parts List for GBH 18V-24 C Bosch Hammer Drill
  • 57
    O-RING – Part Number: 1610210068
    O-RING
    Part Number: 1610210068
      In Stock
    Minimum Quantity of 2 required
    $6.16
Figure 3
Figure 3 Diagram and Parts List for GBH 18V-24 C Bosch Hammer Drill
  • 17/18
    O-RING – Part Number: 1610210156
    O-RING
    Part Number: 1610210156
      Special Order
    $6.16
Figure 4
Figure 4 Diagram and Parts List for GBH 18V-24 C Bosch Hammer Drill
  • 321/60
    O-RING – Part Number: 1610210176
    O-RING
    Part Number: 1610210176
      In Stock
    Minimum Quantity of 2 required
    $6.16
Figure 5
Figure 5 Diagram and Parts List for GBH 18V-24 C Bosch Hammer Drill
  • 55
    SEALING RING – Part Number: 1610210206
    SEALING RING
    Part Number: 1610210206
      In Stock
    $11.29
Figure 6
Figure 6 Diagram and Parts List for GBH 18V-24 C Bosch Hammer Drill
Figure 7
Figure 7 Diagram and Parts List for GBH 18V-24 C Bosch Hammer Drill
  • 1
    Housing Section – Part Number: 1619P16303
    Housing Section
    Part Number: 1619P16303
      No Longer Available
  • 1-Jun
    Electronics Module – Part Number: 1600A025P4
    Electronics Module
    Part Number: 1600A025P4
      No Longer Available
  • 2
    Stator – Part Number: 1600A023NK
    Stator
    Part Number: 1600A023NK
      No Longer Available
  • 2-Jun
    Cell Cover – Part Number: 1600A0251J
    Cell Cover
    Part Number: 1600A0251J
      No Longer Available
  • 3
    Rotor – Part Number: 1619P17162
    Rotor
    Part Number: 1619P17162
      No Longer Available
  • 4
    ELECTRONIC MODULE – Part Number: 1600A024XX
    ELECTRONIC MODULE
    Part Number: 1600A024XX
      Special Order
    $161.49
  • 5
    SPRING – Part Number: 1609280477
    SPRING
    Part Number: 1609280477
      Special Order
    Minimum Quantity of 2 required
    $6.16
  • 7
    Electronic Module – Part Number: 1619P16921
    Electronic Module
    Part Number: 1619P16921
      No Longer Available
  • 27
    Striker – Part Number: 1619P16308
    Striker
    Part Number: 1619P16308
      No Longer Available
  • 29
    Piston Pin – Part Number: 1619P16954
    Piston Pin
    Part Number: 1619P16954
      No Longer Available
  • 32
    Clamp Handle Black – Part Number: 1612026157
    Clamp Handle Black
    Part Number: 1612026157
      No Longer Available
  • 36
    Bearing Holder – Part Number: 1619P16599
    Bearing Holder
    Part Number: 1619P16599
      No Longer Available
  • 41
    Intermediate housing – Part Number: 1619P16304
    Intermediate housing
    Part Number: 1619P16304
      No Longer Available
  • 46
    Driver Pin – Part Number: 1619P09571
    Driver Pin
    Part Number: 1619P09571
      No Longer Available
  • 49
    SWITCH BUTTON – Part Number: 1612026035
    SWITCH BUTTON
    Part Number: 1612026035
      In Stock
    $6.16
  • 51
    Control Element – Part Number: 1619P16310
    Control Element
    Part Number: 1619P16310
      No Longer Available
  • 56
    O-RING – Part Number: 1616B00086
    O-RING
    Part Number: 1616B00086
      Special Order
    $6.16
  • 64/1
    Supporting Disc – Part Number: 1619P12278
    Supporting Disc
    Part Number: 1619P12278
      No Longer Available
  • 71
    GUIDE DISC – Part Number: 1610100016
    GUIDE DISC
    Part Number: 1610100016
      Special Order
    $6.16
  • 76
    THREADED-FURROW SCREW – Part Number: 1613435022
    THREADED-FURROW SCREW
    Part Number: 1613435022
      In Stock
    $6.16
  • 77
    TORX OVAL-HEAD SCREW – Part Number: 2603490023
    TORX OVAL-HEAD SCREW
    Part Number: 2603490023
      In Stock
    Minimum Quantity of 2 required
    $6.16
  • 79
    SCREW – Part Number: 1613435023
    SCREW
    Part Number: 1613435023
      In Stock
    Minimum Quantity of 2 required
    $6.16
  • 80
    Torx Oval-Head Screw – Part Number: 1619P17247
    Torx Oval-Head Screw
    Part Number: 1619P17247
      No Longer Available
  • 81
    SCREW #9 – Part Number: 2603490022
    SCREW #9
    Part Number: 2603490022
      Special Order
    Minimum Quantity of 2 required
    $6.16
  • 83
    COMPRESSION SPRING – Part Number: 1614611006
    COMPRESSION SPRING
    Part Number: 1614611006
      Special Order
    Minimum Quantity of 2 required
    $7.36
  • 84
    Change-Over Switch – Part Number: 1619P16312
    Change-Over Switch
    Part Number: 1619P16312
      No Longer Available
  • 88
    RETAINING RING – Part Number: 2916660042
    RETAINING RING
    Part Number: 2916660042
      Special Order
    $6.16
  • 93
    GUIDE PIECE – Part Number: 1600A00798
    GUIDE PIECE
    Part Number: 1600A00798
      Special Order
    $14.94
  • 100
    LENS – Part Number: 1619P13744
    LENS
    Part Number: 1619P13744
      Special Order
    $6.16
  • 101
    Shim – Part Number: 1619P16684
    Shim
    Part Number: 1619P16684
      No Longer Available
  • 105
    Compression Spring – Part Number: 1619P16314
    Compression Spring
    Part Number: 1619P16314
      No Longer Available
  • 109
    SCREW – Part Number: 160343507U
    SCREW
    Part Number: 160343507U
      Special Order
    $6.16
  • 200
    Bellows – Part Number: 1619P16315
    Bellows
    Part Number: 1619P16315
      No Longer Available
  • 202
    PROTECTION SLEEVE – Part Number: 1610499054
    PROTECTION SLEEVE
    Part Number: 1610499054
      Special Order
    $6.16
  • 203
    PROTECTIVE CAP – Part Number: 1610508034
    PROTECTIVE CAP
    Part Number: 1610508034
      Special Order
    $6.16
  • 203/1
    SUPPORT DISC – Part Number: 1610101018
    SUPPORT DISC
    Part Number: 1610101018
      Special Order
    $6.16
  • 204
    COMPRESSION SPRING – Part Number: 1614643003
    COMPRESSION SPRING
    Part Number: 1614643003
      Special Order
    $6.16
  • 206
    BALL – Part Number: 1903230013
    BALL
    Part Number: 1903230013
      In Stock
    $6.16
  • 207
    RETAINER – Part Number: 1614601027
    RETAINER
    Part Number: 1614601027
      In Stock
    Minimum Quantity of 2 required
    $6.16
  • 208
    RETAINING WASHER – Part Number: 1610101629
    RETAINING WASHER
    Part Number: 1610101629
      In Stock
    Minimum Quantity of 2 required
    $6.16
  • 209
    FRICTION WASHER – Part Number: 1610102025
    FRICTION WASHER
    Part Number: 1610102025
      Special Order
    $6.16
  • 211
    RETAINER – Part Number: 2916540012
    RETAINER
    Part Number: 2916540012
      In Stock
    Minimum Quantity of 2 required
    $6.16
  • 321
    Pipe – Part Number: 1619P13452
    Pipe
    Part Number: 1619P13452
      No Longer Available
  • 321/28
    STRIKER PIN – Part Number: 1613124081
    STRIKER PIN
    Part Number: 1613124081
      In Stock
    $17.20
  • 321/33
    BUSHING – Part Number: 1610590014
    BUSHING
    Part Number: 1610590014
    ★★★★★
    ★★★★★
    (1)
      Special Order
    $6.16
  • 321/34
    Supporting Disc – Part Number: 1619P12280
    Supporting Disc
    Part Number: 1619P12280
      No Longer Available
  • 321/38
    CATCH DISK – Part Number: 1610190048
    CATCH DISK
    Part Number: 1610190048
      Special Order
    Minimum Quantity of 2 required
    $9.76
  • 321/42
    Thrust Ring – Part Number: 1619P13410
    Thrust Ring
    Part Number: 1619P13410
      No Longer Available
  • 321/46
    Guide Bushing – Part Number: 2608670714
    Guide Bushing
    Part Number: 2608670714
      No Longer Available
  • 321/50
    SPRING – Part Number: 1614611020
    SPRING
    Part Number: 1614611020
      Special Order
    $6.16
  • 321/58
    O-RING – Part Number: 1610210178
    O-RING
    Part Number: 1610210178
      In Stock
    Minimum Quantity of 2 required
    $6.16
  • 321/59
    OIL SEAL – Part Number: 1610283035
    OIL SEAL
    Part Number: 1610283035
      In Stock
    $9.76
  • 321/72
    RETAINER – Part Number: 1604601027
    RETAINER
    Part Number: 1604601027
      Special Order
    Minimum Quantity of 2 required
    $6.16
  • 321/82
    SNAP RING – Part Number: 1614601034
    SNAP RING
    Part Number: 1614601034
      Special Order
    $6.16
  • 321/83
    SNAP RING – Part Number: 1604601028
    SNAP RING
    Part Number: 1604601028
      Special Order
    $6.16
  • 340
    Impact Mechanism Housing – Part Number: 1619P16689
    Impact Mechanism Housing
    Part Number: 1619P16689
      No Longer Available
  • 340/48
    TAB WASHER – Part Number: 1611098008
    TAB WASHER
    Part Number: 1611098008
      Special Order
    Minimum Quantity of 2 required
    $6.16
  • 340/63
    NEEDLE BUSHING – Part Number: 1610910063
    NEEDLE BUSHING
    Part Number: 1610910063
      In Stock
    $11.29
  • 340/67
    NEEDLE BUSHING – Part Number: 2600910006
    NEEDLE BUSHING
    Part Number: 2600910006
      Special Order
    $7.36
  • 340/68
    RADIAL-LIP-TYPE OIL SEAL – Part Number: 1610283017
    RADIAL-LIP-TYPE OIL SEAL
    Part Number: 1610283017
      Special Order
    $14.94
  • 340/78
    SCREW #9 – Part Number: 2603490022
    SCREW #9
    Part Number: 2603490022
      Special Order
    Minimum Quantity of 2 required
    $6.16
  • 802
    Stator – Part Number: 1619P17163
    Stator
    Part Number: 1619P17163
      No Longer Available
  • 808
    Label – Part Number: 1619P17687
    Label
    Part Number: 1619P17687
      No Longer Available
  • 817
    Bearing Flange – Part Number: 1619P17351
    Bearing Flange
    Part Number: 1619P17351
      No Longer Available
  • 820
    Intermediate Flange – Part Number: 1619P17352
    Intermediate Flange
    Part Number: 1619P17352
      No Longer Available
  • 821
    Pipe – Part Number: 1619P13455
    Pipe
    Part Number: 1619P13455
      No Longer Available
  • 824
    Toothed Shaft – Part Number: 1619P13457
    Toothed Shaft
    Part Number: 1619P13457
      No Longer Available
  • 826
    Hammer Piston – Part Number: 1619P17564
    Hammer Piston
    Part Number: 1619P17564
      No Longer Available
  • 830
    Drive bearing – Part Number: 1619P17539
    Drive bearing
    Part Number: 1619P17539
      No Longer Available
  • 843
    Protective Cap – Part Number: 1619P13459
    Protective Cap
    Part Number: 1619P13459
      No Longer Available
  • 864
    Supporting Disc – Part Number: 1619P13461
    Supporting Disc
    Part Number: 1619P13461
      No Longer Available
  • Mar-49
    END SHIELD – Part Number: 1615700044
    END SHIELD
    Part Number: 1615700044
      Special Order
    $6.16
Figure 8
Figure 8 Diagram and Parts List for GBH 18V-24 C Bosch Hammer Drill
Figure 9
Figure 9 Diagram and Parts List for GBH 18V-24 C Bosch Hammer Drill
  • 321/37
    STRAIGHT PIN – Part Number: 1613100019
    STRAIGHT PIN
    Part Number: 1613100019
      Special Order
    Minimum Quantity of 2 required
    $6.16

Questions & Answers

?

Our customer Service team is at the ready daily to answer your part and product questions.

Be the first to ask our experts a question about this part!

Ask our Team

We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.

✖

Our customer service team are at the ready daily to answer your part and product questions. We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.
