Dynabrade 3 Hp Cup Wheel Grinder Replacement Parts For Model 53243

We Sell Only Genuine Dynabrade Parts

Popular Parts for 53243

Cylinder Assembly – Part Number: 55201 Cylinder Assembly
Special Order
$364.41
Exhaust Cover – Part Number: 52164 Exhaust Cover
Special Order
$147.56
Rear Bearing Plate – Part Number: 55202 Rear Bearing Plate
Special Order
$216.26
Front Bearing Plate – Part Number: 55203 Front Bearing Plate
Special Order
$172.64

Search Within Model

Questions & Answers for Dynabrade 53243
Browse all Parts Search by Area

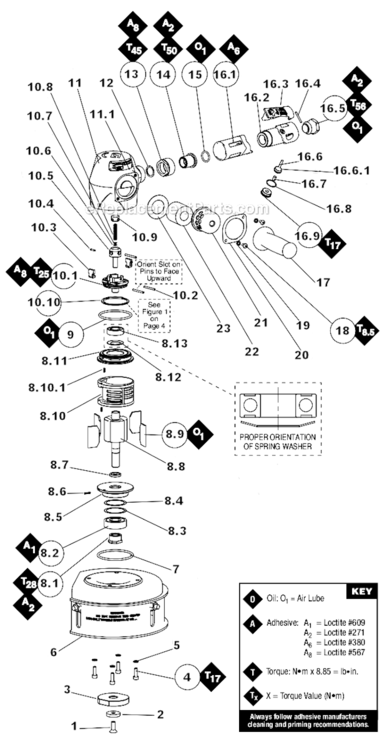

Page A Diagram and Parts List for Dynabrade Grinder
Page A
Previous Showing All Parts Next
Page A
Page A Diagram and Parts List for Dynabrade Grinder
  • A-1
    Screw – Part Number: 95323
    Screw
    Part Number: 95323
      Special Order
    $5.95
  • A-2
    Retaining Washer – Part Number: 55239
    Retaining Washer
    Part Number: 55239
      Special Order
    $37.50
  • A-3
    Backup Flange – Part Number: 55225
    Backup Flange
    Part Number: 55225
      Special Order
    $89.50
  • A-4
    Screw – Part Number: 50508
    Screw
    Part Number: 50508
      Special Order
    $5.95
  • A-5
    Washer – Part Number: 95757
    Washer
    Part Number: 95757
      Special Order
    $5.95
  • A-6
    Cup Wheel Guard Assembly – Part Number: 55231
    Cup Wheel Guard Assembly
    Part Number: 55231
      Special Order
    $292.64
  • A-7
    O-Ring – Part Number: 95881
    O-Ring
    Part Number: 95881
      Special Order
    $5.95
  • A-8
    Motor Assembly – Part Number: 02416
    Motor Assembly
    Part Number: 02416
      No Longer Available
  • A-8.1
    Nut – Part Number: 55224
    Nut
    Part Number: 55224
      Special Order
    $60.62
  • A-8.2
    Bearing – Part Number: 01825
    Bearing
    Part Number: 01825
      Special Order
    $51.00
  • A-8.3
    Shim – Part Number: 52469
    Shim
    Part Number: 52469
      Special Order
    $15.10
  • A-8.4
    Shim – Part Number: 52470
    Shim
    Part Number: 52470
      Special Order
    $14.38
  • A-8.5
    Front Bearing Plate – Part Number: 55203
    Front Bearing Plate
    Part Number: 55203
      Special Order
    $172.64
  • A-8.6
    Roll Pin – Part Number: 95240
    Roll Pin
    Part Number: 95240
      Special Order
    $5.95
  • A-8.7
    Spacer – Part Number: 55223
    Spacer
    Part Number: 55223
      Special Order
    $66.62
  • A-8.8
    Rotor – Part Number: 55200
    Rotor
    Part Number: 55200
      Special Order
    $389.99
  • A-8.9
    Vane – Part Number: 55204
    Vane
    Part Number: 55204
      Special Order
    $66.62
  • A-8.10
    Cylinder Assembly – Part Number: 55201
    Cylinder Assembly
    Part Number: 55201
      Special Order
    $364.41
  • A-8.10.1
    Pin – Part Number: 01673
    Pin
    Part Number: 01673
      Special Order
    Minimum Quantity of 2 required
    $5.95
  • A-8.11
    Rear Bearing Plate – Part Number: 55202
    Rear Bearing Plate
    Part Number: 55202
      Special Order
    $216.26
  • A-8.12
    Washer – Part Number: 55216
    Washer
    Part Number: 55216
      Special Order
    $19.62
  • A-8.13
    Bearing (sold Individually) – Part Number: 02552
    Bearing (sold Individually)
    Part Number: 02552
      In Stock
    $37.50
  • A-9
    O-Ring – Part Number: 95880
    O-Ring
    Part Number: 95880
      Special Order
    $5.95
  • A-10.1
    Governor Body – Part Number: 55227
    Governor Body
    Part Number: 55227
      Special Order
    $329.70
  • A-10.2
    Slotted Pin – Part Number: 95578
    Slotted Pin
    Part Number: 95578
      Special Order
    Minimum Quantity of 2 required
    $5.95
  • A-10.3
    Governor Weight – Part Number: 55213
    Governor Weight
    Part Number: 55213
      Special Order
    $84.10
  • A-10.4
    Roll Pin – Part Number: 95240
    Roll Pin
    Part Number: 95240
      Special Order
    $5.95
  • A-10.5
    Governor Valve – Part Number: 55206
    Governor Valve
    Part Number: 55206
      Special Order
    $97.18
  • A-10.6
    Washer – Part Number: 95337
    Washer
    Part Number: 95337
      Special Order
    $10.30
  • A-10.7
    Governor Shim - 0.4 Mm Thk – Part Number: 95915
    Governor Shim - 0.4 Mm Thk
    Part Number: 95915
      Special Order
    $7.26
  • A-10.8
    Spring – Part Number: 55209
    Spring
    Part Number: 55209
      Special Order
    $20.30
  • A-10.9
    Governor Cap – Part Number: 55207
    Governor Cap
    Part Number: 55207
      Special Order
    $70.58
  • A-10.10
    Overspeed Shut-Off Ring – Part Number: 55218
    Overspeed Shut-Off Ring
    Part Number: 55218
      Special Order
    $311.26
  • A-11
    Housing Assembly – Part Number: 02436
    Housing Assembly
    Part Number: 02436
      Special Order
    $589.59
  • A-11.1
    Grinder Label – Part Number: 96381
    Grinder Label
    Part Number: 96381
      No Longer Available
  • A-12
    Packing – Part Number: 52496
    Packing
    Part Number: 52496
      Special Order
    $16.36
  • A-13
    Nut – Part Number: 52495
    Nut
    Part Number: 52495
      Special Order
    $67.88
  • A-14
    Adj. Bushing – Part Number: 52491
    Adj. Bushing
    Part Number: 52491
      Special Order
    $67.88
  • A-15
    O Ring – Part Number: 01746
    O Ring
    Part Number: 01746
      Special Order
    Minimum Quantity of 2 required
    $5.95
  • A-16
    Throttle Handle Assembly – Part Number: 52441
    Throttle Handle Assembly
    Part Number: 52441
      Special Order
    $443.34
  • A-16.1
    Grip – Part Number: 07136
    Grip
    Part Number: 07136
      Special Order
    $71.09
  • A-16.2
    Valve Body – Part Number: 52494
    Valve Body
    Part Number: 52494
      Special Order
    $209.19
  • A-16.3
    Safety Throttle Lever – Part Number: 01953
    Safety Throttle Lever
    Part Number: 01953
      In Stock
    $59.89
  • A-16.4
    Pin – Part Number: 01017
    Pin
    Part Number: 01017
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • A-16.5
    Inlet Bushing – Part Number: 01697
    Inlet Bushing
    Part Number: 01697
      Special Order
    $77.30
  • A-16.6
    Valve Stem Assembly – Part Number: 07168
    Valve Stem Assembly
    Part Number: 07168
      Special Order
    $80.10
  • A-16.6.1
    O-Ring – Part Number: 96577
    O-Ring
    Part Number: 96577
      In Stock
    $11.16
  • A-16.7
    Spring – Part Number: 07145
    Spring
    Part Number: 07145
      Special Order
    $14.10
  • A-16.8
    Packing – Part Number: 07146
    Packing
    Part Number: 07146
      In Stock
    $16.08
  • A-16.9
    Plug – Part Number: 07147
    Plug
    Part Number: 07147
      Special Order
    $42.93
  • A-17
    Handle – Part Number: 52169
    Handle
    Part Number: 52169
      Special Order
    $80.10
  • A-18
    Screw (4) – Part Number: 96274
    Screw (4)
    Part Number: 96274
      Special Order
    Minimum Quantity of 2 required
    $5.95
  • A-19
    Lock Washer (2) – Part Number: 01791
    Lock Washer (2)
    Part Number: 01791
      Special Order
    $5.95
  • A-20
    Clamp – Part Number: 52180
    Clamp
    Part Number: 52180
      Special Order
    $44.48
  • A-21
    Exhaust Cover – Part Number: 52164
    Exhaust Cover
    Part Number: 52164
      Special Order
    $147.56
  • A-22
    Silencer – Part Number: 55245
    Silencer
    Part Number: 55245
      Special Order
    $56.25
  • A-23
    Gasket – Part Number: 52165
    Gasket
    Part Number: 52165
      Special Order
    $9.46
  • A-800
    24 mm Wrench – Part Number: 95304
    24 mm Wrench
    Part Number: 95304
      In Stock
    $14.38
  • A-800
    Hanger Bracket – Part Number: 55248
    Hanger Bracket
    Part Number: 55248
      No Longer Available
  • A-800
    Wrench - 2" – Part Number: 98510
    Wrench - 2"
    Part Number: 98510
      No Longer Available
  • A-800
    Motor Tune-Up Kit – Part Number: 96553
    Motor Tune-Up Kit
    Part Number: 96553
      Special Order
    $236.66
  • A-800
    Air Lube – Part Number: 95842
    Air Lube
    Part Number: 95842
      Special Order
    $43.96
  • A-800
    Dynabrade Air Lube (3.8L) – Part Number: 95843
    Dynabrade Air Lube (3.8L)
    Part Number: 95843
      Special Order
    $155.15
