Craftsman Generator Replacement Parts For Model 580327511

We Sell Only Genuine Craftsman Parts

Popular Parts for 580327511

Grooving Roll – Part Number: 45127 Grooving Roll
Special Order
$179.78
PILOT LIGHT-GREEN – Part Number: 27767 PILOT LIGHT-GREEN
Special Order
$29.13
Receptacle, 6 Pin – Part Number: 22694GS Receptacle, 6 Pin
Special Order
$8.86
Plate Bearing Carrier – Part Number: 44943 Plate Bearing Carrier
Special Order
$2.99
ASM BRUSH – Part Number: A24044AGS ASM BRUSH
Special Order
$11.19
Support Engine And Spring – Part Number: 24509 Support Engine And Spring
Special Order
$16.58
Post, Battery Charge Terminal – Part Number: 25367GS Post, Battery Charge Terminal
Special Order
$33.66
U-BOLT, 1 1/8 5/16-18 – Part Number: 26858GS U-BOLT, 1 1/8 5/16-18
Special Order
$4.99

Search Within Model

Questions & Answers for Craftsman 580327511
Browse all Parts Search by Area
Page A Diagram and Parts List for Craftsman Generator
Page A
Page B Diagram and Parts List for Craftsman Generator
Page B
Page C Diagram and Parts List for Craftsman Generator
Page C
Page D Diagram and Parts List for Craftsman Generator
Page D
Previous Showing All Parts Next
Page A

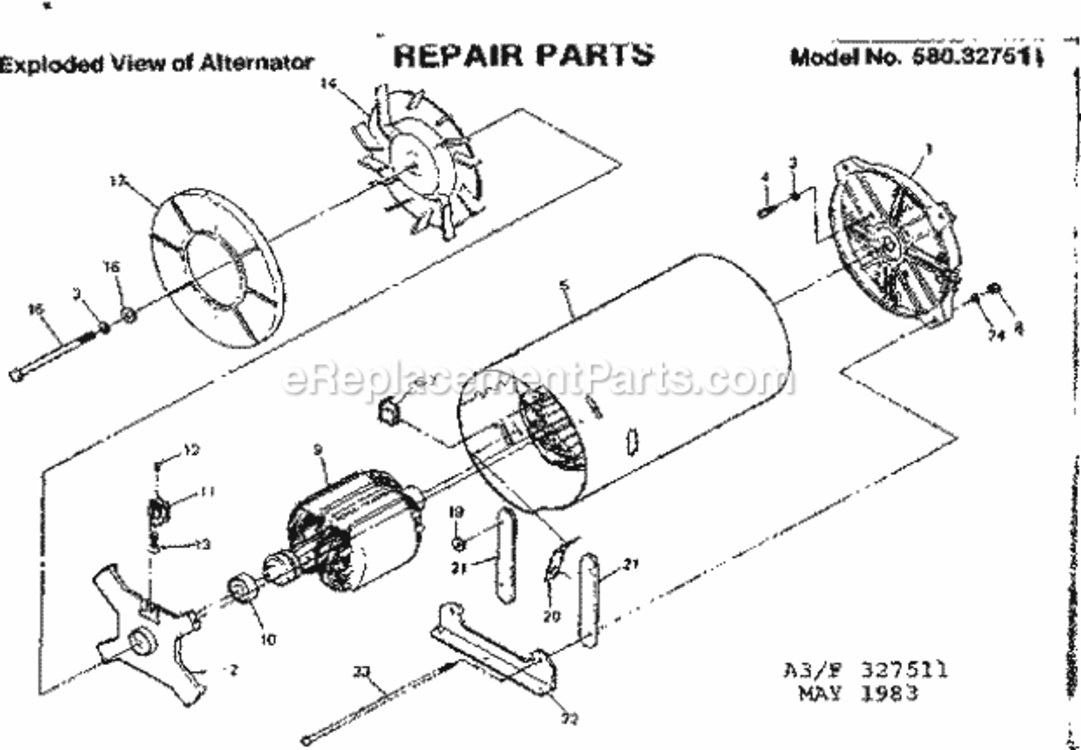

Page A Diagram and Parts List for Craftsman Generator
  • A-1
    Housing – Part Number: 43872-A
    Housing
    Part Number: 43872-A
      No Longer Available
  • A-2
    Plate Bearing Carrier – Part Number: 44943
    Plate Bearing Carrier
    Part Number: 44943
      Special Order
    $2.99
  • A-3
    Lock Washer – Part Number: STD551131
    Lock Washer
    Part Number: STD551131
      No Longer Available
  • A-4
    Screw 5Pk – Part Number: STD623107
    Screw 5Pk
    Part Number: STD623107
      No Longer Available
  • A-5
    Stator – Part Number: 44961-T
    Stator
    Part Number: 44961-T
      No Longer Available
  • A-6
    Receptacle, 6 Pin – Part Number: 22694GS
    Receptacle, 6 Pin
    Part Number: 22694GS
      Special Order
    $8.86
  • A-7
    Receptacle Connector Plug – Part Number: 43994
    Receptacle Connector Plug
    Part Number: 43994
      Special Order
    $4.13
  • A-8
    Nut 8Pk – Part Number: STD541025
    Nut 8Pk
    Part Number: STD541025
      No Longer Available
  • A-9
    Rotor – Part Number: 44391-B
    Rotor
    Part Number: 44391-B
      No Longer Available
  • A-10
    Crank Bearing – Part Number: STD315228
    Crank Bearing
    Part Number: STD315228
      No Longer Available
  • A-11
    Brush Holder – Part Number: 23877-D
    Brush Holder
    Part Number: 23877-D
      No Longer Available
  • A-12
    Screw 8Pk – Part Number: STD510602
    Screw 8Pk
    Part Number: STD510602
      No Longer Available
  • A-13
    ASM BRUSH – Part Number: A24044AGS
    ASM BRUSH
    Part Number: A24044AGS
      Special Order
    $11.19
  • A-14
    Fan – Part Number: 44331
    Fan
    Part Number: 44331
      Special Order
    $11.70
  • A-15
    Flat Washer – Part Number: STD851008
    Flat Washer
    Part Number: STD851008
      No Longer Available
  • A-16
    5/16"-24 x 7.62" rotor bolt – Part Number: 24421GS
    5/16"-24 x 7.62" rotor bolt
    Part Number: 24421GS
      Special Order
    $27.96
  • A-17
    Fan Cover – Part Number: 44357GS
    Fan Cover
    Part Number: 44357GS
      No Longer Available
  • A-19
    Washer 8Pk – Part Number: STD551025
    Washer 8Pk
    Part Number: STD551025
      No Longer Available
  • A-20
    Plate Diode (Battery Charging) – Part Number: 44722
    Plate Diode (Battery Charging)
    Part Number: 44722
      Special Order
    $69.89
  • A-21
    Bar bolt – Part Number: 44338
    Bar bolt
    Part Number: 44338
      Special Order
    $7.54
  • A-22
    Rear Support – Part Number: 44392-A
    Rear Support
    Part Number: 44392-A
      No Longer Available
  • A-23
    Stator Bolt – Part Number: 44395-A
    Stator Bolt
    Part Number: 44395-A
      No Longer Available
  • A-24
    Washer 8Pk – Part Number: STD551125
    Washer 8Pk
    Part Number: STD551125
      No Longer Available
  • A-800
    Warranty Tag – Part Number: 47496
    Warranty Tag
    Part Number: 47496
      No Longer Available
  • A-800
    Cables – Part Number: A-25383
    Cables
    Part Number: A-25383
      No Longer Available
  • A-800
    Retainer – Part Number: 46079
    Retainer
    Part Number: 46079
      No Longer Available
  • A-800
    Screw 8Pk – Part Number: STD511103
    Screw 8Pk
    Part Number: STD511103
      No Longer Available
  • A-800
    Pulley – Part Number: 56170
    Pulley
    Part Number: 56170
      No Longer Available
Page B

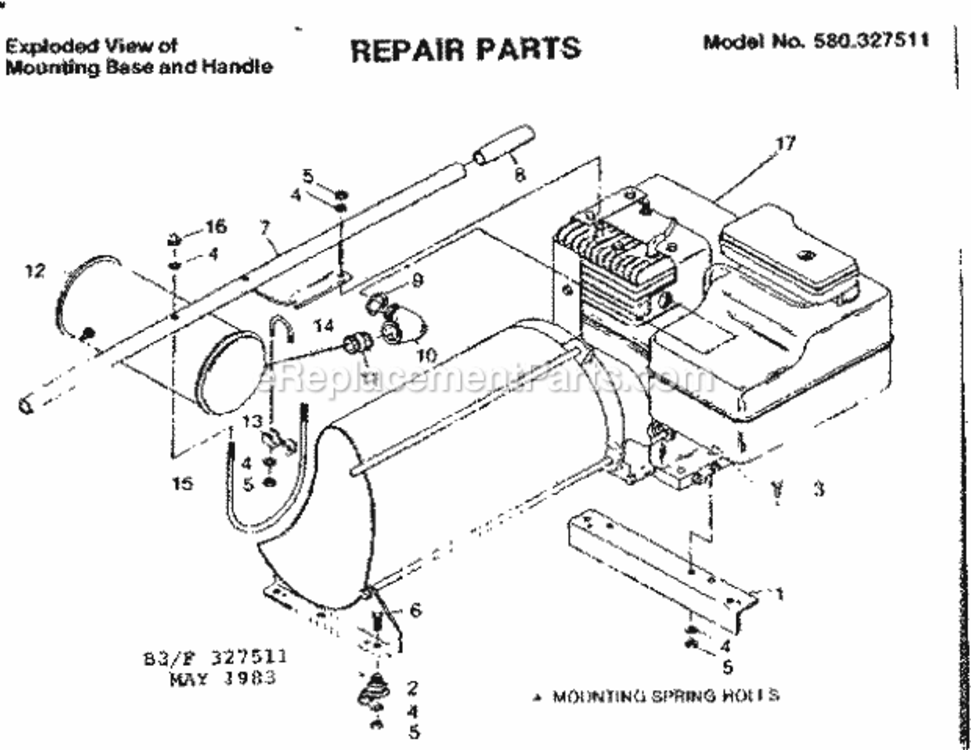

Page B Diagram and Parts List for Craftsman Generator
  • B-1
    Support Engine And Spring – Part Number: 24509
    Support Engine And Spring
    Part Number: 24509
      Special Order
    $16.58
  • B-2
    Deflector 26-30 – Part Number: 25047
    Deflector 26-30
    Part Number: 25047
      Special Order
    $4.13
  • B-3
    Screw 5Pk – Part Number: STD523115
    Screw 5Pk
    Part Number: STD523115
      No Longer Available
  • B-4
    Lock Washer – Part Number: STD551131
    Lock Washer
    Part Number: STD551131
      No Longer Available
  • B-5
    Nut 8Pk – Part Number: STD541031
    Nut 8Pk
    Part Number: STD541031
      No Longer Available
  • B-6
    Screw 5Pk – Part Number: STD523107
    Screw 5Pk
    Part Number: STD523107
      No Longer Available
  • B-7
    Handle – Part Number: 43960
    Handle
    Part Number: 43960
      No Longer Available
  • B-8
    Adjustment Rotor – Part Number: 25094
    Adjustment Rotor
    Part Number: 25094
      No Longer Available
  • B-9
    Nut – Part Number: 62566
    Nut
    Part Number: 62566
      No Longer Available
  • B-10
    Elbow – Part Number: 26307
    Elbow
    Part Number: 26307
      Special Order
    $14.42
  • B-11
    OBS TOE NPL – Part Number: 38842
    OBS TOE NPL
    Part Number: 38842
      Special Order
    $14.43
  • B-12
    S/A MUFFLER SMALL – Part Number: 43953
    S/A MUFFLER SMALL
    Part Number: 43953
      Special Order
    $173.04
  • B-13
    SADDLE 1-1/8 – Part Number: 26859
    SADDLE 1-1/8
    Part Number: 26859
      Special Order
    $2.99
  • B-14
    U-BOLT, 1 1/8 5/16-18 – Part Number: 26858GS
    U-BOLT, 1 1/8 5/16-18
    Part Number: 26858GS
      Special Order
    $4.99
  • B-15
    Bolt U 5/16-18 X 2.25 – Part Number: 36797
    Bolt U 5/16-18 X 2.25
    Part Number: 36797
      Special Order
    $77.56
  • B-16
    Nut 2Pk – Part Number: STD541831
    Nut 2Pk
    Part Number: STD541831
      No Longer Available
  • B-17
    CONTROL ZS B&S RB – Part Number: 52787
    CONTROL ZS B&S RB
    Part Number: 52787
      Special Order
    $15.63
  • B-18
    Grooving Roll – Part Number: 45127
    Grooving Roll
    Part Number: 45127
      Special Order
    $179.78
  • B-800
    Screw 8Pk – Part Number: STD511103
    Screw 8Pk
    Part Number: STD511103
      No Longer Available
  • B-800
    Pulley – Part Number: 56170
    Pulley
    Part Number: 56170
      No Longer Available
  • B-800
    Retainer – Part Number: 46079
    Retainer
    Part Number: 46079
      No Longer Available
  • B-800
    Cables – Part Number: A-25383
    Cables
    Part Number: A-25383
      No Longer Available
  • B-800
    Warranty Tag – Part Number: 47496
    Warranty Tag
    Part Number: 47496
      No Longer Available
Page C

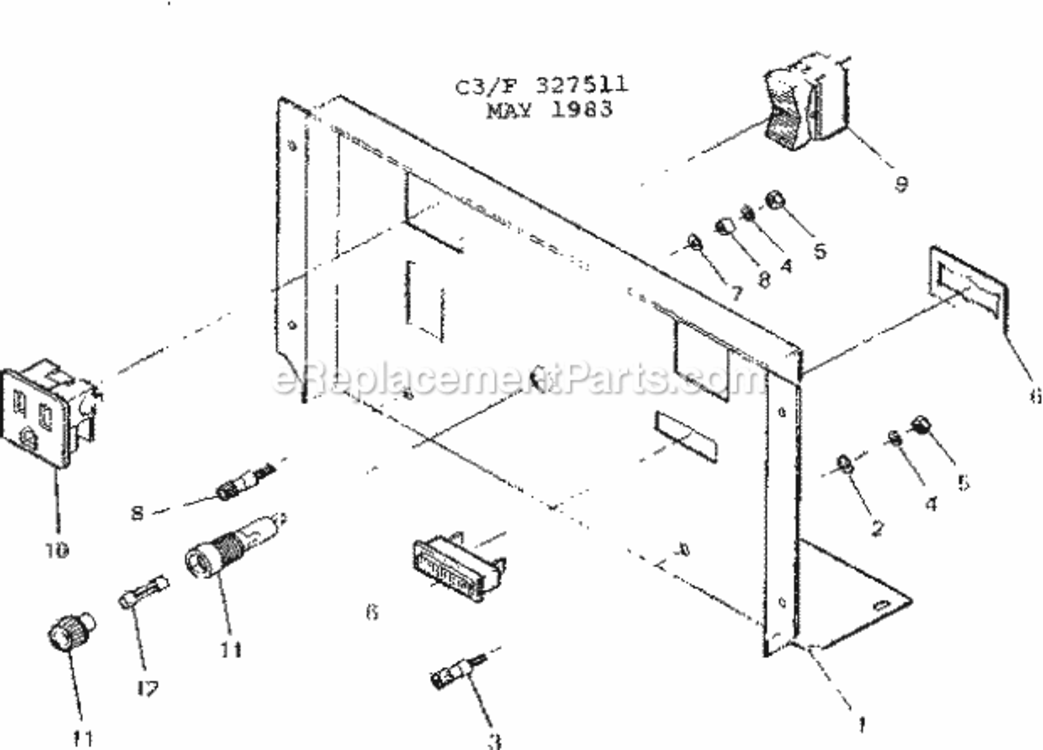

Page C Diagram and Parts List for Craftsman Generator
  • C-1
    OBS PNL SILKSCRN PS – Part Number: 45651
    OBS PNL SILKSCRN PS
    Part Number: 45651
      Special Order
    $2.99
  • C-2
    Lock washer – Part Number: 26579
    Lock washer
    Part Number: 26579
      Special Order
    $5.95
  • C-3
    Binding post – Part Number: 25368
    Binding post
    Part Number: 25368
      Special Order
    $6.10
  • C-4
    Washer, #8 Shakeproof – Part Number: 23365
    Washer, #8 Shakeproof
    Part Number: 23365
      Special Order
    $5.95
  • C-5
    Nut 8Pk – Part Number: STD541008
    Nut 8Pk
    Part Number: STD541008
      No Longer Available
  • C-6
    PILOT LIGHT-GREEN – Part Number: 27767
    PILOT LIGHT-GREEN
    Part Number: 27767
      Special Order
    $29.13
  • C-7
    Fiber Flatwasher – Part Number: 30798
    Fiber Flatwasher
    Part Number: 30798
      Special Order
    $2.99
  • C-8
    Post, Battery Charge Terminal – Part Number: 25367GS
    Post, Battery Charge Terminal
    Part Number: 25367GS
      Special Order
    $33.66
  • C-9
    Ring – Part Number: 33874
    Ring
    Part Number: 33874
      Special Order
    $35.19
  • C-10
    OBS BRUSH HOLDER – Part Number: 22698
    OBS BRUSH HOLDER
    Part Number: 22698
      Special Order
    $31.88
  • C-11
    Holder – Part Number: 22669
    Holder
    Part Number: 22669
      Special Order
    $7.54
  • C-12
    Agc 30 Fuse – Part Number: STD380300
    Agc 30 Fuse
    Part Number: STD380300
      No Longer Available
  • C-800
    Screw 8Pk – Part Number: STD511103
    Screw 8Pk
    Part Number: STD511103
      No Longer Available
  • C-800
    Pulley – Part Number: 56170
    Pulley
    Part Number: 56170
      No Longer Available
  • C-800
    Cables – Part Number: A-25383
    Cables
    Part Number: A-25383
      No Longer Available
  • C-800
    Retainer – Part Number: 46079
    Retainer
    Part Number: 46079
      No Longer Available
  • C-800
    Warranty Tag – Part Number: 47496
    Warranty Tag
    Part Number: 47496
      No Longer Available
Page D

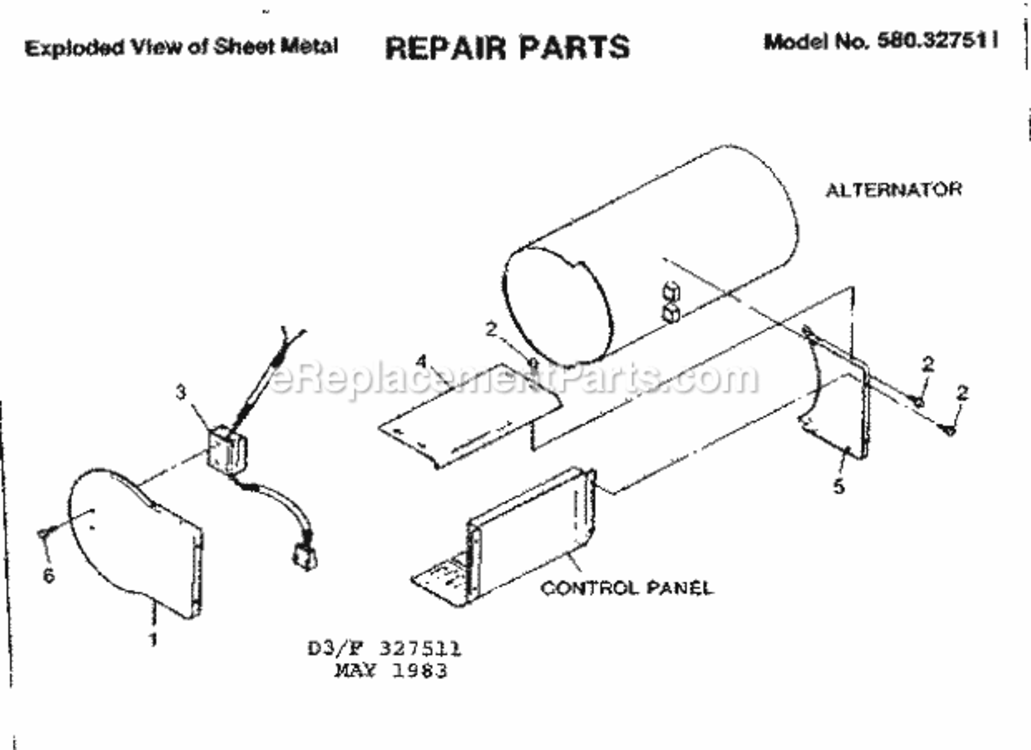

Page D Diagram and Parts List for Craftsman Generator
  • D-1
    Panel Cover – Part Number: 44328-Y
    Panel Cover
    Part Number: 44328-Y
      No Longer Available
  • D-2
    Screw 8Pk – Part Number: STD511103
    Screw 8Pk
    Part Number: STD511103
      No Longer Available
  • D-3
    Assembly Port Volt Reg – Part Number: 53440
    Assembly Port Volt Reg
    Part Number: 53440
      Special Order
    $262.36
  • D-4
    Panel Cover – Part Number: 45254-A
    Panel Cover
    Part Number: 45254-A
      No Longer Available
  • D-4A
    Panel Cover – Part Number: 45254-B
    Panel Cover
    Part Number: 45254-B
      No Longer Available
  • D-5
    OBS PNL SHROUD BK PS – Part Number: 45270
    OBS PNL SHROUD BK PS
    Part Number: 45270
      Special Order
    $2.99
  • D-6
    Screw – Part Number: 38045
    Screw
    Part Number: 38045
      Special Order
    $484.47
  • D-800
    Retainer – Part Number: 46079
    Retainer
    Part Number: 46079
      No Longer Available
  • D-800
    Cables – Part Number: A-25383
    Cables
    Part Number: A-25383
      No Longer Available
  • D-800
    Screw 8Pk – Part Number: STD511103
    Screw 8Pk
    Part Number: STD511103
      No Longer Available
  • D-800
    Pulley – Part Number: 56170
    Pulley
    Part Number: 56170
      No Longer Available
  • D-800
    Warranty Tag – Part Number: 47496
    Warranty Tag
    Part Number: 47496
      No Longer Available
