Briggs and Stratton 030831-00 - 1,800 Watt Briggs And Stratton Inverter Generator, Aus West Replacement Parts For Model 030831-00

We Sell Only Genuine Briggs and Stratton Parts

Popular Parts for 030831-00

Screw – Part Number: 807084 Screw
In Stock
Minimum Quantity of 2 required
$5.95
Hose Clamp – Part Number: 48031GGS Hose Clamp
Special Order
$5.95
LATCH – Part Number: 84002928 LATCH
In Stock
$7.56
Button, select – Part Number: 319463GS Button, select
Special Order
$52.87
SLEEVE – Part Number: 84002927 SLEEVE
In Stock
$5.95
Module-Co – Part Number: 84004007 Module-Co
On Order
$146.59
Screw, 3 X 6,Tapping – Part Number: 197958GS Screw, 3 X 6, Tapping
Special Order
$5.95
Light-pipe – Part Number: 772217 Light-pipe
Special Order
$5.95

Search Within Model

Questions & Answers for Briggs and Stratton 030831-00
Browse all Parts Search by Area
Control Panel Diagram and Parts List for Briggs and Stratton Generator
Control Panel
Main Unit P1 Diagram and Parts List for Briggs and Stratton Generator
Main Unit P1
Main Unit P2 Diagram and Parts List for Briggs and Stratton Generator
Main Unit P2

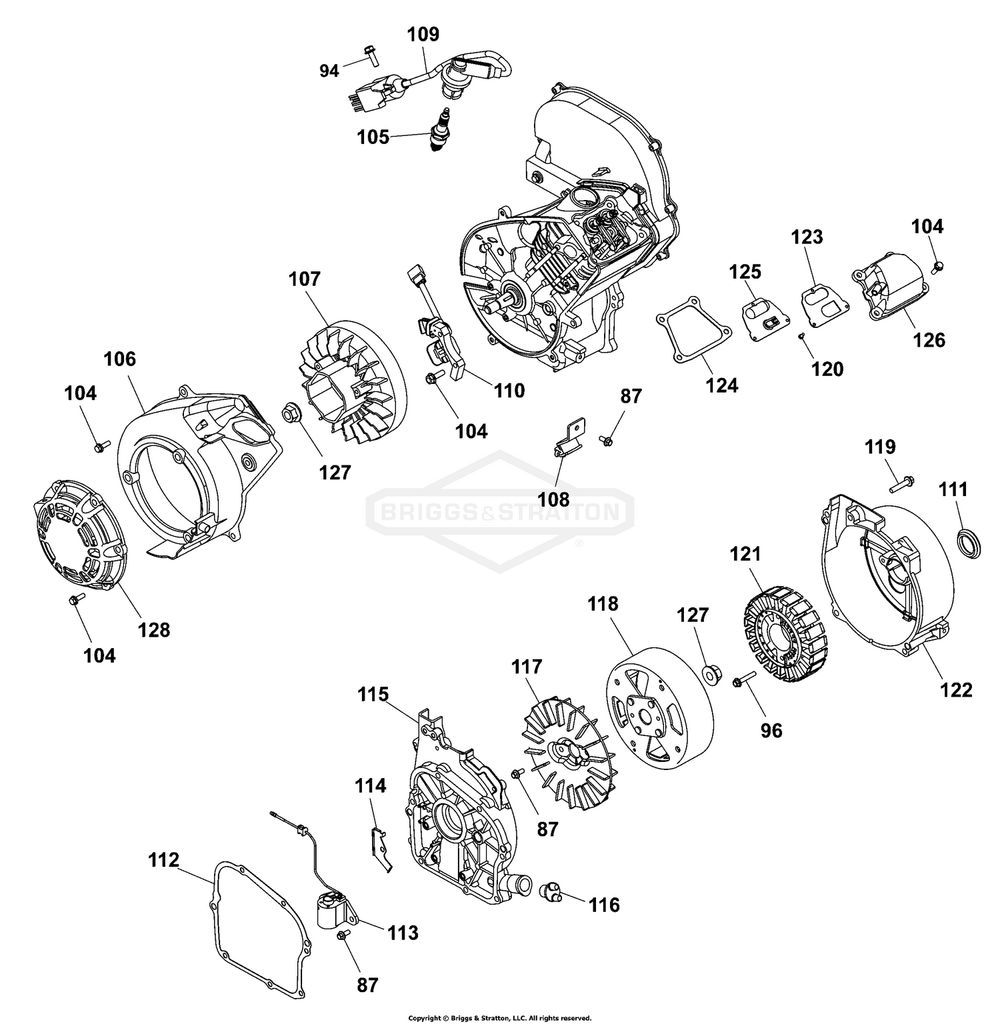

Main Unit P3 Engine Diagram and Parts List for Briggs and Stratton Generator
Main Unit P3 Engine

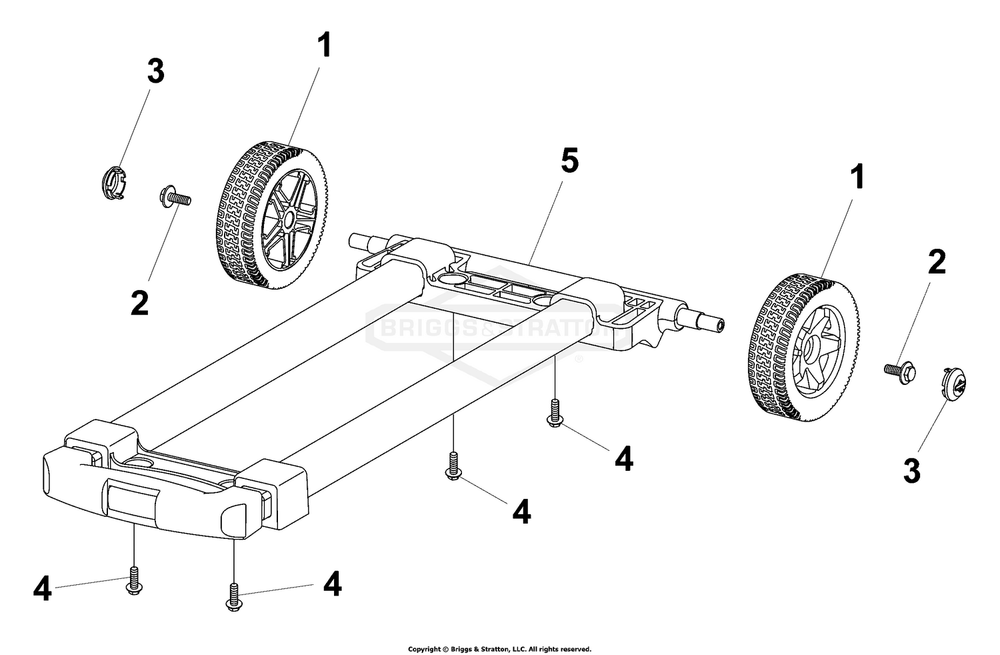

Wheel Kit Diagram and Parts List for Briggs and Stratton Generator
Wheel Kit
Previous Showing All Parts Next
Control Panel
Control Panel Diagram and Parts List for Briggs and Stratton Generator
  • 2
    Socket – Part Number: 705488
    Socket
    Part Number: 705488
      Special Order
    $59.10
  • 4
    BREAKER, CIRCUIT – Part Number: 84004761
    BREAKER, CIRCUIT
    Part Number: 84004761
      Special Order
    $16.46
  • 5
    Cover – Part Number: 705478
    Cover
    Part Number: 705478
      Special Order
    $13.26
  • 6
    Switch – Part Number: 311442GS
    Switch
    Part Number: 311442GS
      Special Order
    $33.33
  • 7
    Outlet-12vdc – Part Number: 314531GS
    Outlet-12vdc
    Part Number: 314531GS
      Special Order
    $27.72
  • 8
    Cover-Usb – Part Number: 84005027
    Cover-Usb
    Part Number: 84005027
      Special Order
    $5.95
  • 9
    Button, select – Part Number: 319463GS
    Button, select
    Part Number: 319463GS
      Special Order
    $52.87
  • 10
    SHIELD – Part Number: 84005025
    SHIELD
    Part Number: 84005025
      Special Order
    $5.95
  • 11
    Bracket-module – Part Number: 772213
    Bracket-module
    Part Number: 772213
      Special Order
    $5.95
  • 12
    Light-pipe – Part Number: 772217
    Light-pipe
    Part Number: 772217
      Special Order
    $5.95
  • 13
    Module-Co – Part Number: 84004007
    Module-Co
    Part Number: 84004007
      On Order
    $146.59
  • 14
    Screw (4) – Part Number: 84001081
    Screw (4)
    Part Number: 84001081
      Special Order
    $5.95
  • 15
    Led- Indicator – Part Number: 84005026
    Led- Indicator
    Part Number: 84005026
      Special Order
    $27.66
  • 16
    Usb – Part Number: 84005046
    Usb
    Part Number: 84005046
      Special Order
    $13.16
  • 17
    Nut – Part Number: 795016
    Nut
    Part Number: 795016
      Special Order
    $5.95
  • 19
    Pump Housing – Part Number: 314532GS
    Pump Housing
    Part Number: 314532GS
      Special Order
    $33.00
  • 20
    NUT, WING – Part Number: 84002979
    NUT, WING
    Part Number: 84002979
      Special Order
    $5.95
  • 21
    WASHER, LOCKING – Part Number: 84003036
    WASHER, LOCKING
    Part Number: 84003036
      Special Order
    $5.95
  • 22
    WASHER, FLAT – Part Number: 84003037
    WASHER, FLAT
    Part Number: 84003037
      Special Order
    $5.95
  • 23
    NUT – Part Number: 84003038
    NUT
    Part Number: 84003038
      Special Order
    $5.95
  • 24
    WASHER – Part Number: 84003039
    WASHER
    Part Number: 84003039
      Special Order
    $5.95
  • 25
    SCREW – Part Number: 84003035
    SCREW
    Part Number: 84003035
      Special Order
    $5.95
Main Unit P1
Main Unit P1 Diagram and Parts List for Briggs and Stratton Generator
  • 1
    Cover-Base – Part Number: 84004872
    Cover-Base
    Part Number: 84004872
      Special Order
    $148.15
  • 2
    Panel-Side – Part Number: 84004977
    Panel-Side
    Part Number: 84004977
      Special Order
    $46.82
  • 3
    DECAL – Part Number: 84004981
    DECAL
    Part Number: 84004981
      Special Order
    $5.95
  • 4
    Decal – Part Number: 84004982
    Decal
    Part Number: 84004982
      No Longer Available
  • 5
    SCREW – Part Number: 84002962
    SCREW
    Part Number: 84002962
      Special Order
    $5.95
  • 6
    SLEEVE – Part Number: 84002927
    SLEEVE
    Part Number: 84002927
      In Stock
    $5.95
  • 7
    LATCH – Part Number: 84002928
    LATCH
    Part Number: 84002928
      In Stock
    $7.56
  • 8
    Door-Acess – Part Number: 84004870
    Door-Acess
    Part Number: 84004870
      Special Order
    $9.08
  • 9
    Knob – Part Number: 84004957
    Knob
    Part Number: 84004957
      Special Order
    $5.95
  • 10
    Grommet – Part Number: 84004959
    Grommet
    Part Number: 84004959
      Special Order
    $5.95
  • 11
    Screw – Part Number: 84005245
    Screw
    Part Number: 84005245
      Special Order
    $5.95
  • 12
    Screw – Part Number: 84005247
    Screw
    Part Number: 84005247
      Special Order
    $5.95
  • 13
    Screw – Part Number: 84005246
    Screw
    Part Number: 84005246
      Special Order
    $5.95
  • 14
    Panel-Side – Part Number: 84005978
    Panel-Side
    Part Number: 84005978
      Special Order
    $95.39
  • 15
    NUT – Part Number: 84002982
    NUT
    Part Number: 84002982
      Special Order
    $5.95
  • 16
    FOAM – Part Number: 84004968
    FOAM
    Part Number: 84004968
      Special Order
    $5.95
  • 17
    Door-Access – Part Number: 84004869
    Door-Access
    Part Number: 84004869
      Special Order
    $8.20
  • 18
    Mount-Vibration – Part Number: 84004949
    Mount-Vibration
    Part Number: 84004949
      Special Order
    $11.03
  • 19
    Screw – Part Number: 807084
    Screw
    Part Number: 807084
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • 20
    Panel-Front – Part Number: 84004971
    Panel-Front
    Part Number: 84004971
      Special Order
    $68.35
  • 21
    Assembly Control Panel – Part Number: 84005975
    Assembly Control Panel
    Part Number: 84005975
      Special Order
    $354.33
  • 22
    Rectifier – Part Number: 84005262
    Rectifier
    Part Number: 84005262
      Special Order
    $35.18
  • 23
    Shock-Pad – Part Number: 84005257
    Shock-Pad
    Part Number: 84005257
      Special Order
    $5.95
  • 24
    Shock- Pad – Part Number: 84005255
    Shock- Pad
    Part Number: 84005255
      Special Order
    $5.95
  • 25
    Mount-Rubber – Part Number: 84004961
    Mount-Rubber
    Part Number: 84004961
      Special Order
    $5.95
  • 26
    Trap-Drain – Part Number: 84004884
    Trap-Drain
    Part Number: 84004884
      Special Order
    $10.48
  • 27
    RECTIFIER – Part Number: 84004964
    RECTIFIER
    Part Number: 84004964
      Special Order
    $38.15
  • 28
    BEAD, FERRITE – Part Number: 84005258
    BEAD, FERRITE
    Part Number: 84005258
      Special Order
    $7.62
  • 29
    Bracket – Part Number: 84004956
    Bracket
    Part Number: 84004956
      Special Order
    $17.36
  • 30
    Handle – Part Number: 84004970
    Handle
    Part Number: 84004970
      Special Order
    $57.53
  • 32
    LINK – Part Number: 84004965
    LINK
    Part Number: 84004965
      Special Order
    $8.98
  • 33
    SCREW – Part Number: 84002910
    SCREW
    Part Number: 84002910
      Special Order
    $5.95
  • 34
    GRIP – Part Number: 84002971
    GRIP
    Part Number: 84002971
      Special Order
    $9.90
  • 35
    KIT, PANEL – Part Number: 84004983
    KIT, PANEL
    Part Number: 84004983
      Special Order
    $63.58
  • 36
    Decal – Part Number: 84005000
    Decal
    Part Number: 84005000
      No Longer Available
  • 37
    Cover – Part Number: 311377GS
    Cover
    Part Number: 311377GS
      Special Order
    $7.66
  • 38
    Insert-grip – Part Number: 311414GS
    Insert-grip
    Part Number: 311414GS
      Special Order
    $7.40
  • 39
    Bracket-Sealing – Part Number: 84004950
    Bracket-Sealing
    Part Number: 84004950
      Special Order
    $5.95
  • 40
    Lamp-Led – Part Number: 84004871
    Lamp-Led
    Part Number: 84004871
      Special Order
    $32.80
  • 41
    Screw, 3 X 6,Tapping – Part Number: 197958GS
    Screw, 3 X 6,Tapping
    Part Number: 197958GS
      Special Order
    $5.95
  • 42
    Spacer – Part Number: 84005263
    Spacer
    Part Number: 84005263
      Special Order
    $5.95
  • 43
    Body, Fuel Selector – Part Number: 84004882
    Body, Fuel Selector
    Part Number: 84004882
      Special Order
    $5.95
  • 44
    SCREW – Part Number: 84002926
    SCREW
    Part Number: 84002926
      Special Order
    $5.95
  • 45
    Spring – Part Number: 84004881
    Spring
    Part Number: 84004881
      Special Order
    $5.95
  • 46
    Wheel-Fuel Selector – Part Number: 84004880
    Wheel-Fuel Selector
    Part Number: 84004880
      Special Order
    $5.95
  • 47
    Cover – Part Number: 84004878
    Cover
    Part Number: 84004878
      Special Order
    $5.95
  • 48
    Rocker Arm-Fuel Selector – Part Number: 84004883
    Rocker Arm-Fuel Selector
    Part Number: 84004883
      Special Order
    $5.95
  • 49
    Switch – Part Number: 84004879
    Switch
    Part Number: 84004879
      Special Order
    $9.80
  • 50
    PANEL, SIDE – Part Number: 84004986
    PANEL, SIDE
    Part Number: 84004986
      Special Order
    $118.53
  • 51
    Decal This Part Replaces 84004995. – Part Number: 84005464
    Decal This Part Replaces 84004995.
    Part Number: 84005464
      No Longer Available
  • 52
    Panel-Recoil – Part Number: 84004875
    Panel-Recoil
    Part Number: 84004875
      Special Order
    $25.96
  • 53
    Cover-Rope Recoil – Part Number: 84004877
    Cover-Rope Recoil
    Part Number: 84004877
      Special Order
    $6.08
  • 54
    Decal – Part Number: 84004999
    Decal
    Part Number: 84004999
      No Longer Available
  • 55
    Decal – Part Number: 84005016
    Decal
    Part Number: 84005016
      No Longer Available
  • 56
    Decal – Part Number: 84005974
    Decal
    Part Number: 84005974
      No Longer Available
  • 57
    Knob – Part Number: 84004863
    Knob
    Part Number: 84004863
      Special Order
    $5.95
  • 59
    Screw – Part Number: 807389
    Screw
    Part Number: 807389
      Special Order
    $5.95

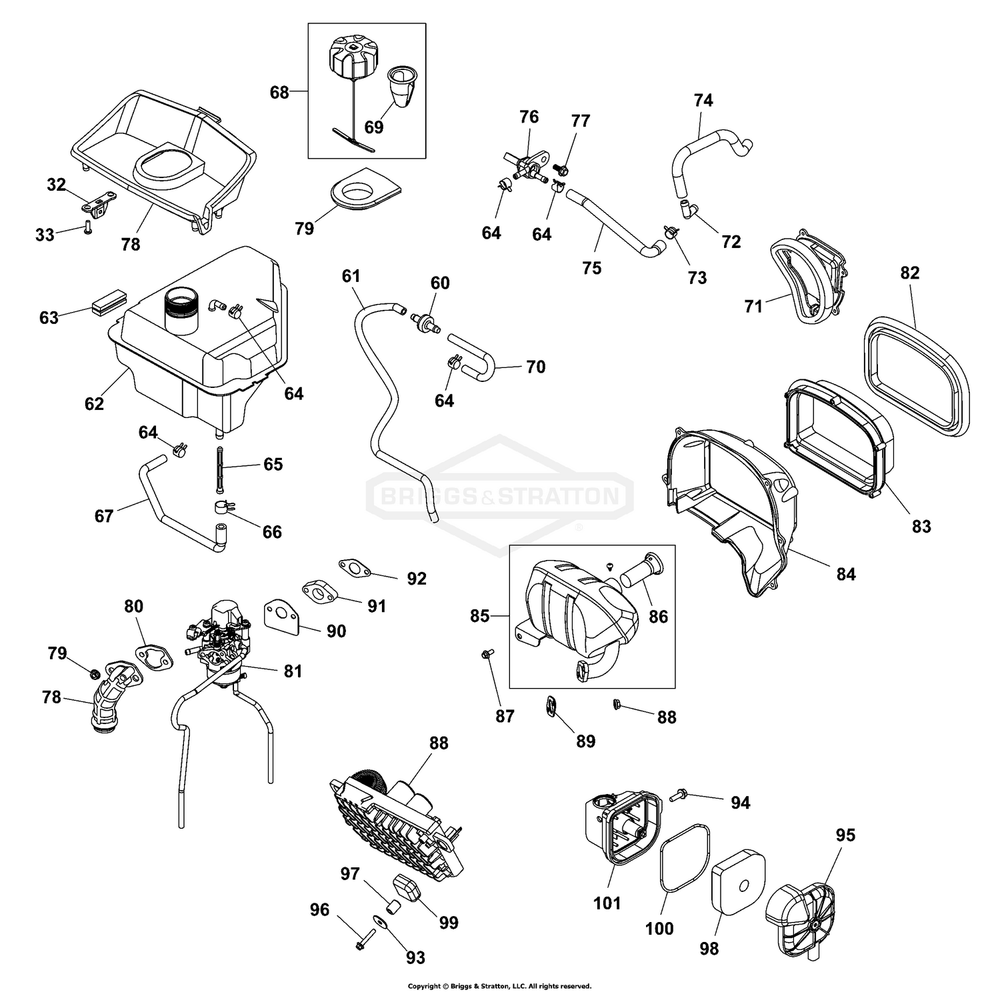

Main Unit P2
Main Unit P2 Diagram and Parts List for Briggs and Stratton Generator
  • 32
    LINK – Part Number: 84004965
    LINK
    Part Number: 84004965
      Special Order
    $8.98
  • 33
    SCREW – Part Number: 84002910
    SCREW
    Part Number: 84002910
      Special Order
    $5.95
  • 60
    Valve-check – Part Number: 317108GS
    Valve-check
    Part Number: 317108GS
      Special Order
    $24.30
  • 61
    HOSE – Part Number: 84004967
    HOSE
    Part Number: 84004967
      Special Order
    $10.10
  • 62
    Tank-Fuel – Part Number: 84004866
    Tank-Fuel
    Part Number: 84004866
      Special Order
    $148.15
  • 63
    Mount-vibration – Part Number: 319941GS
    Mount-vibration
    Part Number: 319941GS
      Special Order
    $10.86
  • 64
    Hose Clamp – Part Number: 48031GGS
    Hose Clamp
    Part Number: 48031GGS
      Special Order
    $5.95
  • 65
    Filter-fuel tank – Part Number: 707168
    Filter-fuel tank
    Part Number: 707168
      Special Order
    $6.26
  • 66
    CLAMP, HOSE – Part Number: 84002949
    CLAMP, HOSE
    Part Number: 84002949
      Special Order
    $5.95
  • 67
    Hose – Part Number: 84004954
    Hose
    Part Number: 84004954
      Special Order
    $24.02
  • 68
    Cap-Fuel – Part Number: 84005967
    Cap-Fuel
    Part Number: 84005967
      Special Order
    $31.60
  • 69
    Level-Fuel – Part Number: 84004862
    Level-Fuel
    Part Number: 84004862
      Special Order
    $5.95
  • 70
    Hose – Part Number: 317447GS
    Hose
    Part Number: 317447GS
      Special Order
    $16.20
  • 71
    Cover-Inlet – Part Number: 84004951
    Cover-Inlet
    Part Number: 84004951
      Special Order
    $25.76
  • 72
    Pipe – Part Number: 84004808
    Pipe
    Part Number: 84004808
      Special Order
    $5.95
  • 73
    CLAMP – Part Number: 84005275
    CLAMP
    Part Number: 84005275
      Special Order
    $5.95
  • 74
    HOSE – Part Number: 84004812
    HOSE
    Part Number: 84004812
      Special Order
    $9.16
  • 75
    Hose-Fuel – Part Number: 84004953
    Hose-Fuel
    Part Number: 84004953
      Special Order
    $39.00
  • 76
    VALVE, FUEL – Part Number: 84002959
    VALVE, FUEL
    Part Number: 84002959
      Special Order
    $19.18
  • 78
    Tray-Fuel – Part Number: 84004867
    Tray-Fuel
    Part Number: 84004867
      Special Order
    $32.80
  • 79
    Grommet – Part Number: 84004955
    Grommet
    Part Number: 84004955
      Special Order
    $8.96
  • 80
    GASKET – Part Number: 84004821
    GASKET
    Part Number: 84004821
      Special Order
    $5.95
  • 81
    Carburetor – Part Number: 84004806
    Carburetor
    Part Number: 84004806
      Special Order
    $91.85
  • 82
    Seal – Part Number: 84004952
    Seal
    Part Number: 84004952
      Special Order
    $25.76
  • 83
    COVER – Part Number: 84004818
    COVER
    Part Number: 84004818
      Special Order
    $11.66
  • 84
    COVER – Part Number: 84004817
    COVER
    Part Number: 84004817
      Special Order
    $34.70
  • 85
    MUFFLER – Part Number: 84004816
    MUFFLER
    Part Number: 84004816
      Special Order
    $93.85
  • 86
    Spark Arrestor – Part Number: 703189
    Spark Arrestor
    Part Number: 703189
      Special Order
    $32.82
  • 89
    GASKET, MUFFLER – Part Number: 84004815
    GASKET, MUFFLER
    Part Number: 84004815
      Special Order
    $5.95
  • 90
    Gasket – Part Number: 84004805
    Gasket
    Part Number: 84004805
      Special Order
    $5.95
  • 91
    Insulator – Part Number: 84004804
    Insulator
    Part Number: 84004804
      Special Order
    $6.46
  • 92
    Gasket – Part Number: 84004803
    Gasket
    Part Number: 84004803
      Special Order
    $5.95
  • 93
    Pipe-Air Cleaner – Part Number: 84004807
    Pipe-Air Cleaner
    Part Number: 84004807
      Special Order
    $19.46
  • 95
    Cover-Air Box – Part Number: 84004864
    Cover-Air Box
    Part Number: 84004864
      Special Order
    $7.62
  • 97
    Spacer – Part Number: 84005277
    Spacer
    Part Number: 84005277
      Special Order
    $5.95
  • 99
    PAD, RUBBER – Part Number: 84004962
    PAD, RUBBER
    Part Number: 84004962
      Special Order
    $7.36
  • 100
    Washer – Part Number: 84005278
    Washer
    Part Number: 84005278
      Special Order
    $5.95
  • 101
    Cover-Air Box – Part Number: 84004865
    Cover-Air Box
    Part Number: 84004865
      Special Order
    $12.18
  • 102
    Seal – Part Number: 84004860
    Seal
    Part Number: 84004860
      Special Order
    $9.90
  • 103
    Filter, Air – Part Number: 84003886
    Filter, Air
    Part Number: 84003886
      Special Order
    $6.96
Main Unit P3 Engine
Main Unit P3 Engine Diagram and Parts List for Briggs and Stratton Generator
  • 105
    Plug, Spark – Part Number: 84003884
    Plug, Spark
    Part Number: 84003884
      Special Order
    $10.50
  • 106
    Cover-Fan – Part Number: 84004801
    Cover-Fan
    Part Number: 84004801
      Special Order
    $42.48
  • 107
    Flywheel – Part Number: 84004800
    Flywheel
    Part Number: 84004800
      Special Order
    $72.33
  • 108
    Mount-Vibration – Part Number: 84005290
    Mount-Vibration
    Part Number: 84005290
      Special Order
    $8.58
  • 109
    Coil-Ignition – Part Number: 84004814
    Coil-Ignition
    Part Number: 84004814
      Special Order
    $55.51
  • 110
    COIL – Part Number: 84004799
    COIL
    Part Number: 84004799
      Special Order
    $65.89
  • 111
    Seal – Part Number: 84004791
    Seal
    Part Number: 84004791
      Special Order
    $5.95
  • 112
    Gasket – Part Number: 84004798
    Gasket
    Part Number: 84004798
      Special Order
    $14.30
  • 113
    Gauge-Oil – Part Number: 84004797
    Gauge-Oil
    Part Number: 84004797
      Special Order
    $24.02
  • 116
    CAP, OIL FILL – Part Number: 84004819
    CAP, OIL FILL
    Part Number: 84004819
      Special Order
    $5.95
  • 117
    Fan – Part Number: 84004795
    Fan
    Part Number: 84004795
      Special Order
    $16.20
  • 118
    Rotor – Part Number: 84004794
    Rotor
    Part Number: 84004794
      Special Order
    $168.35
  • 120
    Screw – Part Number: 84005289
    Screw
    Part Number: 84005289
      No Longer Available
  • 121
    Stator – Part Number: 84004793
    Stator
    Part Number: 84004793
      Special Order
    $342.69
  • 122
    Cover-End – Part Number: 84004792
    Cover-End
    Part Number: 84004792
      Special Order
    $52.02
  • 123
    GASKET – Part Number: 84004811
    GASKET
    Part Number: 84004811
      Special Order
    $5.95
  • 124
    Gasket – Part Number: 84004809
    Gasket
    Part Number: 84004809
      Special Order
    $6.28
  • 125
    VALVE, BREATHER – Part Number: 84004810
    VALVE, BREATHER
    Part Number: 84004810
      Special Order
    $12.00
  • 126
    COVER, CYLINDER HEAD – Part Number: 84004813
    COVER, CYLINDER HEAD
    Part Number: 84004813
      Special Order
    $18.88
  • 127
    NUT – Part Number: 84004820
    NUT
    Part Number: 84004820
      Special Order
    $5.95
  • 128
    Recoil – Part Number: 84004802
    Recoil
    Part Number: 84004802
      Special Order
    $36.16
Wheel Kit
Wheel Kit Diagram and Parts List for Briggs and Stratton Generator
  • 1
    Wheel – Part Number: 84006151
    Wheel
    Part Number: 84006151
      No Longer Available
  • 2
    Screw – Part Number: 807084
    Screw
    Part Number: 807084
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • 4
    Bolt – Part Number: 84006149
    Bolt
    Part Number: 84006149
      No Longer Available

Questions & Answers

?

Our customer Service team is at the ready daily to answer your part and product questions.

Be the first to ask our experts a question about this part!

Ask our Team

We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.

✖

Our customer service team are at the ready daily to answer your part and product questions. We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.
