Briggs and Stratton 8838-0 - S1000, 750 Watt Generator Replacement Parts For Model 8838-0-S1000

We Sell Only Genuine Briggs and Stratton Parts

Popular Parts for 8838-0-S1000

M5-0.8 x 20mm Taptite Screw – Part Number: 49815GS M5-0.8 x 20mm Taptite Screw
Special Order
$5.95
Bearing – Part Number: 65791GS Bearing
Special Order
$47.27
Lockwasher, 5/16 - M8 – Part Number: 22129GS Lockwasher, 5/16 - M8
Special Order
$5.95
Hhcs, M8 - 1.0 X 35 – Part Number: 39414GS Hhcs, M8 - 1.0 X 35
Special Order
$5.95
OBS RECOIL ASM – Part Number: 20465188 OBS RECOIL ASM
Special Order
$116.79
CNTRL PNL DECL 750-W – Part Number: 67236 CNTRL PNL DECL 750-W
Special Order
$28.58
ENGINE SUPPORT 750 W – Part Number: 67400 ENGINE SUPPORT 750 W
Special Order
$19.33
OBS FAN-COOLING STMD – Part Number: 67403 OBS FAN-COOLING STMD
Special Order
$39.60

Search Within Model

Questions & Answers for Briggs and Stratton 8838-0-S1000
Browse all Parts Search by Area
4-Cycle Engine Kawasaki Model Nbr. Fa-76 Diagram and Parts List for Briggs and Stratton Generator
4-Cycle Engine Kawasaki Model Nbr. Fa-76
Ac Generator No. 67409 Diagram and Parts List for Briggs and Stratton Generator
Ac Generator No. 67409
Carburetor Diagram and Parts List for Briggs and Stratton Generator
Carburetor
Recoil Starter Diagram and Parts List for Briggs and Stratton Generator
Recoil Starter
Previous Showing All Parts Next

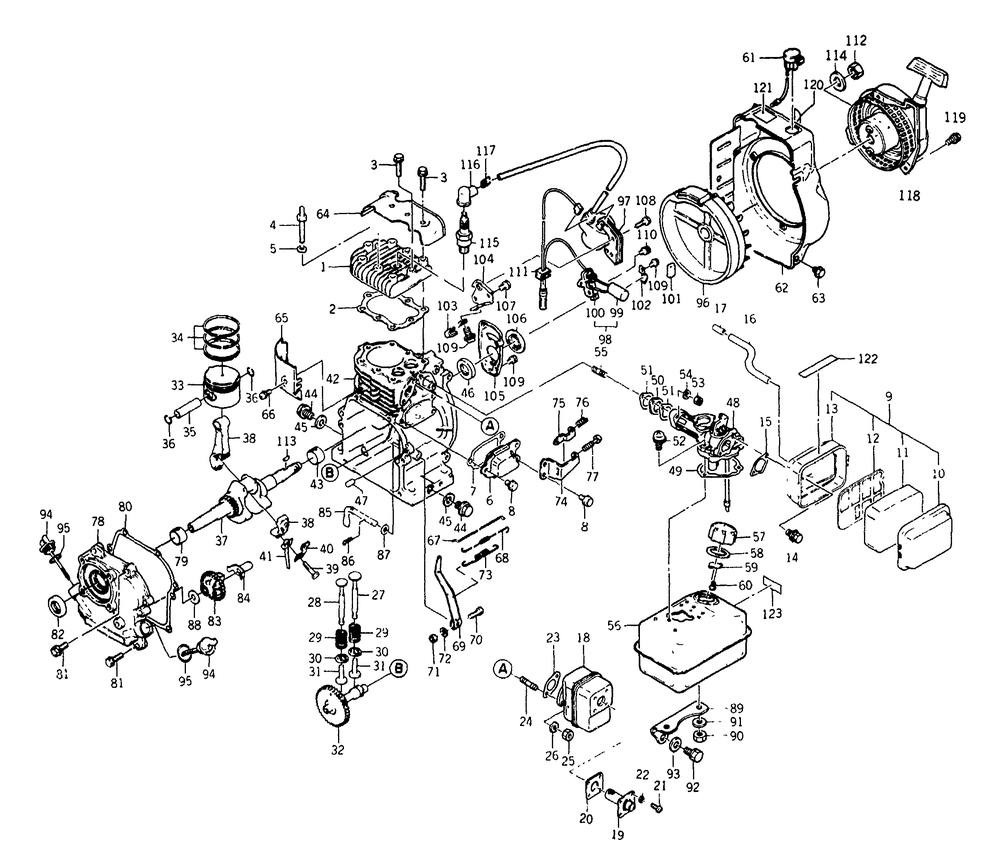

4-Cycle Engine Kawasaki Model Nbr. Fa-76
4-Cycle Engine Kawasaki Model Nbr. Fa-76 Diagram and Parts List for Briggs and Stratton Generator

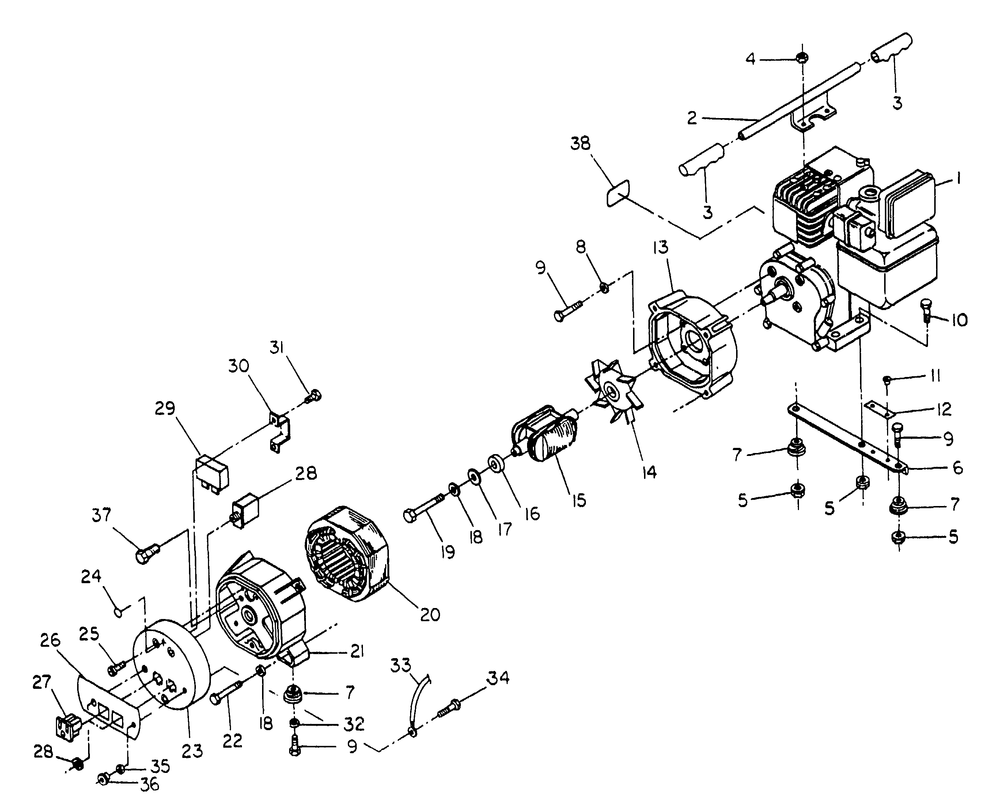

Ac Generator No. 67409
Ac Generator No. 67409 Diagram and Parts List for Briggs and Stratton Generator

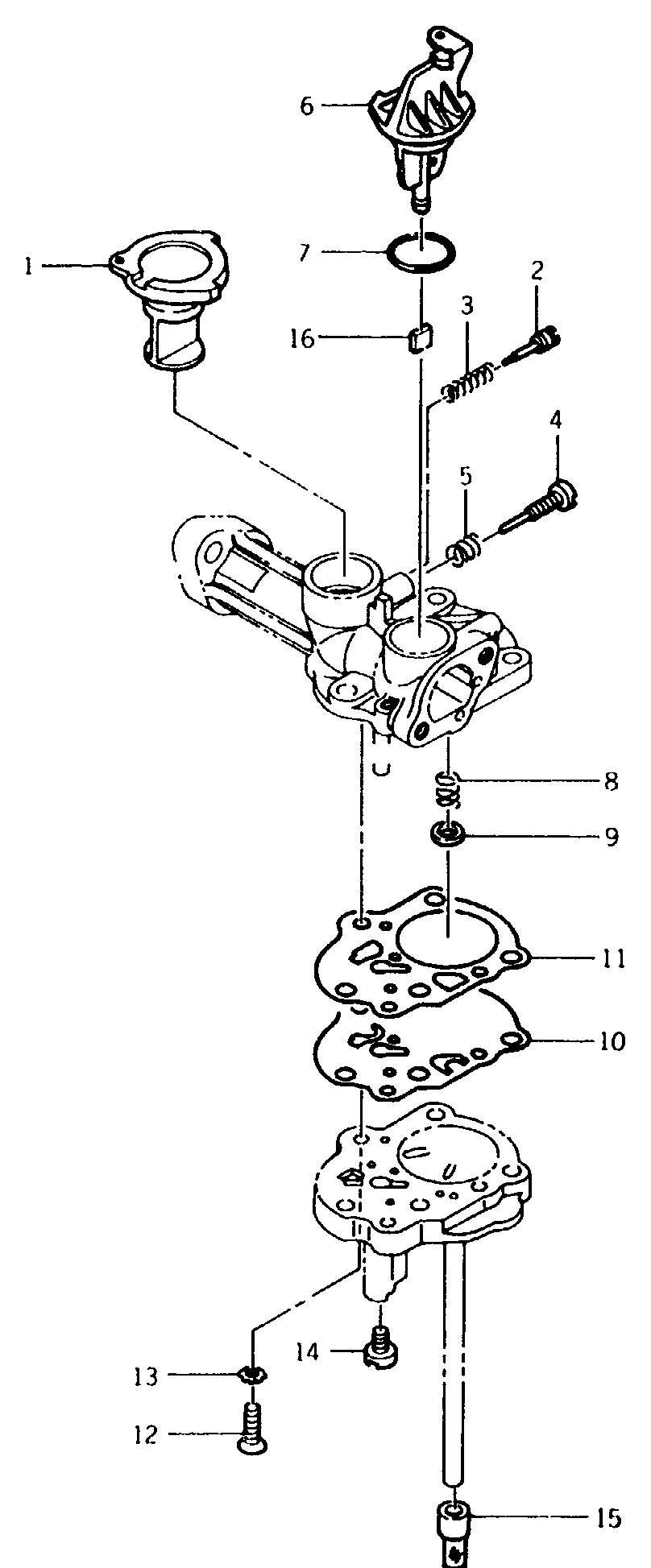

Carburetor
Carburetor Diagram and Parts List for Briggs and Stratton Generator
  • ASM CARB – Part Number: 15066898GS
    ASM CARB
    Part Number: 15066898GS
      No Longer Available
  • 1
    SHAFT, Throttle – Part Number: 22466898
    SHAFT, Throttle
    Part Number: 22466898
      No Longer Available
  • 2
    SCREW, Adjusting – Part Number: 22566898
    SCREW, Adjusting
    Part Number: 22566898
      No Longer Available
  • 3
    SPRING – Part Number: 22666898
    SPRING
    Part Number: 22666898
      No Longer Available
  • 4
    SCREW, Low Speed Stop – Part Number: 22766898
    SCREW, Low Speed Stop
    Part Number: 22766898
      No Longer Available
  • 5
    SPRING – Part Number: 22866898
    SPRING
    Part Number: 22866898
      No Longer Available
  • 6
    SHAFT, Choke – Part Number: 22966898
    SHAFT, Choke
    Part Number: 22966898
      No Longer Available
  • 7
    O-RING – Part Number: 23066898
    O-RING
    Part Number: 23066898
      No Longer Available
  • 8
    SPRING – Part Number: 23166898
    SPRING
    Part Number: 23166898
      No Longer Available
  • 9
    CAP, Spring – Part Number: 23266898
    CAP, Spring
    Part Number: 23266898
      No Longer Available
  • 10
    DIAPHRAGM – Part Number: 23366898
    DIAPHRAGM
    Part Number: 23366898
      No Longer Available
  • 11
    GASKET – Part Number: 23466898
    GASKET
    Part Number: 23466898
      No Longer Available
  • 12
    SCREW- 4 x 12 – Part Number: 23566898
    SCREW- 4 x 12
    Part Number: 23566898
      No Longer Available
  • 13
    WASHER – Part Number: 23666898
    WASHER
    Part Number: 23666898
      No Longer Available
  • 14
    JET, Main- No. 54 – Part Number: 23766898
    JET, Main- No. 54
    Part Number: 23766898
      No Longer Available
  • 15
    STRAINER – Part Number: 23866898
    STRAINER
    Part Number: 23866898
      No Longer Available
  • 16
    SPACER – Part Number: 23966898
    SPACER
    Part Number: 23966898
      No Longer Available

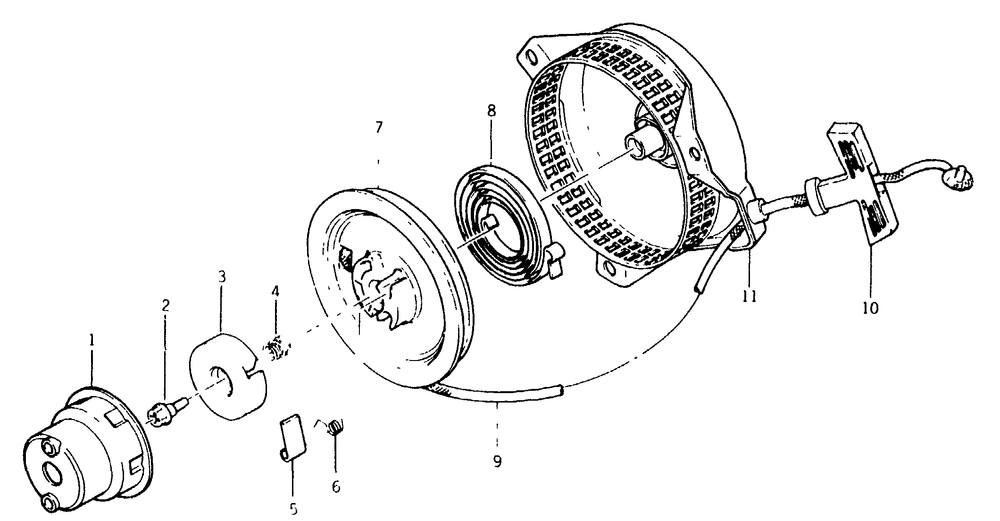

Recoil Starter
Recoil Starter Diagram and Parts List for Briggs and Stratton Generator
  • OBS RECOIL ASM – Part Number: 20465188
    OBS RECOIL ASM
    Part Number: 20465188
      Special Order
    $116.79
  • 1
    PULLEY – Part Number: 22865188
    PULLEY
    Part Number: 22865188
      Special Order
    $18.92
  • 2
    BOLT – Part Number: 22965188
    BOLT
    Part Number: 22965188
      Special Order
    $5.95
  • 3
    OBS RETAINER – Part Number: 23065188
    OBS RETAINER
    Part Number: 23065188
      Special Order
    $10.89
  • 4
    SPRING – Part Number: 23165188
    SPRING
    Part Number: 23165188
      Special Order
    $2.99
  • 5
    Pawl recoil – Part Number: 23265188
    Pawl recoil
    Part Number: 23265188
      Special Order
    $47.28
  • 6
    Spring return – Part Number: 23365188
    Spring return
    Part Number: 23365188
      Special Order
    $2.99
  • 7
    REEL, RECOIL – Part Number: 23465188
    REEL, RECOIL
    Part Number: 23465188
      On Order
    $26.32
  • 8
    SPRING, RECOIL – Part Number: 23565188
    SPRING, RECOIL
    Part Number: 23565188
      Special Order
    $22.32
  • 9
    Rope – Part Number: 23665188
    Rope
    Part Number: 23665188
      Special Order
    $17.00
  • 10
    HANDLE – Part Number: 23765188
    HANDLE
    Part Number: 23765188
      Special Order
    $17.78
  • 11
    Case recoil starter – Part Number: 23865188
    Case recoil starter
    Part Number: 23865188
      Special Order
    $63.19
