Toro Replacement Engine, 2-Cycle (Zone Start) Replacement Parts For Model 59255 (4000001 - 4999999)

We Sell Only Genuine Toro Parts

Popular Parts for 59255

Spark Plug – Part Number: 50-1170 Spark Plug
In Stock
$14.22
Gasket-carb – Part Number: 81-0780 Gasket-carb
Special Order
$10.48
Filter – Part Number: 81-0100 Filter
Special Order
$14.05
Gasket-air Cleaner – Part Number: 81-0090 Gasket-air Cleaner
In Stock
$12.56
Decal – Part Number: 98-3206 Decal
In Stock
$5.95
Gasket – Part Number: 81-1010 Gasket
On Order
$29.98
Gasket – Part Number: 81-2320 Gasket
In Stock
$12.18
Gasket – Part Number: 81-1080 Gasket
In Stock
$12.92

Search Within Model

Questions & Answers for Toro 59255
Browse all Parts Search by Area
Carburetor Assembly Diagram and Parts List for 4000001 - 4999999 Toro Engine
Carburetor Assembly
Engine Assembly Diagram and Parts List for 4000001 - 4999999 Toro Engine
Engine Assembly
Flywheel & Magneto Assembly Diagram and Parts List for 4000001 - 4999999 Toro Engine
Flywheel & Magneto Assembly
Governor Assembly Diagram and Parts List for 4000001 - 4999999 Toro Engine
Governor Assembly
Muffler Assembly Diagram and Parts List for 4000001 - 4999999 Toro Engine
Muffler Assembly
Recoil Assembly Diagram and Parts List for 4000001 - 4999999 Toro Engine
Recoil Assembly
Short Block Assembly Diagram and Parts List for 4000001 - 4999999 Toro Engine
Short Block Assembly
Previous Showing All Parts Next

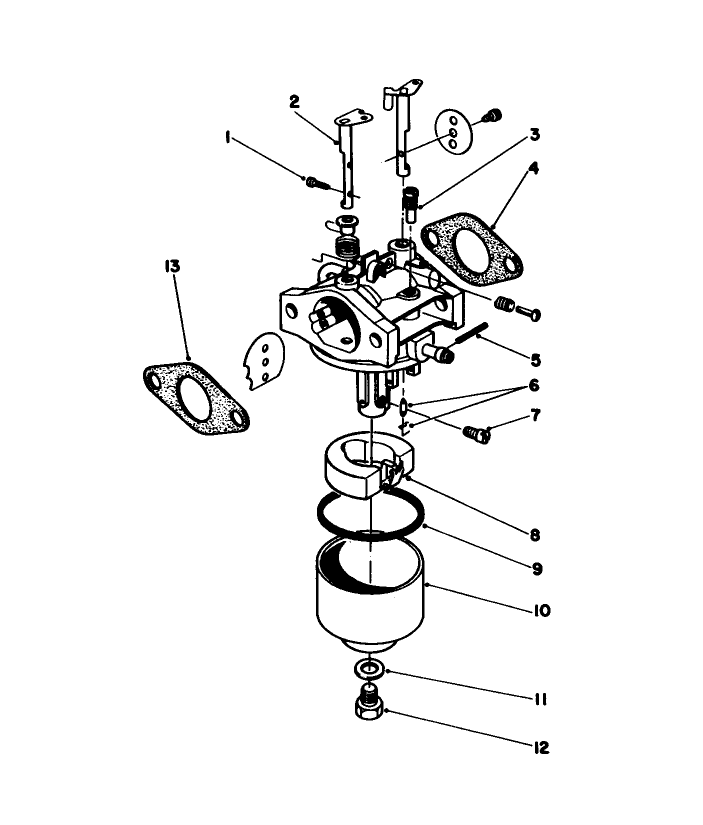

Carburetor Assembly
Carburetor Assembly Diagram and Parts List for 4000001 - 4999999 Toro Engine
  • Jet-High Altitude – Part Number: 81-2340
    Jet-High Altitude
    Part Number: 81-2340
      Special Order
    $31.86
  • Carburetor Kit – Part Number: 81-1960
    Carburetor Kit
    Part Number: 81-1960
      No Longer Available
  • DISCONTINUED – Part Number: 81-1930
    DISCONTINUED
    Part Number: 81-1930
      No Longer Available
  • 1
    Screw – Part Number: 81-2160
    Screw
    Part Number: 81-2160
      Special Order
    $7.10
  • 2
    Shaft-Choke – Part Number: 81-1950
    Shaft-Choke
    Part Number: 81-1950
      No Longer Available
  • 3
    Pilot Jet – Part Number: 81-1030
    Pilot Jet
    Part Number: 81-1030
      Special Order
    $47.71
  • 4
    Gasket-carb – Part Number: 81-0780
    Gasket-carb
    Part Number: 81-0780
      Special Order
    $10.48
  • 5
    Pin-Hinge – Part Number: 81-2600
    Pin-Hinge
    Part Number: 81-2600
      Special Order
    $12.56
  • 6
    Needle Valve Asm – Part Number: 81-1600
    Needle Valve Asm
    Part Number: 81-1600
      No Longer Available
  • 7
    Main Jet – Part Number: 81-1940
    Main Jet
    Part Number: 81-1940
      No Longer Available
  • 8
    Float – Part Number: 81-0970
    Float
    Part Number: 81-0970
      Special Order
    $78.10
  • 9
    Gasket – Part Number: 81-1010
    Gasket
    Part Number: 81-1010
      On Order
    $29.98
  • 10
    Bowl - Float – Part Number: 81-5660
    Bowl - Float
    Part Number: 81-5660
      Special Order
    $90.60
  • 11
    Gasket – Part Number: 81-1020
    Gasket
    Part Number: 81-1020
      No Longer Available
  • 12
    Screw – Part Number: 81-5670
    Screw
    Part Number: 81-5670
      Special Order
    $22.48
  • 13
    Gasket-air Cleaner – Part Number: 81-0090
    Gasket-air Cleaner
    Part Number: 81-0090
      In Stock
    $12.56

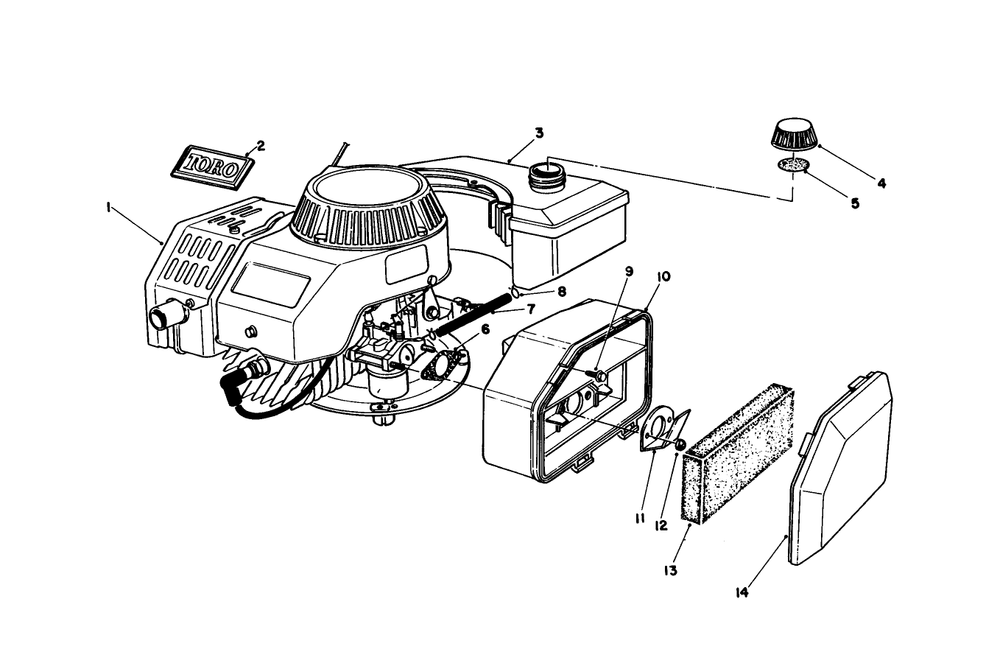

Engine Assembly
Engine Assembly Diagram and Parts List for 4000001 - 4999999 Toro Engine

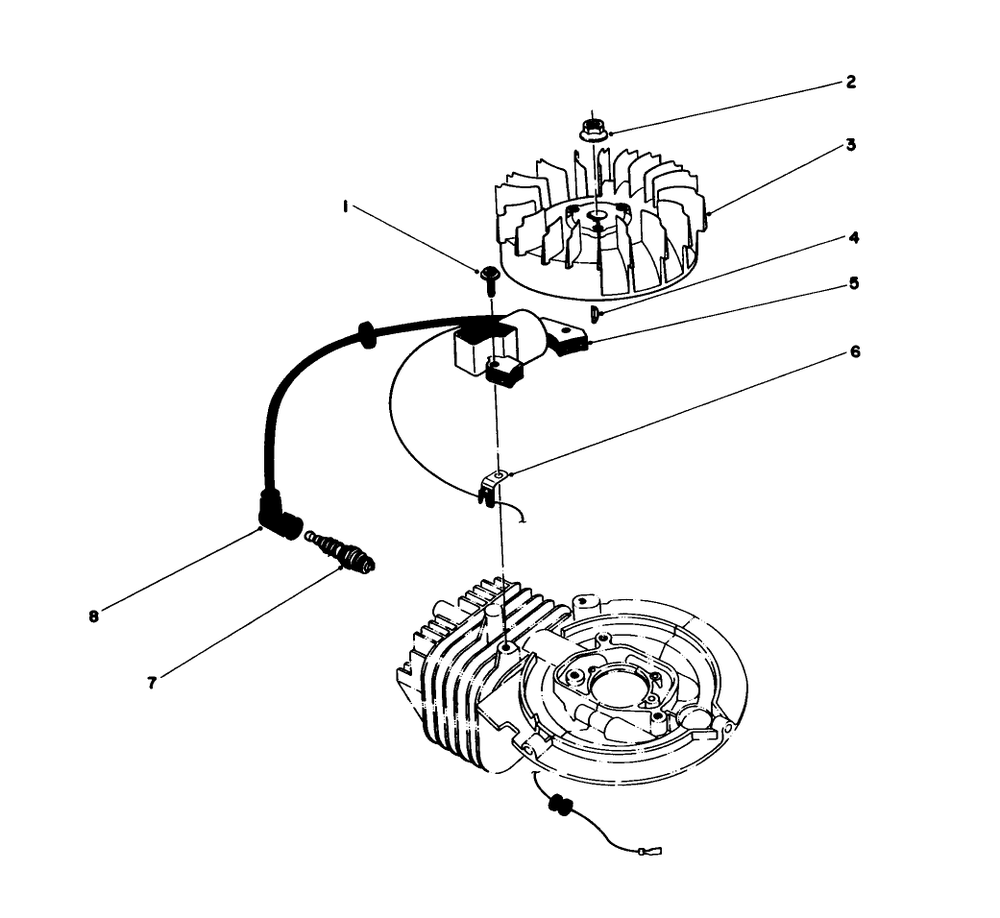

Flywheel & Magneto Assembly
Flywheel & Magneto Assembly Diagram and Parts List for 4000001 - 4999999 Toro Engine

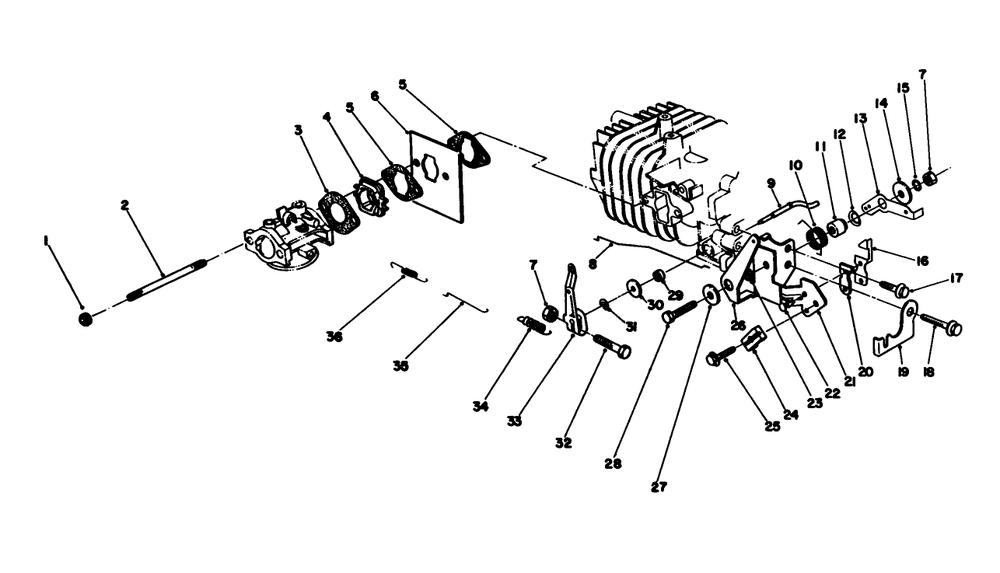

Governor Assembly
Governor Assembly Diagram and Parts List for 4000001 - 4999999 Toro Engine
  • 1
    Nut-Lock – Part Number: 33023-00
    Nut-Lock
    Part Number: 33023-00
      Special Order
    $5.95
  • 2
    Carb Stud Bolt – Part Number: 81-2240
    Carb Stud Bolt
    Part Number: 81-2240
      No Longer Available
  • 3
    Gasket-carb – Part Number: 81-0780
    Gasket-carb
    Part Number: 81-0780
      Special Order
    $10.48
  • 4
    Insulator – Part Number: 81-2190
    Insulator
    Part Number: 81-2190
      No Longer Available
  • 5
    Gasket – Part Number: 81-2320
    Gasket
    Part Number: 81-2320
      In Stock
    $12.18
  • 6
    Shield – Part Number: 81-2330
    Shield
    Part Number: 81-2330
      No Longer Available
  • 7
    Nut – Part Number: 81-0900
    Nut
    Part Number: 81-0900
      No Longer Available
  • 8
    Choke Rod – Part Number: 81-1720
    Choke Rod
    Part Number: 81-1720
      No Longer Available
  • 9
    Shaft-Govemor – Part Number: 81-0840
    Shaft-Govemor
    Part Number: 81-0840
      No Longer Available
  • 10
    DISCONTINUED – Part Number: 81-1780
    DISCONTINUED
    Part Number: 81-1780
      No Longer Available
  • 11
    Spacer – Part Number: 81-5780
    Spacer
    Part Number: 81-5780
      No Longer Available
  • 12
    Washer-Gov. Spring Lever – Part Number: 81-1820
    Washer-Gov. Spring Lever
    Part Number: 81-1820
      No Longer Available
  • 13
    Gov Spring Lever – Part Number: 81-1670
    Gov Spring Lever
    Part Number: 81-1670
      Special Order
    $6.90
  • 14
    Washer – Part Number: 81-1750
    Washer
    Part Number: 81-1750
      No Longer Available
  • 15
    Lockwasher – Part Number: 81-1450
    Lockwasher
    Part Number: 81-1450
      No Longer Available
  • 16
    Terminal-Kill Switch – Part Number: 81-1840
    Terminal-Kill Switch
    Part Number: 81-1840
      Special Order
    $16.86
  • 17
    Bolt – Part Number: 81-1170
    Bolt
    Part Number: 81-1170
      No Longer Available
  • 18
    Bolt – Part Number: 81-0540
    Bolt
    Part Number: 81-0540
      No Longer Available
  • 19
    Bracket-Throttle Support – Part Number: 81-2360
    Bracket-Throttle Support
    Part Number: 81-2360
      No Longer Available
  • 20
    Insulator-Kill Switch – Part Number: 81-1830
    Insulator-Kill Switch
    Part Number: 81-1830
      Special Order
    $10.68
  • 21
    DISCONTINUED – Part Number: 81-1680
    DISCONTINUED
    Part Number: 81-1680
      No Longer Available
  • 22
    Kill Switch Rivet – Part Number: 81-1850
    Kill Switch Rivet
    Part Number: 81-1850
      No Longer Available
  • 23
    Spacer-Choke Lever – Part Number: 81-2470
    Spacer-Choke Lever
    Part Number: 81-2470
      No Longer Available
  • 24
    Clamp-Cable – Part Number: 81-1690
    Clamp-Cable
    Part Number: 81-1690
      Special Order
    $5.95
  • 25
    Bolt – Part Number: 50-0130
    Bolt
    Part Number: 50-0130
      No Longer Available
  • 26
    Lever-Control, Choke – Part Number: 81-1710
    Lever-Control, Choke
    Part Number: 81-1710
      No Longer Available
  • 27
    Washer – Part Number: 50-0760
    Washer
    Part Number: 50-0760
      No Longer Available
  • 28
    Bolt – Part Number: 81-1730
    Bolt
    Part Number: 81-1730
      No Longer Available
  • 29
    Seal-Oil – Part Number: 81-0850
    Seal-Oil
    Part Number: 81-0850
      Special Order
    $28.10
  • 30
    Washer – Part Number: 81-0860
    Washer
    Part Number: 81-0860
      No Longer Available
  • 31
    E-Ring – Part Number: 81-0870
    E-Ring
    Part Number: 81-0870
      No Longer Available
  • 32
    Bolt – Part Number: 81-0890
    Bolt
    Part Number: 81-0890
      No Longer Available
  • 33
    Lever-Throttle Control – Part Number: 81-0880
    Lever-Throttle Control
    Part Number: 81-0880
      No Longer Available
  • 34
    Governor Spring – Part Number: 81-1970
    Governor Spring
    Part Number: 81-1970
      No Longer Available
  • 35
    Rod-Carburetor – Part Number: 81-0910
    Rod-Carburetor
    Part Number: 81-0910
      No Longer Available
  • 36
    Spring – Part Number: 81-0920
    Spring
    Part Number: 81-0920
      Special Order
    $18.72

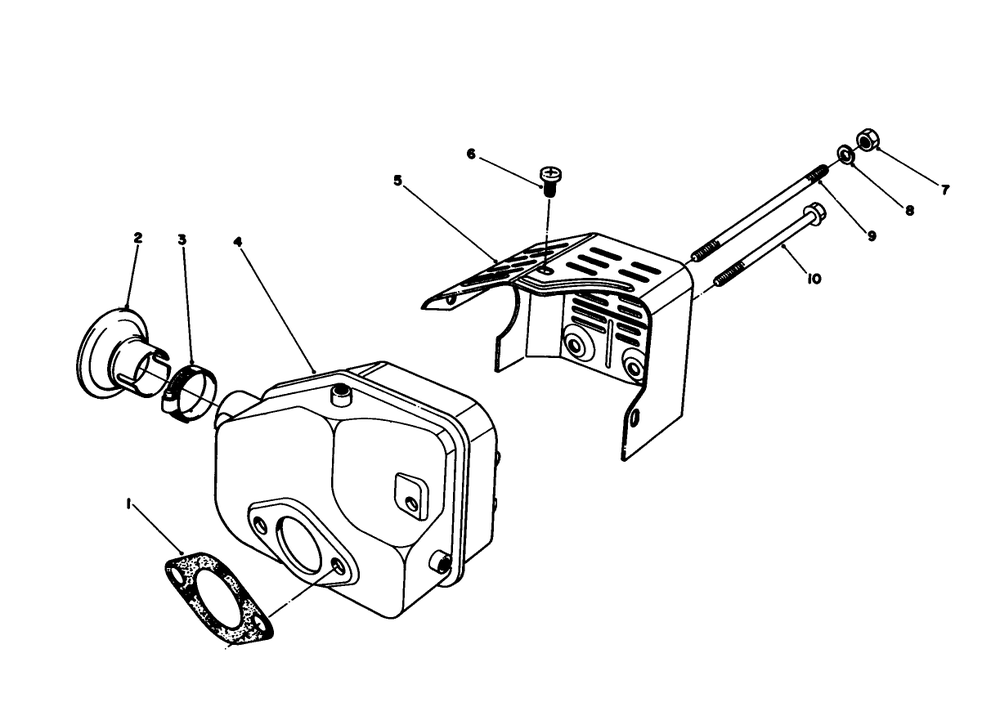

Muffler Assembly
Muffler Assembly Diagram and Parts List for 4000001 - 4999999 Toro Engine
  • 1
    Gasket – Part Number: 81-1080
    Gasket
    Part Number: 81-1080
      In Stock
    $12.92
  • 2
    Arrestor-Spark – Part Number: 81-0200
    Arrestor-Spark
    Part Number: 81-0200
      No Longer Available
  • 4
    DISCONTINUED – Part Number: 81-1090
    DISCONTINUED
    Part Number: 81-1090
      No Longer Available
  • 5
    DISCONTINUED – Part Number: 81-1130
    DISCONTINUED
    Part Number: 81-1130
      No Longer Available
  • 6
    Screw – Part Number: 81-1140
    Screw
    Part Number: 81-1140
      Special Order
    $10.10
  • 7
    Nut – Part Number: 81-1110
    Nut
    Part Number: 81-1110
      No Longer Available
  • 8
    Washer-Lock – Part Number: 81-1120
    Washer-Lock
    Part Number: 81-1120
      No Longer Available
  • 9
    Bolt – Part Number: 81-1100
    Bolt
    Part Number: 81-1100
      No Longer Available
  • 10
    Bolt – Part Number: 81-1150
    Bolt
    Part Number: 81-1150
      Special Order
    $14.60

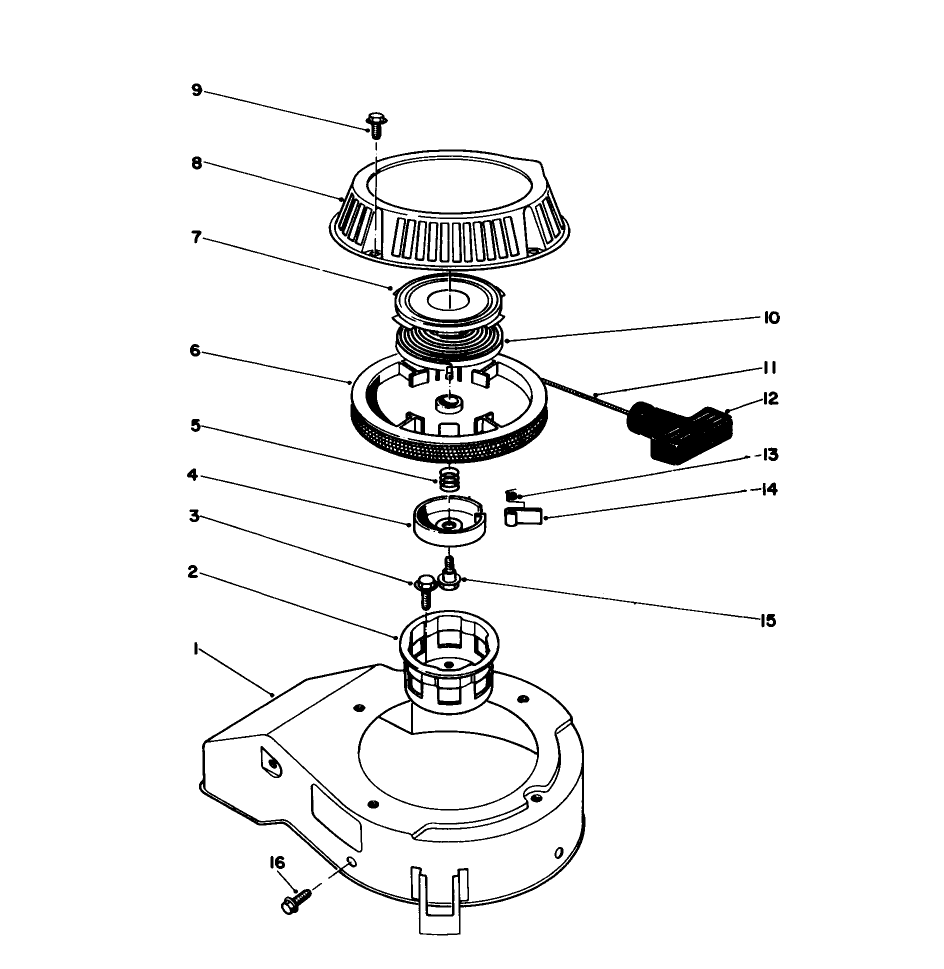

Recoil Assembly
Recoil Assembly Diagram and Parts List for 4000001 - 4999999 Toro Engine
  • Recoil Asm – Part Number: 81-2040
    Recoil Asm
    Part Number: 81-2040
      No Longer Available
  • Spring – Part Number: 81-2300
    Spring
    Part Number: 81-2300
      In Stock
    $61.35
  • 1
    Cover – Part Number: 81-2070
    Cover
    Part Number: 81-2070
      No Longer Available
  • 2
    Cup - Starter – Part Number: 81-1290
    Cup - Starter
    Part Number: 81-1290
      No Longer Available
  • 3
    Bolt – Part Number: 81-1300
    Bolt
    Part Number: 81-1300
      Special Order
    $14.60
  • 4
    Retainer – Part Number: 81-1250
    Retainer
    Part Number: 81-1250
      No Longer Available
  • 5
    Spring – Part Number: 81-1240
    Spring
    Part Number: 81-1240
      No Longer Available
  • 6
    Reel – Part Number: 81-1210
    Reel
    Part Number: 81-1210
      Special Order
    $70.30
  • 7
    Spring – Part Number: 81-2300
    Spring
    Part Number: 81-2300
      In Stock
    $61.35
  • 8
    Case – Part Number: 81-2090
    Case
    Part Number: 81-2090
      No Longer Available
  • 9
    Screw-Hhf – Part Number: 81-1280
    Screw-Hhf
    Part Number: 81-1280
      Special Order
    $5.95
  • 10
    Spring – Part Number: 81-2300
    Spring
    Part Number: 81-2300
      In Stock
    $61.35
  • 11
    Rope (3.5mm X 2.3mm) – Part Number: 613773
    Rope (3.5mm X 2.3mm)
    Part Number: 613773
      No Longer Available
  • 12
    Handle-start – Part Number: 81-1630
    Handle-start
    Part Number: 81-1630
      No Longer Available
  • 13
    Spring – Part Number: 81-1220
    Spring
    Part Number: 81-1220
      No Longer Available
  • 14
    Dog – Part Number: 81-1230
    Dog
    Part Number: 81-1230
      No Longer Available
  • 15
    Bolt – Part Number: 81-1260
    Bolt
    Part Number: 81-1260
      No Longer Available
  • 16
    Bolt – Part Number: 81-1170
    Bolt
    Part Number: 81-1170
      No Longer Available

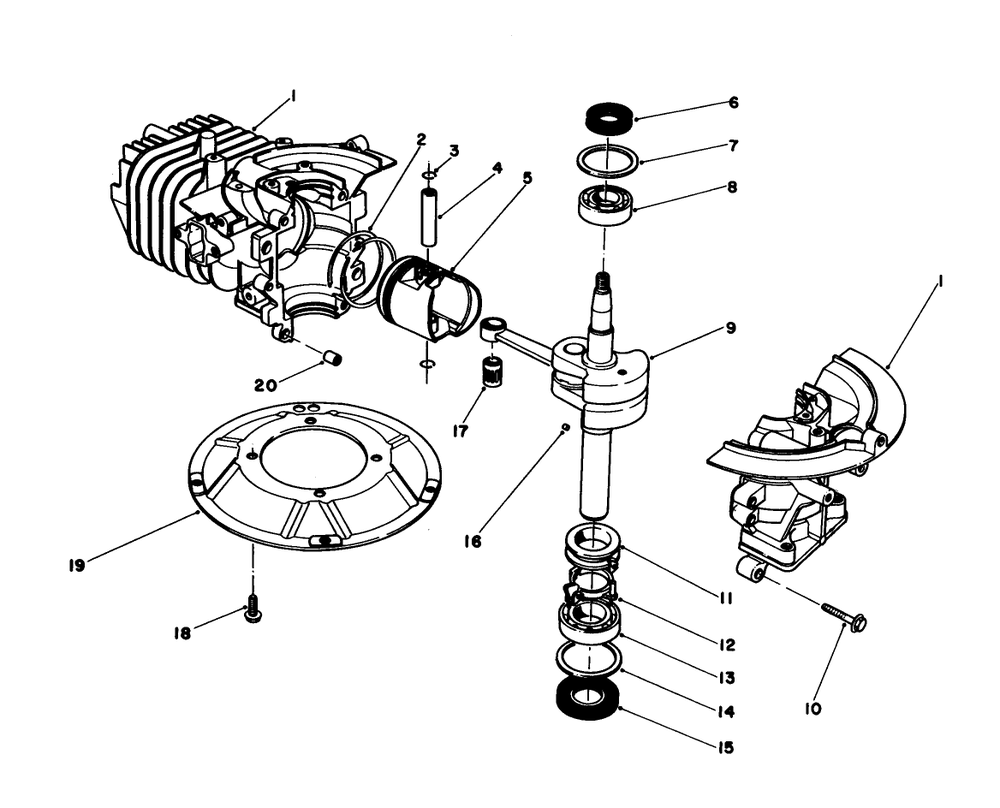

Short Block Assembly
Short Block Assembly Diagram and Parts List for 4000001 - 4999999 Toro Engine
  • CONTROL-CHOKE – Part Number: 116289
    CONTROL-CHOKE
    Part Number: 116289
      Special Order
    $128.89
  • 1
    Crankcase-Cylinder Assembly. – Part Number: 81-2060
    Crankcase-Cylinder Assembly.
    Part Number: 81-2060
      No Longer Available
  • 2
    Ring Set – Part Number: 81-0590
    Ring Set
    Part Number: 81-0590
      On Order
    $85.92
  • 3
    Clip – Part Number: 81-0620
    Clip
    Part Number: 81-0620
      Special Order
    $14.60
  • 4
    Pin-Piston – Part Number: 81-0600
    Pin-Piston
    Part Number: 81-0600
      No Longer Available
  • 5
    Piston – Part Number: 81-2140
    Piston
    Part Number: 81-2140
      Special Order
    $215.61
  • 6
    Oil Seal – Part Number: 81-0720
    Oil Seal
    Part Number: 81-0720
      Special Order
    $28.10
  • 7
    Washer-Upper – Part Number: 81-0710
    Washer-Upper
    Part Number: 81-0710
      Special Order
    $33.73
  • 8
    Bearing-Upper – Part Number: 81-0690
    Bearing-Upper
    Part Number: 81-0690
      Special Order
    $161.91
  • 9
    Crankshaft Assembly – Part Number: 81-1550
    Crankshaft Assembly
    Part Number: 81-1550
      No Longer Available
  • 10
    Bolt – Part Number: 81-0540
    Bolt
    Part Number: 81-0540
      No Longer Available
  • 11
    Spacer – Part Number: 81-0770
    Spacer
    Part Number: 81-0770
      No Longer Available
  • 12
    Bracket – Part Number: 81-0750
    Bracket
    Part Number: 81-0750
      No Longer Available
  • 13
    Lower Brg – Part Number: 81-0700
    Lower Brg
    Part Number: 81-0700
      No Longer Available
  • 14
    Washer-Lower – Part Number: 81-0730
    Washer-Lower
    Part Number: 81-0730
      No Longer Available
  • 15
    Seal-Oil – Part Number: 81-0740
    Seal-Oil
    Part Number: 81-0740
      Special Order
    $37.48
  • 16
    Pin – Part Number: 81-0760
    Pin
    Part Number: 81-0760
      No Longer Available
  • 17
    Bearing – Part Number: 81-0610
    Bearing
    Part Number: 81-0610
      No Longer Available
  • 18
    Bolt – Part Number: 81-0570
    Bolt
    Part Number: 81-0570
      Special Order
    $14.22
  • 19
    Plate-Mounting – Part Number: 52-3630
    Plate-Mounting
    Part Number: 52-3630
      No Longer Available
  • 20
    Pin – Part Number: 81-0520
    Pin
    Part Number: 81-0520
      No Longer Available

Questions & Answers

?

Our customer Service team is at the ready daily to answer your part and product questions.

Be the first to ask our experts a question about this part!

Ask our Team

We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.

✖

Our customer service team are at the ready daily to answer your part and product questions. We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.
