Kawasaki 4 Stroke Engine Replacement Parts For Model FX730V-BS05-R

We Sell Only Genuine Kawasaki Parts

Popular Parts for FX730V-BS05-R

Seal-oil Rvc2 6x11x10.2 – Part Number: 92049-0862 Seal-oil Rvc2 6x11x10.2
In Stock
$11.63
Spark Plug – Part Number: BPR4ES Spark Plug
In Stock
$6.38
Fuel Filter – Part Number: 49019-0027 Fuel Filter
In Stock
$12.68
Muffler Gasket – Part Number: 11060-7016 Muffler Gasket
In Stock
Minimum Quantity of 2 required
$5.95
Filter-oil Bulk – Part Number: 49065-0736BK Filter-oil Bulk
Special Order
$24.38
Oil Seal – Part Number: 92049-7019 Oil Seal
In Stock
$5.95
O-ring – Part Number: 670D2016 O-ring
In Stock
Minimum Quantity of 2 required
$5.95
Collet – Part Number: 12011-2056 Collet
In Stock
$5.95

Search Within Model

Questions & Answers for Kawasaki FX730V-BS05-R
Browse all Parts Search by Area
Air_Filter_Muffler Diagram and Parts List for Kawasaki Engine
Air_Filter_Muffler
Carburetor Diagram and Parts List for Kawasaki Engine
Carburetor
Control-Equipment Diagram and Parts List for Kawasaki Engine
Control-Equipment

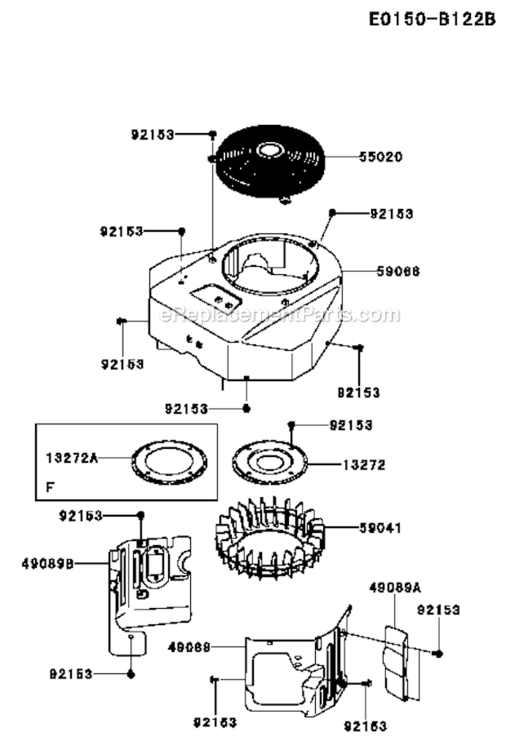

Cooling_Equipment Diagram and Parts List for Kawasaki Engine
Cooling_Equipment

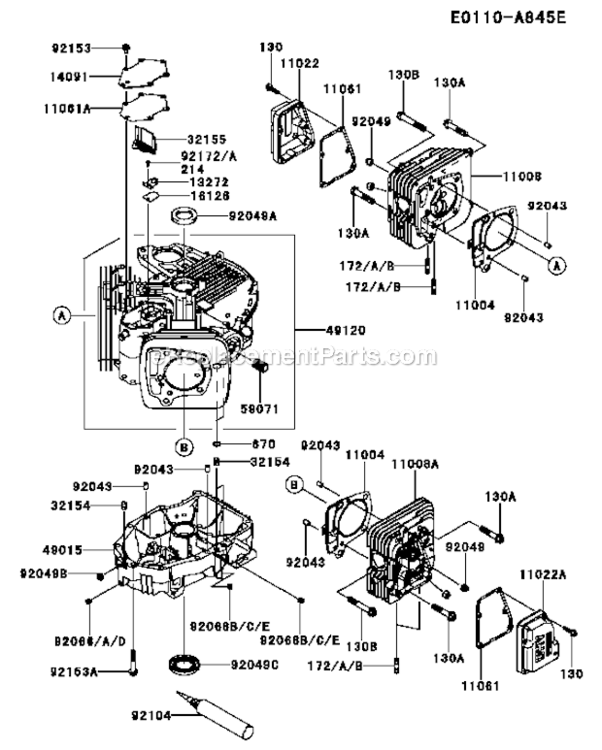

Cylinder_Crankcase Diagram and Parts List for Kawasaki Engine
Cylinder_Crankcase
Electric_Equipment Diagram and Parts List for Kawasaki Engine
Electric_Equipment

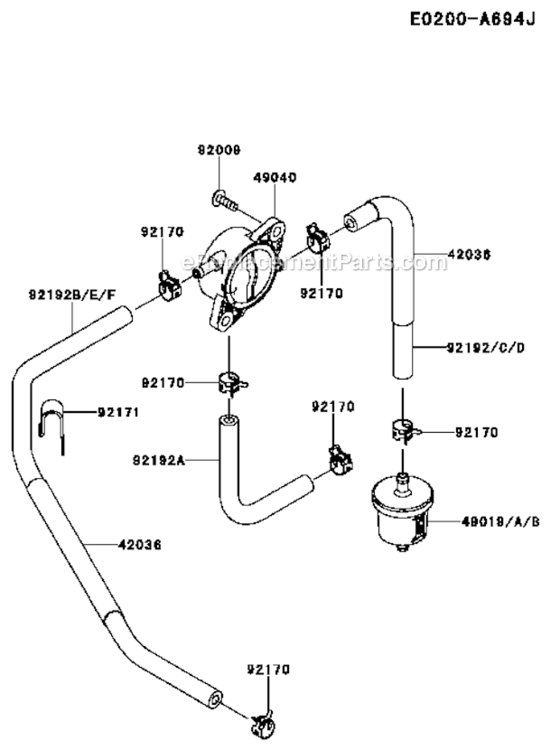

Fuel-Tank_Fuel-Valve Diagram and Parts List for Kawasaki Engine
Fuel-Tank_Fuel-Valve

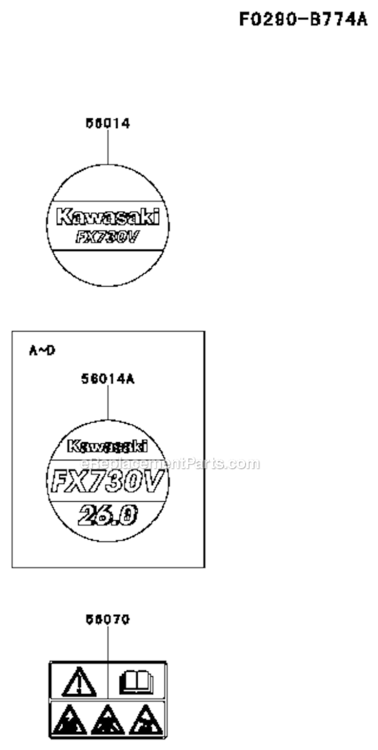

Label Diagram and Parts List for Kawasaki Engine
Label

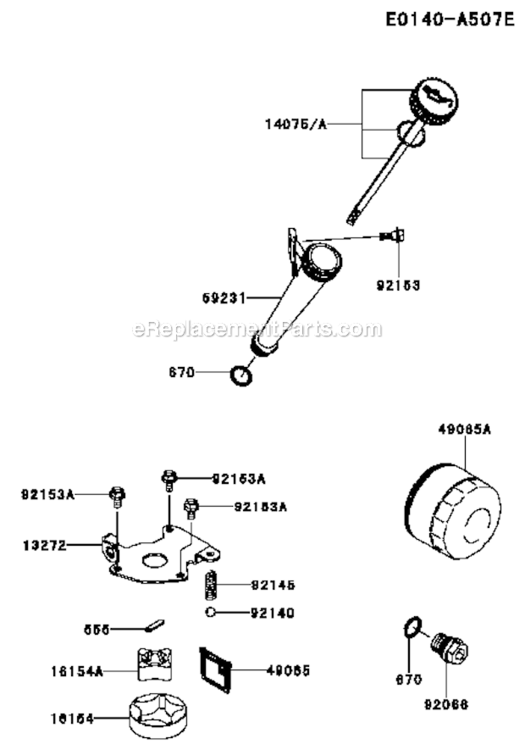

Lubrication_Equipment Diagram and Parts List for Kawasaki Engine
Lubrication_Equipment
Page B Diagram and Parts List for Kawasaki Engine
Page B

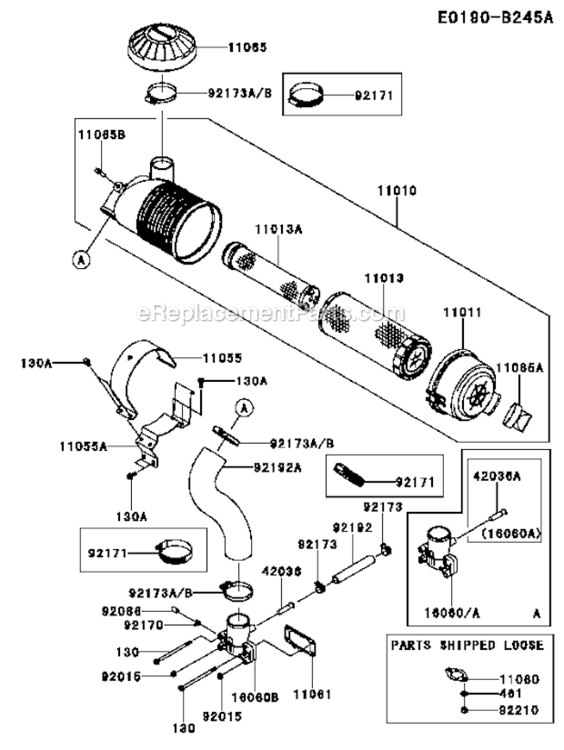

Page C Diagram and Parts List for Kawasaki Engine
Page C
Page E Diagram and Parts List for Kawasaki Engine
Page E
Page H Diagram and Parts List for Kawasaki Engine
Page H

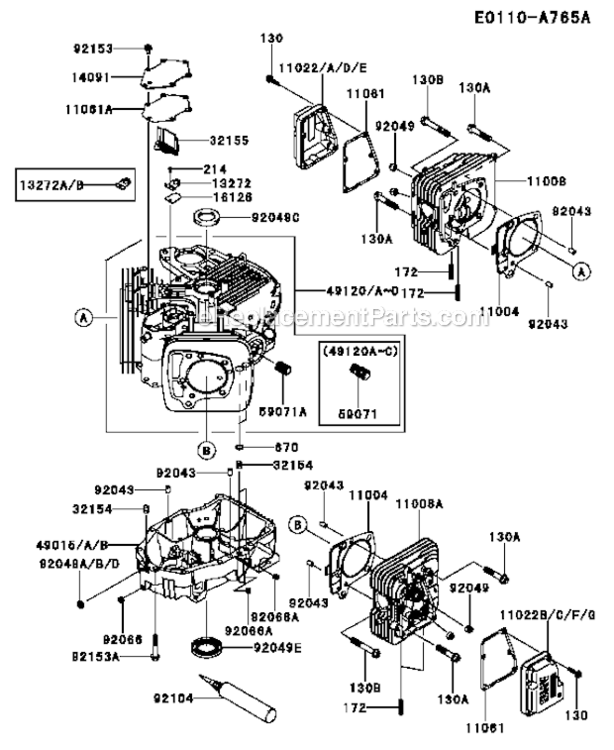

Page J Diagram and Parts List for Kawasaki Engine
Page J

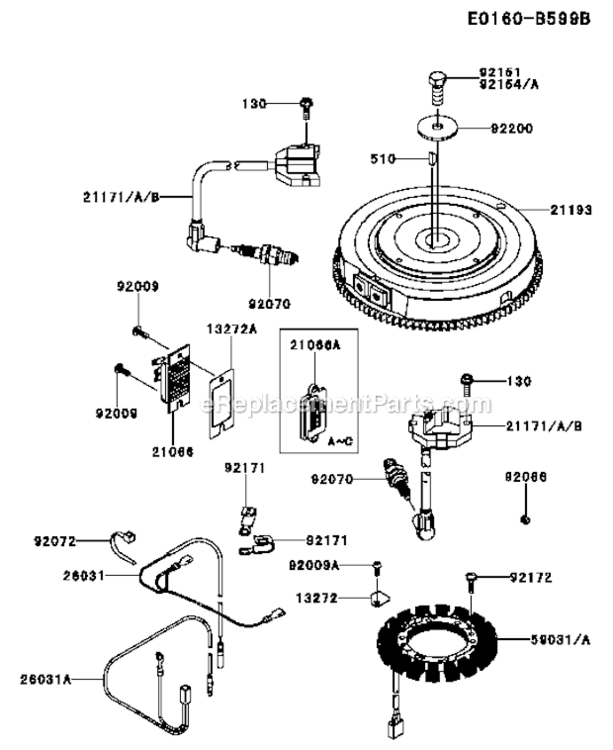

Page L Diagram and Parts List for Kawasaki Engine
Page L
Page N Diagram and Parts List for Kawasaki Engine
Page N

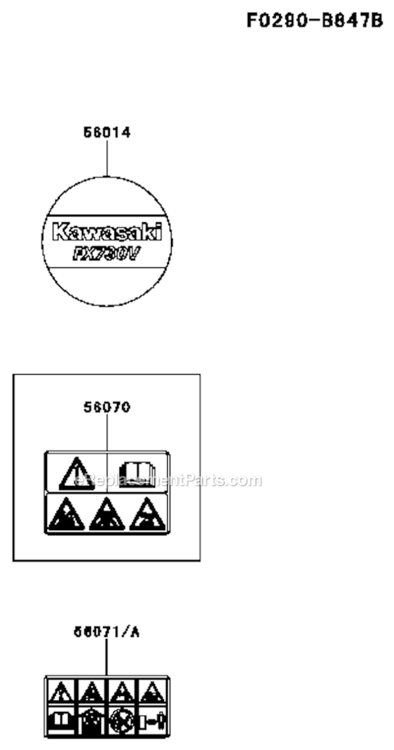

Page P Diagram and Parts List for Kawasaki Engine
Page P

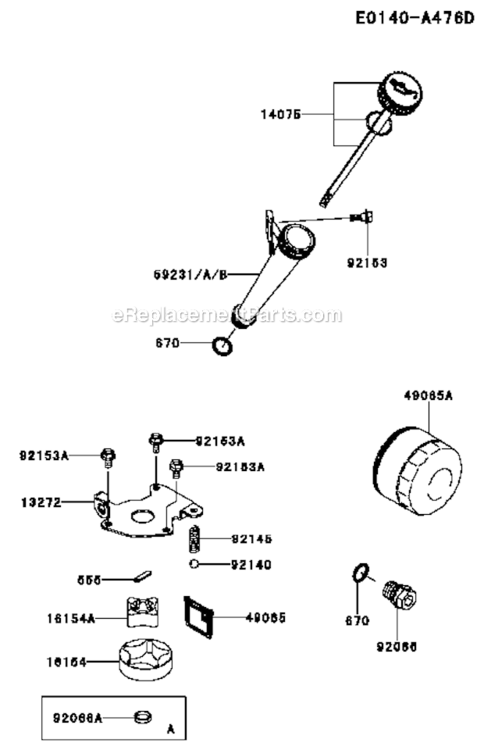

Page R Diagram and Parts List for Kawasaki Engine
Page R

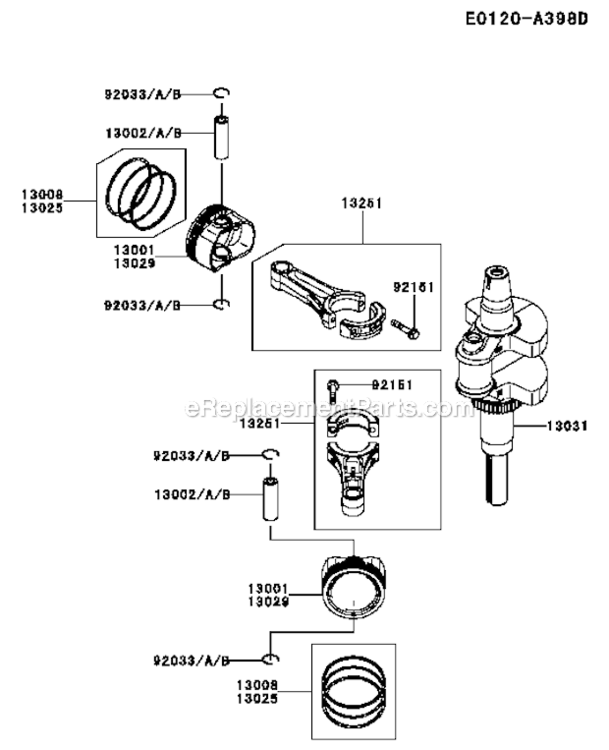

Page T Diagram and Parts List for Kawasaki Engine
Page T
Page V Diagram and Parts List for Kawasaki Engine
Page V

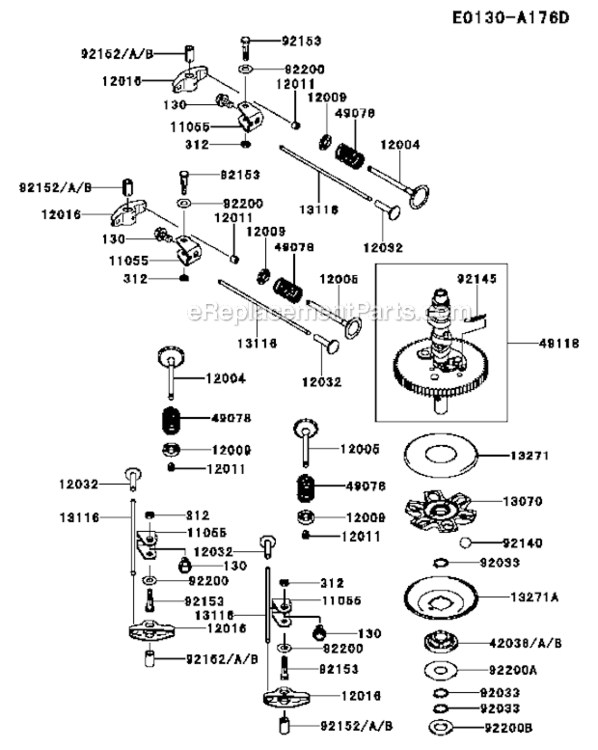

Page X Diagram and Parts List for Kawasaki Engine
Page X

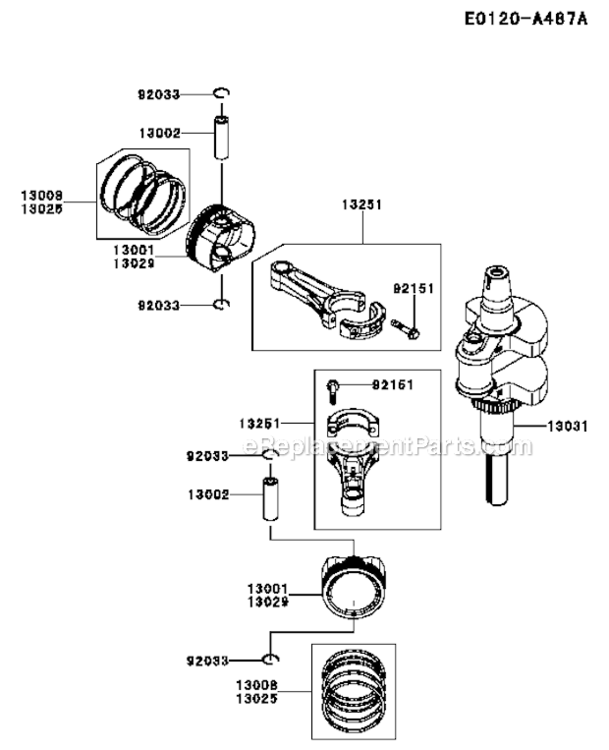

Piston_Crankshaft Diagram and Parts List for Kawasaki Engine
Piston_Crankshaft

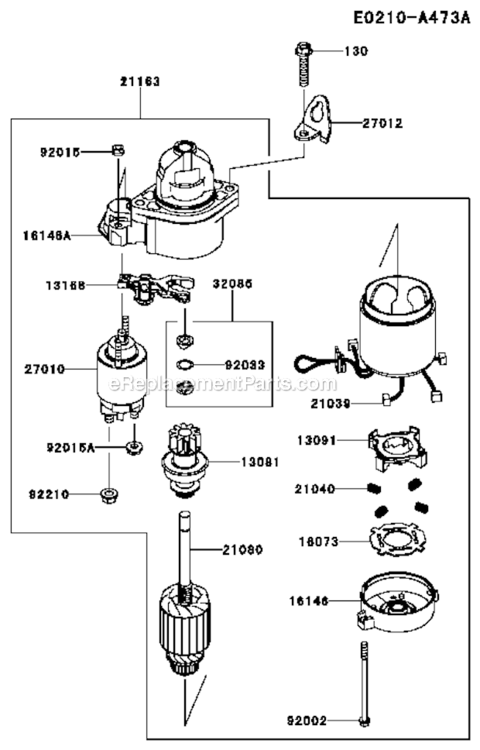

Starter Diagram and Parts List for Kawasaki Engine
Starter

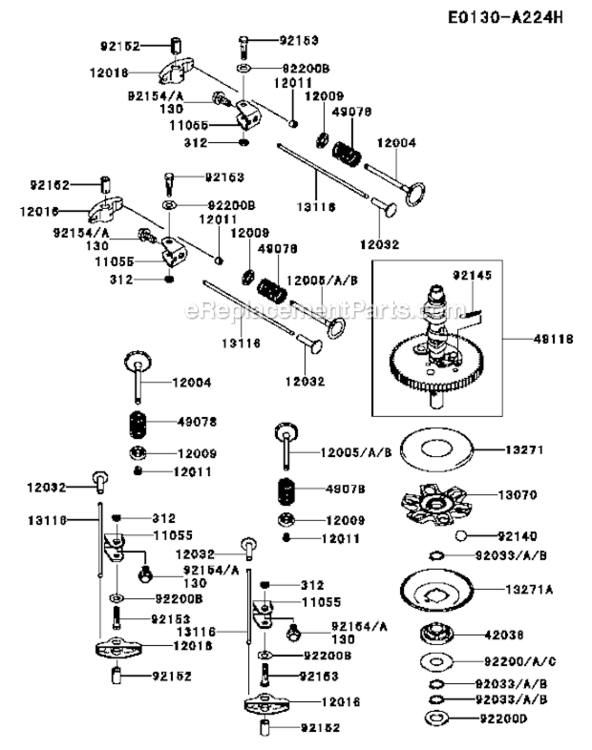

Valve_Camshaft Diagram and Parts List for Kawasaki Engine
Valve_Camshaft
Previous Showing All Parts Next

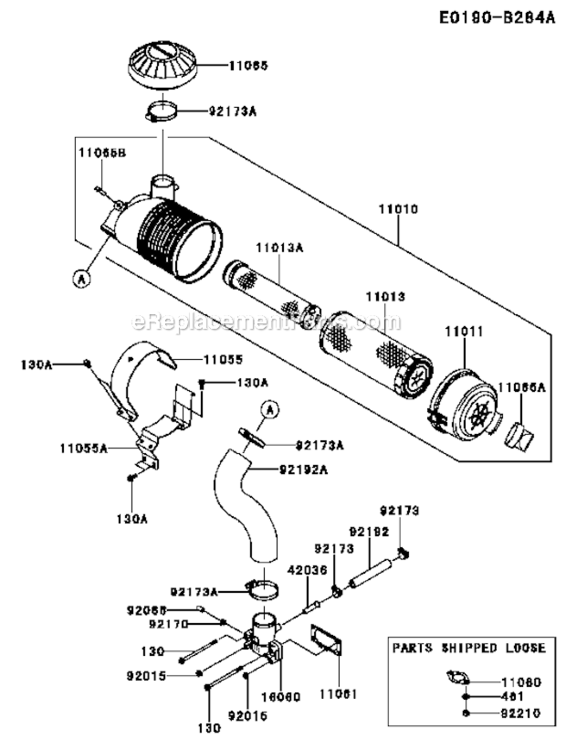

Air_Filter_Muffler
Air_Filter_Muffler Diagram and Parts List for Kawasaki Engine

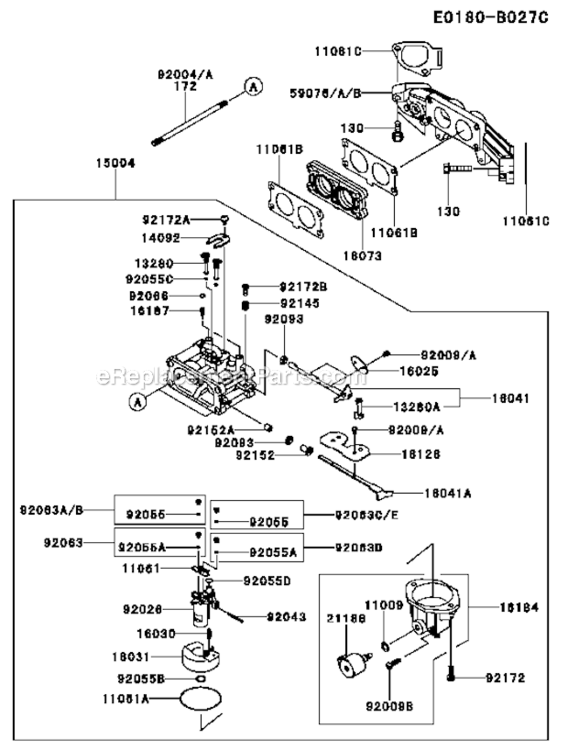

Carburetor
Carburetor Diagram and Parts List for Kawasaki Engine
  • D-130AA0630
    Bolt-Flanged,6X30 – Part Number: 130AA0630
    Bolt-Flanged,6X30
    Part Number: 130AA0630
      Special Order
    $5.95
  • D-172BA06115
    Bolt-Stud,6X115 – Part Number: 172BA06115
    Bolt-Stud,6X115
    Part Number: 172BA06115
      Special Order
    $5.95
  • D-11009-2056
    Gasket – Part Number: 11009-2056
    Gasket
    Part Number: 11009-2056
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • D-11061-7037
    Gasket – Part Number: 11061-7037
    Gasket
    Part Number: 11061-7037
      In Stock
    $8.98
  • D-11061-7038
    Gasket – Part Number: 11061-7038
    Gasket
    Part Number: 11061-7038
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • D-11061-7092
    Gasket-carburetor/manifold – Part Number: 11061-7092
    Gasket-carburetor/manifold
    Part Number: 11061-7092
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • D-11061-7093
    Gasket,manifold – Part Number: 11061-7093
    Gasket,manifold
    Part Number: 11061-7093
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • D-13280-7003
    Holder – Part Number: 13280-7003
    Holder
    Part Number: 13280-7003
      Special Order
    $18.08
  • D-13280-7004
    Holder – Part Number: 13280-7004
    Holder
    Part Number: 13280-7004
      In Stock
    $11.85
  • D-14092-7001
    Cover – Part Number: 14092-7001
    Cover
    Part Number: 14092-7001
      Special Order
    $8.58
  • D-15004-7082
    Carburetor-Assembly – Part Number: 15004-0930
    Carburetor-Assembly
    Part Number: 15004-0930
      No Longer Available
  • D-16025-7010
    Valve-Throttle – Part Number: 16025-7010
    Valve-Throttle
    Part Number: 16025-7010
      Special Order
    $29.91
  • D-16030-7004
    Valve-float – Part Number: 16030-7004
    Valve-float
    Part Number: 16030-7004
      In Stock
    $36.17
  • D-16031-7005
    Float – Part Number: 16031-7005
    Float
    Part Number: 16031-7005
      Special Order
    $35.55
  • D-16041-7052
    Shaft-Carburetor-Throttle – Part Number: 16041-7052
    Shaft-Carburetor-Throttle
    Part Number: 16041-7052
      Special Order
    $49.00
  • D-16041-7053
    Shaft-Carburetor-Choke – Part Number: 16041-7053
    Shaft-Carburetor-Choke
    Part Number: 16041-7053
      Special Order
    $49.36
  • D-16073-7012
    Insulator – Part Number: 16073-7012
    Insulator
    Part Number: 16073-7012
      No Longer Available
  • D-16126-7022
    Valve – Part Number: 16126-7022
    Valve
    Part Number: 16126-7022
      Special Order
    $7.38
  • D-16184-7023
    Chamber-assy-float – Part Number: 16184-7023
    Chamber-assy-float
    Part Number: 16184-7023
      Special Order
    $219.91
  • D-16187-7005
    Needle-Jet – Part Number: 16187-7005
    Needle-Jet
    Part Number: 16187-7005
      Special Order
    $17.52
  • D-21188-7003
    Solenoid – Part Number: 21188-7003
    Solenoid
    Part Number: 21188-7003
      In Stock
    $101.16
  • D-59076-7018
    Manifold-Intake – Part Number: 59076-0008
    Manifold-Intake
    Part Number: 59076-0008
      Special Order
    $135.73
  • D-92009-2049
    Screw – Part Number: 92009-2049
    Screw
    Part Number: 92009-2049
      Special Order
    $5.95
  • D-92009-7006
    Screw-Drain – Part Number: 92009-7006
    Screw-Drain
    Part Number: 92009-7006
      Special Order
    $5.95
  • D-92026-7011
    Spacer – Part Number: 92026-7011
    Spacer
    Part Number: 92026-7011
    ★★★★★
    ★★★★★
    (1)
      Special Order
    $11.53
  • D-92043-7016
    Pin-Float – Part Number: 92043-7016
    Pin-Float
    Part Number: 92043-7016
      Special Order
    $5.95
  • D-92055-7013
    O-ring – Part Number: 92055-7013
    O-ring
    Part Number: 92055-7013
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • D-92055-7016
    Ring-o – Part Number: 92055-7016
    Ring-o
    Part Number: 92055-7016
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • D-92055-7023
    Ring-O – Part Number: 92055-7023
    Ring-O
    Part Number: 92055-7023
      Special Order
    $8.46
  • D-92055-7024
    Ring-o – Part Number: 92055-7024
    Ring-o
    Part Number: 92055-7024
      Special Order
    Minimum Quantity of 2 required
    $5.95
  • D-92063-7069
    Jet-Main-#108 – Part Number: 92063-7069
    Jet-Main-#108
    Part Number: 92063-7069
      Special Order
    $38.09
  • D-92063-7077
    Jet-Main-#105-3280Ft – Part Number: 92063-7077
    Jet-Main-#105-3280Ft
    Part Number: 92063-7077
      Special Order
    $29.66
  • D-92063-7078
    Jet-Main-#102-6560Ft – Part Number: 92063-7078
    Jet-Main-#102-6560Ft
    Part Number: 92063-7078
      Special Order
    $29.58
  • D-92063-7082
    Jet-Main-#104 – Part Number: 92063-7082
    Jet-Main-#104
    Part Number: 92063-7082
      Special Order
    $37.87
  • D-92063-7150
    Jet-Main,#110 – Part Number: 92063-7150
    Jet-Main,#110
    Part Number: 92063-7150
      Special Order
    $17.92
  • D-92063-7152
    Jet-Main,#107,3280Ft – Part Number: 92063-7152
    Jet-Main,#107,3280Ft
    Part Number: 92063-7152
      Special Order
    $17.92
  • D-92066-7009
    Plug-expansion – Part Number: 92066-7009
    Plug-expansion
    Part Number: 92066-7009
      In Stock
    $10.80
  • D-92093-7002
    Seal-D – Part Number: 92093-7002
    Seal-D
    Part Number: 92093-7002
      Special Order
    Minimum Quantity of 2 required
    $5.95
  • D-92145-7039
    Spring – Part Number: 92145-7039
    Spring
    Part Number: 92145-7039
      Special Order
    $5.95
  • D-92152-7018
    Collar – Part Number: 92152-7018
    Collar
    Part Number: 92152-7018
      Special Order
    $5.95
  • D-92152-7019
    Collar – Part Number: 92152-7019
    Collar
    Part Number: 92152-7019
      Special Order
    $5.95
  • D-92172-7005
    Screw-m5 – Part Number: 92172-7005
    Screw-m5
    Part Number: 92172-7005
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • D-92172-7006
    Screw-M4 – Part Number: 92172-7006
    Screw-M4
    Part Number: 92172-7006
      Special Order
    $5.95
  • D-92172-7039
    Screw,Throttle Adjust – Part Number: 92172-7039
    Screw,Throttle Adjust
    Part Number: 92172-7039
      In Stock
    Minimum Quantity of 2 required
    $5.95

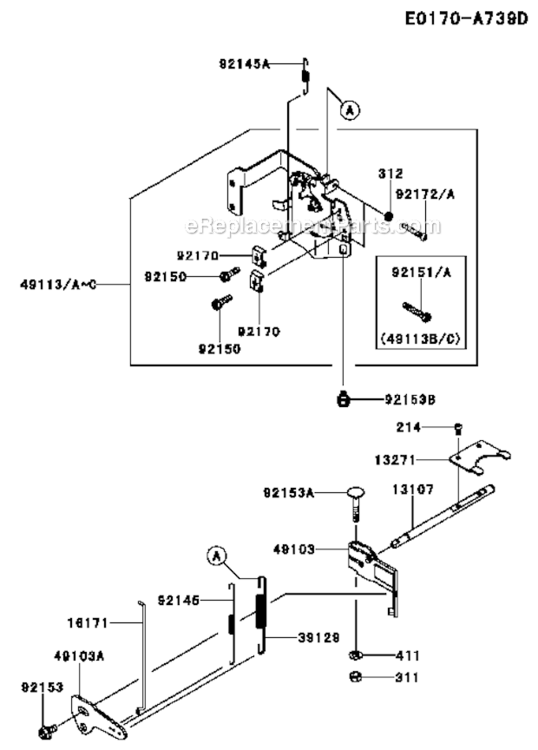

Control-Equipment
Control-Equipment Diagram and Parts List for Kawasaki Engine
  • F-214AA0408
    Screw-Pan+-,4X8 – Part Number: 214AA0408
    Screw-Pan+-,4X8
    Part Number: 214AA0408
      Special Order
    $5.95
  • F-311AA0600
    Nut-hex, 6mm – Part Number: 311AA0600
    Nut-hex, 6mm
    Part Number: 311AA0600
    ★★★★★
    ★★★★★
    (1)
      In Stock
    $5.95
  • F-312AA0500
    Nut-Hex-5mm – Part Number: 312AA0500
    Nut-Hex-5mm
    Part Number: 312AA0500
      In Stock
    $5.95
  • F-411AA0600
    Washer-plain 6.5 X 13 X 1 – Part Number: 411AA0600
    Washer-plain 6.5 X 13 X 1
    Part Number: 411AA0600
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • F-13107-7047
    SHAFT,GOVERNOR – Part Number: 13107-1550
    SHAFT,GOVERNOR
    Part Number: 13107-1550
      Special Order
    $16.22
  • F-13271-7038
    Plate – Part Number: 13271-7038
    Plate
    Part Number: 13271-7038
      In Stock
    $5.95
  • F-16171-7021
    Link – Part Number: 16171-0034
    Link
    Part Number: 16171-0034
      No Longer Available
  • F-39129-7030
    Spring-Governor – Part Number: 39129-7030
    Spring-Governor
    Part Number: 39129-7030
      No Longer Available
  • F-49103-7014
    Arm-Governor – Part Number: 49103-7014
    Arm-Governor
    Part Number: 49103-7014
      In Stock
    $7.85
  • F-49103-7015
    Arm-Governor – Part Number: 49103-0010
    Arm-Governor
    Part Number: 49103-0010
      In Stock
    $5.95
  • F-49113-0726
    Panel-Comp-Control – Part Number: 49113-0726
    Panel-Comp-Control
    Part Number: 49113-0726
      Special Order
    $33.60
  • F-49113-7049
    Panel-Comp-Control – Part Number: 49113-0726
    Panel-Comp-Control
    Part Number: 49113-0726
      Special Order
    $33.60
  • F-92145-7057
    Spring – Part Number: 92145-7057
    Spring
    Part Number: 92145-7057
      No Longer Available
  • F-92145-7058
    Spring – Part Number: 92145-7058
    Spring
    Part Number: 92145-7058
      No Longer Available
  • F-92150-2182
    Bolt-5x18 – Part Number: 92150-2182
    Bolt-5x18
    Part Number: 92150-2182
      Special Order
    Minimum Quantity of 2 required
    $5.95
  • F-92151-7014
    Bolt,5X30 – Part Number: 92151-7014
    Bolt,5X30
    Part Number: 92151-7014
      Special Order
    $5.95
  • F-92153-0009
    Bolt,6x12 – Part Number: 92153-0009
    Bolt,6x12
    Part Number: 92153-0009
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • F-92153-7033
    Bolt-6X35 – Part Number: 92153-7033
    Bolt-6X35
    Part Number: 92153-7033
      No Longer Available
  • F-92153-7043
    Bolt-6X12 – Part Number: 92153-7043
    Bolt-6X12
    Part Number: 92153-7043
      No Longer Available
  • F-92170-7001
    Clamp – Part Number: 92170-7001
    Clamp
    Part Number: 92170-7001
      Special Order
    $5.95
  • F-92172-0792
    Screw,5X35 – Part Number: 92172-0792
    Screw,5X35
    Part Number: 92172-0792
      Special Order
    $5.95
Cooling_Equipment
Cooling_Equipment Diagram and Parts List for Kawasaki Engine
  • G-13272-1487
    Plate,Fan – Part Number: 13272-1487
    Plate,Fan
    Part Number: 13272-1487
      Special Order
    $12.66
  • G-13272-7006
    Plate-fan – Part Number: 13272-1488
    Plate-fan
    Part Number: 13272-1488
      Special Order
    $13.78
  • G-49089-7075-753
    Shroud-Engine – Part Number: 49089-7075-753
    Shroud-Engine
    Part Number: 49089-7075-753
      Special Order
    $31.00
  • G-49089-7076-753
    Shroud-Engine – Part Number: 49089-7076-753
    Shroud-Engine
    Part Number: 49089-7076-753
      Special Order
    $6.50
  • G-49089-7090-753
    SHROUD-ENGINE – Part Number: 49089-7090-753
    SHROUD-ENGINE
    Part Number: 49089-7090-753
      No Longer Available
  • G-55020-7017-9H
    Guard – Part Number: 55020-7017-9H
    Guard
    Part Number: 55020-7017-9H
      Special Order
    $57.42
  • G-59041-7014
    Fan – Part Number: 59041-7014
    Fan
    Part Number: 59041-7014
      In Stock
    $20.10
  • G-59066-7044-753
    Housing-Fan – Part Number: 59066-7044-753
    Housing-Fan
    Part Number: 59066-7044-753
      No Longer Available
  • G-92153-7043
    Bolt-6X12 – Part Number: 92153-7043
    Bolt-6X12
    Part Number: 92153-7043
      No Longer Available
Cylinder_Crankcase
Cylinder_Crankcase Diagram and Parts List for Kawasaki Engine
Electric_Equipment
Electric_Equipment Diagram and Parts List for Kawasaki Engine
  • K-130AA0620
    Bolt-Flanged-6X20 – Part Number: 130AA0620
    Bolt-Flanged-6X20
    Part Number: 130AA0620
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • K-510A5100
    Key-woodruff – Part Number: 510A5100
    Key-woodruff
    Part Number: 510A5100
      In Stock
    $5.95
  • K-13272-7012
    Plate – Part Number: 13272-7012
    Plate
    Part Number: 13272-7012
      Special Order
    $5.95
  • K-13272-7015
    Plate,Regulator – Part Number: 13272-7015
    Plate,Regulator
    Part Number: 13272-7015
      Special Order
    $5.95
  • K-21066-7011
    Regulator-voltage – Part Number: 21066-7011
    Regulator-voltage
    Part Number: 21066-7011
    ★★★★★
    ★★★★★
    (1)
      In Stock
    $85.37
  • K-21171-0711
    Coil-assy-ignition – Part Number: 21171-0743
    Coil-assy-ignition
    Part Number: 21171-0743
    ★★★★★
    ★★★★★
    (1)
      In Stock
    $84.92
  • K-21193-7040
    Flywheel-Assembly – Part Number: 21193-7040
    Flywheel-Assembly
    Part Number: 21193-7040
      No Longer Available
  • K-26031-7040
    Harness – Part Number: 26031-7040
    Harness
    Part Number: 26031-7040
      In Stock
    $8.00
  • K-26031-7041
    Harness – Part Number: 26031-7041
    Harness
    Part Number: 26031-7041
      In Stock
    $15.67
  • K-59031-0709
    Coil-Charging – Part Number: 59031-0709
    Coil-Charging
    Part Number: 59031-0709
      Special Order
    $78.87
  • K-92009-2303
    Screw – Part Number: 92009-2303
    Screw
    Part Number: 92009-2303
      No Longer Available
  • K-92009-2308
    Screw – Part Number: 92009-2308
    Screw
    Part Number: 92009-2308
      Special Order
    $5.95
  • K-92066-0762
    Plug – Part Number: 92066-0762
    Plug
    Part Number: 92066-0762
      No Longer Available
  • K-92066-7026
    Plug – Part Number: 92066-0762
    Plug
    Part Number: 92066-0762
      No Longer Available
  • K-92070-7004
    Spark Plug – Part Number: BPR4ES
    Spark Plug
    Part Number: BPR4ES
    ★★★★★
    ★★★★★
    (5)
      In Stock
    $6.38
  • K-92072-7003
    Band – Part Number: 92072-7003
    Band
    Part Number: 92072-7003
      Special Order
    $5.95
  • K-92154-7003
    Bolt – Part Number: 92154-7003
    Bolt
    Part Number: 92154-7003
      In Stock
    $6.66
  • K-92171-7008
    Clamp – Part Number: 92171-7008
    Clamp
    Part Number: 92171-7008
      Special Order
    $5.95
  • K-92172-7018
    Screw,5X20 – Part Number: 92172-7018
    Screw,5X20
    Part Number: 92172-7018
      Special Order
    $5.95
  • K-92200-7040
    Washer-12.2X46X3 – Part Number: 92200-7040
    Washer-12.2X46X3
    Part Number: 92200-7040
      Special Order
    $5.95
Fuel-Tank_Fuel-Valve
Fuel-Tank_Fuel-Valve Diagram and Parts List for Kawasaki Engine
Label
Label Diagram and Parts List for Kawasaki Engine
  • O-56014-0709
    Emblem – Part Number: 560140709
    Emblem
    Part Number: 560140709
      No Longer Available
  • O-56014-7006
    Emblem – Part Number: 560140709
    Emblem
    Part Number: 560140709
      No Longer Available
  • O-56070-2021
    Label-Warning – Part Number: 56070-2021
    Label-Warning
    Part Number: 56070-2021
      Special Order
    $5.95
Lubrication_Equipment
Lubrication_Equipment Diagram and Parts List for Kawasaki Engine
  • Q-555A0420
    Pin-Spring-4X20 – Part Number: 555A0420
    Pin-Spring-4X20
    Part Number: 555A0420
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • Q-670D2016
    O-ring – Part Number: 670D2016
    O-ring
    Part Number: 670D2016
    ★★★★★
    ★★★★★
    (1)
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • Q-13272-7011
    PLATE-ROTOR – Part Number: 13272-4000
    PLATE-ROTOR
    Part Number: 13272-4000
      Special Order
    $10.96
  • Q-14075-0037
    Cap-Assembly-Oil Gauge – Part Number: 14075-0037
    Cap-Assembly-Oil Gauge
    Part Number: 14075-0037
      No Longer Available
  • Q-14075-7013
    Cap-Assembly-Oil Gauge – Part Number: 14075-0037
    Cap-Assembly-Oil Gauge
    Part Number: 14075-0037
      No Longer Available
  • Q-16154-7010
    Rotor-Pump-Outer – Part Number: 16154-7010
    Rotor-Pump-Outer
    Part Number: 16154-7010
      In Stock
    $23.13
  • Q-16154-7011
    Rotor-Pump-Inner – Part Number: 16154-7011
    Rotor-Pump-Inner
    Part Number: 16154-7011
      In Stock
    $11.98
  • Q-49065-7006
    Oil-Pump Screen – Part Number: 49065-7006
    Oil-Pump Screen
    Part Number: 49065-7006
      No Longer Available
  • Q-49065-7007
    Filter-oil Bulk – Part Number: 49065-0736BK
    Filter-oil Bulk
    Part Number: 49065-0736BK
    ★★★★★
    ★★★★★
    (6)
      Special Order
    $24.38
  • Q-59231-0712
    Filler – Part Number: 59231-0712
    Filler
    Part Number: 59231-0712
      No Longer Available
  • Q-92066-7003
    Plug – Part Number: 92066-0774
    Plug
    Part Number: 92066-0774
      In Stock
    $7.06
  • Q-92140-7003
    Ball – Part Number: 92140-7003
    Ball
    Part Number: 92140-7003
      In Stock
    $5.95
  • Q-92145-7002
    Spring – Part Number: 92145-7002
    Spring
    Part Number: 92145-7002
      No Longer Available
  • Q-92153-7007
    Bolt – Part Number: 92153-7007
    Bolt
    Part Number: 92153-7007
      Special Order
    Minimum Quantity of 2 required
    $5.95
  • Q-92153-7043
    Bolt-6X12 – Part Number: 92153-7043
    Bolt-6X12
    Part Number: 92153-7043
      No Longer Available
Page B
Page B Diagram and Parts List for Kawasaki Engine
Page C
Page C Diagram and Parts List for Kawasaki Engine
  • C-130AA0616
    Bolt-flanged-6x16 – Part Number: 130AA0616
    Bolt-flanged-6x16
    Part Number: 130AA0616
    ★★★★★
    ★★★★★
    (1)
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • C-130AA06110
    Bolt-Flanged-6X110 – Part Number: 130AA06110
    Bolt-Flanged-6X110
    Part Number: 130AA06110
      Special Order
    $5.95
  • C-461DA0800
    Washer-spring,8mm – Part Number: 461DA0800
    Washer-spring,8mm
    Part Number: 461DA0800
      Special Order
    $5.95
  • C-11010-7028
    Filter-assy-air – Part Number: 11010-7028
    Filter-assy-air
    Part Number: 11010-7028
      Special Order
    $125.57
  • C-11011-7056
    Case-air Filter – Part Number: 11011-7056
    Case-air Filter
    Part Number: 11011-7056
      In Stock
    $60.09
  • C-11013-7044
    Element-air Filter – Part Number: 11013-7044
    Element-air Filter
    Part Number: 11013-7044
    ★★★★★
    ★★★★★
    (1)
      On Order
    $33.91
  • C-11013-7045
    Element-air Filter – Part Number: 11013-7045
    Element-air Filter
    Part Number: 11013-7045
      Special Order
    $34.55
  • C-11055-7011-9H
    Bracket – Part Number: 11055-7011-9H
    Bracket
    Part Number: 11055-7011-9H
      Special Order
    $17.72
  • C-11055-7012-9H
    Bracket – Part Number: 11055-7012-9H
    Bracket
    Part Number: 11055-7012-9H
      Special Order
    $26.28
  • C-11060-7016
    Muffler Gasket – Part Number: 11060-7016
    Muffler Gasket
    Part Number: 11060-7016
    ★★★★★
    ★★★★★
    (1)
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • C-11061-7043
    Gasket – Part Number: 11061-7043
    Gasket
    Part Number: 11061-7043
    ★★★★★
    ★★★★★
    (1)
      Special Order
    Minimum Quantity of 2 required
    $5.95
  • C-11065-7025
    Cap – Part Number: 11065-7025
    Cap
    Part Number: 11065-7025
      No Longer Available
  • C-11065-7031
    Cap – Part Number: 11065-7031
    Cap
    Part Number: 11065-7031
      In Stock
    $18.43
  • C-11065-7032
    Cap – Part Number: 11065-7032
    Cap
    Part Number: 11065-7032
      Special Order
    $5.95
  • C-16060-6009
    Pipe-Intake – Part Number: 16060-6009
    Pipe-Intake
    Part Number: 16060-6009
      Special Order
    $47.57
  • C-16060-7034
    Pipe-Intake – Part Number: 16060-7034
    Pipe-Intake
    Part Number: 16060-7034
      Special Order
    $50.62
  • C-16060-7040
    Pipe-Intake – Part Number: 16060-7040
    Pipe-Intake
    Part Number: 16060-7040
      In Stock
    $51.51
  • C-42036-7022
    Sleeve-Breather – Part Number: 42036-7022
    Sleeve-Breather
    Part Number: 42036-7022
      No Longer Available
  • C-92015-1367
    Nut – Part Number: 92015-1367
    Nut
    Part Number: 92015-1367
      In Stock
    $6.80
  • C-92066-0095
    Plug – Part Number: 92066-0095
    Plug
    Part Number: 92066-0095
      Special Order
    $7.42
  • C-92170-2042
    Clamp – Part Number: 92170-2042
    Clamp
    Part Number: 92170-2042
      Special Order
    $5.95
  • C-92171-7007
    Clamp – Part Number: 92173-7010
    Clamp
    Part Number: 92173-7010
      In Stock
    $11.03
  • C-92173-7003
    Clamp – Part Number: 92173-7003
    Clamp
    Part Number: 92173-7003
      In Stock
    $5.95
  • C-92173-7010
    Clamp – Part Number: 92173-7010
    Clamp
    Part Number: 92173-7010
      In Stock
    $11.03
  • C-92192-7146
    Tube-12.6x18.6x118 – Part Number: 92192-7146
    Tube-12.6x18.6x118
    Part Number: 92192-7146
      In Stock
    $5.95
  • C-92192-7147
    Tube – Part Number: 92192-1360
    Tube
    Part Number: 92192-1360
    ★★★★★
    ★★★★★
    (1)
      Special Order
    $63.00
  • C-92210-7027
    Nut-M8 – Part Number: 92210-7027
    Nut-M8
    Part Number: 92210-7027
      Special Order
    $5.95
Page E
Page E Diagram and Parts List for Kawasaki Engine
  • E-130AA0630
    Bolt-Flanged,6X30 – Part Number: 130AA0630
    Bolt-Flanged,6X30
    Part Number: 130AA0630
      Special Order
    $5.95
  • E-172BA06115
    Bolt-Stud,6X115 – Part Number: 172BA06115
    Bolt-Stud,6X115
    Part Number: 172BA06115
      Special Order
    $5.95
  • E-11009-2056
    Gasket – Part Number: 11009-2056
    Gasket
    Part Number: 11009-2056
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • E-11061-7037
    Gasket – Part Number: 11061-7037
    Gasket
    Part Number: 11061-7037
      In Stock
    $8.98
  • E-11061-7038
    Gasket – Part Number: 11061-7038
    Gasket
    Part Number: 11061-7038
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • E-11061-7092
    Gasket-carburetor/manifold – Part Number: 11061-7092
    Gasket-carburetor/manifold
    Part Number: 11061-7092
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • E-11061-7093
    Gasket,manifold – Part Number: 11061-7093
    Gasket,manifold
    Part Number: 11061-7093
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • E-13280-7003
    Holder – Part Number: 13280-7003
    Holder
    Part Number: 13280-7003
      Special Order
    $18.08
  • E-13280-7004
    Holder – Part Number: 13280-7004
    Holder
    Part Number: 13280-7004
      In Stock
    $11.85
  • E-14092-7001
    Cover – Part Number: 14092-7001
    Cover
    Part Number: 14092-7001
      Special Order
    $8.58
  • E-15004-7082
    Carburetor-Assembly – Part Number: 15004-0930
    Carburetor-Assembly
    Part Number: 15004-0930
      No Longer Available
  • E-16025-7010
    Valve-Throttle – Part Number: 16025-7010
    Valve-Throttle
    Part Number: 16025-7010
      Special Order
    $29.91
  • E-16030-7004
    Valve-float – Part Number: 16030-7004
    Valve-float
    Part Number: 16030-7004
      In Stock
    $36.17
  • E-16031-7005
    Float – Part Number: 16031-7005
    Float
    Part Number: 16031-7005
      Special Order
    $35.55
  • E-16041-7052
    Shaft-Carburetor-Throttle – Part Number: 16041-7052
    Shaft-Carburetor-Throttle
    Part Number: 16041-7052
      Special Order
    $49.00
  • E-16041-7053
    Shaft-Carburetor-Choke – Part Number: 16041-7053
    Shaft-Carburetor-Choke
    Part Number: 16041-7053
      Special Order
    $49.36
  • E-16073-7012
    Insulator – Part Number: 16073-7012
    Insulator
    Part Number: 16073-7012
      No Longer Available
  • E-16126-7022
    Valve – Part Number: 16126-7022
    Valve
    Part Number: 16126-7022
      Special Order
    $7.38
  • E-16184-7023
    Chamber-assy-float – Part Number: 16184-7023
    Chamber-assy-float
    Part Number: 16184-7023
      Special Order
    $219.91
  • E-16187-7005
    Needle-Jet – Part Number: 16187-7005
    Needle-Jet
    Part Number: 16187-7005
      Special Order
    $17.52
  • E-21188-7003
    Solenoid – Part Number: 21188-7003
    Solenoid
    Part Number: 21188-7003
      In Stock
    $101.16
  • E-59076-0008
    Manifold-Intake – Part Number: 59076-0008
    Manifold-Intake
    Part Number: 59076-0008
      Special Order
    $135.73
  • E-59076-7018
    Manifold-Intake – Part Number: 59076-0008
    Manifold-Intake
    Part Number: 59076-0008
      Special Order
    $135.73
  • E-92004-0723
    Bolt-Stud,6X115 – Part Number: 92004-0723
    Bolt-Stud,6X115
    Part Number: 92004-0723
      Special Order
    $5.95
  • E-92009-2049
    Screw – Part Number: 92009-2049
    Screw
    Part Number: 92009-2049
      Special Order
    $5.95
  • E-92009-7003
    Screw – Part Number: 92009-7003
    Screw
    Part Number: 92009-7003
      Special Order
    $5.95
  • E-92009-7006
    Screw-Drain – Part Number: 92009-7006
    Screw-Drain
    Part Number: 92009-7006
      Special Order
    $5.95
  • E-92026-7011
    Spacer – Part Number: 92026-7011
    Spacer
    Part Number: 92026-7011
    ★★★★★
    ★★★★★
    (1)
      Special Order
    $11.53
  • E-92043-7016
    Pin-Float – Part Number: 92043-7016
    Pin-Float
    Part Number: 92043-7016
      Special Order
    $5.95
  • E-92055-7013
    O-ring – Part Number: 92055-7013
    O-ring
    Part Number: 92055-7013
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • E-92055-7016
    Ring-o – Part Number: 92055-7016
    Ring-o
    Part Number: 92055-7016
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • E-92055-7023
    Ring-O – Part Number: 92055-7023
    Ring-O
    Part Number: 92055-7023
      Special Order
    $8.46
  • E-92055-7024
    Ring-o – Part Number: 92055-7024
    Ring-o
    Part Number: 92055-7024
      Special Order
    Minimum Quantity of 2 required
    $5.95
  • E-92063-7069
    Jet-Main-#108 – Part Number: 92063-7069
    Jet-Main-#108
    Part Number: 92063-7069
      Special Order
    $38.09
  • E-92063-7077
    Jet-Main-#105-3280Ft – Part Number: 92063-7077
    Jet-Main-#105-3280Ft
    Part Number: 92063-7077
      Special Order
    $29.66
  • E-92063-7078
    Jet-Main-#102-6560Ft – Part Number: 92063-7078
    Jet-Main-#102-6560Ft
    Part Number: 92063-7078
      Special Order
    $29.58
  • E-92063-7082
    Jet-Main-#104 – Part Number: 92063-7082
    Jet-Main-#104
    Part Number: 92063-7082
      Special Order
    $37.87
  • E-92063-7150
    Jet-Main,#110 – Part Number: 92063-7150
    Jet-Main,#110
    Part Number: 92063-7150
      Special Order
    $17.92
  • E-92063-7152
    Jet-Main,#107,3280Ft – Part Number: 92063-7152
    Jet-Main,#107,3280Ft
    Part Number: 92063-7152
      Special Order
    $17.92
  • E-92066-7009
    Plug-expansion – Part Number: 92066-7009
    Plug-expansion
    Part Number: 92066-7009
      In Stock
    $10.80
  • E-92093-7002
    Seal-D – Part Number: 92093-7002
    Seal-D
    Part Number: 92093-7002
      Special Order
    Minimum Quantity of 2 required
    $5.95
  • E-92145-7039
    Spring – Part Number: 92145-7039
    Spring
    Part Number: 92145-7039
      Special Order
    $5.95
  • E-92152-7018
    Collar – Part Number: 92152-7018
    Collar
    Part Number: 92152-7018
      Special Order
    $5.95
  • E-92152-7019
    Collar – Part Number: 92152-7019
    Collar
    Part Number: 92152-7019
      Special Order
    $5.95
  • E-92172-7005
    Screw-m5 – Part Number: 92172-7005
    Screw-m5
    Part Number: 92172-7005
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • E-92172-7006
    Screw-M4 – Part Number: 92172-7006
    Screw-M4
    Part Number: 92172-7006
      Special Order
    $5.95
  • E-92172-7039
    Screw,Throttle Adjust – Part Number: 92172-7039
    Screw,Throttle Adjust
    Part Number: 92172-7039
      In Stock
    Minimum Quantity of 2 required
    $5.95
Page H
Page H Diagram and Parts List for Kawasaki Engine
  • H-13272-7006
    Plate-fan – Part Number: 13272-1488
    Plate-fan
    Part Number: 13272-1488
      Special Order
    $13.78
  • H-49089-7074-753
    Shroud-Engine – Part Number: 49089-7074-753
    Shroud-Engine
    Part Number: 49089-7074-753
      Special Order
    $31.66
  • H-49089-7075-753
    Shroud-Engine – Part Number: 49089-7075-753
    Shroud-Engine
    Part Number: 49089-7075-753
      Special Order
    $31.00
  • H-49089-7076-753
    Shroud-Engine – Part Number: 49089-7076-753
    Shroud-Engine
    Part Number: 49089-7076-753
      Special Order
    $6.50
  • H-49089-7090-753
    SHROUD-ENGINE – Part Number: 49089-7090-753
    SHROUD-ENGINE
    Part Number: 49089-7090-753
      No Longer Available
  • H-55020-7017-9H
    Guard – Part Number: 55020-7017-9H
    Guard
    Part Number: 55020-7017-9H
      Special Order
    $57.42
  • H-59041-7014
    Fan – Part Number: 59041-7014
    Fan
    Part Number: 59041-7014
      In Stock
    $20.10
  • H-59066-7044-753
    Housing-Fan – Part Number: 59066-7044-753
    Housing-Fan
    Part Number: 59066-7044-753
      No Longer Available
  • H-92153-7043
    Bolt-6X12 – Part Number: 92153-7043
    Bolt-6X12
    Part Number: 92153-7043
      No Longer Available
Page J
Page J Diagram and Parts List for Kawasaki Engine
Page L
Page L Diagram and Parts List for Kawasaki Engine
Page N
Page N Diagram and Parts List for Kawasaki Engine
Page P
Page P Diagram and Parts List for Kawasaki Engine
  • P-56014-0709
    Emblem – Part Number: 560140709
    Emblem
    Part Number: 560140709
      No Longer Available
  • P-56070-2021
    Label-Warning – Part Number: 56070-2021
    Label-Warning
    Part Number: 56070-2021
      Special Order
    $5.95
  • P-56071-0366
    Label-Warning – Part Number: 56071-0366
    Label-Warning
    Part Number: 56071-0366
      Special Order
    $5.95
Page R
Page R Diagram and Parts List for Kawasaki Engine
  • R-555A0420
    Pin-Spring-4X20 – Part Number: 555A0420
    Pin-Spring-4X20
    Part Number: 555A0420
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • R-670D2016
    O-ring – Part Number: 670D2016
    O-ring
    Part Number: 670D2016
    ★★★★★
    ★★★★★
    (1)
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • R-13272-7011
    PLATE-ROTOR – Part Number: 13272-4000
    PLATE-ROTOR
    Part Number: 13272-4000
      Special Order
    $10.96
  • R-14075-7013
    Cap-Assembly-Oil Gauge – Part Number: 14075-0037
    Cap-Assembly-Oil Gauge
    Part Number: 14075-0037
      No Longer Available
  • R-16154-7010
    Rotor-Pump-Outer – Part Number: 16154-7010
    Rotor-Pump-Outer
    Part Number: 16154-7010
      In Stock
    $23.13
  • R-16154-7011
    Rotor-Pump-Inner – Part Number: 16154-7011
    Rotor-Pump-Inner
    Part Number: 16154-7011
      In Stock
    $11.98
  • R-49065-7006
    Oil-Pump Screen – Part Number: 49065-7006
    Oil-Pump Screen
    Part Number: 49065-7006
      No Longer Available
  • R-49065-7007
    Filter-oil Bulk – Part Number: 49065-0736BK
    Filter-oil Bulk
    Part Number: 49065-0736BK
    ★★★★★
    ★★★★★
    (6)
      Special Order
    $24.38
  • R-59231-0712
    Filler – Part Number: 59231-0712
    Filler
    Part Number: 59231-0712
      No Longer Available
  • R-59231-7016
    Filler – Part Number: 59231-0712
    Filler
    Part Number: 59231-0712
      No Longer Available
  • R-92066-7003
    Plug – Part Number: 92066-0774
    Plug
    Part Number: 92066-0774
      In Stock
    $7.06
  • R-92066-7028
    Plug – Part Number: 92066-7028
    Plug
    Part Number: 92066-7028
      No Longer Available
  • R-92140-7003
    Ball – Part Number: 92140-7003
    Ball
    Part Number: 92140-7003
      In Stock
    $5.95
  • R-92145-7002
    Spring – Part Number: 92145-7002
    Spring
    Part Number: 92145-7002
      No Longer Available
  • R-92153-7007
    Bolt – Part Number: 92153-7007
    Bolt
    Part Number: 92153-7007
      Special Order
    Minimum Quantity of 2 required
    $5.95
  • R-92153-7043
    Bolt-6X12 – Part Number: 92153-7043
    Bolt-6X12
    Part Number: 92153-7043
      No Longer Available
Page T
Page T Diagram and Parts List for Kawasaki Engine
  • T-13001-7027
    Piston-engine Kit – Part Number: 13001-6004
    Piston-engine Kit
    Part Number: 13001-6004
      In Stock
    $108.56
  • T-13002-0704
    Pin-Piston – Part Number: 13002-0704
    Pin-Piston
    Part Number: 13002-0704
      In Stock
    $20.50
  • T-13002-7006
    Pin-Piston – Part Number: 13002-0704
    Pin-Piston
    Part Number: 13002-0704
      In Stock
    $20.50
  • T-13008-7005
    Ring-Set-Piston – Part Number: 13008-7005
    Ring-Set-Piston
    Part Number: 13008-7005
      No Longer Available
  • T-13025-7009
    Ring-Set-Piston L,0.5 – Part Number: 13025-7009
    Ring-Set-Piston L,0.5
    Part Number: 13025-7009
      Special Order
    $40.53
  • T-13029-7010
    Piston-Engine L,0.5 – Part Number: 13029-7010
    Piston-Engine L,0.5
    Part Number: 13029-7010
      Special Order
    $80.18
  • T-13031-7084
    Crankshaft-Comp – Part Number: 13031-7084
    Crankshaft-Comp
    Part Number: 13031-7084
      No Longer Available
  • T-13251-7025
    Rod-assy-connecting – Part Number: 13251-0719
    Rod-assy-connecting
    Part Number: 13251-0719
      In Stock
    $61.42
  • T-92033-7016
    Ring-Snap – Part Number: 92033-0755
    Ring-Snap
    Part Number: 92033-0755
      No Longer Available
  • T-92033-7018
    Ring-Snap – Part Number: 92033-0755
    Ring-Snap
    Part Number: 92033-0755
      No Longer Available
  • T-92151-7017
    Bolt-6x35 – Part Number: 92154-2842
    Bolt-6x35
    Part Number: 92154-2842
      In Stock
    $5.95
Page V
Page V Diagram and Parts List for Kawasaki Engine
  • V-130BA0840
    Bolt-Flanged,8X40 – Part Number: 130BA0840
    Bolt-Flanged,8X40
    Part Number: 130BA0840
      Special Order
    $5.95
  • V-13081-7002
    Clutch-assy – Part Number: 13081-7002
    Clutch-assy
    Part Number: 13081-7002
      Special Order
    $152.90
  • V-13091-2068
    Holder-Brush – Part Number: 13091-2068
    Holder-Brush
    Part Number: 13091-2068
      Special Order
    $34.45
  • V-13168-2148
    Lever – Part Number: 13168-2148
    Lever
    Part Number: 13168-2148
      Special Order
    $31.42
  • V-16073-2098
    Insulator – Part Number: 16073-2098
    Insulator
    Part Number: 16073-2098
      Special Order
    $13.63
  • V-16146-2077
    Cover-Assembly – Part Number: 16146-2077
    Cover-Assembly
    Part Number: 16146-2077
      Special Order
    $91.76
  • V-16146-7020
    Cover-Assembly – Part Number: 16146-7020
    Cover-Assembly
    Part Number: 16146-7020
      Special Order
    $75.32
  • V-21039-2059
    Brush – Part Number: 21039-2059
    Brush
    Part Number: 21039-2059
      Special Order
    $19.28
  • V-21040-2052
    Spring-Brush – Part Number: 21040-2052
    Spring-Brush
    Part Number: 21040-2052
      Special Order
    $5.95
  • V-21080-2058
    Armature – Part Number: 21080-2058
    Armature
    Part Number: 21080-2058
      Special Order
    $278.19
  • V-21163-7023
    Starter-Electric – Part Number: 21163-7023
    Starter-Electric
    Part Number: 21163-7023
      No Longer Available
  • V-27010-7005
    Switch – Part Number: 27010-7005
    Switch
    Part Number: 27010-7005
      Special Order
    $205.70
  • V-27012-7008
    Hook – Part Number: 27012-7008
    Hook
    Part Number: 27012-7008
      Special Order
    $5.95
  • V-32085-2097
    Stopper – Part Number: 32085-2097
    Stopper
    Part Number: 32085-2097
      Special Order
    $21.06
  • V-92002-2277
    Bolt – Part Number: 92002-2277
    Bolt
    Part Number: 92002-2277
      Special Order
    $17.42
  • V-92015-2146
    Nut – Part Number: 92015-2146
    Nut
    Part Number: 92015-2146
      Special Order
    $5.95
  • V-92015-2147
    Nut – Part Number: 92015-2147
    Nut
    Part Number: 92015-2147
      In Stock
    $9.98
  • V-92033-2081
    Ring-Snap – Part Number: 92033-2081
    Ring-Snap
    Part Number: 92033-2081
      Special Order
    $8.60
  • V-92210-2085
    Nut – Part Number: 92210-2085
    Nut
    Part Number: 92210-2085
      Special Order
    $6.18
Page X
Page X Diagram and Parts List for Kawasaki Engine
  • X-130AA0814
    Bolt-flanged – Part Number: 130AA0814
    Bolt-flanged
    Part Number: 130AA0814
      Special Order
    $5.95
  • X-312AA0600
    Nut-hex-6mm – Part Number: 312AA0600
    Nut-hex-6mm
    Part Number: 312AA0600
      In Stock
    $5.95
  • X-11055-7009
    Bracket – Part Number: 11055-7009
    Bracket
    Part Number: 11055-7009
      Special Order
    $5.95
  • X-12004-7008
    Valve-intake – Part Number: 12004-0733
    Valve-intake
    Part Number: 12004-0733
      In Stock
    $31.18
  • X-12005-7009
    Valve-Exhaust – Part Number: 12005-7009
    Valve-Exhaust
    Part Number: 12005-7009
      No Longer Available
  • X-12009-7001
    Retainer-valve Spring – Part Number: 12009-7001
    Retainer-valve Spring
    Part Number: 12009-7001
      Special Order
    Minimum Quantity of 2 required
    $5.95
  • X-12011-2056
    Collet – Part Number: 12011-2056
    Collet
    Part Number: 12011-2056
      In Stock
    $5.95
  • X-12016-2066
    Arm-Rocker – Part Number: 12016-0040
    Arm-Rocker
    Part Number: 12016-0040
      In Stock
    $17.88
  • X-12032-7001
    Tappet – Part Number: 12032-7001
    Tappet
    Part Number: 12032-7001
      In Stock
    $12.06
  • X-13070-7017
    Guide-governor – Part Number: 13070-7017
    Guide-governor
    Part Number: 13070-7017
      In Stock
    Minimum Quantity of 2 required
    $6.16
  • X-13116-7007
    Push Rod – Part Number: 13116-0725
    Push Rod
    Part Number: 13116-0725
    ★★★★★
    ★★★★★
    (1)
      In Stock
    $12.45
  • X-13271-7021
    Plate-Governor – Part Number: 13271-7021
    Plate-Governor
    Part Number: 13271-7021
      Special Order
    $7.30
  • X-42036-7010
    Sleeve – Part Number: 42036-7010
    Sleeve
    Part Number: 42036-7010
      Special Order
    $7.48
  • X-42036-7021
    Sleeve – Part Number: 42036-7021
    Sleeve
    Part Number: 42036-7021
      Special Order
    $7.56
  • X-49078-7002
    Spring-engine Valve-in – Part Number: 49078-7002
    Spring-engine Valve-in
    Part Number: 49078-7002
      In Stock
    $9.02
  • X-49118-7022
    Camshaft-Comp – Part Number: 49118-7022
    Camshaft-Comp
    Part Number: 49118-7022
      No Longer Available
  • X-92033-7001
    Ring-Snap – Part Number: 92033-0727
    Ring-Snap
    Part Number: 92033-0727
      No Longer Available
  • X-92140-7005
    Ball – Part Number: 92140-7005
    Ball
    Part Number: 92140-7005
      No Longer Available
  • X-92145-7001
    Spring – Part Number: 92145-1653
    Spring
    Part Number: 92145-1653
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • X-92152-7020
    Collar – Part Number: 92152-1689
    Collar
    Part Number: 92152-1689
      Special Order
    $6.88
  • X-92152-7022
    Collar – Part Number: 92152-1689
    Collar
    Part Number: 92152-1689
      Special Order
    $6.88
  • X-92153-7100
    Bolt-6x29.5 – Part Number: 92153-7100
    Bolt-6x29.5
    Part Number: 92153-7100
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • X-92200-2151
    Washer,8.1x18x0.5 – Part Number: 92200-2151
    Washer,8.1x18x0.5
    Part Number: 92200-2151
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • X-92200-7009
    Washer-16x42x0.91 – Part Number: 922002606
    Washer-16x42x0.91
    Part Number: 922002606
      Special Order
    $5.95
  • X-92200-7048
    Washer-16.3X30X2.28 – Part Number: 92200-7048
    Washer-16.3X30X2.28
    Part Number: 92200-7048
      Special Order
    $5.95
Piston_Crankshaft
Piston_Crankshaft Diagram and Parts List for Kawasaki Engine
  • S-13001-7027
    Piston-engine Kit – Part Number: 13001-6004
    Piston-engine Kit
    Part Number: 13001-6004
      In Stock
    $108.56
  • S-13002-0704
    Pin-Piston – Part Number: 13002-0704
    Pin-Piston
    Part Number: 13002-0704
      In Stock
    $20.50
  • S-13008-7005
    Ring-Set-Piston – Part Number: 13008-7005
    Ring-Set-Piston
    Part Number: 13008-7005
      No Longer Available
  • S-13025-7009
    Ring-Set-Piston L,0.5 – Part Number: 13025-7009
    Ring-Set-Piston L,0.5
    Part Number: 13025-7009
      Special Order
    $40.53
  • S-13029-7010
    Piston-Engine L,0.5 – Part Number: 13029-7010
    Piston-Engine L,0.5
    Part Number: 13029-7010
      Special Order
    $80.18
  • S-13031-0747
    Crankshaft-Comp – Part Number: 13031-0822
    Crankshaft-Comp
    Part Number: 13031-0822
      Special Order
    $270.60
  • S-13251-7025
    Rod-assy-connecting – Part Number: 13251-0719
    Rod-assy-connecting
    Part Number: 13251-0719
      In Stock
    $61.42
  • S-92033-7018
    Ring-Snap – Part Number: 92033-0755
    Ring-Snap
    Part Number: 92033-0755
      No Longer Available
  • S-92151-7017
    Bolt-6x35 – Part Number: 92154-2842
    Bolt-6x35
    Part Number: 92154-2842
      In Stock
    $5.95
Starter
Starter Diagram and Parts List for Kawasaki Engine
  • U-130AA0840
    Bolt-Flanged,8X40 – Part Number: 130BA0840
    Bolt-Flanged,8X40
    Part Number: 130BA0840
      Special Order
    $5.95
  • U-13081-7002
    Clutch-assy – Part Number: 13081-7002
    Clutch-assy
    Part Number: 13081-7002
      Special Order
    $152.90
  • U-13091-2068
    Holder-Brush – Part Number: 13091-2068
    Holder-Brush
    Part Number: 13091-2068
      Special Order
    $34.45
  • U-13168-2148
    Lever – Part Number: 13168-2148
    Lever
    Part Number: 13168-2148
      Special Order
    $31.42
  • U-16073-2098
    Insulator – Part Number: 16073-2098
    Insulator
    Part Number: 16073-2098
      Special Order
    $13.63
  • U-16146-2077
    Cover-Assembly – Part Number: 16146-2077
    Cover-Assembly
    Part Number: 16146-2077
      Special Order
    $91.76
  • U-16146-7020
    Cover-Assembly – Part Number: 16146-7020
    Cover-Assembly
    Part Number: 16146-7020
      Special Order
    $75.32
  • U-21039-2059
    Brush – Part Number: 21039-2059
    Brush
    Part Number: 21039-2059
      Special Order
    $19.28
  • U-21040-2052
    Spring-Brush – Part Number: 21040-2052
    Spring-Brush
    Part Number: 21040-2052
      Special Order
    $5.95
  • U-21080-2058
    Armature – Part Number: 21080-2058
    Armature
    Part Number: 21080-2058
      Special Order
    $278.19
  • U-21163-7023
    Starter-Electric – Part Number: 21163-7023
    Starter-Electric
    Part Number: 21163-7023
      No Longer Available
  • U-27010-7005
    Switch – Part Number: 27010-7005
    Switch
    Part Number: 27010-7005
      Special Order
    $205.70
  • U-27012-7008
    Hook – Part Number: 27012-7008
    Hook
    Part Number: 27012-7008
      Special Order
    $5.95
  • U-32085-2097
    Stopper – Part Number: 32085-2097
    Stopper
    Part Number: 32085-2097
      Special Order
    $21.06
  • U-92002-2277
    Bolt – Part Number: 92002-2277
    Bolt
    Part Number: 92002-2277
      Special Order
    $17.42
  • U-92015-2146
    Nut – Part Number: 92015-2146
    Nut
    Part Number: 92015-2146
      Special Order
    $5.95
  • U-92015-2147
    Nut – Part Number: 92015-2147
    Nut
    Part Number: 92015-2147
      In Stock
    $9.98
  • U-92033-2081
    Ring-Snap – Part Number: 92033-2081
    Ring-Snap
    Part Number: 92033-2081
      Special Order
    $8.60
  • U-92210-2085
    Nut – Part Number: 92210-2085
    Nut
    Part Number: 92210-2085
      Special Order
    $6.18
Valve_Camshaft
Valve_Camshaft Diagram and Parts List for Kawasaki Engine
  • W-130AA0814
    Bolt-flanged – Part Number: 130AA0814
    Bolt-flanged
    Part Number: 130AA0814
      Special Order
    $5.95
  • W-312AA0600
    Nut-hex-6mm – Part Number: 312AA0600
    Nut-hex-6mm
    Part Number: 312AA0600
      In Stock
    $5.95
  • W-11055-7009
    Bracket – Part Number: 11055-7009
    Bracket
    Part Number: 11055-7009
      Special Order
    $5.95
  • W-12004-0705
    Valve-intake – Part Number: 12004-0733
    Valve-intake
    Part Number: 12004-0733
      In Stock
    $31.18
  • W-12005-0720
    Valve-Exhaust – Part Number: 12005-0750
    Valve-Exhaust
    Part Number: 12005-0750
      No Longer Available
  • W-12005-7009
    Valve-Exhaust – Part Number: 12005-7009
    Valve-Exhaust
    Part Number: 12005-7009
      No Longer Available
  • W-12009-7001
    Retainer-valve Spring – Part Number: 12009-7001
    Retainer-valve Spring
    Part Number: 12009-7001
      Special Order
    Minimum Quantity of 2 required
    $5.95
  • W-12011-2056
    Collet – Part Number: 12011-2056
    Collet
    Part Number: 12011-2056
      In Stock
    $5.95
  • W-12016-2066
    Arm-Rocker – Part Number: 12016-0040
    Arm-Rocker
    Part Number: 12016-0040
      In Stock
    $17.88
  • W-12032-7001
    Tappet – Part Number: 12032-7001
    Tappet
    Part Number: 12032-7001
      In Stock
    $12.06
  • W-13070-7017
    Guide-governor – Part Number: 13070-7017
    Guide-governor
    Part Number: 13070-7017
      In Stock
    Minimum Quantity of 2 required
    $6.16
  • W-13116-7007
    Push Rod – Part Number: 13116-0725
    Push Rod
    Part Number: 13116-0725
    ★★★★★
    ★★★★★
    (1)
      In Stock
    $12.45
  • W-13271-7007
    Plate – Part Number: 13271-7007
    Plate
    Part Number: 13271-7007
      In Stock
    $6.78
  • W-13271-7021
    Plate-Governor – Part Number: 13271-7021
    Plate-Governor
    Part Number: 13271-7021
      Special Order
    $7.30
  • W-42036-7021
    Sleeve – Part Number: 42036-7021
    Sleeve
    Part Number: 42036-7021
      Special Order
    $7.56
  • W-49078-7002
    Spring-engine Valve-in – Part Number: 49078-7002
    Spring-engine Valve-in
    Part Number: 49078-7002
      In Stock
    $9.02
  • W-49118-7022
    Camshaft-Comp – Part Number: 49118-7022
    Camshaft-Comp
    Part Number: 49118-7022
      No Longer Available
  • W-92033-0727
    Ring-Snap – Part Number: 92033-0727
    Ring-Snap
    Part Number: 92033-0727
      No Longer Available
  • W-92033-7001
    Ring-Snap – Part Number: 92033-0727
    Ring-Snap
    Part Number: 92033-0727
      No Longer Available
  • W-92140-7005
    Ball – Part Number: 92140-7005
    Ball
    Part Number: 92140-7005
      No Longer Available
  • W-92145-7001
    Spring – Part Number: 92145-1653
    Spring
    Part Number: 92145-1653
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • W-92152-1689
    Collar – Part Number: 92152-1689
    Collar
    Part Number: 92152-1689
      Special Order
    $6.88
  • W-92153-7100
    Bolt-6x29.5 – Part Number: 92153-7100
    Bolt-6x29.5
    Part Number: 92153-7100
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • W-92154-1267
    Bolt,8X18.2 – Part Number: 92154-1267
    Bolt,8X18.2
    Part Number: 92154-1267
      Special Order
    $5.95
  • W-92200-0945
    Washer-16x42x0.91 – Part Number: 922002606
    Washer-16x42x0.91
    Part Number: 922002606
      Special Order
    $5.95
  • W-92200-2151
    Washer,8.1x18x0.5 – Part Number: 92200-2151
    Washer,8.1x18x0.5
    Part Number: 92200-2151
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • W-92200-7009
    Washer-16x42x0.91 – Part Number: 922002606
    Washer-16x42x0.91
    Part Number: 922002606
      Special Order
    $5.95
  • W-92200-7048
    Washer-16.3X30X2.28 – Part Number: 92200-7048
    Washer-16.3X30X2.28
    Part Number: 92200-7048
      Special Order
    $5.95

Questions & Answers

?

Our customer Service team is at the ready daily to answer your part and product questions.

Be the first to ask our experts a question about this part!

Ask our Team

We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.

✖

Our customer service team are at the ready daily to answer your part and product questions. We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.
