Husqvarna Kawasaki Engines (For Australia Only) - Fr691v-Ds15 (2017-09) Replacement Parts For Model FR691V-DS15 (2017-09)

We Sell Only Genuine Husqvarna Parts

Popular Parts for Husqvarna FR691V-DS15 (2017-09)

Oil Filter – Part Number: 578159201 Oil Filter
Special Order
$37.13

Search Within Model

Browse all Parts Search by Area
Air Filter And Muffler Diagram and Parts List for FR691V-DS15 2017-09 Husqvarna Engine
Air Filter And Muffler
Carburetor Diagram and Parts List for FR691V-DS15 2017-09 Husqvarna Engine
Carburetor
Controls Diagram and Parts List for FR691V-DS15 2017-09 Husqvarna Engine
Controls
Cooling System Diagram and Parts List for FR691V-DS15 2017-09 Husqvarna Engine
Cooling System
Cylinder And Crankcase Diagram and Parts List for FR691V-DS15 2017-09 Husqvarna Engine
Cylinder And Crankcase
Decals Diagram and Parts List for FR691V-DS15 2017-09 Husqvarna Engine
Decals
Electrical Diagram and Parts List for FR691V-DS15 2017-09 Husqvarna Engine
Electrical
Fuel Valve Diagram and Parts List for FR691V-DS15 2017-09 Husqvarna Engine
Fuel Valve
Lubrication Diagram and Parts List for FR691V-DS15 2017-09 Husqvarna Engine
Lubrication

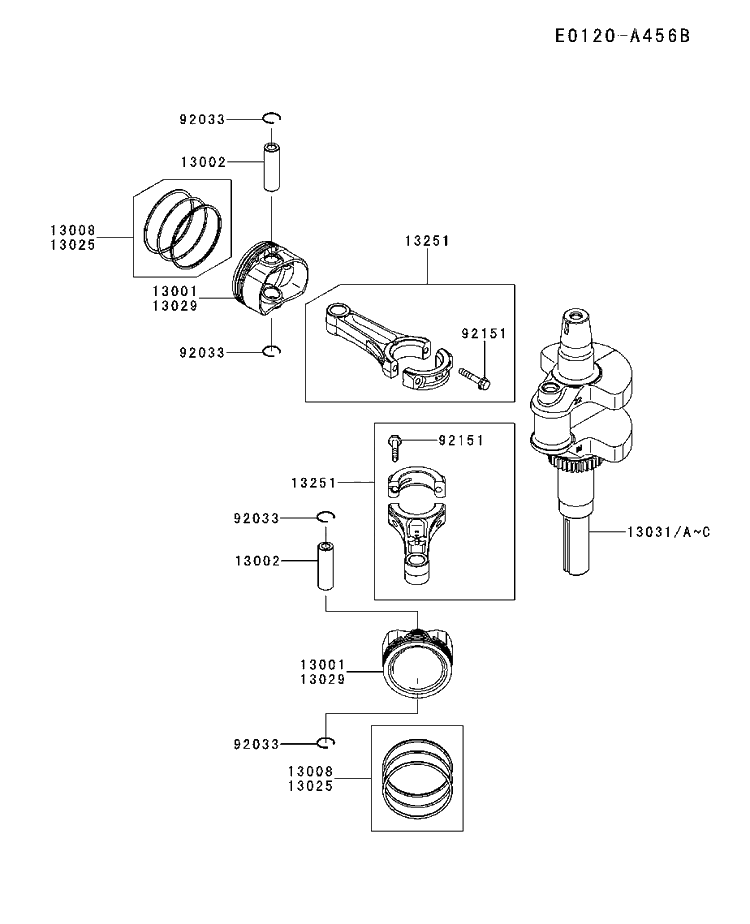

Piston And Crankshaft Diagram and Parts List for FR691V-DS15 2017-09 Husqvarna Engine
Piston And Crankshaft

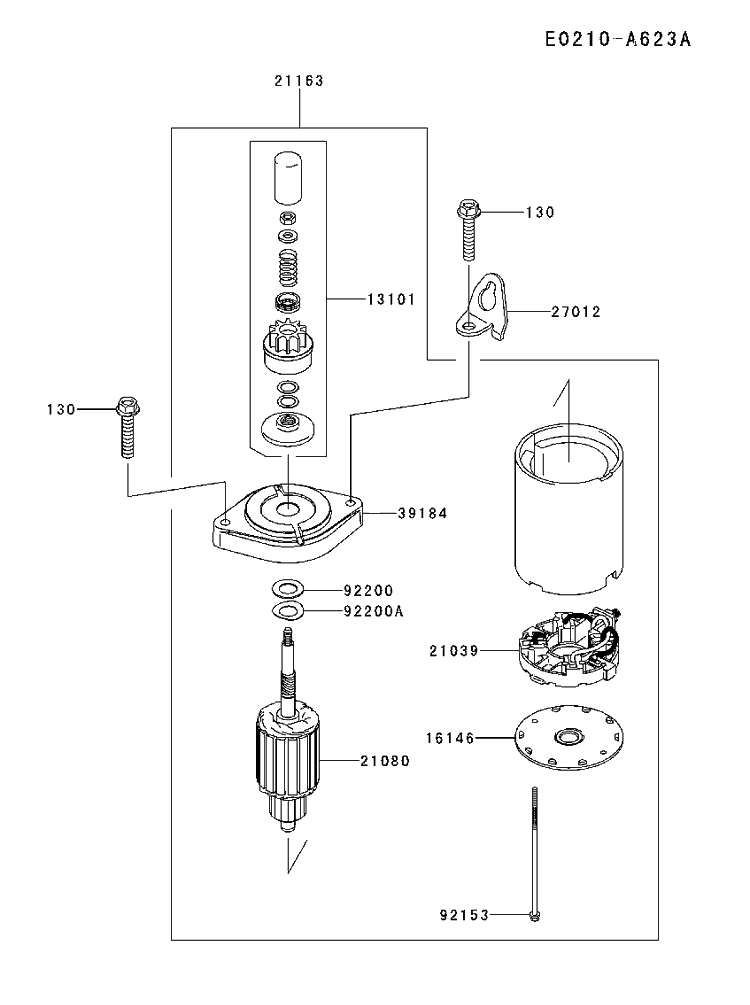

Starter Diagram and Parts List for FR691V-DS15 2017-09 Husqvarna Engine
Starter

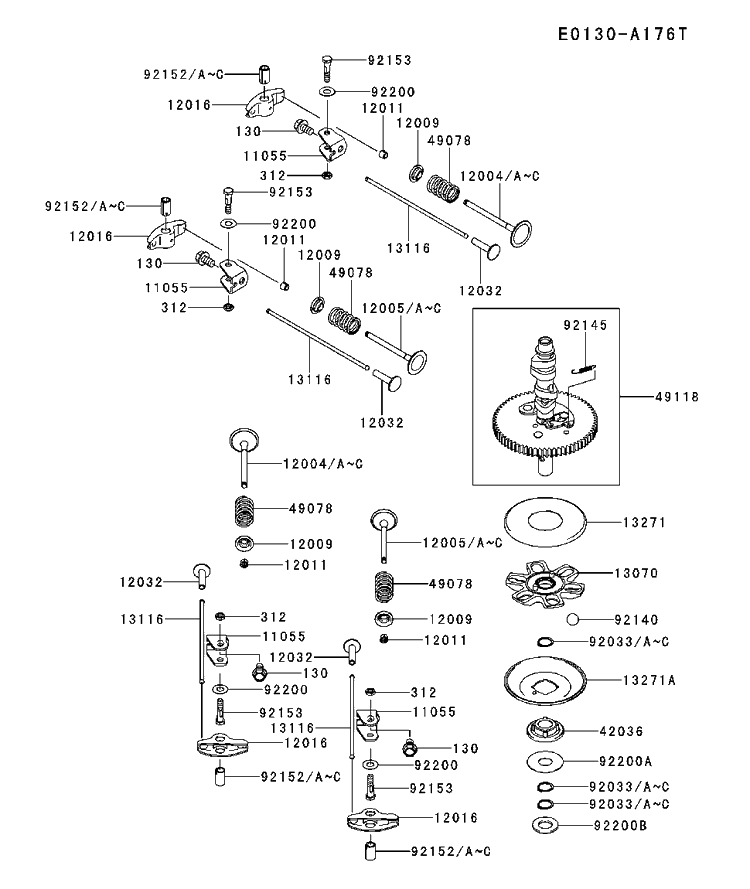

Valve And Camshaft Diagram and Parts List for FR691V-DS15 2017-09 Husqvarna Engine
Valve And Camshaft
Previous Showing All Parts Next
Air Filter And Muffler

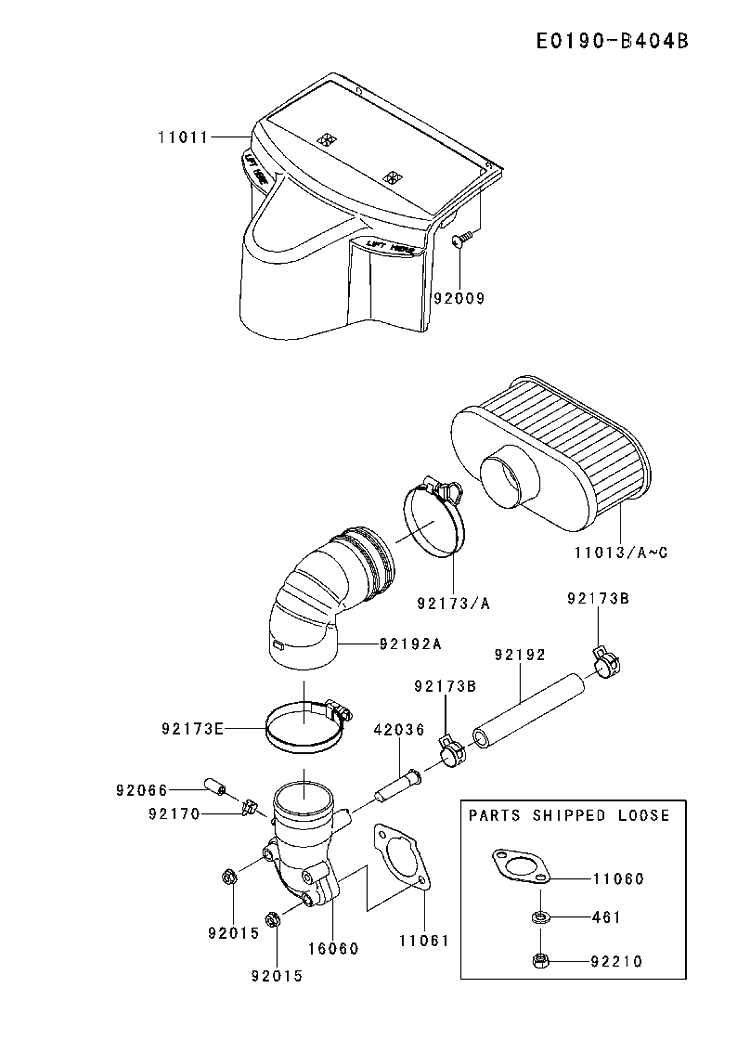

Air Filter And Muffler Diagram and Parts List for FR691V-DS15 2017-09 Husqvarna Engine
  • 461
    Washer-spring,8mm – Part Number: 577581701
    Washer-spring,8mm
    Part Number: 577581701
      No Longer Available
  • 11011
    Case-air filter – Part Number: 591457437
    Case-air filter
    Part Number: 591457437
      No Longer Available
  • 11013
    Element-air filter – Part Number: 585455002
    Element-air filter
    Part Number: 585455002
      No Longer Available
  • 11060
    Muffler gasket – Part Number: 110607016
    Muffler gasket
    Part Number: 110607016
      No Longer Available
  • 11061
    Gasket,carburetor/pipe – Part Number: 586630501
    Gasket,carburetor/pipe
    Part Number: 586630501
      No Longer Available
  • 16060
    Pipe-intake – Part Number: 586630701
    Pipe-intake
    Part Number: 586630701
      No Longer Available
  • 42036
    Sleeve,breather – Part Number: 592739728
    Sleeve,breather
    Part Number: 592739728
      No Longer Available
  • 92009
    Screw – Part Number: 586525401
    Screw
    Part Number: 586525401
      No Longer Available
  • 92015
    Nut, flanged 6mm – Part Number: 577580801
    Nut, flanged 6mm
    Part Number: 577580801
      No Longer Available
  • 92066
    Plug – Part Number: 586518801
    Plug
    Part Number: 586518801
      No Longer Available
  • 92170
    Clamp – Part Number: 586518901
    Clamp
    Part Number: 586518901
      No Longer Available
  • 92173
    Clamp – Part Number: 586630801
    Clamp
    Part Number: 586630801
      No Longer Available
  • 92173B
    Clamp – Part Number: 577581001
    Clamp
    Part Number: 577581001
      No Longer Available
  • 92173E
    Clamp – Part Number: 580466601
    Clamp
    Part Number: 580466601
      No Longer Available
  • 92192
    Tube,12.6x18.6x118 – Part Number: 586519001
    Tube,12.6x18.6x118
    Part Number: 586519001
      No Longer Available
  • 92192A
    Tube – Part Number: 586631001
    Tube
    Part Number: 586631001
      No Longer Available
  • 92210
    Nut,m8 – Part Number: 577581401
    Nut,m8
    Part Number: 577581401
      No Longer Available
  • Not shown
    Element-air filter – Part Number: 586629501
    Element-air filter
    Part Number: 586629501
      No Longer Available
Carburetor

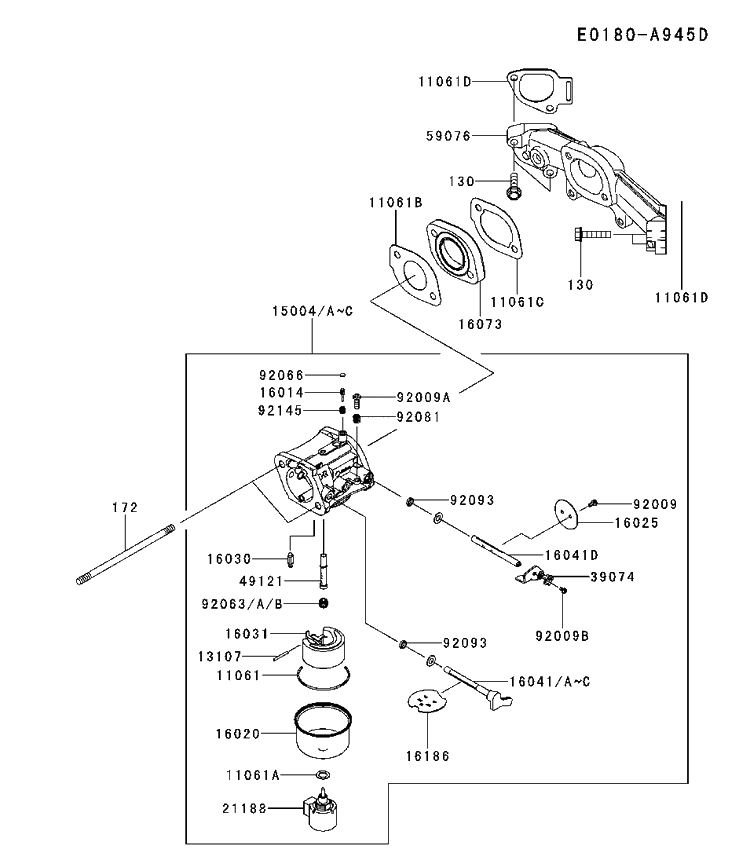

Carburetor Diagram and Parts List for FR691V-DS15 2017-09 Husqvarna Engine
Controls

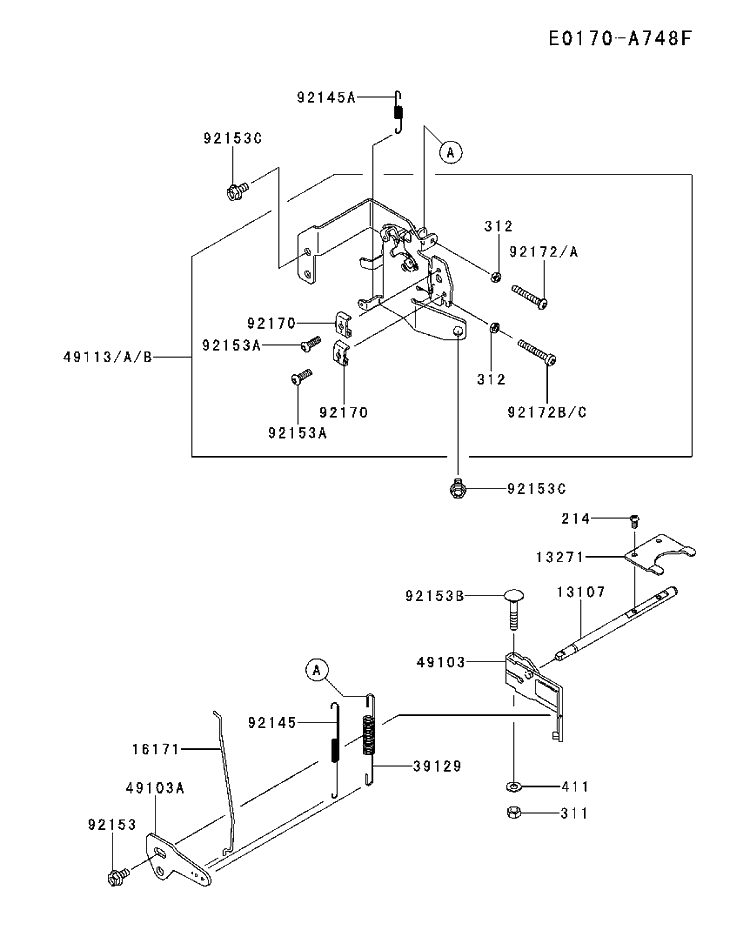

Controls Diagram and Parts List for FR691V-DS15 2017-09 Husqvarna Engine
  • 214
    Screw – Part Number: 577576101
    Screw
    Part Number: 577576101
      No Longer Available
  • 311
    Nut-hex,6mm – Part Number: 577576201
    Nut-hex,6mm
    Part Number: 577576201
      No Longer Available
  • 312
    Nut-hex – Part Number: 577576301
    Nut-hex
    Part Number: 577576301
      No Longer Available
  • 411
    Washer-plain,6.5x13x1 – Part Number: 577576401
    Washer-plain,6.5x13x1
    Part Number: 577576401
      No Longer Available
  • 13107
    Shaft – Part Number: 577741201
    Shaft
    Part Number: 577741201
      No Longer Available
  • 13271
    Plate – Part Number: 577571201
    Plate
    Part Number: 577571201
      No Longer Available
  • 16171
    Link – Part Number: 586623301
    Link
    Part Number: 586623301
      No Longer Available
  • 39129
    Spring-governor – Part Number: 586522301
    Spring-governor
    Part Number: 586522301
      No Longer Available
  • 49103
    Arm-governor – Part Number: 586522401
    Arm-governor
    Part Number: 586522401
      No Longer Available
  • 49103A
    Arm-governor – Part Number: 592739737
    Arm-governor
    Part Number: 592739737
      No Longer Available
  • 49113
    Panel-comp-control – Part Number: 592739740
    Panel-comp-control
    Part Number: 592739740
      No Longer Available
  • 92145
    Spring – Part Number: 586522701
    Spring
    Part Number: 586522701
      No Longer Available
  • 92145A
    Spring – Part Number: 586522801
    Spring
    Part Number: 586522801
      No Longer Available
  • 92153
    Bolt,flanged,6x12 – Part Number: 577682501
    Bolt,flanged,6x12
    Part Number: 577682501
      No Longer Available
  • 92153A
    Bolt,socket,5x16 – Part Number: 921537001
    Bolt,socket,5x16
    Part Number: 921537001
      No Longer Available
  • 92153B
    Bolt,6x35 – Part Number: 577682601
    Bolt,6x35
    Part Number: 577682601
      No Longer Available
  • 92153C
    Bolt,6x12 – Part Number: 577582001
    Bolt,6x12
    Part Number: 577582001
      No Longer Available
  • 92170
    Clamp – Part Number: 921707001
    Clamp
    Part Number: 921707001
      No Longer Available
  • 92172
    Screw,5x35 – Part Number: 591457580
    Screw,5x35
    Part Number: 591457580
      No Longer Available
  • 92172B
    Screw – Part Number: 586593401
    Screw
    Part Number: 586593401
      No Longer Available
Cooling System

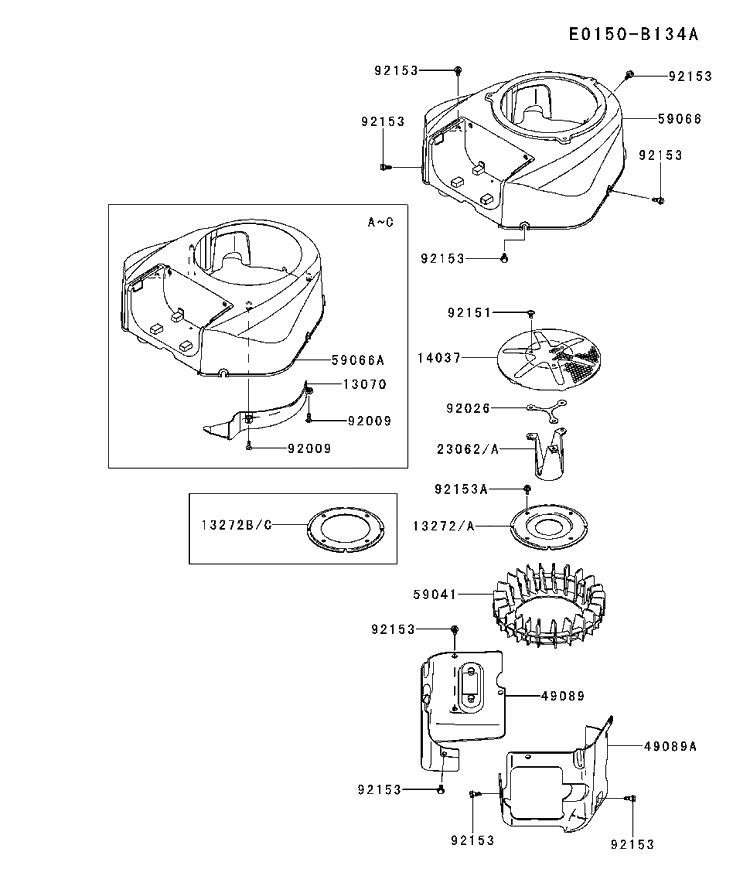

Cooling System Diagram and Parts List for FR691V-DS15 2017-09 Husqvarna Engine
  • 13272
    Plate – Part Number: 591457552
    Plate
    Part Number: 591457552
      No Longer Available
  • 14037
    Screen – Part Number: 586593501
    Screen
    Part Number: 586593501
      No Longer Available
  • 23062A
    Bracket-comp – Part Number: 586622301
    Bracket-comp
    Part Number: 586622301
      No Longer Available
  • 49089
    Shroud-engine – Part Number: 586622401
    Shroud-engine
    Part Number: 586622401
      No Longer Available
  • 49089A
    Shroud-engine – Part Number: 586622501
    Shroud-engine
    Part Number: 586622501
      No Longer Available
  • 59041
    Fan – Part Number: 586523401
    Fan
    Part Number: 586523401
      No Longer Available
  • 59066
    Housing-fan – Part Number: 586622701
    Housing-fan
    Part Number: 586622701
      No Longer Available
  • 92026
    Spacer – Part Number: 586622801
    Spacer
    Part Number: 586622801
      No Longer Available
  • 92151
    Bolt,6x12 – Part Number: 577683601
    Bolt,6x12
    Part Number: 577683601
      No Longer Available
  • 92153
    Bolt,recoil starter – Part Number: 921537007
    Bolt,recoil starter
    Part Number: 921537007
      No Longer Available
  • 92153A
    Bolt,6x12 – Part Number: 577582001
    Bolt,6x12
    Part Number: 577582001
      No Longer Available
Cylinder And Crankcase

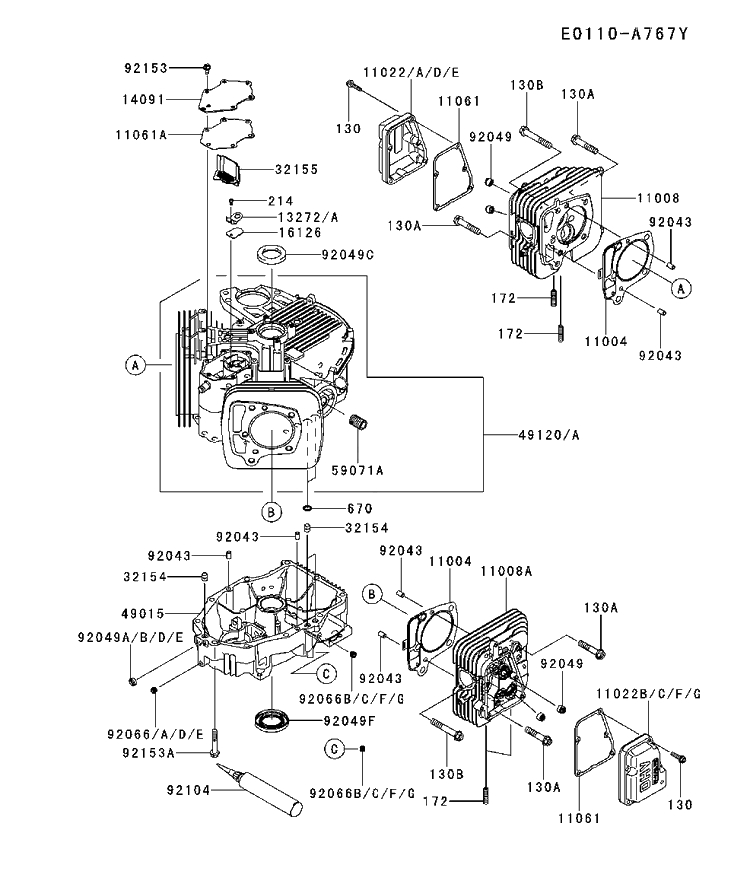

Cylinder And Crankcase Diagram and Parts List for FR691V-DS15 2017-09 Husqvarna Engine

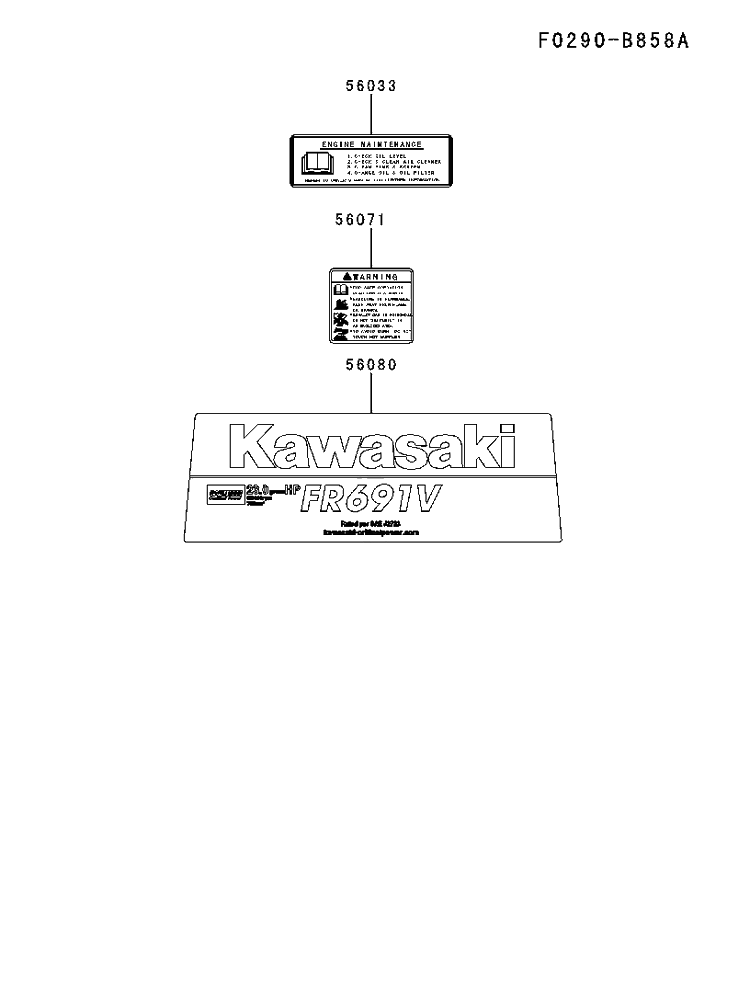

Decals
Decals Diagram and Parts List for FR691V-DS15 2017-09 Husqvarna Engine
  • 56033
    Label-manual – Part Number: 577584501
    Label-manual
    Part Number: 577584501
      No Longer Available
  • 56071
    Label-warning – Part Number: 586594301
    Label-warning
    Part Number: 586594301
      No Longer Available
  • 56080
    Label-brand – Part Number: 591457516
    Label-brand
    Part Number: 591457516
      No Longer Available
Electrical

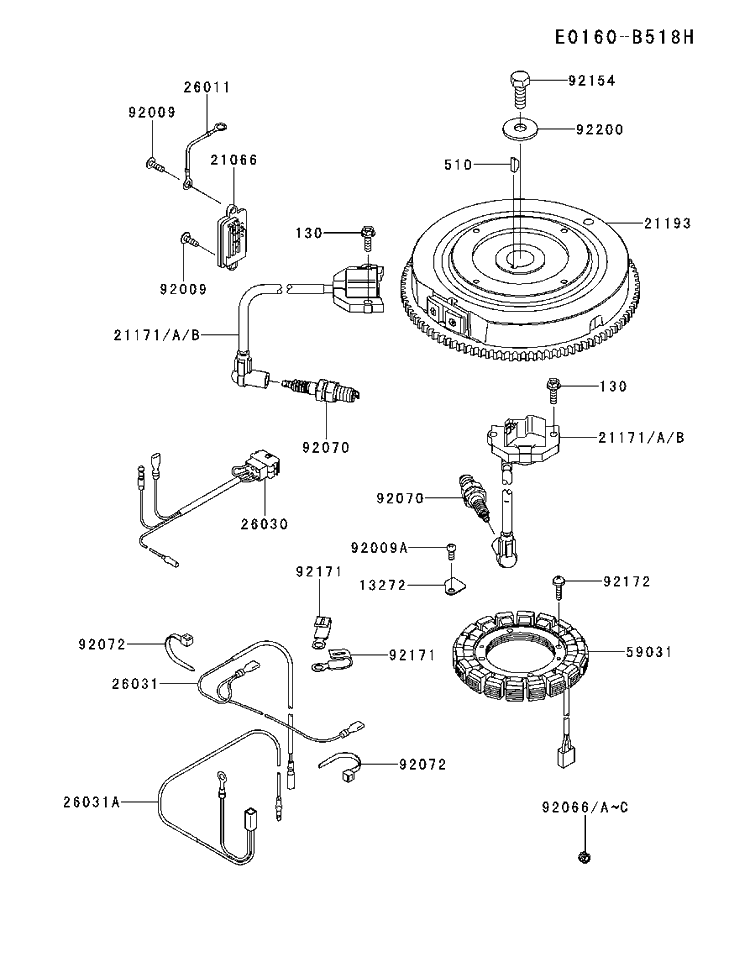

Electrical Diagram and Parts List for FR691V-DS15 2017-09 Husqvarna Engine
  • 130
    Bolt-flanged,6x20 – Part Number: 577582801
    Bolt-flanged,6x20
    Part Number: 577582801
      No Longer Available
  • 510
    Woodruff key – Part Number: 502811601
    Woodruff key
    Part Number: 502811601
      No Longer Available
  • 13272
    Plate – Part Number: 586524801
    Plate
    Part Number: 586524801
      No Longer Available
  • 21066
    Regulator-voltage – Part Number: 586594101
    Regulator-voltage
    Part Number: 586594101
      No Longer Available
  • 21171
    Kit,starter-electric – Part Number: 592739752
    Kit,starter-electric
    Part Number: 592739752
      No Longer Available
  • 21193
    Flywheel-assy – Part Number: 586623101
    Flywheel-assy
    Part Number: 586623101
      No Longer Available
  • 26011
    Wire-lead,l=95 – Part Number: 586623201
    Wire-lead,l=95
    Part Number: 586623201
      No Longer Available
  • 26030
    Harness – Part Number: 591457487
    Harness
    Part Number: 591457487
      No Longer Available
  • 26031
    Harness – Part Number: 586525201
    Harness
    Part Number: 586525201
      No Longer Available
  • 26031A
    Harness – Part Number: 586525301
    Harness
    Part Number: 586525301
      No Longer Available
  • 59031
    Coil-charging 15amp – Part Number: 577570201
    Coil-charging 15amp
    Part Number: 577570201
      No Longer Available
  • 92009
    Screw – Part Number: 586525401
    Screw
    Part Number: 586525401
      No Longer Available
  • 92009A
    Screw – Part Number: 920092308
    Screw
    Part Number: 920092308
      No Longer Available
  • 92066
    Plug – Part Number: 586621601
    Plug
    Part Number: 586621601
      No Longer Available
  • 92070
    Plug-spark,bpr4es(ngk) – Part Number: 578181501
    Plug-spark,bpr4es(ngk)
    Part Number: 578181501
      No Longer Available
  • 92072
    Band – Part Number: 577570401
    Band
    Part Number: 577570401
      No Longer Available
  • 92154
    Bolt,12x30 – Part Number: 577570501
    Bolt,12x30
    Part Number: 577570501
      No Longer Available
  • 92171
    Clamp – Part Number: 586525901
    Clamp
    Part Number: 586525901
      No Longer Available
  • 92172
    Screw,5x20 – Part Number: 577570601
    Screw,5x20
    Part Number: 577570601
      No Longer Available
  • 92200
    Washer – Part Number: 922007002
    Washer
    Part Number: 922007002
      No Longer Available

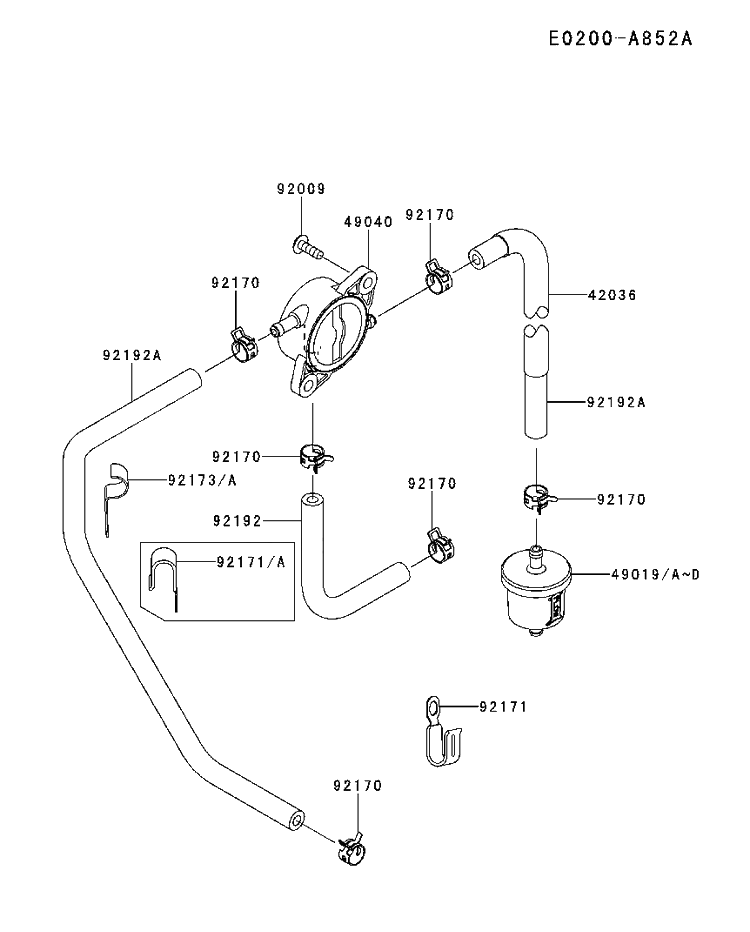

Fuel Valve
Fuel Valve Diagram and Parts List for FR691V-DS15 2017-09 Husqvarna Engine
  • 42036
    Sleeve – Part Number: 586525601
    Sleeve
    Part Number: 586525601
      No Longer Available
  • 49019
    Filter-fuel – Part Number: 582541201
    Filter-fuel
    Part Number: 582541201
      No Longer Available
  • 49040
    Pump-fuel – Part Number: 586525701
    Pump-fuel
    Part Number: 586525701
      No Longer Available
  • 92009
    Screw – Part Number: 586525401
    Screw
    Part Number: 586525401
      No Longer Available
  • 92170
    Clamp – Part Number: 577582101
    Clamp
    Part Number: 577582101
      No Longer Available
  • 92171
    Clamp – Part Number: 586525901
    Clamp
    Part Number: 586525901
      No Longer Available
  • 92173
    Clamp – Part Number: 586631101
    Clamp
    Part Number: 586631101
      No Longer Available
  • 92192
    Tube,6.4x12.7x150 – Part Number: 586526001
    Tube,6.4x12.7x150
    Part Number: 586526001
      No Longer Available
  • 92192A
    Tube,6.35x12.7x390 – Part Number: 591457622
    Tube,6.35x12.7x390
    Part Number: 591457622
      No Longer Available

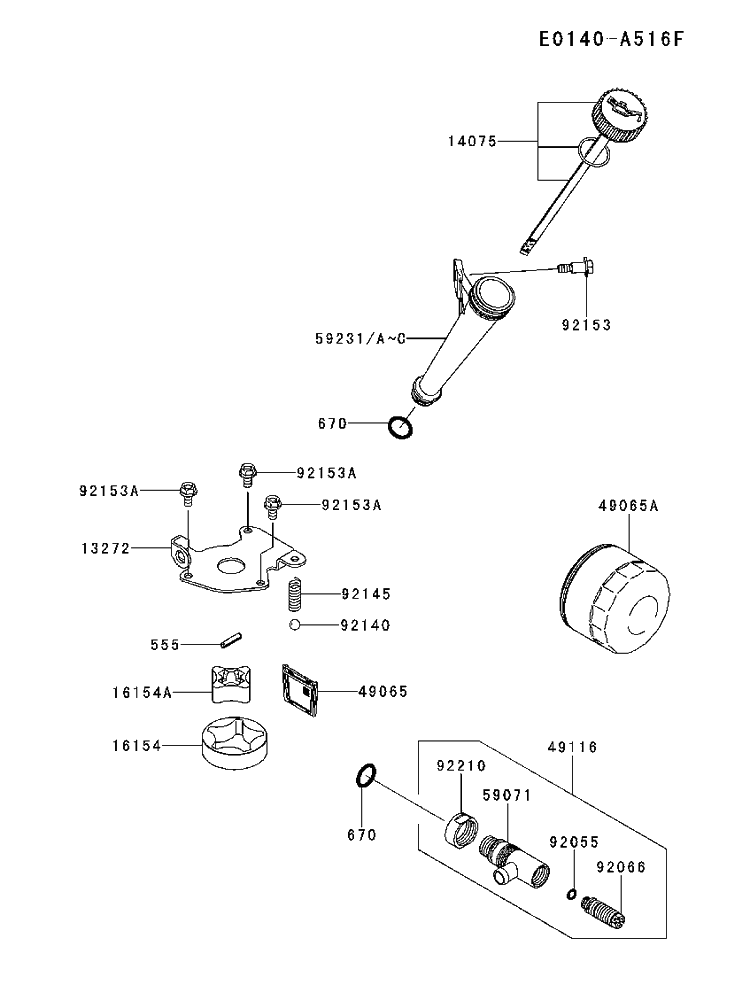

Lubrication
Lubrication Diagram and Parts List for FR691V-DS15 2017-09 Husqvarna Engine
  • 555
    Pin-spring,4x20 – Part Number: 586594501
    Pin-spring,4x20
    Part Number: 586594501
      No Longer Available
  • 670
    O-ring – Part Number: 502829001
    O-ring
    Part Number: 502829001
      No Longer Available
  • 13272
    Plate,rotor – Part Number: 586526301
    Plate,rotor
    Part Number: 586526301
      No Longer Available
  • 14075
    Cap-assembly – Part Number: 591457429
    Cap-assembly
    Part Number: 591457429
      No Longer Available
  • 16154
    Rotor-pump,outer – Part Number: 586526501
    Rotor-pump,outer
    Part Number: 586526501
      No Longer Available
  • 16154A
    Rotor-pump,inner – Part Number: 586526601
    Rotor-pump,inner
    Part Number: 586526601
      No Longer Available
  • 49065
    Filter-oil – Part Number: 585432001
    Filter-oil
    Part Number: 585432001
      No Longer Available
  • 49065A
    Oil Filter – Part Number: 578159201
    Oil Filter
    Part Number: 578159201
      Special Order
    $37.13
  • 49116
    VALVE ASSEMBLY – Part Number: 539109587
    VALVE ASSEMBLY
    Part Number: 539109587
      No Longer Available
  • 59071
    Joint – Part Number: 590717008
    Joint
    Part Number: 590717008
      No Longer Available
  • 59231
    Filler – Part Number: 586550701
    Filler
    Part Number: 586550701
      No Longer Available
  • 92055
    Ring-o – Part Number: 920557002
    Ring-o
    Part Number: 920557002
      No Longer Available
  • 92066
    Plug – Part Number: 92066-7007
    Plug
    Part Number: 92066-7007
      No Longer Available
  • 92140
    Ball – Part Number: 921407003
    Ball
    Part Number: 921407003
      No Longer Available
  • 92145
    Spring – Part Number: 92145-7002
    Spring
    Part Number: 92145-7002
      No Longer Available
  • 92153
    Lawn & garden equipment engine bolt – Part Number: 92153-7008
    Lawn & garden equipment engine bolt
    Part Number: 92153-7008
      No Longer Available
  • 92153A
    Bolt,6x12 – Part Number: 577582001
    Bolt,6x12
    Part Number: 577582001
      No Longer Available
  • 92210
    Nut – Part Number: 922107012
    Nut
    Part Number: 922107012
      No Longer Available
Piston And Crankshaft
Piston And Crankshaft Diagram and Parts List for FR691V-DS15 2017-09 Husqvarna Engine
Starter
Starter Diagram and Parts List for FR691V-DS15 2017-09 Husqvarna Engine
  • 130
    Bolt-flanged,8x40 – Part Number: 586603001
    Bolt-flanged,8x40
    Part Number: 586603001
      No Longer Available
  • 13101
    Gear-assembly – Part Number: 586631201
    Gear-assembly
    Part Number: 586631201
      No Longer Available
  • 16146
    Cover-assembly – Part Number: 586631301
    Cover-assembly
    Part Number: 586631301
      No Longer Available
  • 21039
    Brush – Part Number: 210397002
    Brush
    Part Number: 210397002
      No Longer Available
  • 21080
    Armature – Part Number: 586631401
    Armature
    Part Number: 586631401
      No Longer Available
  • 21163
    Starter-electric – Part Number: 588073301
    Starter-electric
    Part Number: 588073301
      No Longer Available
  • 27012
    Hook – Part Number: 577561201
    Hook
    Part Number: 577561201
      No Longer Available
  • 39184
    Bracket assembly – Part Number: 591457424
    Bracket assembly
    Part Number: 591457424
      No Longer Available
  • 92153
    Bolt – Part Number: 586631601
    Bolt
    Part Number: 586631601
      No Longer Available
  • 92200
    Washer – Part Number: 586631701
    Washer
    Part Number: 586631701
      No Longer Available
  • 92200A
    Washer – Part Number: 586631801
    Washer
    Part Number: 586631801
      No Longer Available
Valve And Camshaft
Valve And Camshaft Diagram and Parts List for FR691V-DS15 2017-09 Husqvarna Engine
  • 130
    Bolt-flanged – Part Number: 577697701
    Bolt-flanged
    Part Number: 577697701
      No Longer Available
  • 312
    Nut-hex – Part Number: 577698101
    Nut-hex
    Part Number: 577698101
      No Longer Available
  • 11055
    Bracket – Part Number: 577697201
    Bracket
    Part Number: 577697201
      No Longer Available
  • 12004
    Valve-intake – Part Number: 591457629
    Valve-intake
    Part Number: 591457629
      No Longer Available
  • 12005
    Valve-exhaust – Part Number: 591457628
    Valve-exhaust
    Part Number: 591457628
      No Longer Available
  • 12009
    Retainer-valve spring – Part Number: 120097001
    Retainer-valve spring
    Part Number: 120097001
      No Longer Available
  • 12011
    Collet – Part Number: 120112056
    Collet
    Part Number: 120112056
      No Longer Available
  • 12016
    Arm-rocker – Part Number: 591457405
    Arm-rocker
    Part Number: 591457405
      No Longer Available
  • 12032
    Tappet – Part Number: 120327001
    Tappet
    Part Number: 120327001
      No Longer Available
  • 13070
    Guide,governor – Part Number: 586528301
    Guide,governor
    Part Number: 586528301
      No Longer Available
  • 13116
    Rod-push – Part Number: 591457576
    Rod-push
    Part Number: 591457576
      No Longer Available
  • 13271
    Plate – Part Number: 132717007
    Plate
    Part Number: 132717007
      No Longer Available
  • 13271A
    Plate – Part Number: 132717021
    Plate
    Part Number: 132717021
      No Longer Available
  • 42036
    Sleeve – Part Number: 586528501
    Sleeve
    Part Number: 586528501
      No Longer Available
  • 49078
    Spring-engine valve – Part Number: 490787002
    Spring-engine valve
    Part Number: 490787002
      No Longer Available
  • 49118
    Camshaft-comp – Part Number: 586528601
    Camshaft-comp
    Part Number: 586528601
      No Longer Available
  • 92033
    Ring-snap – Part Number: 586621701
    Ring-snap
    Part Number: 586621701
      No Longer Available
  • 92140
    Ball – Part Number: 577566801
    Ball
    Part Number: 577566801
      No Longer Available
  • 92145
    Spring – Part Number: 591457611
    Spring
    Part Number: 591457611
      No Longer Available
  • 92152
    Collar – Part Number: 586551301
    Collar
    Part Number: 586551301
      No Longer Available
  • 92153
    Bolt,6x29.5 – Part Number: 577698701
    Bolt,6x29.5
    Part Number: 577698701
      No Longer Available
  • 92200
    Washer,8.1x18x0.5 – Part Number: 577698801
    Washer,8.1x18x0.5
    Part Number: 577698801
      No Longer Available
  • 92200A
    Washer,16x42x0.91 – Part Number: 586551501
    Washer,16x42x0.91
    Part Number: 586551501
      No Longer Available
  • 92200B
    Washer,16.3x30x2.28 – Part Number: 586528701
    Washer,16.3x30x2.28
    Part Number: 586528701
      No Longer Available
✖

Our customer service team are at the ready daily to answer your part and product questions. We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.
