Briggs and Stratton (0001-0013) Engine Replacement Parts For Model 135200-135299 (0001-0013)

We Sell Only Genuine Briggs and Stratton Parts

Find Briggs and Stratton 135200-135299 Parts By Symptom

Will Not Start

91%

Cannot pull starter cord out or engine will not turn over

9%

Popular Parts for 135200-135299

Lawn Mower Spark Plug – Part Number: 796112S Lawn Mower Spark Plug
In Stock
$6.16
Starter Pawl-Ratchet – Part Number: 281505S Starter Pawl-Ratchet
In Stock
$6.16
Key-flywheel – Part Number: 222698S Key-flywheel
In Stock
$6.16
Pulley/spring Assembly – Part Number: 498144 Pulley/spring Assembly
In Stock
$25.85
Gasket-intake – Part Number: 27355S Gasket-intake
In Stock
Minimum Quantity of 2 required
$6.16
Gasket-intake – Part Number: 273113S Gasket-intake
In Stock
Minimum Quantity of 2 required
$6.16
Plate-pawl Friction – Part Number: 692299 Plate-pawl Friction
On Order
$6.17
Seal-oil – Part Number: 299819S Seal-oil
In Stock
$7.43

Search Within Model

Questions & Answers for Briggs and Stratton 135200-135299
Browse all Parts Search by Area
Air Cleaner Assembly Diagram and Parts List for 0001-0013 Briggs and Stratton Engine
Air Cleaner Assembly
Armature Diagram and Parts List for 0001-0013 Briggs and Stratton Engine
Armature
Carburetor Diagram and Parts List for 0001-0013 Briggs and Stratton Engine
Carburetor
Carburetor Assembly Diagram and Parts List for 0001-0013 Briggs and Stratton Engine
Carburetor Assembly
Carburetor Overhaul Kit/Valve Overhaul Gasket Set Diagram and Parts List for 0001-0013 Briggs and Stratton Engine
Carburetor Overhaul Kit/Valve Overhaul Gasket Set
Control Bracket Diagram and Parts List for 0001-0013 Briggs and Stratton Engine
Control Bracket
Crankcase 1 Diagram and Parts List for 0001-0013 Briggs and Stratton Engine
Crankcase 1
Crankcase 2 Diagram and Parts List for 0001-0013 Briggs and Stratton Engine
Crankcase 2
Crankshaft Diagram and Parts List for 0001-0013 Briggs and Stratton Engine
Crankshaft
Cylinder Assembly Diagram and Parts List for 0001-0013 Briggs and Stratton Engine
Cylinder Assembly
Flywheel Assembly Diagram and Parts List for 0001-0013 Briggs and Stratton Engine
Flywheel Assembly
Fuel Tank Assembly Diagram and Parts List for 0001-0013 Briggs and Stratton Engine
Fuel Tank Assembly
Gear Case Assembly Diagram and Parts List for 0001-0013 Briggs and Stratton Engine
Gear Case Assembly
Motor Starter Diagram and Parts List for 0001-0013 Briggs and Stratton Engine
Motor Starter
Muffler Assembly Diagram and Parts List for 0001-0013 Briggs and Stratton Engine
Muffler Assembly
Oil Gard Kit Diagram and Parts List for 0001-0013 Briggs and Stratton Engine
Oil Gard Kit
Piston Assembly Diagram and Parts List for 0001-0013 Briggs and Stratton Engine
Piston Assembly

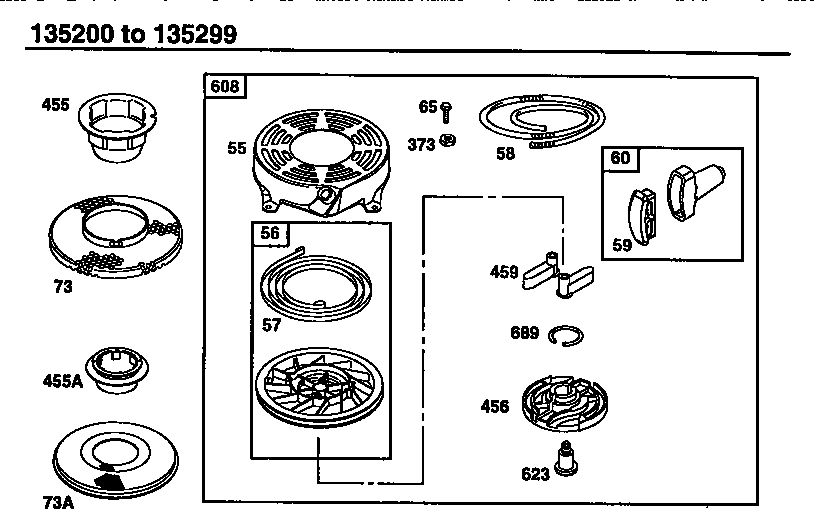

Rewind Starter 1 Diagram and Parts List for 0001-0013 Briggs and Stratton Engine
Rewind Starter 1

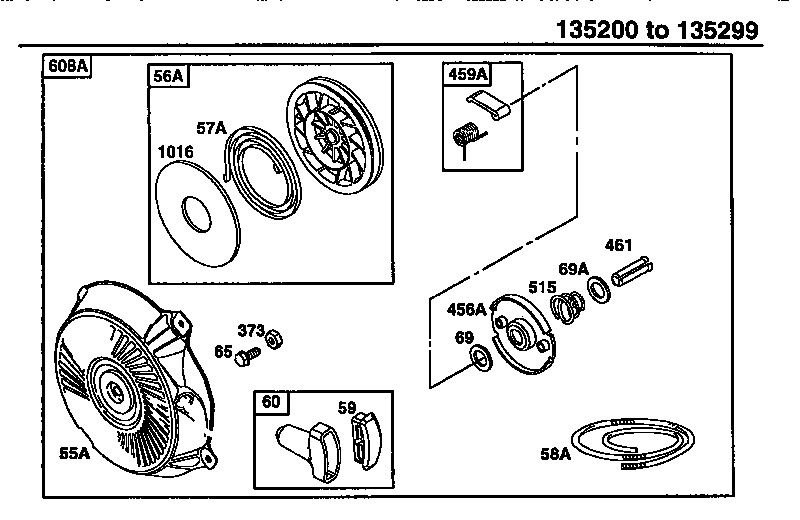

Rewind Starter 2 Diagram and Parts List for 0001-0013 Briggs and Stratton Engine
Rewind Starter 2
Previous Showing All Parts Next

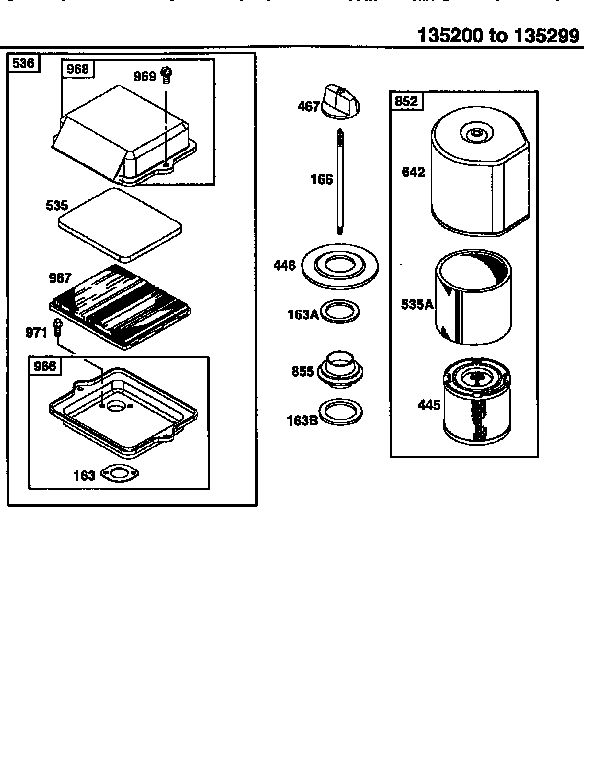

Air Cleaner Assembly
Air Cleaner Assembly Diagram and Parts List for 0001-0013 Briggs and Stratton Engine

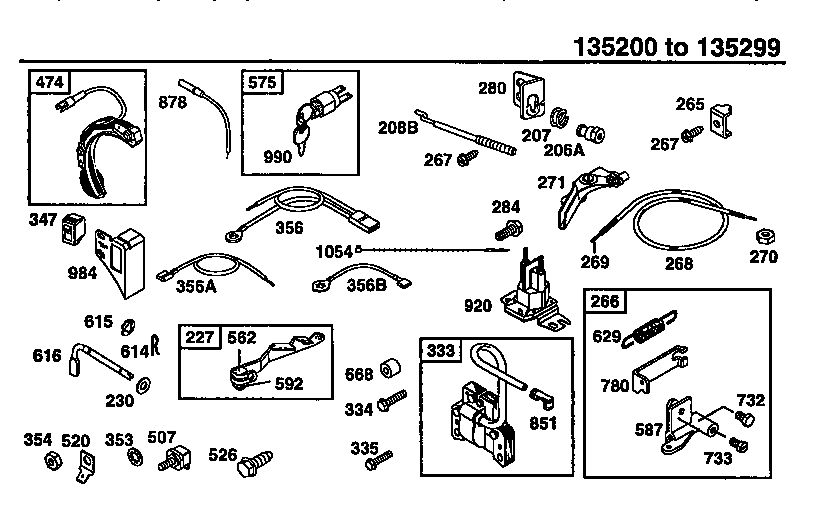

Armature
Armature Diagram and Parts List for 0001-0013 Briggs and Stratton Engine

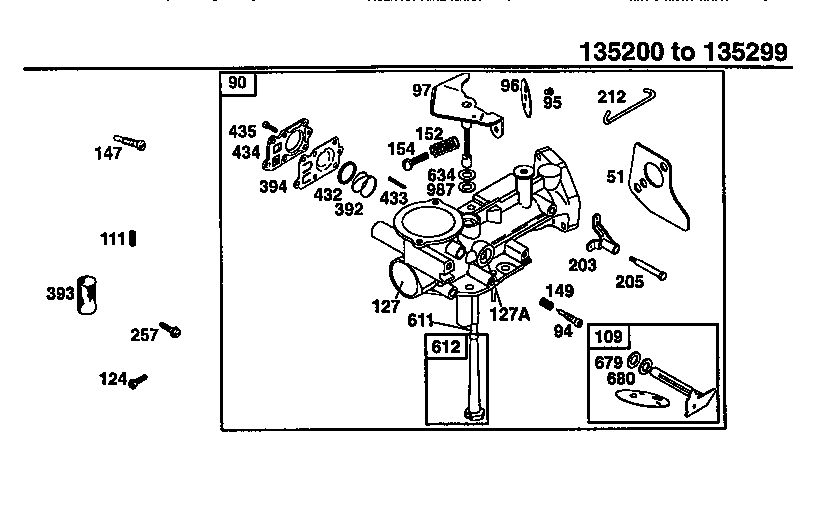

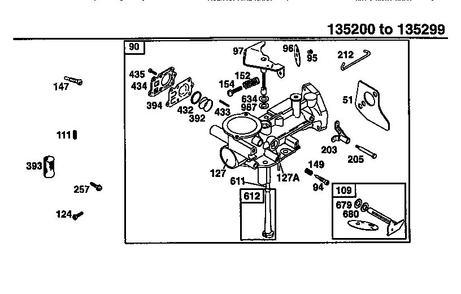

Carburetor
Carburetor Diagram and Parts List for 0001-0013 Briggs and Stratton Engine

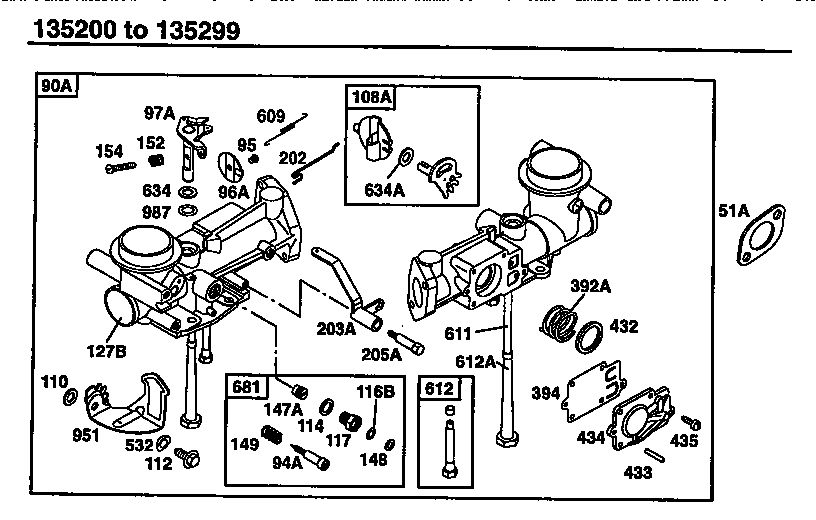

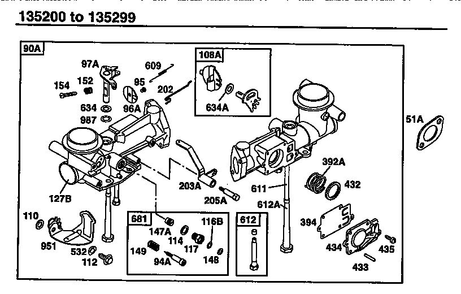

Carburetor Assembly
Carburetor Assembly Diagram and Parts List for 0001-0013 Briggs and Stratton Engine

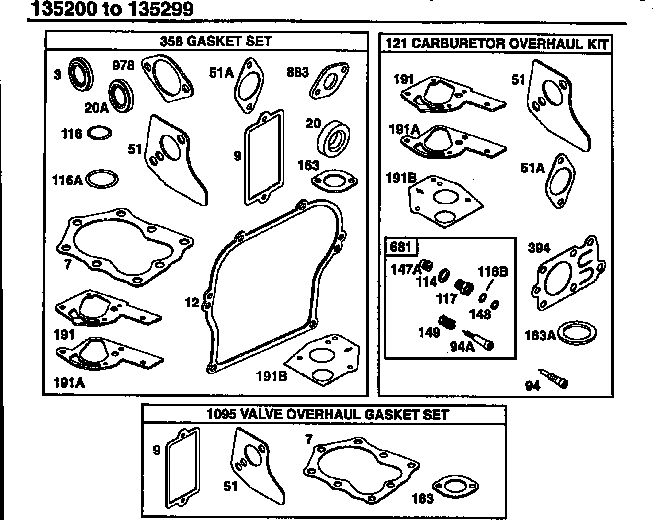

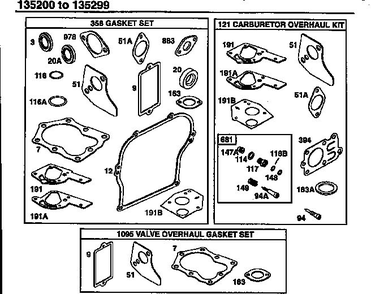

Carburetor Overhaul Kit/Valve Overhaul Gasket Set
Carburetor Overhaul Kit/Valve Overhaul Gasket Set Diagram and Parts List for 0001-0013 Briggs and Stratton Engine
Control Bracket
Control Bracket Diagram and Parts List for 0001-0013 Briggs and Stratton Engine

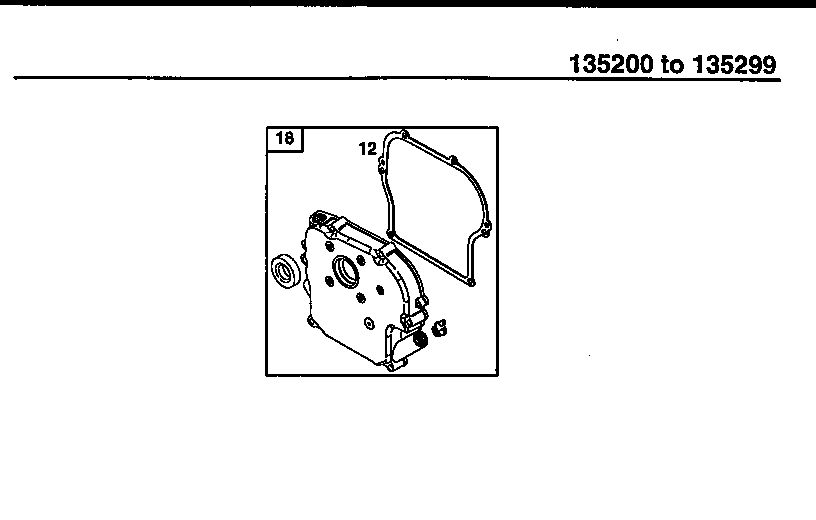

Crankcase 1
Crankcase 1 Diagram and Parts List for 0001-0013 Briggs and Stratton Engine

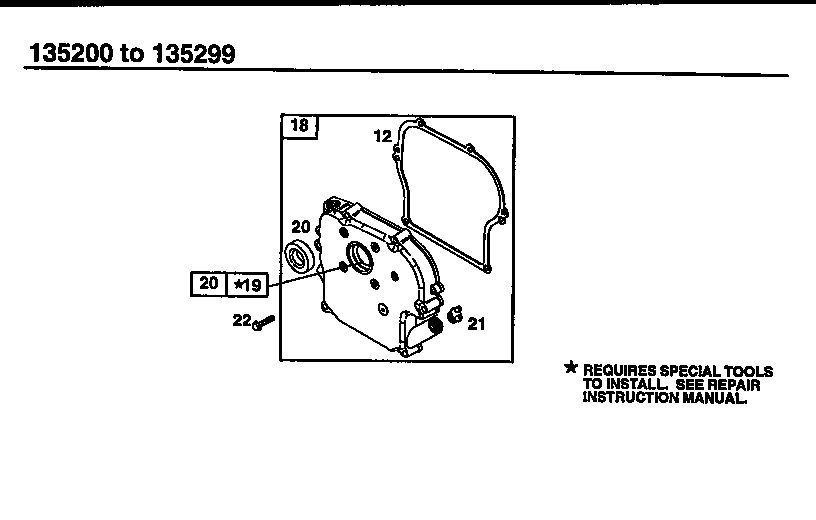

Crankcase 2
Crankcase 2 Diagram and Parts List for 0001-0013 Briggs and Stratton Engine

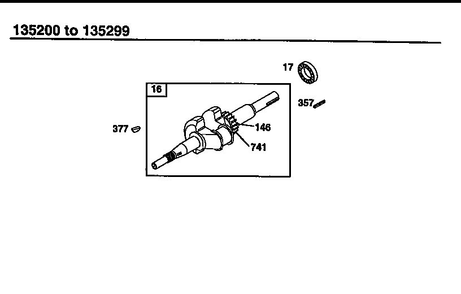

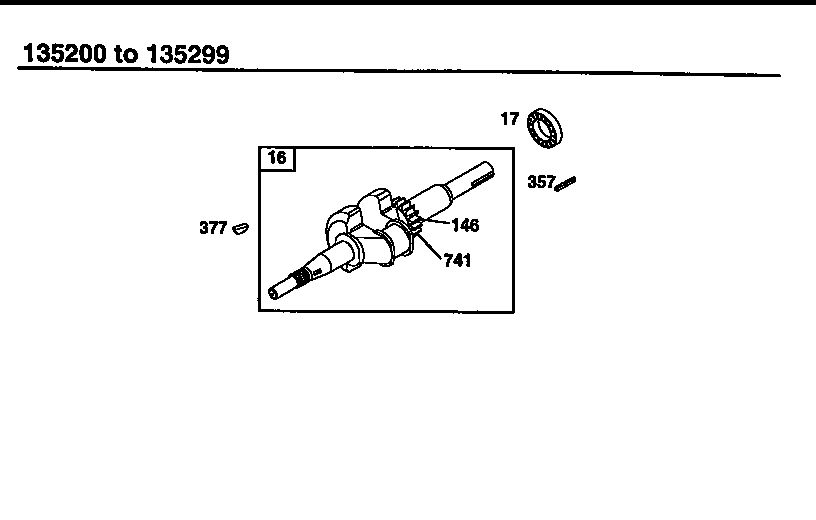

Crankshaft
Crankshaft Diagram and Parts List for 0001-0013 Briggs and Stratton Engine
  • 16
    Crankshaft – Part Number: 492088
    Crankshaft
    Part Number: 492088
      Special Order
    $176.46
  • 16A
    Crankshaft – Part Number: 397095
    Crankshaft
    Part Number: 397095
      Special Order
    $222.81
  • 16B
    Crankshaft – Part Number: 397103
    Crankshaft
    Part Number: 397103
      No Longer Available
  • 16C
    Crankshaft – Part Number: 494035
    Crankshaft
    Part Number: 494035
      Special Order
    $222.81
  • 16D
    Crankshaft – Part Number: 495642
    Crankshaft
    Part Number: 495642
      Special Order
    $222.81
  • 16E
    Crankshaft – Part Number: 495643
    Crankshaft
    Part Number: 495643
      Special Order
    $222.81
  • 16F
    Crankshaft – Part Number: 495644
    Crankshaft
    Part Number: 495644
      Special Order
    $135.39
  • 16G
    Crankshaft – Part Number: 495645
    Crankshaft
    Part Number: 495645
      Special Order
    $266.39
  • 16H
    Crankshaft – Part Number: 495649
    Crankshaft
    Part Number: 495649
      No Longer Available
  • 16I
    Crankshaft – Part Number: 499764
    Crankshaft
    Part Number: 499764
      Special Order
    $163.99
  • 16J
    Crankshaft – Part Number: 499765
    Crankshaft
    Part Number: 499765
      Special Order
    $222.81
  • 16K
    Crankshaft – Part Number: 692142
    Crankshaft
    Part Number: 692142
      Special Order
    $130.75
  • 17
    Bearing-Ball – Part Number: 692007
    Bearing-Ball
    Part Number: 692007
      Special Order
    $38.24
  • 146
    Key-woodruff – Part Number: 690979
    Key-woodruff
    Part Number: 690979
      In Stock
    $6.16
  • 146A
    Pin-Locating – Part Number: 499047
    Pin-Locating
    Part Number: 499047
      Special Order
    $6.82
  • 357
    Key-drive Pulley – Part Number: 692191
    Key-drive Pulley
    Part Number: 692191
      No Longer Available
  • 377
    Key-Drive Pulley – Part Number: 690339
    Key-Drive Pulley
    Part Number: 690339
      In Stock
    $7.65
  • 741
    Gear-Timing – Part Number: 691847
    Gear-Timing
    Part Number: 691847
      In Stock
    $44.89
  • 741A
    Gear-timing – Part Number: 261696
    Gear-timing
    Part Number: 261696
      Special Order
    $72.24

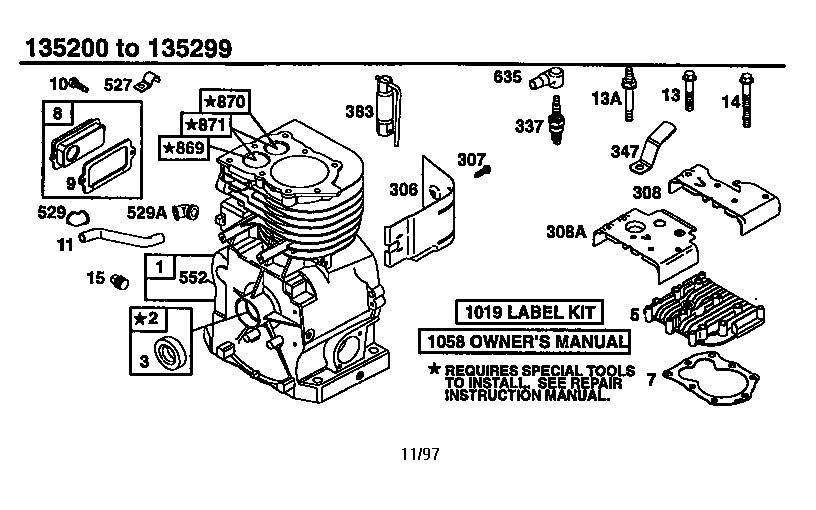

Cylinder Assembly
Cylinder Assembly Diagram and Parts List for 0001-0013 Briggs and Stratton Engine

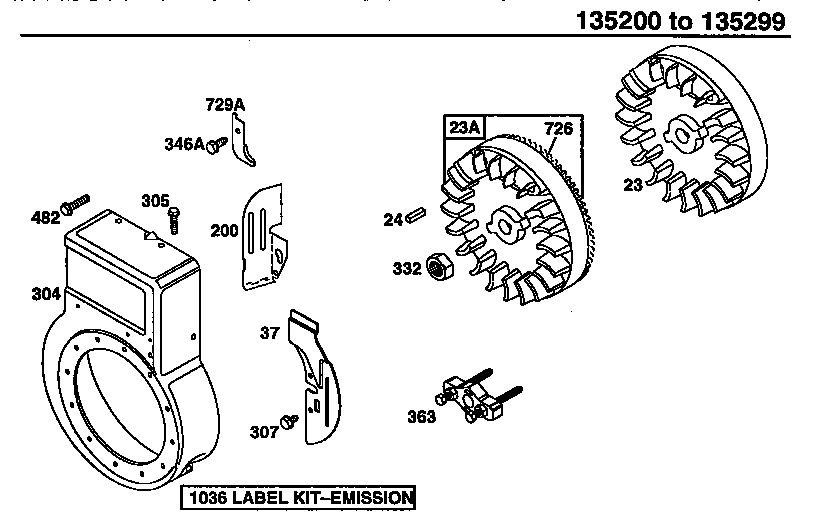

Flywheel Assembly
Flywheel Assembly Diagram and Parts List for 0001-0013 Briggs and Stratton Engine
Fuel Tank Assembly
Fuel Tank Assembly Diagram and Parts List for 0001-0013 Briggs and Stratton Engine

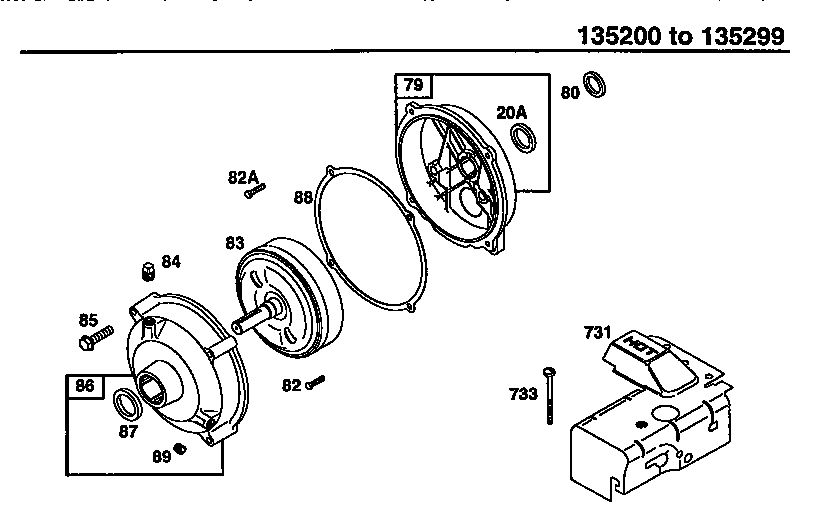

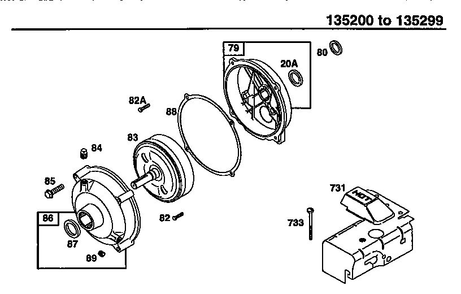

Gear Case Assembly
Gear Case Assembly Diagram and Parts List for 0001-0013 Briggs and Stratton Engine
  • 79
    Case-gear Reduction – Part Number: 690605
    Case-gear Reduction
    Part Number: 690605
      Special Order
    $170.41
  • 80
    Gasket-Gear Case – Part Number: 691602
    Gasket-Gear Case
    Part Number: 691602
      In Stock
    $9.22
  • 82
    Screw – Part Number: 690369
    Screw
    Part Number: 690369
      Special Order
    $8.79
  • 82A
    Screw – Part Number: 699164
    Screw
    Part Number: 699164
      Special Order
    $6.16
  • 83
    Shaft-Aux Drive – Part Number: 690374
    Shaft-Aux Drive
    Part Number: 690374
      Special Order
    $286.10
  • 84
    Plug-Breather – Part Number: 691121
    Plug-Breather
    Part Number: 691121
      Special Order
    $9.84
  • 85
    Screw – Part Number: 691117
    Screw
    Part Number: 691117
      Special Order
    $6.16
  • 86
    Cover-Gear – Part Number: 690608
    Cover-Gear
    Part Number: 690608
      Special Order
    $97.33
  • 87
    Seal-gear Reduction – Part Number: 691582
    Seal-gear Reduction
    Part Number: 691582
      In Stock
    $20.31
  • 88
    Gasket-gear Cover/housing – Part Number: 691600
    Gasket-gear Cover/housing
    Part Number: 691600
      Special Order
    $17.78
  • 89
    Plug-Oil Drain – Part Number: 691682
    Plug-Oil Drain
    Part Number: 691682
      In Stock
    $8.99
  • 731
    Hood-Snow – Part Number: 399183
    Hood-Snow
    Part Number: 399183
      Special Order
    $86.15
  • 733
    Screw – Part Number: 93977
    Screw
    Part Number: 93977
      Special Order
    $8.25
Motor Starter
Motor Starter Diagram and Parts List for 0001-0013 Briggs and Stratton Engine
  • 110
    Washer – Part Number: 691261
    Washer
    Part Number: 691261
      In Stock
    $6.28
  • 189
    Washer, 5/16 Lock Yz – Part Number: 5025170
    Washer, 5/16 Lock Yz
    Part Number: 5025170
      Special Order
    $6.37
  • 309
    Motor-Starter – Part Number: 690658
    Motor-Starter
    Part Number: 690658
      No Longer Available
  • 310
    Screw – Part Number: 690323
    Screw
    Part Number: 690323
      In Stock
    Minimum Quantity of 2 required
    $6.55
  • 311
    Brush Set – Part Number: 497608
    Brush Set
    Part Number: 497608
      In Stock
    $34.50
  • 510
    Drive-Starter – Part Number: 499308
    Drive-Starter
    Part Number: 499308
      Special Order
    $95.01
  • 544
    Armature-Starter – Part Number: 692966
    Armature-Starter
    Part Number: 692966
      Special Order
    $110.44
  • 592
    Nut – Part Number: 691029
    Nut
    Part Number: 691029
      On Order
    $8.58
  • 615A
    Ring-retaining – Part Number: 691265
    Ring-retaining
    Part Number: 691265
    ★★★★★
    ★★★★★
    (1)
      In Stock
    Minimum Quantity of 2 required
    $7.65
  • 653
    DISCONTINUED – Part Number: 93585
    DISCONTINUED
    Part Number: 93585
      Special Order
    $6.16
  • 664
    Screw – Part Number: 690298
    Screw
    Part Number: 690298
      Special Order
    $7.36
  • 727
    Cover-Starter Drive – Part Number: 690600
    Cover-Starter Drive
    Part Number: 690600
      No Longer Available
  • 783
    Gear-Pinion – Part Number: 692353
    Gear-Pinion
    Part Number: 692353
      Special Order
    $37.07
  • 801
    Cap-Drive – Part Number: 690835
    Cap-Drive
    Part Number: 690835
      Special Order
    $87.42
  • 802
    Cap-end – Part Number: 691286
    Cap-end
    Part Number: 691286
      Special Order
    $34.74
  • 803
    Housing-Starter – Part Number: 693757
    Housing-Starter
    Part Number: 693757
      No Longer Available
  • 823
    Screw – Part Number: 691097
    Screw
    Part Number: 691097
      In Stock
    Minimum Quantity of 2 required
    $6.28
  • 1090
    Retainer-brush – Part Number: 691293
    Retainer-brush
    Part Number: 691293
      In Stock
    $36.54

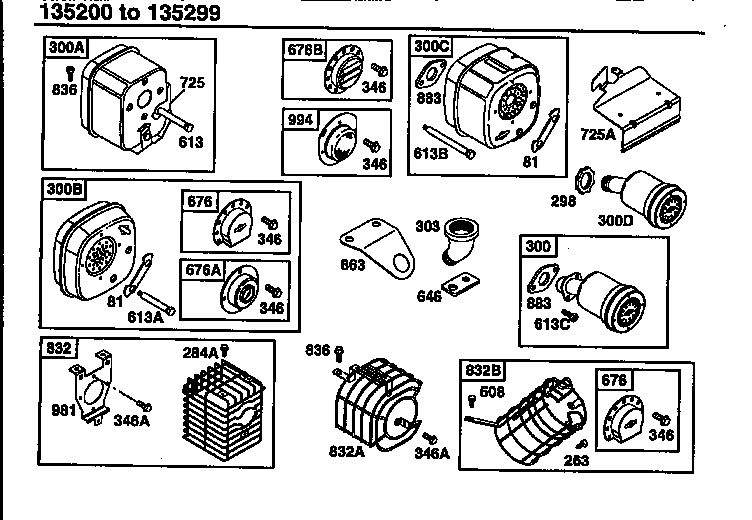

Muffler Assembly
Muffler Assembly Diagram and Parts List for 0001-0013 Briggs and Stratton Engine

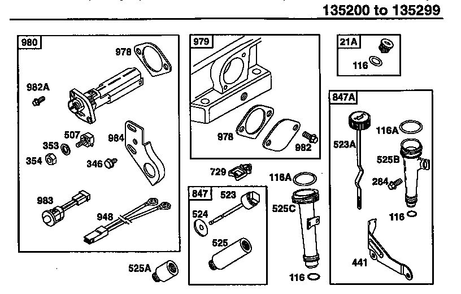

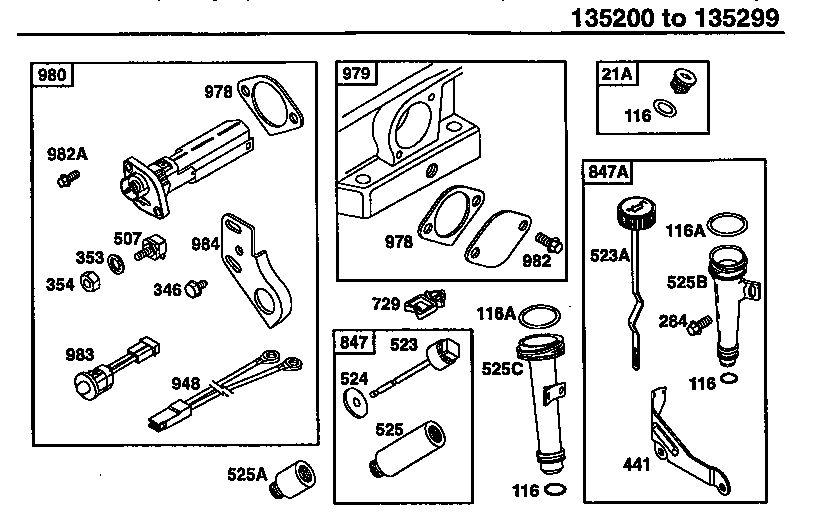

Oil Gard Kit
Oil Gard Kit Diagram and Parts List for 0001-0013 Briggs and Stratton Engine

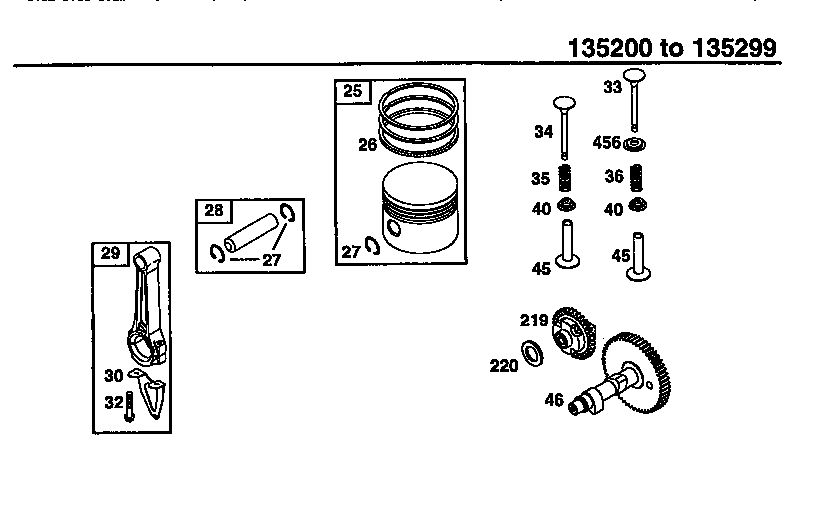

Piston Assembly
Piston Assembly Diagram and Parts List for 0001-0013 Briggs and Stratton Engine
  • 25
    Piston Assembly – Part Number: 793214
    Piston Assembly
    Part Number: 793214
      No Longer Available
  • 25A
    Piston Assy-010 – Part Number: 298905
    Piston Assy-010
    Part Number: 298905
      No Longer Available
  • 25B
    Piston Assembly-020 – Part Number: 298906
    Piston Assembly-020
    Part Number: 298906
      No Longer Available
  • 25C
    Piston Assy-030 – Part Number: 298907
    Piston Assy-030
    Part Number: 298907
      Special Order
    $122.19
  • 26
    Ring Set-std – Part Number: 298982
    Ring Set-std
    Part Number: 298982
      Special Order
    $57.11
  • 26A
    Ring Set-std – Part Number: 298982
    Ring Set-std
    Part Number: 298982
      Special Order
    $57.11
  • 26B
    Ring Set-010 – Part Number: 298983
    Ring Set-010
    Part Number: 298983
      No Longer Available
  • 26C
    Ring Set-020 – Part Number: 298984
    Ring Set-020
    Part Number: 298984
      Special Order
    $46.58
  • 26D
    Ring Set-030 – Part Number: 298985
    Ring Set-030
    Part Number: 298985
      No Longer Available
  • 27
    Lock-piston Pin – Part Number: 691588
    Lock-piston Pin
    Part Number: 691588
      In Stock
    Minimum Quantity of 2 required
    $7.43
  • 28
    Pin-piston/std – Part Number: 298909
    Pin-piston/std
    Part Number: 298909
      In Stock
    $14.48
  • 28A
    Pin-piston/005 – Part Number: 298908
    Pin-piston/005
    Part Number: 298908
      No Longer Available
  • 29
    Rod-connecting – Part Number: 299430
    Rod-connecting
    Part Number: 299430
      No Longer Available
  • 29A
    Rod-connecting/020 – Part Number: 390459
    Rod-connecting/020
    Part Number: 390459
      Special Order
    $52.99
  • 30
    Dipper-Conn Rod – Part Number: 691759
    Dipper-Conn Rod
    Part Number: 691759
      In Stock
    $11.81
  • 32
    Screw – Part Number: 691664
    Screw
    Part Number: 691664
      In Stock
    Minimum Quantity of 2 required
    $6.16
  • 33
    Valve-exhaust – Part Number: 211119S
    Valve-exhaust
    Part Number: 211119S
      No Longer Available
  • 34
    Valve-intake – Part Number: 261044S
    Valve-intake
    Part Number: 261044S
      No Longer Available
  • 35
    Spring-valve – Part Number: 690520
    Spring-valve
    Part Number: 690520
      On Order
    Minimum Quantity of 2 required
    $7.46
  • 36
    Spring-Valve – Part Number: 692180
    Spring-Valve
    Part Number: 692180
      In Stock
    $9.19
  • 40
    Retainer-valve – Part Number: 692194
    Retainer-valve
    Part Number: 692194
      In Stock
    $8.16
  • 45
    Tappet-Valve – Part Number: 690509
    Tappet-Valve
    Part Number: 690509
      No Longer Available
  • 46
    Camshaft – Part Number: 691164
    Camshaft
    Part Number: 691164
      Special Order
    $82.67
  • 46A
    Camshaft – Part Number: 691164
    Camshaft
    Part Number: 691164
      Special Order
    $82.67
  • 46B
    Camshaft – Part Number: 691166
    Camshaft
    Part Number: 691166
      Special Order
    $75.12
  • 46C
    Camshaft – Part Number: 691166
    Camshaft
    Part Number: 691166
      Special Order
    $75.12
  • 219
    Gear-Governor – Part Number: 494845
    Gear-Governor
    Part Number: 494845
      No Longer Available
  • 219A
    Gear-governor – Part Number: 391737
    Gear-governor
    Part Number: 391737
      In Stock
    $57.85
  • 220
    Washer – Part Number: 691724
    Washer
    Part Number: 691724
      In Stock
    $8.15
  • 456
    Retainer-Valve – Part Number: 691760
    Retainer-Valve
    Part Number: 691760
      In Stock
    $10.41
Rewind Starter 1
Rewind Starter 1 Diagram and Parts List for 0001-0013 Briggs and Stratton Engine
Rewind Starter 2
Rewind Starter 2 Diagram and Parts List for 0001-0013 Briggs and Stratton Engine

Questions & Answers

?

Our customer Service team is at the ready daily to answer your part and product questions.

Be the first to ask our experts a question about this part!

Ask our Team

We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.

✖

Our customer service team are at the ready daily to answer your part and product questions. We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.
