DeWALT Drill Bit Sharpener Electric Drill Replacement Parts For Model DW751 (Type 1)

We Sell Only Genuine DeWALT Parts

Popular Parts for DW751

Term – Part Number: 849314 Term
In Stock
$5.95
Screw – Part Number: 96089-00 Screw
In Stock
$5.95
Cord/6FT./18-3 – Part Number: 51108-98 Cord/6FT./18-3
In Stock
$21.26
Washer – Part Number: 000416-00 Washer
Special Order
$5.95
Nut – Part Number: 406-00 Nut
In Stock
$5.95
Washer – Part Number: 417-00 Washer
Special Order
$5.95
SCREW – Part Number: 055206-00 SCREW
Special Order
$5.95
Screw – Part Number: 158438-00 Screw
Special Order
$5.95

Search Within Model

Questions & Answers for DeWALT DW751
Browse all Parts Search by Area
Page A Diagram and Parts List for Type 1 DeWALT Electric Drill
Page A
Previous Showing All Parts Next
Page A

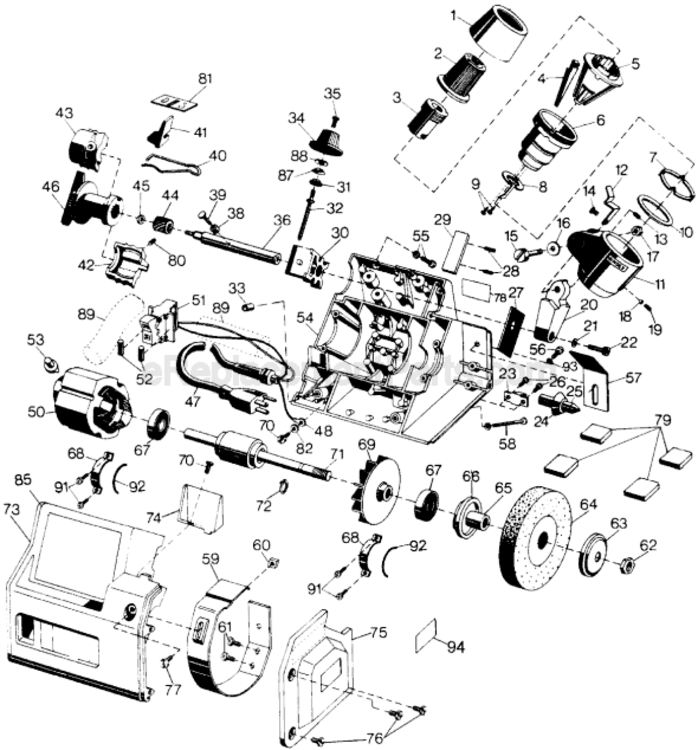

Page A Diagram and Parts List for Type 1 DeWALT Electric Drill
  • 1
    Sleeve – Part Number: 89250-01
    Sleeve
    Part Number: 89250-01
      No Longer Available
  • 2
    Nut – Part Number: 89247-00
    Nut
    Part Number: 89247-00
      No Longer Available
  • 3
    Pusher – Part Number: 89249-00
    Pusher
    Part Number: 89249-00
      No Longer Available
  • 4
    Jaw – Part Number: 89253-00
    Jaw
    Part Number: 89253-00
      No Longer Available
  • 5
    Spacer – Part Number: 89251-00
    Spacer
    Part Number: 89251-00
      No Longer Available
  • 6
    Nose Piece – Part Number: 89254-00
    Nose Piece
    Part Number: 89254-00
      No Longer Available
  • 7
    Detent Spring – Part Number: 89452-00
    Detent Spring
    Part Number: 89452-00
      No Longer Available
  • 8
    Bit Locator – Part Number: DW7512
    Bit Locator
    Part Number: DW7512
      No Longer Available
  • 9
    Screw – Part Number: 99408-04
    Screw
    Part Number: 99408-04
      No Longer Available
  • 10
    Seal – Part Number: 91195-00
    Seal
    Part Number: 91195-00
      No Longer Available
  • 11
    Swinghead – Part Number: 130779-01
    Swinghead
    Part Number: 130779-01
      No Longer Available
  • 12
    Spring – Part Number: 91651-00
    Spring
    Part Number: 91651-00
      No Longer Available
  • 13
    Screw – Part Number: 82418-00
    Screw
    Part Number: 82418-00
      No Longer Available
  • 14
    Screw – Part Number: 99289-04
    Screw
    Part Number: 99289-04
      No Longer Available
  • 15
    Screw – Part Number: 92071-00
    Screw
    Part Number: 92071-00
      No Longer Available
  • 16
    Washer – Part Number: 92168-00
    Washer
    Part Number: 92168-00
      No Longer Available
  • 17
    Nut – Part Number: 36486-00
    Nut
    Part Number: 36486-00
      No Longer Available
  • 18
    Plug – Part Number: 89460-00
    Plug
    Part Number: 89460-00
      No Longer Available
  • 19
    Screw – Part Number: 89239-00
    Screw
    Part Number: 89239-00
      No Longer Available
  • 20
    Pivot Arm – Part Number: 89244-00
    Pivot Arm
    Part Number: 89244-00
      No Longer Available
  • 21
    Washer – Part Number: 000416-00
    Washer
    Part Number: 000416-00
      Special Order
    $5.95
  • 22
    Screw – Part Number: 15577-00
    Screw
    Part Number: 15577-00
      No Longer Available
  • 23
    Spring Clip – Part Number: 89272-00
    Spring Clip
    Part Number: 89272-00
      No Longer Available
  • 24
    Cover – Part Number: 89277-00
    Cover
    Part Number: 89277-00
      No Longer Available
  • 26
    Screw – Part Number: 80487-00
    Screw
    Part Number: 80487-00
      No Longer Available
  • 27
    Shield – Part Number: 89261-00
    Shield
    Part Number: 89261-00
      No Longer Available
  • 28
    Screw – Part Number: 36886-00
    Screw
    Part Number: 36886-00
      No Longer Available
  • 29
    Plate – Part Number: 89267-00
    Plate
    Part Number: 89267-00
      No Longer Available
  • 30
    Bearing Block – Part Number: 89242-00
    Bearing Block
    Part Number: 89242-00
      No Longer Available
  • 31
    Washer – Part Number: 89321-00
    Washer
    Part Number: 89321-00
      No Longer Available
  • 32
    Feed Screw – Part Number: 94374-00
    Feed Screw
    Part Number: 94374-00
      No Longer Available
  • 33
    Paper Tube – Part Number: 72061-00
    Paper Tube
    Part Number: 72061-00
      No Longer Available
  • 34
    Knob,Feed – Part Number: 89268-01
    Knob,Feed
    Part Number: 89268-01
      No Longer Available
  • 36
    Pivot Rod – Part Number: 89271-01
    Pivot Rod
    Part Number: 89271-01
      No Longer Available
  • 38
    Roller – Part Number: 95548-00
    Roller
    Part Number: 95548-00
      No Longer Available
  • 39
    Rivet – Part Number: 91179-00
    Rivet
    Part Number: 91179-00
      No Longer Available
  • 40
    Mode Spring – Part Number: 89263-00
    Mode Spring
    Part Number: 89263-00
      No Longer Available
  • 41
    Mode Tab – Part Number: 89264-00
    Mode Tab
    Part Number: 89264-00
      No Longer Available
  • 43
    Cover – Part Number: 89241-01
    Cover
    Part Number: 89241-01
      No Longer Available
  • 44
    Gear – Part Number: 89336-00
    Gear
    Part Number: 89336-00
      No Longer Available
  • 45
    Nut – Part Number: 406-00
    Nut
    Part Number: 406-00
      In Stock
    $5.95
  • 46
    Knob – Part Number: 89240-01
    Knob
    Part Number: 89240-01
      No Longer Available
  • 47
    Cord/6FT./18-3 – Part Number: 51108-98
    Cord/6FT./18-3
    Part Number: 51108-98
      In Stock
    $21.26
  • 48
    Term – Part Number: 849314
    Term
    Part Number: 849314
    ★★★★★
    ★★★★★
    (1)
      In Stock
    $5.95
  • 50
    Stator – Part Number: 400924-51
    Stator
    Part Number: 400924-51
      No Longer Available
  • 51
    Switch,On-Off – Part Number: 88060-03
    Switch,On-Off
    Part Number: 88060-03
      No Longer Available
  • 52
    Plug – Part Number: 030612-00
    Plug
    Part Number: 030612-00
      No Longer Available
  • 53
    Rubber Plug – Part Number: 93365-00
    Rubber Plug
    Part Number: 93365-00
      No Longer Available
  • 54
    Housing – Part Number: 400303-03
    Housing
    Part Number: 400303-03
      No Longer Available
  • 55
    Screw – Part Number: 158438-00
    Screw
    Part Number: 158438-00
      Special Order
    $5.95
  • 56
    Screw – Part Number: 368-00
    Screw
    Part Number: 368-00
      No Longer Available
  • 57
    Guard – Part Number: 92284-00
    Guard
    Part Number: 92284-00
      No Longer Available
  • 58
    Screw – Part Number: 99446-10
    Screw
    Part Number: 99446-10
      No Longer Available
  • 59
    Band – Part Number: 92776-00
    Band
    Part Number: 92776-00
      No Longer Available
  • 60
    Nut – Part Number: 81999-00
    Nut
    Part Number: 81999-00
      No Longer Available
  • 61
    Screw – Part Number: 69408-00
    Screw
    Part Number: 69408-00
      No Longer Available
  • 62
    Nut – Part Number: 74008-00
    Nut
    Part Number: 74008-00
      No Longer Available
  • 63
    Washer – Part Number: 89288-00
    Washer
    Part Number: 89288-00
      No Longer Available
  • 64
    5 Grinding Wheel – Part Number: DW7510
    5 Grinding Wheel
    Part Number: DW7510
      No Longer Available
  • 65
    Bushing – Part Number: 89286-00
    Bushing
    Part Number: 89286-00
      No Longer Available
  • 66
    Washer – Part Number: 89285-00
    Washer
    Part Number: 89285-00
      No Longer Available
  • 67
    Ball Bearing – Part Number: 158475-00
    Ball Bearing
    Part Number: 158475-00
      No Longer Available
  • 68
    Clamp – Part Number: 95635-00
    Clamp
    Part Number: 95635-00
      No Longer Available
  • 69
    Fan – Part Number: 89283-00
    Fan
    Part Number: 89283-00
      No Longer Available
  • 70
    SCREW – Part Number: 055206-00
    SCREW
    Part Number: 055206-00
      Special Order
    $5.95
  • 71
    Rotor and Shaft – Part Number: 90995-01
    Rotor and Shaft
    Part Number: 90995-01
      No Longer Available
  • 71
    Rotor Assembly – Part Number: 400304-00
    Rotor Assembly
    Part Number: 400304-00
      No Longer Available
  • 72
    Retaining Ring – Part Number: 700533-00
    Retaining Ring
    Part Number: 700533-00
      No Longer Available
  • 73
    Cover – Part Number: 400301-03
    Cover
    Part Number: 400301-03
      No Longer Available
  • 75
    Cover,Wheel – Part Number: 89290-03
    Cover,Wheel
    Part Number: 89290-03
      No Longer Available
  • 76
    Screw – Part Number: 99404-06
    Screw
    Part Number: 99404-06
      No Longer Available
  • 77
    Screw – Part Number: 99250-07
    Screw
    Part Number: 99250-07
      No Longer Available
  • 78
    Nameplate – Part Number: 385099-00
    Nameplate
    Part Number: 385099-00
      No Longer Available
  • 79
    Rubber Pad – Part Number: 449932-00
    Rubber Pad
    Part Number: 449932-00
      No Longer Available
  • 80
    Screw,Set – Part Number: 95547-00
    Screw,Set
    Part Number: 95547-00
      No Longer Available
  • 81
    Plate,Cover – Part Number: 95527-00
    Plate,Cover
    Part Number: 95527-00
      No Longer Available
  • 82
    Washer – Part Number: 99386-05
    Washer
    Part Number: 99386-05
      Special Order
    $5.95
  • 85
    Label,Instr – Part Number: 385101-00
    Label,Instr
    Part Number: 385101-00
      No Longer Available
  • 87
    Washer – Part Number: 23264-00
    Washer
    Part Number: 23264-00
      No Longer Available
  • 88
    Washer – Part Number: 52181-00
    Washer
    Part Number: 52181-00
      No Longer Available
  • 89
    Tube,Paper – Part Number: 62538-00
    Tube,Paper
    Part Number: 62538-00
      No Longer Available
  • 91
    Screw – Part Number: 96089-00
    Screw
    Part Number: 96089-00
      In Stock
    $5.95
  • 92
    C Ring – Part Number: 130756-00
    C Ring
    Part Number: 130756-00
      No Longer Available
  • 93
    Washer – Part Number: 417-00
    Washer
    Part Number: 417-00
      Special Order
    $5.95
  • 94
    Label,Ident – Part Number: 385100-00
    Label,Ident
    Part Number: 385100-00
      No Longer Available
