Page A Diagram and Parts List for Craftsman Edger
Page A
Page B Diagram and Parts List for Craftsman Edger
Page B
Previous Showing All Parts Next
Page A

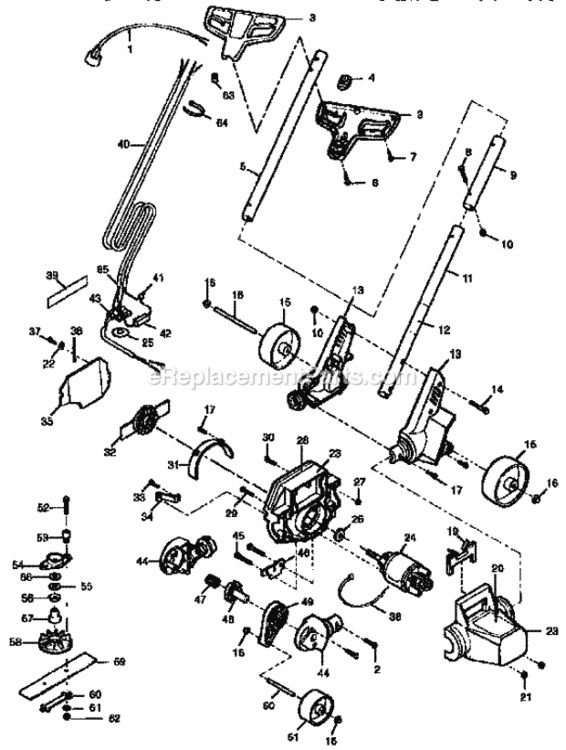

Page A Diagram and Parts List for Craftsman Edger
  • A-1
    Power Cord – Part Number: 530401750
    Power Cord
    Part Number: 530401750
      No Longer Available
  • A-2
    Screw – Part Number: 534222402
    Screw
    Part Number: 534222402
      No Longer Available
  • A-3
    Handle,Top/B – Part Number: 534234225
    Handle,Top/B
    Part Number: 534234225
      No Longer Available
  • A-4
    Switch Trigger – Part Number: 534193004
    Switch Trigger
    Part Number: 534193004
      No Longer Available
  • A-5
    Upper Tube – Part Number: 534434405
    Upper Tube
    Part Number: 534434405
      No Longer Available
  • A-6
    Screw – Part Number: 534790300
    Screw
    Part Number: 534790300
      No Longer Available
  • A-7
    Screw 10X16 – Part Number: 534790302
    Screw 10X16
    Part Number: 534790302
      No Longer Available
  • A-8
    Screw – Part Number: 534174502
    Screw
    Part Number: 534174502
      No Longer Available
  • A-9
    Out Tube – Part Number: 534434302
    Out Tube
    Part Number: 534434302
      No Longer Available
  • A-10
    Nut – Part Number: 530403094
    Nut
    Part Number: 530403094
      No Longer Available
  • A-11
    Lower Tube – Part Number: 534434406
    Lower Tube
    Part Number: 534434406
      No Longer Available
  • A-12
    Label – Part Number: 534036616
    Label
    Part Number: 534036616
      No Longer Available
  • A-13
    Hsg/Swvl-St, – Part Number: 534396222
    Hsg/Swvl-St,
    Part Number: 534396222
      No Longer Available
  • A-14
    Screw 10 X 24 – Part Number: 534174501
    Screw 10 X 24
    Part Number: 534174501
      No Longer Available
  • A-15
    Wheel – Part Number: 534236800
    Wheel
    Part Number: 534236800
      No Longer Available
  • A-16
    PUSHNUT – Part Number: 534121000
    PUSHNUT
    Part Number: 534121000
      Special Order
    $10.46
  • A-17
    Screw – Part Number: 534222402
    Screw
    Part Number: 534222402
      No Longer Available
  • A-18
    Axle Fin Plate – Part Number: 534-781001
    Axle Fin Plate
    Part Number: 534-781001
      No Longer Available
  • A-19
    Rear Latch Swivel – Part Number: 534396415
    Rear Latch Swivel
    Part Number: 534396415
      No Longer Available
  • A-20
    Cover Label – Part Number: 534708501
    Cover Label
    Part Number: 534708501
      No Longer Available
  • A-21
    Nut – Part Number: 530403094
    Nut
    Part Number: 530403094
      No Longer Available
  • A-22
    Washer – Part Number: 534488700
    Washer
    Part Number: 534488700
      No Longer Available
  • A-23
    Hsg-Set,7964 – Part Number: 534447228
    Hsg-Set,7964
    Part Number: 534447228
      No Longer Available
  • A-25
    Washer – Part Number: 534742400
    Washer
    Part Number: 534742400
      No Longer Available
  • A-26
    Threaded Washer – Part Number: 534938100
    Threaded Washer
    Part Number: 534938100
      No Longer Available
  • A-27
    Nut 6-32 Nyl – Part Number: 534261500
    Nut 6-32 Nyl
    Part Number: 534261500
      No Longer Available
  • A-28
    Label,79642/ – Part Number: 534707900
    Label,79642/
    Part Number: 534707900
      No Longer Available
  • A-29
    Screw 8Pk – Part Number: STD511107
    Screw 8Pk
    Part Number: STD511107
      No Longer Available
  • A-30
    Screw 10x16 – Part Number: 534222400
    Screw 10x16
    Part Number: 534222400
      No Longer Available
  • A-31
    Liner Housing Plate – Part Number: 534551005
    Liner Housing Plate
    Part Number: 534551005
      No Longer Available
  • A-32
    Blade Assembly,C – Part Number: 534135205
    Blade Assembly,C
    Part Number: 534135205
      No Longer Available
  • A-33
    Screw 10 X 16 – Part Number: 534222404
    Screw 10 X 16
    Part Number: 534222404
      No Longer Available
  • A-34
    Latch Side P – Part Number: 534396305
    Latch Side P
    Part Number: 534396305
      No Longer Available
  • A-35
    Guard,Bld-Co – Part Number: 534396805
    Guard,Bld-Co
    Part Number: 534396805
      No Longer Available
  • A-36
    Pin Hinge – Part Number: 534327200
    Pin Hinge
    Part Number: 534327200
      No Longer Available
  • A-37
    Screw – Part Number: 534488800
    Screw
    Part Number: 534488800
      No Longer Available
  • A-38
    Strap – Part Number: 534134700
    Strap
    Part Number: 534134700
      No Longer Available
  • A-39
    Label – Part Number: 530401219
    Label
    Part Number: 530401219
      No Longer Available
  • A-40
    Harness – Part Number: 534101161
    Harness
    Part Number: 534101161
      No Longer Available
  • A-41
    Terminal Cap – Part Number: 534561000
    Terminal Cap
    Part Number: 534561000
      No Longer Available
  • A-42
    Ceramic Resistor – Part Number: 534134500
    Ceramic Resistor
    Part Number: 534134500
      No Longer Available
  • A-43
    Bridge Fw Ga – Part Number: 534710001
    Bridge Fw Ga
    Part Number: 534710001
      No Longer Available
  • A-44
    Swivel – Part Number: 530401332
    Swivel
    Part Number: 530401332
      No Longer Available
  • A-45
    Screw,10-24X – Part Number: 534424500
    Screw,10-24X
    Part Number: 534424500
      No Longer Available
  • A-46
    Edge Guide – Part Number: 534-396901
    Edge Guide
    Part Number: 534-396901
      No Longer Available
  • A-47
    Compression Spring – Part Number: 534424700
    Compression Spring
    Part Number: 534424700
      No Longer Available
  • A-48
    Latch Front W – Part Number: 534396705
    Latch Front W
    Part Number: 534396705
      No Longer Available
  • A-49
    ARM-FR – Part Number: 530401333
    ARM-FR
    Part Number: 530401333
      Special Order
    $4.99
  • A-50
    Fin Plate Axle – Part Number: 534781014
    Fin Plate Axle
    Part Number: 534781014
      No Longer Available
  • A-51
    FRONT WHEEL – Part Number: 534240003
    FRONT WHEEL
    Part Number: 534240003
      Special Order
    $6.15
  • A-52
    Screw – Part Number: 534135901
    Screw
    Part Number: 534135901
      No Longer Available
  • A-53
    Insulated Sleeve – Part Number: 530401512
    Insulated Sleeve
    Part Number: 530401512
      No Longer Available
  • A-54
    Clutch Plate – Part Number: 534135410
    Clutch Plate
    Part Number: 534135410
      No Longer Available
  • A-55
    Thrust Washer – Part Number: 534136300
    Thrust Washer
    Part Number: 534136300
      No Longer Available
  • A-56
    Belleville Spring – Part Number: 534238900
    Belleville Spring
    Part Number: 534238900
      No Longer Available
  • A-57
    Sleeve – Part Number: 534135500
    Sleeve
    Part Number: 534135500
      No Longer Available
  • A-58
    Fan,Clutch E – Part Number: 534135305
    Fan,Clutch E
    Part Number: 534135305
      No Longer Available
  • A-59
    BLADE – Part Number: 534205300
    BLADE
    Part Number: 534205300
    ★★★★★
    ★★★★★
    (5)
      In Stock
    $18.03
  • A-60
    LOCK STRAP – Part Number: 534135700
    LOCK STRAP
    Part Number: 534135700
      In Stock
    $4.13
  • A-61
    Washer – Part Number: 534136600
    Washer
    Part Number: 534136600
      No Longer Available
  • A-63
    Terminal – Part Number: 534253201
    Terminal
    Part Number: 534253201
      No Longer Available
  • A-64
    Strap – Part Number: 534134704
    Strap
    Part Number: 534134704
      No Longer Available
  • A-65
    Protector Ha – Part Number: 534159400
    Protector Ha
    Part Number: 534159400
      No Longer Available
  • A-66
    Washer Shim – Part Number: 534758000
    Washer Shim
    Part Number: 534758000
      No Longer Available
  • A-800
    Carton – Part Number: 534101790
    Carton
    Part Number: 534101790
      No Longer Available
  • A-800
    Manual – Part Number: 534887210
    Manual
    Part Number: 534887210
      No Longer Available
Page B

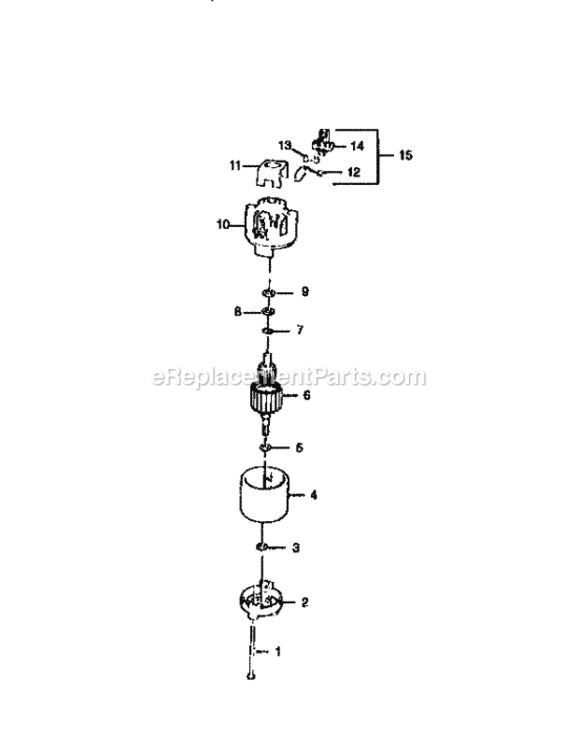

Page B Diagram and Parts List for Craftsman Edger
  • B-1
    Screw 10 X 32 – Part Number: 534228704
    Screw 10 X 32
    Part Number: 534228704
      No Longer Available
  • B-2
    End Bell – Part Number: 534-207101
    End Bell
    Part Number: 534-207101
      No Longer Available
  • B-3
    Thrust Washer – Part Number: 534228802
    Thrust Washer
    Part Number: 534228802
      No Longer Available
  • B-4
    Field Ring – Part Number: 534227005
    Field Ring
    Part Number: 534227005
      No Longer Available
  • B-5
    Ring 5Pk – Part Number: STD582037
    Ring 5Pk
    Part Number: STD582037
      No Longer Available
  • B-6
    Armature – Part Number: 534225115
    Armature
    Part Number: 534225115
      No Longer Available
  • B-7
    Ring 5PK – Part Number: 534246700
    Ring 5PK
    Part Number: 534246700
      No Longer Available
  • B-8
    Washer – Part Number: 534228800
    Washer
    Part Number: 534228800
      No Longer Available
  • B-9
    Spring – Part Number: 534238903
    Spring
    Part Number: 534238903
      No Longer Available
  • B-10
    End Bell – Part Number: 534-227501
    End Bell
    Part Number: 534-227501
      No Longer Available
  • B-11
    Insulator – Part Number: 534226000
    Insulator
    Part Number: 534226000
      No Longer Available
  • B-12
    Brush – Part Number: 534227800
    Brush
    Part Number: 534227800
      No Longer Available
  • B-13
    Spring – Part Number: 534228000
    Spring
    Part Number: 534228000
      No Longer Available
  • B-14
    Brush Holder – Part Number: 534227700
    Brush Holder
    Part Number: 534227700
      No Longer Available
  • B-15
    Brush Kit – Part Number: 534-450400
    Brush Kit
    Part Number: 534-450400
      No Longer Available
  • B-800
    Carton – Part Number: 534101790
    Carton
    Part Number: 534101790
      No Longer Available
  • B-800
    Manual – Part Number: 534887210
    Manual
    Part Number: 534887210
      No Longer Available
