Whirlpool Parts

Whirlpool Dishwasher Replacement Parts For Model 7DP840SWKX0

We Sell Only Genuine Whirlpool Parts

Find Whirlpool 7DP840SWKX0 Parts By Symptom

Leaking

42%

Will not dispense detergent

20%

Door latch failure

14%

Not drying dishes properly

6%

Not cleaning dishes properly

6%

Will Not Start

4%

Door won’t close

3%

Not draining

2%

Will not fill with water

2%

Noisy

1%

Gas igniter glows, but will not light

0%

Popular Parts for 7DP840SWKX0

Search Within Model

Questions & Answers for Whirlpool 7DP840SWKX0
Browse all Parts Search by Area
CABINET PARTS Diagram and Parts List for  Whirlpool Dishwasher
CABINET PARTS
DISHRACK PARTS Diagram and Parts List for  Whirlpool Dishwasher
DISHRACK PARTS
FRAME AND CONSOLE PARTS Diagram and Parts List for  Whirlpool Dishwasher
FRAME AND CONSOLE PARTS
INNER DOOR PARTS Diagram and Parts List for  Whirlpool Dishwasher
INNER DOOR PARTS
LITERATURE AND OPTIONAL PARTS MISCELLANIOUS Diagram and Parts List for  Whirlpool Dishwasher
LITERATURE AND OPTIONAL PARTS MISCELLANIOUS
PUMP AND MOTOR PARTS Diagram and Parts List for  Whirlpool Dishwasher
PUMP AND MOTOR PARTS
PUMP AND SPRAY ARM PARTS Diagram and Parts List for  Whirlpool Dishwasher
PUMP AND SPRAY ARM PARTS
TUB ASSEMBLY PARTS Diagram and Parts List for  Whirlpool Dishwasher
TUB ASSEMBLY PARTS
Previous Showing All Parts Next

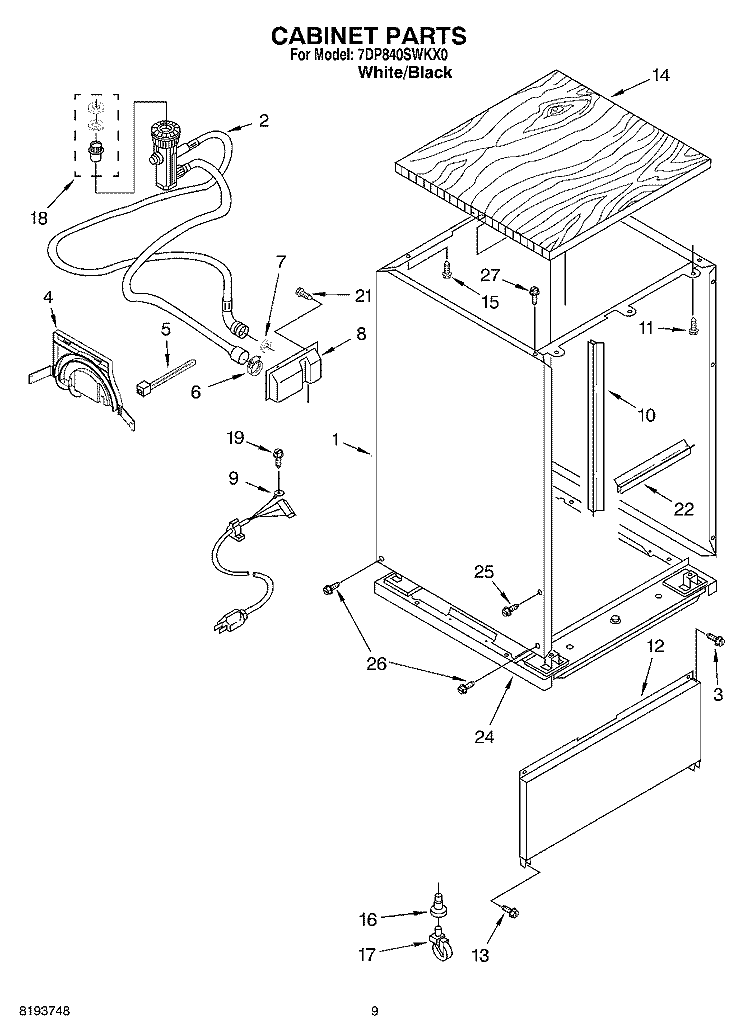

CABINET PARTS
CABINET PARTS Diagram and Parts List for  Whirlpool Dishwasher
  • 1
    SHELL – Part Number: 3378111
    SHELL
    Part Number: 3378111
      No Longer Available
  • 2
    Dishwasher Drain & Fill Hose Assembly – Part Number: WPW10273574
    Dishwasher Drain & Fill Hose Assembly
    Part Number: WPW10273574
      In Stock
    $145.83
  • 3
    Screw - 8-18 x 1/2 – Part Number: WP302868
    Screw - 8-18 x 1/2
    Part Number: WP302868
      In Stock
    $7.30
  • 4
    SADDLE – Part Number: 3378109
    SADDLE
    Part Number: 3378109
      Special Order
    $75.43
  • 5
    Zip Tie – Part Number: WPW10339879
    Zip Tie
    Part Number: WPW10339879
      On Order
    $7.30
  • 6
    Hose Clamp – Part Number: WP3367052
    Hose Clamp
    Part Number: WP3367052
      In Stock
    $9.40
  • 7
    Water Inlet Hose Washer – Part Number: WP16123
    Water Inlet Hose Washer
    Part Number: WP16123
      Special Order
    $7.30
  • 8
    HOUSING – Part Number: 3371343
    HOUSING
    Part Number: 3371343
      No Longer Available
  • 9
    CORD-POWER – Part Number: 3371542
    CORD-POWER
    Part Number: 3371542
      No Longer Available
  • 10
    PROTECTOR – Part Number: 3378125
    PROTECTOR
    Part Number: 3378125
      No Longer Available
  • 11
    Screw – Part Number: WP3373329
    Screw
    Part Number: WP3373329
      Special Order
    $7.30
  • 12
    CASTR-SHRD – Part Number: WP3372381
    CASTR-SHRD
    Part Number: WP3372381
      No Longer Available
  • 13
    SCREW – Part Number: 3370544
    SCREW
    Part Number: 3370544
      No Longer Available
  • 14
    PANEL-TOP – Part Number: 3373198
    PANEL-TOP
    Part Number: 3373198
      No Longer Available
  • 15
    Dryer Screw – Part Number: WP681414
    Dryer Screw
    Part Number: WP681414
      In Stock
    $7.30
  • 16
    SOCKET – Part Number: 300450
    SOCKET
    Part Number: 300450
      No Longer Available
  • 17
    Dishwasher Roller – Part Number: WP3370639
    Dishwasher Roller
    Part Number: WP3370639
      Special Order
    $46.03
  • 18
    Dishwasher Faucet Adapter – Part Number: WPW10254672
    Dishwasher Faucet Adapter
    Part Number: WPW10254672
      In Stock
    $46.30
  • 19
    Dryer Screw – Part Number: WP681414
    Dryer Screw
    Part Number: WP681414
      In Stock
    $7.30
  • 21
    SCREW – Part Number: 3371644
    SCREW
    Part Number: 3371644
      Special Order
    $22.00
  • 22
    PROTECTOR – Part Number: 3378126
    PROTECTOR
    Part Number: 3378126
      No Longer Available
  • 24
    FRAME ASSEMBLY – Part Number: 3370551
    FRAME ASSEMBLY
    Part Number: 3370551
      No Longer Available
  • 25
    SCREW – Part Number: 3371635
    SCREW
    Part Number: 3371635
      No Longer Available
  • 26
    SCREW – Part Number: 3371644
    SCREW
    Part Number: 3371644
      Special Order
    $22.00
  • 27
    SCREW – Part Number: 302251
    SCREW
    Part Number: 302251
      Special Order
    $20.95

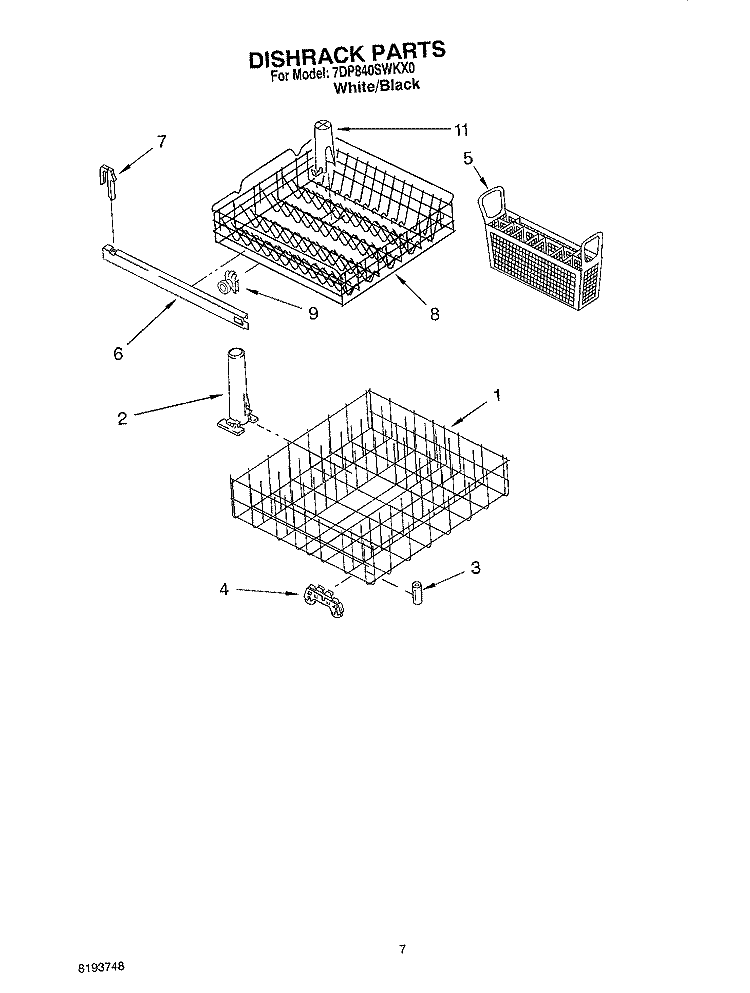

DISHRACK PARTS
DISHRACK PARTS Diagram and Parts List for  Whirlpool Dishwasher
FRAME AND CONSOLE PARTS
FRAME AND CONSOLE PARTS Diagram and Parts List for  Whirlpool Dishwasher

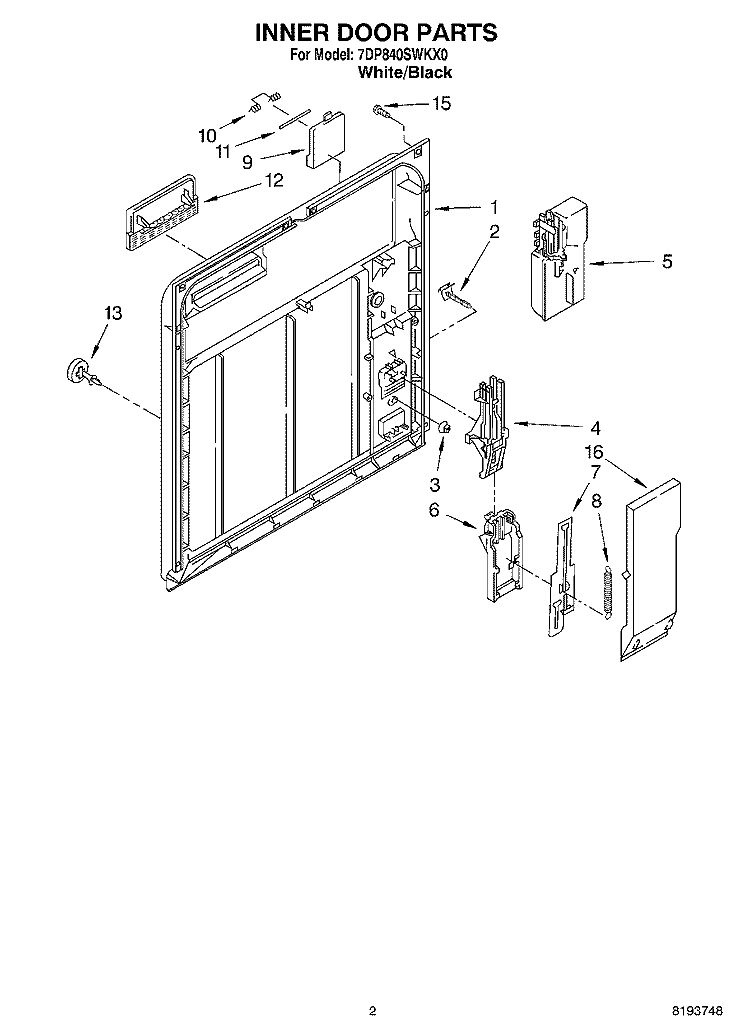

INNER DOOR PARTS
INNER DOOR PARTS Diagram and Parts List for  Whirlpool Dishwasher
LITERATURE AND OPTIONAL PARTS MISCELLANIOUS
LITERATURE AND OPTIONAL PARTS MISCELLANIOUS Diagram and Parts List for  Whirlpool Dishwasher

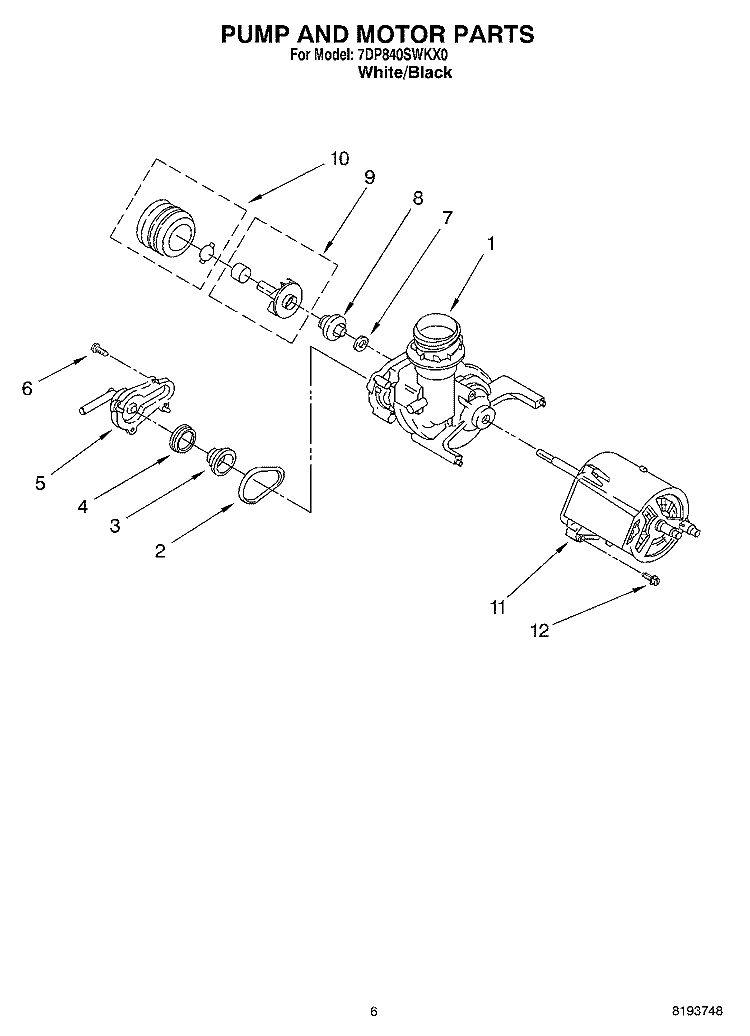

PUMP AND MOTOR PARTS
PUMP AND MOTOR PARTS Diagram and Parts List for  Whirlpool Dishwasher

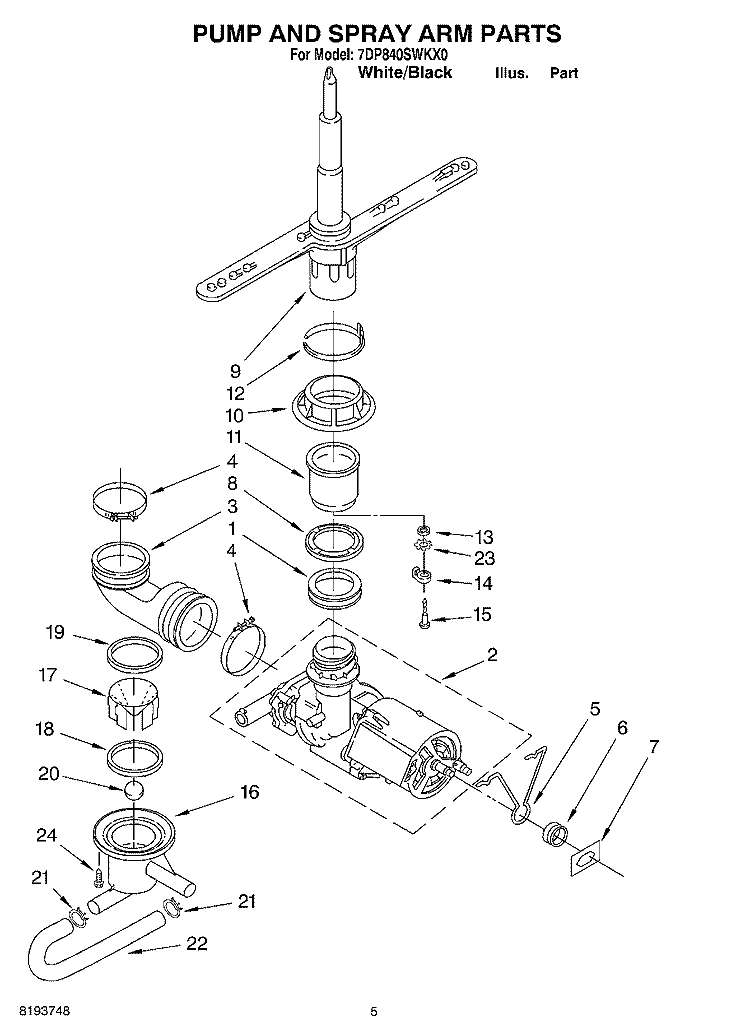

PUMP AND SPRAY ARM PARTS
PUMP AND SPRAY ARM PARTS Diagram and Parts List for  Whirlpool Dishwasher
TUB ASSEMBLY PARTS
TUB ASSEMBLY PARTS Diagram and Parts List for  Whirlpool Dishwasher
