Craftsman Sears Chain Saw Chainsaw Replacement Parts For Model 91763204

We Sell Only Genuine Craftsman Parts

Popular Parts for 91763204

Trimmer Spark Plug Cover – Part Number: 610118 Trimmer Spark Plug Cover
In Stock
$7.51
Screw – Part Number: 590422 Screw
In Stock
Minimum Quantity of 2 required
$6.16
O-Ring – Part Number: 630740 O-Ring
In Stock
Minimum Quantity of 2 required
$6.16
Valve-intake – Part Number: 590393 Valve-intake
In Stock
$36.18
INLET NEEDLE – Part Number: 630932A INLET NEEDLE
On Order
$14.02
Idle Mixture Screw Washer – Part Number: 630739 Idle Mixture Screw Washer
In Stock
Minimum Quantity of 2 required
$6.16
Tension Spring – Part Number: 630766 Tension Spring
Special Order
Minimum Quantity of 2 required
$6.16
Ring Set – Part Number: 310289A Ring Set
In Stock
$17.53

Search Within Model

Questions & Answers for Craftsman 91763204
Browse all Parts Search by Area
Carburetor No. 631285 Diagram and Parts List for Craftsman Chainsaw
Carburetor No. 631285
Cylinder Assembly Diagram and Parts List for Craftsman Chainsaw
Cylinder Assembly
Engine/chain And Guide Bar Diagram and Parts List for Craftsman Chainsaw
Engine/chain And Guide Bar

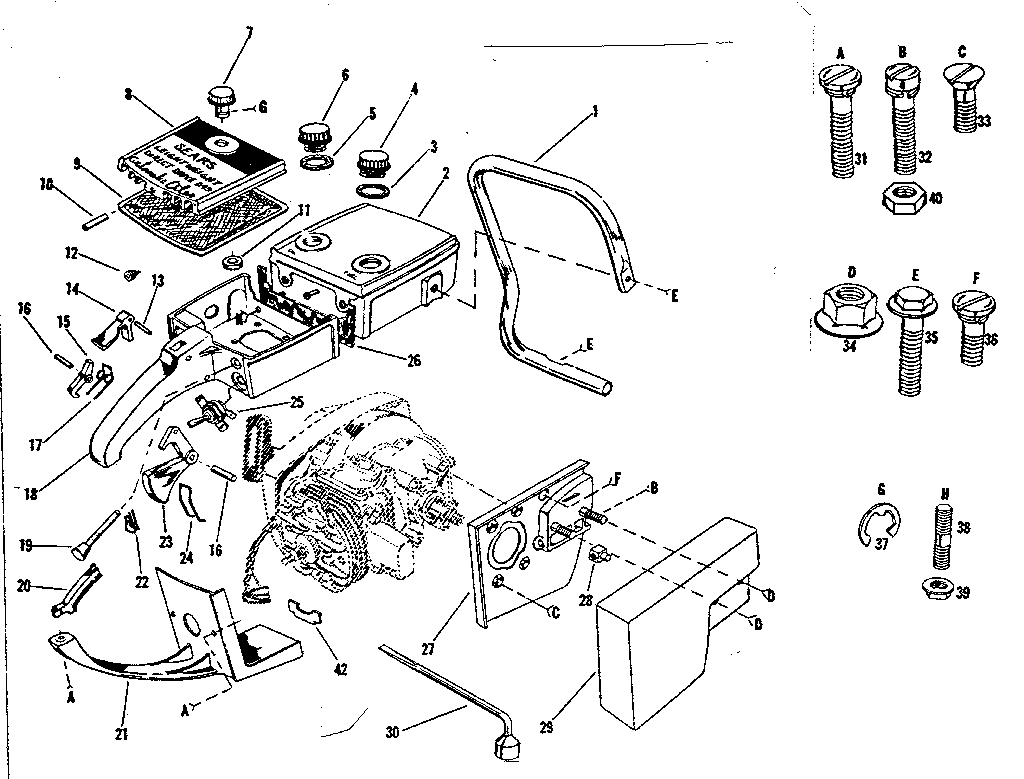

Main Frame Diagram and Parts List for Craftsman Chainsaw
Main Frame

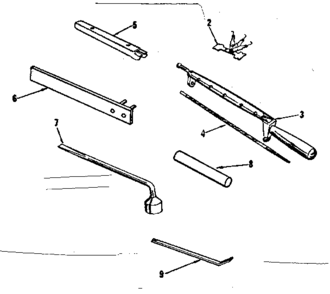

Optional Equipment Diagram and Parts List for Craftsman Chainsaw
Optional Equipment

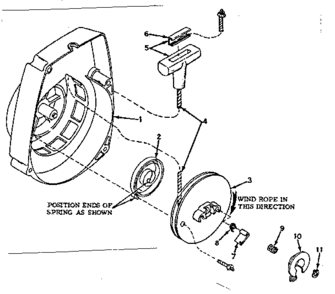

Shroud And Rewind Starter No. 590421 Diagram and Parts List for Craftsman Chainsaw
Shroud And Rewind Starter No. 590421
Previous Showing All Parts Next

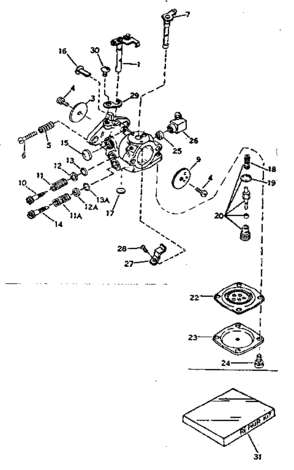

Carburetor No. 631285
Carburetor No. 631285 Diagram and Parts List for Craftsman Chainsaw

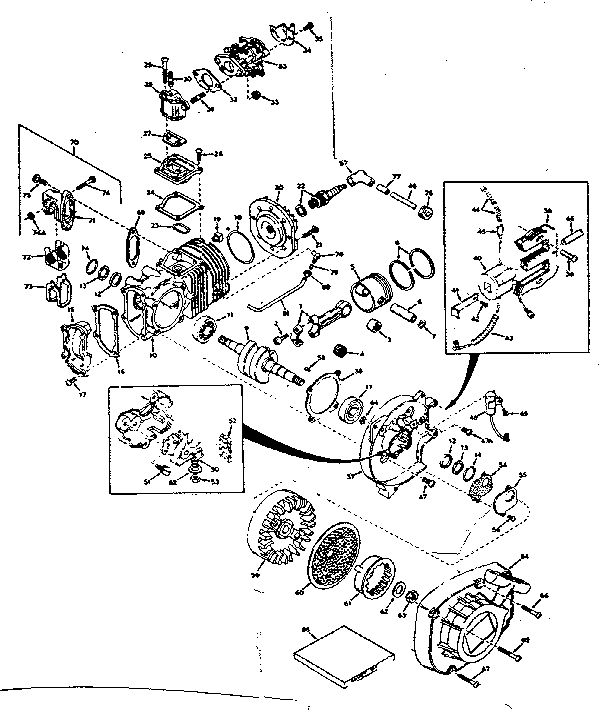

Cylinder Assembly
Cylinder Assembly Diagram and Parts List for Craftsman Chainsaw
  • Engine – Part Number: N/P
    Engine
    Part Number: N/P
      No Longer Available
  • File – Part Number: 600PA433
    File
    Part Number: 600PA433
      No Longer Available
  • Manual – Part Number: 6856H
    Manual
    Part Number: 6856H
      No Longer Available
  • 1
    Rod assembly – Part Number: 310211
    Rod assembly
    Part Number: 310211
      No Longer Available
  • 2
    Screw, Connecting rod – Part Number: 650702
    Screw, Connecting rod
    Part Number: 650702
      Special Order
    $6.16
  • 3
    Needle bearing – Part Number: 530104
    Needle bearing
    Part Number: 530104
      No Longer Available
  • 4
    Bearing – Part Number: 530136
    Bearing
    Part Number: 530136
      No Longer Available
  • 5
    Piston – Part Number: 310205
    Piston
    Part Number: 310205
      No Longer Available
  • 6
    Piston pin – Part Number: 310178
    Piston pin
    Part Number: 310178
      Special Order
    $10.90
  • 7
    Ring-Retaning – Part Number: 310296
    Ring-Retaning
    Part Number: 310296
      In Stock
    $6.16
  • 8
    Ring Set – Part Number: 310289A
    Ring Set
    Part Number: 310289A
      In Stock
    $17.53
  • 9
    Crankshaft – Part Number: 290387
    Crankshaft
    Part Number: 290387
      No Longer Available
  • 10
    Cylinder black assembly – Part Number: 250191
    Cylinder black assembly
    Part Number: 250191
      No Longer Available
  • 11
    Ball bearing – Part Number: 530110
    Ball bearing
    Part Number: 530110
      Special Order
    $33.56
  • 12
    Crankshaft seal – Part Number: 510105
    Crankshaft seal
    Part Number: 510105
      No Longer Available
  • 13
    Retainer, Crankshaft Seal – Part Number: 510106A
    Retainer, Crankshaft Seal
    Part Number: 510106A
      Special Order
    $6.16
  • 14
    Spring, Crankshaft Seal Retainer – Part Number: 510109A
    Spring, Crankshaft Seal Retainer
    Part Number: 510109A
      Special Order
    $6.16
  • 15
    Plate, Cover – Part Number: 570370A
    Plate, Cover
    Part Number: 570370A
      No Longer Available
  • 16
    Cover gasket – Part Number: 510232
    Cover gasket
    Part Number: 510232
      No Longer Available
  • 17
    Screw – Part Number: 650579
    Screw
    Part Number: 650579
      Special Order
    $6.16
  • 18
    Gasket – Part Number: 510227
    Gasket
    Part Number: 510227
      Special Order
    $6.16
  • 19
    NUT – Part Number: 650523
    NUT
    Part Number: 650523
      No Longer Available
  • 20
    Cylinder head – Part Number: 250192
    Cylinder head
    Part Number: 250192
      No Longer Available
  • 21
    Screw, pan flex hd., 1/4-20 x 3/4 – Part Number: 650477
    Screw, pan flex hd., 1/4-20 x 3/4
    Part Number: 650477
      Special Order
    $6.16
  • 22
    Spark plug – Part Number: 610703
    Spark plug
    Part Number: 610703
      No Longer Available
  • 23
    Gasket – Part Number: 510233
    Gasket
    Part Number: 510233
      No Longer Available
  • 24
    Gasket – Part Number: 510234
    Gasket
    Part Number: 510234
      No Longer Available
  • 25
    Cover – Part Number: 570387
    Cover
    Part Number: 570387
      No Longer Available
  • 26
    Screw – Part Number: 650597A
    Screw
    Part Number: 650597A
      In Stock
    $6.16
  • 27
    Gasket – Part Number: 510240
    Gasket
    Part Number: 510240
      No Longer Available
  • 28
    Adapter – Part Number: 570388
    Adapter
    Part Number: 570388
      No Longer Available
  • 29
    Screw – Part Number: 650582
    Screw
    Part Number: 650582
      No Longer Available
  • 30
    Stud – Part Number: 650610
    Stud
    Part Number: 650610
      No Longer Available
  • 31
    Stud – Part Number: 650529
    Stud
    Part Number: 650529
      Special Order
    $4.28
  • 32
    Gasket, Carburetor – Part Number: 510241A
    Gasket, Carburetor
    Part Number: 510241A
      Special Order
    $6.16
  • 33
    Nut – Part Number: 29752
    Nut
    Part Number: 29752
      In Stock
    $2.99
  • 34
    Baffle – Part Number: 570392
    Baffle
    Part Number: 570392
      No Longer Available
  • 35
    Screw – Part Number: 650229
    Screw
    Part Number: 650229
      Special Order
    $6.16
  • 36
    Gasket, Shroud Base – Part Number: 510239A
    Gasket, Shroud Base
    Part Number: 510239A
      Special Order
    $6.16
  • 37
    Base assembly – Part Number: 350343
    Base assembly
    Part Number: 350343
      No Longer Available
  • 38
    Core, coil – Part Number: 610705
    Core, coil
    Part Number: 610705
      No Longer Available
  • 39
    Screw – Part Number: 650544
    Screw
    Part Number: 650544
      Special Order
    $6.16
  • 40
    Coil – Part Number: 610706
    Coil
    Part Number: 610706
      No Longer Available
  • 41
    OUTLET PBG 20A DUPLX – Part Number: 32019
    OUTLET PBG 20A DUPLX
    Part Number: 32019
      Special Order
    $5.17
  • 42
    Screw – Part Number: 610288
    Screw
    Part Number: 610288
      No Longer Available
  • 43
    Sleeve – Part Number: 610712
    Sleeve
    Part Number: 610712
      No Longer Available
  • 44
    Sleeve (208 i.d.) – Part Number: 610670
    Sleeve (208 i.d.)
    Part Number: 610670
      No Longer Available
  • 45
    Terminal – Part Number: 610713
    Terminal
    Part Number: 610713
      No Longer Available
  • 46
    Wire, Lead – Part Number: 30554
    Wire, Lead
    Part Number: 30554
      No Longer Available
  • 47
    Screw Assembly – Part Number: 650561
    Screw Assembly
    Part Number: 650561
      In Stock
    $6.16
  • 47A
    Machine screw, 8-pack – Part Number: 650618
    Machine screw, 8-pack
    Part Number: 650618
      Special Order
    $6.16
  • 48
    Condenser – Part Number: 610707
    Condenser
    Part Number: 610707
      No Longer Available
  • 49
    Screw – Part Number: 650611
    Screw
    Part Number: 650611
      Special Order
    $6.16
  • 50
    Breaker set – Part Number: 610708
    Breaker set
    Part Number: 610708
      No Longer Available
  • 51
    Lawn & garden equipment engine screw and washer – Part Number: 29626
    Lawn & garden equipment engine screw and washer
    Part Number: 29626
      No Longer Available
  • 52
    Wiper – Part Number: 610592
    Wiper
    Part Number: 610592
      No Longer Available
  • 53
    Nut – Part Number: 650146
    Nut
    Part Number: 650146
      No Longer Available
  • 54
    Cover gasket – Part Number: 610710
    Cover gasket
    Part Number: 610710
      No Longer Available
  • 55
    Cover – Part Number: 610711
    Cover
    Part Number: 610711
      No Longer Available
  • 56
    Screw – Part Number: 650621
    Screw
    Part Number: 650621
      Special Order
    $4.28
  • 57
    Trimmer Spark Plug Cover – Part Number: 610118
    Trimmer Spark Plug Cover
    Part Number: 610118
    ★★★★★
    ★★★★★
    (1)
      In Stock
    $7.51
  • 58
    Woodruff key – Part Number: 650455
    Woodruff key
    Part Number: 650455
      Special Order
    $6.16
  • 59
    Flywheel – Part Number: 610709
    Flywheel
    Part Number: 610709
      No Longer Available
  • 60
    Screen – Part Number: 570389
    Screen
    Part Number: 570389
      No Longer Available
  • 61
    Starter cup – Part Number: 590382
    Starter cup
    Part Number: 590382
      No Longer Available
  • 62
    Flat washer – Part Number: 29544
    Flat washer
    Part Number: 29544
      No Longer Available
  • 63
    Flywheel Nut – Part Number: 650390
    Flywheel Nut
    Part Number: 650390
      Special Order
    $6.16
  • 64
    Lock Nut, 10-24 – Part Number: 650580
    Lock Nut, 10-24
    Part Number: 650580
      Special Order
    $6.16
  • 65
    Screw – Part Number: 650614
    Screw
    Part Number: 650614
      No Longer Available
  • 66
    SCREW – Part Number: 650613
    SCREW
    Part Number: 650613
      Special Order
    $6.16
  • 67
    Screw – Part Number: 650612
    Screw
    Part Number: 650612
      No Longer Available
  • 69
    Gasket-Muffler – Part Number: 510207A
    Gasket-Muffler
    Part Number: 510207A
      In Stock
    Minimum Quantity of 2 required
    $6.51
  • 70
    Starter Assembly-Rewind (10 O'Clock Position) – Part Number: 390268
    Starter Assembly-Rewind (10 O'Clock Position)
    Part Number: 390268
      Special Order
    $62.56
  • 71
    Muffler – Part Number: 390269
    Muffler
    Part Number: 390269
      No Longer Available
  • 72
    SCREEN – Part Number: 390270
    SCREEN
    Part Number: 390270
      No Longer Available
  • 73
    Retainer – Part Number: 390271
    Retainer
    Part Number: 390271
      No Longer Available
  • 74
    Screw – Part Number: 650502
    Screw
    Part Number: 650502
      No Longer Available
  • 74A
    Lock Nut, 10-24 – Part Number: 650580
    Lock Nut, 10-24
    Part Number: 650580
      Special Order
    $6.16
  • 75
    Screw, pan flex hd., 1/4-20 x 3/4 – Part Number: 650477
    Screw, pan flex hd., 1/4-20 x 3/4
    Part Number: 650477
      Special Order
    $6.16
  • 76
    Grommet – Part Number: 610714
    Grommet
    Part Number: 610714
      No Longer Available
  • 77
    Tubing – Part Number: 570391
    Tubing
    Part Number: 570391
      No Longer Available
  • 78
    Fitting – Part Number: 430224
    Fitting
    Part Number: 430224
      No Longer Available
  • 79
    Sleeve – Part Number: 430222
    Sleeve
    Part Number: 430222
      No Longer Available
  • 80
    Nut – Part Number: 430223
    Nut
    Part Number: 430223
      No Longer Available
  • 81
    Line – Part Number: 430225
    Line
    Part Number: 430225
      No Longer Available
  • 82
    Washer – Part Number: 610385
    Washer
    Part Number: 610385
      No Longer Available
  • 83
    Carburetor – Part Number: 631285
    Carburetor
    Part Number: 631285
      No Longer Available
  • 84
    Flywheel – Part Number: 590421
    Flywheel
    Part Number: 590421
      Special Order
    $227.30
  • 85
    Engine – Part Number: 510235A
    Engine
    Part Number: 510235A
      No Longer Available
  • 86
    Screen-Outlet – Part Number: 710329
    Screen-Outlet
    Part Number: 710329
      Special Order
    $19.30

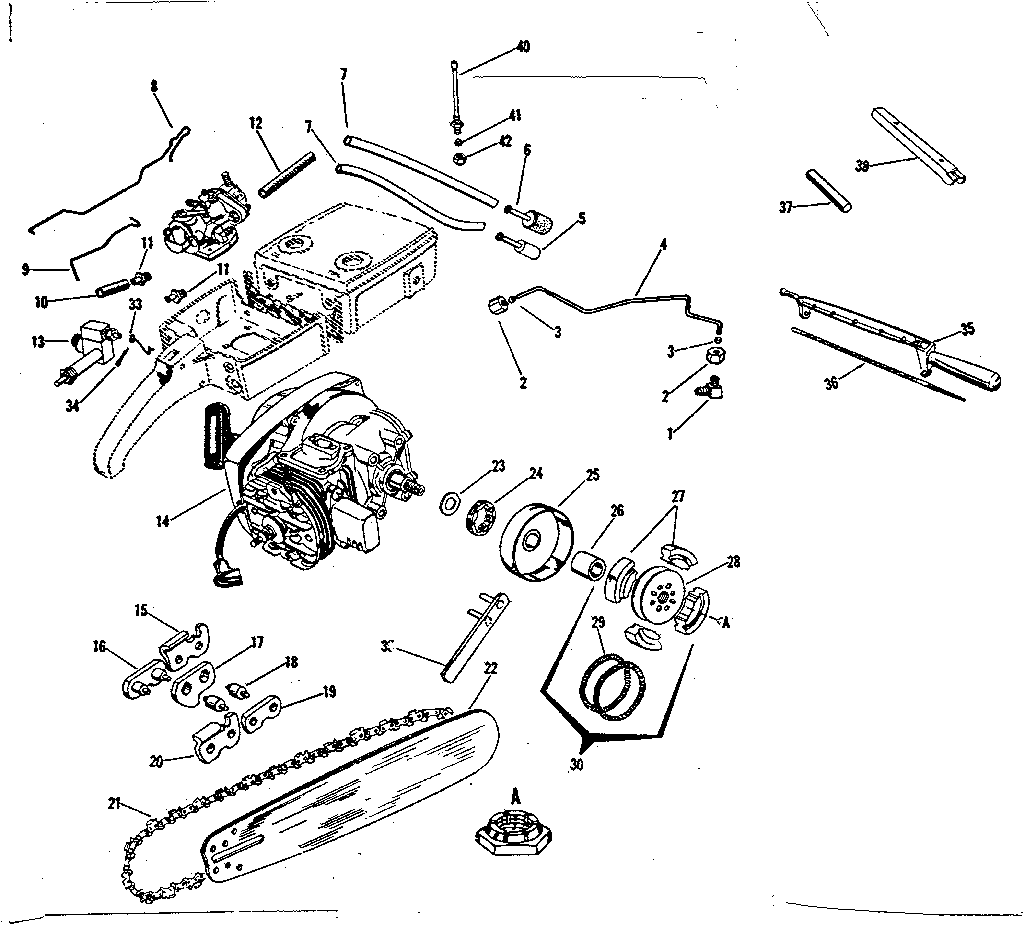

Engine/chain And Guide Bar
Engine/chain And Guide Bar Diagram and Parts List for Craftsman Chainsaw
Main Frame
Main Frame Diagram and Parts List for Craftsman Chainsaw
  • Manual – Part Number: 6856H
    Manual
    Part Number: 6856H
      No Longer Available
  • File – Part Number: 600PA433
    File
    Part Number: 600PA433
      No Longer Available
  • Engine – Part Number: N/P
    Engine
    Part Number: N/P
      No Longer Available
  • 1
    Handle – Part Number: 632A3
    Handle
    Part Number: 632A3
      No Longer Available
  • 2
    Tank assembly – Part Number: 632A59
    Tank assembly
    Part Number: 632A59
      No Longer Available
  • 3
    O-ring, 5-pack – Part Number: 6167H
    O-ring, 5-pack
    Part Number: 6167H
      No Longer Available
  • 4
    Fuel cap – Part Number: 632A5
    Fuel cap
    Part Number: 632A5
      No Longer Available
  • 5
    O-ring, 5-pack – Part Number: 6168H
    O-ring, 5-pack
    Part Number: 6168H
      No Longer Available
  • 6
    Oil tank cap – Part Number: 7045H
    Oil tank cap
    Part Number: 7045H
      No Longer Available
  • 7
    Filter knob – Part Number: 6161H
    Filter knob
    Part Number: 6161H
      No Longer Available
  • 8
    Filter cover – Part Number: 6114H1
    Filter cover
    Part Number: 6114H1
      No Longer Available
  • 9
    Air filter – Part Number: 6879H
    Air filter
    Part Number: 6879H
      No Longer Available
  • 11
    Filtr spacer – Part Number: 5539H
    Filtr spacer
    Part Number: 5539H
      No Longer Available
  • 12
    Link boot – Part Number: 6175H
    Link boot
    Part Number: 6175H
      No Longer Available
  • 13
    Groove pin – Part Number: 5544H1
    Groove pin
    Part Number: 5544H1
      No Longer Available
  • 14
    Pump lever – Part Number: 5501H1
    Pump lever
    Part Number: 5501H1
      No Longer Available
  • 15
    Detent – Part Number: 5507H
    Detent
    Part Number: 5507H
      No Longer Available
  • 16
    Groove pin – Part Number: 5543H
    Groove pin
    Part Number: 5543H
      No Longer Available
  • 17
    Detent sprng – Part Number: 5509H
    Detent sprng
    Part Number: 5509H
      No Longer Available
  • 18
    Handle – Part Number: 7041H
    Handle
    Part Number: 7041H
      No Longer Available
  • 19
    Choke control – Part Number: 6162H1
    Choke control
    Part Number: 6162H1
      No Longer Available
  • 20
    Handle insert – Part Number: 6163H
    Handle insert
    Part Number: 6163H
      No Longer Available
  • 21
    Shrd/hdl – Part Number: 6119H
    Shrd/hdl
    Part Number: 6119H
      No Longer Available
  • 22
    Choke spring – Part Number: 6281H
    Choke spring
    Part Number: 6281H
      No Longer Available
  • 23
    Throttle lever – Part Number: 5506H
    Throttle lever
    Part Number: 5506H
      No Longer Available
  • 24
    Spring – Part Number: 6375H1
    Spring
    Part Number: 6375H1
      No Longer Available
  • 25
    Strap – Part Number: 6508H
    Strap
    Part Number: 6508H
      No Longer Available
  • 26
    Heat shield – Part Number: 6164H
    Heat shield
    Part Number: 6164H
      No Longer Available
  • 27
    Bar support – Part Number: 6117H
    Bar support
    Part Number: 6117H
      No Longer Available
  • 28
    Chain block – Part Number: 6146H
    Chain block
    Part Number: 6146H
      No Longer Available
  • 29
    Chain shield – Part Number: 6118H
    Chain shield
    Part Number: 6118H
      No Longer Available
  • 30
    Wrench – Part Number: 9888M
    Wrench
    Part Number: 9888M
      No Longer Available
  • 31
    Hex bolt, 8-pack – Part Number: 450628
    Hex bolt, 8-pack
    Part Number: 450628
      No Longer Available
  • 32
    Screw 5pk – Part Number: 132305
    Screw 5pk
    Part Number: 132305
      No Longer Available
  • 33
    Screw – Part Number: 6185H
    Screw
    Part Number: 6185H
      No Longer Available
  • 34
    Flange nut – Part Number: 6184H
    Flange nut
    Part Number: 6184H
      No Longer Available
  • 35
    Flange bolt – Part Number: 6183H
    Flange bolt
    Part Number: 6183H
      No Longer Available
  • 36
    Screw – Part Number: 273520
    Screw
    Part Number: 273520
      No Longer Available
  • 37
    Ring – Part Number: 6349H
    Ring
    Part Number: 6349H
      No Longer Available
  • 38
    Stud – Part Number: 6180H
    Stud
    Part Number: 6180H
      No Longer Available
  • 39
    Flange nut – Part Number: 6186H
    Flange nut
    Part Number: 6186H
      No Longer Available
  • 40
    Hex lock nut, 8-pack – Part Number: 347H
    Hex lock nut, 8-pack
    Part Number: 347H
      No Longer Available
  • 41
    Washer – Part Number: 6642H
    Washer
    Part Number: 6642H
      No Longer Available
  • 42
    Chipper deflector – Part Number: 6165H1
    Chipper deflector
    Part Number: 6165H1
      No Longer Available
Optional Equipment
Optional Equipment Diagram and Parts List for Craftsman Chainsaw
  • Manual – Part Number: 6856H
    Manual
    Part Number: 6856H
      No Longer Available
  • File – Part Number: 600PA433
    File
    Part Number: 600PA433
      No Longer Available
  • Engine – Part Number: N/P
    Engine
    Part Number: N/P
      No Longer Available
  • 2
    Cap gauge – Part Number: 9987M1
    Cap gauge
    Part Number: 9987M1
      No Longer Available
  • 3
    File holder – Part Number: 1669H
    File holder
    Part Number: 1669H
      No Longer Available
  • 4
    File – Part Number: 1668H
    File
    Part Number: 1668H
      No Longer Available
  • 5
    Depth gauge – Part Number: 5674H
    Depth gauge
    Part Number: 5674H
      No Longer Available
  • 6
    Wrench – Part Number: 632A9
    Wrench
    Part Number: 632A9
      No Longer Available
  • 7
    Wrench – Part Number: 9888M
    Wrench
    Part Number: 9888M
      No Longer Available
  • 8
    Dowel pin – Part Number: 6716H
    Dowel pin
    Part Number: 6716H
      No Longer Available
  • 9
    Adjustment wrench – Part Number: 6832H
    Adjustment wrench
    Part Number: 6832H
      No Longer Available
Shroud And Rewind Starter No. 590421
Shroud And Rewind Starter No. 590421 Diagram and Parts List for Craftsman Chainsaw

Questions & Answers

?

Our customer Service team is at the ready daily to answer your part and product questions.

Be the first to ask our experts a question about this part!

Ask our Team

We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.

✖

Our customer service team are at the ready daily to answer your part and product questions. We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.
