Craftsman Sears Chain Saw Chainsaw Replacement Parts For Model 917352031

We Sell Only Genuine Craftsman Parts

Popular Parts for 917352031

Trimmer Spark Plug Cover – Part Number: 610118 Trimmer Spark Plug Cover
In Stock
$7.51
Diaphragm Assy. – Part Number: 630978 Diaphragm Assy.
In Stock
$6.39
O-Ring – Part Number: 630740 O-Ring
In Stock
Minimum Quantity of 2 required
$6.16
Valve-intake – Part Number: 590393 Valve-intake
In Stock
$36.18
INLET NEEDLE – Part Number: 630932A INLET NEEDLE
On Order
$14.02
Idle Mixture Screw Washer – Part Number: 630739 Idle Mixture Screw Washer
In Stock
Minimum Quantity of 2 required
$6.16
Cylinder Head Gasket – Part Number: 510274A Cylinder Head Gasket
On Order
Minimum Quantity of 2 required
$6.16
Tension Spring – Part Number: 630766 Tension Spring
Special Order
Minimum Quantity of 2 required
$6.16

Search Within Model

Questions & Answers for Craftsman 917352031
Browse all Parts Search by Area
Accessory Equipment Diagram and Parts List for Craftsman Chainsaw
Accessory Equipment
Engine Diagram and Parts List for Craftsman Chainsaw
Engine
Engine Breakdown Diagram and Parts List for Craftsman Chainsaw
Engine Breakdown
Main Frame Diagram and Parts List for Craftsman Chainsaw
Main Frame
Maintenance Equipment Diagram and Parts List for Craftsman Chainsaw
Maintenance Equipment
Replacement Parts Diagram and Parts List for Craftsman Chainsaw
Replacement Parts
Rewind Starter Diagram and Parts List for Craftsman Chainsaw
Rewind Starter
Previous Showing All Parts Next

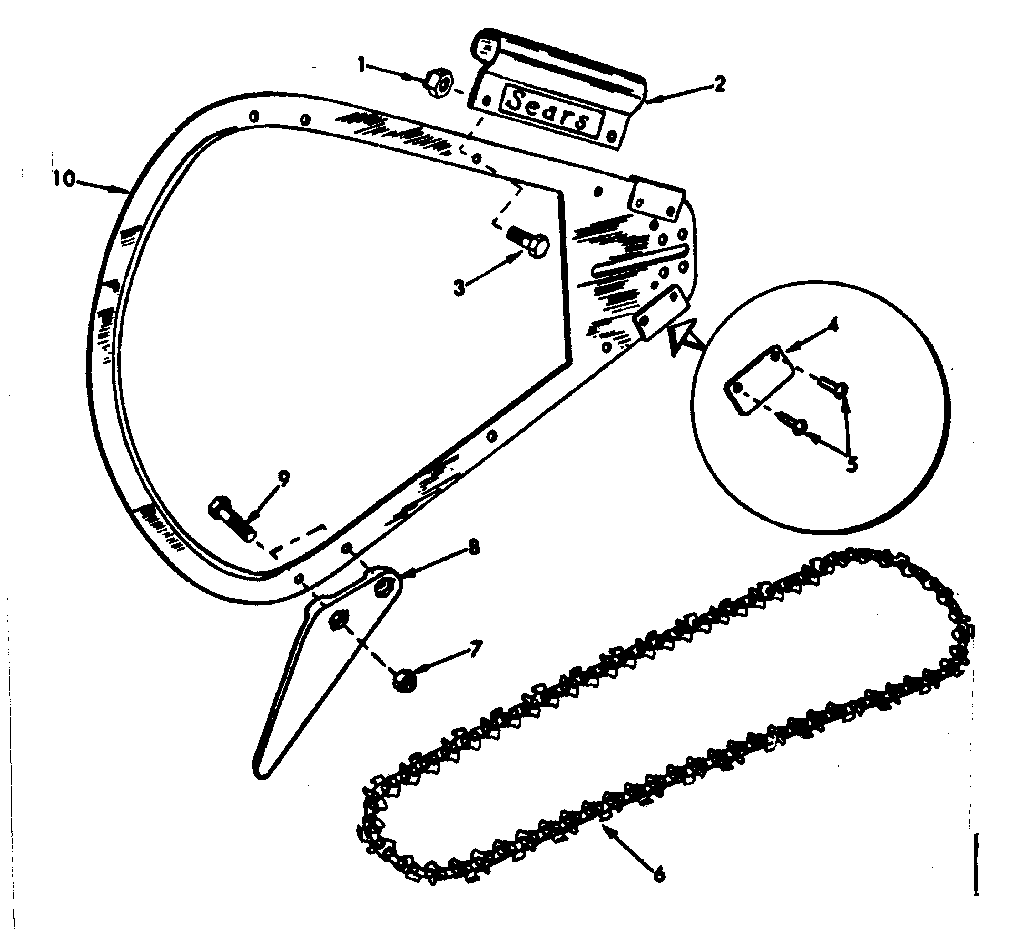

Accessory Equipment
Accessory Equipment Diagram and Parts List for Craftsman Chainsaw
  • Owner
    Owner's manual
    Part Number: 7871H
      No Longer Available
  • Manual – Part Number: 652R
    Manual
    Part Number: 652R
      No Longer Available
  • 1
    Hex lock nut, 8-pack – Part Number: 347H
    Hex lock nut, 8-pack
    Part Number: 347H
      No Longer Available
  • 2
    Hand guard – Part Number: 4182H
    Hand guard
    Part Number: 4182H
      No Longer Available
  • 3
    Bolt – Part Number: 3114P
    Bolt
    Part Number: 3114P
      No Longer Available
  • 4
    Chain guide – Part Number: 6846H
    Chain guide
    Part Number: 6846H
      No Longer Available
  • 5
    Rivet – Part Number: 2011P
    Rivet
    Part Number: 2011P
      No Longer Available
  • 6
    Chain no.72d – Part Number: 632A39
    Chain no.72d
    Part Number: 632A39
      No Longer Available
  • 7
    Hex nut – Part Number: 504P
    Hex nut
    Part Number: 504P
      No Longer Available
  • 8
    Bumper – Part Number: 7827H
    Bumper
    Part Number: 7827H
      No Longer Available
  • 9
    Bolt Hex Fin – Part Number: 3159P
    Bolt Hex Fin
    Part Number: 3159P
      No Longer Available
  • 10
    Bow blade – Part Number: 632A111
    Bow blade
    Part Number: 632A111
      No Longer Available

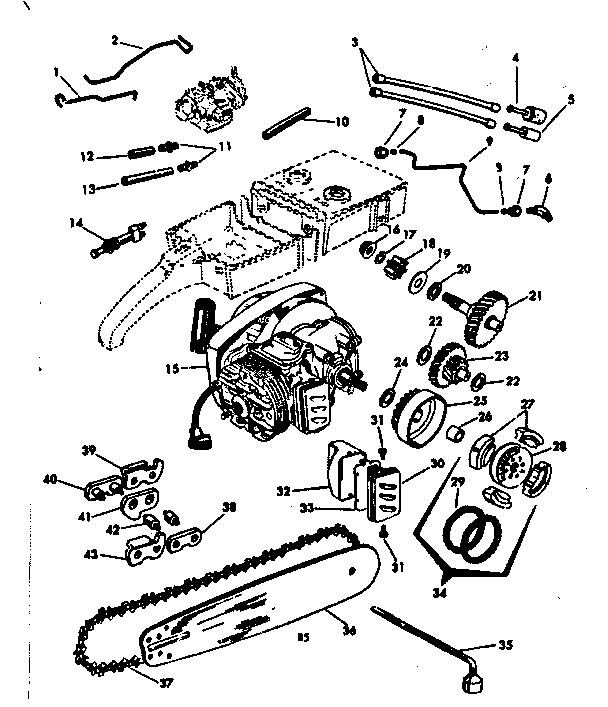

Engine
Engine Diagram and Parts List for Craftsman Chainsaw

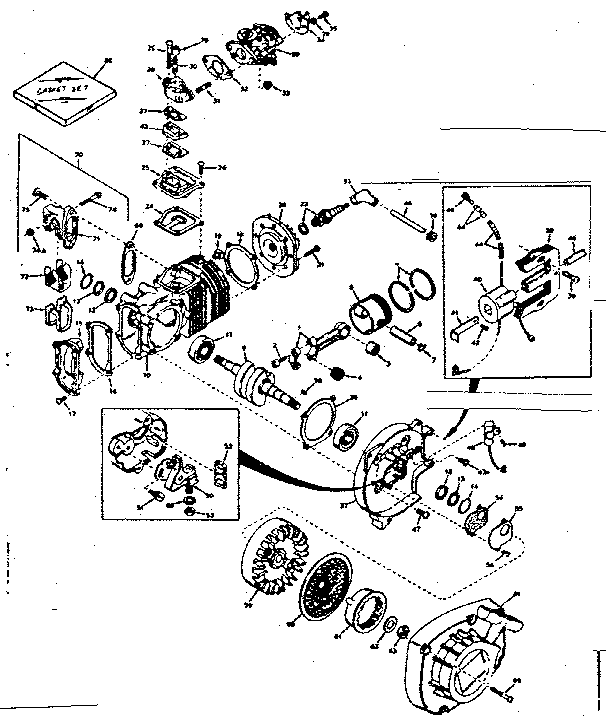

Engine Breakdown
Engine Breakdown Diagram and Parts List for Craftsman Chainsaw

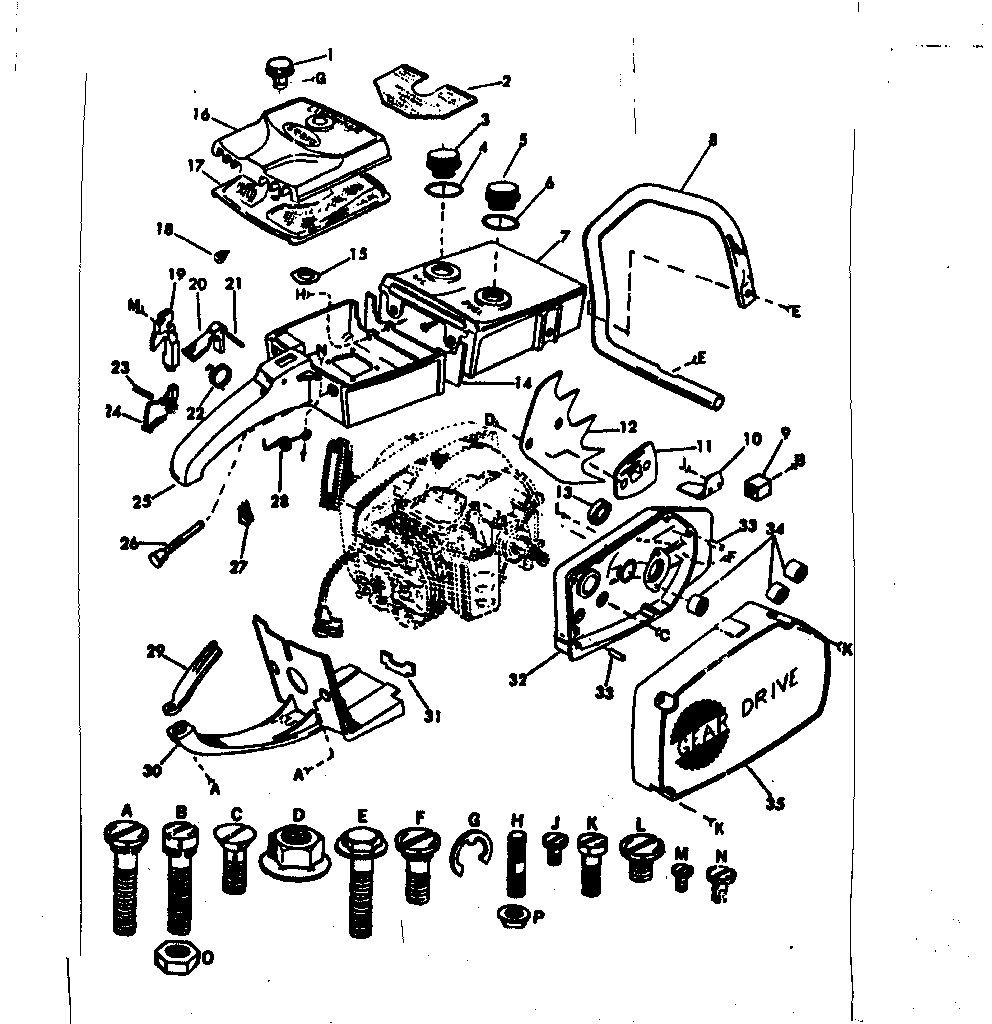

Main Frame
Main Frame Diagram and Parts List for Craftsman Chainsaw

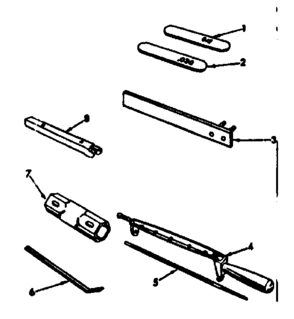

Maintenance Equipment
Maintenance Equipment Diagram and Parts List for Craftsman Chainsaw
  • Owner
    Owner's manual
    Part Number: 7871H
      No Longer Available
  • Manual – Part Number: 652R
    Manual
    Part Number: 652R
      No Longer Available
  • 1
    Gauge – Part Number: 761R
    Gauge
    Part Number: 761R
      No Longer Available
  • 2
    Gauge – Part Number: 762R
    Gauge
    Part Number: 762R
      No Longer Available
  • 3
    Wrench – Part Number: 632A9A
    Wrench
    Part Number: 632A9A
      No Longer Available
  • 4
    File holder – Part Number: 1669H
    File holder
    Part Number: 1669H
      No Longer Available
  • 5
    File – Part Number: 1668H
    File
    Part Number: 1668H
      No Longer Available
  • 6
    Adjustment wrench – Part Number: 6832H
    Adjustment wrench
    Part Number: 6832H
      No Longer Available
  • 7
    Wrench – Part Number: 7314H
    Wrench
    Part Number: 7314H
      No Longer Available
  • 8
    Depth gauge – Part Number: 5674H
    Depth gauge
    Part Number: 5674H
      No Longer Available
Replacement Parts
Replacement Parts Diagram and Parts List for Craftsman Chainsaw
  • 1
    Shaft lever – Part Number: 631391
    Shaft lever
    Part Number: 631391
      No Longer Available
  • 3
    Shutter – Part Number: 631367
    Shutter
    Part Number: 631367
      No Longer Available
  • 4
    Screw-Shutter – Part Number: 650506
    Screw-Shutter
    Part Number: 650506
      In Stock
    Minimum Quantity of 2 required
    $6.16
  • 5
    Tension Spring – Part Number: 630766
    Tension Spring
    Part Number: 630766
      Special Order
    Minimum Quantity of 2 required
    $6.16
  • 6
    Screw-throttle Crack And Idle – Part Number: 651025
    Screw-throttle Crack And Idle
    Part Number: 651025
      Special Order
    $6.16
  • 7
    Cylinder – Part Number: 631200
    Cylinder
    Part Number: 631200
      No Longer Available
  • 9
    Shutter – Part Number: 631222
    Shutter
    Part Number: 631222
      No Longer Available
  • 10
    Screw – Part Number: 631457
    Screw
    Part Number: 631457
      No Longer Available
  • 11
    High Speed Mixture Screw Tensi – Part Number: 630738
    High Speed Mixture Screw Tensi
    Part Number: 630738
      In Stock
    Minimum Quantity of 2 required
    $6.16
  • 11A
    Spring – Part Number: 631192
    Spring
    Part Number: 631192
      No Longer Available
  • 12
    Idle Mixture Screw Washer – Part Number: 630739
    Idle Mixture Screw Washer
    Part Number: 630739
      In Stock
    Minimum Quantity of 2 required
    $6.16
  • 12A
    Washer – Part Number: 631191
    Washer
    Part Number: 631191
      Special Order
    $6.16
  • 13
    O-Ring – Part Number: 630740
    O-Ring
    Part Number: 630740
      In Stock
    Minimum Quantity of 2 required
    $6.16
  • 13A
    O-ring, 8-pack – Part Number: 631190
    O-ring, 8-pack
    Part Number: 631190
      Special Order
    $4.28
  • 14
    Screw – Part Number: 631483
    Screw
    Part Number: 631483
      No Longer Available
  • 15
    Welch Plug, Idle Mixing Well – Part Number: 632554
    Welch Plug, Idle Mixing Well
    Part Number: 632554
      Special Order
    $6.16
  • 16
    Element – Part Number: 630953
    Element
    Part Number: 630953
      Special Order
    $7.98
  • 18
    Spring – Part Number: 631049
    Spring
    Part Number: 631049
      Special Order
    $6.16
  • 19
    Gasket – Part Number: 630742
    Gasket
    Part Number: 630742
      Special Order
    $6.16
  • 20
    INLET NEEDLE – Part Number: 630932A
    INLET NEEDLE
    Part Number: 630932A
      On Order
    $14.02
  • 21
    Spring – Part Number: 631365
    Spring
    Part Number: 631365
      No Longer Available
  • 22
    Diaphragm Assy. – Part Number: 630978
    Diaphragm Assy.
    Part Number: 630978
    ★★★★★
    ★★★★★
    (1)
      In Stock
    $6.39
  • 23
    Cover – Part Number: 630751
    Cover
    Part Number: 630751
      Special Order
    $14.48
  • 24
    Cover Screw – Part Number: 650545
    Cover Screw
    Part Number: 650545
      Special Order
    $6.16
  • 25
    Check valve – Part Number: 631201
    Check valve
    Part Number: 631201
      Special Order
    $25.92
  • 26
    Fitting, Fuel line – Part Number: 631202
    Fitting, Fuel line
    Part Number: 631202
      Special Order
    $16.35
  • 27
    Spring – Part Number: 631203
    Spring
    Part Number: 631203
      No Longer Available
  • 28
    Screw – Part Number: 650424
    Screw
    Part Number: 650424
      No Longer Available
  • 29
    Retainer – Part Number: 631393
    Retainer
    Part Number: 631393
      No Longer Available
  • 30
    Screw-Shutter – Part Number: 650506
    Screw-Shutter
    Part Number: 650506
      In Stock
    Minimum Quantity of 2 required
    $6.16
  • 31
    Gasket-diaphragm – Part Number: 630750A
    Gasket-diaphragm
    Part Number: 630750A
      In Stock
    Minimum Quantity of 2 required
    $6.16
  • 32
    Repair Kit – Part Number: 631893A
    Repair Kit
    Part Number: 631893A
      In Stock
    $23.99
Rewind Starter
Rewind Starter Diagram and Parts List for Craftsman Chainsaw
