Bissell Little Green ProHeat Carpet Cleaner Replacement Parts For Model 1425-7

We Sell Only Genuine Bissell Parts

Popular Parts for Bissell 1425-7

Search Within Model

Questions & Answers for Bissell 1425-7

Browse all Parts Search by Area

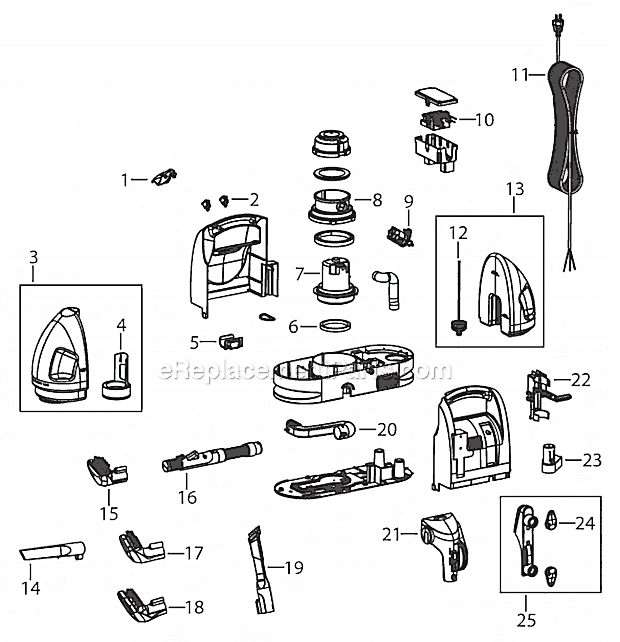

Page A Diagram and Parts List for 1425-7  Bissell Carpet Cleaner
Page A
Previous Showing All Parts Next
Page A
Page A Diagram and Parts List for 1425-7  Bissell Carpet Cleaner

Questions & Answers

?

Ask our Team

We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.

  • 1
Sort by:
Sorry, we couldn't find any existing answers that matched.
Try using some different or simpler keywords, or submit your new question by using the "Ask a Question" button above!
part B-203-7152how is it installed?
Patty For model number 1425-7 - April 27, 2023

Hi Patty, Thank you for your question. Before performing this repair make sure that the vacuum has been unplugged from the electrical outlet. You will need a Phillips head screwdriver for this repair. First remove both the waste and fresh water tanks from the vacuum. Then turn the vacuum over and unthread the screws securing the bottom cover. Next, turn the vacuum over and unthread the screws securing the top housing cover and disconnect the switches. Set aside the top housing and the switches. Take note of how the wires are connected to the switches before removing them. Next, gently remove the fresh water hose from the pump using a pair of needle nose pliers to squeeze the clamp securing it, so you can pull it out. You will then need to pull the hose to the rear of the steamer from where it comes from underneath and then turn the vacuum over and remove it from the top. Then unscrew the 2 screws securing the flex hose assembly. With the old flex hose removed, screw the new hose into place. Follow the steps in reverse to reassemble the vacuum. We hope this helps!

eReplacementParts Team
April 27, 2023
