RedMax Brushcutters/Clearing Saws Brush Cutter Replacement Parts For Model BC430DWM (000001 AND UP)

We Sell Only Genuine RedMax Parts

Popular Parts for BC430DWM

Clip – Part Number: 506707001 Clip
On Order
$6.16
Key – Part Number: 506689401 Key
In Stock
$6.16
Nut – Part Number: 521000601 Nut
On Order
$6.16
Spring – Part Number: 513243301 Spring
In Stock
$6.16
Ring – Part Number: 516124101 Ring
Special Order
Minimum Quantity of 2 required
$6.16
Bearing – Part Number: 505170201 Bearing
Special Order
$12.35
Fitting – Part Number: 505171501 Fitting
In Stock
$7.73
Bolt – Part Number: 506614901 Bolt
Special Order
$6.16

Search Within Model

Questions & Answers for RedMax BC430DWM
Browse all Parts Search by Area

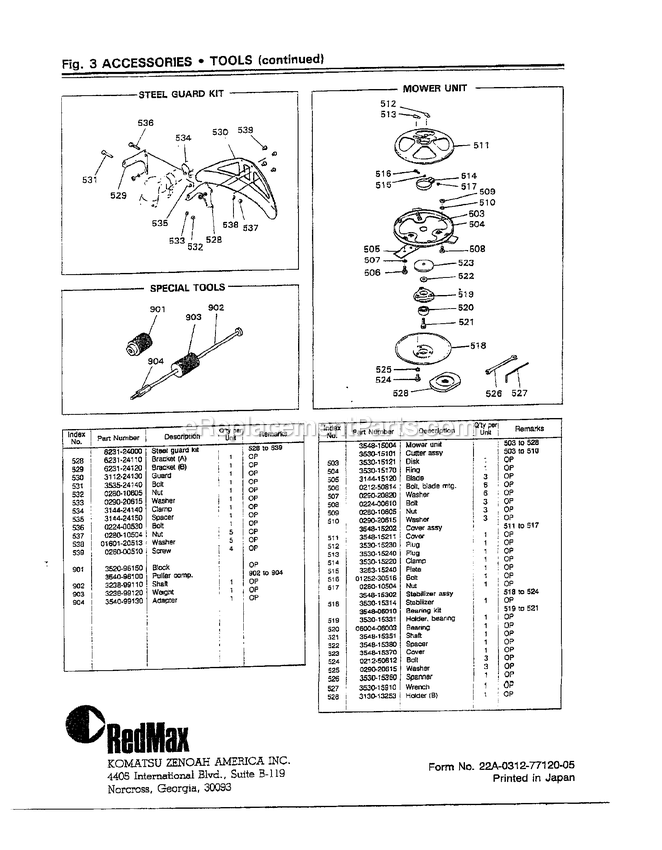

Attachments Diagram and Parts List for 000001 AND UP RedMax Brush Cutter
Attachments

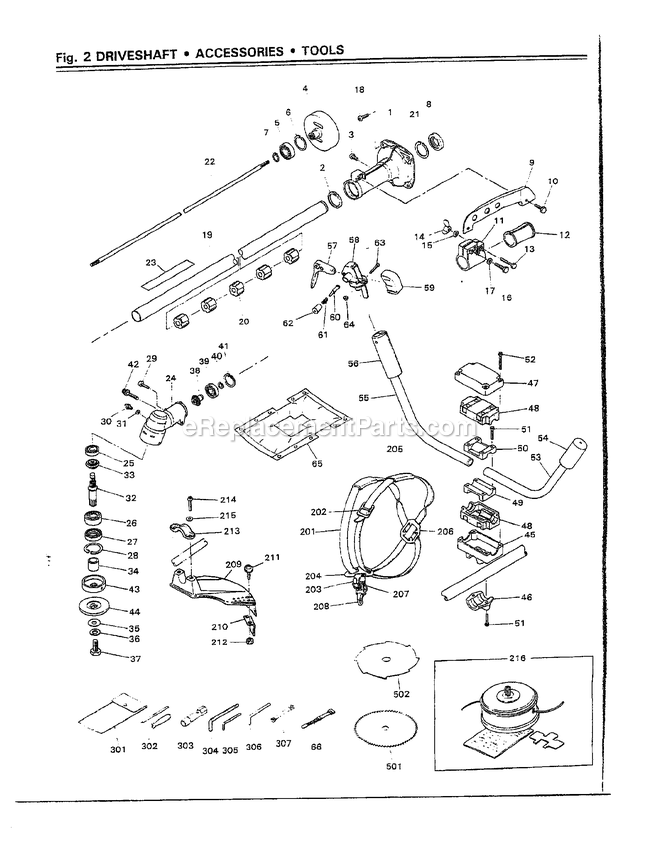

Drive Diagram and Parts List for 000001 AND UP RedMax Brush Cutter
Drive

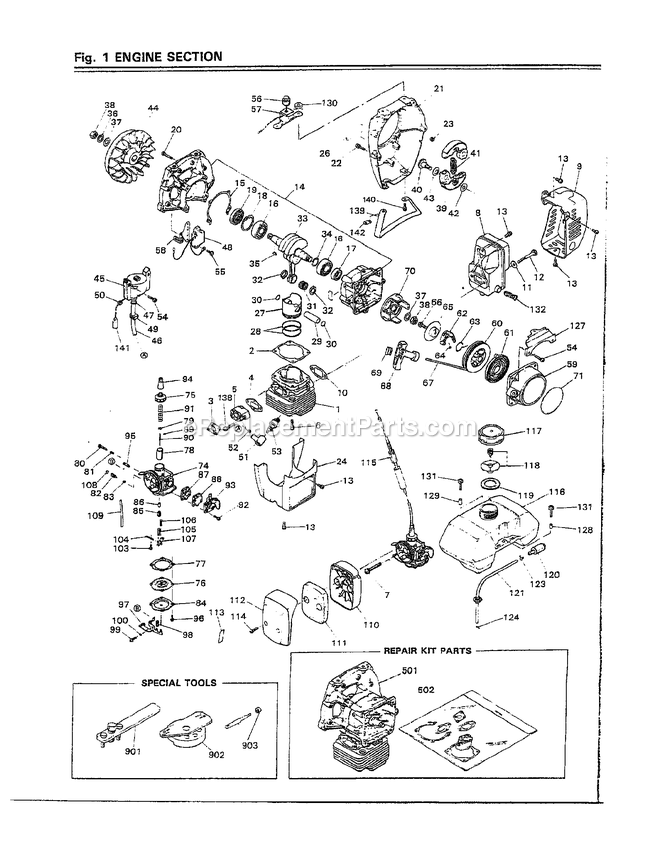

Engine Diagram and Parts List for 000001 AND UP RedMax Brush Cutter
Engine
Previous Showing All Parts Next
Attachments
Attachments Diagram and Parts List for 000001 AND UP RedMax Brush Cutter
  • 2
    Seal – Part Number: 5141248-01
    Seal
    Part Number: 5141248-01
      No Longer Available
  • 3
    Screw – Part Number: 5104675-01
    Screw
    Part Number: 5104675-01
      No Longer Available
  • 3
    Gasket – Part Number: 5132595-01
    Gasket
    Part Number: 5132595-01
      No Longer Available
  • 4
    Drum – Part Number: 5143560-01
    Drum
    Part Number: 5143560-01
      No Longer Available
  • 4
    Gasket – Part Number: 5132373-01
    Gasket
    Part Number: 5132373-01
      No Longer Available
  • 5
    Insulator – Part Number: 5132597-01
    Insulator
    Part Number: 5132597-01
      No Longer Available
  • 5
    Bearing – Part Number: 5105698-01
    Bearing
    Part Number: 5105698-01
      No Longer Available
  • 6
    Ring.Snap – Part Number: 5105512-01
    Ring.Snap
    Part Number: 5105512-01
      No Longer Available
  • 6
    Bolt – Part Number: 5141770-01
    Bolt
    Part Number: 5141770-01
      No Longer Available
  • 7
    Screw – Part Number: 5104697-01
    Screw
    Part Number: 5104697-01
      No Longer Available
  • 7
    Ring – Part Number: 5105485-01
    Ring
    Part Number: 5105485-01
      No Longer Available
  • 8
    Spacer – Part Number: 5143561-01
    Spacer
    Part Number: 5143561-01
      No Longer Available
  • 8
    Muffler – Part Number: 5132627-01
    Muffler
    Part Number: 5132627-01
      No Longer Available
  • 9
    Hanger – Part Number: 5143562-01
    Hanger
    Part Number: 5143562-01
      No Longer Available
  • 9
    Cover – Part Number: 5132378-01
    Cover
    Part Number: 5132378-01
      No Longer Available
  • 10
    Bolt – Part Number: 5104497-01
    Bolt
    Part Number: 5104497-01
      No Longer Available
  • 10
    Gasket.Muffle – Part Number: 5132371-01
    Gasket.Muffle
    Part Number: 5132371-01
      No Longer Available
  • 11
    Bracket – Part Number: 5143563-01
    Bracket
    Part Number: 5143563-01
      No Longer Available
  • 12
    Bolt – Part Number: 5104458-01
    Bolt
    Part Number: 5104458-01
      No Longer Available
  • 12
    Spacer – Part Number: 5143565-01
    Spacer
    Part Number: 5143565-01
      No Longer Available
  • 13
    Screw – Part Number: 5132380-01
    Screw
    Part Number: 5132380-01
      No Longer Available
  • 13
    Bolt – Part Number: 5104480-01
    Bolt
    Part Number: 5104480-01
      No Longer Available
  • 14
    Nut – Part Number: 5143566-01
    Nut
    Part Number: 5143566-01
      No Longer Available
  • 14
    Crankcase – Part Number: 5132381-01
    Crankcase
    Part Number: 5132381-01
      No Longer Available
  • 15
    Washer – Part Number: 5105381-01
    Washer
    Part Number: 5105381-01
      No Longer Available
  • 15
    Gasket – Part Number: 5132385-01
    Gasket
    Part Number: 5132385-01
      No Longer Available
  • 16
    Bolt – Part Number: 5104479-01
    Bolt
    Part Number: 5104479-01
      No Longer Available
  • 16
    Bearing – Part Number: 510571301
    Bearing
    Part Number: 510571301
      No Longer Available
  • 17
    Seal – Part Number: 5133125-01
    Seal
    Part Number: 5133125-01
      No Longer Available
  • 17
    Washer – Part Number: 5105381-01
    Washer
    Part Number: 5105381-01
      No Longer Available
  • 18
    Bolt – Part Number: 5143567-01
    Bolt
    Part Number: 5143567-01
      No Longer Available
  • 18
    Ring.Snap – Part Number: 5105512-01
    Ring.Snap
    Part Number: 5105512-01
      No Longer Available
  • 19
    Seal – Part Number: 5132387-01
    Seal
    Part Number: 5132387-01
      No Longer Available
  • 20
    Bushing – Part Number: 5141201-01
    Bushing
    Part Number: 5141201-01
      No Longer Available
  • 20
    Screw – Part Number: 5104621-01
    Screw
    Part Number: 5104621-01
      No Longer Available
  • 21
    Ring – Part Number: 5141608-01
    Ring
    Part Number: 5141608-01
      No Longer Available
  • 22
    Screw – Part Number: 5104808-01
    Screw
    Part Number: 5104808-01
      No Longer Available
  • 22
    Shaft – Part Number: 5143569-01
    Shaft
    Part Number: 5143569-01
      No Longer Available
  • 23
    Grommet – Part Number: 5131761-01
    Grommet
    Part Number: 5131761-01
      No Longer Available
  • 24
    Cover – Part Number: 5132393-01
    Cover
    Part Number: 5132393-01
      No Longer Available
  • 25
    Bearing – Part Number: 505170201
    Bearing
    Part Number: 505170201
      Special Order
    $12.35
  • 26
    Bearing – Part Number: 5105652-01
    Bearing
    Part Number: 5105652-01
      No Longer Available
  • 26
    Label.Cover – Part Number: 5133744-01
    Label.Cover
    Part Number: 5133744-01
      No Longer Available
  • 27
    Seal – Part Number: 5141203-01
    Seal
    Part Number: 5141203-01
      No Longer Available
  • 27
    Piston – Part Number: 5132396-01
    Piston
    Part Number: 5132396-01
      No Longer Available
  • 28
    Piston Ring – Part Number: 5132397-01
    Piston Ring
    Part Number: 5132397-01
      No Longer Available
  • 28
    Ring.Snap – Part Number: 5105512-01
    Ring.Snap
    Part Number: 5105512-01
      No Longer Available
  • 29
    Bolt – Part Number: 5105142-01
    Bolt
    Part Number: 5105142-01
      No Longer Available
  • 29
    Pen – Part Number: 5132398-01
    Pen
    Part Number: 5132398-01
      No Longer Available
  • 30
    Fitting – Part Number: 505171501
    Fitting
    Part Number: 505171501
      In Stock
    $7.73
  • 30
    Ring – Part Number: 5142386-01
    Ring
    Part Number: 5142386-01
      No Longer Available
  • 31
    Bearing – Part Number: 5132399-01
    Bearing
    Part Number: 5132399-01
      No Longer Available
  • 31
    Washer – Part Number: 5105371-01
    Washer
    Part Number: 5105371-01
      No Longer Available
  • 32
    Washer Thrust – Part Number: 5132400-01
    Washer Thrust
    Part Number: 5132400-01
      No Longer Available
  • 32
    Shaft – Part Number: 5143576-01
    Shaft
    Part Number: 5143576-01
      No Longer Available
  • 33
    Gear – Part Number: 5143578-01
    Gear
    Part Number: 5143578-01
      No Longer Available
  • 34
    Collar – Part Number: 5143579-01
    Collar
    Part Number: 5143579-01
      No Longer Available
  • 34
    Shim – Part Number: 513226501
    Shim
    Part Number: 513226501
      No Longer Available
  • 35
    Key – Part Number: 506689401
    Key
    Part Number: 506689401
      In Stock
    $6.16
  • 35
    Washer – Part Number: 5105389-01
    Washer
    Part Number: 5105389-01
      No Longer Available
  • 36
    Washer – Part Number: 5143702-01
    Washer
    Part Number: 5143702-01
      No Longer Available
  • 36
    Washer – Part Number: 510488201
    Washer
    Part Number: 510488201
      No Longer Available
  • 37
    Washer – Part Number: 5105374-01
    Washer
    Part Number: 5105374-01
      No Longer Available
  • 38
    Pinion – Part Number: 5143585-01
    Pinion
    Part Number: 5143585-01
      No Longer Available
  • 38
    Nut – Part Number: 5131755-01
    Nut
    Part Number: 5131755-01
      No Longer Available
  • 39
    Bearing – Part Number: 5105673-01
    Bearing
    Part Number: 5105673-01
      No Longer Available
  • 39
    Shoe – Part Number: 5132422-01
    Shoe
    Part Number: 5132422-01
      No Longer Available
  • 40
    Ring – Part Number: 516124101
    Ring
    Part Number: 516124101
      Special Order
    Minimum Quantity of 2 required
    $6.16
  • 40
    Screw – Part Number: 5132158-01
    Screw
    Part Number: 5132158-01
      No Longer Available
  • 41
    Spring – Part Number: 5132424-01
    Spring
    Part Number: 5132424-01
      No Longer Available
  • 41
    Ring – Part Number: 5105508-01
    Ring
    Part Number: 5105508-01
      No Longer Available
  • 42
    Bolt – Part Number: 506614901
    Bolt
    Part Number: 506614901
      Special Order
    $6.16
  • 42
    Washer – Part Number: 5132159-01
    Washer
    Part Number: 5132159-01
      No Longer Available
  • 43
    Washer – Part Number: 5132160-01
    Washer
    Part Number: 5132160-01
      No Longer Available
  • 44
    Rotor – Part Number: 5132428-01
    Rotor
    Part Number: 5132428-01
      No Longer Available
  • 45
    Coil – Part Number: 5133690-01
    Coil
    Part Number: 5133690-01
      No Longer Available
  • 46
    Cap – Part Number: 5143591-01
    Cap
    Part Number: 5143591-01
      No Longer Available
  • 46
    Cord – Part Number: 5132429-01
    Cord
    Part Number: 5132429-01
      No Longer Available
  • 47
    Cap – Part Number: 5143592-01
    Cap
    Part Number: 5143592-01
      No Longer Available
  • 47
    Hub Cap – Part Number: 5132430-01
    Hub Cap
    Part Number: 5132430-01
      No Longer Available
  • 48
    Absorber – Part Number: 5143593-01
    Absorber
    Part Number: 5143593-01
      No Longer Available
  • 49
    Clamp – Part Number: 5143594-01
    Clamp
    Part Number: 5143594-01
      No Longer Available
  • 49
    Grommet – Part Number: 5142066-01
    Grommet
    Part Number: 5142066-01
      No Longer Available
  • 50
    Clamp – Part Number: 5143595-01
    Clamp
    Part Number: 5143595-01
      No Longer Available
  • 50
    Grommet – Part Number: 5131761-01
    Grommet
    Part Number: 5131761-01
      No Longer Available
  • 51
    Bolt – Part Number: 5105149-01
    Bolt
    Part Number: 5105149-01
      No Longer Available
  • 51
    Hub Cap – Part Number: 5132432-01
    Hub Cap
    Part Number: 5132432-01
      No Longer Available
  • 52
    Spring – Part Number: 513243301
    Spring
    Part Number: 513243301
      In Stock
    $6.16
  • 52
    Bolt – Part Number: 5105150-01
    Bolt
    Part Number: 5105150-01
      No Longer Available
  • 53
    Handle – Part Number: 5143596-01
    Handle
    Part Number: 5143596-01
      No Longer Available
  • 53
    Spark Plug – Part Number: 5132163-01
    Spark Plug
    Part Number: 5132163-01
      No Longer Available
  • 54
    Handle – Part Number: 5143596-01
    Handle
    Part Number: 5143596-01
      No Longer Available
  • 54
    Screw – Part Number: 5132451-01
    Screw
    Part Number: 5132451-01
      No Longer Available
  • 55
    Screw – Part Number: 5104692-01
    Screw
    Part Number: 5104692-01
      No Longer Available
  • 55
    Handle-R-Comp – Part Number: 5143599-01
    Handle-R-Comp
    Part Number: 5143599-01
      No Longer Available
  • 56
    Handle-R-Comp – Part Number: 5143599-01
    Handle-R-Comp
    Part Number: 5143599-01
      No Longer Available
  • 56
    Switch – Part Number: 5134579-01
    Switch
    Part Number: 5134579-01
      No Longer Available
  • 57
    Bracket – Part Number: 5132434-01
    Bracket
    Part Number: 5132434-01
      No Longer Available
  • 58
    Clamp – Part Number: 5132435-01
    Clamp
    Part Number: 5132435-01
      No Longer Available
  • 59
    Case – Part Number: 5132439-01
    Case
    Part Number: 5132439-01
      No Longer Available
  • 59
    Cover – Part Number: 5143613-01
    Cover
    Part Number: 5143613-01
      No Longer Available
  • 60
    Stopper – Part Number: 514212901
    Stopper
    Part Number: 514212901
      No Longer Available
  • 60
    Reel – Part Number: 5132440-01
    Reel
    Part Number: 5132440-01
      No Longer Available
  • 61
    Spring – Part Number: 5141786-01
    Spring
    Part Number: 5141786-01
      No Longer Available
  • 61
    Spring – Part Number: 5132441-01
    Spring
    Part Number: 5132441-01
      No Longer Available
  • 62
    Ratchet – Part Number: 5132442-01
    Ratchet
    Part Number: 5132442-01
      No Longer Available
  • 62
    Knob – Part Number: 5141787-01
    Knob
    Part Number: 5141787-01
      No Longer Available
  • 63
    Spring – Part Number: 5132131-01
    Spring
    Part Number: 5132131-01
      No Longer Available
  • 63
    Screw – Part Number: 5104613-01
    Screw
    Part Number: 5104613-01
      No Longer Available
  • 64
    Nut – Part Number: 5141518-01
    Nut
    Part Number: 5141518-01
      No Longer Available
  • 64
    Spring.Return – Part Number: 5132085-01
    Spring.Return
    Part Number: 5132085-01
      No Longer Available
  • 65
    Retainer – Part Number: 5132445-01
    Retainer
    Part Number: 5132445-01
      No Longer Available
  • 66
    Screw – Part Number: 5132082-01
    Screw
    Part Number: 5132082-01
      No Longer Available
  • 66
    Band – Part Number: 514364001
    Band
    Part Number: 514364001
      No Longer Available
  • 67
    Rope – Part Number: 5132443-01
    Rope
    Part Number: 5132443-01
      No Longer Available
  • 68
    Knob – Part Number: 5132444-01
    Knob
    Part Number: 5132444-01
      No Longer Available
  • 69
    Hub Cap – Part Number: 5132087-01
    Hub Cap
    Part Number: 5132087-01
      No Longer Available
  • 70
    Pulley – Part Number: 5132446-01
    Pulley
    Part Number: 5132446-01
      No Longer Available
  • 74
    Carburetor-A – Part Number: 5132598-01
    Carburetor-A
    Part Number: 5132598-01
      No Longer Available
  • 75
    Hub Cap – Part Number: 5133696-01
    Hub Cap
    Part Number: 5133696-01
      No Longer Available
  • 76
    Diaphragm Assy – Part Number: 5132611-01
    Diaphragm Assy
    Part Number: 5132611-01
      No Longer Available
  • 77
    Packing – Part Number: 5131810-01
    Packing
    Part Number: 5131810-01
      No Longer Available
  • 78
    Valve.Throttle – Part Number: 5132601-01
    Valve.Throttle
    Part Number: 5132601-01
      No Longer Available
  • 79
    Receive – Part Number: 5132319-01
    Receive
    Part Number: 5132319-01
      No Longer Available
  • 80
    Screw.Slow – Part Number: 5131684-01
    Screw.Slow
    Part Number: 5131684-01
      No Longer Available
  • 81
    Spring – Part Number: 513370401
    Spring
    Part Number: 513370401
      No Longer Available
  • 82
    Screw – Part Number: 5132603-01
    Screw
    Part Number: 5132603-01
      No Longer Available
  • 83
    Spring.Adjust – Part Number: 5132605-01
    Spring.Adjust
    Part Number: 5132605-01
      No Longer Available
  • 84
    Cover – Part Number: 5132612-01
    Cover
    Part Number: 5132612-01
      No Longer Available
  • 85
    Holder – Part Number: 5132607-01
    Holder
    Part Number: 5132607-01
      No Longer Available
  • 86
    Jet – Part Number: 5132606-01
    Jet
    Part Number: 5132606-01
      No Longer Available
  • 87
    Packing – Part Number: 5132618-01
    Packing
    Part Number: 5132618-01
      No Longer Available
  • 88
    Pump – Part Number: 5132617-01
    Pump
    Part Number: 5132617-01
      No Longer Available
  • 89
    Clip – Part Number: 5131805-01
    Clip
    Part Number: 5131805-01
      No Longer Available
  • 90
    Needle – Part Number: 5132602-01
    Needle
    Part Number: 5132602-01
      No Longer Available
  • 91
    Spring.Throttle – Part Number: 513231801
    Spring.Throttle
    Part Number: 513231801
      No Longer Available
  • 92
    Screw – Part Number: 5104635-01
    Screw
    Part Number: 5104635-01
      No Longer Available
  • 93
    Cover – Part Number: 5132619-01
    Cover
    Part Number: 5132619-01
      No Longer Available
  • 94
    Hub Cap – Part Number: 5143064-01
    Hub Cap
    Part Number: 5143064-01
      No Longer Available
  • 95
    Valve – Part Number: 5131844-01
    Valve
    Part Number: 5131844-01
      No Longer Available
  • 96
    Screw – Part Number: 5104634-01
    Screw
    Part Number: 5104634-01
      No Longer Available
  • 97
    Lever – Part Number: 5132613-01
    Lever
    Part Number: 5132613-01
      No Longer Available
  • 98
    Spring.Tickler – Part Number: 5132614-01
    Spring.Tickler
    Part Number: 5132614-01
      No Longer Available
  • 99
    Screw – Part Number: 5104608-01
    Screw
    Part Number: 5104608-01
      No Longer Available
  • 100
    Collar – Part Number: 5132615-01
    Collar
    Part Number: 5132615-01
      No Longer Available
  • 103
    Screw – Part Number: 5104603-01
    Screw
    Part Number: 5104603-01
      No Longer Available
  • 104
    Pen – Part Number: 5131776-01
    Pen
    Part Number: 5131776-01
      No Longer Available
  • 105
    Valve.Needle – Part Number: 5131773-01
    Valve.Needle
    Part Number: 5131773-01
      No Longer Available
  • 106
    Spring.Needle – Part Number: 5132608-01
    Spring.Needle
    Part Number: 5132608-01
      No Longer Available
  • 107
    Lever – Part Number: 5132609-01
    Lever
    Part Number: 5132609-01
      No Longer Available
  • 108
    Plate – Part Number: 5132616-01
    Plate
    Part Number: 5132616-01
      No Longer Available
  • 109
    Pipe – Part Number: 5132624-01
    Pipe
    Part Number: 5132624-01
      No Longer Available
  • 112
    Cover – Part Number: 5132474-01
    Cover
    Part Number: 5132474-01
      No Longer Available
  • 113
    Label – Part Number: 513185301
    Label
    Part Number: 513185301
      No Longer Available
  • 114
    Screw – Part Number: 5104686-01
    Screw
    Part Number: 5104686-01
      No Longer Available
  • 118
    Valve – Part Number: 5133491-01
    Valve
    Part Number: 5133491-01
      No Longer Available
  • 120
    Filter – Part Number: 5141765-01
    Filter
    Part Number: 5141765-01
      No Longer Available
  • 121
    Pipe – Part Number: 5132623-01
    Pipe
    Part Number: 5132623-01
      No Longer Available
  • 123
    Clip – Part Number: 506707001
    Clip
    Part Number: 506707001
    ★★★★★
    ★★★★★
    (1)
      On Order
    $6.16
  • 124
    Clip – Part Number: 5131700-01
    Clip
    Part Number: 5131700-01
      No Longer Available
  • 128
    Collar – Part Number: 5132491-01
    Collar
    Part Number: 5132491-01
      No Longer Available
  • 129
    Collar – Part Number: 5132492-01
    Collar
    Part Number: 5132492-01
      No Longer Available
  • 130
    Cushion – Part Number: 5132493-01
    Cushion
    Part Number: 5132493-01
      No Longer Available
  • 131
    Screw – Part Number: 513350001
    Screw
    Part Number: 513350001
      No Longer Available
  • 132
    ARRESTER – Part Number: 513262801
    ARRESTER
    Part Number: 513262801
      Special Order
    $20.10
  • 204
    Hanger – Part Number: 5143630-01
    Hanger
    Part Number: 5143630-01
      No Longer Available
  • 207
    Cushion – Part Number: 5141266-01
    Cushion
    Part Number: 5141266-01
      No Longer Available
  • 210
    BLADE – Part Number: 515514501
    BLADE
    Part Number: 515514501
      Special Order
    $6.21
  • 211
    Screw – Part Number: 510478301
    Screw
    Part Number: 510478301
      No Longer Available
  • 212
    Nut – Part Number: 521000601
    Nut
    Part Number: 521000601
      On Order
    $6.16
  • 213
    Clamp – Part Number: 514363401
    Clamp
    Part Number: 514363401
      No Longer Available
  • 214
    Bolt – Part Number: 514363501
    Bolt
    Part Number: 514363501
      Special Order
    $6.16
  • 215
    Washer – Part Number: 510488001
    Washer
    Part Number: 510488001
      Special Order
    $6.16
  • 301
    Bag – Part Number: 5131669-01
    Bag
    Part Number: 5131669-01
      No Longer Available
  • 302
    Driver – Part Number: 506689501
    Driver
    Part Number: 506689501
      Special Order
    $7.73
  • 303
    Socket.17x19 – Part Number: 514125901
    Socket.17x19
    Part Number: 514125901
      No Longer Available
  • 304
    Wrench – Part Number: 5106298-01
    Wrench
    Part Number: 5106298-01
      No Longer Available
  • 305
    Wrench – Part Number: 5106299-01
    Wrench
    Part Number: 5106299-01
      No Longer Available
  • 306
    Bar – Part Number: 5143636-01
    Bar
    Part Number: 5143636-01
      No Longer Available
  • 307
    Spanner – Part Number: 506615001
    Spanner
    Part Number: 506615001
      Special Order
    $7.73
  • 502
    Gasket Kit – Part Number: 5132594-01
    Gasket Kit
    Part Number: 5132594-01
      No Longer Available
  • 504
    Ring – Part Number: 5143496-01
    Ring
    Part Number: 5143496-01
      No Longer Available
  • 505
    Blade – Part Number: 5141251-01
    Blade
    Part Number: 5141251-01
      No Longer Available
  • 507
    Washer – Part Number: 510488101
    Washer
    Part Number: 510488101
      Special Order
    $6.16
  • 508
    Bolt – Part Number: 510447501
    Bolt
    Part Number: 510447501
      No Longer Available
  • 509
    Nut – Part Number: 510486101
    Nut
    Part Number: 510486101
      Special Order
    $6.16
  • 510
    Washer – Part Number: 510488001
    Washer
    Part Number: 510488001
      Special Order
    $6.16
  • 511
    Cover – Part Number: 5143712-01
    Cover
    Part Number: 5143712-01
      No Longer Available
  • 512
    Plug – Part Number: 5143500-01
    Plug
    Part Number: 5143500-01
      No Longer Available
  • 513
    Plug – Part Number: 5143501-01
    Plug
    Part Number: 5143501-01
      No Longer Available
  • 514
    Clamp – Part Number: 5143499-01
    Clamp
    Part Number: 5143499-01
      No Longer Available
  • 515
    Plate – Part Number: 5141626-01
    Plate
    Part Number: 5141626-01
      No Longer Available
  • 516
    Bolt – Part Number: 5105145-01
    Bolt
    Part Number: 5105145-01
      No Longer Available
  • 517
    Nut – Part Number: 5104860-01
    Nut
    Part Number: 5104860-01
      No Longer Available
  • 518
    Stabilizer – Part Number: 5143506-01
    Stabilizer
    Part Number: 5143506-01
      No Longer Available
  • 519
    Holder – Part Number: 5143507-01
    Holder
    Part Number: 5143507-01
      No Longer Available
  • 520
    Bearing – Part Number: 5105694-01
    Bearing
    Part Number: 5105694-01
      No Longer Available
  • 521
    Shaft – Part Number: 5143714-01
    Shaft
    Part Number: 5143714-01
      No Longer Available
  • 522
    Spacer – Part Number: 5143716-01
    Spacer
    Part Number: 5143716-01
      No Longer Available
  • 523
    Cover – Part Number: 5143715-01
    Cover
    Part Number: 5143715-01
      No Longer Available
  • 524
    Bolt – Part Number: 5104455-01
    Bolt
    Part Number: 5104455-01
      No Longer Available
  • 525
    Washer – Part Number: 510488001
    Washer
    Part Number: 510488001
      Special Order
    $6.16
  • 526
    Spanner – Part Number: 5143509-01
    Spanner
    Part Number: 5143509-01
      No Longer Available
  • 527
    Wrench – Part Number: 5143512-01
    Wrench
    Part Number: 5143512-01
      No Longer Available
  • 528B
    Holder – Part Number: 5141210-01
    Holder
    Part Number: 5141210-01
      No Longer Available
  • 531
    Bolt – Part Number: 5143552-01
    Bolt
    Part Number: 5143552-01
      No Longer Available
  • 532
    Nut – Part Number: 510486101
    Nut
    Part Number: 510486101
      Special Order
    $6.16
  • 533
    Washer – Part Number: 510488001
    Washer
    Part Number: 510488001
      Special Order
    $6.16
  • 534
    Clamp – Part Number: 5141257-01
    Clamp
    Part Number: 5141257-01
      No Longer Available
  • 535
    Spacer – Part Number: 5141258-01
    Spacer
    Part Number: 5141258-01
      No Longer Available
  • 536
    Bolt – Part Number: 5104472-01
    Bolt
    Part Number: 5104472-01
      No Longer Available
  • 537
    Nut – Part Number: 5104860-01
    Nut
    Part Number: 5104860-01
      No Longer Available
  • 538
    Washer – Part Number: 5105340-01
    Washer
    Part Number: 5105340-01
      No Longer Available
  • 539
    Screw – Part Number: 5104615-01
    Screw
    Part Number: 5104615-01
      No Longer Available
  • 800
    Handle – Part Number: 5143596-01
    Handle
    Part Number: 5143596-01
      No Longer Available
  • 800
    Bracket – Part Number: 5143589-01
    Bracket
    Part Number: 5143589-01
      No Longer Available
  • 800
    Valve Comp – Part Number: 5133490-01
    Valve Comp
    Part Number: 5133490-01
      No Longer Available
  • 800
    Recoil-A – Part Number: 5132438-01
    Recoil-A
    Part Number: 5132438-01
      No Longer Available
  • 800
    Cleaner – Part Number: 5132629-01
    Cleaner
    Part Number: 5132629-01
      No Longer Available
  • 800
    Coil – Part Number: 5133690-01
    Coil
    Part Number: 5133690-01
      No Longer Available
  • 800
    Cover – Part Number: 5143711-01
    Cover
    Part Number: 5143711-01
      No Longer Available
  • 800
    Muffler-A – Part Number: 5132626-01
    Muffler-A
    Part Number: 5132626-01
      No Longer Available
  • 800
    Mower Unit – Part Number: 5143710-01
    Mower Unit
    Part Number: 5143710-01
      No Longer Available
  • 800
    Carburetor-A – Part Number: 5132598-01
    Carburetor-A
    Part Number: 5132598-01
      No Longer Available
  • 800
    Vezetã–lemez 14" 3/8 1.3 Or – Part Number: 1400740-00
    Vezetã–lemez 14" 3/8 1.3 Or
    Part Number: 1400740-00
      No Longer Available
  • 800
    Handle-R-Comp – Part Number: 5143599-01
    Handle-R-Comp
    Part Number: 5143599-01
      No Longer Available
  • 800
    Puller-Comp – Part Number: 5143641-01
    Puller-Comp
    Part Number: 5143641-01
      No Longer Available
  • 800
    Stabilizer-Assy – Part Number: 5143713-01
    Stabilizer-Assy
    Part Number: 5143713-01
      No Longer Available
  • 800
    Cutter Assy – Part Number: 5143491-01
    Cutter Assy
    Part Number: 5143491-01
      No Longer Available
  • 901
    Block – Part Number: 5143465-01
    Block
    Part Number: 5143465-01
      No Longer Available
  • 902
    Set Block – Part Number: 5132497-01
    Set Block
    Part Number: 5132497-01
      No Longer Available
  • 902
    Shaft – Part Number: 514155501
    Shaft
    Part Number: 514155501
      No Longer Available
  • 903
    Rod – Part Number: 5132498-01
    Rod
    Part Number: 5132498-01
      No Longer Available
  • 903
    Weight – Part Number: 514155601
    Weight
    Part Number: 514155601
      No Longer Available
  • 904
    Adapter(C) – Part Number: 5143643-01
    Adapter(C)
    Part Number: 5143643-01
      No Longer Available
Drive
Drive Diagram and Parts List for 000001 AND UP RedMax Brush Cutter
  • 2
    Seal – Part Number: 5141248-01
    Seal
    Part Number: 5141248-01
      No Longer Available
  • 3
    Gasket – Part Number: 5132595-01
    Gasket
    Part Number: 5132595-01
      No Longer Available
  • 3
    Screw – Part Number: 5104675-01
    Screw
    Part Number: 5104675-01
      No Longer Available
  • 4
    Gasket – Part Number: 5132373-01
    Gasket
    Part Number: 5132373-01
      No Longer Available
  • 4
    Drum – Part Number: 5143560-01
    Drum
    Part Number: 5143560-01
      No Longer Available
  • 5
    Insulator – Part Number: 5132597-01
    Insulator
    Part Number: 5132597-01
      No Longer Available
  • 5
    Bearing – Part Number: 5105698-01
    Bearing
    Part Number: 5105698-01
      No Longer Available
  • 6
    Ring.Snap – Part Number: 5105512-01
    Ring.Snap
    Part Number: 5105512-01
      No Longer Available
  • 6
    Bolt – Part Number: 5141770-01
    Bolt
    Part Number: 5141770-01
      No Longer Available
  • 7
    Screw – Part Number: 5104697-01
    Screw
    Part Number: 5104697-01
      No Longer Available
  • 7
    Ring – Part Number: 5105485-01
    Ring
    Part Number: 5105485-01
      No Longer Available
  • 8
    Spacer – Part Number: 5143561-01
    Spacer
    Part Number: 5143561-01
      No Longer Available
  • 8
    Muffler – Part Number: 5132627-01
    Muffler
    Part Number: 5132627-01
      No Longer Available
  • 9
    Cover – Part Number: 5132378-01
    Cover
    Part Number: 5132378-01
      No Longer Available
  • 9
    Hanger – Part Number: 5143562-01
    Hanger
    Part Number: 5143562-01
      No Longer Available
  • 10
    Gasket.Muffle – Part Number: 5132371-01
    Gasket.Muffle
    Part Number: 5132371-01
      No Longer Available
  • 10
    Bolt – Part Number: 5104497-01
    Bolt
    Part Number: 5104497-01
      No Longer Available
  • 11
    Bracket – Part Number: 5143563-01
    Bracket
    Part Number: 5143563-01
      No Longer Available
  • 12
    Spacer – Part Number: 5143565-01
    Spacer
    Part Number: 5143565-01
      No Longer Available
  • 12
    Bolt – Part Number: 5104458-01
    Bolt
    Part Number: 5104458-01
      No Longer Available
  • 13
    Bolt – Part Number: 5104480-01
    Bolt
    Part Number: 5104480-01
      No Longer Available
  • 13
    Screw – Part Number: 5132380-01
    Screw
    Part Number: 5132380-01
      No Longer Available
  • 14
    Crankcase – Part Number: 5132381-01
    Crankcase
    Part Number: 5132381-01
      No Longer Available
  • 14
    Nut – Part Number: 5143566-01
    Nut
    Part Number: 5143566-01
      No Longer Available
  • 15
    Gasket – Part Number: 5132385-01
    Gasket
    Part Number: 5132385-01
      No Longer Available
  • 15
    Washer – Part Number: 5105381-01
    Washer
    Part Number: 5105381-01
      No Longer Available
  • 16
    Bolt – Part Number: 5104479-01
    Bolt
    Part Number: 5104479-01
      No Longer Available
  • 16
    Bearing – Part Number: 510571301
    Bearing
    Part Number: 510571301
      No Longer Available
  • 17
    Washer – Part Number: 5105381-01
    Washer
    Part Number: 5105381-01
      No Longer Available
  • 17
    Seal – Part Number: 5133125-01
    Seal
    Part Number: 5133125-01
      No Longer Available
  • 18
    Bolt – Part Number: 5143567-01
    Bolt
    Part Number: 5143567-01
      No Longer Available
  • 18
    Ring.Snap – Part Number: 5105512-01
    Ring.Snap
    Part Number: 5105512-01
      No Longer Available
  • 19
    Seal – Part Number: 5132387-01
    Seal
    Part Number: 5132387-01
      No Longer Available
  • 20
    Bushing – Part Number: 5141201-01
    Bushing
    Part Number: 5141201-01
      No Longer Available
  • 20
    Screw – Part Number: 5104621-01
    Screw
    Part Number: 5104621-01
      No Longer Available
  • 21
    Ring – Part Number: 5141608-01
    Ring
    Part Number: 5141608-01
      No Longer Available
  • 22
    Screw – Part Number: 5104808-01
    Screw
    Part Number: 5104808-01
      No Longer Available
  • 22
    Shaft – Part Number: 5143569-01
    Shaft
    Part Number: 5143569-01
      No Longer Available
  • 23
    Grommet – Part Number: 5131761-01
    Grommet
    Part Number: 5131761-01
      No Longer Available
  • 24
    Cover – Part Number: 5132393-01
    Cover
    Part Number: 5132393-01
      No Longer Available
  • 25
    Bearing – Part Number: 505170201
    Bearing
    Part Number: 505170201
      Special Order
    $12.35
  • 26
    Label.Cover – Part Number: 5133744-01
    Label.Cover
    Part Number: 5133744-01
      No Longer Available
  • 26
    Bearing – Part Number: 5105652-01
    Bearing
    Part Number: 5105652-01
      No Longer Available
  • 27
    Seal – Part Number: 5141203-01
    Seal
    Part Number: 5141203-01
      No Longer Available
  • 27
    Piston – Part Number: 5132396-01
    Piston
    Part Number: 5132396-01
      No Longer Available
  • 28
    Ring.Snap – Part Number: 5105512-01
    Ring.Snap
    Part Number: 5105512-01
      No Longer Available
  • 28
    Piston Ring – Part Number: 5132397-01
    Piston Ring
    Part Number: 5132397-01
      No Longer Available
  • 29
    Pen – Part Number: 5132398-01
    Pen
    Part Number: 5132398-01
      No Longer Available
  • 29
    Bolt – Part Number: 5105142-01
    Bolt
    Part Number: 5105142-01
      No Longer Available
  • 30
    Fitting – Part Number: 505171501
    Fitting
    Part Number: 505171501
      In Stock
    $7.73
  • 30
    Ring – Part Number: 5142386-01
    Ring
    Part Number: 5142386-01
      No Longer Available
  • 31
    Bearing – Part Number: 5132399-01
    Bearing
    Part Number: 5132399-01
      No Longer Available
  • 31
    Washer – Part Number: 5105371-01
    Washer
    Part Number: 5105371-01
      No Longer Available
  • 32
    Washer Thrust – Part Number: 5132400-01
    Washer Thrust
    Part Number: 5132400-01
      No Longer Available
  • 32
    Shaft – Part Number: 5143576-01
    Shaft
    Part Number: 5143576-01
      No Longer Available
  • 33
    Gear – Part Number: 5143578-01
    Gear
    Part Number: 5143578-01
      No Longer Available
  • 34
    Shim – Part Number: 513226501
    Shim
    Part Number: 513226501
      No Longer Available
  • 34
    Collar – Part Number: 5143579-01
    Collar
    Part Number: 5143579-01
      No Longer Available
  • 35
    Washer – Part Number: 5105389-01
    Washer
    Part Number: 5105389-01
      No Longer Available
  • 35
    Key – Part Number: 506689401
    Key
    Part Number: 506689401
      In Stock
    $6.16
  • 36
    Washer – Part Number: 5143702-01
    Washer
    Part Number: 5143702-01
      No Longer Available
  • 36
    Washer – Part Number: 510488201
    Washer
    Part Number: 510488201
      No Longer Available
  • 37
    Washer – Part Number: 5105374-01
    Washer
    Part Number: 5105374-01
      No Longer Available
  • 38
    Nut – Part Number: 5131755-01
    Nut
    Part Number: 5131755-01
      No Longer Available
  • 38
    Pinion – Part Number: 5143585-01
    Pinion
    Part Number: 5143585-01
      No Longer Available
  • 39
    Bearing – Part Number: 5105673-01
    Bearing
    Part Number: 5105673-01
      No Longer Available
  • 39
    Shoe – Part Number: 5132422-01
    Shoe
    Part Number: 5132422-01
      No Longer Available
  • 40
    Ring – Part Number: 516124101
    Ring
    Part Number: 516124101
      Special Order
    Minimum Quantity of 2 required
    $6.16
  • 40
    Screw – Part Number: 5132158-01
    Screw
    Part Number: 5132158-01
      No Longer Available
  • 41
    Ring – Part Number: 5105508-01
    Ring
    Part Number: 5105508-01
      No Longer Available
  • 41
    Spring – Part Number: 5132424-01
    Spring
    Part Number: 5132424-01
      No Longer Available
  • 42
    Bolt – Part Number: 506614901
    Bolt
    Part Number: 506614901
      Special Order
    $6.16
  • 42
    Washer – Part Number: 5132159-01
    Washer
    Part Number: 5132159-01
      No Longer Available
  • 43
    Washer – Part Number: 5132160-01
    Washer
    Part Number: 5132160-01
      No Longer Available
  • 44
    Rotor – Part Number: 5132428-01
    Rotor
    Part Number: 5132428-01
      No Longer Available
  • 45
    Coil – Part Number: 5133690-01
    Coil
    Part Number: 5133690-01
      No Longer Available
  • 46
    Cap – Part Number: 5143591-01
    Cap
    Part Number: 5143591-01
      No Longer Available
  • 46
    Cord – Part Number: 5132429-01
    Cord
    Part Number: 5132429-01
      No Longer Available
  • 47
    Cap – Part Number: 5143592-01
    Cap
    Part Number: 5143592-01
      No Longer Available
  • 47
    Hub Cap – Part Number: 5132430-01
    Hub Cap
    Part Number: 5132430-01
      No Longer Available
  • 48
    Absorber – Part Number: 5143593-01
    Absorber
    Part Number: 5143593-01
      No Longer Available
  • 49
    Grommet – Part Number: 5142066-01
    Grommet
    Part Number: 5142066-01
      No Longer Available
  • 49
    Clamp – Part Number: 5143594-01
    Clamp
    Part Number: 5143594-01
      No Longer Available
  • 50
    Grommet – Part Number: 5131761-01
    Grommet
    Part Number: 5131761-01
      No Longer Available
  • 50
    Clamp – Part Number: 5143595-01
    Clamp
    Part Number: 5143595-01
      No Longer Available
  • 51
    Hub Cap – Part Number: 5132432-01
    Hub Cap
    Part Number: 5132432-01
      No Longer Available
  • 51
    Bolt – Part Number: 5105149-01
    Bolt
    Part Number: 5105149-01
      No Longer Available
  • 52
    Spring – Part Number: 513243301
    Spring
    Part Number: 513243301
      In Stock
    $6.16
  • 52
    Bolt – Part Number: 5105150-01
    Bolt
    Part Number: 5105150-01
      No Longer Available
  • 53
    Handle – Part Number: 5143596-01
    Handle
    Part Number: 5143596-01
      No Longer Available
  • 53
    Spark Plug – Part Number: 5132163-01
    Spark Plug
    Part Number: 5132163-01
      No Longer Available
  • 54
    Handle – Part Number: 5143596-01
    Handle
    Part Number: 5143596-01
      No Longer Available
  • 54
    Screw – Part Number: 5132451-01
    Screw
    Part Number: 5132451-01
      No Longer Available
  • 55
    Screw – Part Number: 5104692-01
    Screw
    Part Number: 5104692-01
      No Longer Available
  • 55
    Handle-R-Comp – Part Number: 5143599-01
    Handle-R-Comp
    Part Number: 5143599-01
      No Longer Available
  • 56
    Handle-R-Comp – Part Number: 5143599-01
    Handle-R-Comp
    Part Number: 5143599-01
      No Longer Available
  • 56
    Switch – Part Number: 5134579-01
    Switch
    Part Number: 5134579-01
      No Longer Available
  • 57
    Bracket – Part Number: 5132434-01
    Bracket
    Part Number: 5132434-01
      No Longer Available
  • 58
    Clamp – Part Number: 5132435-01
    Clamp
    Part Number: 5132435-01
      No Longer Available
  • 59
    Cover – Part Number: 5143613-01
    Cover
    Part Number: 5143613-01
      No Longer Available
  • 59
    Case – Part Number: 5132439-01
    Case
    Part Number: 5132439-01
      No Longer Available
  • 60
    Stopper – Part Number: 514212901
    Stopper
    Part Number: 514212901
      No Longer Available
  • 60
    Reel – Part Number: 5132440-01
    Reel
    Part Number: 5132440-01
      No Longer Available
  • 61
    Spring – Part Number: 5132441-01
    Spring
    Part Number: 5132441-01
      No Longer Available
  • 61
    Spring – Part Number: 5141786-01
    Spring
    Part Number: 5141786-01
      No Longer Available
  • 62
    Ratchet – Part Number: 5132442-01
    Ratchet
    Part Number: 5132442-01
      No Longer Available
  • 62
    Knob – Part Number: 5141787-01
    Knob
    Part Number: 5141787-01
      No Longer Available
  • 63
    Screw – Part Number: 5104613-01
    Screw
    Part Number: 5104613-01
      No Longer Available
  • 63
    Spring – Part Number: 5132131-01
    Spring
    Part Number: 5132131-01
      No Longer Available
  • 64
    Spring.Return – Part Number: 5132085-01
    Spring.Return
    Part Number: 5132085-01
      No Longer Available
  • 64
    Nut – Part Number: 5141518-01
    Nut
    Part Number: 5141518-01
      No Longer Available
  • 65
    Retainer – Part Number: 5132445-01
    Retainer
    Part Number: 5132445-01
      No Longer Available
  • 66
    Band – Part Number: 514364001
    Band
    Part Number: 514364001
      No Longer Available
  • 66
    Screw – Part Number: 5132082-01
    Screw
    Part Number: 5132082-01
      No Longer Available
  • 67
    Rope – Part Number: 5132443-01
    Rope
    Part Number: 5132443-01
      No Longer Available
  • 68
    Knob – Part Number: 5132444-01
    Knob
    Part Number: 5132444-01
      No Longer Available
  • 69
    Hub Cap – Part Number: 5132087-01
    Hub Cap
    Part Number: 5132087-01
      No Longer Available
  • 70
    Pulley – Part Number: 5132446-01
    Pulley
    Part Number: 5132446-01
      No Longer Available
  • 74
    Carburetor-A – Part Number: 5132598-01
    Carburetor-A
    Part Number: 5132598-01
      No Longer Available
  • 75
    Hub Cap – Part Number: 5133696-01
    Hub Cap
    Part Number: 5133696-01
      No Longer Available
  • 76
    Diaphragm Assy – Part Number: 5132611-01
    Diaphragm Assy
    Part Number: 5132611-01
      No Longer Available
  • 77
    Packing – Part Number: 5131810-01
    Packing
    Part Number: 5131810-01
      No Longer Available
  • 78
    Valve.Throttle – Part Number: 5132601-01
    Valve.Throttle
    Part Number: 5132601-01
      No Longer Available
  • 79
    Receive – Part Number: 5132319-01
    Receive
    Part Number: 5132319-01
      No Longer Available
  • 80
    Screw.Slow – Part Number: 5131684-01
    Screw.Slow
    Part Number: 5131684-01
      No Longer Available
  • 81
    Spring – Part Number: 513370401
    Spring
    Part Number: 513370401
      No Longer Available
  • 82
    Screw – Part Number: 5132603-01
    Screw
    Part Number: 5132603-01
      No Longer Available
  • 83
    Spring.Adjust – Part Number: 5132605-01
    Spring.Adjust
    Part Number: 5132605-01
      No Longer Available
  • 84
    Cover – Part Number: 5132612-01
    Cover
    Part Number: 5132612-01
      No Longer Available
  • 85
    Holder – Part Number: 5132607-01
    Holder
    Part Number: 5132607-01
      No Longer Available
  • 86
    Jet – Part Number: 5132606-01
    Jet
    Part Number: 5132606-01
      No Longer Available
  • 87
    Packing – Part Number: 5132618-01
    Packing
    Part Number: 5132618-01
      No Longer Available
  • 88
    Pump – Part Number: 5132617-01
    Pump
    Part Number: 5132617-01
      No Longer Available
  • 89
    Clip – Part Number: 5131805-01
    Clip
    Part Number: 5131805-01
      No Longer Available
  • 90
    Needle – Part Number: 5132602-01
    Needle
    Part Number: 5132602-01
      No Longer Available
  • 91
    Spring.Throttle – Part Number: 513231801
    Spring.Throttle
    Part Number: 513231801
      No Longer Available
  • 92
    Screw – Part Number: 5104635-01
    Screw
    Part Number: 5104635-01
      No Longer Available
  • 93
    Cover – Part Number: 5132619-01
    Cover
    Part Number: 5132619-01
      No Longer Available
  • 94
    Hub Cap – Part Number: 5143064-01
    Hub Cap
    Part Number: 5143064-01
      No Longer Available
  • 95
    Valve – Part Number: 5131844-01
    Valve
    Part Number: 5131844-01
      No Longer Available
  • 96
    Screw – Part Number: 5104634-01
    Screw
    Part Number: 5104634-01
      No Longer Available
  • 97
    Lever – Part Number: 5132613-01
    Lever
    Part Number: 5132613-01
      No Longer Available
  • 98
    Spring.Tickler – Part Number: 5132614-01
    Spring.Tickler
    Part Number: 5132614-01
      No Longer Available
  • 99
    Screw – Part Number: 5104608-01
    Screw
    Part Number: 5104608-01
      No Longer Available
  • 100
    Collar – Part Number: 5132615-01
    Collar
    Part Number: 5132615-01
      No Longer Available
  • 103
    Screw – Part Number: 5104603-01
    Screw
    Part Number: 5104603-01
      No Longer Available
  • 104
    Pen – Part Number: 5131776-01
    Pen
    Part Number: 5131776-01
      No Longer Available
  • 105
    Valve.Needle – Part Number: 5131773-01
    Valve.Needle
    Part Number: 5131773-01
      No Longer Available
  • 106
    Spring.Needle – Part Number: 5132608-01
    Spring.Needle
    Part Number: 5132608-01
      No Longer Available
  • 107
    Lever – Part Number: 5132609-01
    Lever
    Part Number: 5132609-01
      No Longer Available
  • 108
    Plate – Part Number: 5132616-01
    Plate
    Part Number: 5132616-01
      No Longer Available
  • 109
    Pipe – Part Number: 5132624-01
    Pipe
    Part Number: 5132624-01
      No Longer Available
  • 112
    Cover – Part Number: 5132474-01
    Cover
    Part Number: 5132474-01
      No Longer Available
  • 113
    Label – Part Number: 513185301
    Label
    Part Number: 513185301
      No Longer Available
  • 114
    Screw – Part Number: 5104686-01
    Screw
    Part Number: 5104686-01
      No Longer Available
  • 118
    Valve – Part Number: 5133491-01
    Valve
    Part Number: 5133491-01
      No Longer Available
  • 120
    Filter – Part Number: 5141765-01
    Filter
    Part Number: 5141765-01
      No Longer Available
  • 121
    Pipe – Part Number: 5132623-01
    Pipe
    Part Number: 5132623-01
      No Longer Available
  • 123
    Clip – Part Number: 506707001
    Clip
    Part Number: 506707001
    ★★★★★
    ★★★★★
    (1)
      On Order
    $6.16
  • 124
    Clip – Part Number: 5131700-01
    Clip
    Part Number: 5131700-01
      No Longer Available
  • 128
    Collar – Part Number: 5132491-01
    Collar
    Part Number: 5132491-01
      No Longer Available
  • 129
    Collar – Part Number: 5132492-01
    Collar
    Part Number: 5132492-01
      No Longer Available
  • 130
    Cushion – Part Number: 5132493-01
    Cushion
    Part Number: 5132493-01
      No Longer Available
  • 131
    Screw – Part Number: 513350001
    Screw
    Part Number: 513350001
      No Longer Available
  • 132
    ARRESTER – Part Number: 513262801
    ARRESTER
    Part Number: 513262801
      Special Order
    $20.10
  • 204
    Hanger – Part Number: 5143630-01
    Hanger
    Part Number: 5143630-01
      No Longer Available
  • 207
    Cushion – Part Number: 5141266-01
    Cushion
    Part Number: 5141266-01
      No Longer Available
  • 210
    BLADE – Part Number: 515514501
    BLADE
    Part Number: 515514501
      Special Order
    $6.21
  • 211
    Screw – Part Number: 510478301
    Screw
    Part Number: 510478301
      No Longer Available
  • 212
    Nut – Part Number: 521000601
    Nut
    Part Number: 521000601
      On Order
    $6.16
  • 213
    Clamp – Part Number: 514363401
    Clamp
    Part Number: 514363401
      No Longer Available
  • 214
    Bolt – Part Number: 514363501
    Bolt
    Part Number: 514363501
      Special Order
    $6.16
  • 215
    Washer – Part Number: 510488001
    Washer
    Part Number: 510488001
      Special Order
    $6.16
  • 301
    Bag – Part Number: 5131669-01
    Bag
    Part Number: 5131669-01
      No Longer Available
  • 302
    Driver – Part Number: 506689501
    Driver
    Part Number: 506689501
      Special Order
    $7.73
  • 303
    Socket.17x19 – Part Number: 514125901
    Socket.17x19
    Part Number: 514125901
      No Longer Available
  • 304
    Wrench – Part Number: 5106298-01
    Wrench
    Part Number: 5106298-01
      No Longer Available
  • 305
    Wrench – Part Number: 5106299-01
    Wrench
    Part Number: 5106299-01
      No Longer Available
  • 306
    Bar – Part Number: 5143636-01
    Bar
    Part Number: 5143636-01
      No Longer Available
  • 307
    Spanner – Part Number: 506615001
    Spanner
    Part Number: 506615001
      Special Order
    $7.73
  • 502
    Gasket Kit – Part Number: 5132594-01
    Gasket Kit
    Part Number: 5132594-01
      No Longer Available
  • 504
    Ring – Part Number: 5143496-01
    Ring
    Part Number: 5143496-01
      No Longer Available
  • 505
    Blade – Part Number: 5141251-01
    Blade
    Part Number: 5141251-01
      No Longer Available
  • 507
    Washer – Part Number: 510488101
    Washer
    Part Number: 510488101
      Special Order
    $6.16
  • 508
    Bolt – Part Number: 510447501
    Bolt
    Part Number: 510447501
      No Longer Available
  • 509
    Nut – Part Number: 510486101
    Nut
    Part Number: 510486101
      Special Order
    $6.16
  • 510
    Washer – Part Number: 510488001
    Washer
    Part Number: 510488001
      Special Order
    $6.16
  • 511
    Cover – Part Number: 5143712-01
    Cover
    Part Number: 5143712-01
      No Longer Available
  • 512
    Plug – Part Number: 5143500-01
    Plug
    Part Number: 5143500-01
      No Longer Available
  • 513
    Plug – Part Number: 5143501-01
    Plug
    Part Number: 5143501-01
      No Longer Available
  • 514
    Clamp – Part Number: 5143499-01
    Clamp
    Part Number: 5143499-01
      No Longer Available
  • 515
    Plate – Part Number: 5141626-01
    Plate
    Part Number: 5141626-01
      No Longer Available
  • 516
    Bolt – Part Number: 5105145-01
    Bolt
    Part Number: 5105145-01
      No Longer Available
  • 517
    Nut – Part Number: 5104860-01
    Nut
    Part Number: 5104860-01
      No Longer Available
  • 518
    Stabilizer – Part Number: 5143506-01
    Stabilizer
    Part Number: 5143506-01
      No Longer Available
  • 519
    Holder – Part Number: 5143507-01
    Holder
    Part Number: 5143507-01
      No Longer Available
  • 520
    Bearing – Part Number: 5105694-01
    Bearing
    Part Number: 5105694-01
      No Longer Available
  • 521
    Shaft – Part Number: 5143714-01
    Shaft
    Part Number: 5143714-01
      No Longer Available
  • 522
    Spacer – Part Number: 5143716-01
    Spacer
    Part Number: 5143716-01
      No Longer Available
  • 523
    Cover – Part Number: 5143715-01
    Cover
    Part Number: 5143715-01
      No Longer Available
  • 524
    Bolt – Part Number: 5104455-01
    Bolt
    Part Number: 5104455-01
      No Longer Available
  • 525
    Washer – Part Number: 510488001
    Washer
    Part Number: 510488001
      Special Order
    $6.16
  • 526
    Spanner – Part Number: 5143509-01
    Spanner
    Part Number: 5143509-01
      No Longer Available
  • 527
    Wrench – Part Number: 5143512-01
    Wrench
    Part Number: 5143512-01
      No Longer Available
  • 528B
    Holder – Part Number: 5141210-01
    Holder
    Part Number: 5141210-01
      No Longer Available
  • 531
    Bolt – Part Number: 5143552-01
    Bolt
    Part Number: 5143552-01
      No Longer Available
  • 532
    Nut – Part Number: 510486101
    Nut
    Part Number: 510486101
      Special Order
    $6.16
  • 533
    Washer – Part Number: 510488001
    Washer
    Part Number: 510488001
      Special Order
    $6.16
  • 534
    Clamp – Part Number: 5141257-01
    Clamp
    Part Number: 5141257-01
      No Longer Available
  • 535
    Spacer – Part Number: 5141258-01
    Spacer
    Part Number: 5141258-01
      No Longer Available
  • 536
    Bolt – Part Number: 5104472-01
    Bolt
    Part Number: 5104472-01
      No Longer Available
  • 537
    Nut – Part Number: 5104860-01
    Nut
    Part Number: 5104860-01
      No Longer Available
  • 538
    Washer – Part Number: 5105340-01
    Washer
    Part Number: 5105340-01
      No Longer Available
  • 539
    Screw – Part Number: 5104615-01
    Screw
    Part Number: 5104615-01
      No Longer Available
  • 800
    Cover – Part Number: 5143711-01
    Cover
    Part Number: 5143711-01
      No Longer Available
  • 800
    Coil – Part Number: 5133690-01
    Coil
    Part Number: 5133690-01
      No Longer Available
  • 800
    Cleaner – Part Number: 5132629-01
    Cleaner
    Part Number: 5132629-01
      No Longer Available
  • 800
    Bracket – Part Number: 5143589-01
    Bracket
    Part Number: 5143589-01
      No Longer Available
  • 800
    Handle – Part Number: 5143596-01
    Handle
    Part Number: 5143596-01
      No Longer Available
  • 800
    Cutter Assy – Part Number: 5143491-01
    Cutter Assy
    Part Number: 5143491-01
      No Longer Available
  • 800
    Vezetã–lemez 14" 3/8 1.3 Or – Part Number: 1400740-00
    Vezetã–lemez 14" 3/8 1.3 Or
    Part Number: 1400740-00
      No Longer Available
  • 800
    Puller-Comp – Part Number: 5143641-01
    Puller-Comp
    Part Number: 5143641-01
      No Longer Available
  • 800
    Valve Comp – Part Number: 5133490-01
    Valve Comp
    Part Number: 5133490-01
      No Longer Available
  • 800
    Recoil-A – Part Number: 5132438-01
    Recoil-A
    Part Number: 5132438-01
      No Longer Available
  • 800
    Muffler-A – Part Number: 5132626-01
    Muffler-A
    Part Number: 5132626-01
      No Longer Available
  • 800
    Handle-R-Comp – Part Number: 5143599-01
    Handle-R-Comp
    Part Number: 5143599-01
      No Longer Available
  • 800
    Mower Unit – Part Number: 5143710-01
    Mower Unit
    Part Number: 5143710-01
      No Longer Available
  • 800
    Stabilizer-Assy – Part Number: 5143713-01
    Stabilizer-Assy
    Part Number: 5143713-01
      No Longer Available
  • 800
    Carburetor-A – Part Number: 5132598-01
    Carburetor-A
    Part Number: 5132598-01
      No Longer Available
  • 901
    Block – Part Number: 5143465-01
    Block
    Part Number: 5143465-01
      No Longer Available
  • 902
    Shaft – Part Number: 514155501
    Shaft
    Part Number: 514155501
      No Longer Available
  • 902
    Set Block – Part Number: 5132497-01
    Set Block
    Part Number: 5132497-01
      No Longer Available
  • 903
    Rod – Part Number: 5132498-01
    Rod
    Part Number: 5132498-01
      No Longer Available
  • 903
    Weight – Part Number: 514155601
    Weight
    Part Number: 514155601
      No Longer Available
  • 904
    Adapter(C) – Part Number: 5143643-01
    Adapter(C)
    Part Number: 5143643-01
      No Longer Available
Engine
Engine Diagram and Parts List for 000001 AND UP RedMax Brush Cutter
  • 2
    Seal – Part Number: 5141248-01
    Seal
    Part Number: 5141248-01
      No Longer Available
  • 3
    Screw – Part Number: 5104675-01
    Screw
    Part Number: 5104675-01
      No Longer Available
  • 3
    Gasket – Part Number: 5132595-01
    Gasket
    Part Number: 5132595-01
      No Longer Available
  • 4
    Drum – Part Number: 5143560-01
    Drum
    Part Number: 5143560-01
      No Longer Available
  • 4
    Gasket – Part Number: 5132373-01
    Gasket
    Part Number: 5132373-01
      No Longer Available
  • 5
    Insulator – Part Number: 5132597-01
    Insulator
    Part Number: 5132597-01
      No Longer Available
  • 5
    Bearing – Part Number: 5105698-01
    Bearing
    Part Number: 5105698-01
      No Longer Available
  • 6
    Ring.Snap – Part Number: 5105512-01
    Ring.Snap
    Part Number: 5105512-01
      No Longer Available
  • 6
    Bolt – Part Number: 5141770-01
    Bolt
    Part Number: 5141770-01
      No Longer Available
  • 7
    Screw – Part Number: 5104697-01
    Screw
    Part Number: 5104697-01
      No Longer Available
  • 7
    Ring – Part Number: 5105485-01
    Ring
    Part Number: 5105485-01
      No Longer Available
  • 8
    Spacer – Part Number: 5143561-01
    Spacer
    Part Number: 5143561-01
      No Longer Available
  • 8
    Muffler – Part Number: 5132627-01
    Muffler
    Part Number: 5132627-01
      No Longer Available
  • 9
    Hanger – Part Number: 5143562-01
    Hanger
    Part Number: 5143562-01
      No Longer Available
  • 9
    Cover – Part Number: 5132378-01
    Cover
    Part Number: 5132378-01
      No Longer Available
  • 10
    Bolt – Part Number: 5104497-01
    Bolt
    Part Number: 5104497-01
      No Longer Available
  • 10
    Gasket.Muffle – Part Number: 5132371-01
    Gasket.Muffle
    Part Number: 5132371-01
      No Longer Available
  • 11
    Bracket – Part Number: 5143563-01
    Bracket
    Part Number: 5143563-01
      No Longer Available
  • 12
    Spacer – Part Number: 5143565-01
    Spacer
    Part Number: 5143565-01
      No Longer Available
  • 12
    Bolt – Part Number: 5104458-01
    Bolt
    Part Number: 5104458-01
      No Longer Available
  • 13
    Screw – Part Number: 5132380-01
    Screw
    Part Number: 5132380-01
      No Longer Available
  • 13
    Bolt – Part Number: 5104480-01
    Bolt
    Part Number: 5104480-01
      No Longer Available
  • 14
    Nut – Part Number: 5143566-01
    Nut
    Part Number: 5143566-01
      No Longer Available
  • 14
    Crankcase – Part Number: 5132381-01
    Crankcase
    Part Number: 5132381-01
      No Longer Available
  • 15
    Gasket – Part Number: 5132385-01
    Gasket
    Part Number: 5132385-01
      No Longer Available
  • 15
    Washer – Part Number: 5105381-01
    Washer
    Part Number: 5105381-01
      No Longer Available
  • 16
    Bearing – Part Number: 510571301
    Bearing
    Part Number: 510571301
      No Longer Available
  • 16
    Bolt – Part Number: 5104479-01
    Bolt
    Part Number: 5104479-01
      No Longer Available
  • 17
    Seal – Part Number: 5133125-01
    Seal
    Part Number: 5133125-01
      No Longer Available
  • 17
    Washer – Part Number: 5105381-01
    Washer
    Part Number: 5105381-01
      No Longer Available
  • 18
    Ring.Snap – Part Number: 5105512-01
    Ring.Snap
    Part Number: 5105512-01
      No Longer Available
  • 18
    Bolt – Part Number: 5143567-01
    Bolt
    Part Number: 5143567-01
      No Longer Available
  • 19
    Seal – Part Number: 5132387-01
    Seal
    Part Number: 5132387-01
      No Longer Available
  • 20
    Screw – Part Number: 5104621-01
    Screw
    Part Number: 5104621-01
      No Longer Available
  • 20
    Bushing – Part Number: 5141201-01
    Bushing
    Part Number: 5141201-01
      No Longer Available
  • 21
    Ring – Part Number: 5141608-01
    Ring
    Part Number: 5141608-01
      No Longer Available
  • 22
    Shaft – Part Number: 5143569-01
    Shaft
    Part Number: 5143569-01
      No Longer Available
  • 22
    Screw – Part Number: 5104808-01
    Screw
    Part Number: 5104808-01
      No Longer Available
  • 23
    Grommet – Part Number: 5131761-01
    Grommet
    Part Number: 5131761-01
      No Longer Available
  • 24
    Cover – Part Number: 5132393-01
    Cover
    Part Number: 5132393-01
      No Longer Available
  • 25
    Bearing – Part Number: 505170201
    Bearing
    Part Number: 505170201
      Special Order
    $12.35
  • 26
    Label.Cover – Part Number: 5133744-01
    Label.Cover
    Part Number: 5133744-01
      No Longer Available
  • 26
    Bearing – Part Number: 5105652-01
    Bearing
    Part Number: 5105652-01
      No Longer Available
  • 27
    Piston – Part Number: 5132396-01
    Piston
    Part Number: 5132396-01
      No Longer Available
  • 27
    Seal – Part Number: 5141203-01
    Seal
    Part Number: 5141203-01
      No Longer Available
  • 28
    Ring.Snap – Part Number: 5105512-01
    Ring.Snap
    Part Number: 5105512-01
      No Longer Available
  • 28
    Piston Ring – Part Number: 5132397-01
    Piston Ring
    Part Number: 5132397-01
      No Longer Available
  • 29
    Pen – Part Number: 5132398-01
    Pen
    Part Number: 5132398-01
      No Longer Available
  • 29
    Bolt – Part Number: 5105142-01
    Bolt
    Part Number: 5105142-01
      No Longer Available
  • 30
    Ring – Part Number: 5142386-01
    Ring
    Part Number: 5142386-01
      No Longer Available
  • 30
    Fitting – Part Number: 505171501
    Fitting
    Part Number: 505171501
      In Stock
    $7.73
  • 31
    Washer – Part Number: 5105371-01
    Washer
    Part Number: 5105371-01
      No Longer Available
  • 31
    Bearing – Part Number: 5132399-01
    Bearing
    Part Number: 5132399-01
      No Longer Available
  • 32
    Washer Thrust – Part Number: 5132400-01
    Washer Thrust
    Part Number: 5132400-01
      No Longer Available
  • 32
    Shaft – Part Number: 5143576-01
    Shaft
    Part Number: 5143576-01
      No Longer Available
  • 33
    Gear – Part Number: 5143578-01
    Gear
    Part Number: 5143578-01
      No Longer Available
  • 34
    Collar – Part Number: 5143579-01
    Collar
    Part Number: 5143579-01
      No Longer Available
  • 34
    Shim – Part Number: 513226501
    Shim
    Part Number: 513226501
      No Longer Available
  • 35
    Key – Part Number: 506689401
    Key
    Part Number: 506689401
      In Stock
    $6.16
  • 35
    Washer – Part Number: 5105389-01
    Washer
    Part Number: 5105389-01
      No Longer Available
  • 36
    Washer – Part Number: 510488201
    Washer
    Part Number: 510488201
      No Longer Available
  • 36
    Washer – Part Number: 5143702-01
    Washer
    Part Number: 5143702-01
      No Longer Available
  • 37
    Washer – Part Number: 5105374-01
    Washer
    Part Number: 5105374-01
      No Longer Available
  • 38
    Nut – Part Number: 5131755-01
    Nut
    Part Number: 5131755-01
      No Longer Available
  • 38
    Pinion – Part Number: 5143585-01
    Pinion
    Part Number: 5143585-01
      No Longer Available
  • 39
    Shoe – Part Number: 5132422-01
    Shoe
    Part Number: 5132422-01
      No Longer Available
  • 39
    Bearing – Part Number: 5105673-01
    Bearing
    Part Number: 5105673-01
      No Longer Available
  • 40
    Screw – Part Number: 5132158-01
    Screw
    Part Number: 5132158-01
      No Longer Available
  • 40
    Ring – Part Number: 516124101
    Ring
    Part Number: 516124101
      Special Order
    Minimum Quantity of 2 required
    $6.16
  • 41
    Spring – Part Number: 5132424-01
    Spring
    Part Number: 5132424-01
      No Longer Available
  • 41
    Ring – Part Number: 5105508-01
    Ring
    Part Number: 5105508-01
      No Longer Available
  • 42
    Washer – Part Number: 5132159-01
    Washer
    Part Number: 5132159-01
      No Longer Available
  • 42
    Bolt – Part Number: 506614901
    Bolt
    Part Number: 506614901
      Special Order
    $6.16
  • 43
    Washer – Part Number: 5132160-01
    Washer
    Part Number: 5132160-01
      No Longer Available
  • 44
    Rotor – Part Number: 5132428-01
    Rotor
    Part Number: 5132428-01
      No Longer Available
  • 45
    Coil – Part Number: 5133690-01
    Coil
    Part Number: 5133690-01
      No Longer Available
  • 46
    Cap – Part Number: 5143591-01
    Cap
    Part Number: 5143591-01
      No Longer Available
  • 46
    Cord – Part Number: 5132429-01
    Cord
    Part Number: 5132429-01
      No Longer Available
  • 47
    Cap – Part Number: 5143592-01
    Cap
    Part Number: 5143592-01
      No Longer Available
  • 47
    Hub Cap – Part Number: 5132430-01
    Hub Cap
    Part Number: 5132430-01
      No Longer Available
  • 48
    Absorber – Part Number: 5143593-01
    Absorber
    Part Number: 5143593-01
      No Longer Available
  • 49
    Clamp – Part Number: 5143594-01
    Clamp
    Part Number: 5143594-01
      No Longer Available
  • 49
    Grommet – Part Number: 5142066-01
    Grommet
    Part Number: 5142066-01
      No Longer Available
  • 50
    Clamp – Part Number: 5143595-01
    Clamp
    Part Number: 5143595-01
      No Longer Available
  • 50
    Grommet – Part Number: 5131761-01
    Grommet
    Part Number: 5131761-01
      No Longer Available
  • 51
    Bolt – Part Number: 5105149-01
    Bolt
    Part Number: 5105149-01
      No Longer Available
  • 51
    Hub Cap – Part Number: 5132432-01
    Hub Cap
    Part Number: 5132432-01
      No Longer Available
  • 52
    Bolt – Part Number: 5105150-01
    Bolt
    Part Number: 5105150-01
      No Longer Available
  • 52
    Spring – Part Number: 513243301
    Spring
    Part Number: 513243301
      In Stock
    $6.16
  • 53
    Handle – Part Number: 5143596-01
    Handle
    Part Number: 5143596-01
      No Longer Available
  • 53
    Spark Plug – Part Number: 5132163-01
    Spark Plug
    Part Number: 5132163-01
      No Longer Available
  • 54
    Handle – Part Number: 5143596-01
    Handle
    Part Number: 5143596-01
      No Longer Available
  • 54
    Screw – Part Number: 5132451-01
    Screw
    Part Number: 5132451-01
      No Longer Available
  • 55
    Handle-R-Comp – Part Number: 5143599-01
    Handle-R-Comp
    Part Number: 5143599-01
      No Longer Available
  • 55
    Screw – Part Number: 5104692-01
    Screw
    Part Number: 5104692-01
      No Longer Available
  • 56
    Handle-R-Comp – Part Number: 5143599-01
    Handle-R-Comp
    Part Number: 5143599-01
      No Longer Available
  • 56
    Switch – Part Number: 5134579-01
    Switch
    Part Number: 5134579-01
      No Longer Available
  • 57
    Bracket – Part Number: 5132434-01
    Bracket
    Part Number: 5132434-01
      No Longer Available
  • 58
    Clamp – Part Number: 5132435-01
    Clamp
    Part Number: 5132435-01
      No Longer Available
  • 59
    Cover – Part Number: 5143613-01
    Cover
    Part Number: 5143613-01
      No Longer Available
  • 59
    Case – Part Number: 5132439-01
    Case
    Part Number: 5132439-01
      No Longer Available
  • 60
    Reel – Part Number: 5132440-01
    Reel
    Part Number: 5132440-01
      No Longer Available
  • 60
    Stopper – Part Number: 514212901
    Stopper
    Part Number: 514212901
      No Longer Available
  • 61
    Spring – Part Number: 5132441-01
    Spring
    Part Number: 5132441-01
      No Longer Available
  • 61
    Spring – Part Number: 5141786-01
    Spring
    Part Number: 5141786-01
      No Longer Available
  • 62
    Knob – Part Number: 5141787-01
    Knob
    Part Number: 5141787-01
      No Longer Available
  • 62
    Ratchet – Part Number: 5132442-01
    Ratchet
    Part Number: 5132442-01
      No Longer Available
  • 63
    Spring – Part Number: 5132131-01
    Spring
    Part Number: 5132131-01
      No Longer Available
  • 63
    Screw – Part Number: 5104613-01
    Screw
    Part Number: 5104613-01
      No Longer Available
  • 64
    Spring.Return – Part Number: 5132085-01
    Spring.Return
    Part Number: 5132085-01
      No Longer Available
  • 64
    Nut – Part Number: 5141518-01
    Nut
    Part Number: 5141518-01
      No Longer Available
  • 65
    Retainer – Part Number: 5132445-01
    Retainer
    Part Number: 5132445-01
      No Longer Available
  • 66
    Screw – Part Number: 5132082-01
    Screw
    Part Number: 5132082-01
      No Longer Available
  • 66
    Band – Part Number: 514364001
    Band
    Part Number: 514364001
      No Longer Available
  • 67
    Rope – Part Number: 5132443-01
    Rope
    Part Number: 5132443-01
      No Longer Available
  • 68
    Knob – Part Number: 5132444-01
    Knob
    Part Number: 5132444-01
      No Longer Available
  • 69
    Hub Cap – Part Number: 5132087-01
    Hub Cap
    Part Number: 5132087-01
      No Longer Available
  • 70
    Pulley – Part Number: 5132446-01
    Pulley
    Part Number: 5132446-01
      No Longer Available
  • 74
    Carburetor-A – Part Number: 5132598-01
    Carburetor-A
    Part Number: 5132598-01
      No Longer Available
  • 75
    Hub Cap – Part Number: 5133696-01
    Hub Cap
    Part Number: 5133696-01
      No Longer Available
  • 76
    Diaphragm Assy – Part Number: 5132611-01
    Diaphragm Assy
    Part Number: 5132611-01
      No Longer Available
  • 77
    Packing – Part Number: 5131810-01
    Packing
    Part Number: 5131810-01
      No Longer Available
  • 78
    Valve.Throttle – Part Number: 5132601-01
    Valve.Throttle
    Part Number: 5132601-01
      No Longer Available
  • 79
    Receive – Part Number: 5132319-01
    Receive
    Part Number: 5132319-01
      No Longer Available
  • 80
    Screw.Slow – Part Number: 5131684-01
    Screw.Slow
    Part Number: 5131684-01
      No Longer Available
  • 81
    Spring – Part Number: 513370401
    Spring
    Part Number: 513370401
      No Longer Available
  • 82
    Screw – Part Number: 5132603-01
    Screw
    Part Number: 5132603-01
      No Longer Available
  • 83
    Spring.Adjust – Part Number: 5132605-01
    Spring.Adjust
    Part Number: 5132605-01
      No Longer Available
  • 84
    Cover – Part Number: 5132612-01
    Cover
    Part Number: 5132612-01
      No Longer Available
  • 85
    Holder – Part Number: 5132607-01
    Holder
    Part Number: 5132607-01
      No Longer Available
  • 86
    Jet – Part Number: 5132606-01
    Jet
    Part Number: 5132606-01
      No Longer Available
  • 87
    Packing – Part Number: 5132618-01
    Packing
    Part Number: 5132618-01
      No Longer Available
  • 88
    Pump – Part Number: 5132617-01
    Pump
    Part Number: 5132617-01
      No Longer Available
  • 89
    Clip – Part Number: 5131805-01
    Clip
    Part Number: 5131805-01
      No Longer Available
  • 90
    Needle – Part Number: 5132602-01
    Needle
    Part Number: 5132602-01
      No Longer Available
  • 91
    Spring.Throttle – Part Number: 513231801
    Spring.Throttle
    Part Number: 513231801
      No Longer Available
  • 92
    Screw – Part Number: 5104635-01
    Screw
    Part Number: 5104635-01
      No Longer Available
  • 93
    Cover – Part Number: 5132619-01
    Cover
    Part Number: 5132619-01
      No Longer Available
  • 94
    Hub Cap – Part Number: 5143064-01
    Hub Cap
    Part Number: 5143064-01
      No Longer Available
  • 95
    Valve – Part Number: 5131844-01
    Valve
    Part Number: 5131844-01
      No Longer Available
  • 96
    Screw – Part Number: 5104634-01
    Screw
    Part Number: 5104634-01
      No Longer Available
  • 97
    Lever – Part Number: 5132613-01
    Lever
    Part Number: 5132613-01
      No Longer Available
  • 98
    Spring.Tickler – Part Number: 5132614-01
    Spring.Tickler
    Part Number: 5132614-01
      No Longer Available
  • 99
    Screw – Part Number: 5104608-01
    Screw
    Part Number: 5104608-01
      No Longer Available
  • 100
    Collar – Part Number: 5132615-01
    Collar
    Part Number: 5132615-01
      No Longer Available
  • 103
    Screw – Part Number: 5104603-01
    Screw
    Part Number: 5104603-01
      No Longer Available
  • 104
    Pen – Part Number: 5131776-01
    Pen
    Part Number: 5131776-01
      No Longer Available
  • 105
    Valve.Needle – Part Number: 5131773-01
    Valve.Needle
    Part Number: 5131773-01
      No Longer Available
  • 106
    Spring.Needle – Part Number: 5132608-01
    Spring.Needle
    Part Number: 5132608-01
      No Longer Available
  • 107
    Lever – Part Number: 5132609-01
    Lever
    Part Number: 5132609-01
      No Longer Available
  • 108
    Plate – Part Number: 5132616-01
    Plate
    Part Number: 5132616-01
      No Longer Available
  • 109
    Pipe – Part Number: 5132624-01
    Pipe
    Part Number: 5132624-01
      No Longer Available
  • 112
    Cover – Part Number: 5132474-01
    Cover
    Part Number: 5132474-01
      No Longer Available
  • 113
    Label – Part Number: 513185301
    Label
    Part Number: 513185301
      No Longer Available
  • 114
    Screw – Part Number: 5104686-01
    Screw
    Part Number: 5104686-01
      No Longer Available
  • 118
    Valve – Part Number: 5133491-01
    Valve
    Part Number: 5133491-01
      No Longer Available
  • 120
    Filter – Part Number: 5141765-01
    Filter
    Part Number: 5141765-01
      No Longer Available
  • 121
    Pipe – Part Number: 5132623-01
    Pipe
    Part Number: 5132623-01
      No Longer Available
  • 123
    Clip – Part Number: 506707001
    Clip
    Part Number: 506707001
    ★★★★★
    ★★★★★
    (1)
      On Order
    $6.16
  • 124
    Clip – Part Number: 5131700-01
    Clip
    Part Number: 5131700-01
      No Longer Available
  • 128
    Collar – Part Number: 5132491-01
    Collar
    Part Number: 5132491-01
      No Longer Available
  • 129
    Collar – Part Number: 5132492-01
    Collar
    Part Number: 5132492-01
      No Longer Available
  • 130
    Cushion – Part Number: 5132493-01
    Cushion
    Part Number: 5132493-01
      No Longer Available
  • 131
    Screw – Part Number: 513350001
    Screw
    Part Number: 513350001
      No Longer Available
  • 132
    ARRESTER – Part Number: 513262801
    ARRESTER
    Part Number: 513262801
      Special Order
    $20.10
  • 204
    Hanger – Part Number: 5143630-01
    Hanger
    Part Number: 5143630-01
      No Longer Available
  • 207
    Cushion – Part Number: 5141266-01
    Cushion
    Part Number: 5141266-01
      No Longer Available
  • 210
    BLADE – Part Number: 515514501
    BLADE
    Part Number: 515514501
      Special Order
    $6.21
  • 211
    Screw – Part Number: 510478301
    Screw
    Part Number: 510478301
      No Longer Available
  • 212
    Nut – Part Number: 521000601
    Nut
    Part Number: 521000601
      On Order
    $6.16
  • 213
    Clamp – Part Number: 514363401
    Clamp
    Part Number: 514363401
      No Longer Available
  • 214
    Bolt – Part Number: 514363501
    Bolt
    Part Number: 514363501
      Special Order
    $6.16
  • 215
    Washer – Part Number: 510488001
    Washer
    Part Number: 510488001
      Special Order
    $6.16
  • 301
    Bag – Part Number: 5131669-01
    Bag
    Part Number: 5131669-01
      No Longer Available
  • 302
    Driver – Part Number: 506689501
    Driver
    Part Number: 506689501
      Special Order
    $7.73
  • 303
    Socket.17x19 – Part Number: 514125901
    Socket.17x19
    Part Number: 514125901
      No Longer Available
  • 304
    Wrench – Part Number: 5106298-01
    Wrench
    Part Number: 5106298-01
      No Longer Available
  • 305
    Wrench – Part Number: 5106299-01
    Wrench
    Part Number: 5106299-01
      No Longer Available
  • 306
    Bar – Part Number: 5143636-01
    Bar
    Part Number: 5143636-01
      No Longer Available
  • 307
    Spanner – Part Number: 506615001
    Spanner
    Part Number: 506615001
      Special Order
    $7.73
  • 502
    Gasket Kit – Part Number: 5132594-01
    Gasket Kit
    Part Number: 5132594-01
      No Longer Available
  • 504
    Ring – Part Number: 5143496-01
    Ring
    Part Number: 5143496-01
      No Longer Available
  • 505
    Blade – Part Number: 5141251-01
    Blade
    Part Number: 5141251-01
      No Longer Available
  • 507
    Washer – Part Number: 510488101
    Washer
    Part Number: 510488101
      Special Order
    $6.16
  • 508
    Bolt – Part Number: 510447501
    Bolt
    Part Number: 510447501
      No Longer Available
  • 509
    Nut – Part Number: 510486101
    Nut
    Part Number: 510486101
      Special Order
    $6.16
  • 510
    Washer – Part Number: 510488001
    Washer
    Part Number: 510488001
      Special Order
    $6.16
  • 511
    Cover – Part Number: 5143712-01
    Cover
    Part Number: 5143712-01
      No Longer Available
  • 512
    Plug – Part Number: 5143500-01
    Plug
    Part Number: 5143500-01
      No Longer Available
  • 513
    Plug – Part Number: 5143501-01
    Plug
    Part Number: 5143501-01
      No Longer Available
  • 514
    Clamp – Part Number: 5143499-01
    Clamp
    Part Number: 5143499-01
      No Longer Available
  • 515
    Plate – Part Number: 5141626-01
    Plate
    Part Number: 5141626-01
      No Longer Available
  • 516
    Bolt – Part Number: 5105145-01
    Bolt
    Part Number: 5105145-01
      No Longer Available
  • 517
    Nut – Part Number: 5104860-01
    Nut
    Part Number: 5104860-01
      No Longer Available
  • 518
    Stabilizer – Part Number: 5143506-01
    Stabilizer
    Part Number: 5143506-01
      No Longer Available
  • 519
    Holder – Part Number: 5143507-01
    Holder
    Part Number: 5143507-01
      No Longer Available
  • 520
    Bearing – Part Number: 5105694-01
    Bearing
    Part Number: 5105694-01
      No Longer Available
  • 521
    Shaft – Part Number: 5143714-01
    Shaft
    Part Number: 5143714-01
      No Longer Available
  • 522
    Spacer – Part Number: 5143716-01
    Spacer
    Part Number: 5143716-01
      No Longer Available
  • 523
    Cover – Part Number: 5143715-01
    Cover
    Part Number: 5143715-01
      No Longer Available
  • 524
    Bolt – Part Number: 5104455-01
    Bolt
    Part Number: 5104455-01
      No Longer Available
  • 525
    Washer – Part Number: 510488001
    Washer
    Part Number: 510488001
      Special Order
    $6.16
  • 526
    Spanner – Part Number: 5143509-01
    Spanner
    Part Number: 5143509-01
      No Longer Available
  • 527
    Wrench – Part Number: 5143512-01
    Wrench
    Part Number: 5143512-01
      No Longer Available
  • 528B
    Holder – Part Number: 5141210-01
    Holder
    Part Number: 5141210-01
      No Longer Available
  • 531
    Bolt – Part Number: 5143552-01
    Bolt
    Part Number: 5143552-01
      No Longer Available
  • 532
    Nut – Part Number: 510486101
    Nut
    Part Number: 510486101
      Special Order
    $6.16
  • 533
    Washer – Part Number: 510488001
    Washer
    Part Number: 510488001
      Special Order
    $6.16
  • 534
    Clamp – Part Number: 5141257-01
    Clamp
    Part Number: 5141257-01
      No Longer Available
  • 535
    Spacer – Part Number: 5141258-01
    Spacer
    Part Number: 5141258-01
      No Longer Available
  • 536
    Bolt – Part Number: 5104472-01
    Bolt
    Part Number: 5104472-01
      No Longer Available
  • 537
    Nut – Part Number: 5104860-01
    Nut
    Part Number: 5104860-01
      No Longer Available
  • 538
    Washer – Part Number: 5105340-01
    Washer
    Part Number: 5105340-01
      No Longer Available
  • 539
    Screw – Part Number: 5104615-01
    Screw
    Part Number: 5104615-01
      No Longer Available
  • 800
    Vezetã–lemez 14" 3/8 1.3 Or – Part Number: 1400740-00
    Vezetã–lemez 14" 3/8 1.3 Or
    Part Number: 1400740-00
      No Longer Available
  • 800
    Cleaner – Part Number: 5132629-01
    Cleaner
    Part Number: 5132629-01
      No Longer Available
  • 800
    Valve Comp – Part Number: 5133490-01
    Valve Comp
    Part Number: 5133490-01
      No Longer Available
  • 800
    Muffler-A – Part Number: 5132626-01
    Muffler-A
    Part Number: 5132626-01
      No Longer Available
  • 800
    Coil – Part Number: 5133690-01
    Coil
    Part Number: 5133690-01
      No Longer Available
  • 800
    Carburetor-A – Part Number: 5132598-01
    Carburetor-A
    Part Number: 5132598-01
      No Longer Available
  • 800
    Cutter Assy – Part Number: 5143491-01
    Cutter Assy
    Part Number: 5143491-01
      No Longer Available
  • 800
    Bracket – Part Number: 5143589-01
    Bracket
    Part Number: 5143589-01
      No Longer Available
  • 800
    Cover – Part Number: 5143711-01
    Cover
    Part Number: 5143711-01
      No Longer Available
  • 800
    Handle – Part Number: 5143596-01
    Handle
    Part Number: 5143596-01
      No Longer Available
  • 800
    Recoil-A – Part Number: 5132438-01
    Recoil-A
    Part Number: 5132438-01
      No Longer Available
  • 800
    Mower Unit – Part Number: 5143710-01
    Mower Unit
    Part Number: 5143710-01
      No Longer Available
  • 800
    Stabilizer-Assy – Part Number: 5143713-01
    Stabilizer-Assy
    Part Number: 5143713-01
      No Longer Available
  • 800
    Handle-R-Comp – Part Number: 5143599-01
    Handle-R-Comp
    Part Number: 5143599-01
      No Longer Available
  • 800
    Puller-Comp – Part Number: 5143641-01
    Puller-Comp
    Part Number: 5143641-01
      No Longer Available
  • 901
    Block – Part Number: 5143465-01
    Block
    Part Number: 5143465-01
      No Longer Available
  • 902
    Set Block – Part Number: 5132497-01
    Set Block
    Part Number: 5132497-01
      No Longer Available
  • 902
    Shaft – Part Number: 514155501
    Shaft
    Part Number: 514155501
      No Longer Available
  • 903
    Weight – Part Number: 514155601
    Weight
    Part Number: 514155601
      No Longer Available
  • 903
    Rod – Part Number: 5132498-01
    Rod
    Part Number: 5132498-01
      No Longer Available
  • 904
    Adapter(C) – Part Number: 5143643-01
    Adapter(C)
    Part Number: 5143643-01
      No Longer Available

Questions & Answers

?

Our customer Service team is at the ready daily to answer your part and product questions.

Be the first to ask our experts a question about this part!

Ask our Team

We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.

✖

Our customer service team are at the ready daily to answer your part and product questions. We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.
