Dynabrade .7 hp Depressed Center Wheel Grinder-12,000 RPM, 4" Dia. Angle Grinder Replacement Parts For Model 54771

We Sell Only Genuine Dynabrade Parts

Popular Parts for 54771

Bearing – Part Number: 01007 Bearing
In Stock
$32.55
Retaining Ring – Part Number: 95558 Retaining Ring
In Stock
$5.95
Motor Housing – Part Number: 25385 Motor Housing
Special Order
$193.90
SCREW, W/NUT – Part Number: 96120 SCREW, W/NUT
Special Order
$12.10

Search Within Model

Questions & Answers for Dynabrade 54771
Browse all Parts Search by Area

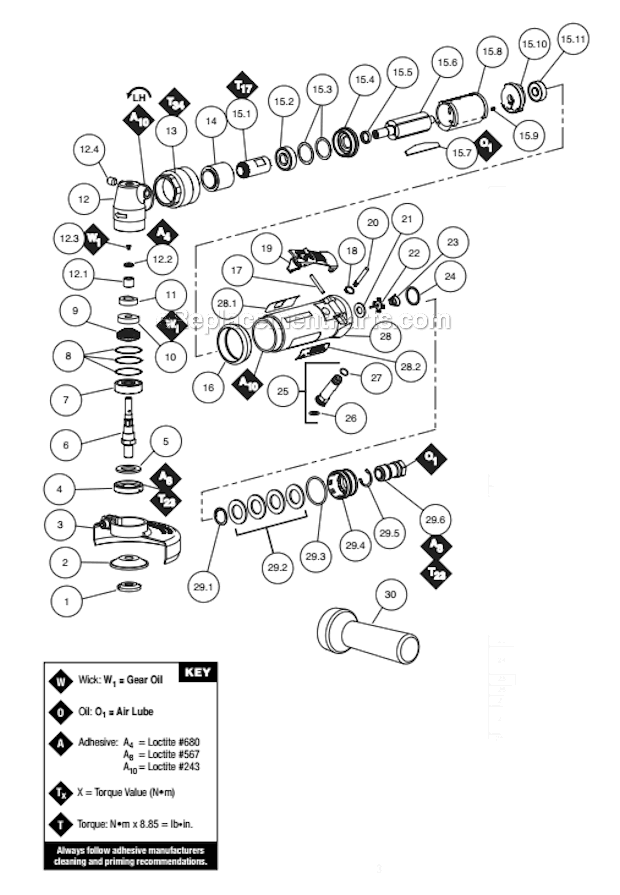

Page A Diagram and Parts List for Dynabrade Angle Grinder
Page A
Previous Showing All Parts Next
Page A
Page A Diagram and Parts List for Dynabrade Angle Grinder
  • A-1
    Flange Nut – Part Number: 50091
    Flange Nut
    Part Number: 50091
      Special Order
    $80.10
  • A-2
    Backing Flange – Part Number: 50093
    Backing Flange
    Part Number: 50093
      Special Order
    $80.10
  • A-3
    4" Guard Assembly – Part Number: 02054
    4" Guard Assembly
    Part Number: 02054
      Special Order
    $177.12
  • A-4
    Lock Ring – Part Number: 02035
    Lock Ring
    Part Number: 02035
      Special Order
    $73.30
  • A-5
    Felt Silencer – Part Number: 01486
    Felt Silencer
    Part Number: 01486
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • A-6
    Spindle – Part Number: 02083
    Spindle
    Part Number: 02083
      Special Order
    $213.91
  • A-7
    Bearing – Part Number: 54520
    Bearing
    Part Number: 54520
      In Stock
    $43.69
  • A-8
    Shim Pack – Part Number: 54557
    Shim Pack
    Part Number: 54557
      Special Order
    $31.86
  • A-9
    Gear - 20,000 RPM – Part Number: 02599
    Gear - 20,000 RPM
    Part Number: 02599
      Special Order
    $287.79
  • A-10
    Bottom Wick - 15 & 20,000 RPM – Part Number: 02044
    Bottom Wick - 15 & 20,000 RPM
    Part Number: 02044
      In Stock
    $32.55
  • A-11
    Top Wick - 15 & 20,000 RPM – Part Number: 02045
    Top Wick - 15 & 20,000 RPM
    Part Number: 02045
      In Stock
    $32.56
  • A-12
    Housing Assembly – Part Number: 02039
    Housing Assembly
    Part Number: 02039
      Special Order
    $315.69
  • A-12.1
    Needle Bearing – Part Number: 02033
    Needle Bearing
    Part Number: 02033
      Special Order
    $34.26
  • A-12.2
    Gear Oil Plate – Part Number: 02041
    Gear Oil Plate
    Part Number: 02041
      Special Order
    $42.30
  • A-12.3
    Gear Oil Fitting – Part Number: 01041
    Gear Oil Fitting
    Part Number: 01041
      Special Order
    $21.86
  • A-12.4
    Set Screw – Part Number: 95177
    Set Screw
    Part Number: 95177
      Special Order
    $5.95
  • A-13
    Lock Ring – Part Number: 53570
    Lock Ring
    Part Number: 53570
      Special Order
    $96.32
  • A-14
    Spacer – Part Number: 53569
    Spacer
    Part Number: 53569
      Special Order
    $53.93
  • A-15
    Motor Assembly – Part Number: 01880
    Motor Assembly
    Part Number: 01880
      Special Order
    $826.27
  • A-15.1
    Rear End Plate – Part Number: 01721
    Rear End Plate
    Part Number: 01721
      Special Order
    $152.63
  • A-15.1
    Pinion – Part Number: 02594
    Pinion
    Part Number: 02594
      Special Order
    $250.66
  • A-15.2
    Bearing – Part Number: 01007
    Bearing
    Part Number: 01007
      In Stock
    $32.55
  • A-15.3
    Shim – Part Number: 01121
    Shim
    Part Number: 01121
      In Stock
    $30.30
  • A-15.4
    Front Bearing Plate – Part Number: 52924
    Front Bearing Plate
    Part Number: 52924
      Special Order
    $89.50
  • A-15.5
    Spacer – Part Number: 01010
    Spacer
    Part Number: 01010
      Special Order
    $37.82
  • A-15.6
    Rotor – Part Number: 02373
    Rotor
    Part Number: 02373
      Special Order
    $191.40
  • A-15.7
    Vanes (4/pkg.) – Part Number: 01185
    Vanes (4/pkg.)
    Part Number: 01185
      In Stock
    $45.25
  • A-15.8
    Cylinder – Part Number: 01028
    Cylinder
    Part Number: 01028
      Special Order
    $246.04
  • A-15.9
    Pin (2 Required) – Part Number: 50767
    Pin (2 Required)
    Part Number: 50767
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • A-15.11
    Bearing – Part Number: 02649
    Bearing
    Part Number: 02649
      In Stock
    $31.85
  • A-16
    Insulator Collar – Part Number: 53175
    Insulator Collar
    Part Number: 53175
      Special Order
    $19.62
  • A-17
    Pin – Part Number: 01017
    Pin
    Part Number: 01017
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • A-18
    Retaining Ring – Part Number: 95558
    Retaining Ring
    Part Number: 95558
      In Stock
    $5.95
  • A-19
    Safety Throttle Lever – Part Number: 01953
    Safety Throttle Lever
    Part Number: 01953
      In Stock
    $59.89
  • A-20
    Valve Stem – Part Number: 01477
    Valve Stem
    Part Number: 01477
      In Stock
    $17.06
  • A-21
    Seal – Part Number: 01464
    Seal
    Part Number: 01464
    ★★★★★
    ★★★★★
    (1)
      In Stock
    $9.45
  • A-22
    Tip Valve – Part Number: 01472
    Tip Valve
    Part Number: 01472
      In Stock
    $17.05
  • A-23
    Spring – Part Number: 01468
    Spring
    Part Number: 01468
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • A-24
    Air Control Ring 25,000 RPM – Part Number: 01568
    Air Control Ring 25,000 RPM
    Part Number: 01568
      Special Order
    $38.32
  • A-25
    Speed Reg. Assy. – Part Number: 01247
    Speed Reg. Assy.
    Part Number: 01247
      In Stock
    $21.28
  • A-26
    O-Ring – Part Number: 02024
    O-Ring
    Part Number: 02024
      No Longer Available
  • A-27
    O-ring – Part Number: 95730
    O-ring
    Part Number: 95730
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • A-28
    Motor Housing – Part Number: 25385
    Motor Housing
    Part Number: 25385
      Special Order
    $193.90
  • A-28.1
    Specification Label – Part Number: 96119
    Specification Label
    Part Number: 96119
      No Longer Available
  • A-28.2
    SCREW, W/NUT – Part Number: 96120
    SCREW, W/NUT
    Part Number: 96120
      Special Order
    $12.10
  • A-29
    Muffler Assembly – Part Number: 94535
    Muffler Assembly
    Part Number: 94535
      Special Order
    $78.72
  • A-29.1
    Retaining Ring – Part Number: 95711
    Retaining Ring
    Part Number: 95711
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • A-29.2
    Felt Silencer – Part Number: 01486
    Felt Silencer
    Part Number: 01486
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • A-29.3
    O-Ring – Part Number: 96065
    O-Ring
    Part Number: 96065
      Special Order
    Minimum Quantity of 2 required
    $5.95
  • A-29.4
    Air Deflector – Part Number: 01446
    Air Deflector
    Part Number: 01446
      Special Order
    $15.10
  • A-29.5
    Retaining Ring – Part Number: 95620
    Retaining Ring
    Part Number: 95620
      Special Order
    $5.95
  • A-29.6
    Inlet Adapter – Part Number: 01578
    Inlet Adapter
    Part Number: 01578
      Special Order
    $63.66
  • A-30
    Vibration Dampening Handle – Part Number: 53134
    Vibration Dampening Handle
    Part Number: 53134
      In Stock
    $72.35
  • A-800
    14mm Open-End Wrench – Part Number: 95262
    14mm Open-End Wrench
    Part Number: 95262
      Special Order
    $11.98
  • A-800
    Pin Spanner Wrench – Part Number: 96148
    Pin Spanner Wrench
    Part Number: 96148
      Special Order
    $42.30
