Bosch Angle Grinder Replacement Parts For Model GWS24-230JVX (3 601 H64 506)

We Sell Only Genuine Bosch Parts

Popular Parts for GWS24-230JVX

CARBON BRUSH SET – Part Number: 1607014171 CARBON BRUSH SET
In Stock
$23.70
BRUSH HOLDER – Part Number: 1604336048 BRUSH HOLDER
In Stock
$12.52
FRICTION BEARING – Part Number: 1600200031 FRICTION BEARING
In Stock
$5.95
SELF-CUTTING SCREW – Part Number: 1603435042 SELF-CUTTING SCREW
Special Order
$5.95
RUBBER RING – Part Number: 1600206030 RUBBER RING
In Stock
Minimum Quantity of 2 required
$5.95
SHEET METAL SCREW – Part Number: 2910211019 SHEET METAL SCREW
In Stock
Minimum Quantity of 2 required
$5.95
FASTENING CLAMP – Part Number: 1601302018 FASTENING CLAMP
In Stock
$5.95
FLANGE – Part Number: 1603345043 FLANGE
In Stock
$23.70

Search Within Model

Questions & Answers for Bosch GWS24-230JVX
Browse all Parts Search by Area
Diagram 1 Diagram and Parts List for 3 601 H64 506 Bosch Angle Grinder
Diagram 1
Diagram 2 Diagram and Parts List for 3 601 H64 506 Bosch Angle Grinder
Diagram 2
Previous Showing All Parts Next
Diagram 1
Diagram 1 Diagram and Parts List for 3 601 H64 506 Bosch Angle Grinder
  • 1
    Motor Housing – Part Number: 1605108286
    Motor Housing
    Part Number: 1605108286
      No Longer Available
  • 6
    GROMMET – Part Number: 1600703036
    GROMMET
    Part Number: 1600703036
      In Stock
    $7.10
  • 7
    FASTENING CLAMP – Part Number: 1601302018
    FASTENING CLAMP
    Part Number: 1601302018
      In Stock
    $5.95
  • 9
    Manufacturer Inch s nameplate – Part Number: 1601118T52
    Manufacturer Inch s nameplate
    Part Number: 1601118T52
      No Longer Available
  • 14
    DEEP-GROOVE BALL BEARING – Part Number: 1600905028
    DEEP-GROOVE BALL BEARING
    Part Number: 1600905028
      In Stock
    $21.20
  • 21/29
    O RING 8X1 MM – Part Number: 1600210045
    O RING 8X1 MM
    Part Number: 1600210045
      Special Order
    Minimum Quantity of 2 required
    $5.95
  • 21/51
    FRICTION BEARING – Part Number: 1600200031
    FRICTION BEARING
    Part Number: 1600200031
      In Stock
    $5.95
  • 23
    Sealing cap – Part Number: 1605500236
    Sealing cap
    Part Number: 1605500236
      No Longer Available
  • 24
    Handle – Part Number: 1605132151
    Handle
    Part Number: 1605132151
      No Longer Available
  • 25
    Grinding Spindle – Part Number: 160312305Z
    Grinding Spindle
    Part Number: 160312305Z
      No Longer Available
  • 26
    Bevel Gear Set – Part Number: 1607000CV1
    Bevel Gear Set
    Part Number: 1607000CV1
      No Longer Available
  • 28
    O-RING – Part Number: 1600210033
    O-RING
    Part Number: 1600210033
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • 30
    Air Distributor – Part Number: 160059107A
    Air Distributor
    Part Number: 160059107A
      No Longer Available
  • 31
    AIR DEFLECTOR – Part Number: 1600591075
    AIR DEFLECTOR
    Part Number: 1600591075
      Special Order
    $5.95
  • 32
    RETAINING RING – Part Number: 1600290019
    RETAINING RING
    Part Number: 1600290019
      Special Order
    $5.95
  • 33
    SEAL – Part Number: 1600290064
    SEAL
    Part Number: 1600290064
      Special Order
    $5.95
  • 34
    SHIM 0,20 MM – Part Number: 1600190037
    SHIM 0,20 MM
    Part Number: 1600190037
      In Stock
    $5.95
  • 34
    SHIM 0,25 MM – Part Number: 1600190038
    SHIM 0,25 MM
    Part Number: 1600190038
      Special Order
    $5.95
  • 34
    SHIM – Part Number: 1600190021
    SHIM
    Part Number: 1600190021
      Special Order
    $7.10
  • 34
    SHIM 0,35 MM – Part Number: 1600190039
    SHIM 0,35 MM
    Part Number: 1600190039
      Special Order
    $5.95
  • 34
    SHIM 0,40 MM – Part Number: 1600190040
    SHIM 0,40 MM
    Part Number: 1600190040
      Special Order
    $5.95
  • 34
    SHIM – Part Number: 1600190022
    SHIM
    Part Number: 1600190022
      Special Order
    $5.95
  • 34
    SHIM – Part Number: 1600190020
    SHIM
    Part Number: 1600190020
      Special Order
    $5.95
  • 35
    FELT WASHER – Part Number: 1600205034
    FELT WASHER
    Part Number: 1600205034
      Special Order
    Minimum Quantity of 2 required
    $5.95
  • 38
    RUBBER RING – Part Number: 1600206020
    RUBBER RING
    Part Number: 1600206020
      Special Order
    Minimum Quantity of 2 required
    $5.95
  • 39
    RUBBER RING – Part Number: 1600206030
    RUBBER RING
    Part Number: 1600206030
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • 45
    HEXAGON NUT – Part Number: 1603300019
    HEXAGON NUT
    Part Number: 1603300019
      In Stock
    $5.95
  • 60
    THREADED-FURROW SCREW – Part Number: 1603435023
    THREADED-FURROW SCREW
    Part Number: 1603435023
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • 61
    SHEET METAL SCREW – Part Number: 2912401038
    SHEET METAL SCREW
    Part Number: 2912401038
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • 62
    Oval-Head Screw – Part Number: 1603415006
    Oval-Head Screw
    Part Number: 1603415006
      No Longer Available
  • 63
    SLOTTED PAN-HEAD SCREW – Part Number: 1603410014
    SLOTTED PAN-HEAD SCREW
    Part Number: 1603410014
      Special Order
    $5.95
  • 64
    SELF-CUTTING SCREW – Part Number: 1603435042
    SELF-CUTTING SCREW
    Part Number: 1603435042
      Special Order
    $5.95
  • 65
    SCREW – Part Number: 2912401020
    SCREW
    Part Number: 2912401020
      Special Order
    $5.95
  • 66
    SHEET METAL SCREW – Part Number: 2910211019
    SHEET METAL SCREW
    Part Number: 2910211019
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • 68
    SEALING PLATE – Part Number: 1601006011
    SEALING PLATE
    Part Number: 1601006011
      Special Order
    $5.95
  • 75
    DAMPING ELEMENT – Part Number: 1600290057
    DAMPING ELEMENT
    Part Number: 1600290057
      Special Order
    $33.50
  • 76
    COLLAR SCREW TORX PLUS 20 IP – Part Number: 1603414016
    COLLAR SCREW TORX PLUS 20 IP
    Part Number: 1603414016
      Special Order
    $5.95
  • 101
    Catch Slide – Part Number: 1601990014
    Catch Slide
    Part Number: 1601990014
      No Longer Available
  • 102
    COMPRESSION SPRING – Part Number: 1604616022
    COMPRESSION SPRING
    Part Number: 1604616022
      Special Order
    $5.95
  • 205
    Spring retaining ring – Part Number: 1600209015
    Spring retaining ring
    Part Number: 1600209015
      No Longer Available
  • 802
    Field – Part Number: 160422057L
    Field
    Part Number: 160422057L
      No Longer Available
  • 802/1
    Brake Shoe – Part Number: 1607000363
    Brake Shoe
    Part Number: 1607000363
      No Longer Available
  • 803
    Armature – Part Number: 1604010BC2
    Armature
    Part Number: 1604010BC2
      No Longer Available
  • 804
    On-Off Switch Gray – Part Number: 1607000C14
    On-Off Switch Gray
    Part Number: 1607000C14
      No Longer Available
  • 805
    CORD – Part Number: 1607000228
    CORD
    Part Number: 1607000228
      Special Order
    $33.84
  • 808
    Nameplate – Part Number: 160111A63L
    Nameplate
    Part Number: 160111A63L
      No Longer Available
  • 810
    Carbon-Brush Set 10 X 1 607 014 171 – Part Number: 1607000480
    Carbon-Brush Set 10 X 1 607 014 171
    Part Number: 1607000480
      No Longer Available
  • 810
    CARBON BRUSH SET – Part Number: 1607014171
    CARBON BRUSH SET
    Part Number: 1607014171
    ★★★★★
    ★★★★★
    (1)
      In Stock
    $23.70
  • 813
    Deep-Groove Ball Bearing – Part Number: 1600905011
    Deep-Groove Ball Bearing
    Part Number: 1600905011
      No Longer Available
  • 816
    BRUSH HOLDER – Part Number: 1604336048
    BRUSH HOLDER
    Part Number: 1604336048
      In Stock
    $12.52
  • 821
    Gear Housing – Part Number: 1607000C3C
    Gear Housing
    Part Number: 1607000C3C
      No Longer Available
  • 822
    Bearing Flange – Part Number: 1607000D8Y
    Bearing Flange
    Part Number: 1607000D8Y
      No Longer Available
  • 822/1
    Bearing Flange – Part Number: 1607000D88
    Bearing Flange
    Part Number: 1607000D88
      No Longer Available
  • 835
    Fan – Part Number: 1600A00J93
    Fan
    Part Number: 1600A00J93
      No Longer Available
  • 840
    PUSH BUTTON – Part Number: 1607000354
    PUSH BUTTON
    Part Number: 1607000354
      In Stock
    $12.52
  • 846
    Retaining Washer – Part Number: 1607000C3E
    Retaining Washer
    Part Number: 1607000C3E
      No Longer Available
  • 848
    C-CLIP – Part Number: 1600119010
    C-CLIP
    Part Number: 1600119010
      Special Order
    $5.95
  • 850
    groove ball bearing – Part Number: 1600900079
    groove ball bearing
    Part Number: 1600900079
      No Longer Available
  • 851
    NEEDLE BUSHING – Part Number: 2600910001
    NEEDLE BUSHING
    Part Number: 2600910001
      In Stock
    $5.95
  • 880
    Electronics Module – Part Number: 1607233319
    Electronics Module
    Part Number: 1607233319
      No Longer Available
  • 893
    Clamping-Flange – Part Number: 1607000368
    Clamping-Flange
    Part Number: 1607000368
      No Longer Available
  • 899
    Cable tie – Part Number: 1609203H18
    Cable tie
    Part Number: 1609203H18
      No Longer Available

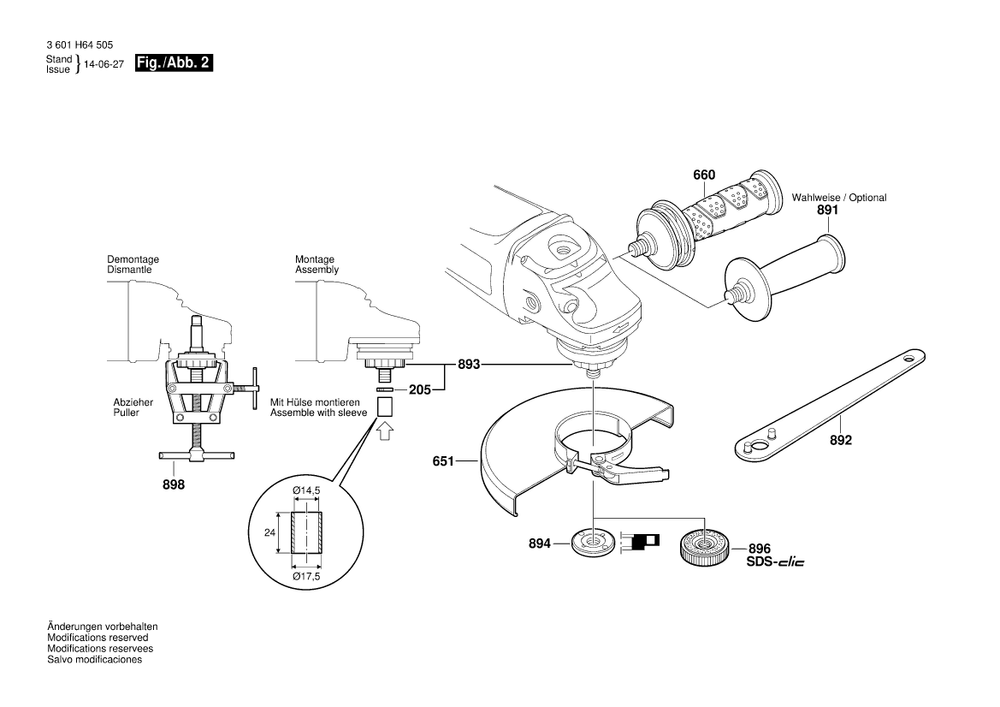

Diagram 2
