Whirlpool Air Conditioner Replacement Parts For Model ACQ122XP0

We Sell Only Genuine Whirlpool Parts

Popular Parts for ACQ122XP0

Screw – Part Number: W10491985 Screw
In Stock
$7.30
Range Hex Nut – Part Number: WP488130 Range Hex Nut
In Stock
$8.35
VALVE – Part Number: 978030 VALVE
In Stock
$51.45
Service Cord Clamp – Part Number: 549193 Service Cord Clamp
Special Order
$16.75
Silicone Rubber Adhesive - 2 oz – Part Number: WP279368 Silicone Rubber Adhesive - 2 oz
In Stock
$50.42
Refrigerator Sealstrip – Part Number: WP854334 Refrigerator Sealstrip
Special Order
$13.60
Access Valve - 5/16 Inch – Part Number: 978026 Access Valve - 5/16 Inch
In Stock
$55.03
Bracket – Part Number: WP1160674 Bracket
Special Order
$76.58

Search Within Model

Questions & Answers for Whirlpool ACQ122XP0
Browse all Parts Search by Area
AIR FLOW AND CONTROL PARTS Diagram and Parts List for Whirlpool Air Conditioner
AIR FLOW AND CONTROL PARTS
CABINET PARTS Diagram and Parts List for Whirlpool Air Conditioner
CABINET PARTS
OPTIONAL PARTS (NOT INCLUDED) Diagram and Parts List for Whirlpool Air Conditioner
OPTIONAL PARTS (NOT INCLUDED)
UNIT PARTS Diagram and Parts List for Whirlpool Air Conditioner
UNIT PARTS
Previous Showing All Parts Next

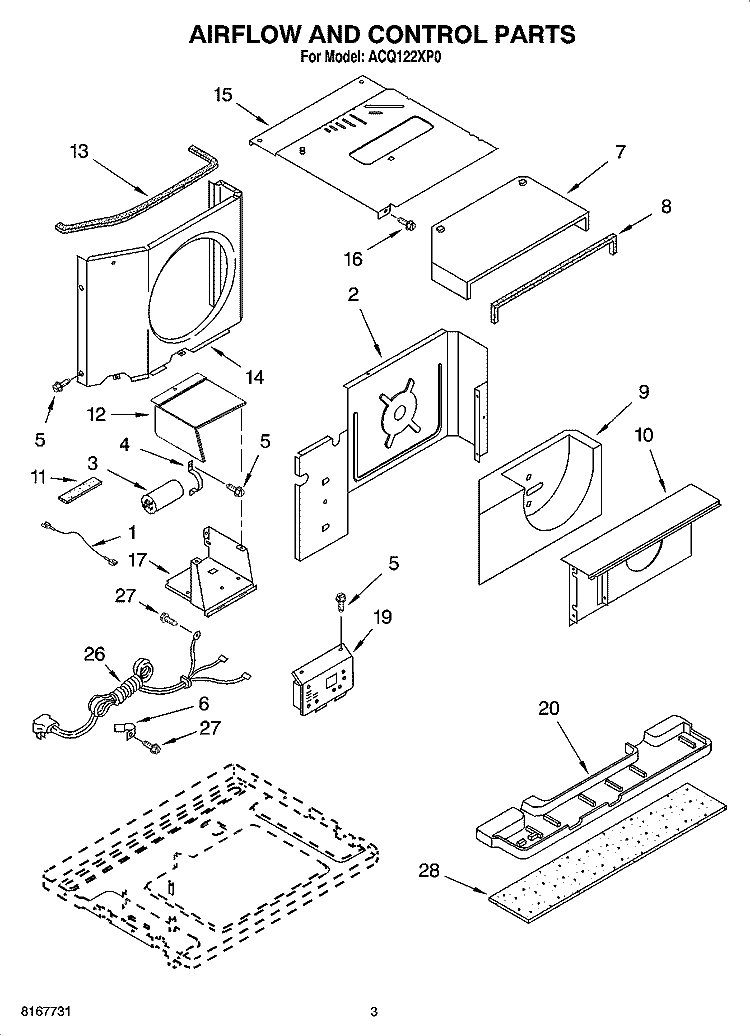

AIR FLOW AND CONTROL PARTS
AIR FLOW AND CONTROL PARTS Diagram and Parts List for Whirlpool Air Conditioner
  • 1
    WIRE-ELECT – Part Number: 1186569
    WIRE-ELECT
    Part Number: 1186569
      No Longer Available
  • 2
    WALL-DVDNG – Part Number: 8031104
    WALL-DVDNG
    Part Number: 8031104
      No Longer Available
  • 3
    CAPACITOR – Part Number: 1186506
    CAPACITOR
    Part Number: 1186506
      No Longer Available
  • 4
    Bracket – Part Number: WP1160674
    Bracket
    Part Number: WP1160674
      Special Order
    $76.58
  • 5
    Screw – Part Number: WP98520
    Screw
    Part Number: WP98520
      No Longer Available
  • 6
    Service Cord Clamp – Part Number: 549193
    Service Cord Clamp
    Part Number: 549193
      Special Order
    $16.75
  • 7
    HOUSING-HD – Part Number: 8031570
    HOUSING-HD
    Part Number: 8031570
      No Longer Available
  • 8
    Refrigerator Sealstrip – Part Number: WP854334
    Refrigerator Sealstrip
    Part Number: WP854334
      Special Order
    $13.60
  • 9
    HOUSING-BL – Part Number: 8031587
    HOUSING-BL
    Part Number: 8031587
      No Longer Available
  • 10
    SHROUD-EVP – Part Number: 1188389
    SHROUD-EVP
    Part Number: 1188389
      No Longer Available
  • 11
    SEAL-FOAM – Part Number: 1187047
    SEAL-FOAM
    Part Number: 1187047
      No Longer Available
  • 12
    COVER – Part Number: 1186666
    COVER
    Part Number: 1186666
      No Longer Available
  • 13
    Strip Seal – Part Number: 1158732
    Strip Seal
    Part Number: 1158732
      No Longer Available
  • 14
    SHROUD-CND – Part Number: 8031110
    SHROUD-CND
    Part Number: 8031110
      No Longer Available
  • 15
    COVER-UNIT – Part Number: 1186766
    COVER-UNIT
    Part Number: 1186766
      No Longer Available
  • 16
    SCREW – Part Number: W10856125
    SCREW
    Part Number: W10856125
      No Longer Available
  • 17
    BOX-CONTRL – Part Number: 1184600
    BOX-CONTRL
    Part Number: 1184600
      No Longer Available
  • 19
    Temperature Control Board – Part Number: 1186192
    Temperature Control Board
    Part Number: 1186192
      No Longer Available
  • 20
    PAN-DRIP – Part Number: 8031111
    PAN-DRIP
    Part Number: 8031111
      No Longer Available
  • 26
    CORD-POWER – Part Number: 1187511
    CORD-POWER
    Part Number: 1187511
      No Longer Available
  • 27
    Screw – Part Number: WP98520
    Screw
    Part Number: WP98520
      No Longer Available
  • 28
    SEAL-STRIP – Part Number: 8031480
    SEAL-STRIP
    Part Number: 8031480
      No Longer Available

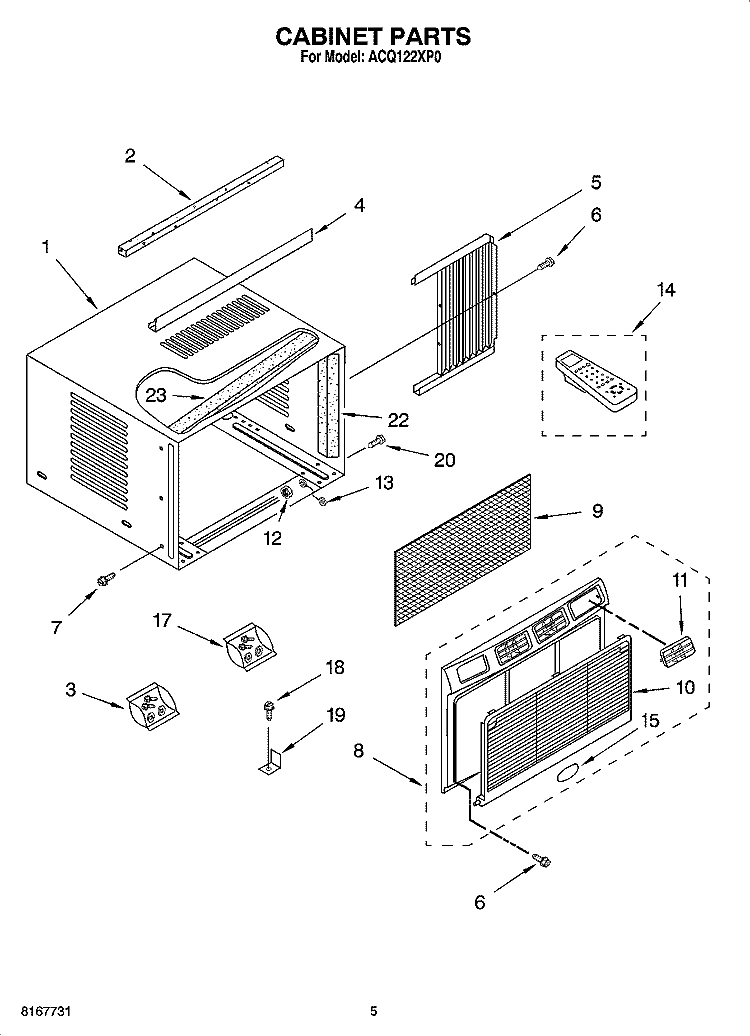

CABINET PARTS
CABINET PARTS Diagram and Parts List for Whirlpool Air Conditioner
  • 1
    CABINET – Part Number: 8031388
    CABINET
    Part Number: 8031388
      No Longer Available
  • 2
    SEAL-RAIL – Part Number: 855841
    SEAL-RAIL
    Part Number: 855841
      No Longer Available
  • 3
    BAG-PARTS – Part Number: 1185948
    BAG-PARTS
    Part Number: 1185948
      No Longer Available
  • 4
    CHANNEL – Part Number: 8031401
    CHANNEL
    Part Number: 8031401
      No Longer Available
  • 5
    CURTAIN – Part Number: 8031397
    CURTAIN
    Part Number: 8031397
      No Longer Available
  • 5
    CURTAIN – Part Number: 8031399
    CURTAIN
    Part Number: 8031399
      No Longer Available
  • 6
    Screw – Part Number: W10491985
    Screw
    Part Number: W10491985
      In Stock
    $7.30
  • 7
    SCREW – Part Number: 4159456
    SCREW
    Part Number: 4159456
      No Longer Available
  • 8
    FRONT – Part Number: 1187333
    FRONT
    Part Number: 1187333
      No Longer Available
  • 9
    Air Filter - Cut-to-Fit – Part Number: 8031292
    Air Filter - Cut-to-Fit
    Part Number: 8031292
      No Longer Available
  • 10
    Grille, Front – Part Number: 1187325
    Grille, Front
    Part Number: 1187325
      No Longer Available
  • 11
    Louver Cartridge – Part Number: 8031202
    Louver Cartridge
    Part Number: 8031202
      No Longer Available
  • 12
    MOUNTING BRACKET, KICK PLATE – Part Number: WP486255
    MOUNTING BRACKET, KICK PLATE
    Part Number: WP486255
      Special Order
    $6.25
  • 13
    WIRE-ELECT – Part Number: 857078
    WIRE-ELECT
    Part Number: 857078
      No Longer Available
  • 14
    Remote Control – Part Number: WP1186157
    Remote Control
    Part Number: WP1186157
      No Longer Available
  • 15
    NAMEPLATE – Part Number: 1187171
    NAMEPLATE
    Part Number: 1187171
      No Longer Available
  • 17
    BAG-PARTS – Part Number: 1157654
    BAG-PARTS
    Part Number: 1157654
      No Longer Available
  • 18
    SCREW – Part Number: 47435
    SCREW
    Part Number: 47435
      No Longer Available
  • 19
    BRACKET – Part Number: 644228
    BRACKET
    Part Number: 644228
      No Longer Available
  • 20
    Refrigerator Screw – Part Number: WP488234
    Refrigerator Screw
    Part Number: WP488234
      Special Order
    $8.35
  • 22
    INSULATION – Part Number: 1162099
    INSULATION
    Part Number: 1162099
      No Longer Available
  • 23
    Strip Seal – Part Number: 1158732
    Strip Seal
    Part Number: 1158732
      No Longer Available

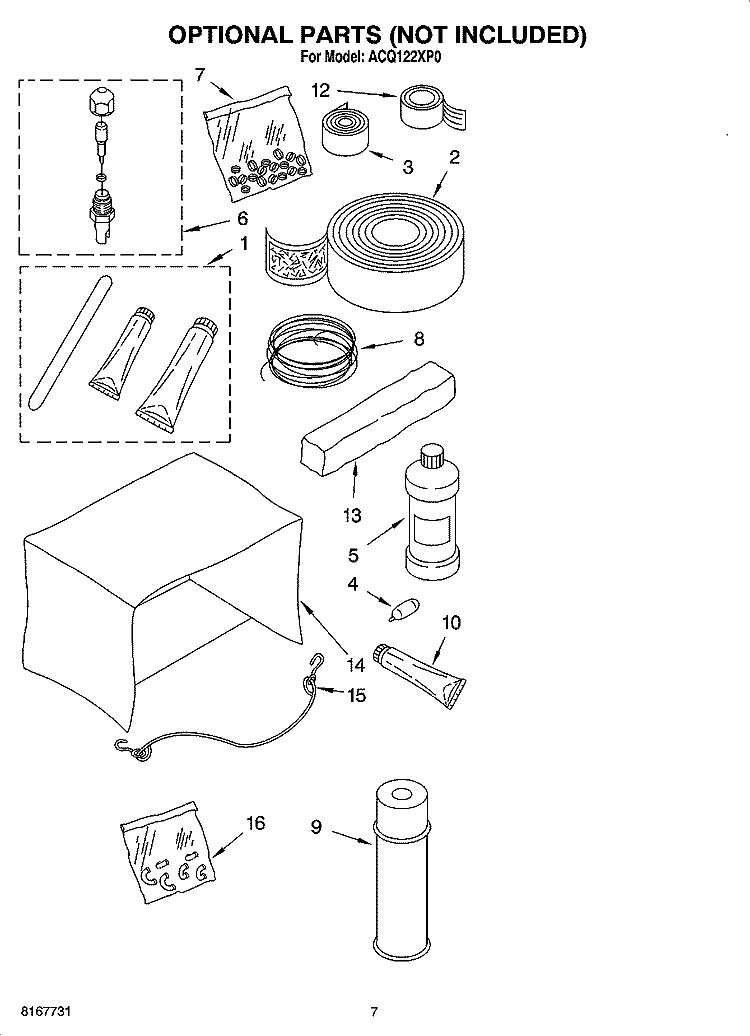

OPTIONAL PARTS (NOT INCLUDED)
OPTIONAL PARTS (NOT INCLUDED) Diagram and Parts List for Whirlpool Air Conditioner

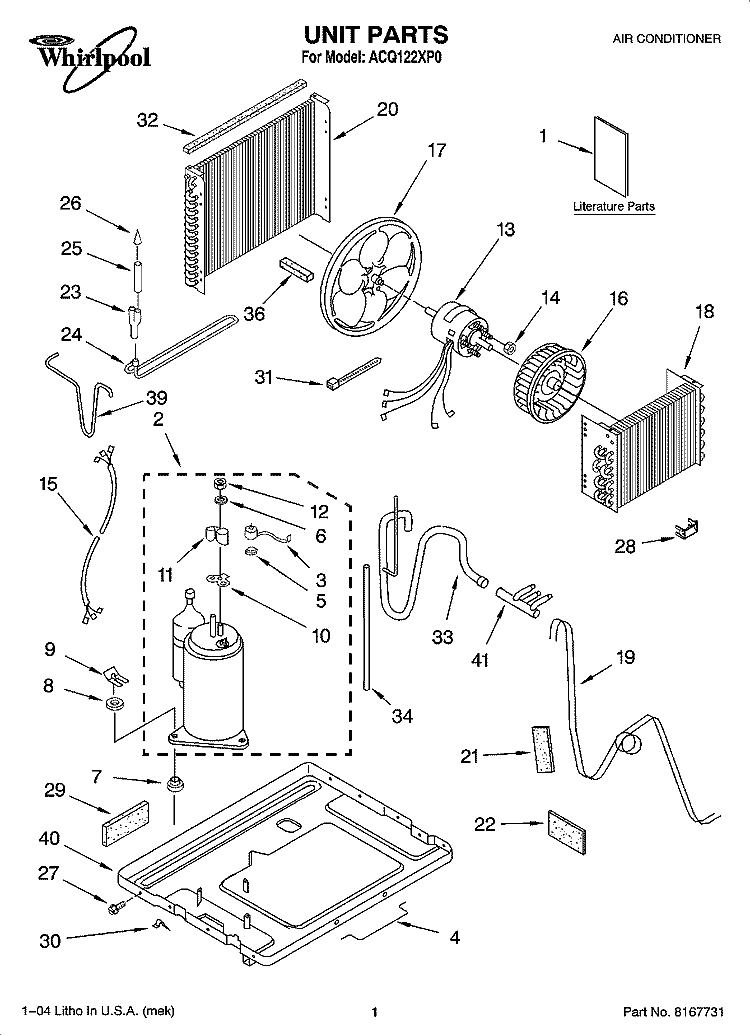

UNIT PARTS
UNIT PARTS Diagram and Parts List for Whirlpool Air Conditioner
