Kenmore AIR CONDITIONER Replacement Parts For Model 58072126200

We Sell Only Genuine Kenmore Parts

Popular Parts for 58072126200

Search Within Model

Questions & Answers for Kenmore 58072126200
Browse all Parts Search by Area
Air Handling/cycle Parts Diagram and Parts List for  Kenmore Air Conditioner
Air Handling/cycle Parts
Cabinet/front Grille Assy Diagram and Parts List for  Kenmore Air Conditioner
Cabinet/front Grille Assy
Compressor Parts Diagram and Parts List for  Kenmore Air Conditioner
Compressor Parts
Control Box Assy Diagram and Parts List for  Kenmore Air Conditioner
Control Box Assy
Installation Kit Assy Diagram and Parts List for  Kenmore Air Conditioner
Installation Kit Assy
Previous Showing All Parts Next

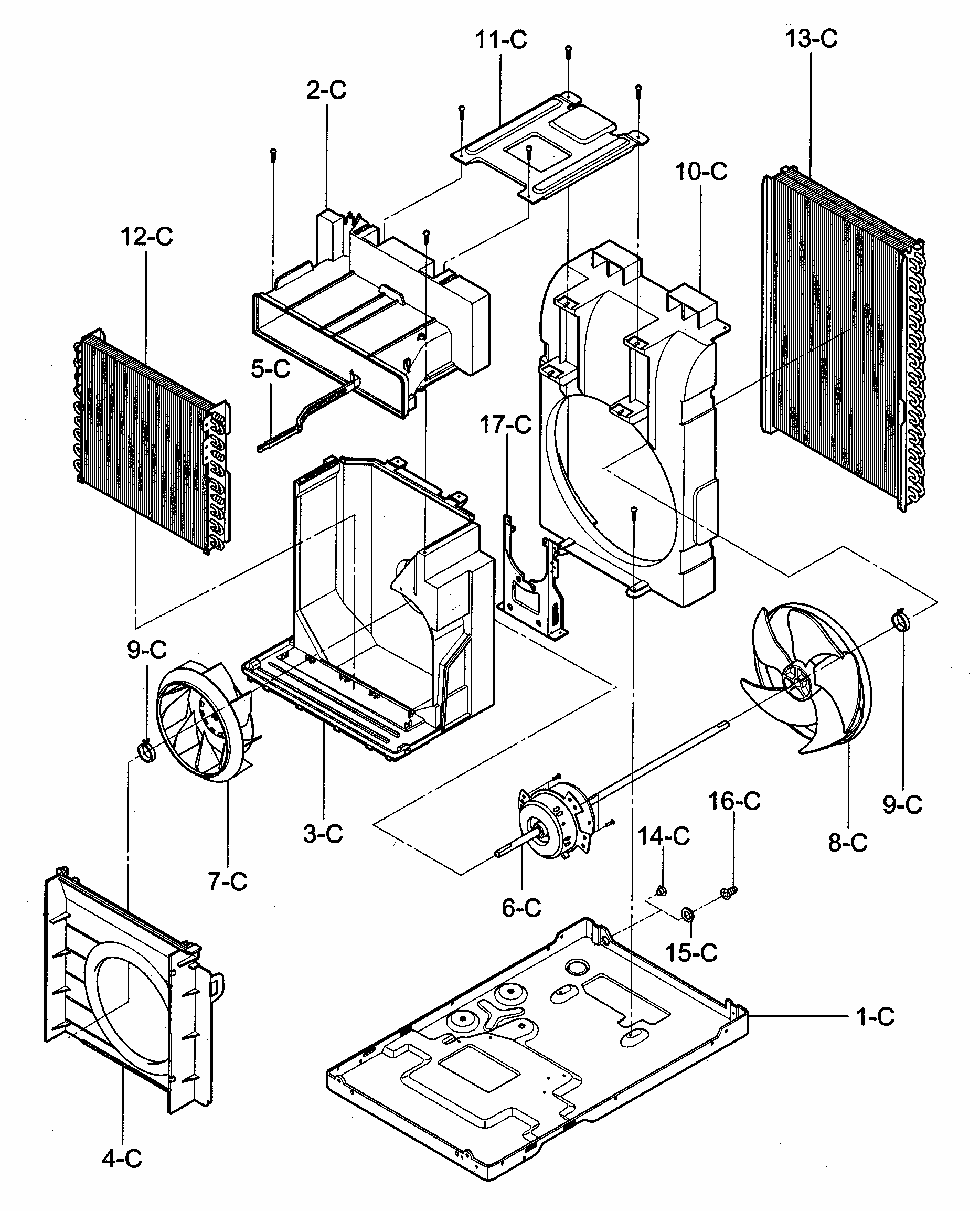

Air Handling/cycle Parts
Air Handling/cycle Parts Diagram and Parts List for  Kenmore Air Conditioner

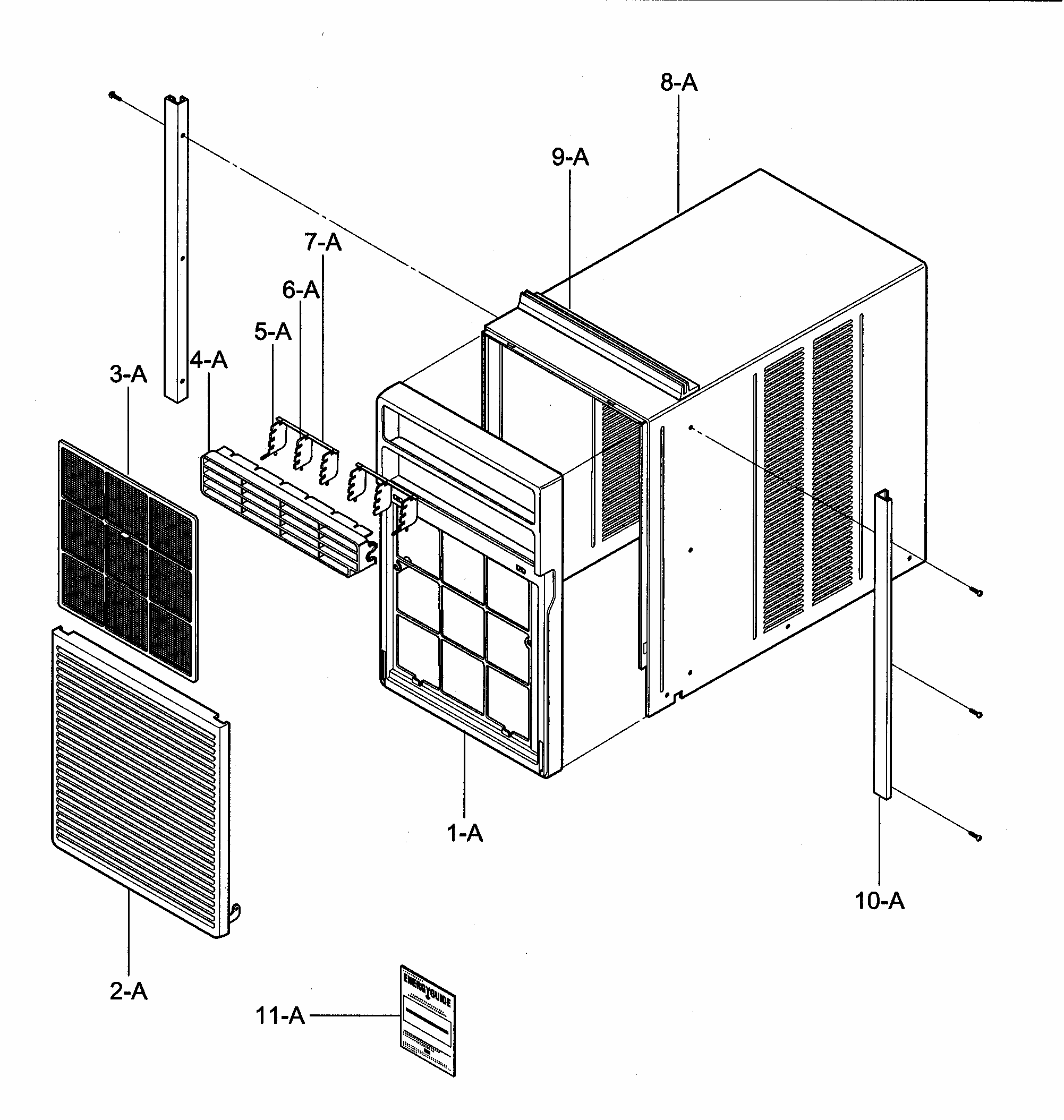

Cabinet/front Grille Assy
Cabinet/front Grille Assy Diagram and Parts List for  Kenmore Air Conditioner
Compressor Parts
Compressor Parts Diagram and Parts List for  Kenmore Air Conditioner

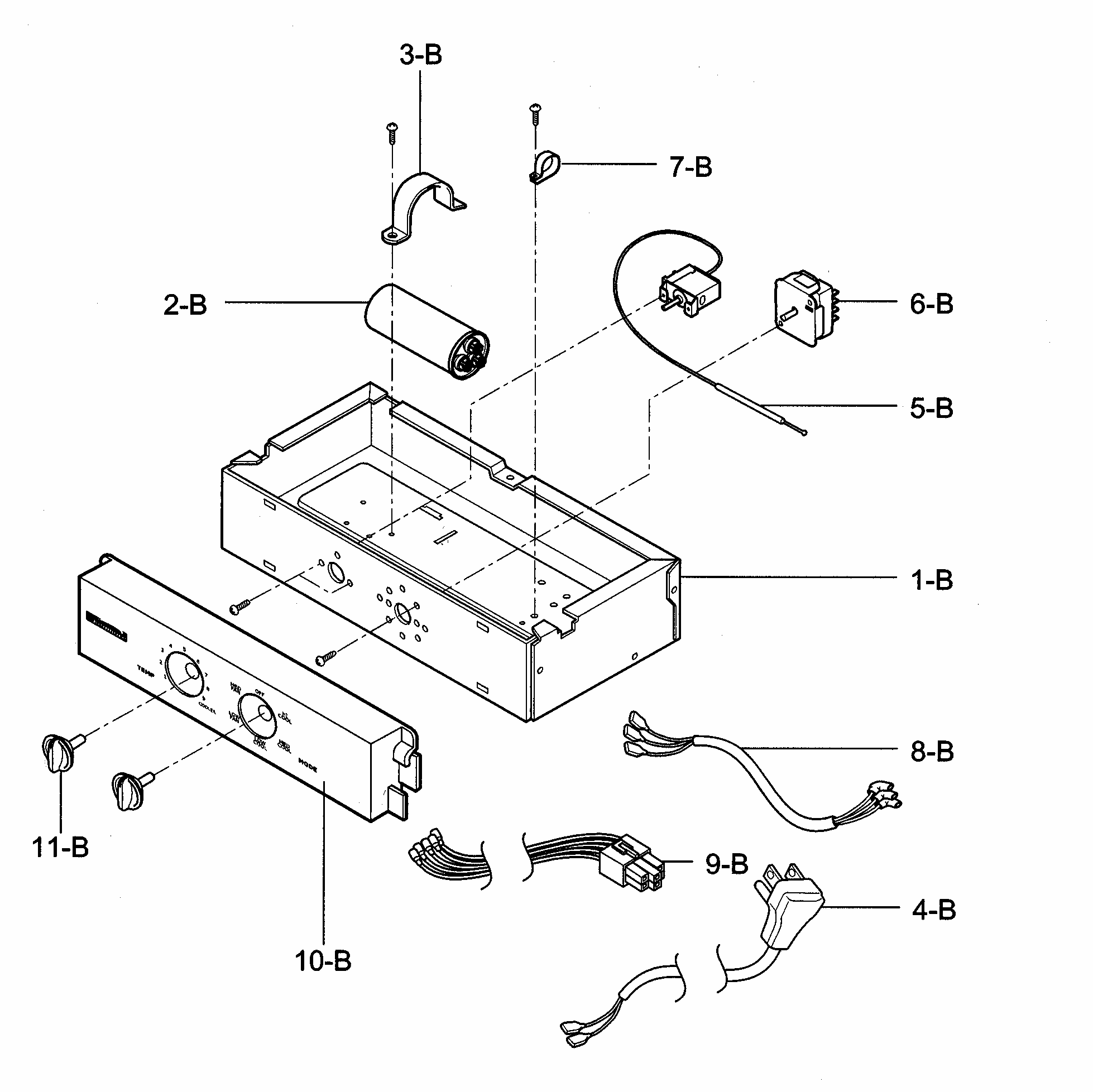

Control Box Assy
Control Box Assy Diagram and Parts List for  Kenmore Air Conditioner
  • 1-B
    CASE,CONTROL – Part Number: 4994A20048A
    CASE,CONTROL
    Part Number: 4994A20048A
      No Longer Available
  • 2-B
    Capacitor,Film,Box – Part Number: 0CZZA20001N
    Capacitor,Film,Box
    Part Number: 0CZZA20001N
      No Longer Available
  • 3-B
    Clamp,Capacitor – Part Number: 4H00442F
    Clamp,Capacitor
    Part Number: 4H00442F
      Special Order
    $6.25
  • 4-B
    POWER CORD ASSEMBLY – Part Number: 6411A20056W
    POWER CORD ASSEMBLY
    Part Number: 6411A20056W
      No Longer Available
  • 5-B
    Thermostat – Part Number: 2H01109L
    Thermostat
    Part Number: 2H01109L
      Special Order
    $45.27
  • 6-B
    Switch,Rotary – Part Number: 2H00598E
    Switch,Rotary
    Part Number: 2H00598E
      Special Order
    $47.33
  • 7-B
    CLIP – Part Number: 4H01762A
    CLIP
    Part Number: 4H01762A
      Special Order
    $8.35
  • 8-B
    HARNESS,MULTI – Part Number: 6631AR3843B
    HARNESS,MULTI
    Part Number: 6631AR3843B
      Special Order
    $39.09
  • 9-B
    Harness,Multi – Part Number: 6631AR2687A
    Harness,Multi
    Part Number: 6631AR2687A
      Special Order
    $27.76
  • 10-B
    Panel,Control – Part Number: 3720A20167A
    Panel,Control
    Part Number: 3720A20167A
      No Longer Available
  • 11-B
    KNOB ASSEMBLY – Part Number: 4941A30012B
    KNOB ASSEMBLY
    Part Number: 4941A30012B
      Special Order
    $8.35

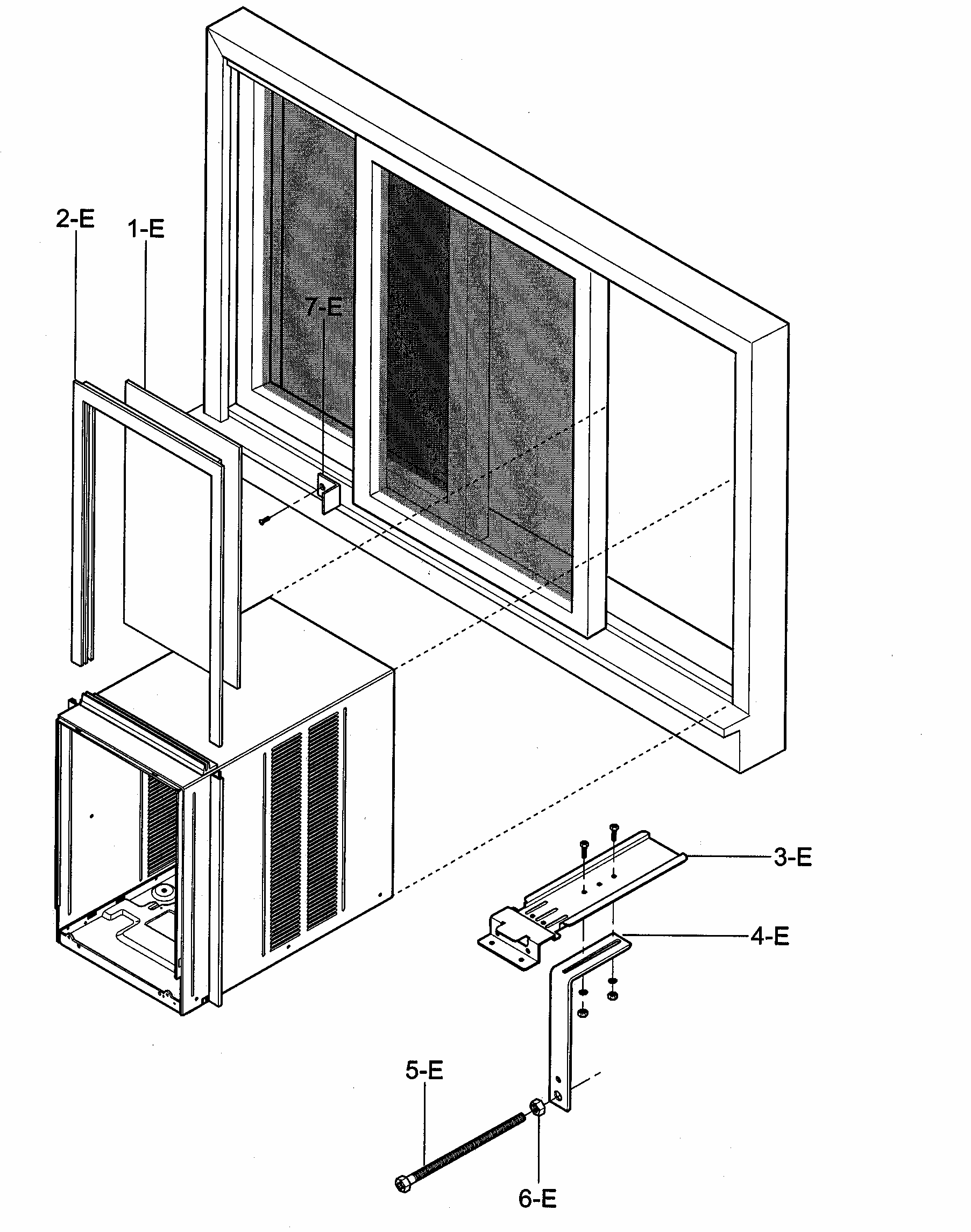

Installation Kit Assy
Installation Kit Assy Diagram and Parts List for  Kenmore Air Conditioner
