Kenmore Parts

Kenmore AIR CONDITIONER Replacement Parts For Model 58071121100

We Sell Only Genuine Kenmore Parts

Popular Parts for 58071121100

Search Within Model

Questions & Answers for Kenmore 58071121100
Browse all Parts Search by Area

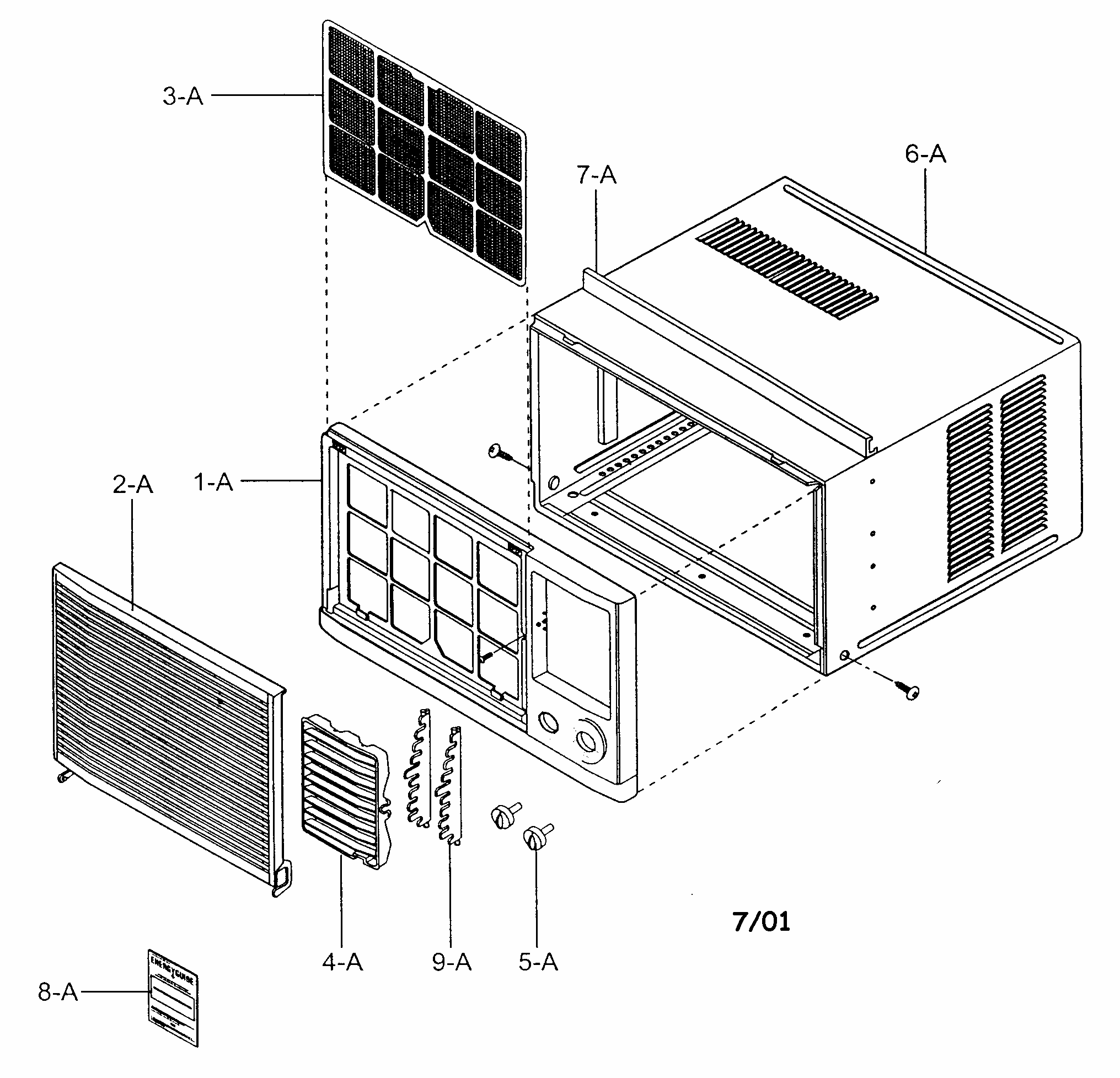

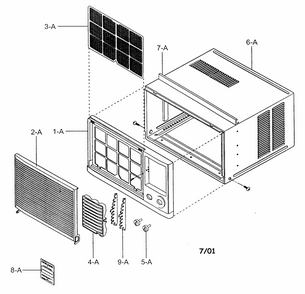

Air Conditioner Diagram and Parts List for  Kenmore Air Conditioner
Air Conditioner

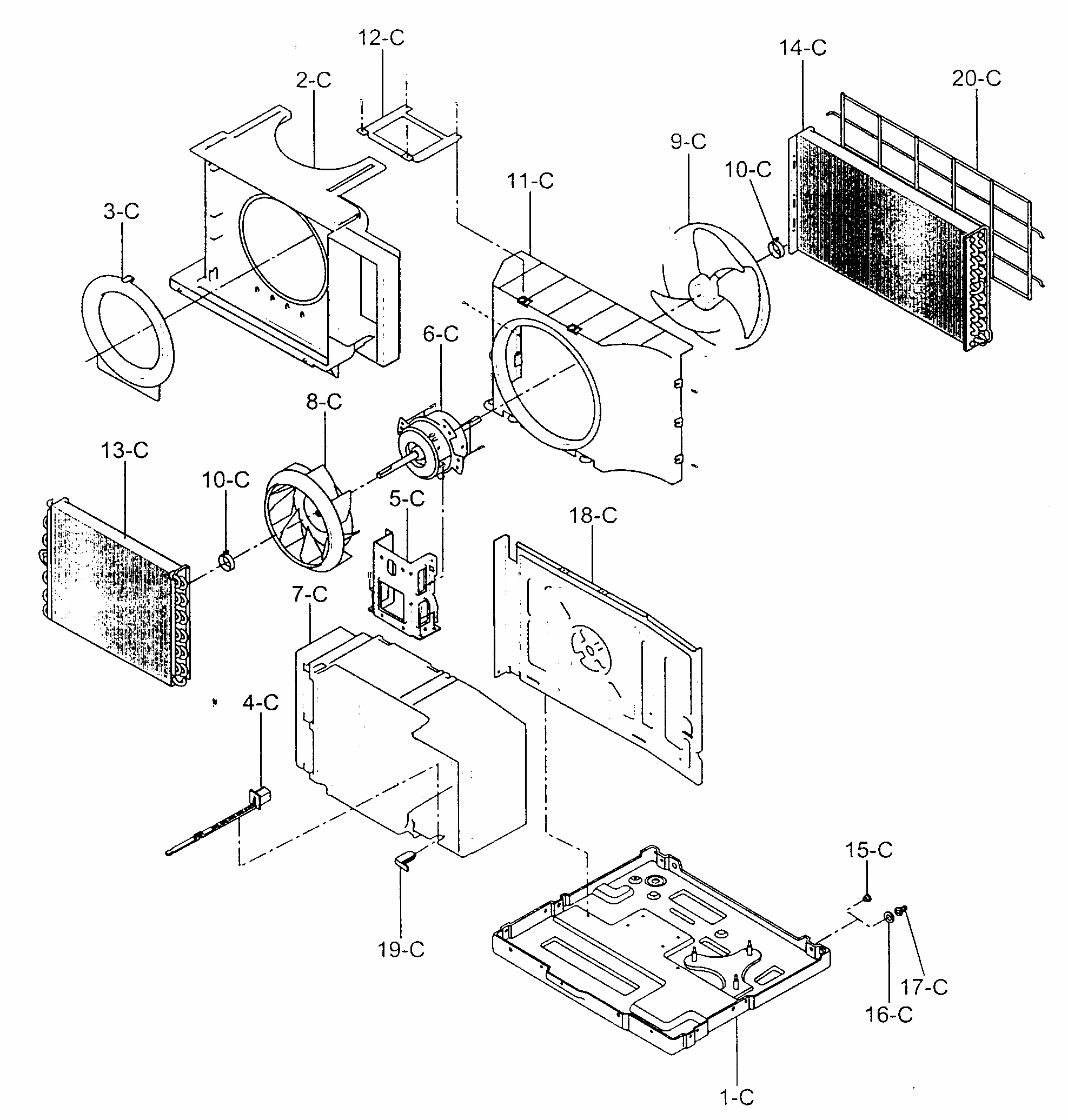

Air Conditioner Diagram and Parts List for  Kenmore Air Conditioner
Air Conditioner

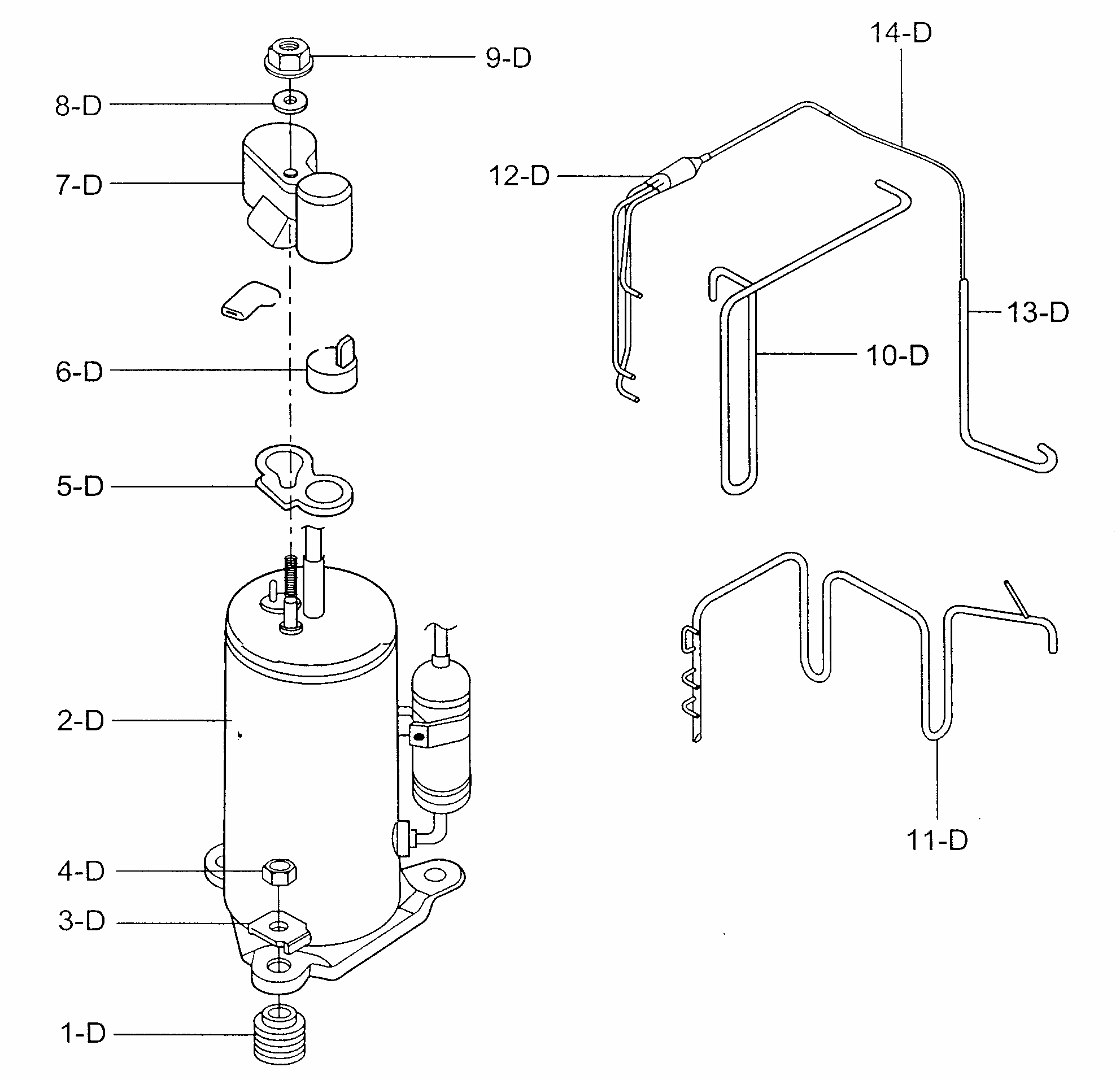

Air Conditioner Diagram and Parts List for  Kenmore Air Conditioner
Air Conditioner

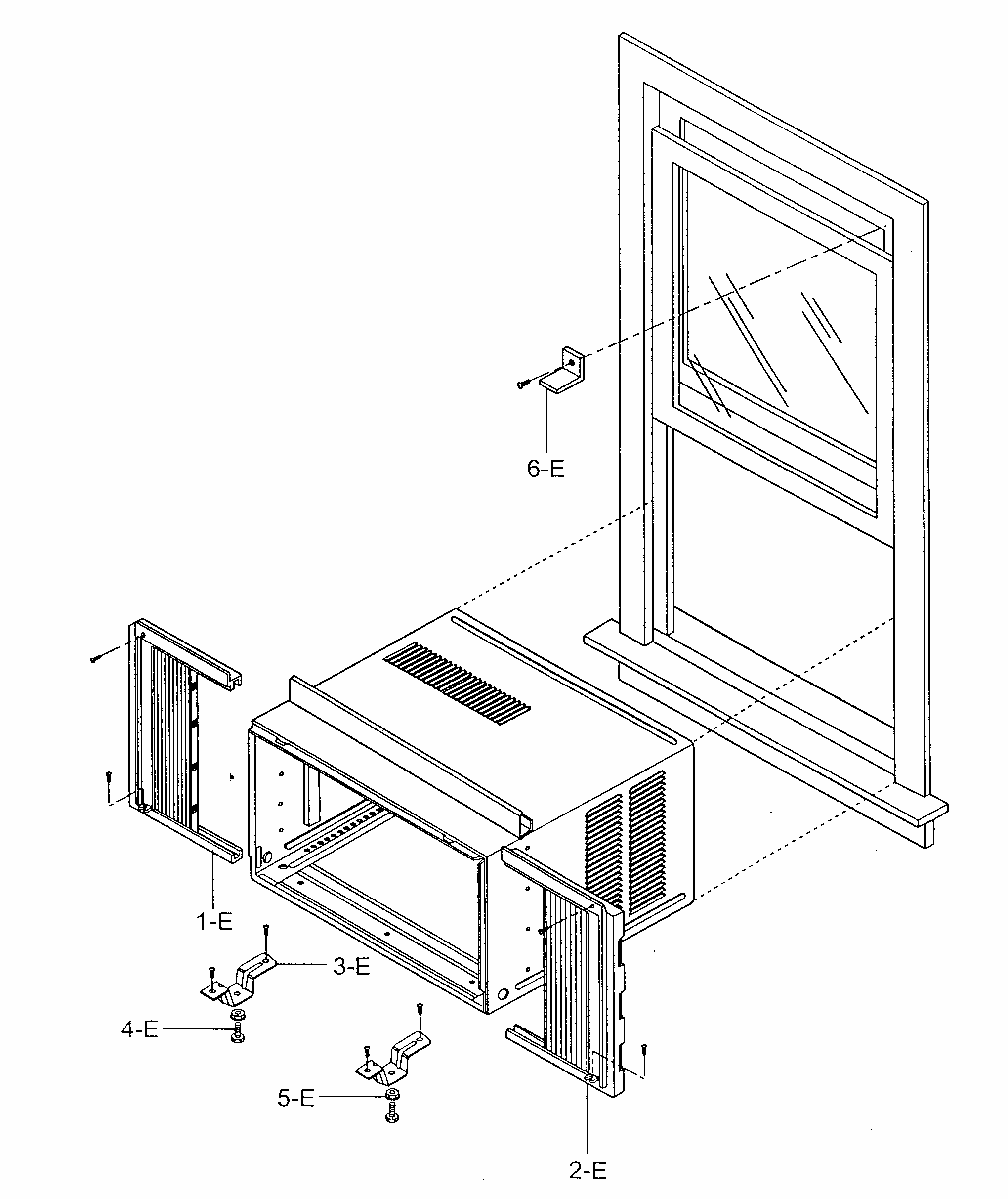

Air Conditioner Diagram and Parts List for  Kenmore Air Conditioner
Air Conditioner
Air Conditioner Diagram and Parts List for  Kenmore Air Conditioner
Air Conditioner
Previous Showing All Parts Next
Air Conditioner
Air Conditioner Diagram and Parts List for  Kenmore Air Conditioner
Air Conditioner
Air Conditioner Diagram and Parts List for  Kenmore Air Conditioner
Air Conditioner
Air Conditioner Diagram and Parts List for  Kenmore Air Conditioner
Air Conditioner
Air Conditioner Diagram and Parts List for  Kenmore Air Conditioner
Air Conditioner
Air Conditioner Diagram and Parts List for  Kenmore Air Conditioner

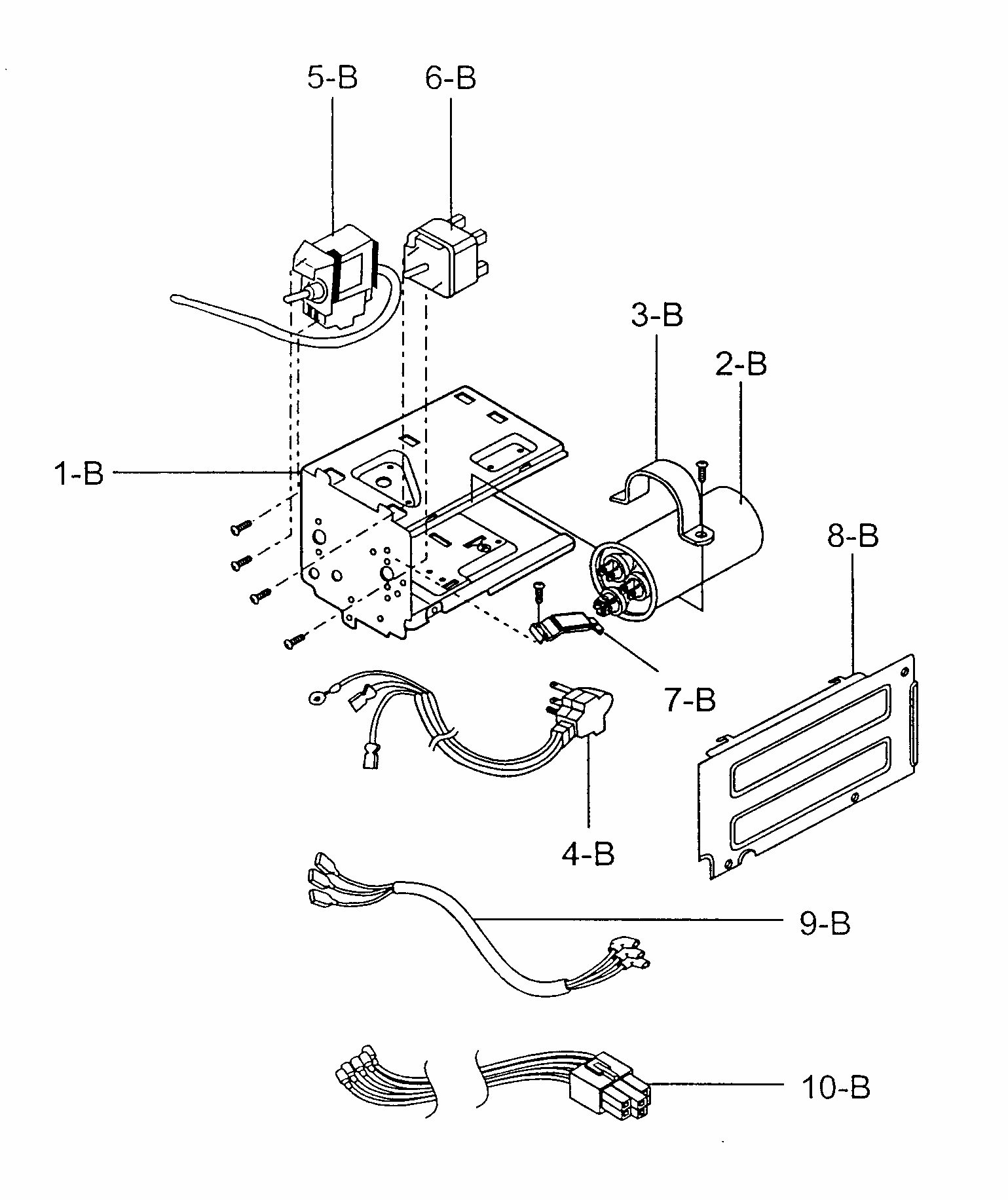

  • 1-B
    BASE – Part Number: 4994AR1494D
    BASE
    Part Number: 4994AR1494D
      No Longer Available
  • 2-B
    CAPACITOR,DRAWING – Part Number: HI02-00310E
    CAPACITOR,DRAWING
    Part Number: HI02-00310E
      No Longer Available
  • 3-B
    Clamp,Capacitor – Part Number: 4H00442F
    Clamp,Capacitor
    Part Number: 4H00442F
      Special Order
    $6.25
  • 4-B
    Power Cord – Part Number: 2H00677S
    Power Cord
    Part Number: 2H00677S
      In Stock
    $66.25
  • 5-B
    Thermostat – Part Number: 2H01109L
    Thermostat
    Part Number: 2H01109L
      Special Order
    $45.27
  • 6-B
    Switch,Rotary – Part Number: 2H00598E
    Switch,Rotary
    Part Number: 2H00598E
      Special Order
    $47.33
  • 7-B
    CLIP – Part Number: 4H01762A
    CLIP
    Part Number: 4H01762A
      Special Order
    $8.35
  • 8-B
    Cover – Part Number: 3550AR7032A
    Cover
    Part Number: 3550AR7032A
      Special Order
    $8.35
  • 9-B
    HARNESS,MULTI – Part Number: 6631AR3843B
    HARNESS,MULTI
    Part Number: 6631AR3843B
      Special Order
    $39.09
  • 10-B
    Harness,Multi – Part Number: 6631AR2687A
    Harness,Multi
    Part Number: 6631AR2687A
      Special Order
    $27.76
