Frigidaire Room Air Conditioner Replacement Parts For Model AR18NS2F1

We Sell Only Genuine Frigidaire Parts

Popular Parts for AR18NS2F1

BRACKET – Part Number: 5303211056 BRACKET
Special Order
$38.06
SCREW – Part Number: 134178901 SCREW
In Stock
$23.05
NUT – Part Number: 3007759 NUT
Special Order
$8.35
MOTOR-FAN – Part Number: 309630604 MOTOR-FAN
In Stock
$414.63
Blower Wheel – Part Number: 5304404774 Blower Wheel
In Stock
$123.95
DRIER-FILTER – Part Number: 5300265301 DRIER-FILTER
Special Order
$176.95
Temperature Control – Part Number: 5303015319 Temperature Control
Special Order
$122.78
NUT – Part Number: 5308006948 NUT
Special Order
$8.35

Search Within Model

Questions & Answers for Frigidaire AR18NS2F1
Browse all Parts Search by Area
AIR HANDLING PARTS Diagram and Parts List for Frigidaire Air Conditioner
AIR HANDLING PARTS
CABINET PARTS Diagram and Parts List for Frigidaire Air Conditioner
CABINET PARTS
ELECTRICAL PARTS Diagram and Parts List for Frigidaire Air Conditioner
ELECTRICAL PARTS
SYSTEM PARTS Diagram and Parts List for Frigidaire Air Conditioner
SYSTEM PARTS
WINDOW MOUNTING PARTS Diagram and Parts List for Frigidaire Air Conditioner
WINDOW MOUNTING PARTS
Previous Showing All Parts Next
AIR HANDLING PARTS
AIR HANDLING PARTS Diagram and Parts List for Frigidaire Air Conditioner

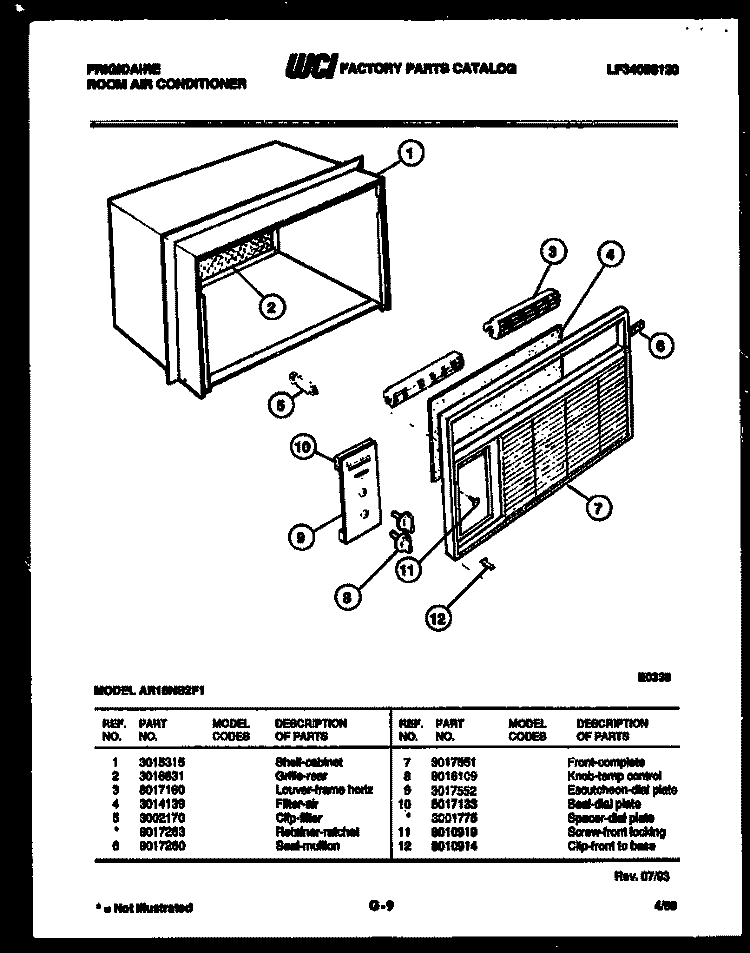

CABINET PARTS
CABINET PARTS Diagram and Parts List for Frigidaire Air Conditioner
  • 1
    CABINET – Part Number: 5303303545
    CABINET
    Part Number: 5303303545
      Special Order
    $152.75
  • 2
    GRILLE – Part Number: 5303210207
    GRILLE
    Part Number: 5303210207
      Special Order
    $58.09
  • 3
    LOUVER – Part Number: 5308017160
    LOUVER
    Part Number: 5308017160
      Special Order
    $31.88
  • 4
    USE WCI 5303320285 – Part Number: 3014139
    USE WCI 5303320285
    Part Number: 3014139
      No Longer Available
  • 5
    CLIP-FILTER – Part Number: 3203495
    CLIP-FILTER
    Part Number: 3203495
      Special Order
    $18.85
  • 5A
    RETAINER-LOUVER – Part Number: 5308017263
    RETAINER-LOUVER
    Part Number: 5308017263
      Special Order
    $16.75
  • 6
    SEAL-MULLION – Part Number: 5303018576
    SEAL-MULLION
    Part Number: 5303018576
      No Longer Available
  • 7
    FRONT-COMPLETE – Part Number: 5303300366
    FRONT-COMPLETE
    Part Number: 5303300366
      No Longer Available
  • 8
    KNOB-CONTROL – Part Number: 5308016109
    KNOB-CONTROL
    Part Number: 5308016109
      No Longer Available
  • 9
    ESCUTCHEN – Part Number: 3017552
    ESCUTCHEN
    Part Number: 3017552
      No Longer Available
  • 10
    SEAL – Part Number: 5303001984
    SEAL
    Part Number: 5303001984
      No Longer Available
  • 10A
    SPACER-DIAL PLATE – Part Number: 5303001775
    SPACER-DIAL PLATE
    Part Number: 5303001775
      No Longer Available
  • 11
    SCREW-SHROUD – Part Number: 5303286239
    SCREW-SHROUD
    Part Number: 5303286239
      Special Order
    $8.35
  • 12
    CLIP – Part Number: 5308010914
    CLIP
    Part Number: 5308010914
      Special Order
    $24.10

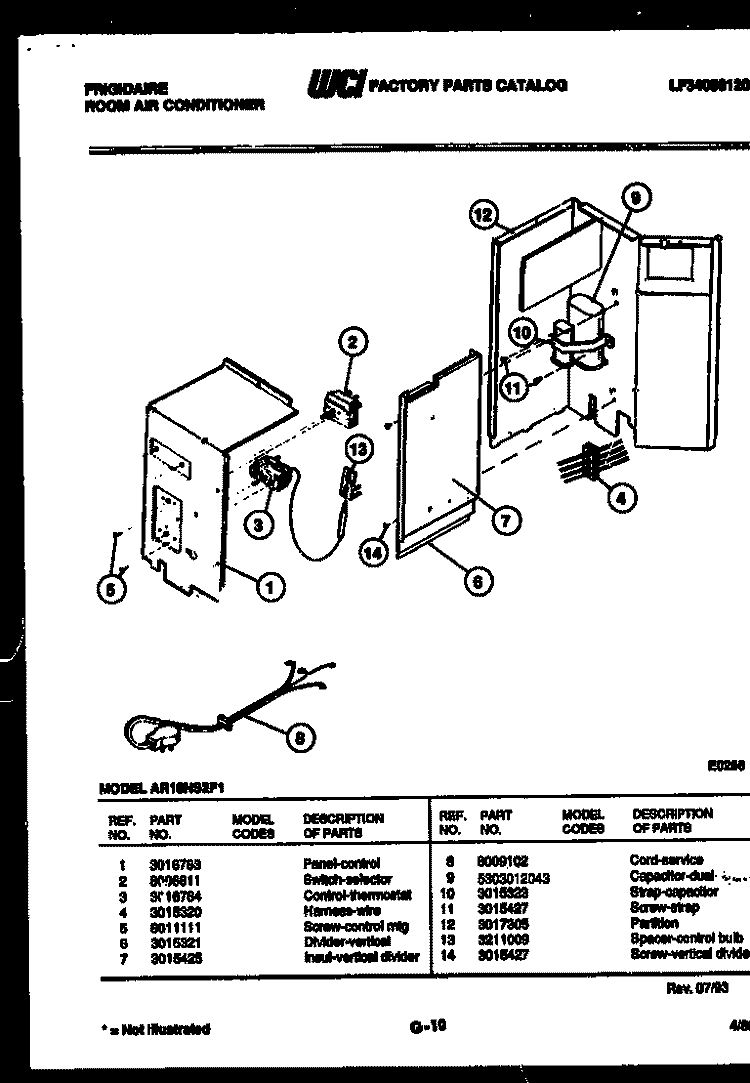

ELECTRICAL PARTS
ELECTRICAL PARTS Diagram and Parts List for Frigidaire Air Conditioner
  • 1
    PANEL-CONTROL – Part Number: 5303293910
    PANEL-CONTROL
    Part Number: 5303293910
      No Longer Available
  • 2
    Selector Switch – Part Number: 5304480058
    Selector Switch
    Part Number: 5304480058
      No Longer Available
  • 3
    Temperature Control – Part Number: 5303015319
    Temperature Control
    Part Number: 5303015319
      Special Order
    $122.78
  • 4
    HARNESS-WIRE – Part Number: 5303015320
    HARNESS-WIRE
    Part Number: 5303015320
      No Longer Available
  • 5
    SCREW – Part Number: 5303007754
    SCREW
    Part Number: 5303007754
      Special Order
    $9.40
  • 6
    VERTICAL DIVIDER – Part Number: 3015321
    VERTICAL DIVIDER
    Part Number: 3015321
      Special Order
    $11.50
  • 7
    INSULATN – Part Number: 3015425
    INSULATN
    Part Number: 3015425
      Special Order
    $8.35
  • 8
    CORD-ELECTRIC POWER – Part Number: 309343121
    CORD-ELECTRIC POWER
    Part Number: 309343121
      Special Order
    $48.36
  • 9
    USE WCI 5303208119 – Part Number: 5303012043
    USE WCI 5303208119
    Part Number: 5303012043
      Special Order
    $84.08
  • 10
    STRAP-CAPACITOR – Part Number: 5303015323
    STRAP-CAPACITOR
    Part Number: 5303015323
      Special Order
    $8.35
  • 11
    SCREW – Part Number: 134178901
    SCREW
    Part Number: 134178901
      In Stock
    $23.05
  • 12
    PARTITION – Part Number: 3017305
    PARTITION
    Part Number: 3017305
      No Longer Available
  • 13
    CLIP-CONTROL BULB – Part Number: 5303211009
    CLIP-CONTROL BULB
    Part Number: 5303211009
      Special Order
    $9.40
  • 14
    SCREW – Part Number: 134178901
    SCREW
    Part Number: 134178901
      In Stock
    $23.05

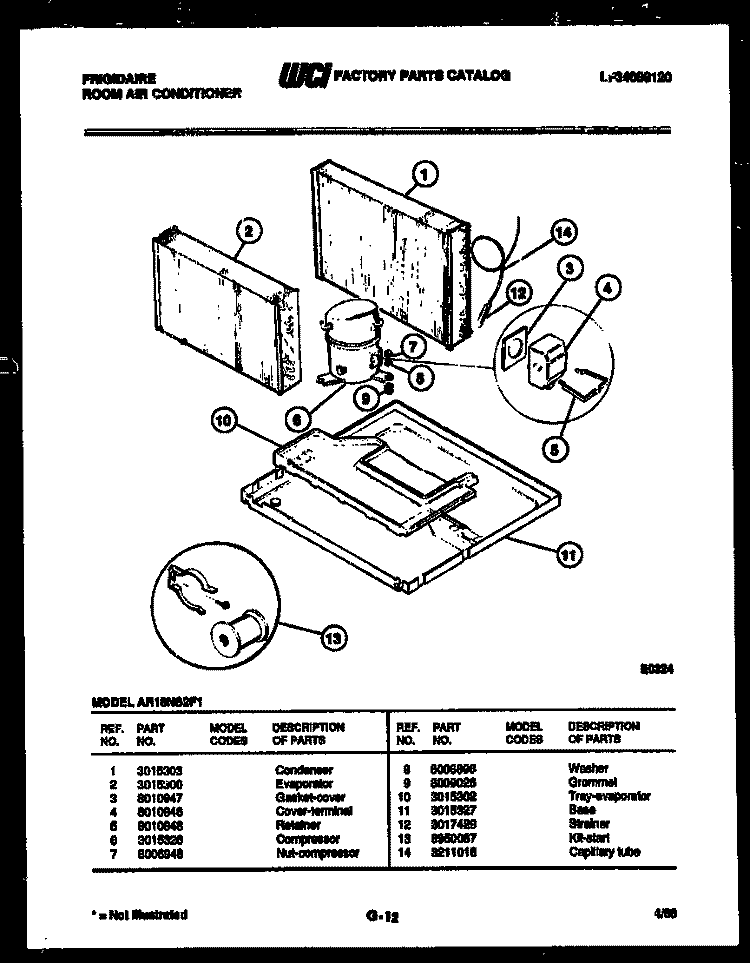

SYSTEM PARTS
SYSTEM PARTS Diagram and Parts List for Frigidaire Air Conditioner
  • 1
    DISCONTINUED – Part Number: 5304408767
    DISCONTINUED
    Part Number: 5304408767
      Special Order
    $130.75
  • 2
    EVAPORATOR – Part Number: 5303015595
    EVAPORATOR
    Part Number: 5303015595
      No Longer Available
  • 3
    GASKET – Part Number: 5303002068
    GASKET
    Part Number: 5303002068
      Special Order
    $30.85
  • 4
    COVER – Part Number: 5303002067
    COVER
    Part Number: 5303002067
      Special Order
    $25.15
  • 5
    CLAMP – Part Number: 5303002069
    CLAMP
    Part Number: 5303002069
      Special Order
    $14.65
  • 6
    DISCONTINUED – Part Number: 5304429203
    DISCONTINUED
    Part Number: 5304429203
      Special Order
    $285.59
  • 7
    NUT – Part Number: 5308006948
    NUT
    Part Number: 5308006948
      Special Order
    $8.35
  • 8
    WASHER – Part Number: 309112501
    WASHER
    Part Number: 309112501
      Special Order
    $8.35
  • 9
    GROMMET, COMPRESSOR – Part Number: 5303001777
    GROMMET, COMPRESSOR
    Part Number: 5303001777
      Special Order
    $19.90
  • 10
    TRAY-EVAPORATOR – Part Number: 5303300045
    TRAY-EVAPORATOR
    Part Number: 5303300045
      No Longer Available
  • 11
    BASE – Part Number: 5303015327
    BASE
    Part Number: 5303015327
      No Longer Available
  • 12
    DRIER-FILTER – Part Number: 5300265301
    DRIER-FILTER
    Part Number: 5300265301
      Special Order
    $176.95
  • 13
    START ASSIST KIT – Part Number: 5304413630
    START ASSIST KIT
    Part Number: 5304413630
      Special Order
    $139.92
  • 14
    CAPILLARY TUBE – Part Number: 3203561
    CAPILLARY TUBE
    Part Number: 3203561
      Special Order
    $24.10

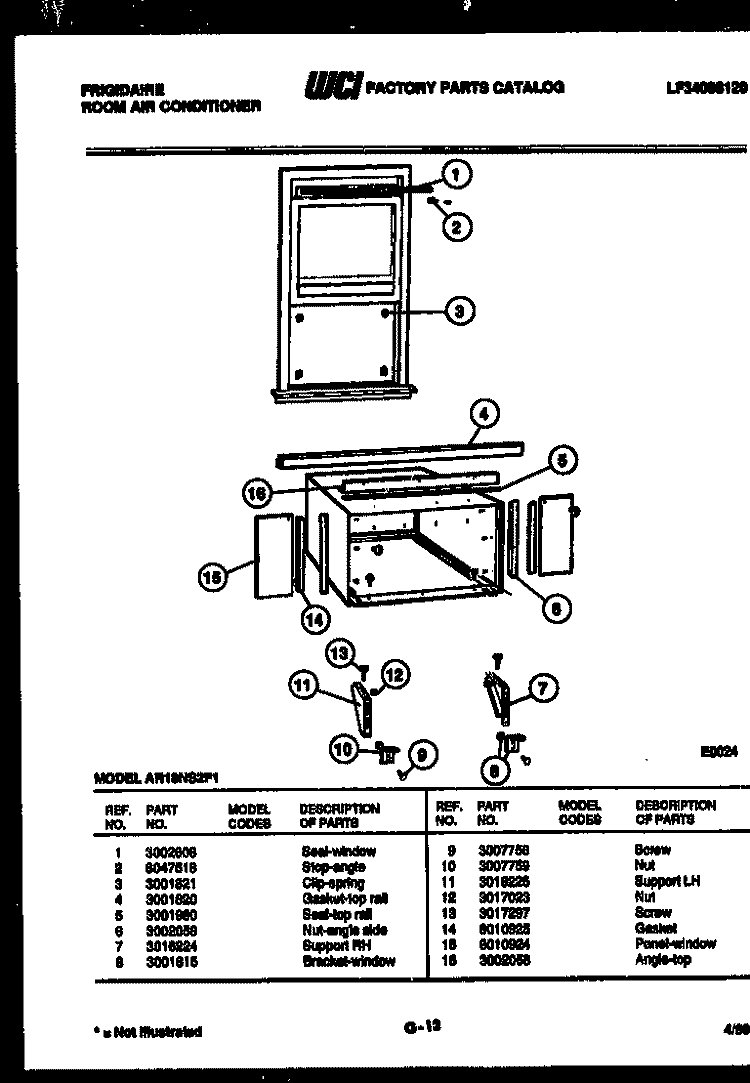

WINDOW MOUNTING PARTS
WINDOW MOUNTING PARTS Diagram and Parts List for Frigidaire Air Conditioner
  • 1
    SEAL-WINDOW – Part Number: 5303002608
    SEAL-WINDOW
    Part Number: 5303002608
      Special Order
    $8.35
  • 2
    BRACKET – Part Number: 5303211056
    BRACKET
    Part Number: 5303211056
      Special Order
    $38.06
  • 3
    CLIP – Part Number: 5303001821
    CLIP
    Part Number: 5303001821
      Special Order
    $8.35
  • 4
    SEAL-TOP RAIL – Part Number: 5303302764
    SEAL-TOP RAIL
    Part Number: 5303302764
      No Longer Available
  • 5
    SEAL – Part Number: 3001980
    SEAL
    Part Number: 3001980
      Special Order
    $8.35
  • 6
    RAIL-TOP/RETAINER S – Part Number: 5303925225
    RAIL-TOP/RETAINER S
    Part Number: 5303925225
      No Longer Available
  • 7
    SUPPORT – Part Number: 5303284689
    SUPPORT
    Part Number: 5303284689
      Special Order
    $47.33
  • 8
    SUPPORT – Part Number: 3001815
    SUPPORT
    Part Number: 3001815
      Special Order
    $41.15
  • 9
    SCREW – Part Number: 3007756
    SCREW
    Part Number: 3007756
      Special Order
    $13.60
  • 10
    NUT – Part Number: 3007759
    NUT
    Part Number: 3007759
      Special Order
    $8.35
  • 11
    SUPPORT – Part Number: 5303284690
    SUPPORT
    Part Number: 5303284690
      Special Order
    $48.36
  • 12
    NUT – Part Number: 316205500
    NUT
    Part Number: 316205500
      In Stock
    $19.90
  • 13
    SCREW – Part Number: 3017297
    SCREW
    Part Number: 3017297
      No Longer Available
  • 14
    GASKET-PANEL – Part Number: 5303302765
    GASKET-PANEL
    Part Number: 5303302765
      Special Order
    $12.55
  • 15
    PANEL, WINDOW FILLER – Part Number: 8010924
    PANEL, WINDOW FILLER
    Part Number: 8010924
      No Longer Available
  • 16
    RAIL-TOP/RETAINER S – Part Number: 5303925225
    RAIL-TOP/RETAINER S
    Part Number: 5303925225
      No Longer Available
