Frigidaire Room Air Conditioner Replacement Parts For Model FAL123H1A4

We Sell Only Genuine Frigidaire Parts

Popular Parts for FAL123H1A4

BRACKET – Part Number: 5303211056 BRACKET
Special Order
$38.06
SCREW – Part Number: 134178901 SCREW
In Stock
$23.05
CLOSURE – Part Number: 5303301247 CLOSURE
In Stock
$50.81
SCREW – Part Number: 131202300 SCREW
In Stock
$23.05
DOOR – Part Number: 309328602 DOOR
Special Order
$25.15
START ASSIST KIT – Part Number: 5303317601 START ASSIST KIT
Special Order
$101.58
NUT – Part Number: 5308006948 NUT
Special Order
$8.35
SCREW-WOOD – Part Number: 3002803 SCREW-WOOD
Special Order
$13.60

Search Within Model

Questions & Answers for Frigidaire FAL123H1A4
Browse all Parts Search by Area
AIR HANDLING PARTS Diagram and Parts List for Frigidaire Air Conditioner
AIR HANDLING PARTS
CABINET FRONT / WRAPPER Diagram and Parts List for Frigidaire Air Conditioner
CABINET FRONT / WRAPPER
COMPRESSOR PARTS Diagram and Parts List for Frigidaire Air Conditioner
COMPRESSOR PARTS
CONTROL PARTS Diagram and Parts List for Frigidaire Air Conditioner
CONTROL PARTS
COVER Diagram and Parts List for Frigidaire Air Conditioner
COVER
WINDOW MOUNTING PARTS Diagram and Parts List for Frigidaire Air Conditioner
WINDOW MOUNTING PARTS
WIRING DIAGRAM Diagram and Parts List for Frigidaire Air Conditioner
WIRING DIAGRAM
Previous Showing All Parts Next
AIR HANDLING PARTS

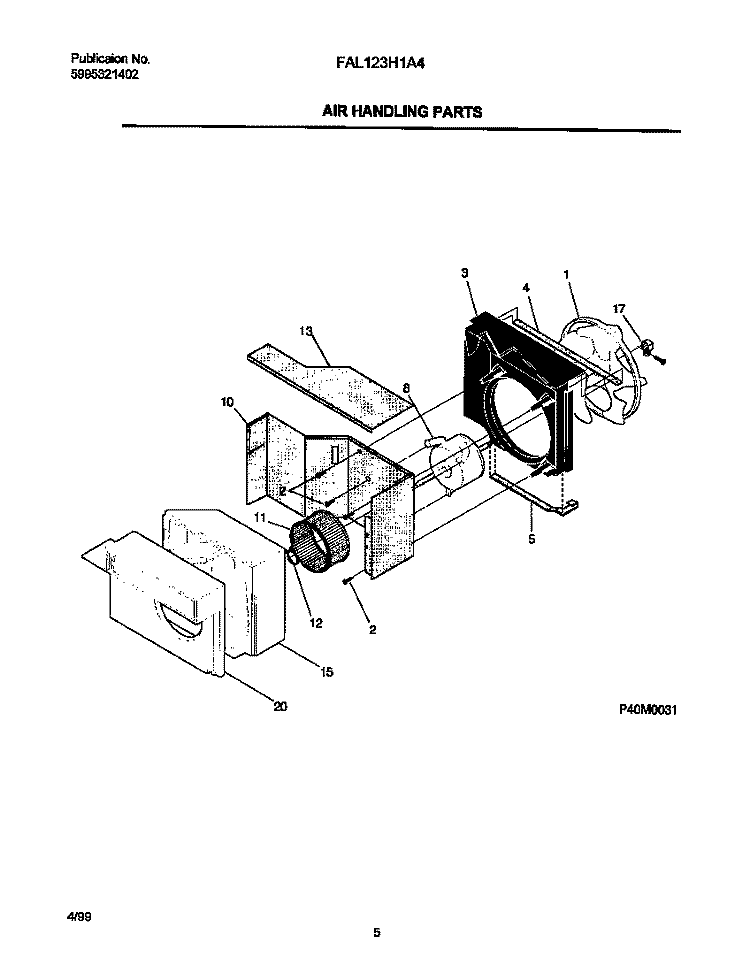

AIR HANDLING PARTS Diagram and Parts List for Frigidaire Air Conditioner
  • 1
    Fan Blade – Part Number: 309651003
    Fan Blade
    Part Number: 309651003
      No Longer Available
  • 2
    SCREW – Part Number: 131202300
    SCREW
    Part Number: 131202300
      In Stock
    $23.05
  • 3
    SHROUD-CONDENSER – Part Number: 5304415254
    SHROUD-CONDENSER
    Part Number: 5304415254
      Special Order
    $60.13
  • 4
    SEAL – Part Number: 3202953
    SEAL
    Part Number: 3202953
      Special Order
    $8.35
  • 5
    SEAL – Part Number: 3202951
    SEAL
    Part Number: 3202951
      Special Order
    $8.35
  • 7
    SCREW – Part Number: 134178901
    SCREW
    Part Number: 134178901
      In Stock
    $23.05
  • 8
    MOTOR-FAN – Part Number: 309630602
    MOTOR-FAN
    Part Number: 309630602
      No Longer Available
  • 10
    BULKHEAD – Part Number: 5303316617
    BULKHEAD
    Part Number: 5303316617
      Special Order
    $73.44
  • 11
    BLOWER WHEEL – Part Number: 309608902
    BLOWER WHEEL
    Part Number: 309608902
      In Stock
    $55.03
  • 12
    Clamp-blower – Part Number: 309112101
    Clamp-blower
    Part Number: 309112101
      No Longer Available
  • 13
    COVER – Part Number: 309605902
    COVER
    Part Number: 309605902
      Special Order
    $41.15
  • 15
    HOUSING – Part Number: 309605702
    HOUSING
    Part Number: 309605702
      Special Order
    $45.82
  • 20
    PLATE – Part Number: 309605802
    PLATE
    Part Number: 309605802
      Special Order
    $47.33
CABINET FRONT / WRAPPER

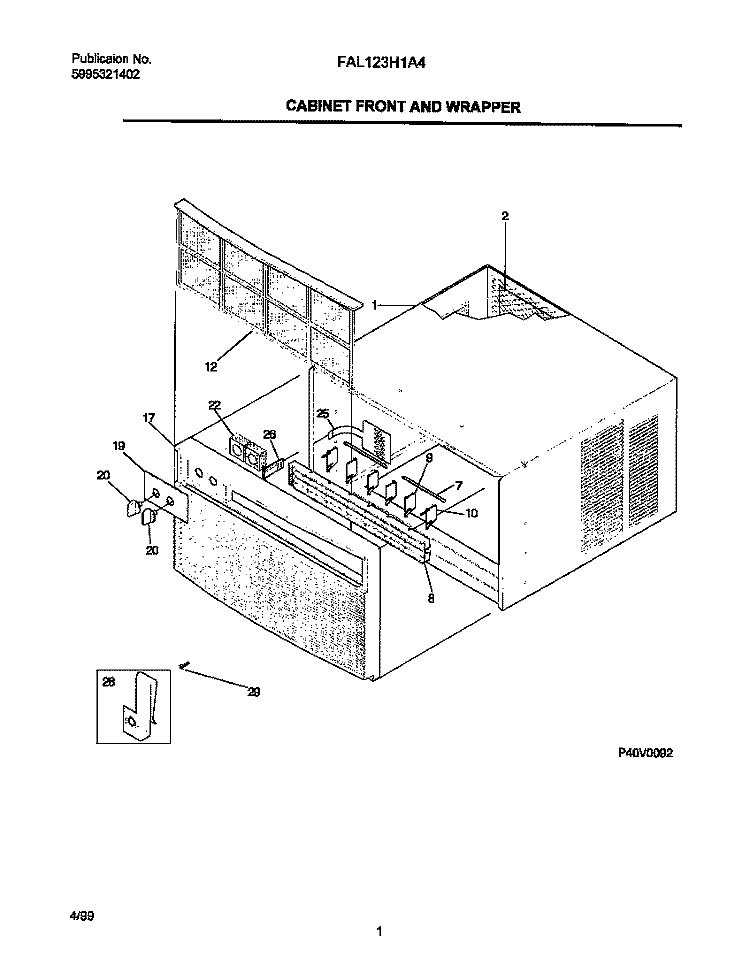

CABINET FRONT / WRAPPER Diagram and Parts List for Frigidaire Air Conditioner
  • 1
    USE WCI 309609212 – Part Number: 309609207
    USE WCI 309609212
    Part Number: 309609207
      Special Order
    $87.95
  • 2
    GRILLE – Part Number: 309632805
    GRILLE
    Part Number: 309632805
      Special Order
    $12.55
  • 7
    LINK – Part Number: 309304101
    LINK
    Part Number: 309304101
      Special Order
    $18.85
  • 8
    USE WCI 309607706 – Part Number: 309607702
    USE WCI 309607706
    Part Number: 309607702
      Special Order
    $10.45
  • 9
    LOUVER – Part Number: 309607801
    LOUVER
    Part Number: 309607801
      Special Order
    $30.85
  • 10
    LOUVER – Part Number: 309607802
    LOUVER
    Part Number: 309607802
      Special Order
    $29.82
  • 12
    FILTER-AIR – Part Number: 309609502
    FILTER-AIR
    Part Number: 309609502
      Special Order
    $59.11
  • 16
    RAIL – Part Number: 5304415076
    RAIL
    Part Number: 5304415076
      Special Order
    $46.30
  • 17
    USE WCI 309609708 – Part Number: 309609701
    USE WCI 309609708
    Part Number: 309609701
      Special Order
    $73.39
  • 19
    DIAL PLATE – Part Number: 309614618
    DIAL PLATE
    Part Number: 309614618
      No Longer Available
  • 20
    KNOB-CONTROL – Part Number: 309307006
    KNOB-CONTROL
    Part Number: 309307006
      No Longer Available
  • 22
    SPACER-DIAL PLATE – Part Number: 5303001775
    SPACER-DIAL PLATE
    Part Number: 5303001775
      No Longer Available
  • 25
    DOOR – Part Number: 309328602
    DOOR
    Part Number: 309328602
      Special Order
    $25.15
  • 26
    HANDLE-VENT DOOR – Part Number: 309328702
    HANDLE-VENT DOOR
    Part Number: 309328702
      Special Order
    $32.91
  • 26
    Vent Detent – Part Number: 309330201
    Vent Detent
    Part Number: 309330201
      Special Order
    $39.09
  • 28
    CLIP – Part Number: 309100401
    CLIP
    Part Number: 309100401
      Special Order
    $26.20
  • 29
    SCREW – Part Number: 131202300
    SCREW
    Part Number: 131202300
      In Stock
    $23.05
COMPRESSOR PARTS

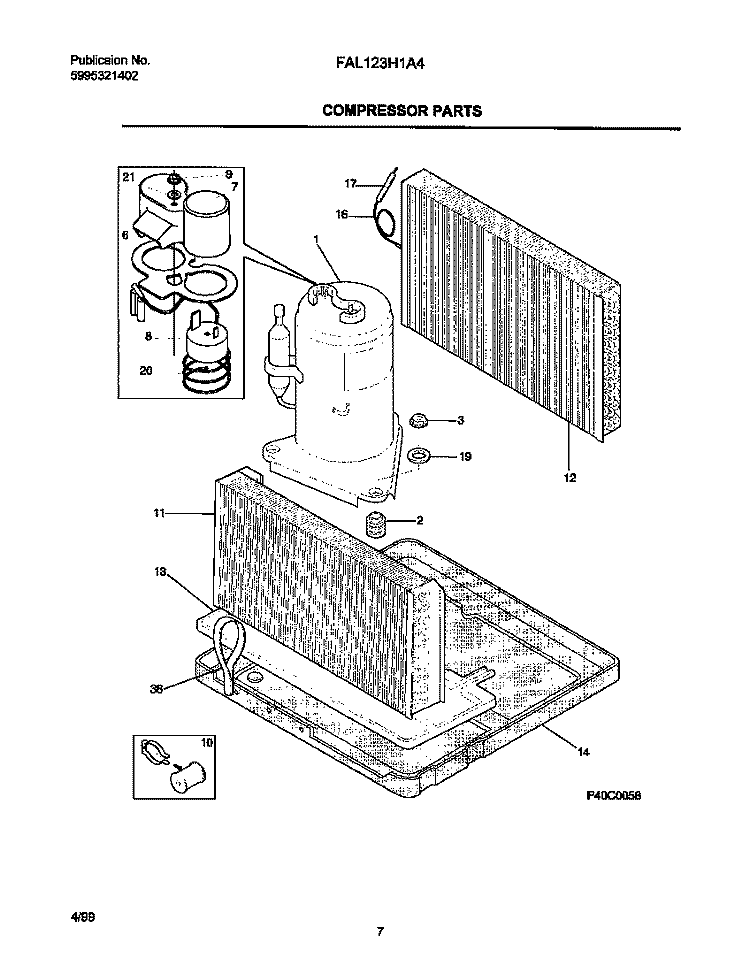

COMPRESSOR PARTS Diagram and Parts List for Frigidaire Air Conditioner
  • 1
    COMPRESSOR ROT(806 – Part Number: 5304414728
    COMPRESSOR ROT(806
    Part Number: 5304414728
      Special Order
    $438.30
  • 2
    Grommet – Part Number: 5303283877
    Grommet
    Part Number: 5303283877
      Special Order
    $31.88
  • 3
    NUT – Part Number: 5308006948
    NUT
    Part Number: 5308006948
      Special Order
    $8.35
  • 6
    GASKET – Part Number: 5303272298
    GASKET
    Part Number: 5303272298
      Special Order
    $44.24
  • 7
    COVER – Part Number: 3206230
    COVER
    Part Number: 3206230
      Special Order
    $64.21
  • 8
    OVERLOAD PROTECTOR – Part Number: 5303016697
    OVERLOAD PROTECTOR
    Part Number: 5303016697
      Special Order
    $76.45
  • 9
    NUT – Part Number: 5303211017
    NUT
    Part Number: 5303211017
      Special Order
    $22.00
  • 10
    START ASSIST KIT – Part Number: 5303317601
    START ASSIST KIT
    Part Number: 5303317601
      Special Order
    $101.58
  • 11
    EVAPORATOR – Part Number: 309606105
    EVAPORATOR
    Part Number: 309606105
      Special Order
    $50.42
  • 12
    CONDENSER – Part Number: 5304407866
    CONDENSER
    Part Number: 5304407866
      No Longer Available
  • 13
    TRAY-EVAPORATOR – Part Number: 309606001
    TRAY-EVAPORATOR
    Part Number: 309606001
      Special Order
    $31.88
  • 14
    BASE – Part Number: 5304415071
    BASE
    Part Number: 5304415071
      No Longer Available
  • 16
    CAPILLARY TUBE – Part Number: 5308017120
    CAPILLARY TUBE
    Part Number: 5308017120
      Special Order
    $59.11
  • 19
    WASHER – Part Number: 309112501
    WASHER
    Part Number: 309112501
      Special Order
    $8.35
  • 36
    STRAP-BASE – Part Number: 5303303936
    STRAP-BASE
    Part Number: 5303303936
      Special Order
    $19.90
CONTROL PARTS

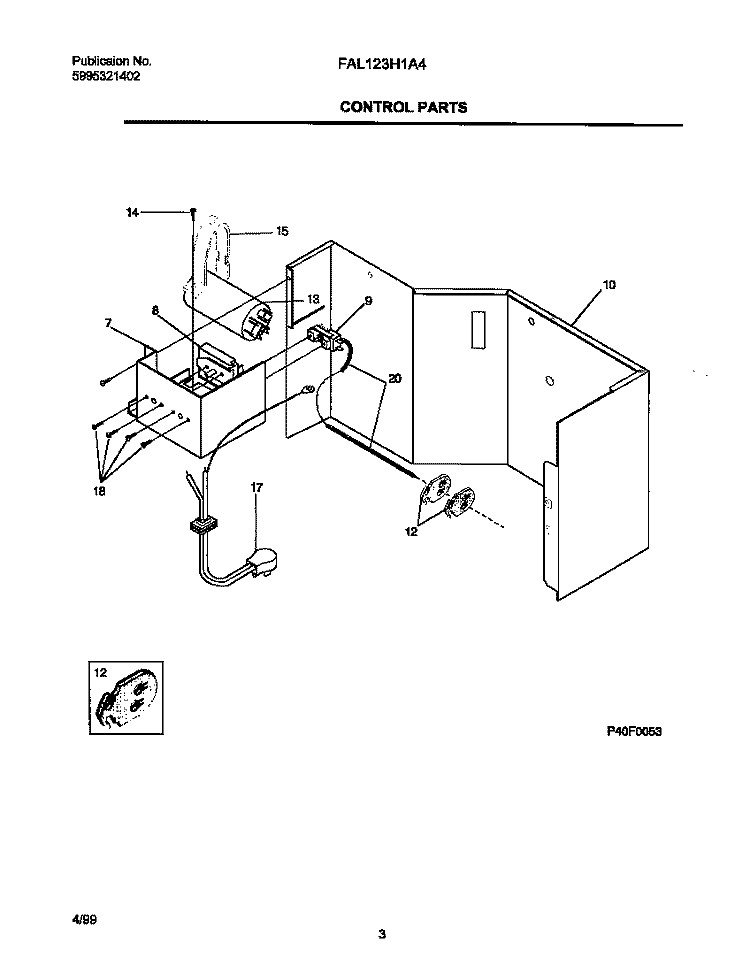

CONTROL PARTS Diagram and Parts List for Frigidaire Air Conditioner
  • 7
    CONTROL BOX – Part Number: 309605603
    CONTROL BOX
    Part Number: 309605603
      Special Order
    $24.10
  • 8
    Selector Switch – Part Number: 5303316598
    Selector Switch
    Part Number: 5303316598
      No Longer Available
  • 9
    CONTROL-TEMPERATURE – Part Number: 5303316597
    CONTROL-TEMPERATURE
    Part Number: 5303316597
      No Longer Available
  • 10
    BULKHEAD – Part Number: 5303316617
    BULKHEAD
    Part Number: 5303316617
      Special Order
    $73.44
  • 12
    CLIP-CONTROL BULB – Part Number: 5303017914
    CLIP-CONTROL BULB
    Part Number: 5303017914
      Special Order
    $9.40
  • 13
    CAPACITOR – Part Number: 5303291523
    CAPACITOR
    Part Number: 5303291523
      Special Order
    $120.92
  • 14
    SCREW – Part Number: 134178901
    SCREW
    Part Number: 134178901
      In Stock
    $23.05
  • 15
    STRAP – Part Number: 5303303708
    STRAP
    Part Number: 5303303708
      Special Order
    $25.15
  • 17
    CORD-ELECTRIC POWER – Part Number: 5303316618
    CORD-ELECTRIC POWER
    Part Number: 5303316618
      Special Order
    $62.77
  • 18
    SCREW – Part Number: 5303007754
    SCREW
    Part Number: 5303007754
      Special Order
    $9.40
  • 20
    SLEEVE – Part Number: 5303002600
    SLEEVE
    Part Number: 5303002600
      No Longer Available
COVER

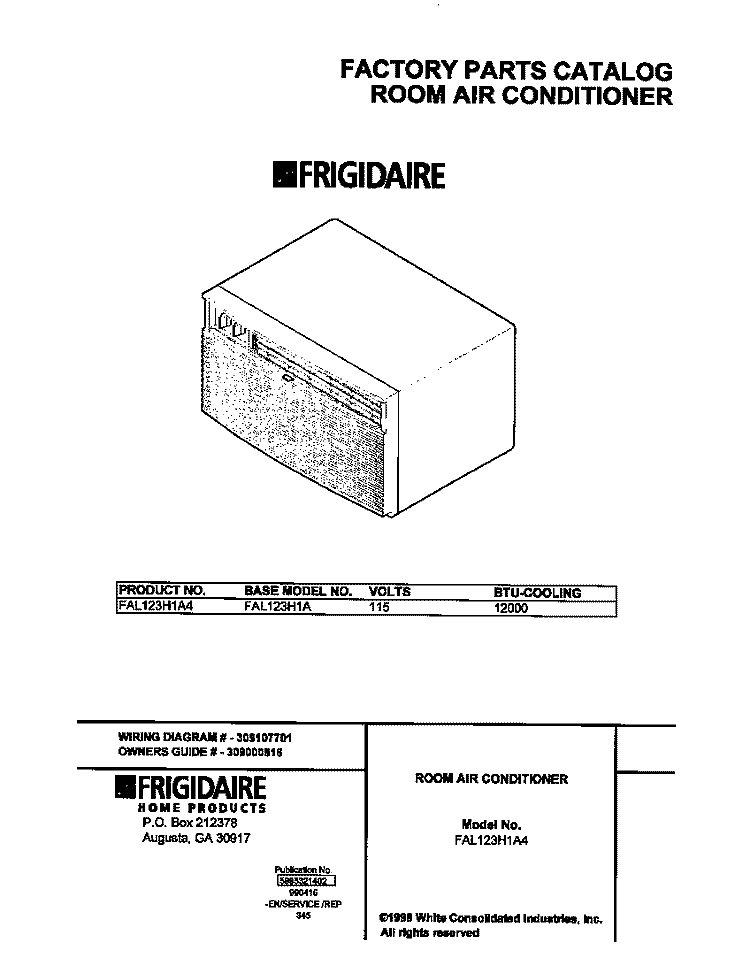

COVER Diagram and Parts List for Frigidaire Air Conditioner
WINDOW MOUNTING PARTS
WINDOW MOUNTING PARTS Diagram and Parts List for Frigidaire Air Conditioner
  • 1
    SEAL – Part Number: 5304407729
    SEAL
    Part Number: 5304407729
      Special Order
    $37.03
  • 2
    BRACKET – Part Number: 5303211056
    BRACKET
    Part Number: 5303211056
      Special Order
    $38.06
  • 3
    SEAL – Part Number: 5303276728
    SEAL
    Part Number: 5303276728
      No Longer Available
  • 4
    Curtain Frame - Left Side – Part Number: 5304426457
    Curtain Frame - Left Side
    Part Number: 5304426457
      Special Order
    $61.15
  • 5
    SEAL – Part Number: 5303207200
    SEAL
    Part Number: 5303207200
      Special Order
    $10.45
  • 6
    RETAINER – Part Number: 5303301250
    RETAINER
    Part Number: 5303301250
      Special Order
    $26.20
  • 7
    SUPPORT – Part Number: 5303301254
    SUPPORT
    Part Number: 5303301254
      Special Order
    $32.91
  • 8
    SUPPORT – Part Number: 3001815
    SUPPORT
    Part Number: 3001815
      Special Order
    $41.15
  • 9
    SCREW – Part Number: 3007756
    SCREW
    Part Number: 3007756
      Special Order
    $13.60
  • 10
    NUT – Part Number: 3007759
    NUT
    Part Number: 3007759
      Special Order
    $8.35
  • 11
    MOUNTING SUPPORT KI – Part Number: 309313204
    MOUNTING SUPPORT KI
    Part Number: 309313204
      Special Order
    $46.27
  • 12
    NUT – Part Number: 316205500
    NUT
    Part Number: 316205500
      In Stock
    $19.90
  • 13
    SCREW – Part Number: 5303281649
    SCREW
    Part Number: 5303281649
      Special Order
    $13.60
  • 14
    EXTENSION – Part Number: 5304426458
    EXTENSION
    Part Number: 5304426458
      Special Order
    $46.30
  • 15
    CLOSURE – Part Number: 5303301247
    CLOSURE
    Part Number: 5303301247
      In Stock
    $50.81
  • 16
    RAIL – Part Number: 5304415076
    RAIL
    Part Number: 5304415076
      Special Order
    $46.30
  • 17
    SCREW-WOOD – Part Number: 3002803
    SCREW-WOOD
    Part Number: 3002803
      Special Order
    $13.60
  • 21
    SEAL – Part Number: 5314949603
    SEAL
    Part Number: 5314949603
      Special Order
    $40.12
  • 24
    SCREW – Part Number: 3002801
    SCREW
    Part Number: 3002801
      Special Order
    $10.45
WIRING DIAGRAM

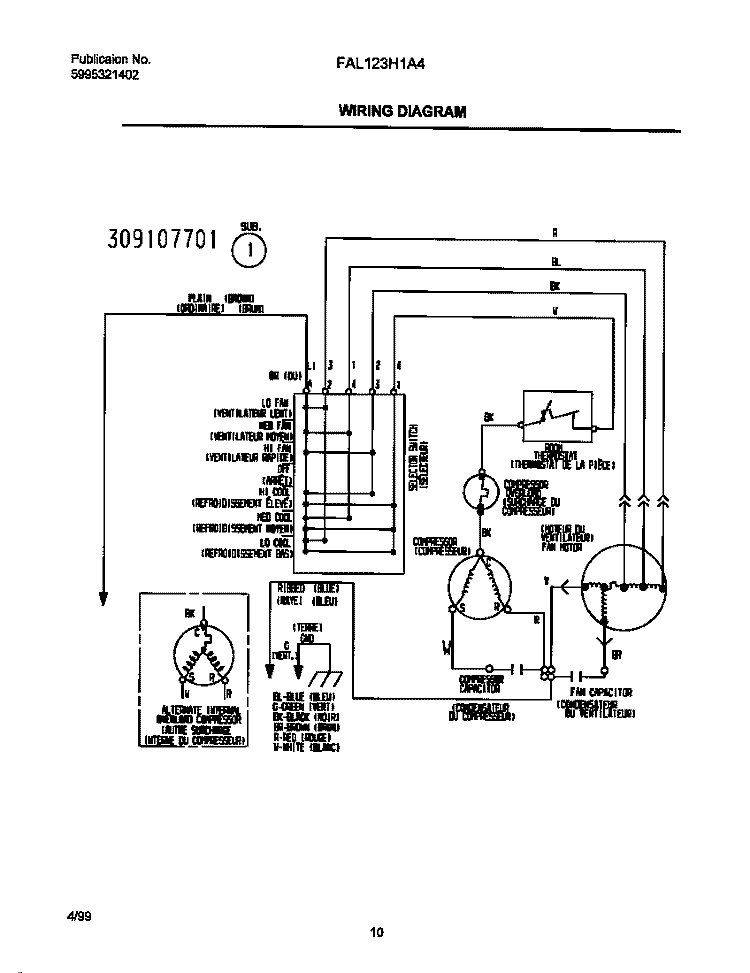

WIRING DIAGRAM Diagram and Parts List for Frigidaire Air Conditioner
