Frigidaire Air Conditioner Replacement Parts For Model FAH096J2T1

We Sell Only Genuine Frigidaire Parts

Popular Parts for FAH096J2T1

SCREW – Part Number: 131202300 SCREW
In Stock
$23.88
Retaining Clip – Part Number: 309329801 Retaining Clip
Special Order
$33.03
LOUVER Assembly – Part Number: 309629304 LOUVER Assembly
Special Order
$79.74
Grommet – Part Number: 5303283877 Grommet
Special Order
$33.03
SCREW – Part Number: 5303211311 SCREW
Special Order
$24.97
NUT – Part Number: 5308006948 NUT
Special Order
$8.65
SEAL-COND/REAR PNL.SIDES – Part Number: 5304409307 SEAL-COND/REAR PNL.SIDES
Special Order
$8.65
CONDENSER – Part Number: 309632503 CONDENSER
Special Order
$55.07

Search Within Model

Questions & Answers for Frigidaire FAH096J2T1
Browse all Parts Search by Area
AIR HANDLING PARTS Diagram and Parts List for Frigidaire Air Conditioner
AIR HANDLING PARTS
COMPRESSOR PARTS Diagram and Parts List for Frigidaire Air Conditioner
COMPRESSOR PARTS
CONTROL PARTS Diagram and Parts List for Frigidaire Air Conditioner
CONTROL PARTS
COVER Diagram and Parts List for Frigidaire Air Conditioner
COVER
MOUNTING PARTS Diagram and Parts List for Frigidaire Air Conditioner
MOUNTING PARTS
WIRING DIAGRAM Diagram and Parts List for Frigidaire Air Conditioner
WIRING DIAGRAM
WRAPPER & FRONT PANEL Diagram and Parts List for Frigidaire Air Conditioner
WRAPPER & FRONT PANEL
Previous Showing All Parts Next

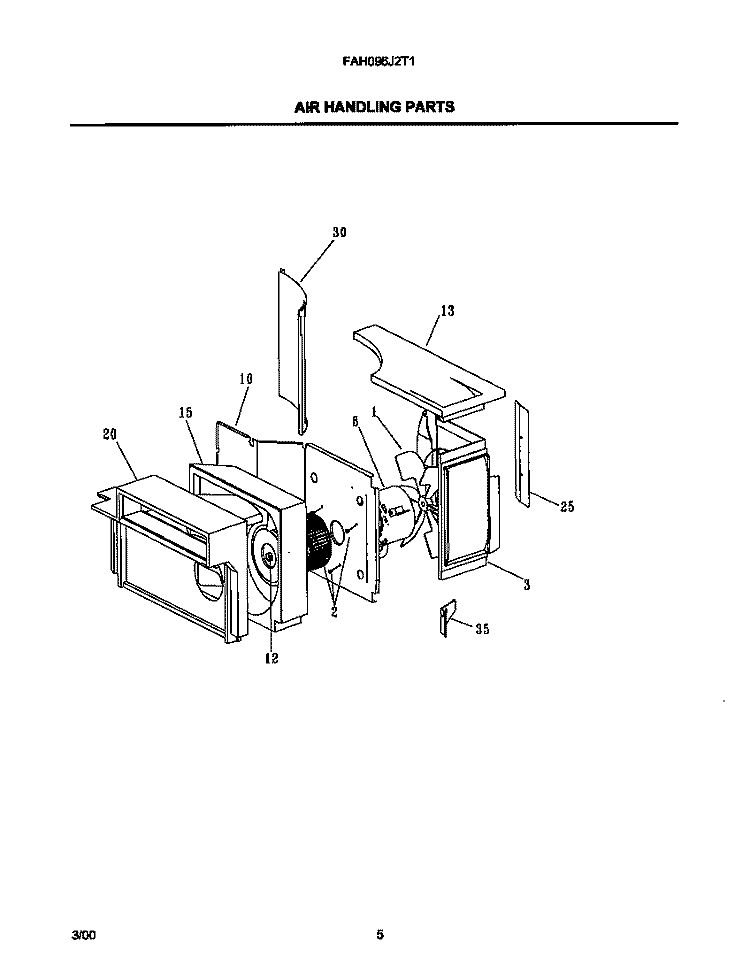

AIR HANDLING PARTS
AIR HANDLING PARTS Diagram and Parts List for Frigidaire Air Conditioner
  • 1
    SPACER – Part Number: 3200761
    SPACER
    Part Number: 3200761
      Special Order
    $15.18
  • 2
    SCREW – Part Number: 131202300
    SCREW
    Part Number: 131202300
      In Stock
    $23.88
  • 3
    SHROUD – Part Number: 309628901
    SHROUD
    Part Number: 309628901
      Special Order
    $78.14
  • 5
    SEAL – Part Number: 3202951
    SEAL
    Part Number: 3202951
      Special Order
    $8.65
  • 8
    Fan Motor - 3 Speed – Part Number: 309647501
    Fan Motor - 3 Speed
    Part Number: 309647501
      No Longer Available
  • 10
    BULKHEAD – Part Number: 309627401
    BULKHEAD
    Part Number: 309627401
      Special Order
    $86.64
  • 11
    BLOWER WHEEL – Part Number: 309631701
    BLOWER WHEEL
    Part Number: 309631701
      No Longer Available
  • 12
    Clamp-blower – Part Number: 309112101
    Clamp-blower
    Part Number: 309112101
      No Longer Available
  • 13
    COVER – Part Number: 309628802
    COVER
    Part Number: 309628802
      Special Order
    $45.83
  • 15
    HOUSING – Part Number: 309622801
    HOUSING
    Part Number: 309622801
      Special Order
    $47.97
  • 20
    SCROLL PLATE – Part Number: 309622901
    SCROLL PLATE
    Part Number: 309622901
      No Longer Available
  • 25
    BAFFLE – Part Number: 309335201
    BAFFLE
    Part Number: 309335201
      Special Order
    $30.89
  • 30
    PARTITION – Part Number: 309629001
    PARTITION
    Part Number: 309629001
      Special Order
    $49.03
  • 35
    BAFFLE – Part Number: 309335001
    BAFFLE
    Part Number: 309335001
      Special Order
    $9.74
COMPRESSOR PARTS
COMPRESSOR PARTS Diagram and Parts List for Frigidaire Air Conditioner
  • 1
    COMPRESSOR – Part Number: 5303285483
    COMPRESSOR
    Part Number: 5303285483
      Special Order
    $525.71
  • 2
    Grommet – Part Number: 5303283877
    Grommet
    Part Number: 5303283877
      Special Order
    $33.03
  • 3
    NUT – Part Number: 5308006948
    NUT
    Part Number: 5308006948
      Special Order
    $8.65
  • 6
    GASKET – Part Number: 5303002035
    GASKET
    Part Number: 5303002035
      No Longer Available
  • 7
    USE WCI 5304440969 – Part Number: 5303211011
    USE WCI 5304440969
    Part Number: 5303211011
      Special Order
    $21.70
  • 8
    OVERLOAD – Part Number: 5304418714
    OVERLOAD
    Part Number: 5304418714
      Special Order
    $57.01
  • 9
    NUT-COVER – Part Number: 5303301734
    NUT-COVER
    Part Number: 5303301734
      Special Order
    $8.65
  • 11
    EVAPORATOR – Part Number: 309632303
    EVAPORATOR
    Part Number: 309632303
      Special Order
    $155.22
  • 12
    CONDENSER – Part Number: 309632503
    CONDENSER
    Part Number: 309632503
      Special Order
    $55.07
  • 13
    TRAY – Part Number: 309628705
    TRAY
    Part Number: 309628705
      Special Order
    $82.28
  • 19
    WASHER – Part Number: 309112501
    WASHER
    Part Number: 309112501
      Special Order
    $8.65
  • 20
    SPRING – Part Number: 5303002036
    SPRING
    Part Number: 5303002036
      Special Order
    $17.35
  • 21
    WASHER – Part Number: 5303295516
    WASHER
    Part Number: 5303295516
      Special Order
    $8.65
CONTROL PARTS
CONTROL PARTS Diagram and Parts List for Frigidaire Air Conditioner
  • *74241
    GROMMET – Part Number: 309111201
    GROMMET
    Part Number: 309111201
      Special Order
    $28.76
  • 7
    CONTROL BOX – Part Number: 309628501
    CONTROL BOX
    Part Number: 309628501
      Special Order
    $31.96
  • 8
    SWITCH – Part Number: 5304408739
    SWITCH
    Part Number: 5304408739
      No Longer Available
  • 9
    Temperature Control Thermostat – Part Number: 5304408746
    Temperature Control Thermostat
    Part Number: 5304408746
      No Longer Available
  • 12
    Retaining Clip – Part Number: 309329801
    Retaining Clip
    Part Number: 309329801
      Special Order
    $33.03
  • 13
    CAPAC-15+6/370 M24P – Part Number: 5304408737
    CAPAC-15+6/370 M24P
    Part Number: 5304408737
      Special Order
    $99.34
  • 14
    SCREW – Part Number: 5303211311
    SCREW
    Part Number: 5303211311
      Special Order
    $24.97
  • 15
    STRAP – Part Number: 5303303708
    STRAP
    Part Number: 5303303708
      Special Order
    $26.05
  • 17
    CORD-ELECTRIC POWER – Part Number: 309343109
    CORD-ELECTRIC POWER
    Part Number: 309343109
      No Longer Available
  • 18
    SCREW – Part Number: 5303007754
    SCREW
    Part Number: 5303007754
      Special Order
    $9.74
  • 35
    SPACER – Part Number: 3200761
    SPACER
    Part Number: 3200761
      Special Order
    $15.18

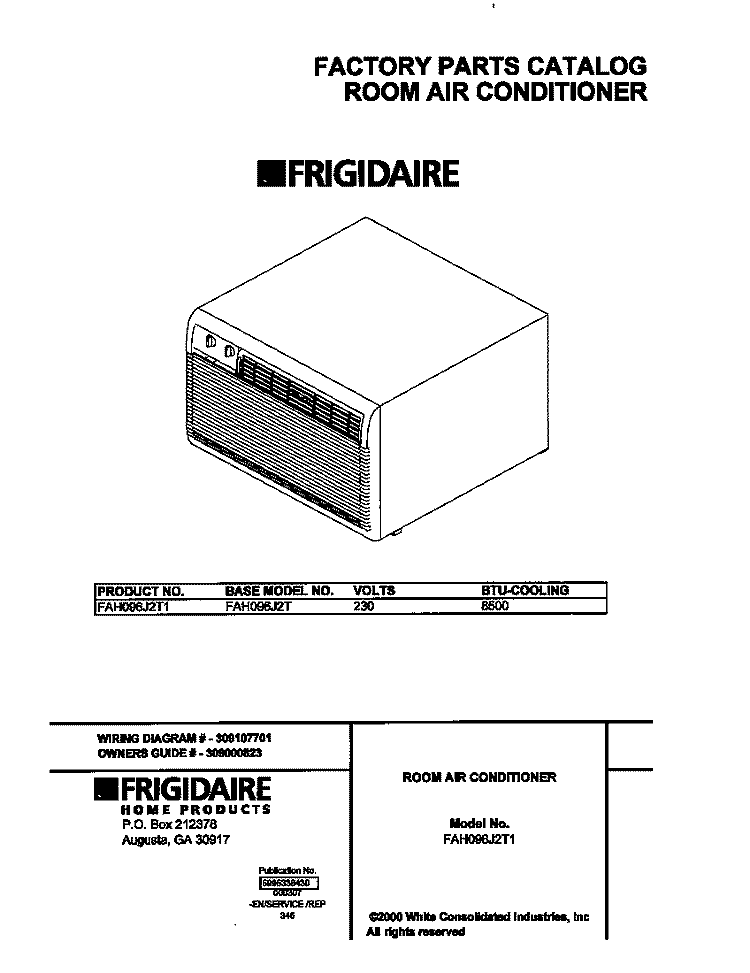

COVER
COVER Diagram and Parts List for Frigidaire Air Conditioner
MOUNTING PARTS
MOUNTING PARTS Diagram and Parts List for Frigidaire Air Conditioner

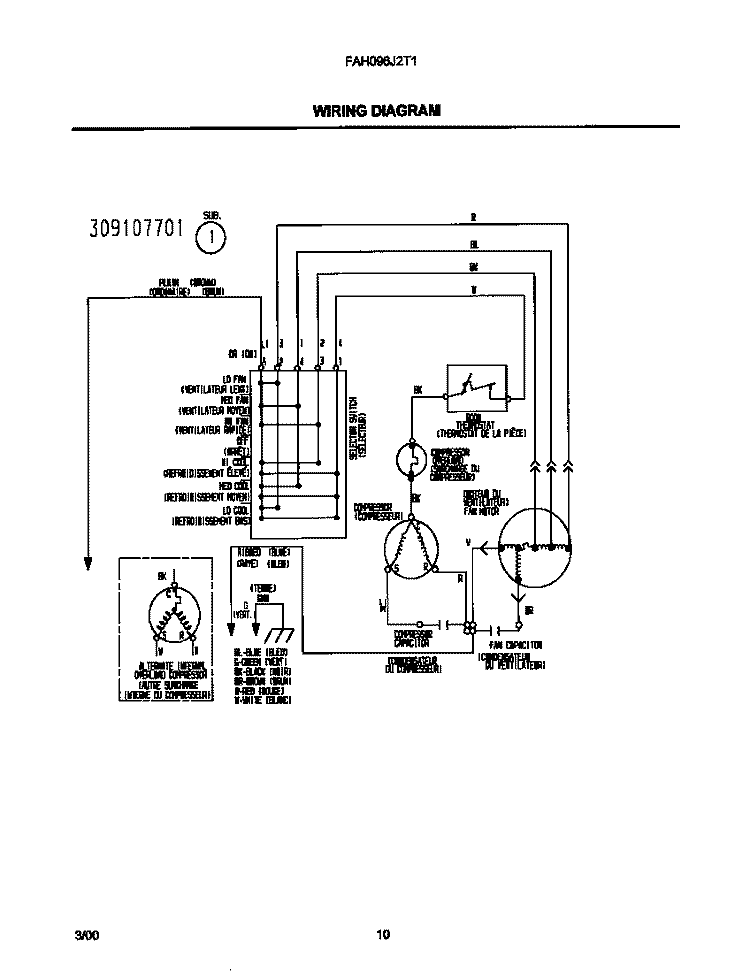

WIRING DIAGRAM
WIRING DIAGRAM Diagram and Parts List for Frigidaire Air Conditioner
WRAPPER & FRONT PANEL
WRAPPER & FRONT PANEL Diagram and Parts List for Frigidaire Air Conditioner
  • *74240
    PANEL – Part Number: 5304408740
    PANEL
    Part Number: 5304408740
      Special Order
    $51.41
  • 1
    CABINET – Part Number: 309627504
    CABINET
    Part Number: 309627504
      Special Order
    $115.57
  • 2
    SCREEN – Part Number: 309636101
    SCREEN
    Part Number: 309636101
      Special Order
    $54.90
  • 7
    LINK – Part Number: 309324004
    LINK
    Part Number: 309324004
      Special Order
    $34.09
  • 8
    LOUVER Assembly – Part Number: 309629304
    LOUVER Assembly
    Part Number: 309629304
      Special Order
    $79.74
  • 9
    Vertical Louver – Part Number: 309628104
    Vertical Louver
    Part Number: 309628104
      No Longer Available
  • 12
    Molded Plastic Air Filter – Part Number: 309628204
    Molded Plastic Air Filter
    Part Number: 309628204
      No Longer Available
  • 17
    FRONT Assembly – Part Number: 309629405
    FRONT Assembly
    Part Number: 309629405
      Special Order
    $77.09
  • 20
    Control Knob – Part Number: 309307012
    Control Knob
    Part Number: 309307012
      No Longer Available
  • 43
    FRAME Assembly – Part Number: 309631805
    FRAME Assembly
    Part Number: 309631805
      Special Order
    $82.30
  • 73
    LOUVER Assembly – Part Number: 309629304
    LOUVER Assembly
    Part Number: 309629304
      Special Order
    $79.74
