Frigidaire Air Conditioner Replacement Parts For Model FAL125K1A5

We Sell Only Genuine Frigidaire Parts

Popular Parts for FAL125K1A5

BRACKET – Part Number: 5303211056 BRACKET
Special Order
$38.06
SCREW – Part Number: 134178901 SCREW
In Stock
$23.05
Vertical Louver – Part Number: 309342001 Vertical Louver
In Stock
$11.50
SCREW – Part Number: 131202300 SCREW
In Stock
$23.05
DOOR – Part Number: 309328602 DOOR
Special Order
$25.15
HANDLE – Part Number: 309639401 HANDLE
Special Order
$22.00
SCREW, 6 X 3/8 (NON-ILLUSTRATED) – Part Number: 3201861 SCREW, 6 X 3/8 (NON-ILLUSTRATED)
Special Order
$6.25
START ASSIST KIT – Part Number: 5303317601 START ASSIST KIT
Special Order
$101.58

Search Within Model

Questions & Answers for Frigidaire FAL125K1A5
Browse all Parts Search by Area
AIR HANDLING PARTS Diagram and Parts List for Frigidaire Air Conditioner
AIR HANDLING PARTS
CABINET FRONT & WRAPPER Diagram and Parts List for Frigidaire Air Conditioner
CABINET FRONT & WRAPPER
COMPRESSOR PARTS Diagram and Parts List for Frigidaire Air Conditioner
COMPRESSOR PARTS
CONTROLS Diagram and Parts List for Frigidaire Air Conditioner
CONTROLS
COVER Diagram and Parts List for Frigidaire Air Conditioner
COVER
WINDOW MOUNTING PARTS Diagram and Parts List for Frigidaire Air Conditioner
WINDOW MOUNTING PARTS
WIRING DIAGRAM Diagram and Parts List for Frigidaire Air Conditioner
WIRING DIAGRAM
Previous Showing All Parts Next
AIR HANDLING PARTS

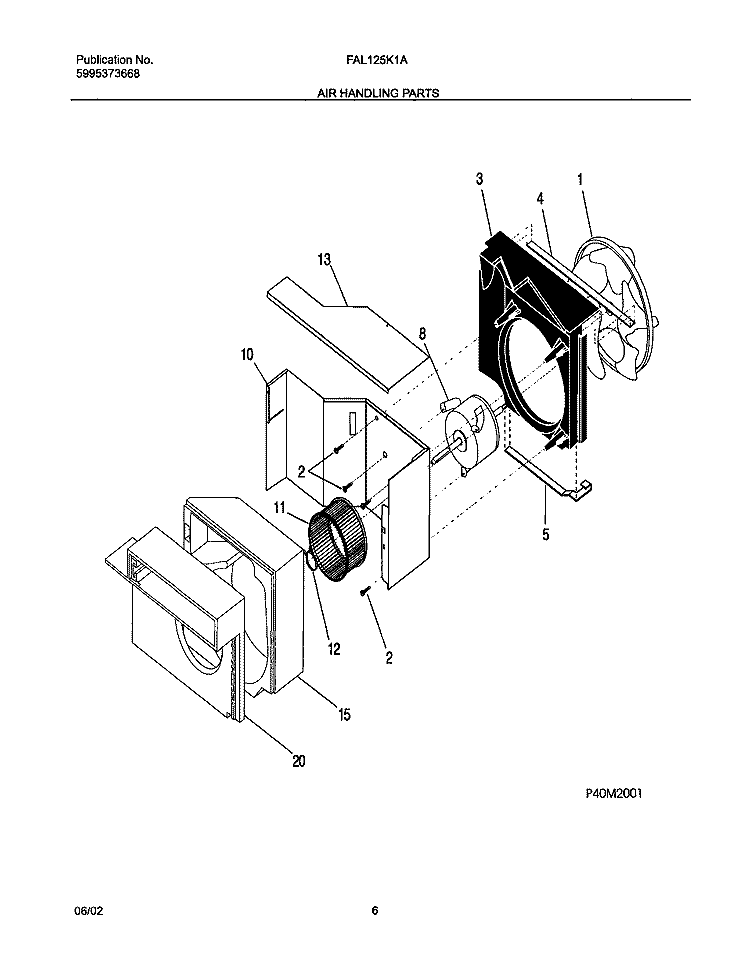

AIR HANDLING PARTS Diagram and Parts List for Frigidaire Air Conditioner
  • 2
    SCREW – Part Number: 131202300
    SCREW
    Part Number: 131202300
      In Stock
    $23.05
  • 3
    SHROUD-CONDENSER – Part Number: 5304415254
    SHROUD-CONDENSER
    Part Number: 5304415254
      Special Order
    $60.13
  • 4
    SEAL – Part Number: 3202953
    SEAL
    Part Number: 3202953
      Special Order
    $8.35
  • 5
    SEAL – Part Number: 3202951
    SEAL
    Part Number: 3202951
      Special Order
    $8.35
  • 10
    BULKHEAD – Part Number: 5303316617
    BULKHEAD
    Part Number: 5303316617
      Special Order
    $73.44
  • 12
    Clamp-blower – Part Number: 309112101
    Clamp-blower
    Part Number: 309112101
      No Longer Available
  • 13
    COVER – Part Number: 309605902
    COVER
    Part Number: 309605902
      Special Order
    $41.15
  • 15
    HOUSING – Part Number: 309605702
    HOUSING
    Part Number: 309605702
      Special Order
    $45.82
  • 20
    PLATE – Part Number: 309605802
    PLATE
    Part Number: 309605802
      Special Order
    $47.33
  • F1
    Fan Blade – Part Number: 309651003
    Fan Blade
    Part Number: 309651003
      No Longer Available
  • F8
    MOTOR-FAN – Part Number: 309630606
    MOTOR-FAN
    Part Number: 309630606
      Special Order
    $147.95
  • F11
    BLOWER WHEEL – Part Number: 309608902
    BLOWER WHEEL
    Part Number: 309608902
      In Stock
    $55.03
  • NI
    Clamp-blower – Part Number: 309112101
    Clamp-blower
    Part Number: 309112101
      No Longer Available
CABINET FRONT & WRAPPER

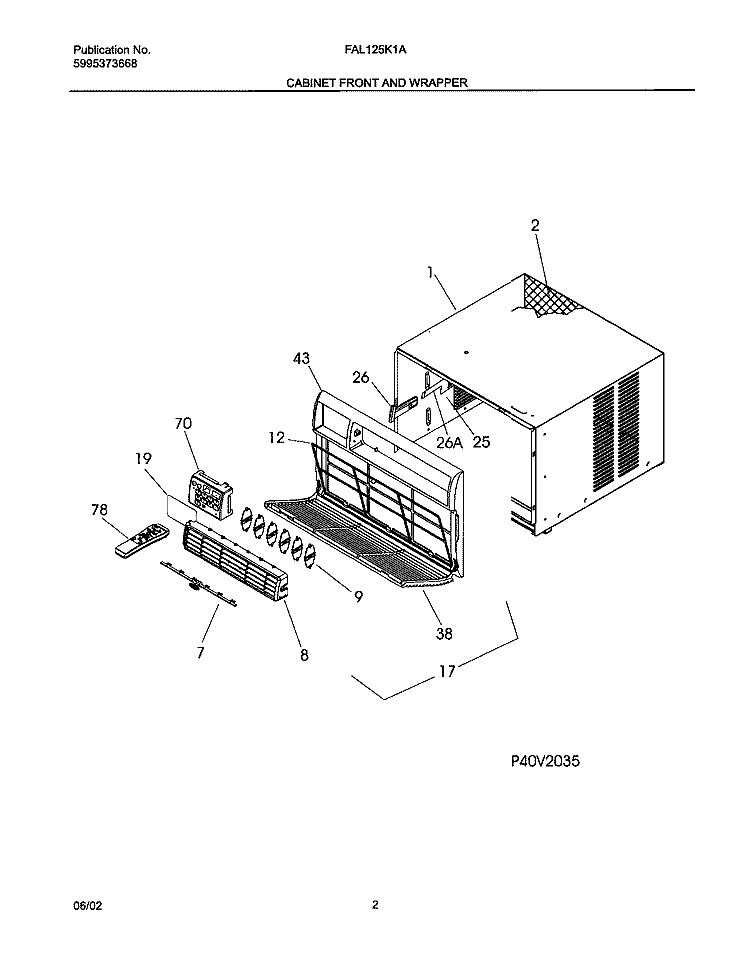

CABINET FRONT & WRAPPER Diagram and Parts List for Frigidaire Air Conditioner
  • 1
    SLEEVE-SEAL ASSEMBLY DOMESTIC – Part Number: 309609212
    SLEEVE-SEAL ASSEMBLY DOMESTIC
    Part Number: 309609212
      Special Order
    $115.95
  • 2
    GRILLE – Part Number: 309632805
    GRILLE
    Part Number: 309632805
      Special Order
    $12.55
  • 7
    LINK – Part Number: 309638601
    LINK
    Part Number: 309638601
      Special Order
    $31.88
  • 8
    LOUVER – Part Number: 309639701
    LOUVER
    Part Number: 309639701
      Special Order
    $47.33
  • 8
    LOUVER Assembly – Part Number: 309640402
    LOUVER Assembly
    Part Number: 309640402
      Special Order
    $26.20
  • 9
    Vertical Louver – Part Number: 309342001
    Vertical Louver
    Part Number: 309342001
      In Stock
    $11.50
  • 12
    FILTER – Part Number: 5304464983
    FILTER
    Part Number: 5304464983
      No Longer Available
  • 17
    FRONT ASSEMBLY – Part Number: 309640302
    FRONT ASSEMBLY
    Part Number: 309640302
      No Longer Available
  • 19
    OVERLAY – Part Number: 309340902
    OVERLAY
    Part Number: 309340902
      Special Order
    $26.20
  • 25
    DOOR – Part Number: 309328602
    DOOR
    Part Number: 309328602
      Special Order
    $25.15
  • 26
    HANDLE – Part Number: 309639401
    HANDLE
    Part Number: 309639401
      Special Order
    $22.00
  • 26A
    Vent Detent – Part Number: 309330201
    Vent Detent
    Part Number: 309330201
      Special Order
    $39.09
  • 38
    Front Panel - White – Part Number: 309639601
    Front Panel - White
    Part Number: 309639601
      No Longer Available
  • 43
    FRAME – Part Number: 309639501
    FRAME
    Part Number: 309639501
      Special Order
    $75.08
  • 70
    ENCLOSURE – Part Number: 309369601
    ENCLOSURE
    Part Number: 309369601
      Special Order
    $24.10
  • 78
    REMOTE CONTROL – Part Number: 309342604
    REMOTE CONTROL
    Part Number: 309342604
      No Longer Available
  • NI
    SEAL-TUBE – Part Number: 5304402119
    SEAL-TUBE
    Part Number: 5304402119
      Special Order
    $8.35
COMPRESSOR PARTS

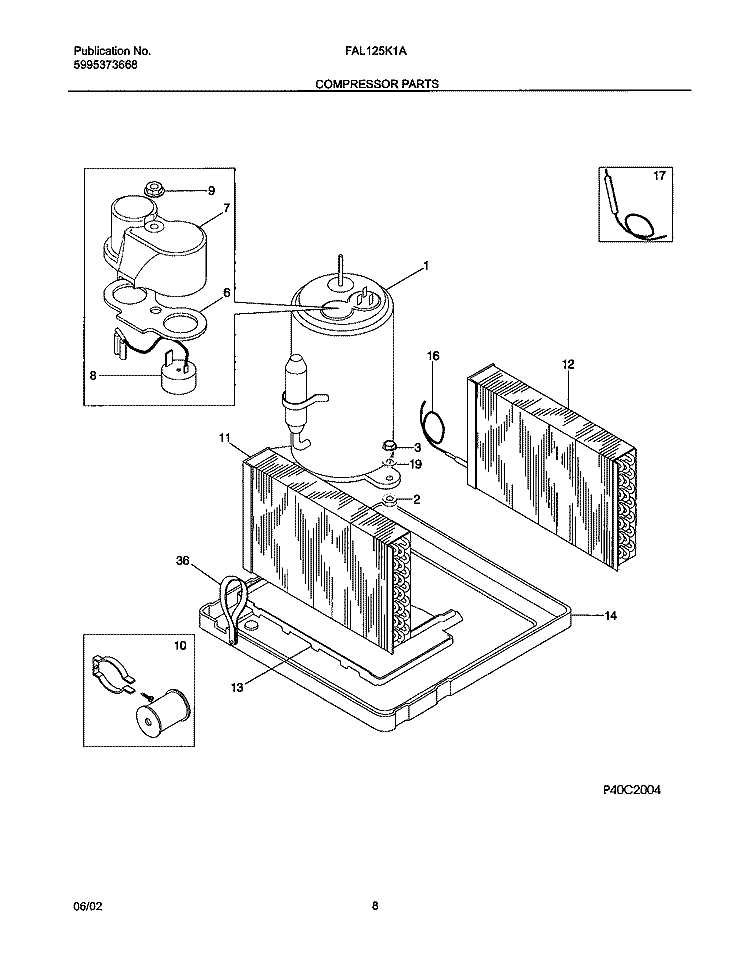

COMPRESSOR PARTS Diagram and Parts List for Frigidaire Air Conditioner
  • 2
    Grommet – Part Number: 5303283877
    Grommet
    Part Number: 5303283877
      Special Order
    $31.88
  • 3
    NUT – Part Number: 5308006948
    NUT
    Part Number: 5308006948
      Special Order
    $8.35
  • 6
    GASKET – Part Number: 5303272298
    GASKET
    Part Number: 5303272298
      Special Order
    $44.24
  • 7
    COVER – Part Number: 3206230
    COVER
    Part Number: 3206230
      Special Order
    $64.21
  • 9
    NUT – Part Number: 5303211017
    NUT
    Part Number: 5303211017
      Special Order
    $22.00
  • 11
    #EVAP Assembly-22SO 3RW – Part Number: 309635501
    #EVAP Assembly-22SO 3RW
    Part Number: 309635501
      Special Order
    $74.10
  • 13
    TRAY-EVAPORATOR – Part Number: 309606001
    TRAY-EVAPORATOR
    Part Number: 309606001
      Special Order
    $31.88
  • 14
    BASE – Part Number: 5304415071
    BASE
    Part Number: 5304415071
      No Longer Available
  • 19
    WASHER – Part Number: 309112501
    WASHER
    Part Number: 309112501
      Special Order
    $8.35
  • 36
    STRAP-BASE – Part Number: 5303303936
    STRAP-BASE
    Part Number: 5303303936
      Special Order
    $19.90
  • F1
    COMPRESSOR ROT(806 – Part Number: 5304414728
    COMPRESSOR ROT(806
    Part Number: 5304414728
      Special Order
    $438.30
  • F8
    OVERLOAD PROTECTOR – Part Number: 5303016697
    OVERLOAD PROTECTOR
    Part Number: 5303016697
      Special Order
    $76.45
  • F10
    START ASSIST KIT – Part Number: 5303317601
    START ASSIST KIT
    Part Number: 5303317601
      Special Order
    $101.58
  • F12
    CONDENSER – Part Number: 5304407866
    CONDENSER
    Part Number: 5304407866
      No Longer Available
  • F16
    Capillary Line – Part Number: 3203179
    Capillary Line
    Part Number: 3203179
      Special Order
    $67.27
  • F17
    PROCESS TUBE – Part Number: 5304415036
    PROCESS TUBE
    Part Number: 5304415036
      Special Order
    $59.11
  • NI
    WASHER – Part Number: 309112501
    WASHER
    Part Number: 309112501
      Special Order
    $8.35
  • NI
    STRAINER – Part Number: 5303290357
    STRAINER
    Part Number: 5303290357
      No Longer Available
CONTROLS

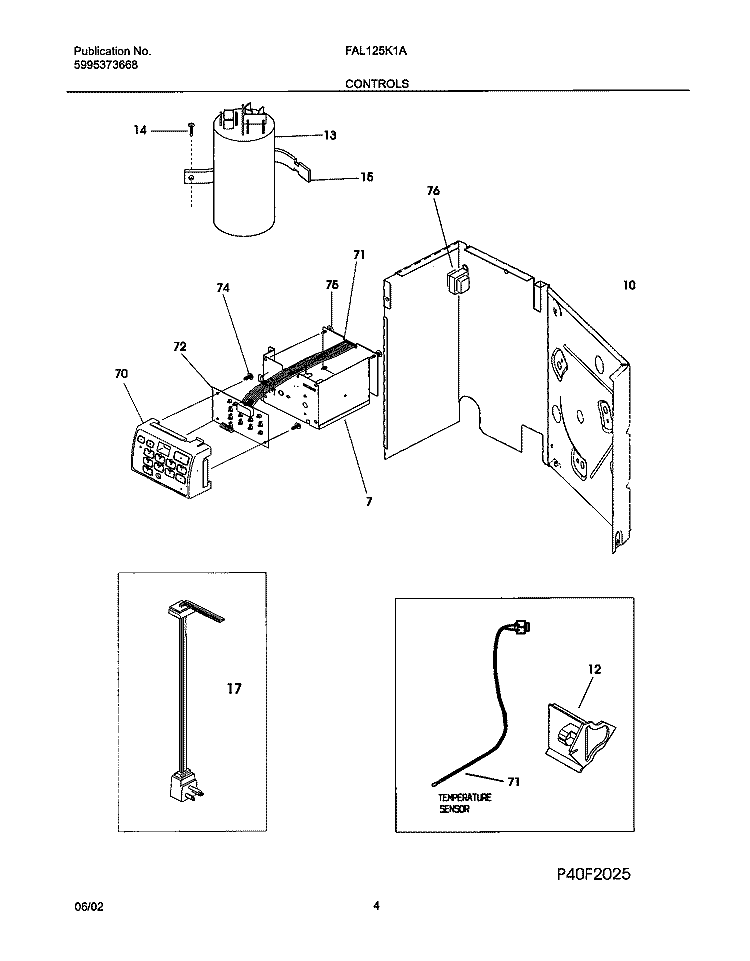

CONTROLS Diagram and Parts List for Frigidaire Air Conditioner
  • 7
    CONTROL BOX – Part Number: 309605605
    CONTROL BOX
    Part Number: 309605605
      Special Order
    $23.05
  • 10
    BULKHEAD – Part Number: 5303316617
    BULKHEAD
    Part Number: 5303316617
      Special Order
    $73.44
  • 12
    HOLDER – Part Number: 08017123
    HOLDER
    Part Number: 08017123
      Special Order
    $14.65
  • 14
    SCREW – Part Number: 5303285199
    SCREW
    Part Number: 5303285199
      Special Order
    $14.65
  • 15
    STRAP – Part Number: 309111901
    STRAP
    Part Number: 309111901
      Special Order
    $8.35
  • 70
    ENCLOSURE – Part Number: 309369601
    ENCLOSURE
    Part Number: 309369601
      Special Order
    $24.10
  • 71
    POWER BOARD – Part Number: 309340503
    POWER BOARD
    Part Number: 309340503
      No Longer Available
  • 72
    KIT-BELOW 15K REPLA – Part Number: 5304417135
    KIT-BELOW 15K REPLA
    Part Number: 5304417135
      Special Order
    $294.20
  • 74
    SCREW, 6 X 3/8 (NON-ILLUSTRATED) – Part Number: 3201861
    SCREW, 6 X 3/8 (NON-ILLUSTRATED)
    Part Number: 3201861
      Special Order
    $6.25
  • 75
    HARDWARE – Part Number: 5304413781
    HARDWARE
    Part Number: 5304413781
      Special Order
    $17.80
  • 76
    TRANSFORMER – Part Number: 309111601
    TRANSFORMER
    Part Number: 309111601
      Special Order
    $20.95
  • F13
    CAPACITOR – Part Number: 5304414729
    CAPACITOR
    Part Number: 5304414729
      Special Order
    $118.95
  • F17
    Power Cord – Part Number: 309343129
    Power Cord
    Part Number: 309343129
      Special Order
    $55.03
  • NI
    PROTECTOR – Part Number: 5304415017
    PROTECTOR
    Part Number: 5304415017
      Special Order
    $9.40
  • NI
    GROMMET – Part Number: 309111201
    GROMMET
    Part Number: 309111201
      Special Order
    $27.76
  • NI
    SCREW – Part Number: 134178901
    SCREW
    Part Number: 134178901
      In Stock
    $23.05
COVER

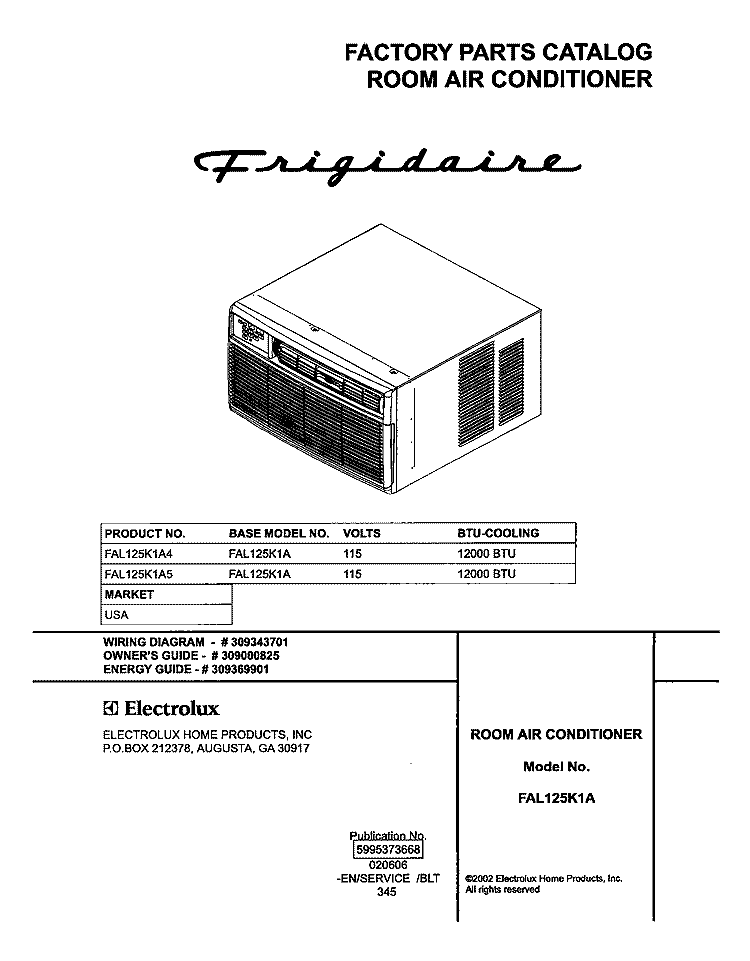

COVER Diagram and Parts List for Frigidaire Air Conditioner
WINDOW MOUNTING PARTS

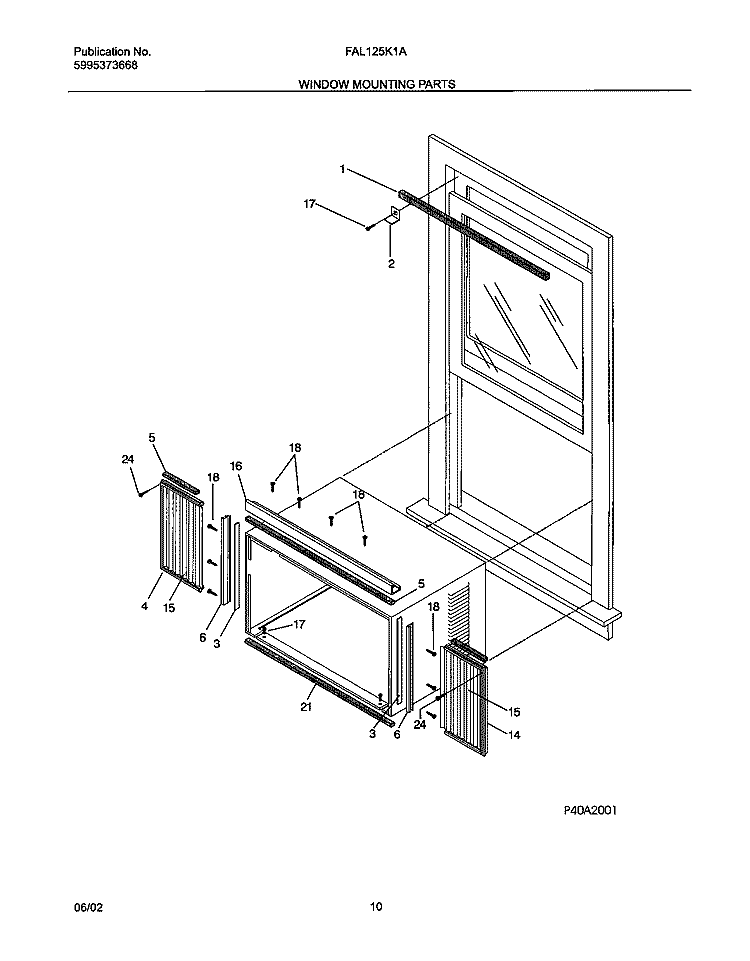

WINDOW MOUNTING PARTS Diagram and Parts List for Frigidaire Air Conditioner
  • 1
    SEAL – Part Number: 5304407729
    SEAL
    Part Number: 5304407729
      Special Order
    $37.03
  • 2
    BRACKET – Part Number: 5303211056
    BRACKET
    Part Number: 5303211056
      Special Order
    $38.06
  • 3
    SEAL – Part Number: 5303276728
    SEAL
    Part Number: 5303276728
      No Longer Available
  • 4
    Curtain Frame - Left Side – Part Number: 5304426457
    Curtain Frame - Left Side
    Part Number: 5304426457
      Special Order
    $61.15
  • 5
    SEAL – Part Number: 5303207200
    SEAL
    Part Number: 5303207200
      Special Order
    $10.45
  • 6
    RETAINER – Part Number: 5304415075
    RETAINER
    Part Number: 5304415075
      Special Order
    $48.36
  • 14
    EXTENSION – Part Number: 5304426458
    EXTENSION
    Part Number: 5304426458
      Special Order
    $46.30
  • 15
    EXTENSION – Part Number: 5304427427
    EXTENSION
    Part Number: 5304427427
      No Longer Available
  • 16
    RAIL – Part Number: 5304415076
    RAIL
    Part Number: 5304415076
      Special Order
    $46.30
  • 17
    SCREW-WOOD – Part Number: 3002803
    SCREW-WOOD
    Part Number: 3002803
      Special Order
    $13.60
  • 18
    SCREW – Part Number: 5303211311
    SCREW
    Part Number: 5303211311
      Special Order
    $24.10
  • 21
    SEAL – Part Number: 5314949603
    SEAL
    Part Number: 5314949603
      Special Order
    $40.12
  • 24
    SCREW – Part Number: 5308002974
    SCREW
    Part Number: 5308002974
      Special Order
    $8.35
  • NI
    NUT – Part Number: 5303301572
    NUT
    Part Number: 5303301572
      Special Order
    $8.35
  • NI
    MOUNTING SUPPORT KI – Part Number: 309313205
    MOUNTING SUPPORT KI
    Part Number: 309313205
      Special Order
    $38.06
  • NI
    Window Mounting Kit – Part Number: 309313304
    Window Mounting Kit
    Part Number: 309313304
      Special Order
    $107.27
  • NI
    HARDWARE KIT – Part Number: 5304426447
    HARDWARE KIT
    Part Number: 5304426447
      Special Order
    $32.91
WIRING DIAGRAM

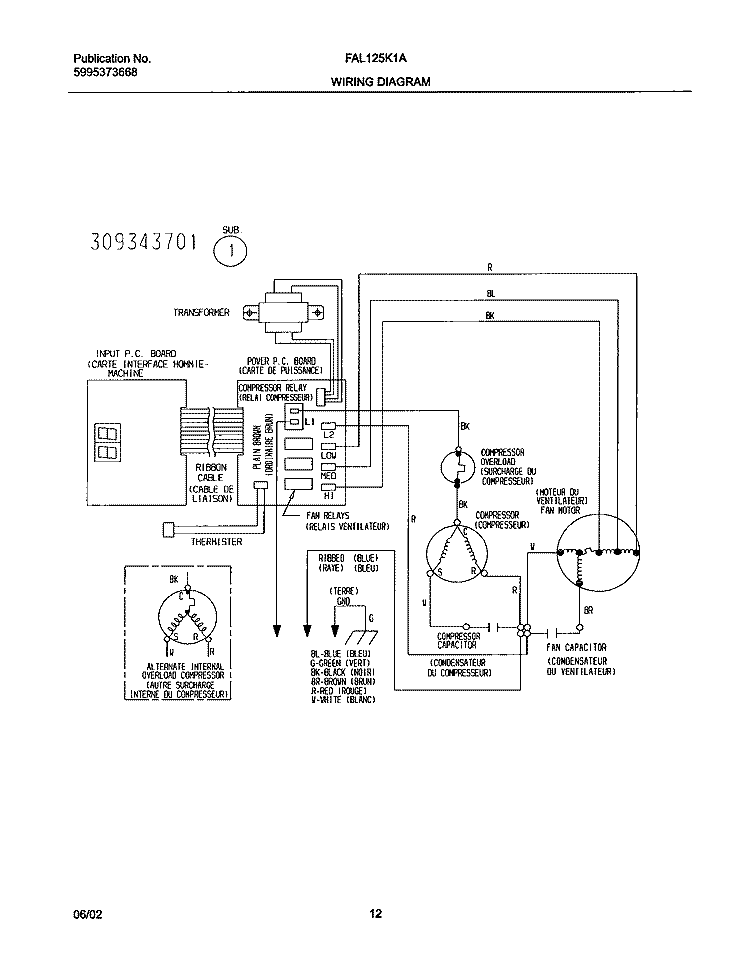

WIRING DIAGRAM Diagram and Parts List for Frigidaire Air Conditioner

Questions & Answers

?

Our customer Service team is at the ready daily to answer your part and product questions.

Be the first to ask our experts a question about this part!

Ask our Team

We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.

✖

Our customer service team are at the ready daily to answer your part and product questions. We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.
