Frigidaire Room Air Conditioner Replacement Parts For Model FAC063S7A1

We Sell Only Genuine Frigidaire Parts

Popular Parts for FAC063S7A1

BRACKET – Part Number: 5303211056 BRACKET
Special Order
$38.06
RETAINER – Part Number: 5303303795 RETAINER
Special Order
$31.88
SCREW – Part Number: 131202300 SCREW
In Stock
$23.05
SCREW – Part Number: 5304455651 SCREW
Special Order
$23.05
Fan Blade Clamp – Part Number: 5308011040 Fan Blade Clamp
Special Order
$26.73
Grommet – Part Number: 5303283877 Grommet
Special Order
$31.88
SEAL – Part Number: 5304407729 SEAL
Special Order
$37.03
DRIER-FILTER – Part Number: 5300265301 DRIER-FILTER
Special Order
$176.95

Search Within Model

Questions & Answers for Frigidaire FAC063S7A1
Browse all Parts Search by Area
AIR HANDLING PARTS Diagram and Parts List for Frigidaire Air Conditioner
AIR HANDLING PARTS
CABINET PARTS Diagram and Parts List for Frigidaire Air Conditioner
CABINET PARTS
ELECTRICAL PARTS Diagram and Parts List for Frigidaire Air Conditioner
ELECTRICAL PARTS
SYSTEM PARTS Diagram and Parts List for Frigidaire Air Conditioner
SYSTEM PARTS
Previous Showing All Parts Next

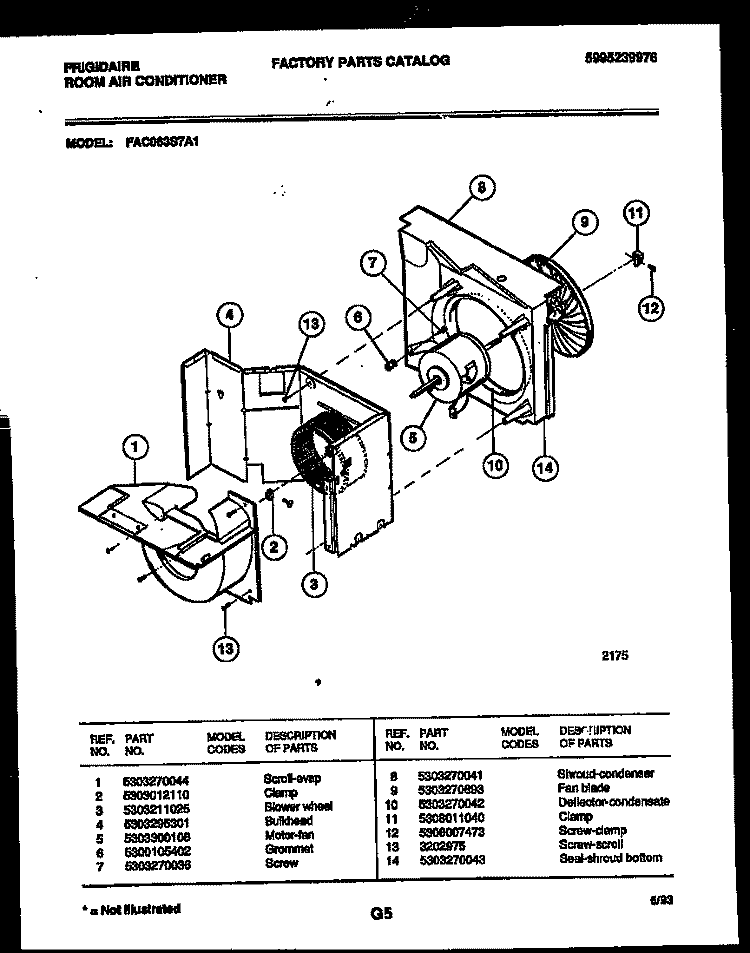

AIR HANDLING PARTS
AIR HANDLING PARTS Diagram and Parts List for Frigidaire Air Conditioner
  • 1
    SCROLL – Part Number: 5303270044
    SCROLL
    Part Number: 5303270044
      No Longer Available
  • 2
    Clamp-blower – Part Number: 309112101
    Clamp-blower
    Part Number: 309112101
      No Longer Available
  • 3
    BLOWER WHEEL – Part Number: 5303211025
    BLOWER WHEEL
    Part Number: 5303211025
      Special Order
    $15.70
  • 4
    PARTITION-CONTROL A – Part Number: 5303295301
    PARTITION-CONTROL A
    Part Number: 5303295301
      No Longer Available
  • 5
    MOTOR-FAN – Part Number: 5303300106
    MOTOR-FAN
    Part Number: 5303300106
      Special Order
    $184.54
  • 6
    GROMMET – Part Number: 5300105402
    GROMMET
    Part Number: 5300105402
      Special Order
    $9.40
  • 7
    SCREW MOTOR – Part Number: 5303270036
    SCREW MOTOR
    Part Number: 5303270036
      Special Order
    $9.40
  • 8
    SHROUD-CONDENSER – Part Number: 5303302437
    SHROUD-CONDENSER
    Part Number: 5303302437
      Special Order
    $77.44
  • 9
    FAN BLADE – Part Number: 5303270893
    FAN BLADE
    Part Number: 5303270893
      No Longer Available
  • 10
    DEFLECTOR-WATER – Part Number: 5303270042
    DEFLECTOR-WATER
    Part Number: 5303270042
      Special Order
    $20.95
  • 11
    Fan Blade Clamp – Part Number: 5308011040
    Fan Blade Clamp
    Part Number: 5308011040
      Special Order
    $26.73
  • 12
    SCREW – Part Number: 5304455651
    SCREW
    Part Number: 5304455651
      Special Order
    $23.05
  • 13
    SCREW – Part Number: 131202300
    SCREW
    Part Number: 131202300
      In Stock
    $23.05
  • 14
    SEAL – Part Number: 5303270043
    SEAL
    Part Number: 5303270043
      Special Order
    $8.35

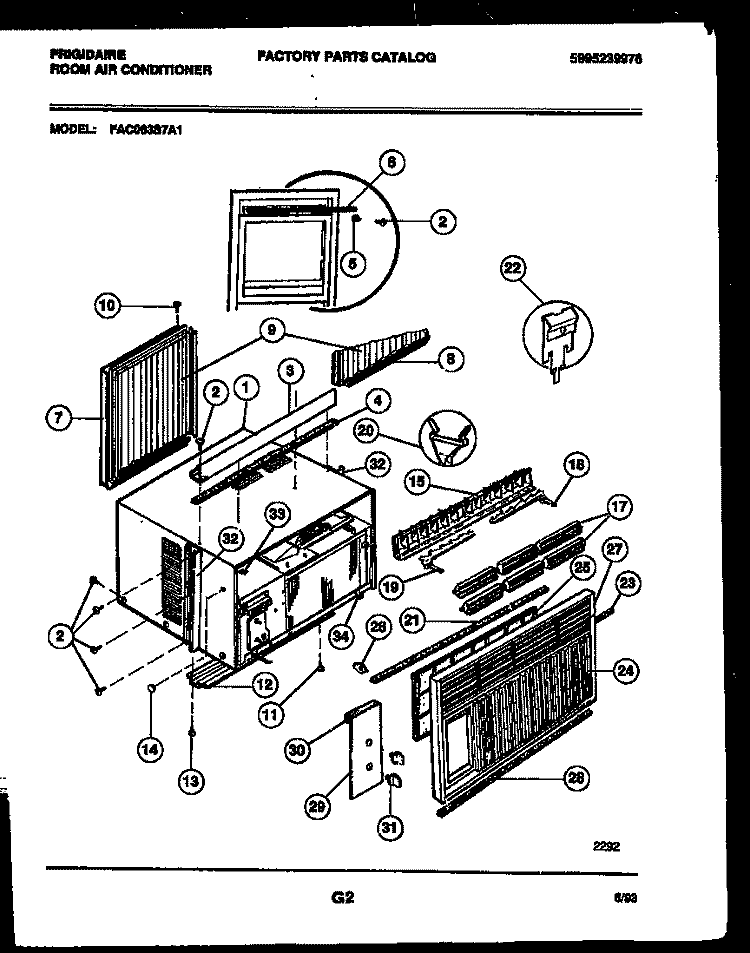

CABINET PARTS
CABINET PARTS Diagram and Parts List for Frigidaire Air Conditioner
  • 1
    WRAPPER – Part Number: 5303270060
    WRAPPER
    Part Number: 5303270060
      No Longer Available
  • 2
    SCREW – Part Number: 5303211311
    SCREW
    Part Number: 5303211311
      Special Order
    $24.10
  • 3
    RAIL TOP – Part Number: 5303270064
    RAIL TOP
    Part Number: 5303270064
      No Longer Available
  • 4
    SEAL – Part Number: 08016226
    SEAL
    Part Number: 08016226
      Special Order
    $29.82
  • 5
    BRACKET – Part Number: 5303211056
    BRACKET
    Part Number: 5303211056
      Special Order
    $38.06
  • 6
    SEAL – Part Number: 5304407729
    SEAL
    Part Number: 5304407729
      Special Order
    $37.03
  • 7
    USE WCI 5303925311 – Part Number: 5303270061
    USE WCI 5303925311
    Part Number: 5303270061
      Special Order
    $56.05
  • 8
    USE WCI 5303925311 – Part Number: 5303270062
    USE WCI 5303925311
    Part Number: 5303270062
      Special Order
    $47.71
  • 9
    USE WCI 5303925291 – Part Number: 5303270075
    USE WCI 5303925291
    Part Number: 5303270075
      Special Order
    $8.35
  • 10
    SCREW – Part Number: 5308002974
    SCREW
    Part Number: 5308002974
      Special Order
    $8.35
  • 11
    SCREW-LEVELING – Part Number: 08016080
    SCREW-LEVELING
    Part Number: 08016080
      Special Order
    $8.35
  • 12
    RAIL-BOTTOM – Part Number: 5303270072
    RAIL-BOTTOM
    Part Number: 5303270072
      No Longer Available
  • 13
    SCREW – Part Number: 3001806
    SCREW
    Part Number: 3001806
      Special Order
    $8.35
  • 14
    SCREW – Part Number: 5303271346
    SCREW
    Part Number: 5303271346
      Special Order
    $8.35
  • 15
    LOUVERS W/LINK – Part Number: 5303002457
    LOUVERS W/LINK
    Part Number: 5303002457
      Special Order
    $46.30
  • 17
    LOUVER – Part Number: 5303300112
    LOUVER
    Part Number: 5303300112
      No Longer Available
  • 18
    LINK-LOUVERS – Part Number: 5303293758
    LINK-LOUVERS
    Part Number: 5303293758
      No Longer Available
  • 19
    LINK-LH – Part Number: 5303293759
    LINK-LH
    Part Number: 5303293759
      No Longer Available
  • 20
    CLIP – Part Number: 5303001844
    CLIP
    Part Number: 5303001844
      Special Order
    $8.35
  • 21
    SEAL-TOP – Part Number: 3017398
    SEAL-TOP
    Part Number: 3017398
      No Longer Available
  • 22
    CLIP (2) – Part Number: 3201472
    CLIP (2)
    Part Number: 3201472
      No Longer Available
  • 23
    SEAL-MULLION – Part Number: 3017137
    SEAL-MULLION
    Part Number: 3017137
      No Longer Available
  • 24
    FRONT COMPLETE – Part Number: 5303300110
    FRONT COMPLETE
    Part Number: 5303300110
      No Longer Available
  • 25
    USE WCI 5303320285 – Part Number: 08009018
    USE WCI 5303320285
    Part Number: 08009018
      No Longer Available
  • 26
    CLIP-FILTER – Part Number: 3203495
    CLIP-FILTER
    Part Number: 3203495
      Special Order
    $18.85
  • 27
    SEAL OTHER – Part Number: 5303280313
    SEAL OTHER
    Part Number: 5303280313
      No Longer Available
  • 28
    SEAL – Part Number: 5303280312
    SEAL
    Part Number: 5303280312
      No Longer Available
  • 29
    DIAL PLATE – Part Number: 5303300109
    DIAL PLATE
    Part Number: 5303300109
      Special Order
    $33.94
  • 30
    SEAL-DIAL PLATE – Part Number: 5303001861
    SEAL-DIAL PLATE
    Part Number: 5303001861
      Special Order
    $8.35
  • 31
    KNOB-CONTROL – Part Number: 309306905
    KNOB-CONTROL
    Part Number: 309306905
      No Longer Available
  • 32
    RETAINER – Part Number: 5303303795
    RETAINER
    Part Number: 5303303795
      Special Order
    $31.88
  • 33
    NUT-FRONT LOCK – Part Number: 08010928
    NUT-FRONT LOCK
    Part Number: 08010928
      Special Order
    $8.35
  • 34
    CLIP – Part Number: 5303001784
    CLIP
    Part Number: 5303001784
      Special Order
    $9.40

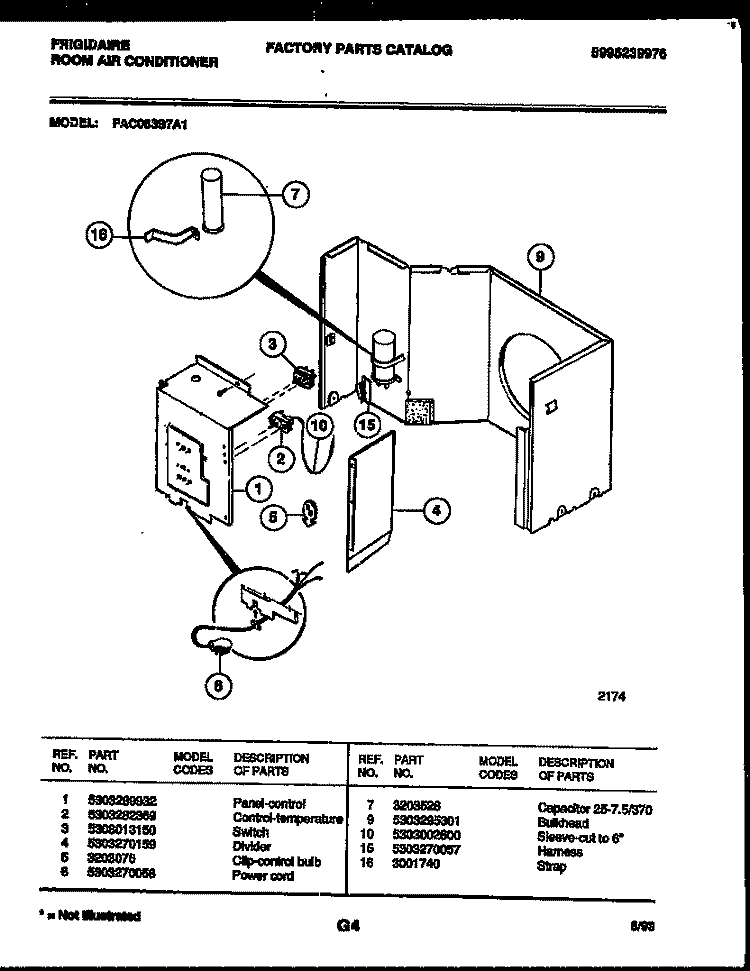

ELECTRICAL PARTS
ELECTRICAL PARTS Diagram and Parts List for Frigidaire Air Conditioner

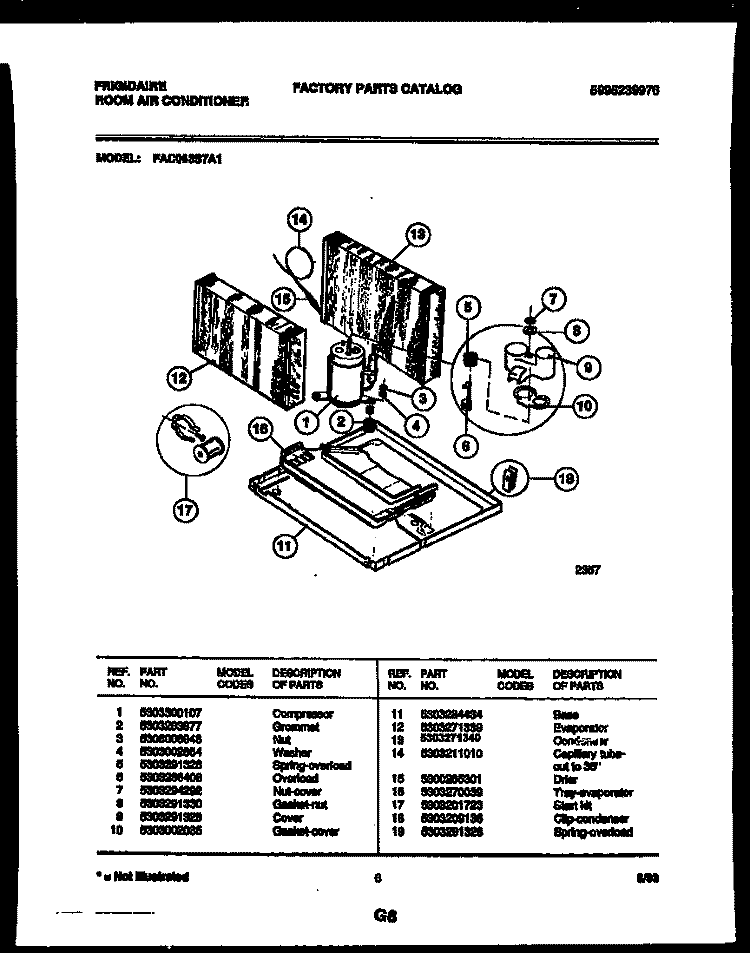

SYSTEM PARTS
SYSTEM PARTS Diagram and Parts List for Frigidaire Air Conditioner
  • 1
    COMPRESSOR – Part Number: 5303300107
    COMPRESSOR
    Part Number: 5303300107
      Special Order
    $311.16
  • 2
    Grommet – Part Number: 5303283877
    Grommet
    Part Number: 5303283877
      Special Order
    $31.88
  • 3
    NUT – Part Number: 5308006948
    NUT
    Part Number: 5308006948
      Special Order
    $8.35
  • 4
    WASHER – Part Number: 309112501
    WASHER
    Part Number: 309112501
      Special Order
    $8.35
  • 5
    SPRING – Part Number: 5303002036
    SPRING
    Part Number: 5303002036
      Special Order
    $16.75
  • 6
    OVERLOAD PROTECTOR – Part Number: 5303286408
    OVERLOAD PROTECTOR
    Part Number: 5303286408
      Special Order
    $17.80
  • 7
    Nut-terminal cover – Part Number: 5303294292
    Nut-terminal cover
    Part Number: 5303294292
      No Longer Available
  • 8
    GASKET – Part Number: 5304431275
    GASKET
    Part Number: 5304431275
      No Longer Available
  • 9
    COVER-TERMINAL – Part Number: 5303291329
    COVER-TERMINAL
    Part Number: 5303291329
      Special Order
    $12.55
  • 10
    GASKET – Part Number: 5303002035
    GASKET
    Part Number: 5303002035
      No Longer Available
  • 11
    BASE-COMPRESSOR – Part Number: 5304413780
    BASE-COMPRESSOR
    Part Number: 5304413780
      Special Order
    $51.97
  • 12
    EVAPORATOR – Part Number: 5303271339
    EVAPORATOR
    Part Number: 5303271339
      No Longer Available
  • 13
    CONDENSER – Part Number: 5303271340
    CONDENSER
    Part Number: 5303271340
      Special Order
    $171.95
  • 14
    CAPILLARY TUBE – Part Number: 5308017120
    CAPILLARY TUBE
    Part Number: 5308017120
      Special Order
    $59.11
  • 15
    DRIER-FILTER – Part Number: 5300265301
    DRIER-FILTER
    Part Number: 5300265301
      Special Order
    $176.95
  • 16
    TRAY, EVAPORATOR – Part Number: 5303270039
    TRAY, EVAPORATOR
    Part Number: 5303270039
      No Longer Available
  • 17
    START ASSIST KIT – Part Number: 5304413630
    START ASSIST KIT
    Part Number: 5304413630
      Special Order
    $139.92
  • 18
    CLIP-CONDENSER – Part Number: 5303209136
    CLIP-CONDENSER
    Part Number: 5303209136
      Special Order
    $8.35
  • 19
    SPRING – Part Number: 5303002036
    SPRING
    Part Number: 5303002036
      Special Order
    $16.75
