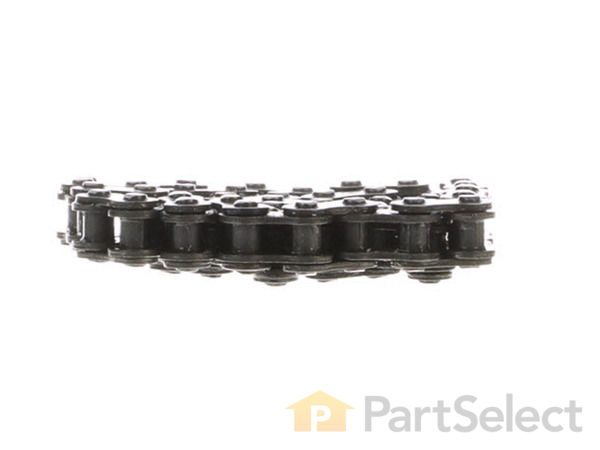

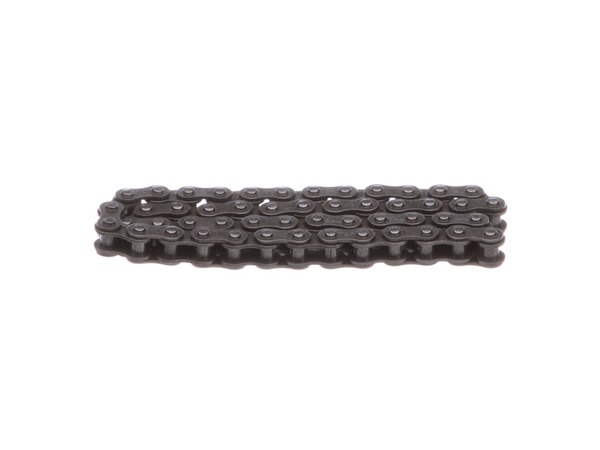

This is an authentic OEM sourced replacement component which is specially produced for use with Craftsman tillers. It is the main chain that helps to drive the unit, please make sure to check the appropriate diagrams of your model for the correct location and application of this hardware. Over time the chain may wear out and stretch eventually requiring a replacement to ensure peak performance. Keep in mind this high-quality metal part is sold individually.
1 Took the tiller all apart
2. Split the gear box in half
3 . took out all the gears and sifter
cleaned out old grease .
4 replaced nidle bearings .
5 out new chain on .
6 replaced all the Grears for tines and wheels .
7 replace gasket .
8 bolted gearbox back to gether and put
... Read more fream back on gearbox .
9 Ran it and its all working . Tilles and wheels pull as it all should . On A Craftman REAR tine Tiller .
Split tiller case to replace chain.
Take pictures and notes.
Lay the parts on a clean towel as you remove them, and place them in the order of removal.
And take your time.
Disassembled handle bars, tines, sheet metal around tines, removed engine, removed belt and pulleys, removed weights and bumper, removed all bolts around transmission and broke case apart. Removed broken chain and cleaned case. Installed new chain and lubricated entire case. Installed new gasket and reassembled case and entire tiller
Did you find this story helpful?
Thank you for voting!
chain broken in rototiller
Betsy from Copperas Cove , TX
0 of 1 peoplefound this instruction helpful.
Difficulty Level:
A Bit Difficult
Total Repair Time:
More than 2 hours
Tools:
Pliers, Screw drivers, Socket set, Wrench (Adjustable), Wrench set
I got this old Craftsman rear tine tiller when we bought our property. It looked like it hadnÆt run in many years. After replacing the carb, it fired right up. When testing it, the transmission locked up and would not move. After researching the issue online, I broke the case apart and found the drive chain had broken a link. I found a l
... Read moreink repair part locally, but after cleaning the chain, I found several other damaged links. I bought this replacement chain and installed it. Now the tiller works like it was new.
Read less
Did you find this story helpful?
Thank you for voting!
The tillers blades were not turning
david from bayside, New York
0 of 1 peoplefound this instruction helpful.
Difficulty Level:
A Bit Difficult
Total Repair Time:
More than 2 hours
Tools:
Nutdriver, Pliers, Screw drivers, Socket set, Wrench (Adjustable), Wrench set
1. Stripped motor, tines, shift mechanism wheels etc from transmission.
2. Removed all left side bolts, retaining nuts etc.from left side and separated the transmission halfÆs.
3. Removed all transmission parts, cleaned, degreased, pressure washed and reassembled gears packing them in fresh marine grade grease. Replaced th
... Read moree old wheel drive chain, main transmission gasket and various rusted/corroded components.
4. Reassembled transmission housing ensuring that all parts moved smoothly and gears engaged properly.
5. Reinstalled tines, guards, motor w/new carb and drive wheels.
6. Tested and adjusted parts as needed.
Be sure all gears are installed correctly with bushings, spacers etc. apply adequate grease to ensure ease of motion between parts.
Read less
Did you find this story helpful?
Thank you for voting!
< Prev
1
Next >
Model Cross Reference
This part works with the following models:
ERP Number: ERP9008326
Manufacturer Part Number: 532102134
This part is in stock in our warehouse and will ship out within 1 business day of the order being placed.
New stock is on the way! On order parts usually ship within 7 business days.
Item is not in stock and usually ships 10-15 business days from the time you place your order.
This item is no longer being made by the manufacturer, and cannot be added to your shopping cart.
✖
Mail-In Recycling Rebate
Some of the parts we sell are eligible for mail-in rebates since we can recycle them. We will display any applicable rebates in your shopping cart. To redeem your rebate, contact Customer Service after you have received your part.
