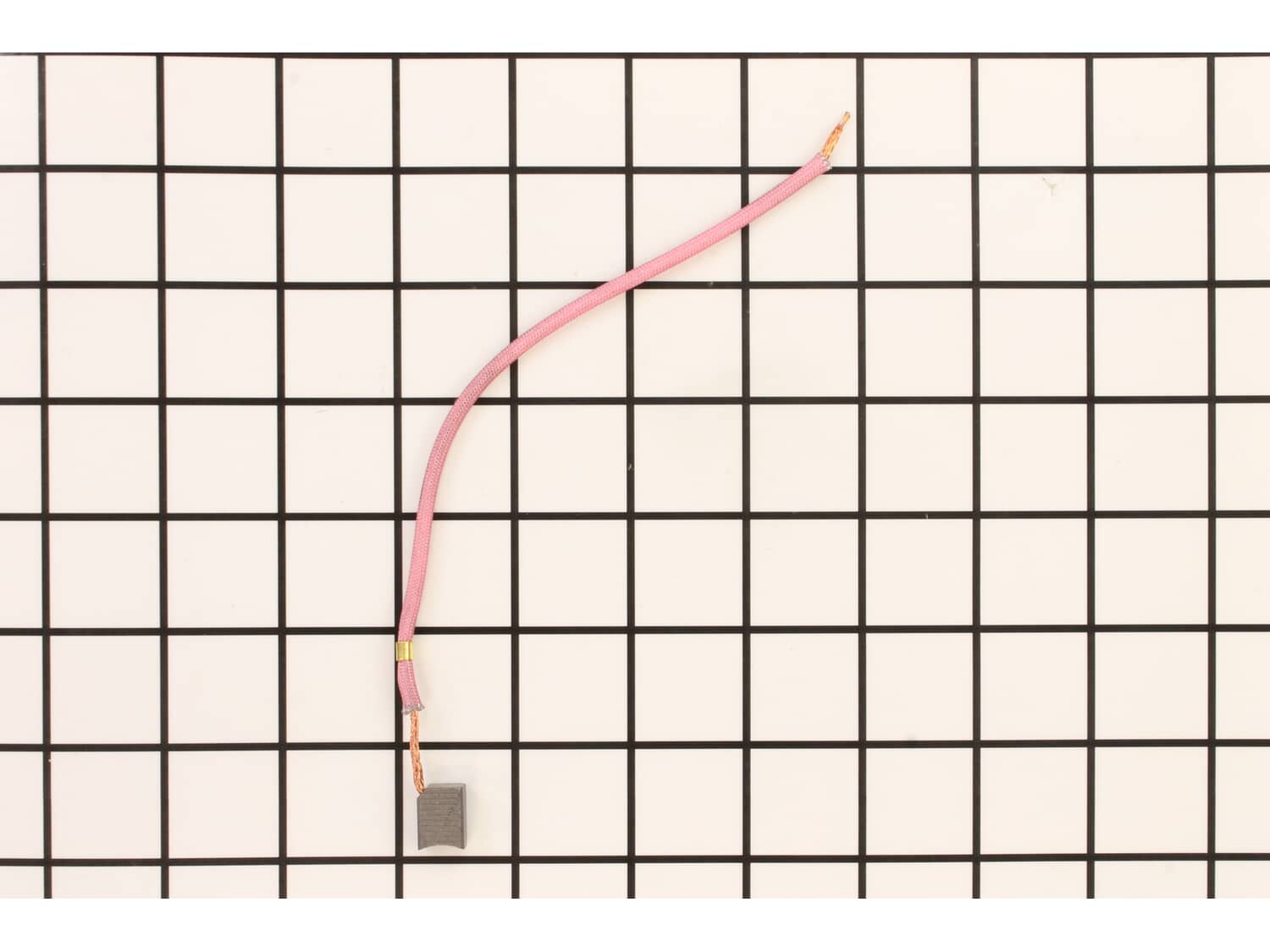

This genuine replacement carbon brush is sourced directly from the original equipment manufacturer for use with Milwaukee sawzall reciprocating saws. The purpose of carbon brushes is to conduct electricity by maintaining physical contact with an armature. Due to normal use and friction brushes will gradually wear down and will require replacement. It is advised to replace both brushes at the same time. Please note this high-quality carbon brush with a lead wire is sold individually.
Troubleshooting
This part works with the following brands:
Milwaukee
This part works with the following products:
Saw
Reciprocating Saw
Questions & Answers
?
Our customer Service team is at the ready daily to answer your part and product questions.
We're sorry, but our Q&A experts are temporarily unavailable.
Please check back later if you still haven't found the answer you need.
Ask our Team
We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.
Remove the handle, locate the brushes, Then unsolder the old brush leads and remove the old brushes. Solder the new brush leads, then place the brushes in the holders. Then put the housing back together.
Remove screws that hold body housing together, locate brushes, they snap in real easy. You can use a solider gun or small wire nuts on the wires. I used small wire nuts. The compression spring is located by the trigger with a small bearing. This also comes out very easy. It takes longer to remove the screws in the housing than it does for
... Read more the repair. Simple and easy job.
This is for replacing brushes in a Milwaukee M18 cordless sawzall not a cordless drill.
Remove torx screws, take apart plastic clamshell. Dont loose the tiny ball and spring in the switch lock out, it will go flying when you split the clamshell. Pry out brass brush caps to remove brush springs and brushes.
Use soldering iron
... Read moreto heat solder to remove old brush wire from switch. Solder new brush wire to switch. Slide in new brush then brush spring re-install brass brush cap to hold spring. Route brush wires in wire holders. Put plastic clamshell back together. The switch lockout is the hardest part. Make sure its engaged on the lock lever on top of the switch before you close the clamshell completely. Re-install torx screws. Done.
Opened case
Took a picture of assembly before I started!!
Removed brushes
Pulled out brush tube
Unsoldered brush wires
Soldered new brush wires
Replaced tube and spring
Put brushes in tubes
Reassembled
Works awesome!!!
Did you find this story helpful?
Thank you for voting!
< Prev
1
Next >
Model Cross Reference
This part works with the following models:
ERP Number: ERP10122151
Manufacturer Part Number: 22-18-0135
