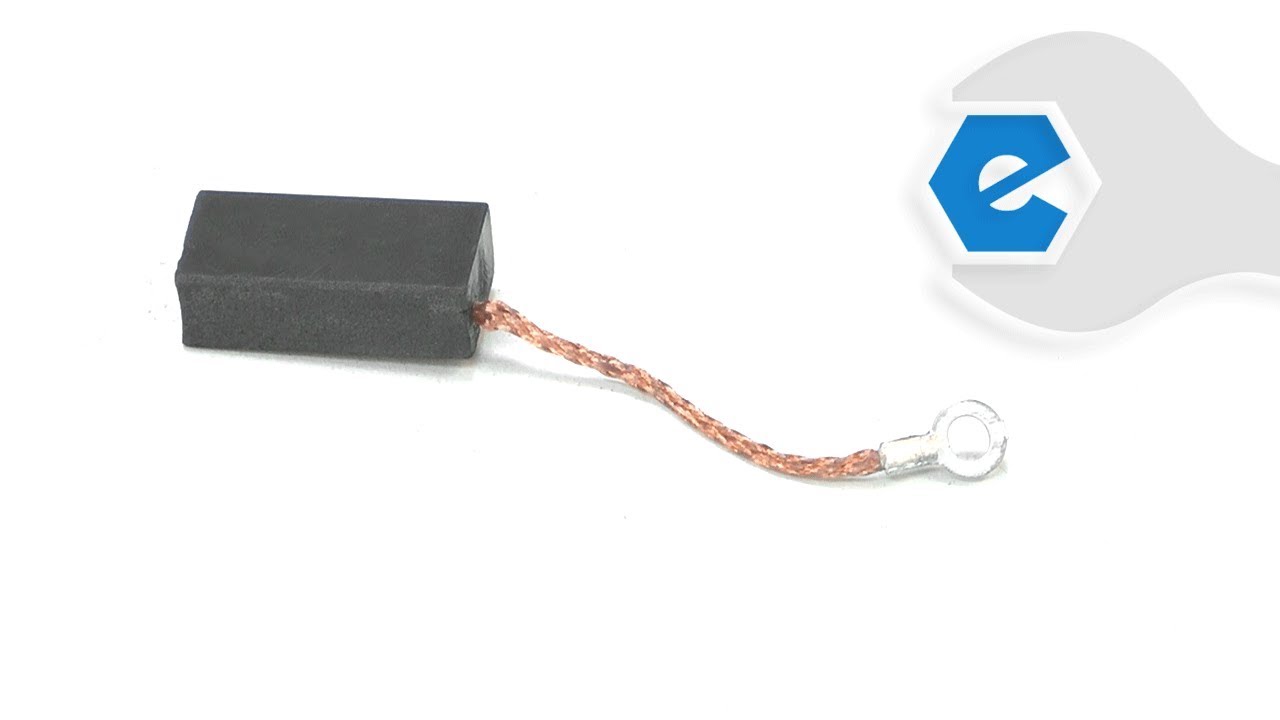

Genuine Porter Cable replacement part Includes 1 Carbon Brush with wire lead attached. • Worn brushes are often the cause of a poorly running motor • Replacing brushes can fix an intermittent motor • New brushes can restore a motor's electric braking Carbon motor brushes are one of the most commonly replaced power tool components. • Because carbon brushes are wear items, meaning that through friction and use they will gradually wear away, they will eventually require replacement. • Worn brushes are common causes of intermittent motor function, reduced electric braking, and reduced motor power. • A worn out brush will often be worn down near the wire lead and may be cracked, pitted, or burned. • When replacing carbon brushes, be sure to also inspect your armature for burns, cracks, or other damage which indicates a larger motor problem.
Sorry, we couldn't find any existing reviews that matched. Try using some different or simpler keywords.
★★★★★
★★★★★
Much needed part
Delivered right on time as expected
Guest - October 30, 2019
Verified Purchase
★★★★★
★★★★★
Good price for router carbon brush
Good quality and arrives quickly. Good supplier.
Scott - November 7, 2019
Verified Purchase
★★★★★
★★★★★
Accurate discrimination
Arrived sooner than stated. Doesn't get any better.
Guest - February 14, 2020
Verified Purchase
★★★★★
★★★★★
Works Great
The part arrived quicker then expected. Wonderful service!
STACY - May 19, 2020
Verified Purchase
★★★★★
★★★★★
Good parts great price
Arrived fast
Guest - August 6, 2022
Verified Purchase
★★★★★
★★★★★
Bearing replacement fixed tool
Combined on-line video with parts to easily fixed router. Skip the expedited shipping - it took a week.
Guest - June 28, 2019
Verified Purchase
★★★★★
★★★★★
easy repair, once everything came in
I like your website and found it easy to find my parts I needed. The process involved in receiving the part was delayed. I sent in my tax form to ereplacementparts as asked and I expedited the shipment. The tax was included on the receipt and the shipment came in 3 days late. I was reimbursed for the tax later and the expedited shipment but was in need of the supplies in a hurry.
Alan - October 21, 2019
Verified Purchase
Questions & Answers
?
Our customer Service team is at the ready daily to answer your part and product questions.
We're sorry, but our Q&A experts are temporarily unavailable.
Please check back later if you still haven't found the answer you need.
Ask our Team
We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.
1) Removed top cap (cover) ,replaced upper bearing, replaced both brushes& springs.
2) Removed bearing retainer& lower bearing replaced both, ( small bearing/gear puller
obtained from NAPA /Carquest auto parts store [$20 -25.00},little modified grinding
to the \"legs\" of puller to grip the bearing at bottom, came
... Read moreright off!
3) I used 000 emery cloth to clean up the commutator(?) bars .
4) Assembled router, checked for free rotation & end play. plugged it in
5) Ran the router thru all the speeds, on/off.Lot quieter than before, ran it for about 5-10
minutes.

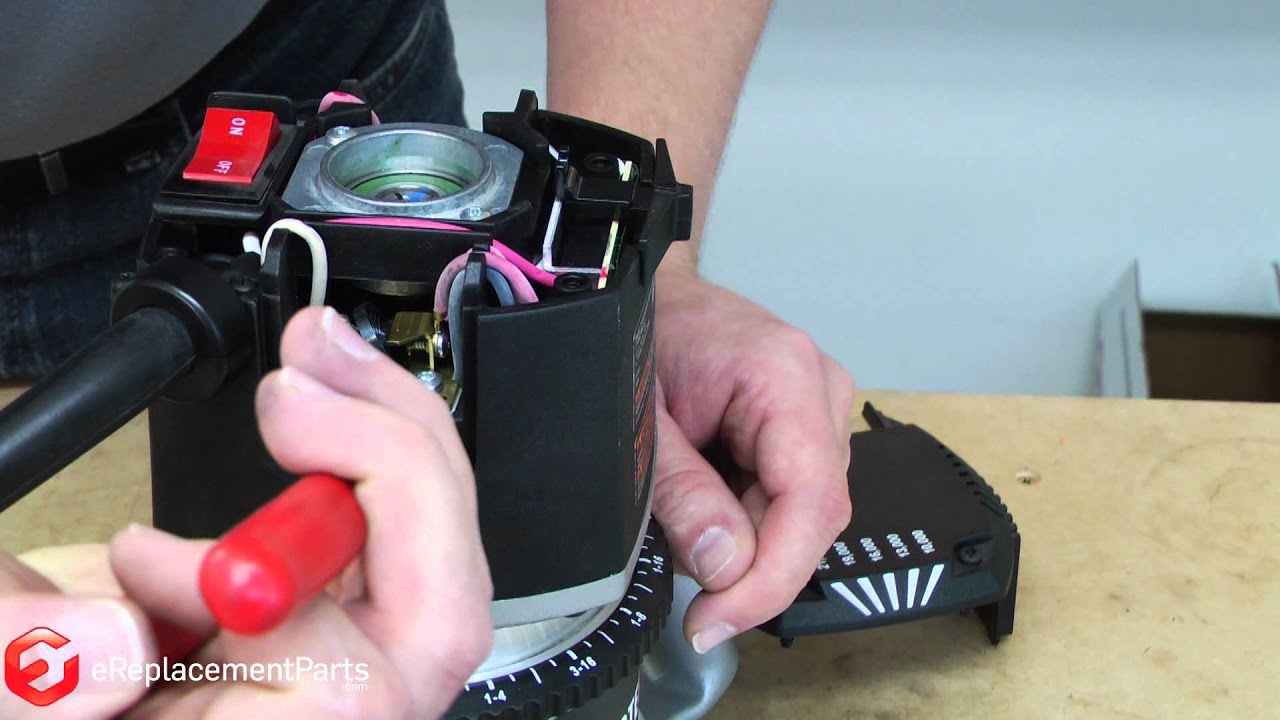

Remove the top cover of the router. Lift out the springs that hold the brushes in the the brush holder and set them on top of the holder. Remove the screw from the old brush lead and remove the old brushes. Place the new brush in the holder, then screw in the new brush lead. Replace the brush holder spring. Then replace the top cover.
1. Unplug router.
2. Take off top cap (held by 4 screws)
3. Unscrew wire connection
4. Pull back tension spring
5. Pull out old brush, place new one in
6. Move tension spring back and reassemble
1. Removed the cover from the motor
2. Pulled the retaining spring clear from the brush cavity
3. Removed the screw that attached the contact wire
4. Pulled the brush from the cavity
5. Installed the new brush
6. Put everything back and replaced the cover.
7. Runs like new
Did you find this story helpful?
Thank you for voting!
Worn Out Carbon Brushes
Scott from St. Paul, Minnesota
0 of 1 peoplefound this instruction helpful.
Difficulty Level:
Easy
Total Repair Time:
15 - 30 mins
Tools:
Nutdriver, Screw drivers, Socket set, Wrench (Adjustable), Wrench set

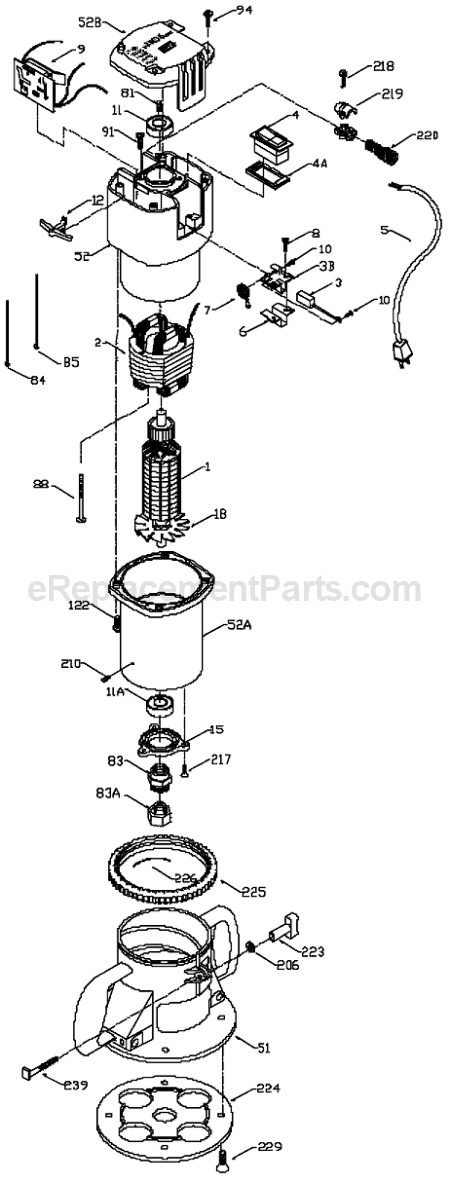

General Procedure for Porter-Cable Router Carbon Brush Replacement
1. Remove screws (4) from motor cover; remove cover and speed sliding switch if so equipped.
2. Remove small set screw from each ring terminal on each carbon brush braided wire.
3. Move aside brush spring clamps to release each carbon brush, inspect.
... Read more />4. Remove hex head set screw (plug) from rotor (armature) shaft to release shaft from bearing.
5. Remove screws (4) on lower housing assembly; remove housing and rotor (armature) assembly.
6. Clean housing, rotor (armature), and field with compressed air; inspect. Looking for bearing wear (discoloration, damage), bad wiring, or other electro-mechanical failure.
7. Reassemble lower housing and armature.
8. Install new carbon brushes, reassemble items 2 and 3.
9. Reinstall motor cover.
10. Test operation of router; observe for several minutes.
