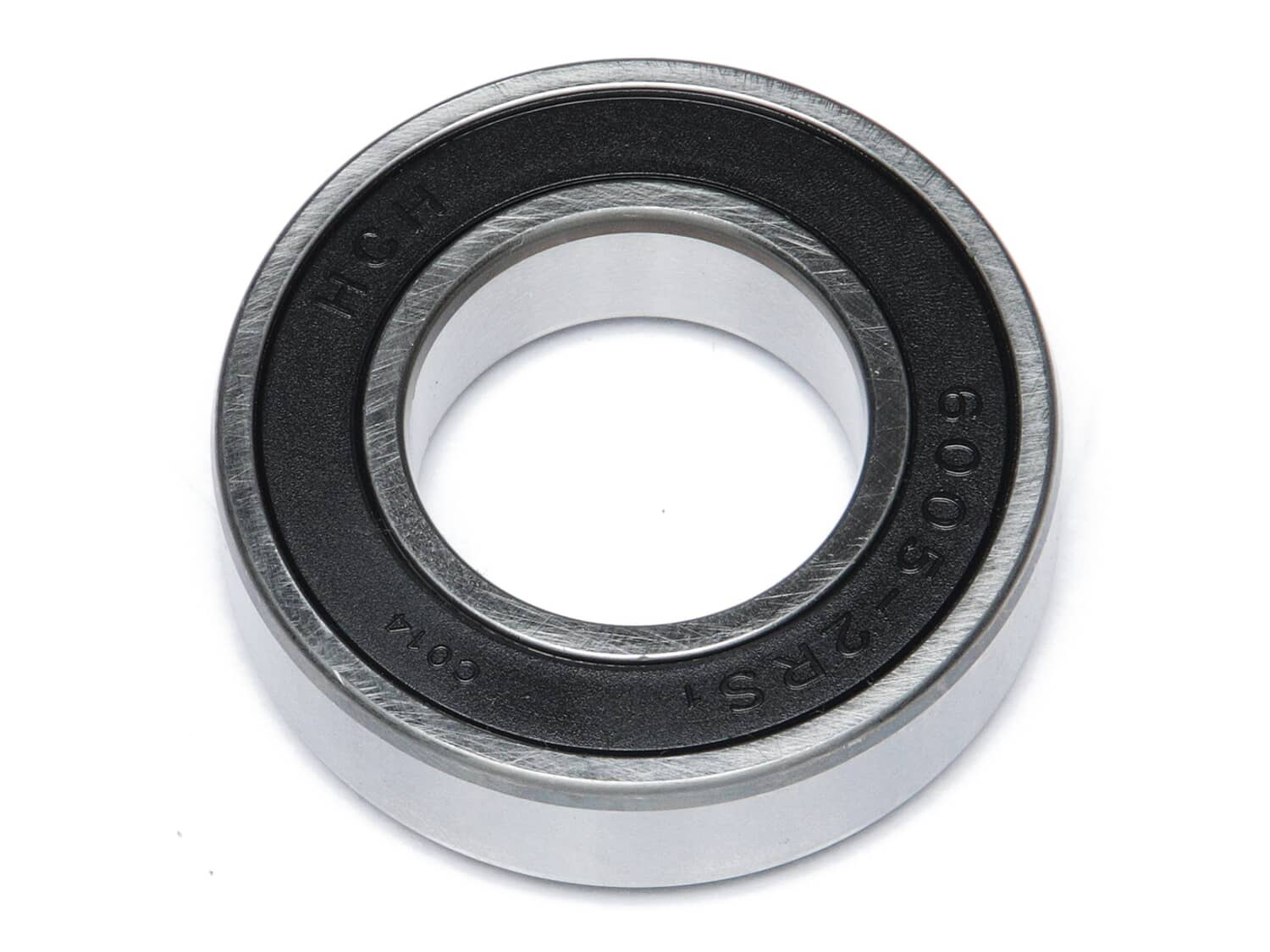

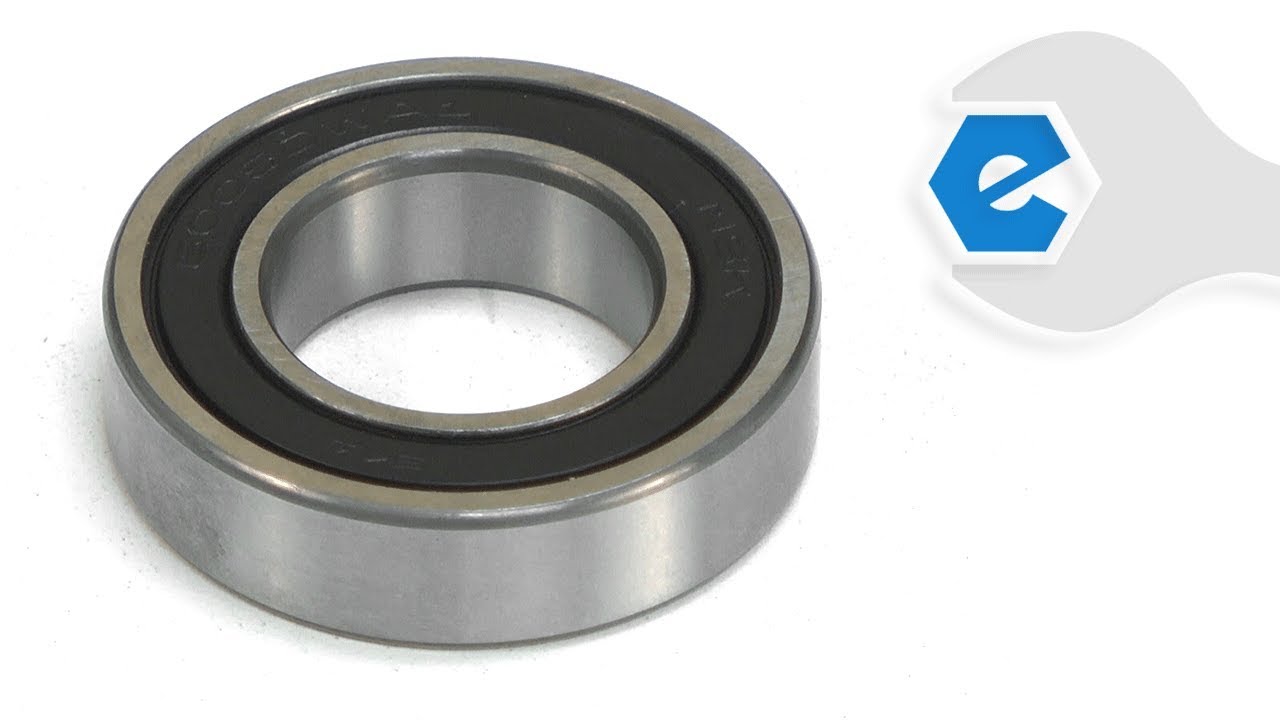

Genuine Manufacturer Sourced replacement part used on a variety of equipment. This part is made out of Metal and is Sold Individually. Ball bearings are used to reduce friction between rotating parts. The balls or rollers take the load and spin, distributing the weight evenly while the minimal contact area of the ball reduces friction. This reduces wear on the tool and allows it to run smoothly. Bearings experience constant wear when the tool is in operation from pressure, heat, vibration and friction. Because of this, many Bearings need periodic maintenance or replacement. Included in part number 395843-00
Sorry, we couldn't find any existing reviews that matched. Try using some different or simpler keywords.
★★★★★
★★★★★
Easy repair
Part worked like a charm
Milton - May 17, 2019
Verified Purchase
★★★★★
★★★★★
OEM Quality Bearing
New bearing(s) for my Porter-Cable 518 3-1/4 HP Router circa 1991.
Perfect fit as one might expect.
The original bearings still were running smooth and quiet.
Nonetheless, 30-year bearings are 30-year old bearings.
***
Thanks to the good folks at eReplacement Parts for the tip on removing the chuck from larger Porter-Cable routers. The router chuck is threaded on to the armature shaft with conventional RH threads.
"A gloved hand on the armature and an air or electric impact wrench on the chuck."
George - December 15, 2020
Verified Purchase
★★★★★
★★★★★
Great service
Great part and good service. Thank you!
Guest - October 21, 2021
Verified Purchase
★★★★★
★★★★★
Good as new!
Perfect replacement part. My DW618 is running fine now.
Guest - November 7, 2021
Verified Purchase
★★★★★
★★★★★
The part fit and functioned as expected when I turned on the router.
I had trouble finding a replacement bearing for an obsolete router. I found one here however and am satisfied with it.
Guest - May 17, 2022
Verified Purchase
★★★★★
★★★★★
Great service
My part arrived sooner than I expected, I repaired my router and was able to get back to work with minimum loss of time.
I would have no problem recommending e replacement parts.
Thanks again
Vincent Owens
Iglobal - November 23, 2022
Verified Purchase
Questions & Answers
?
Our customer Service team is at the ready daily to answer your part and product questions.
We're sorry, but our Q&A experts are temporarily unavailable.
Please check back later if you still haven't found the answer you need.
Ask our Team
We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.
1) Removed top cap (cover) ,replaced upper bearing, replaced both brushes& springs.
2) Removed bearing retainer& lower bearing replaced both, ( small bearing/gear puller
obtained from NAPA /Carquest auto parts store [$20 -25.00},little modified grinding
to the \"legs\" of puller to grip the bearing at bottom, came
... Read moreright off!
3) I used 000 emery cloth to clean up the commutator(?) bars .
4) Assembled router, checked for free rotation & end play. plugged it in
5) Ran the router thru all the speeds, on/off.Lot quieter than before, ran it for about 5-10
minutes.
Read less
Did you find this story helpful?
Thank you for voting!
Bearing seized up on miter saw, bearings squealing on router
I removed the spindle shaft, bearings and wave washer and replaced them with the new parts I ordered from ereplacementparts.com. Everything fit perfectly and the wobble problem was eliminated. I am now enjoying using my lathe and am happy with the results.
Did you find this story helpful?
Thank you for voting!
Worn bearings within router
Richard from Feasterville-Trevose, Pennsylvania
1 personfound this instruction helpful.
Difficulty Level:
A Bit Difficult
Total Repair Time:
30 - 60 mins
Tools:
Pliers, Screw drivers, Wrench (Adjustable), Wrench set
Mostly straight forward to disassemble router. Holding armature against rotating to loosen collet assembly is difficult. Held motor casing in vice and wedged three pieces of PVC pipe between casing and armature. While supplying torque to wrench also struck it creating an impact. An air impact wrench would have been preferred.
here is a link to a great description of how to swap out your bearings on a Porter Cable 7518 router.
http://reproductionwoodworks.blogspot.com/2011/12/how-to-replace-bearings-in-porter-cable.html
I did not have an impact tool so I had my local auto guy take care of that for me. Otherwise it was smooth as silk . Ereplacementp
... Read morearts gave me the right stuff.
Thanks guys
Jim
Read less
Did you find this story helpful?
Thank you for voting!
Fan assembly exploded
George from TROY, Ohio
0 of 1 peoplefound this instruction helpful.
Difficulty Level:
A Bit Difficult
Total Repair Time:
1- 2 hours
Tools:
Pliers, Screw drivers, Socket set, Wrench (Adjustable), Wrench set
Disassembled my Porter Cable 7518 router after the fan blades exploded. Retrieved blade parts. Pulled bearings and remaines of the fan. Bearings may have been good but decided to replace while I was in there. Found all parts with Replacemant Parts and ordered. Pressed the parts in place after receiving them. Reassembled the router which w
... Read moreorked perfectly. The availability of the parts saved me almost $400 because I didn\'t have to buy a replacement.
Thought needed a press but used your u-tube instructions & the 7/8 socket on inner race worked great. Replaced brushes and both bearings on PC 7519 router. Thanks E-Replacement!
Did you find this story helpful?
Thank you for voting!
noise stopped spinning
Kurt from LAKE ZURICH, Illinois
0 of 1 peoplefound this instruction helpful.
Difficulty Level:
A Bit Difficult
Total Repair Time:
1- 2 hours
Tools:
Nutdriver, Pliers, Screw drivers, Socket set, Wrench set
1. Watched Video on YouTube.
2. Removed router from base.
3. Removed cap from router.
4. Removed brushes, top bearing, upper housing, collet nut, collet and lower bearing retainer.
5. Took remaining parts to auto repair shop to have mechanic use impact wrench to remove chuck from armature.
6. Removed old bear
... Read moreings and cleaned all parts.
7. Replaced both top and bottom bearings. New top bearing OD was 0.002\" smaller than old bearing. Starting the router with the cap removed showed that the entire bearing was spinning slowly in its housing. I used a tiny amount of blue thread locker to secure it.
8. Reassembled the router. It works fine.
9. I should have taken a picture of the router with the cap removed to show the routing of the various wires. It took a little time after disassembling the router to order the parts, receive them in the mail, and reassemble the router.
Read less
Did you find this story helpful?
Thank you for voting!
Main bearing seized and motor brushes were in poor shape
For brushes, remove top housing, pulled back on spring clip, removed old brush and inserted new one.
The bearing was much tougher.
Unscrewed plate holding the shaft lock pin (watch that spring behind the button, it can get away from you!).
Unscrewed the large nut on the shaft over the bearing.
Getting the be
... Read morearing out is the tough bit and I am not sure I have the best method, but I \"tapped\" on the collet end of the shaft until the bearing was clear of the shaft. It was frozen completely.
I put the new bearing on the shaft and \"tapped\" it down until there was virtually no up and down on the shaft. Test that the shaft turns freely and that the brushes are aligned on the commutator.
I then put the large nut back on and assembled the shaft lock pin and spring and screwed that plate back on the end of the router. Check that the lock pin will engage and disengage. If it does not, the bearing may not be completely seated.
Reattach the the rear housing over the electricals and test that the router works.
Read less
Did you find this story helpful?
Thank you for voting!
