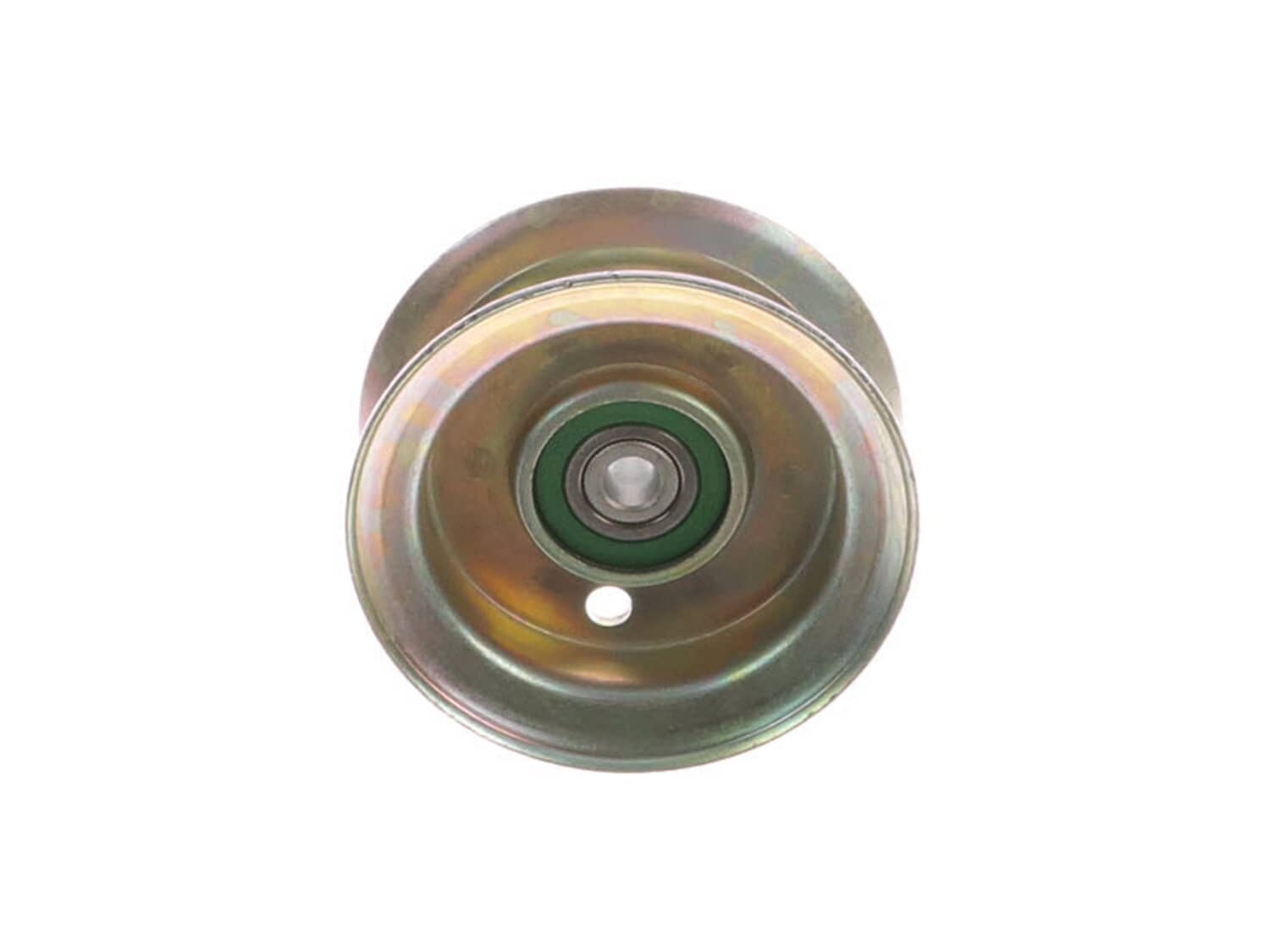

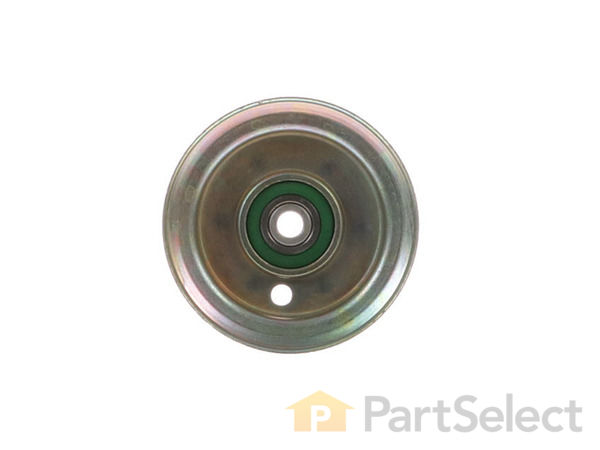

This is a genuine replacement part sourced directly from the manufacturer. The engine pulley is commonly found in Craftsman lawn tractors and riding mowers. This part is made of metal, and is used in conjunction with the belt to transfer power from the engine to the machine. You will require a wrench when replacing this item. The engine pulley is sold as an individual replacement part.
Sorry, we couldn't find any existing reviews that matched. Try using some different or simpler keywords.
★★★★★
★★★★★
exactly what i ordered,
this is what I ordered, very fast and prompt service. have ordered from them before.
GERALD - October 15, 2019
Verified Purchase
★★★★★
★★★★★
Always ready with the right part
The parts I ordered two pullies and two spindles for the cutting blades are spares I like to have on hand. The order was quickly shipped and all arrived in good shape
Joan - March 19, 2020
Verified Purchase
★★★★★
★★★★★
Pulley replacement on mower deck
Part was an exact fit.
Guest - May 21, 2020
Verified Purchase
★★★★★
★★★★★
Part was what I needed
Service and part were all perfect. What I needed to finish my job. Thanks for the help
Guest - September 3, 2020
Verified Purchase
★★★★★
★★★★★
Good part as expected
Parts arrived quickly and in good condition
Reinaldo - February 25, 2021
Verified Purchase
★★★★★
★★★★★
Works great.
Just what I needed to get my mower going.
Guest - April 23, 2021
Verified Purchase
★★★★★
★★★★★
Seems better than original part!
Easier to install than the you tube recommendations.
Guest - July 1, 2021
Verified Purchase
★★★★★
★★★★★
Great experience.
Part was in great condition.
Guest - July 27, 2021
Verified Purchase
★★★★★
★★★★★
Reliable service and correct items ordered.
Reliable ordered delivered, item fit perfectly and mower is functional again. Will rely on E-Replacement in future as always.
Stanley - September 11, 2021
Verified Purchase
★★★★★
★★★★★
Great Replacement
I'm glad I found this pulley to replace the original plastic pulley. I love it.
Victor - March 15, 2023
Verified Purchase
< Prev
1
2
Next >
Questions & Answers
?
Our customer Service team is at the ready daily to answer your part and product questions.
We're sorry, but our Q&A experts are temporarily unavailable.
Please check back later if you still haven't found the answer you need.
Ask our Team
We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.
1. For the bracket clutch anti-rotation remove bolt from bracket and remove from electric clutch by pulling it out of the hole in clutch and through the frame. Replace in reverse order.
2. For the pulley remove the belt from electric clutch pulley by releasing belt tension lever on left side of deck remove, then unscrew the
... Read morebolt in pulley, and remove pulley. Replace in reverse order.
3. For the wheel gauge remove the bolt with a wrench and socket replace in reverse order.
dropped mower deck
removed belt and bad pulley and loosened tensioner
checked other pulleys and greased the mower deck blade fittings
put new pulley on and routed new belt
setup mower deck and checked belt routing and then set tensioner and started up and checked mower deck for operation.
Did you find this story helpful?
Thank you for voting!
Stationary idler pulley bearing failed (melted) and mower deck drive belt came off.
Ralph from Lake Stevens, Washington
2 of 2 peoplefound this instruction helpful.
Difficulty Level:
Difficult
Total Repair Time:
More than 2 hours
Tools:
Pliers, Screw drivers, Socket set, Wrench (Adjustable), Wrench set
1. Separated mower deck from lawn tractor and cleaned both units thoroughly.
2. Removed and replaced tractor mounted idler pulleys, since bearings were noisy.
3. Disassembled mower deck - opted to overhaul blade tower supports (3) to clean and renew lubrication. RECOMMEND REPLACING THESE PARTS AS A UNIT, instead of overhaul.
... Read more 4. Bearing failure had caused hole in deck-mounted pivot support bracket for belt tensioner to become elongated - opted to do nothing at this time.
5. Replacement pulley on pivot support was not sized to accept 7/16\" dia bolt!!! Hardened spacer washer hole was too small as well. Re purposed another bolt from the ordered parts, and added washers as necessary to allow pulley to track properly without binding against the tensioner arm.
6. Removed and replaced other pulleys and hardware (these replacement parts were identical to the removed ones).
7. Installed new belt as per diagram on belt slip cover.
8. Reinstalled mower deck underneath the lawn tractor.
Removed the bolt holding that holds the pulley onto the mower deck.
Replaced the pulley.
Released the tension rod that holds tension on the mower deck belt.
Reinstalled the belt and set the tension rod back.
I had to raise the mower to access the bolt from the bottom. The only problem I had was to secure the nut on the top side of the pulley which you can\'t use your other arm because there isn\'t access to the nut and the bolt for one person although I did manage to wedge a wrench in to hold the nut while I used the impact wrench from below
... Read more. Now this disassembled fine using this method but there was no way that I could re-install the new pulley without assistance due to the fact that the factory uses lock nuts. Other than that it was a pretty easy install. Good luck.
Read less
Did you find this story helpful?
Thank you for voting!
Mandrel started wobbling very bad, upper supporters bearing gave out
1 raised the mower deck
2 while holding blade with gloved hand removed upper nut with socket and 18GÇ¥ breaker bar
3 removed upper drive pulley and shaft with blade still attached
4 removed the four bolts holding the mandrel, all four bolts broke off when trying to remove them, common with all mowers, new bolts come with
... Read more new mandrel
5 pre thread the four self tapping bolts into the mandrel, remove the bolts install the mandrel, drive pulley and belt. All done!
Read less
Did you find this story helpful?
Thank you for voting!
< Prev
1
2
Next >
Model Cross Reference
This part works with the following models:
ERP Number: ERP9286701
Manufacturer Part Number: 532177968
This part is in stock in our warehouse and will ship out within 1 business day of the order being placed.
New stock is on the way! On order parts usually ship within 7 business days.
Item is not in stock and usually ships 10-15 business days from the time you place your order.
This item is no longer being made by the manufacturer, and cannot be added to your shopping cart.
✖
Mail-In Recycling Rebate
Some of the parts we sell are eligible for mail-in rebates since we can recycle them. We will display any applicable rebates in your shopping cart. To redeem your rebate, contact Customer Service after you have received your part.

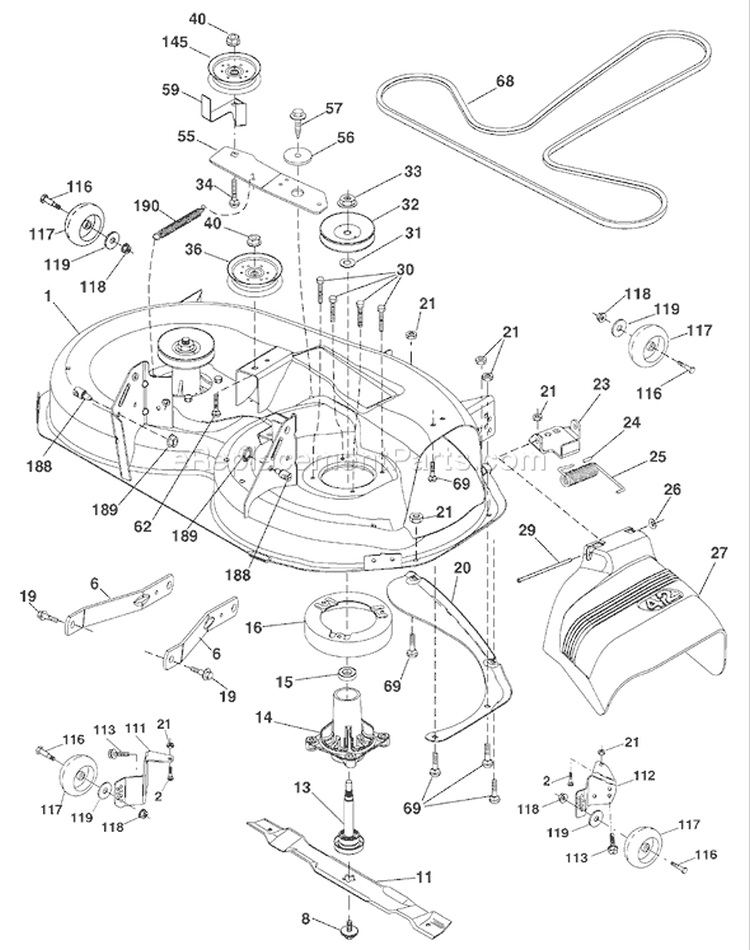

_(2008-01)_WW_6.gif "Part Location Diagram of 532177968 Husqvarna Lawn Mower Pulley")
