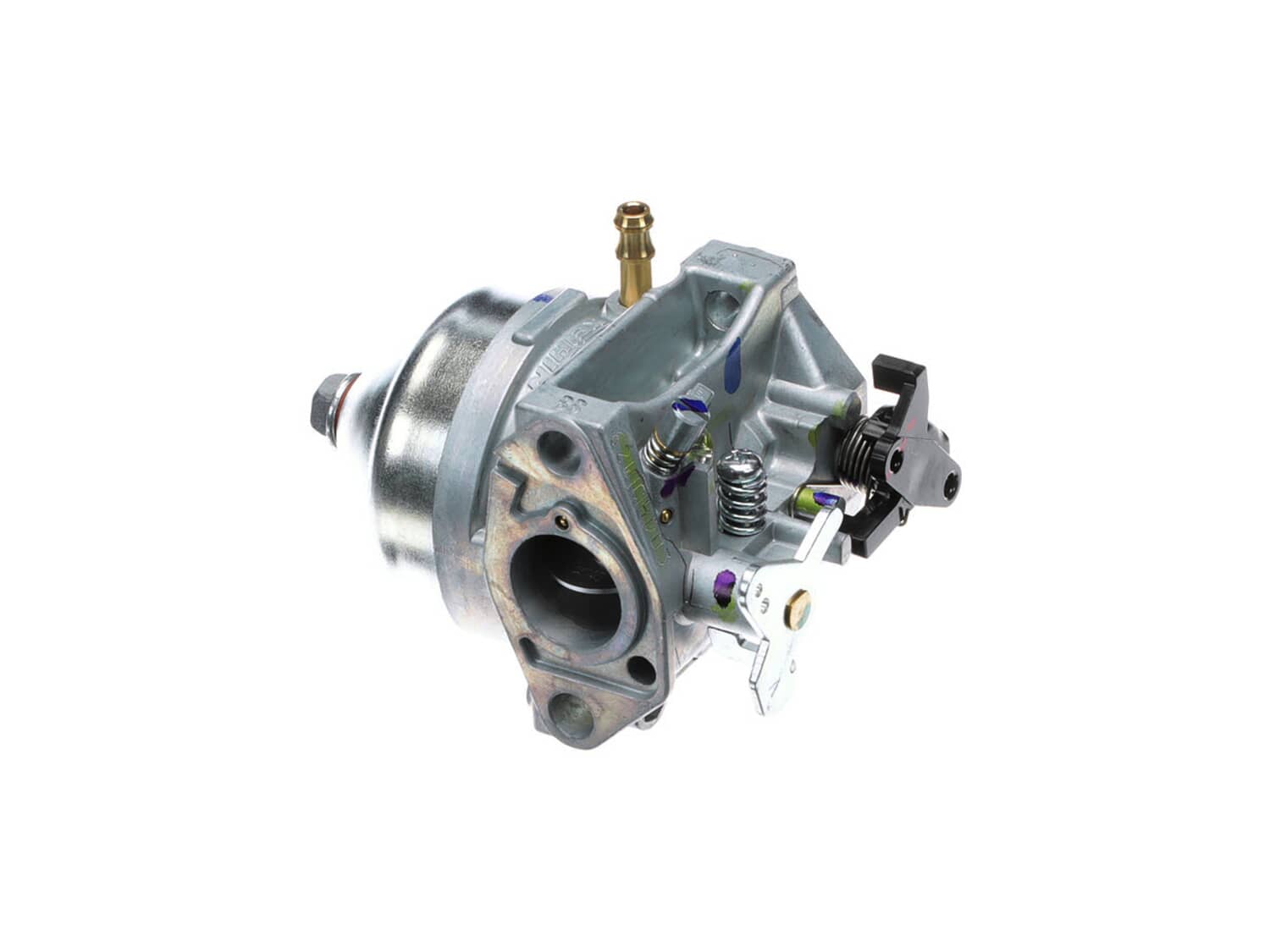

This is a genuine OEM replacement part, it is sold individually. A carburetor basically consists of an open pipe through which the air passes into the inlet manifold of the engine. The pipe is in the form of a Venturi: it narrows in section and then widens again, causing the airflow to increase in speed in the narrowest part. Below the Venturi is a butterfly valve called the throttle valve ' a rotating disc that can be turned end-on to the airflow, so as to hardly restrict the flow at all, or can be rotated so that it (almost) completely blocks the flow of air. This valve controls the flow of air through the carburetor throat and thus the quantity of air/fuel mixture the system will deliver, thereby regulating engine power and speed. The throttle is connected, usually through a cable or a mechanical linkage of rods and joints. Fuel is introduced into the air stream through small holes at the narrowest part of the Venturi and at other places where pressure will be lowered when not running on full throttle.
Sorry, we couldn't find any existing reviews that matched. Try using some different or simpler keywords.
★★★★★
★★★★★
Easy repair.
Just swapped the old one for the new. Two pulls, started right up. Runs better than when i bought it. Thanks! A++
Guest - April 18, 2019
Verified Purchase
★★★★★
★★★★★
Perfect fit!
Slapped that carb on in no time and was mowing the lawn in less than an hour!
Donald - April 30, 2019
Verified Purchase
★★★★★
★★★★★
Carburetor
Great price OEM Honda part, works perfectly
Guest - May 22, 2019
Verified Purchase
★★★★★
★★★★★
Worked as expected
Although the first carburetor arrived broken due to shipping, it should of been boxed not mailed in a bag with wrap, return went smooth and new part works well.
Guest - June 10, 2019
Verified Purchase
★★★★★
★★★★★
worked great!
Part came complete. Resolved the problem with the engine not running. Part was on time. I recommend this product and the this company for your parts needs.
Guest - June 21, 2019
Verified Purchase
★★★★★
★★★★★
Just as described and the correct part
The carburetor was exactly the right match for the Honda engine it was ordered for. The lady that took the order over the phone was very helpful and extremely courteous. Part was delivered quick too! I would recommend these folks for any of your small engine parts.
Guest - June 22, 2019
Verified Purchase
★★★★★
★★★★★
New carb.
This was just what I needed! Runs like new!
Guest - October 8, 2019
Verified Purchase
★★★★★
★★★★★
Easy repair great pat
Works great fits perfectly no issue
Guest - December 2, 2019
Verified Purchase
★★★★★
★★★★★
Exactly what I needed
Very easy to find what I needed and even got the parts faster than originally shown!
Guest - April 7, 2020
Verified Purchase
★★★★★
★★★★★
Power Washer Repair
Part was OEM, great quality, easy to install and worked perfectly. No problems what so ever.
Ron - April 20, 2020
Verified Purchase
< Prev
1
2
3
Next >
Questions & Answers
?
Our customer Service team is at the ready daily to answer your part and product questions.
We're sorry, but our Q&A experts are temporarily unavailable.
Please check back later if you still haven't found the answer you need.
Ask our Team
We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.
Removed old carburetor and replaced with new one. Lawn mower runs great now and engine does not surge anymore. Took a look at a YouTube video on cleaning the carburetor for reference. Pretty easy to do even if you do not know much about small engines.
I found your video on you tube on how to replace a Honda carburetor. And it gave me enough information on the repair I had to do. Here is a copy of the link. I hope this will help others.
https://www.youtube.com/watch?v=D32zXNYSxmw
Did you find this story helpful?
Thank you for voting!
Pressure washer carburetor was clogged from old fuel.
Shut off fuel valve.
Disconnect fuel supply hose.
Remove air cleaner.
Remove carburetor.
Install new carburetor with gaskets.
Re-install air cleaner.
Connect fuel supply hose.
Started engine within 4 pulls.
1. Removed the air filter
2. Unbolt the carburetor and air cleaner case
3. Removed control linkage
4. Remove carburetor, clean off all gasket residue
5. Install new gasket and carburetor, all of the pieces must be staged on the two carburetor bolts.
1. Remove the air filter cover and the air filter.
2. Unscrew two long bolts that hold filter housing and carburettor to the engine.
3. Catch gaskets and spacers as you withdraw bolts and keep them in the order they came out.
4. Swap fuel line, throttle control rod and spring to the new carburettor.
5. Re-assemble
... Read morein reverse order.
Read less
Did you find this story helpful?
Thank you for voting!
Changed carburetor on a Honda motor for a pressure washer
1. Removed air filter,
2. Removed fuel line.
3. Removed throttle and choke linkages and springs.
4. Removed carburetor.
5. Installed fuel line, linkages and springs, new carburetor and air filter.
6. Started motor which ran smoothly.
I saw your video on you tube on how to replace a Honda carburetor. Thanks, it really helped. If anyone wants to watch it, here is the link.
https://www.youtube.com/watch?v=D32zXNYSxmw
Removed the air cleaner cover
Remove the air cleaner
Clamped the fuel line to the carburetor
Removed the carburetor
Remove the throttle
Install the throttle onto the new carburetor
Reassemble in reverse order, but replace the air filter
Did you find this story helpful?
Thank you for voting!
Engine surged, no pressure from pump, general replacement of worn parts like the wheels
Troubleshooting the most important first step. Get your parts list together and double check you have correct part numbers for your exact piece of equipment. Follow all maintenance manuals or get online for repair videos. Take pictures before during and after of disassembly. Especially parts like the carburetor mounting. Once The gaskets
... Read moreand spacers only go one direction and the manuals don\'t always show which. Once And if you have had it worked on before don\'t be surprised to find things installed wrong. Once you receive parts double check that they are exactly what you need before assembly. Make sure they fit.
I ordered a new pump that fit and was correct BUT the mounting feet where the bolts go were approximately 3/8 in thicker than the original. So I had to get longer bolts. Not a big deal just a little more time spent.
I ordered wheel bushings and new wheels but the new wheels don\'t require the bushings
Keep patience and take your time.
Read less
Did you find this story helpful?
Thank you for voting!
Log Splitter Honda engine was hunting and would run only when the choke was almost fully closed.
After cleaning the old carburetor (hunting not corrected), installed the new carburetor. The engine continued to hunt. After checking all gaskets closely, discovered that the insulator between the carburetor and engine was installed backwards. This allowed air into the engine downstream of the carburetor, making the engine run lean and
... Read more overspeed. Putting the insulator on correctly solved the hunting problem.
Read less
Did you find this story helpful?
Thank you for voting!
< Prev
1
2
3
Next >
Model Cross Reference
This part works with the following models:
ERP Number: ERP9898058
Manufacturer Part Number: 16100-Z0L-023
Engine
- Honda Small Engine Model GCV160ANBL1 Parts
✖
Stock Status
This part is in stock in our warehouse and will ship out within 1 business day of the order being placed.
New stock is on the way! On order parts usually ship within 7 business days.
Item is not in stock and usually ships 10-15 business days from the time you place your order.
This item is no longer being made by the manufacturer, and cannot be added to your shopping cart.
✖
Mail-In Recycling Rebate
Some of the parts we sell are eligible for mail-in rebates since we can recycle them. We will display any applicable rebates in your shopping cart. To redeem your rebate, contact Customer Service after you have received your part.

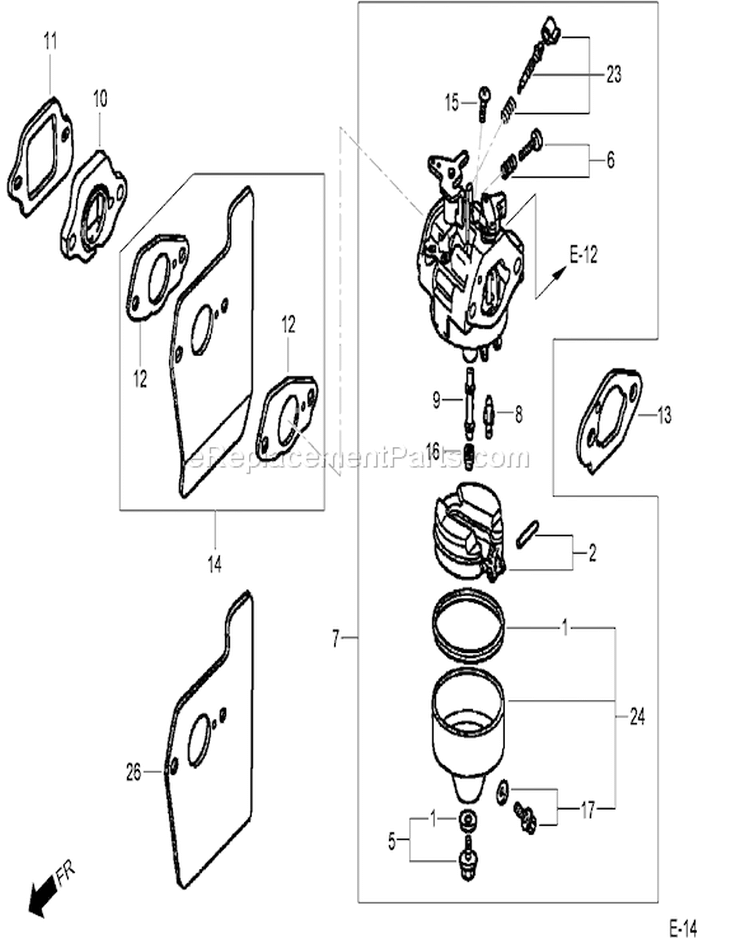

(2009)_WW_5.gif "Part Location Diagram of 16100-Z0L-023 Honda Carburetor")
