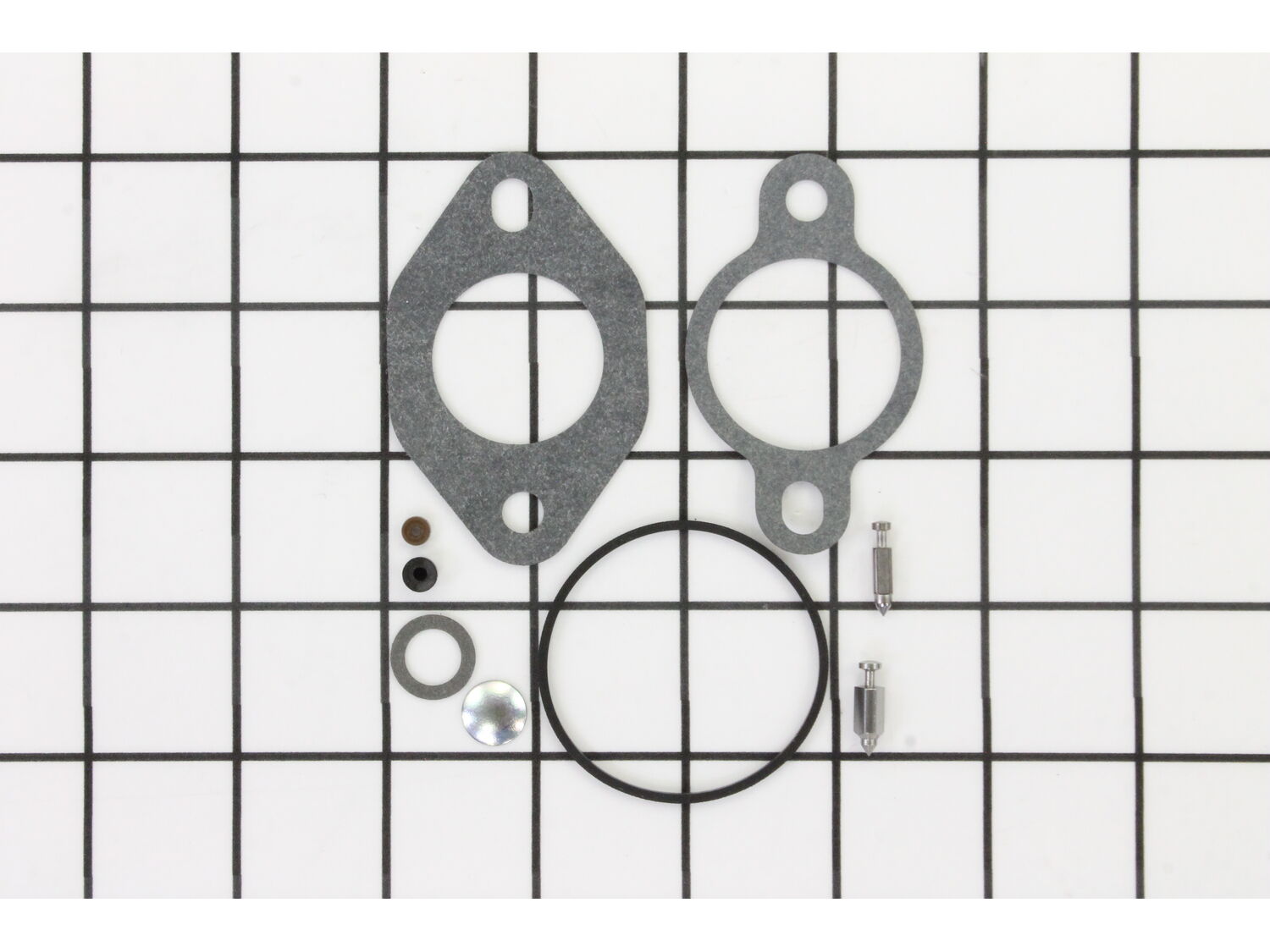

Engine Carburetor Repair Kit 1275701-S

1. Pulled the carburetor.
2. Ordered replacements parts.
a. Carb Repair Kit.
b. Inlet Needle
3. Received parts and installed on my carburetor.
4. Installed carburetor and filter housing back on the Kohler engine.
5. Fueled up the mower and had it running in 35 minutes.
6. No mo ... Read more re fuel leaking from the carburetor.

Cleaned carburetor and replaced float valve

1. Shut off fuel inlet valve.
2. Remove air cleaner housing and fuel hose.
3. Remove carburetor from mounting studs.
4. Disconnect choke rod, throttle rod, ground wire and backfire solenoid wire.
5. Rrmove heat shield and gasket.
6. Clean exterior of carb with carb cleaner.
7. Remove backfire solenoid a ... Read more nd fuel bowl.
8. Remove float and needle valve.
9. Remove old gaskets and clean interior and passage ways with carb cleaner and compressed air.
10. Reassemble carb with new parts in the rebuild kit.
11. Assemble in reverse order and check for leaks.

Removed carb from mower then cleaned outside of carb with carb cleaner. Disassembled carb according to u tube videos. Cleaned inside carb and all fuel ports and blew out with compressed air. Removed old o rings, gaskets, and needle and seat and replaced with new from carb kit. Reassembled and started.mower.

Removed the carb.
Cleaned carb and replaced parts.
Reinstalled carb
