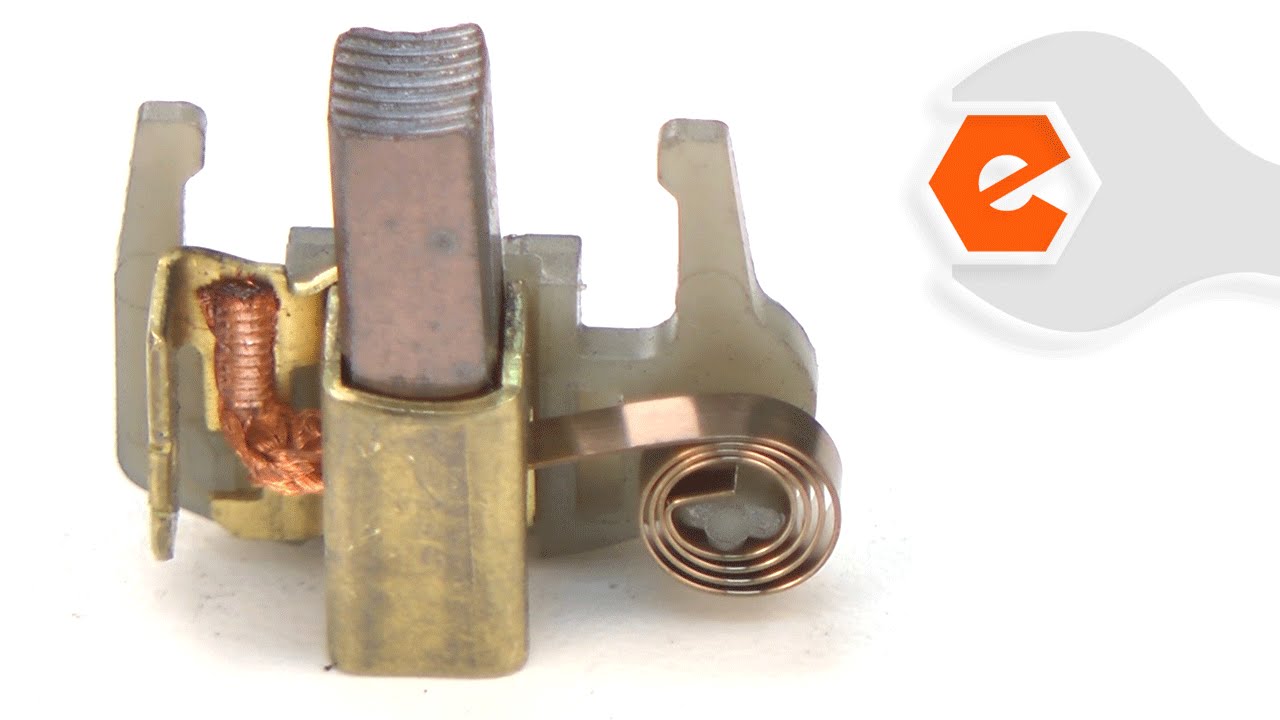

This genuine OEM sourced replacement part is made for use with DeWALT power tools. The purpose of a cabon brush is to conduct the current in an electric motor. Unfortunately, over time it will wear out and it may begin to fail eventually requiring a replacement to ensure peak performance. This high-quality brush box is sold individually, keep in mind it includes the metal holder, the brush and the spring. Please make sure to refer to the appropriate diagrams of your model for the correct location and application of this component. Not sure if your carbon brush is causing your motor problems? See our power tool repair article: <a href="http://www.ereplacementparts.com/whodunnit-the-brushes-the-switch-c-8873_8875.html" target=blank><u>Whodunnit? The brushes or the switch?</u></a>
Troubleshooting
This part works with the following brands:
DeWALT
This part works with the following products:
Hammer Drill
Cordless Drill
Hammer
Boring Machine
Electric Drill
Nibbler & Shears
