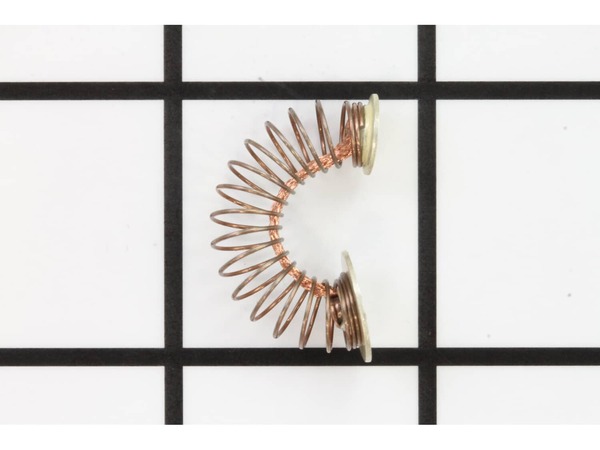

Genuine Milwaukee replacement part, this item is sold individually. This Brush Spring is what keeps the tension on the brush against the armature. It is used in combination with the 22-16-0275 Brush and the 23-44-0190 Brush Retaining Screw. It is used on all the Milwaukee model numbers shown below.
I removed the handle half, then located the brushes and springs. Removed them from the housing and installed the new ones. Replaced handle half. Drill is new again.
Did you find this story helpful?
Thank you for voting!
The sawzall hesitated to start and then when started was weak running.
Remove the brush caps from the saw, then the spring then the worn brushes. Then inserted the new brushes then the springs and screwed the brush caps on.
Removed brush holder cap with flat bladed screwdriver
Removed spring and worn brush
Replaced brush and spring
Threaded retaining cap
Repeated the procedure on the other brush.
Done. Five minute job
Did you find this story helpful?
Thank you for voting!
One side of the motor brush holder had melted and needed replacement.
0. Disassembled my saw and determined the cause of its failure. The plastic on one side of the brush holder, had melted, allowing the copper sleeve and its brush to droop onto the armature contact ring.
1. Spoke to the most personable, knowledgeable and helpful Mary who assisted me with ordering the correct parts. Mary, I thank you
... Read more!
2. After the replacement parts arrived, I took digital pictures of the failed brush assembly\'s wiring.
3. I also labeled which wire colors went to where on the body of the saw.
4. With a modest amount of effort, I was able to remove the brushes, springs and melted holder. This was the most time consuming portion, because I took great care not to damage the armature.
5. I removed the contamination from the armature contact ring with a copper wire wheel attached to my Dremel.
6. Reattached the wiring to the proper connections on the holder, installed the holder. Note that the copper brush holders are movable. Take care to not run them into the armature contact ring!
7. Installed the outer case, brushes and springs.
8. Holding my breath, I plugged in the saw and pressed the trigger and was rewarded with its normal purring sound and reciprocating blade holder!
Read less
Did you find this story helpful?
Thank you for voting!
< Prev
1
Next >
Model Cross Reference
This part works with the following models:
ERP Number: ERP10123375
Manufacturer Part Number: 23-52-0160
This part is in stock in our warehouse and will ship out within 1 business day of the order being placed.
New stock is on the way! On order parts usually ship within 7 business days.
Item is not in stock and usually ships 10-15 business days from the time you place your order.
This item is no longer being made by the manufacturer, and cannot be added to your shopping cart.
✖
Mail-In Recycling Rebate
Some of the parts we sell are eligible for mail-in rebates since we can recycle them. We will display any applicable rebates in your shopping cart. To redeem your rebate, contact Customer Service after you have received your part.

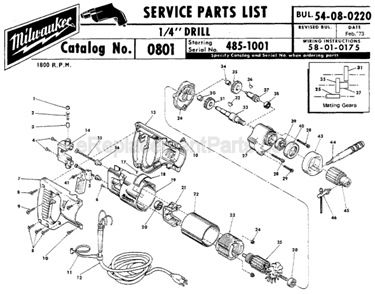

_WW_1.gif "Part Location Diagram of 23-52-0160 Milwaukee Brush Spring")
