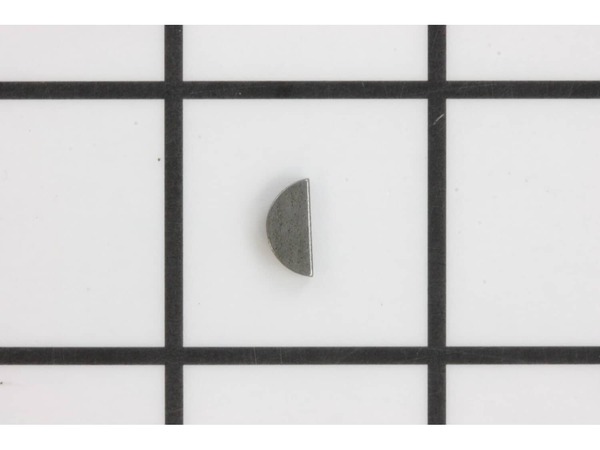

10118093-1-M-Milwaukee-06-42-1200-Woodruff Key
Part Location Diagram of 06-42-1200 Milwaukee Woodruff Key
See part 40 in the diagram
10118093-1-S-Milwaukee-06-42-1200-Woodruff Key 360 view
( Grid squares measure 1x1 inch )
10118093-1-S-Milwaukee-06-42-1200-Woodruff Key 10118093-2-S-Milwaukee-06-42-1200-Woodruff Key 10118093-3-S-Milwaukee-06-42-1200-Woodruff Key 10118093-1-S-Milwaukee-06-42-1200-Woodruff Key 360 view
Part Location Diagram of 06-42-1200 Milwaukee Woodruff Key

Woodruff Key 06-42-1200

Manufactured by:
Milwaukee
ERP Number:
ERP10118093
Part Number:
06-42-1200
Original Equipment Manufacturer ?
  Works with your model  5223!
$6.15
★★★★★
★★★★★
1 Review
In Stock
Delivers in 3-5 Business Days!

A Bit Difficult

30 - 60 mins

(3 rated repairs) ?
  Works with your model   5223!

Jump to:

Description Frequently Purchased Together Troubleshooting Reviews Questions & Answers Repair Instructions Model Cross Reference

Product Description

?

A genuine replacement part that is supplied by original equipment manufacturer for use with Milwaukee power tools. This woodruff key helps to secure the pinion gears to the spindle, for correct location and use of this item make sure to check your models parts diagrams. Please note this durable metal hardware is sold individually.

Frequently Purchased Together

?
Socket Head Screw
★★★★★
★★★★★
(14)
$5.16
In Stock
Minimum Quantity of 2 required
Reversing Spindle
$13.52
In Stock
Intermediate Shaft
$36.37
Special Order

Troubleshooting

This part works with the following brands:
  • Milwaukee
This part works with the following products:
  • Electric Drill
  • Reciprocating Saw
  • Band Saw
  • Saw
  • Demolition Hammer
  • Hammer Drill
  • Sander Polisher
  • Cordless Drill
  • Sander Grinder
  • Drill Press
★

Customer Part Reviews

?
5.0
Average Rating (out of 5):
★★★★★
★★★★★
(1 Review)
Click to filter by ratings:
  • 5 stars
    1
  • 4 stars
    0
  • 3 stars
    0
  • 2 stars
    0
  • 1 star
    0
  • 1
Sort by:
Sorry, we couldn't find any existing reviews that matched. Try using some different or simpler keywords.
★★★★★
★★★★★
Worked perfectly.
Part worked perfectly. Fixed my right angle attachment for my Milwaukee drill. Easy repair.
Guest - November 3, 2019
Verified Purchase

Questions & Answers

?

Our customer Service team is at the ready daily to answer your part and product questions.

We're sorry, but our Q&A experts are temporarily unavailable.
Please check back later if you still haven't found the answer you need.

Ask our Team

We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.

Does this fit my product?

Customer Repair Instructions

All our customer repair instructions are solicited directly from other customers just like you who have purchased and replaced this exact part.

A Bit Difficult

30 - 60 mins

(3 rated repairs) ?
  • 1
Sort by:
Sorry, we couldn't find any existing installation instruction that matched.

Reversing spindle snapped.

John from Waretown, New Jersey

1 person found this instruction helpful.
Difficulty Level:
A Bit Difficult
Total Repair Time:
30 - 60 mins
Tools:
Pliers, Screw drivers
Parts Used:
38-50-2803, 34-80-2900, 06-42-1200
Removed the drill chuck, the spindle retaining ring, the broken spindle, the bearing and the woodruff key. Replaced all parts with the new and reassembled.
Did you find this story helpful?
Thank you for voting!

Spindle was broken off

Kelly from Dry Fork, Virginia

1 person found this instruction helpful.
Difficulty Level:
Easy
Total Repair Time:
30 - 60 mins
Tools:
Pliers, Screw drivers
Parts Used:
38-50-2803, 06-42-1200
Take the spindle housing off of drill. Remove chuck from broken spindle, remove left hand screw first then chuck. Remove retaining clip with screwdriver. Remove spindle. Place spindle in arbor press and separate from bearing. Replace new spindle in reverse order. Screw on chuck and replace screw inside of chuck (left hand thread).
Did you find this story helpful?
Thank you for voting!

reversing spindle low speed broke off while drilling.

James from MONROE, Michigan

0 of 1 people found this instruction helpful.
Difficulty Level:
A Bit Difficult
Total Repair Time:
30 - 60 mins
Tools:
Wrench (Adjustable)
Parts Used:
06-42-1200
Removed old broken parts and then used a bearing puller to remove gear and bearing. Then used bearing puller to pull bearing and gear on to new shaft. put all the parts back in housing and put on retaining ring. Tested and ready to go.
Did you find this story helpful?
Thank you for voting!
  • 1

Model Cross Reference

This part works with the following models:
ERP Number: ERP10118093
Manufacturer Part Number: 06-42-1200
Brand Model Number Description
Milwaukee 0104-1 Electric Drill - Electric Drill / Driver
Milwaukee 0106-3 Electric Drill - Electric Drill / Driver
Milwaukee 0124 Electric Drill - Milwaukee 0124-(603-74912) Parts
Milwaukee 0124-1 Electric Drill - Electric Drill / Driver
Milwaukee 0224-1 Electric Drill - Electric Drill / Driver
Milwaukee 0225-1 Electric Drill - Electric Drill / Driver
Milwaukee 0226-3 Electric Drill - Electric Drill / Driver
Milwaukee 0234-1 Electric Drill - Electric Drill / Driver
Milwaukee 0234-75 Electric Drill - Electric Drill / Driver
Milwaukee 0235-1 Electric Drill - Electric Drill / Driver
Milwaukee 0236-3 Electric Drill - Electric Drill / Driver
Milwaukee 0237-1 Electric Drill - Electric Drill / Driver
Milwaukee 0238-1 Electric Drill - Electric Drill / Driver
Milwaukee 0238-3 Electric Drill - Electric Drill / Driver
Milwaukee 0238-4 Electric Drill - Electric Drill / Driver
Milwaukee 0238-50 Electric Drill - Electric Drill / Driver
Milwaukee 0238-55 Electric Drill - Electric Drill / Driver
Milwaukee 0239-1 Electric Drill - Electric Drill / Driver
Milwaukee 0239-4 Electric Drill - Electric Drill / Driver
Milwaukee 0239-50 Electric Drill - Electric Drill / Driver
Milwaukee 0244-1 Electric Drill - Electric Drill / Driver
Milwaukee 0430-1 Cordless Drill - Cordless Drill / Driver
Milwaukee 0431-4 Cordless Drill - Cordless Drill / Driver
Milwaukee 0800 Electric Drill - Electric Drill / Driver
Milwaukee 0801 Electric Drill - Electric Drill / Driver
Milwaukee 0805 Electric Drill - Electric Drill / Driver
Milwaukee 0850 Electric Drill - 5/16&#34 Electric Drill
Milwaukee 0870 Electric Drill - Electric Drill
Milwaukee 0871 Electric Drill - 3/8&#34 Drill
Milwaukee 0875 Electric Drill - Double Insulated Drill
